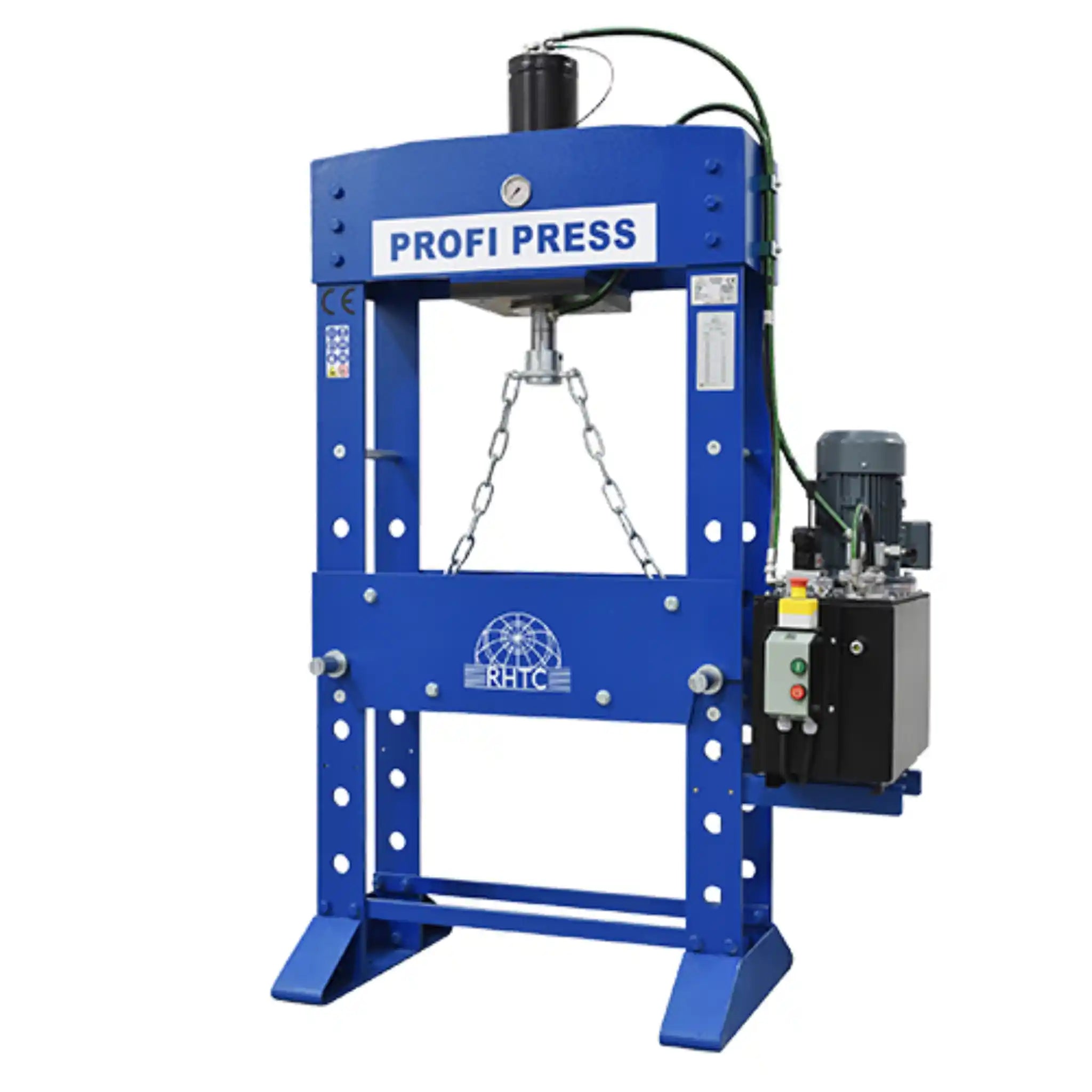

Profi Press 60 Ton M/H-M/C-2 Hydraulic Press
The Profi Press 60 Ton M/H-M/C-2 is a professional motorised hydraulic workshop press that delivers 60 tons of pressing force with precision control, making it suitable for bearing work, metal forming, straightening, and general workshop tasks.
This EU manufactured press features a moveable cylinder design that travels left to right across the 750mm working width, allowing you to position the pressing force exactly where you need it without repositioning your workpiece. You can operate it using the joystick for controlled pressing operations or switch to the hand pump when you need ultra precise positioning for delicate tasks. The dual speed system gives you fast approach speeds to position your work quickly, then switch to slower working speed for controlled pressing.
The heavy duty working bed offers six adjustable height positions using the included chain system that works together with the hydraulic ram, letting you adapt quickly to different component sizes throughout your working day. With integrated pressure regulation and a clearly visible manometer display on the front of the machine, you maintain complete control over pressing force during every operation. This press is CE certified, manufactured in the EU, and comes with a two year warranty.
Applications
- Bearing installation and removal: where precise force control prevents damage to expensive components in automotive, industrial machinery, and agricultural equipment
- Metal forming and bending: for bracket fabrication, profile shaping, and custom metalwork projects
- Straightening warped components: including shafts, frames, plates, and structural elements to restore parts to specification
- Assembly and disassembly work: separating rusted or seized parts, pressing bushings, and installing sleeves
- Punching and pressing operations: for creating holes and forming sheet metal in steel, aluminium, and other metals
- General workshop tasks: including compressing materials, holding welding projects steady, riveting, and flattening damaged parts
Key Features & Benefits
- Moveable cylinder design: allows the pressing head to travel left and right across the working width, so you can position your workpiece once and move the cylinder to exactly where you need to apply force
- Dual-speed operation: provides fast 9.5mm/sec approach speed to position work quickly, then 2.87mm/sec working speed for controlled pressing, plus 12mm/sec return speed for efficient cycle times

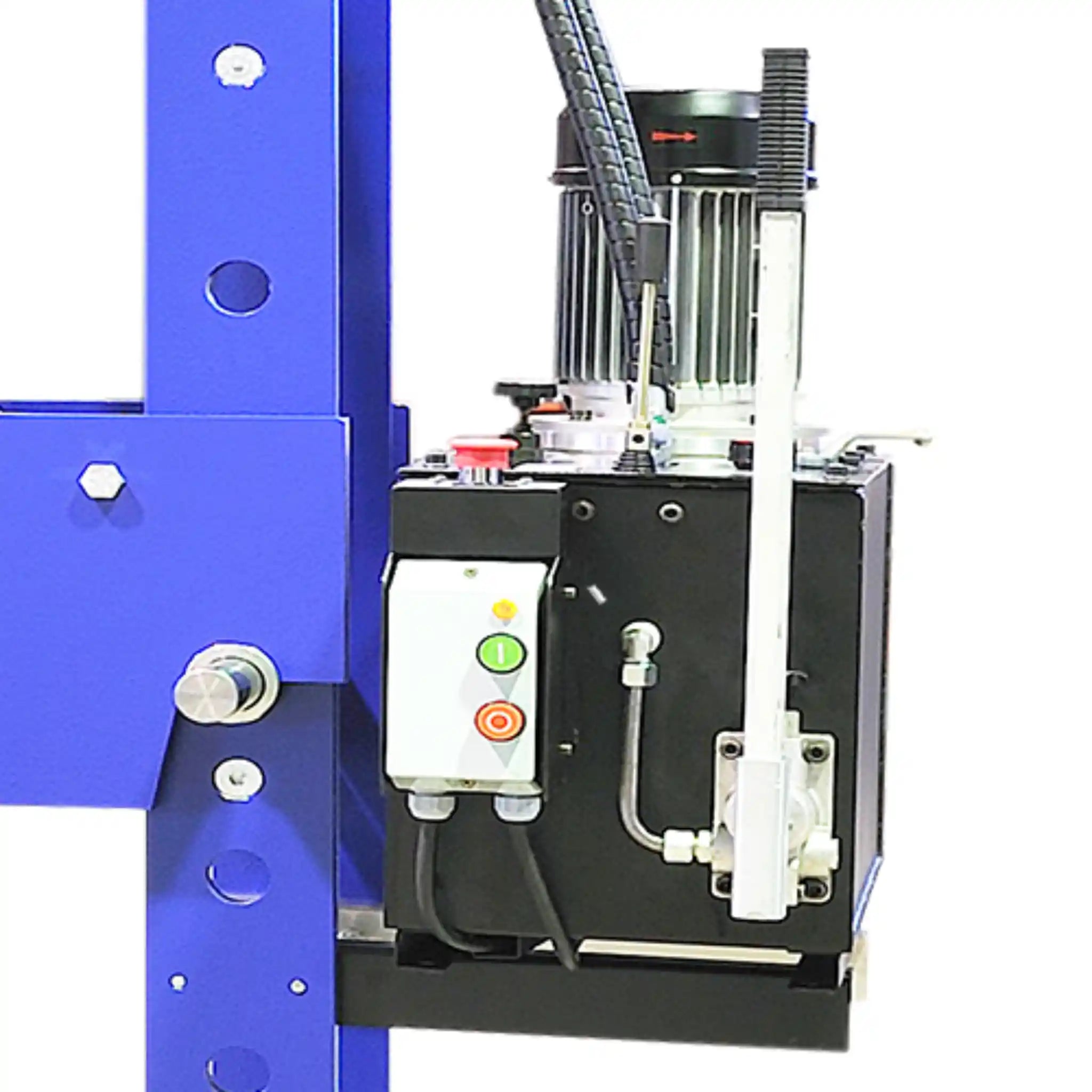

- Joystick and hand pump control: gives you two operating methods depending on your needs, with the joystick offering convenient powered control and the hand pump delivering precision for delicate pressing tasks
- Six-position adjustable working bed: adapts to components of different heights using the included chain system that works with the hydraulic ram, eliminating the need for makeshift supports
- Integrated pressure regulation with manometer: clearly displays pressing force on the front of the machine, preventing component damage and giving you repeatable results for identical jobs

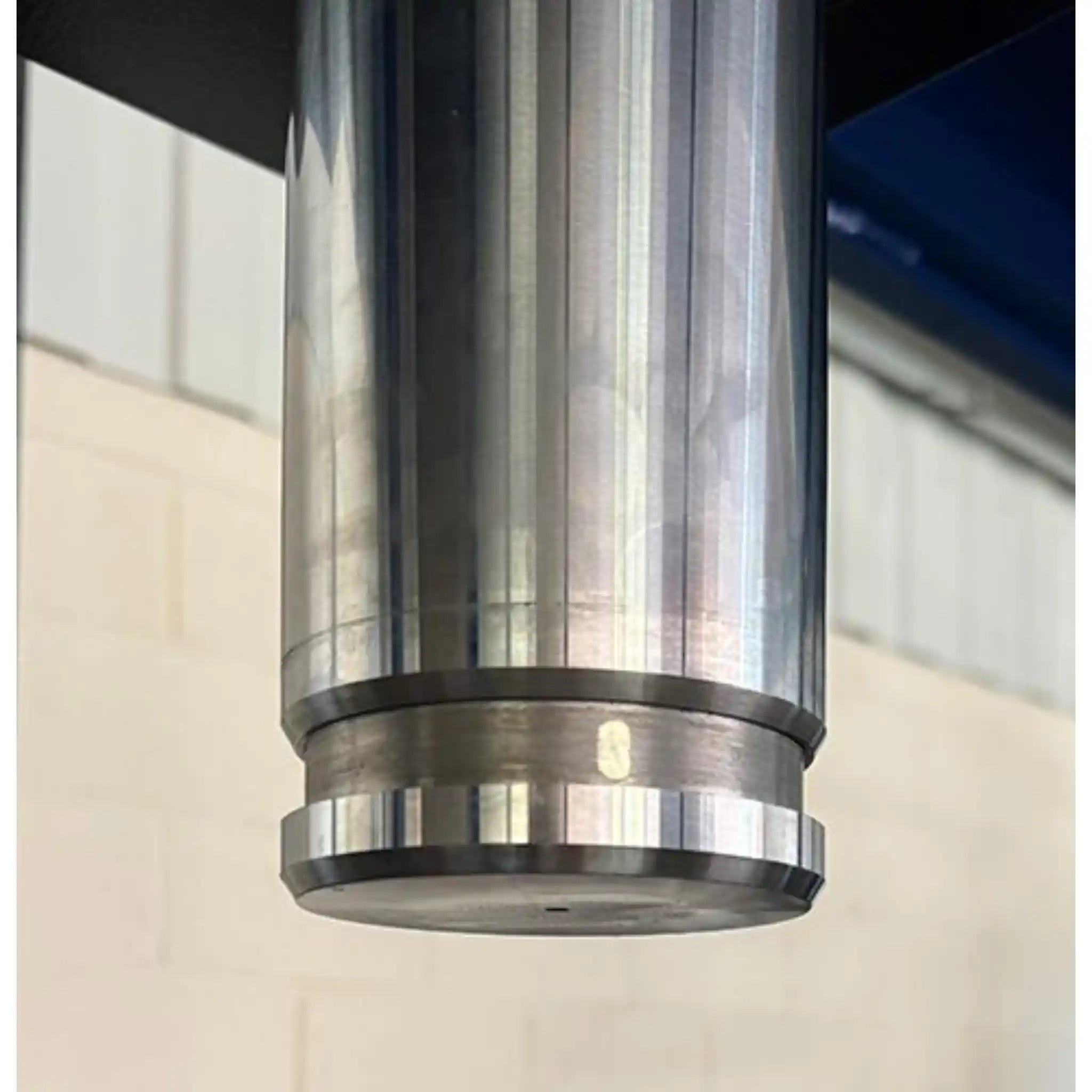

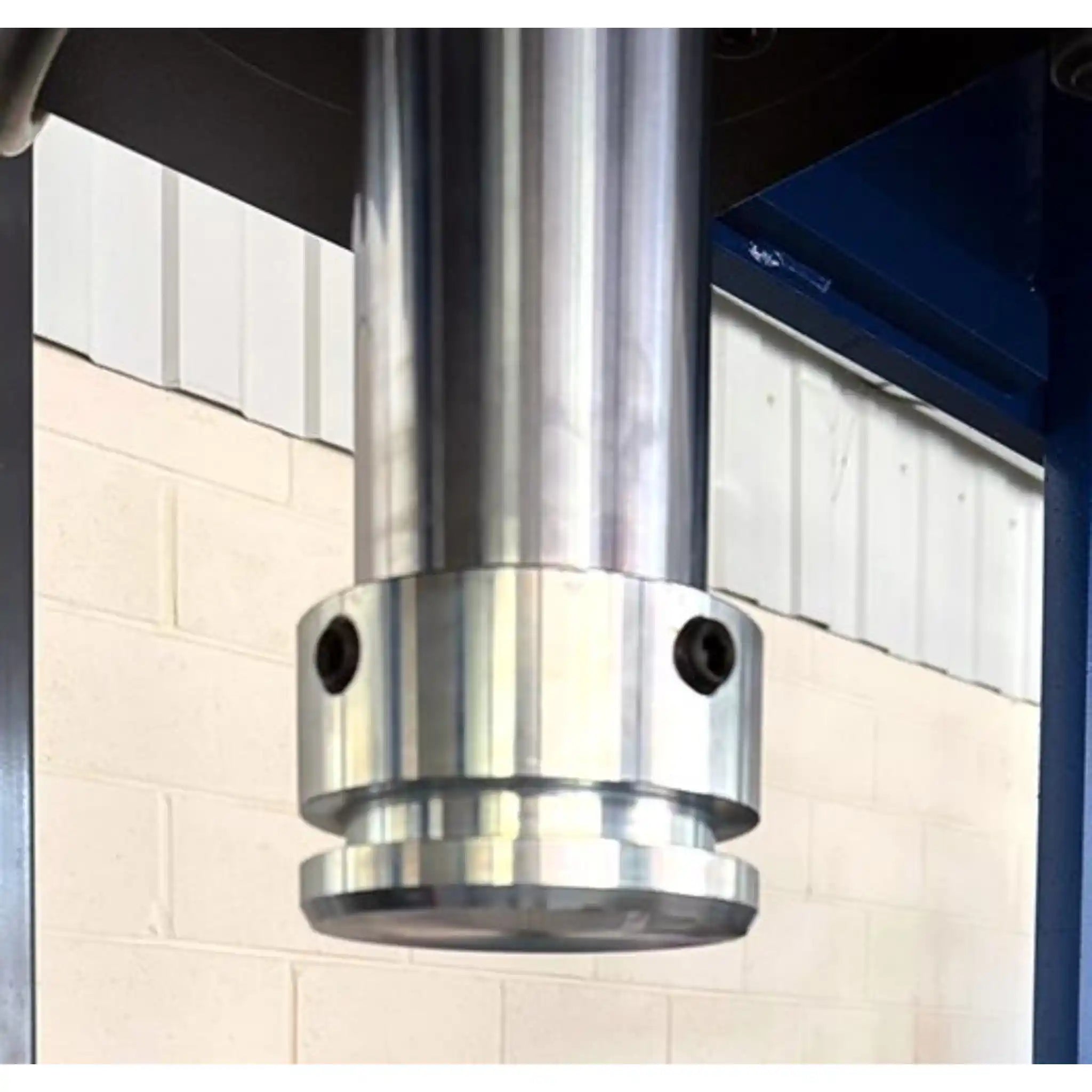

- Double-acting hydraulic cylinder: provides both pressing and return strokes under power for faster cycle times compared to gravity-return designs
- 380mm piston stroke: offers generous travel distance for deep pressing operations and accommodates larger components
- CE certified EU manufacture: ensures compliance with strict European safety and quality standards, backed by a two-year manufacturer warranty
What's Included
- 60 Ton M/H-M/C-2 hydraulic press with moveable cylinder

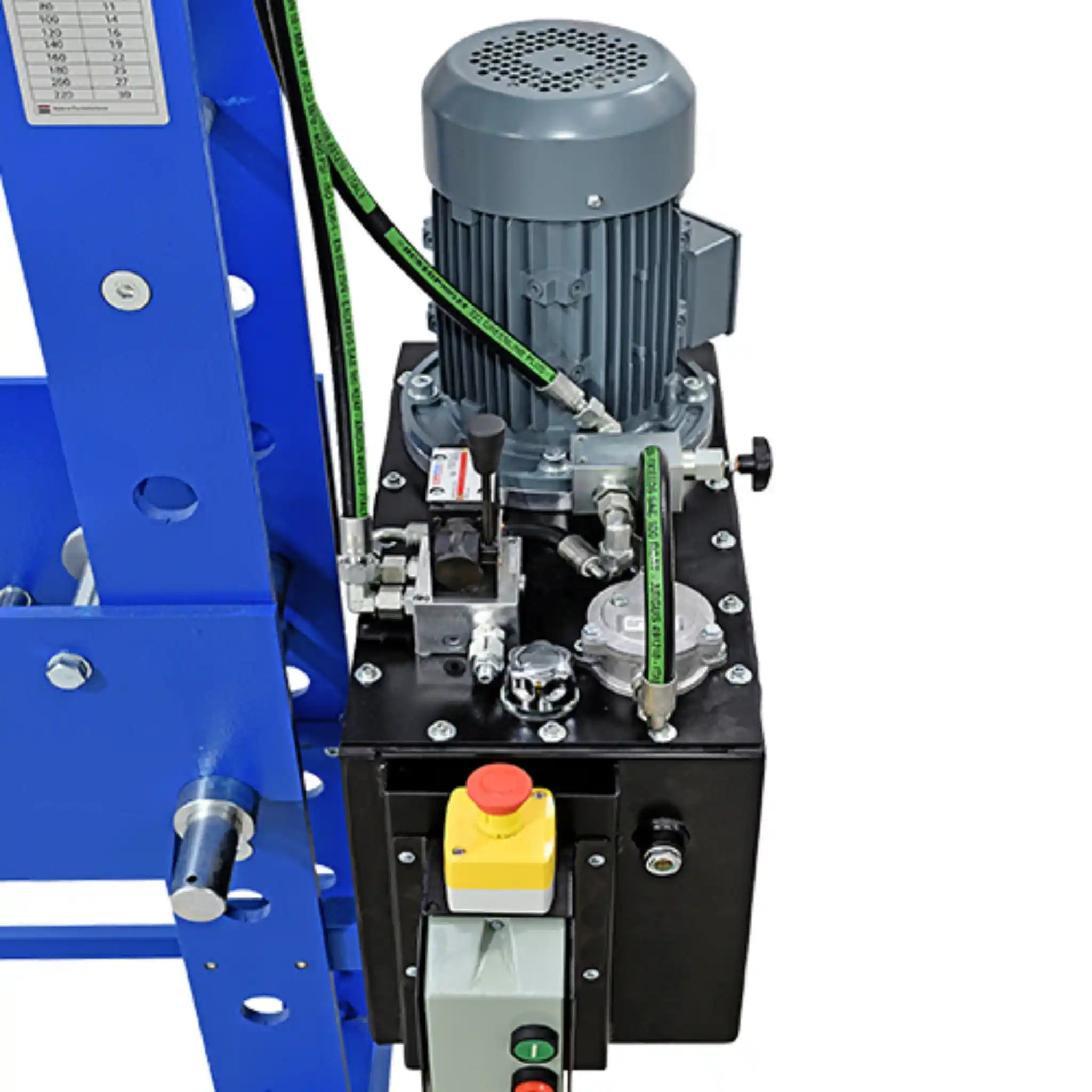

- Motorised hydraulic power unit with dual-speed control
- Joystick control for piston operation
- Hand pump for manual precision work
- Chain system for working bed height adjustment
- Pressure regulation valve and manometer gauge
- CE certification
- Two-year manufacturer warranty
Profi Press 60 Ton M/H-M/C-2 Specifications
| Pressure Force | 60 tons (600 kN) |
|---|---|
| Working Width | 750 mm |
| Piston Stroke | 380 mm |
| Maximum Pressure | 259 bar |
| Working Speed | 2.87 mm/sec |
Profi Press 60 Ton M/H-M/C-2 Manuals & Downloads
Frequently Asked Questions
What power supply does this press require?
This press operates on 400V three phase electrical supply, which is standard in industrial and workshop environments across the UK and EU. The 2.2kW motor provides power for the dual-speed hydraulic system. You need to ensure your workshop has appropriate three phase power before installation.
What's the difference between the M/H2 and M/HM/C2 models?
The M/H-2 model has a fixed cylinder, while the M/H-M/C-2 model features a moveable cylinder that can travel left and right across the working width. Both models offer the same pressing capacity, motorised operation, hand pump, and dual speeds, but the moveable cylinder version gives you added flexibility for offset pressing operations and working with larger components without repositioning the workpiece.
How does the moveable cylinder work?
The moveable cylinder on the M/H-M/C-2 model can be positioned left and right across the 750mm working width. This allows you to place your workpiece on the bed and move the pressing head to the exact position where you need to apply force, which is particularly useful for offset pressing operations and when working with larger components that would be difficult to reposition.
How do you adjust the working bed height?
The heavy-duty working bed has six adjustable height positions. You adjust the bed using the included chain system that works together with the hydraulic ram, making height changes quick and straightforward throughout your working day. This system eliminates manual lifting of the heavy bed.
What optional accessories are available?

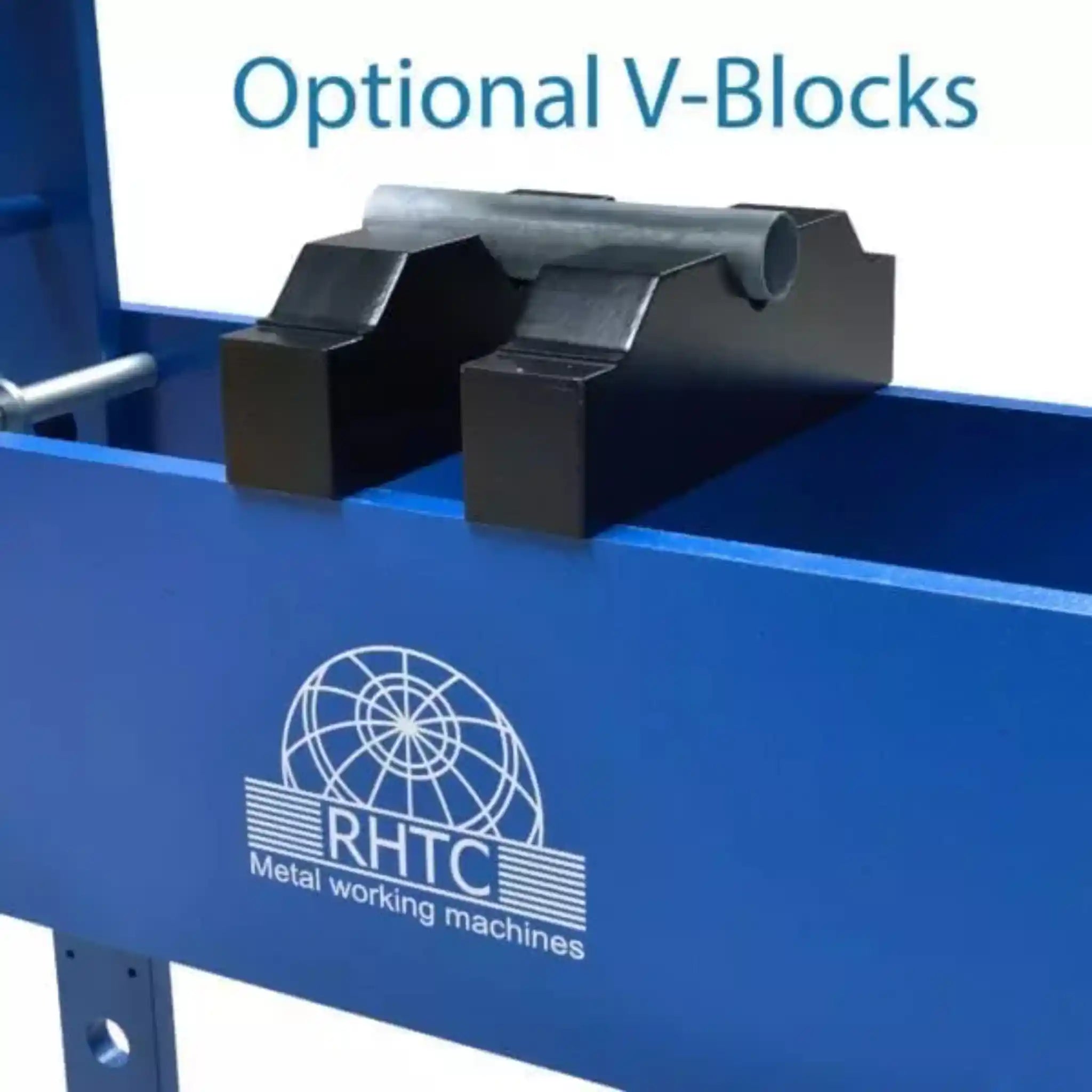

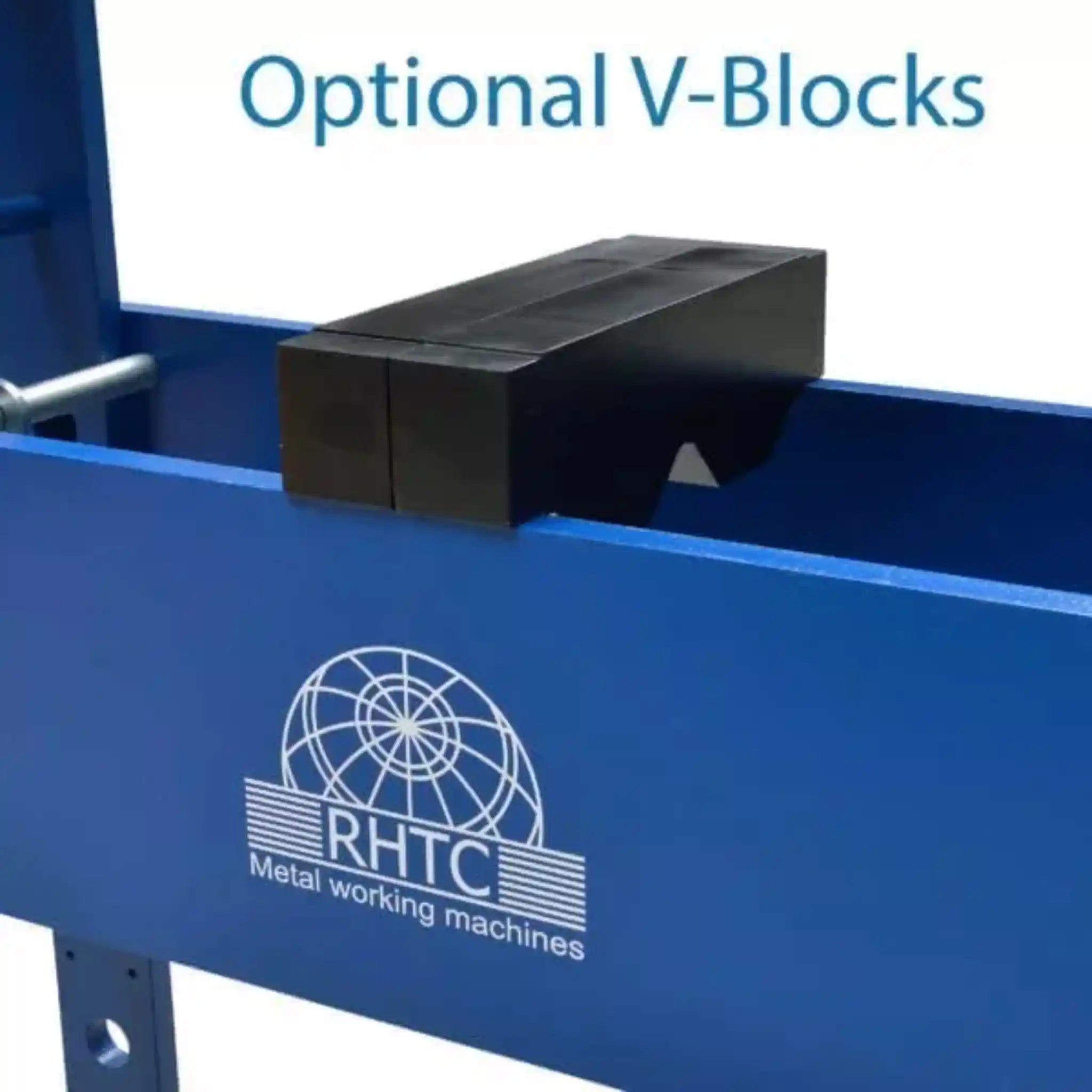

Optional accessories include foot pedals or hand remote controllers for operation, V-block sets for extra component support, mandrel sets with various diameter pressing pins, digital stroke readouts for precise measurement, table plates for additional work surface, and customizable protection screens for enhanced safety. These accessories can be added based on your specific workshop requirements.
