Profi Press 60 Ton M/H-2 Hydraulic Press

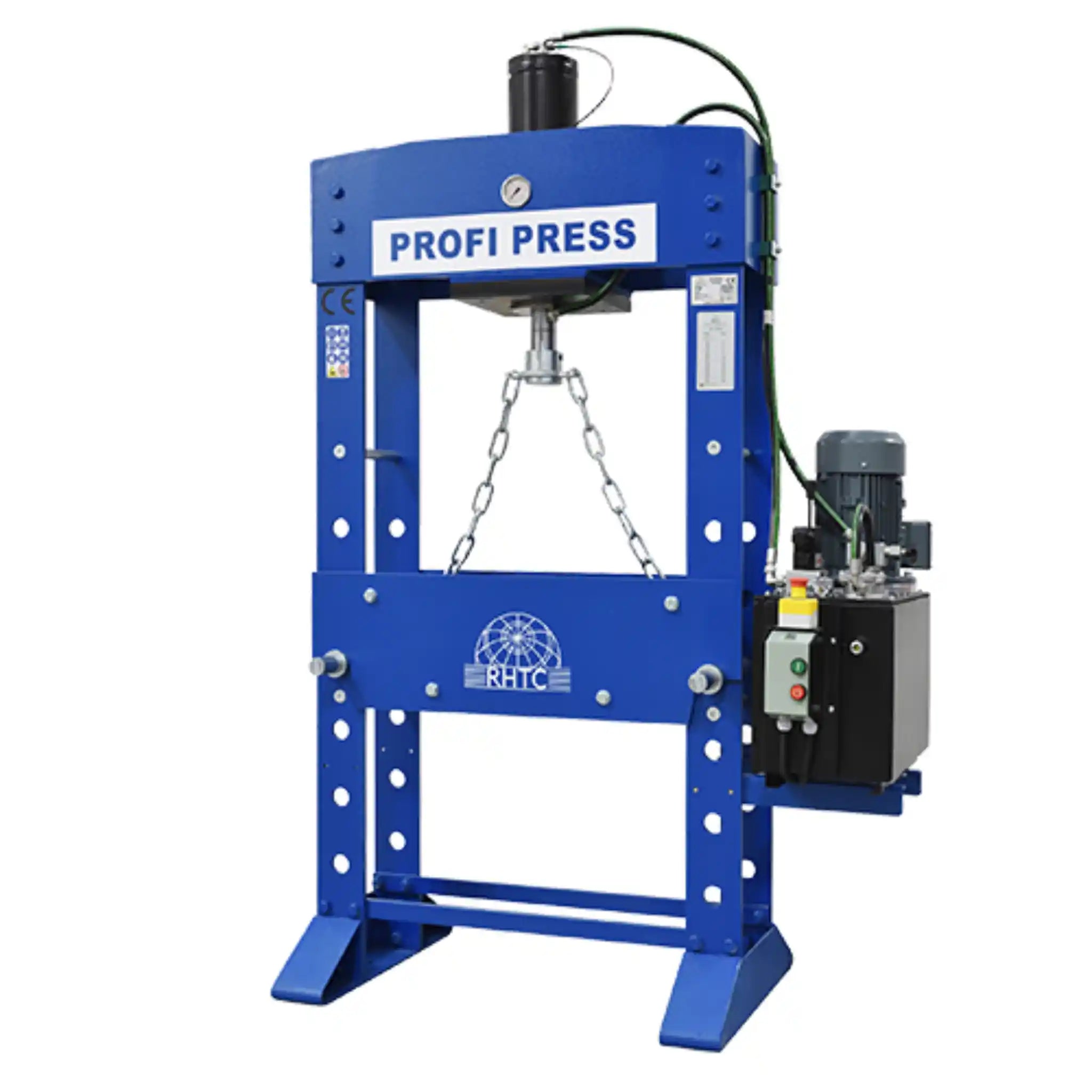

The Profi Press 60 Ton M/H-2 is a motorised hydraulic workshop press that delivers 600 kN of pressing force with precise dual speed control, making it suitable for both heavy duty metal forming and precision pressing tasks in professional workshop environments.
This EU manufactured workshop press features a fixed cylinder with a motorised height adjustable working table. You get dual speed operation controlled via a joystick for precise piston movement, plus an integrated manual hand pump for precision pressing jobs where you need complete control. The working table features six adjustable height positions using a chain system that works with the hydraulic ram, allowing you to adapt quickly to different workpiece sizes.
The press includes an integrated pressure manometer that's clearly visible at the front of the machine, giving you constant monitoring of your pressing operations. The double acting hydraulic cylinder provides reliable force throughout the full 380mm stroke, while the 750mm working width accommodates larger components. Whether you're running a fabrication shop, maintaining industrial equipment, or working in a manufacturing environment, this press provides the professional capabilities you need for metalwork bending, bearing pressing, straightening bent parts, punching operations, and various assembly tasks.
Built to CE standards with a 2 year warranty, this press is manufactured in the EU. The robust 540kg construction ensures stability during pressing operations, while the dual speed hydraulic system provides fast 9.5 mm/sec approach speed and controlled 2.87 mm/sec working speed.
Applications
- Bearing installation and removal: Press bearings into housings, hubs, and shafts with precise control using the manual hand pump feature for delicate operations
- Metal bending and forming: Shape brackets, frames, and structural components by bending sheet metal and plate to specific angles for fabrication projects
- Straightening bent or warped parts: Apply controlled pressure to restore bent shafts, twisted frames, and distorted metal components to proper alignment
- Pressing bushings and interference-fit components: Install or remove bushings, sleeves, and press-fit components in automotive, agricultural, and industrial machinery repair
- Punching and forming operations: Work with appropriate tooling to punch holes, create indentations, or form shapes in metal sheets and plates
- Assembly and disassembly tasks: Separate seized components, compress springs, rivet parts together, and perform various pressing operations that require controlled force
Key Features & Benefits
- Dual speed hydraulic system with joystick control: Fast 9.5 mm/sec approach speed positions the piston quickly, then 2.87 mm/sec working speed provides controlled pressing. The joystick gives you precise piston control, so you can stop exactly when needed.
- Integrated manual hand pump: The built-in hand pump lets you perform precision pressing tasks with complete manual control, ideal for delicate operations where you need to feel the resistance and advance incrementally.

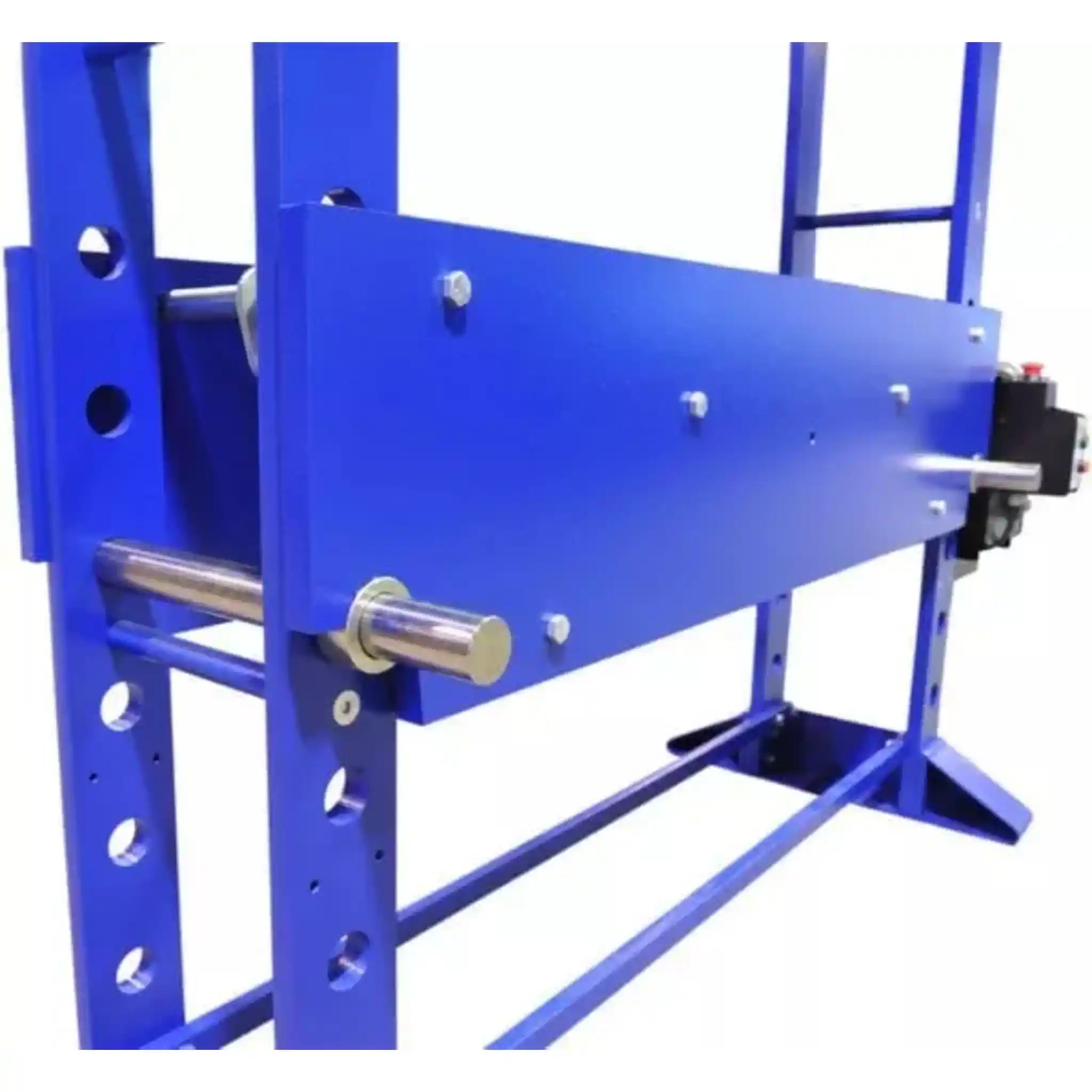

- Motorised height adjustable working table with six positions: The working table adjusts to six different height settings using the provided chain system that works with the hydraulic ram. This motorised adjustment saves you time between different workpiece heights without manual struggling.
- Integrated pressure regulation and manometer: The pressure gauge is clearly displayed at the front of the machine for easy monitoring during pressing operations. Pressure regulation allows you to control the force applied to your workpieces.
- 750mm working width: The generous working area accommodates larger components and assemblies, expanding the range of jobs you can handle in your workshop.

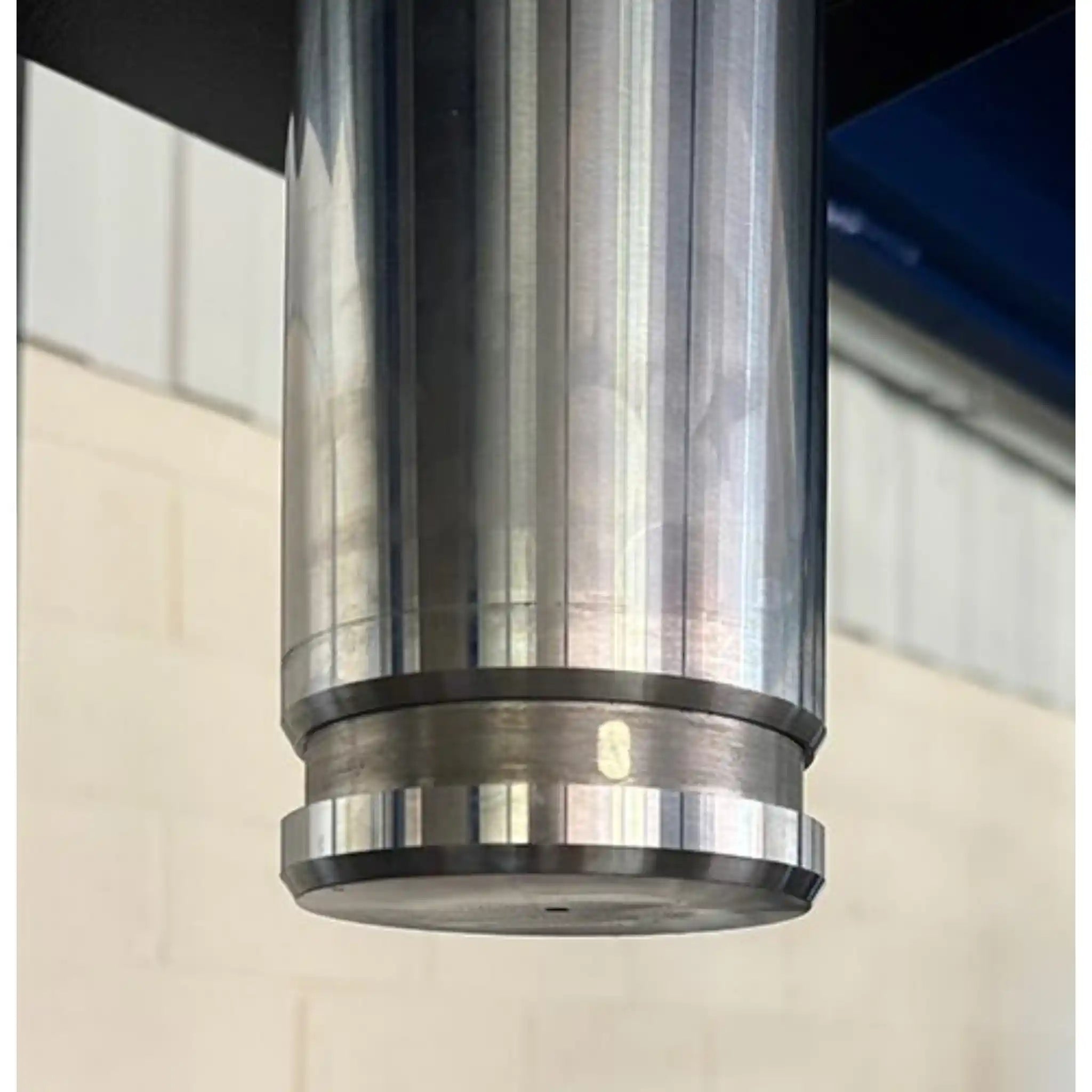

- Double-acting hydraulic cylinder: The quality dual-acting cylinder provides smooth, consistent force throughout the entire stroke in both directions. This delivers better performance and faster return speed (12 mm/sec) compared to single-acting cylinders.

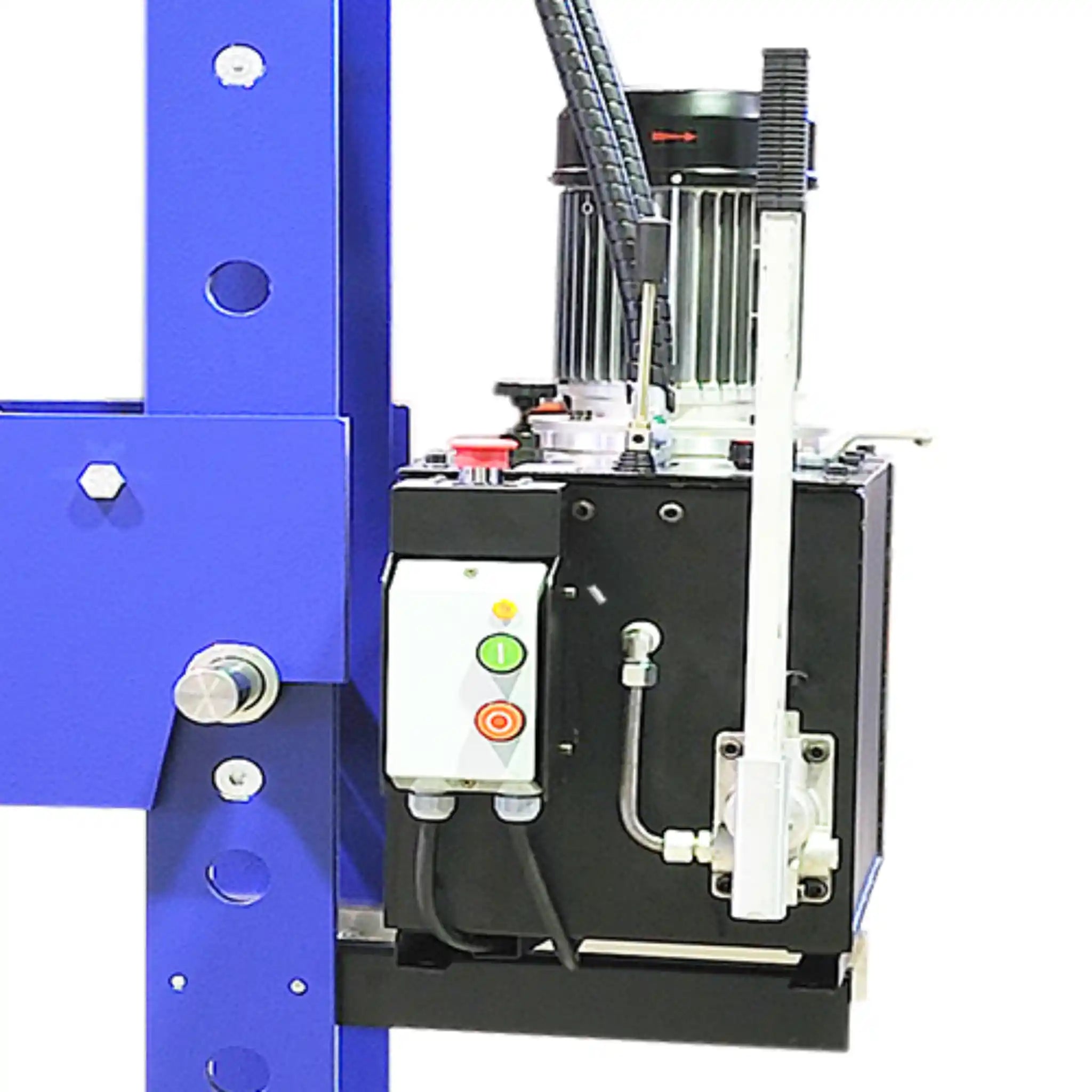

- Easy to use speed control: The 2-speed handle is located directly on the hydraulic control unit, making it simple to switch between approach and working speeds during operation.
- EU construction with CE certification: Manufactured in the European Union to rigorous safety and quality standards, backed by a 2-year warranty. The substantial 540kg weight provides the stability needed for reliable pressing operations.
What's Included
- 60 Ton M/H-2 hydraulic workshop press with fixed cylinder

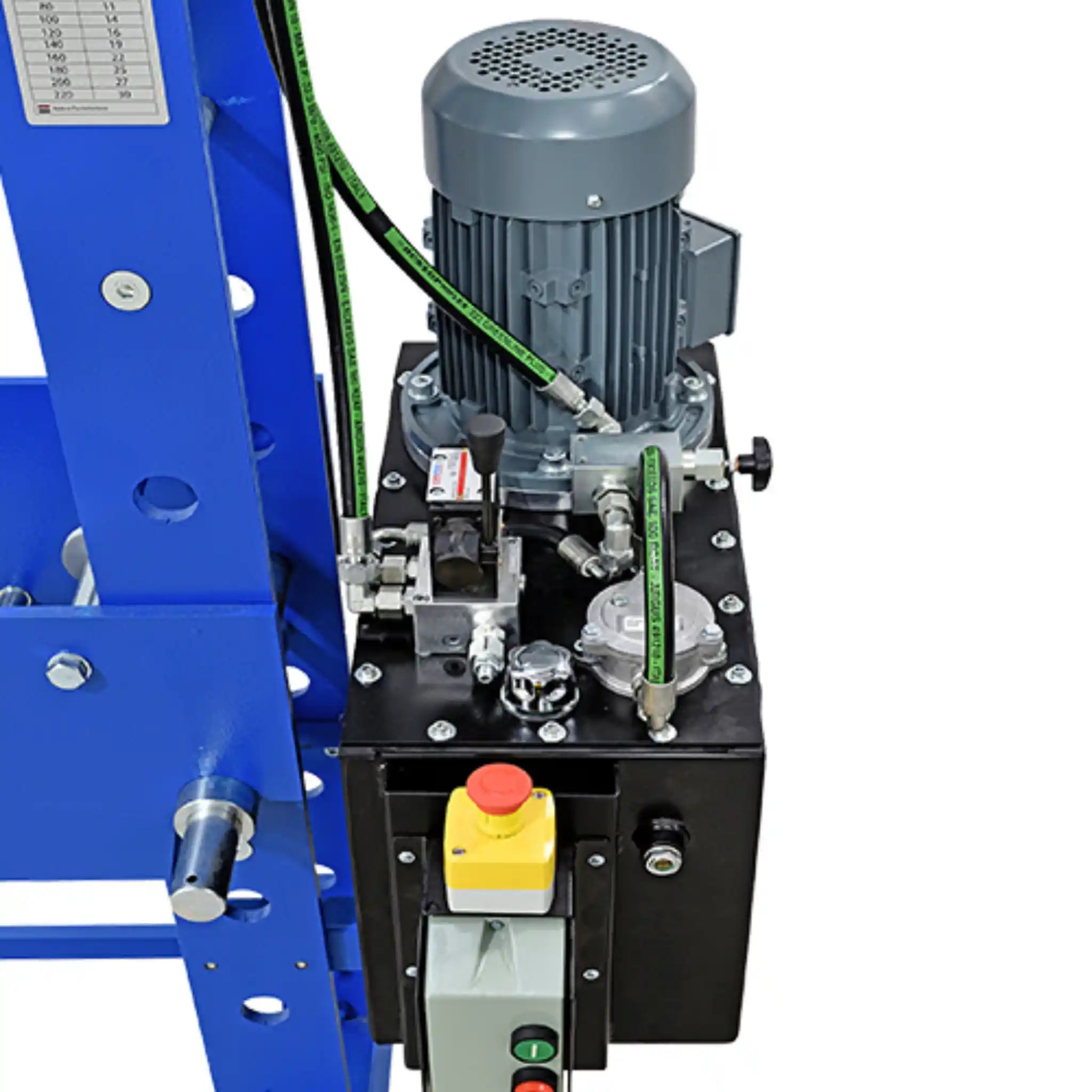

- Motorised hydraulic pump unit (2.2 kW, 400V 3-phase)
- Integrated joystick control system
- Integrated manual hand pump for precision pressing
- Motorised height-adjustable working table with six position settings
- Integrated pressure manometer (pressure gauge)
- Integrated pressure regulation system
- Hydraulic control unit with 2-speed handle
Profi Press 60 Ton M/H-2 Specifications
| Pressing Force | 60 tons (600 kN) |
|---|---|
| Maximum Pressure | 259 bar |
| Piston Stroke | 380 mm |
| Working Width | 750 mm |
| Working Speed | 2.87 mm/sec |
Profi Press 60 Ton M/H-2 Manuals & Downloads
Frequently Asked Questions
What power supply do I need for this press?
You'll need a 400V three phase electrical supply with 50 or 60 Hz frequency. The 2.2 kW motor requires standard industrial three-phase power. Make sure your electrical installation meets local regulations and has appropriate circuit protection for this equipment.
What's the difference between using the joystick control and the hand pump?
The joystick controls the motorised hydraulic system, giving you precise control of the piston movement with the option of two speeds (fast approach and slow working speed). The hand pump is integrated for manual pressing operations where you need complete tactile control, particularly useful for precision work like bearing installation where you want to feel the resistance as you press.
How does the motorised table adjustment work?
The working table has six height positions that you can adjust using the provided chain system. This chain system works in conjunction with the hydraulic ram, making it quick and easy to reposition the heavy working table without manual lifting or struggling with mechanical adjustments.
Are Vblocks and pressing tools included with the press?
No, V-blocks, mandrel sets, and specialised pressing tools are optional accessories available separately. The press comes as a complete ready-to-use unit with all the core operating components including the hydraulic system, joystick control, hand pump, adjustable working table with chain system, and integrated pressure controls. You can add accessories based on your specific application needs.
What does the doubleacting cylinder mean for my work?
A double-acting cylinder uses hydraulic pressure to move the piston in both directions (extending and retracting), rather than relying on gravity or springs for the return stroke. This gives you faster cycle times with a 12 mm/sec return speed and more consistent, controlled operation throughout your pressing tasks.
Can I control the maximum pressure to avoid damaging delicate components?
Yes, the press is equipped with integrated pressure regulation that allows you to control and limit the pressure applied during operations. Combined with the clearly visible manometer at the front of the machine, you can monitor and adjust the force to suit different materials and components, protecting delicate parts from excessive pressure.
