Profi Press 50 Ton Manual Press
Excl. VAT:
Incl. VAT:
Unsure if this is the right product for you?
Call Us Now - 020 4592 3439
Profi Press 50 Ton HF-2 Manual Hydraulic Press
The Profi Press 50 Ton HF 2 is a manual hydraulic workshop press that delivers 490.5 kN of pressing force for demanding metalworking and assembly tasks.
This manual hydraulic press gives you the flexibility to operate it by hand or by foot, with an interchangeable hand pump and foot pump system. The press features a movable cylinder design with an automatic piston return, making your work more efficient by eliminating manual reset between operations. You can easily adjust the work table height using the integrated winch system, allowing you to work with different material and product sizes without hassle. The chrome piston provides smooth, reliable operation, while the integrated manometer lets you monitor the pressure you're applying. The press comes standard with a set of V-blocks for extra material support, giving you what you need to start pressing work straight away.
Manufactured in Europe to CE standards, this workshop press weighs 340 kg and offers a generous 750mm working width. The system holds 2.5 litres of hydraulic fluid and delivers up to 399.5 bar of maximum pressure with a 160mm cylinder stroke.
Applications
- Metalwork bending and folding operations: This 50-ton workshop press is suitable for a wide range of pressing tasks.
- Bearing pressing and removal: In automotive and machinery maintenance.
- Straightening uneven or warped metal parts: Back to specification.
- Separating rusted or seized components: Effectively handle stubborn assemblies.
- Assembly work: Including press-fitting bushings and bearings.
- Riveting and forming operations: For various metalworking applications.
Key Features & Benefits

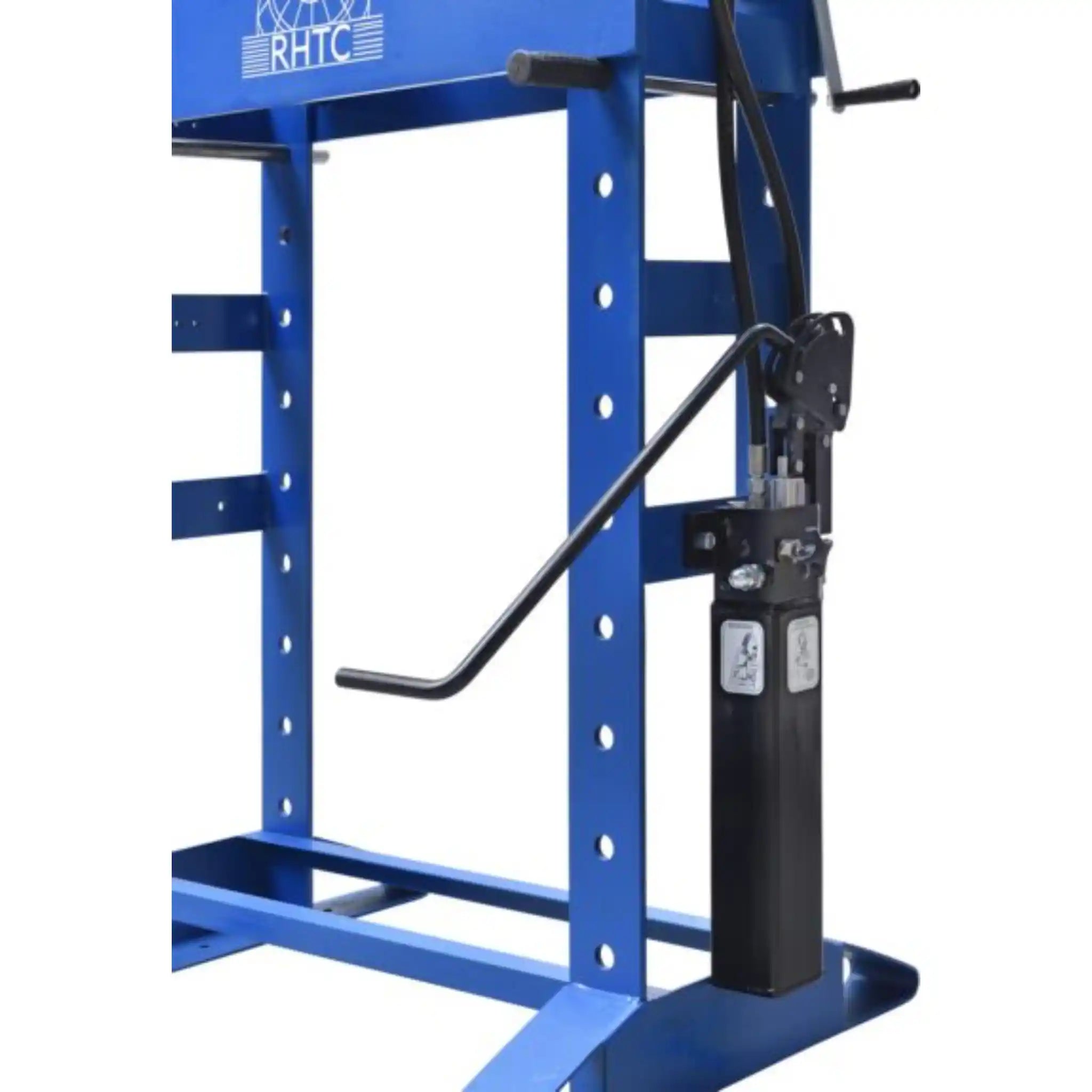

- Dual Operation System: You can operate this press using either the hand pump or foot pump. The pumps are interchangeable, so you can choose the method that works best for your specific task.
- Movable Cylinder Design: Unlike presses with fixed cylinders, the 50 Ton HF-2 features a movable cylinder that improves versatility and efficiency in your pressing operations.
- Automatic Piston Return: The chrome piston returns automatically after each press, saving you time and effort during repetitive work.

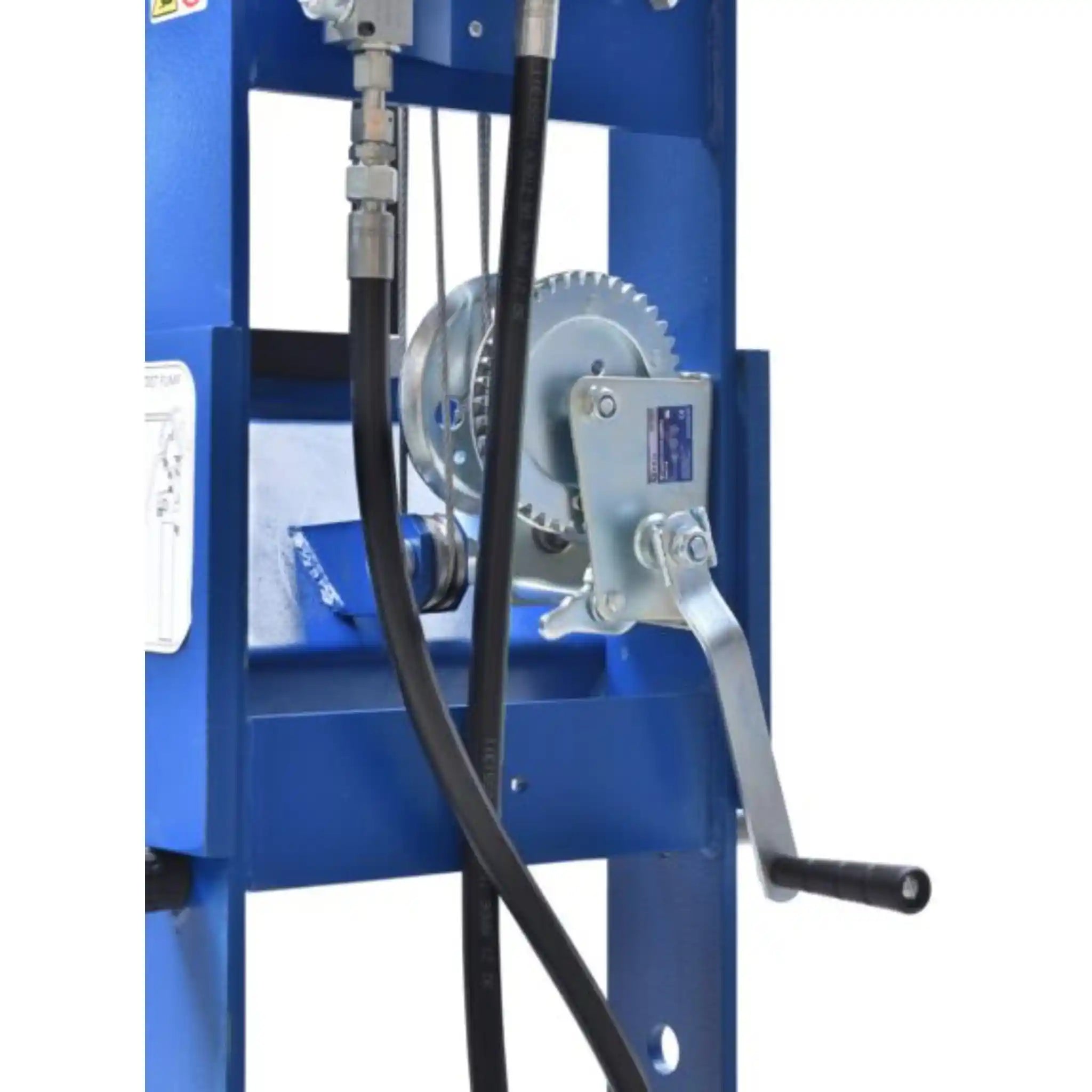

- Winch-Adjusted Work Table: The height-adjustable work table uses a winch system for easy adjustment, allowing you to quickly adapt to different material sizes without struggling with manual positioning.
- Integrated Manometer: The built-in pressure gauge shows you exactly how much force you're applying, giving you control over delicate operations and ensuring you meet required specifications.
- Chrome Piston Construction: The 140mm diameter chrome piston with 160mm stroke provides smooth operation and long-lasting durability.
- Generous Working Width: The 750mm working width gives you space to handle larger components and position materials properly.
- European Manufacturing: Made in Europe and delivered according to CE standards, ensuring quality construction and workplace safety compliance.
What's in the Box
- Profi Press 50 Ton HF-2 manual hydraulic workshop press
- Set of V-blocks
Profi Press 50 Ton Manual Press Specifications
| Pressure Force | 490.5 kN (50 ton) |
|---|---|
| Maximum Pressure | 399.5 bar |
| Cylinder Type | Movable cylinder |
| Cylinder Stroke | 160 mm |
| System Capacity | 2.5 litres (2.5 dm³) |
Profi Press 50 Ton Manual Press Manuals & Downloads
Frequently Asked Questions
How do I switch between hand and foot operation?
The HF-2 comes with interchangeable hand and foot pumps. You can switch between them depending on which operation method suits your current task best. The foot pump is particularly useful when you need both hands free to position workpieces.
What does the movable cylinder feature mean for me?
The movable cylinder design on the 50 Ton HF-2 differentiates it from smaller models in the range. This feature provides operational advantages for pressing tasks and contributes to the press's efficiency.
Does this press require electrical power?
No, the HF-2 is a fully manual hydraulic press operated by hand or foot pump. You don't need any electrical connection to operate it, which makes it suitable for any workshop location.
What comes in the standard package?
The press comes standard with a set of V-blocks for extra support, both hand and foot pumps, and an integrated manometer. The press is manufactured to CE standards and includes a 1-year warranty.
