Profi Press 300 Ton M/H-M/C-2 Hydraulic Press
The Profi Press 300 Ton M/H-M/C-2 is a motorised hydraulic workshop press with a 1750 mm working width. Built for handling large materials, this press delivers 2943 kN of pressing force for demanding workshop applications.
This 300 ton press handles large scale pressing work with its 1750 mm working width and 2943 kN pressure force. The press accommodates oversized components while delivering the force needed for heavy metalworking tasks.
The hydraulic system operates at two speeds. The fast approaching speed of 4.90 mm/sec positions work quickly. The press then switches to a working speed of 1.80 mm/sec for controlled pressing operations. The return speed of 6.20 mm/sec completes each cycle efficiently.
The movable cylinder adjusts left and right across the full working width. This lets you position the pressing force exactly where needed on your workpiece. The working table adjusts vertically in 150 mm increments to accommodate different part heights. Motor assistance makes table adjustment effortless.
Built in the Netherlands by RHTC, this press is constructed from quality steel and hydraulic components. It is CE certified and includes a 2 year warranty. The dual acting cylinder provides a 480 mm stroke. The hydraulic unit holds 150 dm³ of oil. The 5.5 kW motor has IP 54 protection against dust and water splashing.
Applications
- Metal bending and folding operations: Handle various bending and folding tasks for metalworking projects.
- Bearing pressing and removal: Press and remove bearings with precision and control.
- Straightening bent or warped metal parts: Correct misaligned or damaged metal components.
- Assembly work including press fit operations: Execute precise press fit assemblies for various components.
- Punching and forming tasks: Perform punching and metal forming operations with consistent results.
- Separating seized or rusted components: Apply controlled force to separate stuck parts safely.
Key Features & Benefits
- Two speed hydraulic system: Fast approach at 4.90 mm/sec, then controlled working speed at 1.80 mm/sec. The fast approach saves time, while the slower working speed gives you control during pressing operations.
- Movable cylinder: The cylinder moves left and right across the 1750 mm working width. Position the pressing force exactly where you need it on your workpiece.

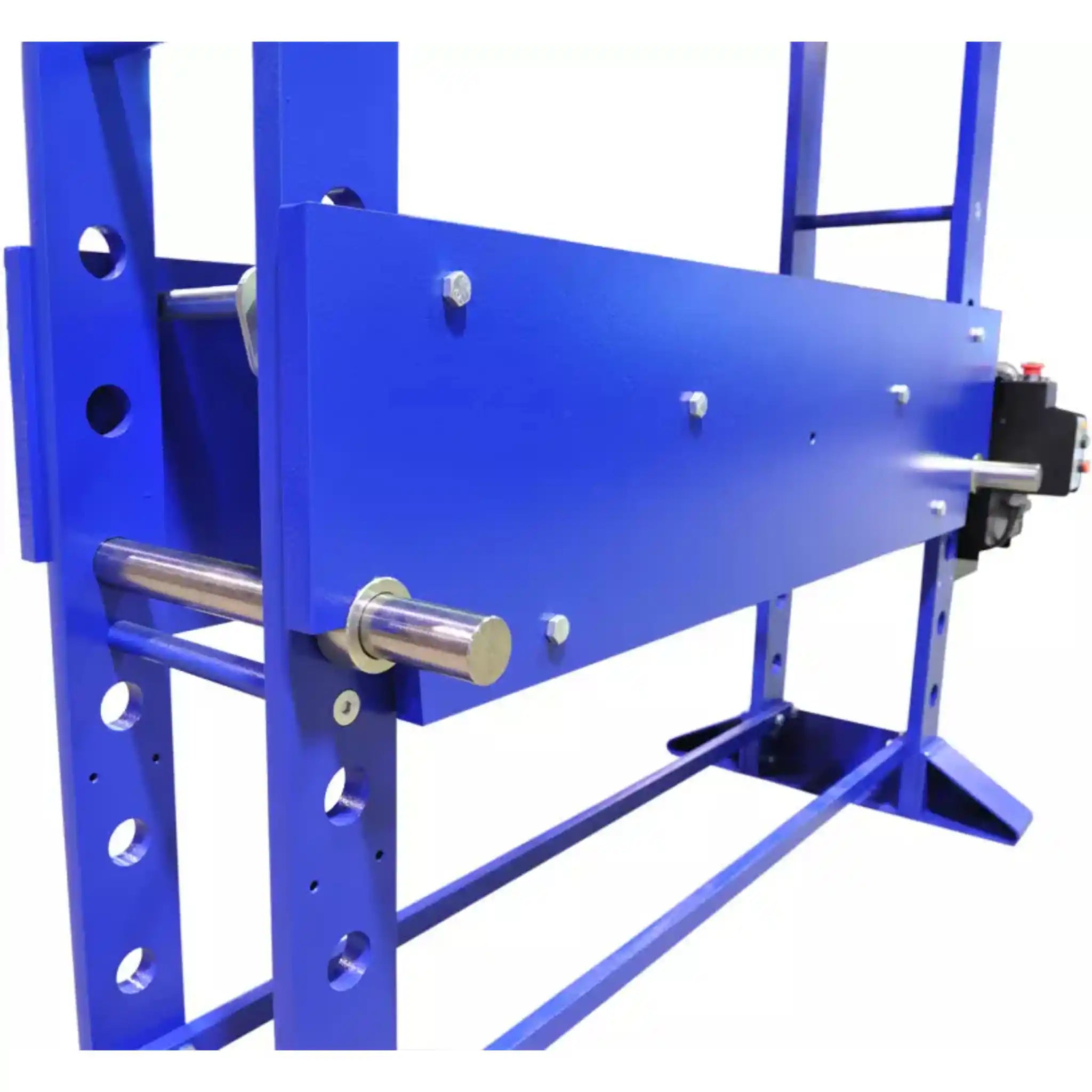

- Adjustable working table: The table adjusts vertically in 150 mm increments. This motor assisted adjustment accommodates different part sizes without heavy manual lifting.
- Integrated pressure regulation: Built in pressure manometer and regulation system lets you monitor and control pressing pressure accurately for consistent results.

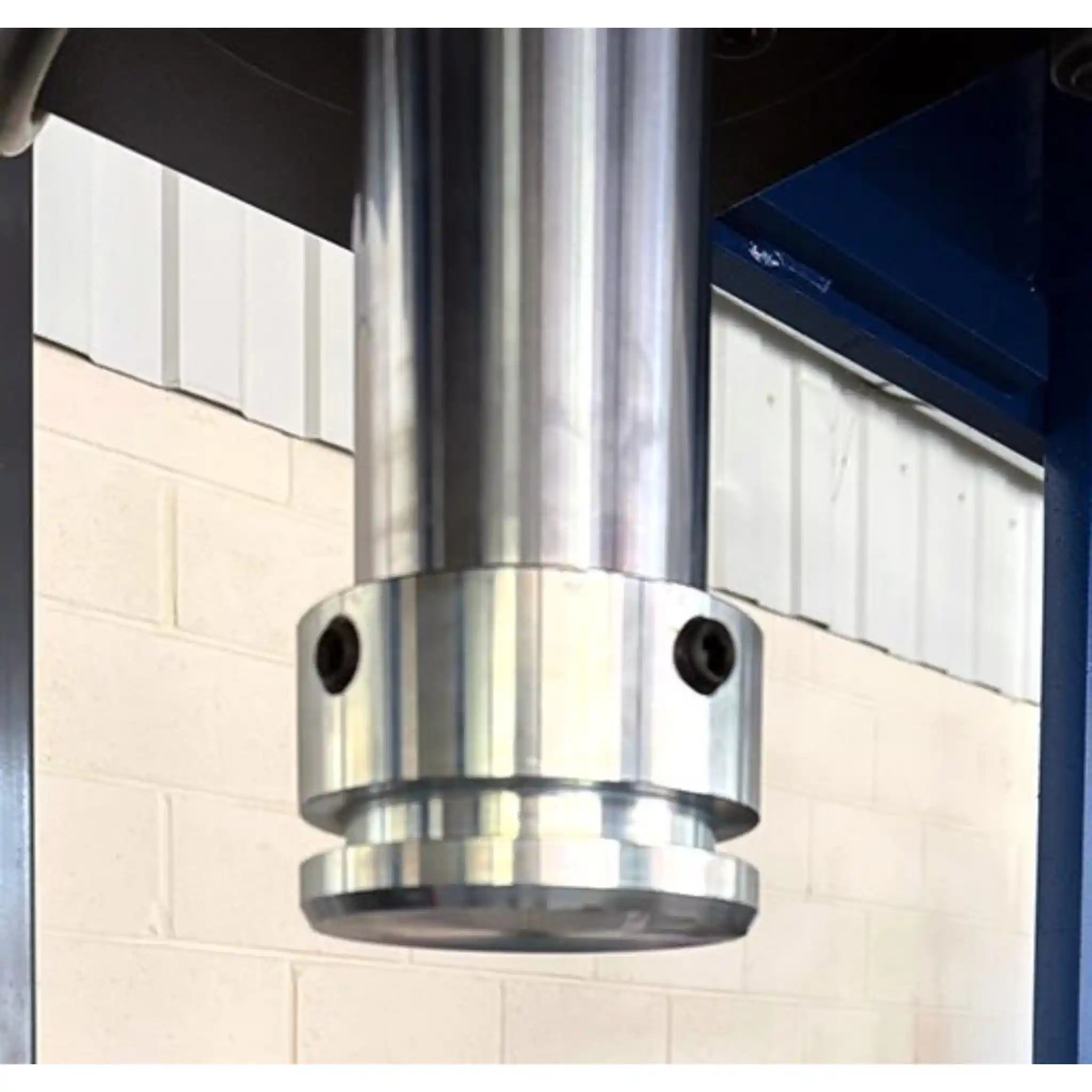

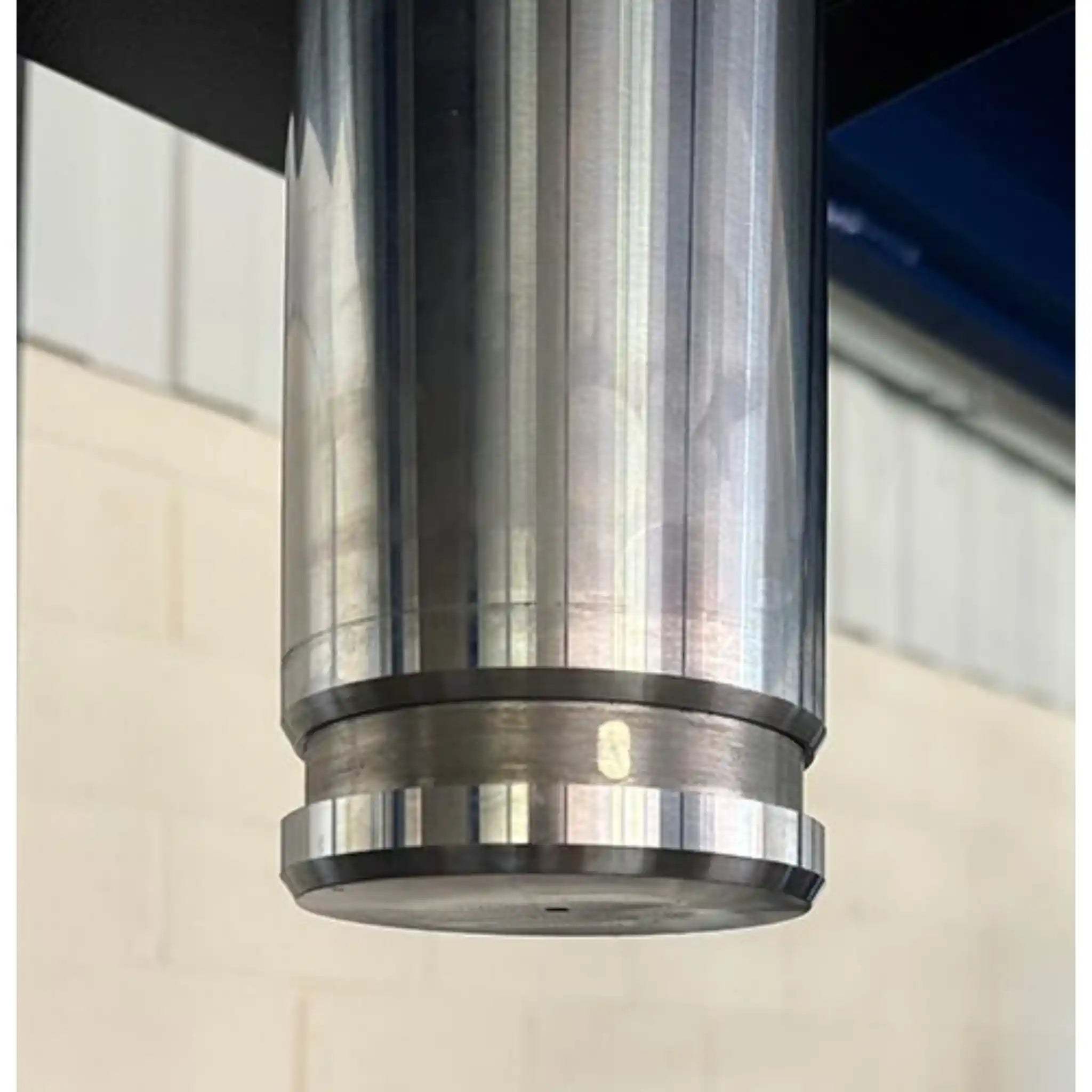

- Dual acting cylinder: The 480 mm stroke handles deep pressing operations. The dual acting design provides controlled force in both directions.
- Quality construction: Built in the Netherlands from quality steel and hydraulic components. CE certified to European machinery standards.
- IP 54 rated motor: The 5.5 kW motor is protected against dust ingress and water splashing for reliable operation in workshop environments.
What's Included
- 300 ton motorised hydraulic workshop press
- Movable cylinder with left/right positioning capability
- Height adjustable working table (1750 mm width, 150 mm increment adjustment)
- Integrated pressure manometer and regulation system
- Hydraulic power unit with two speed operation
Profi Press 300 Ton M/H-M/C-2 Specifications
| Pressure Force | 2943 kN |
|---|---|
| Maximum Pressure | 260 bar |
| Piston Stroke | 480 mm |
| Approaching Speed | 4.90 mm/sec |
| Working Speed | 1.80 mm/sec |
Profi Press 300 Ton M/H-M/C-2 Manuals & Downloads
Frequently Asked Questions
What power supply does this press require?
The press requires 400V three phase power at 50/60 Hz with a 5.5 kW motor as standard.
Can the cylinder be repositioned across the working width?
Yes. The cylinder is movable and can be positioned left or right across the full 1750 mm working width. This allows you to position pressing force where needed on irregular or oversized workpieces.
What customisation options are available?
Customisation options include single phase motors, 60 Hz motors, bespoke dimensions, and system integrations.
What optional accessories are available?

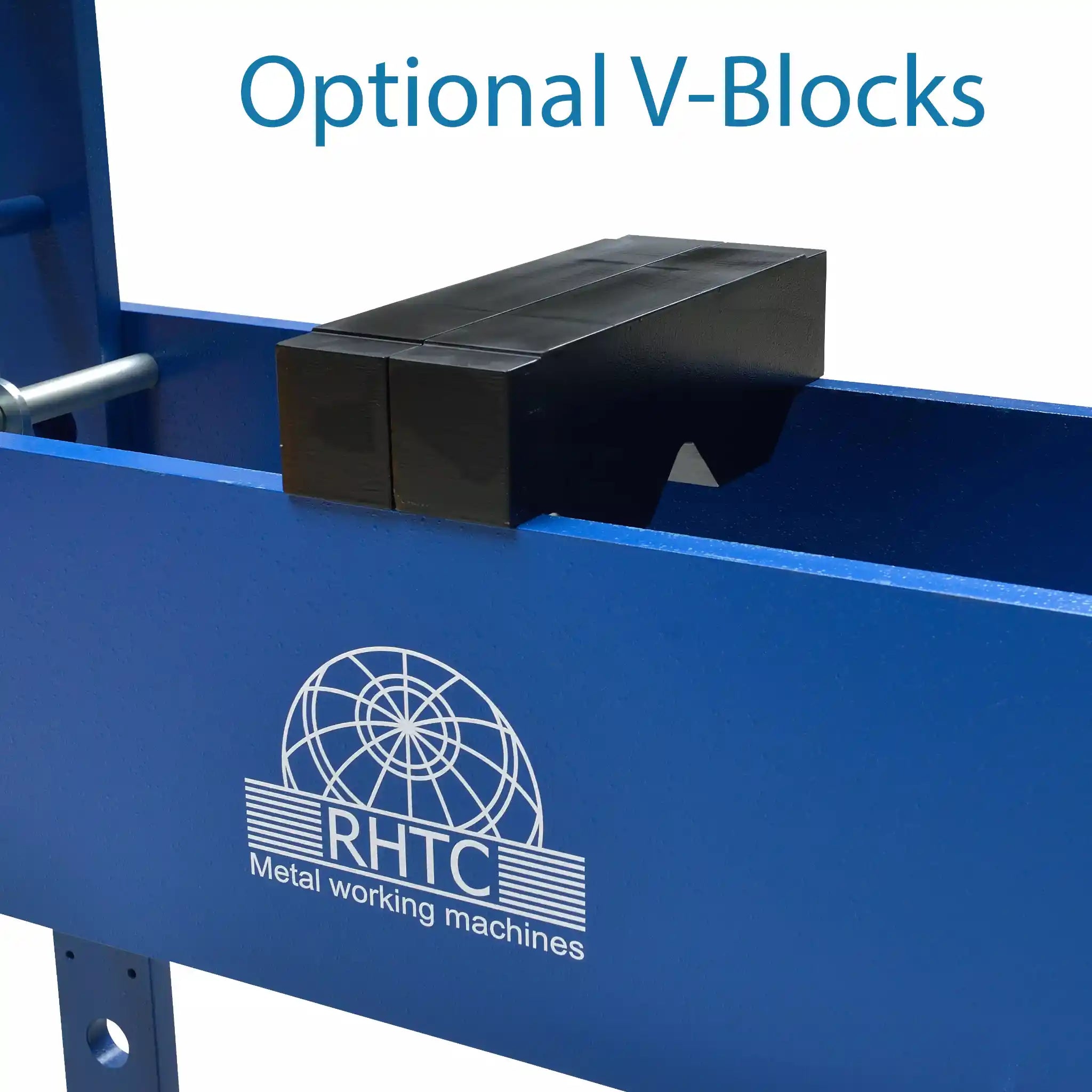

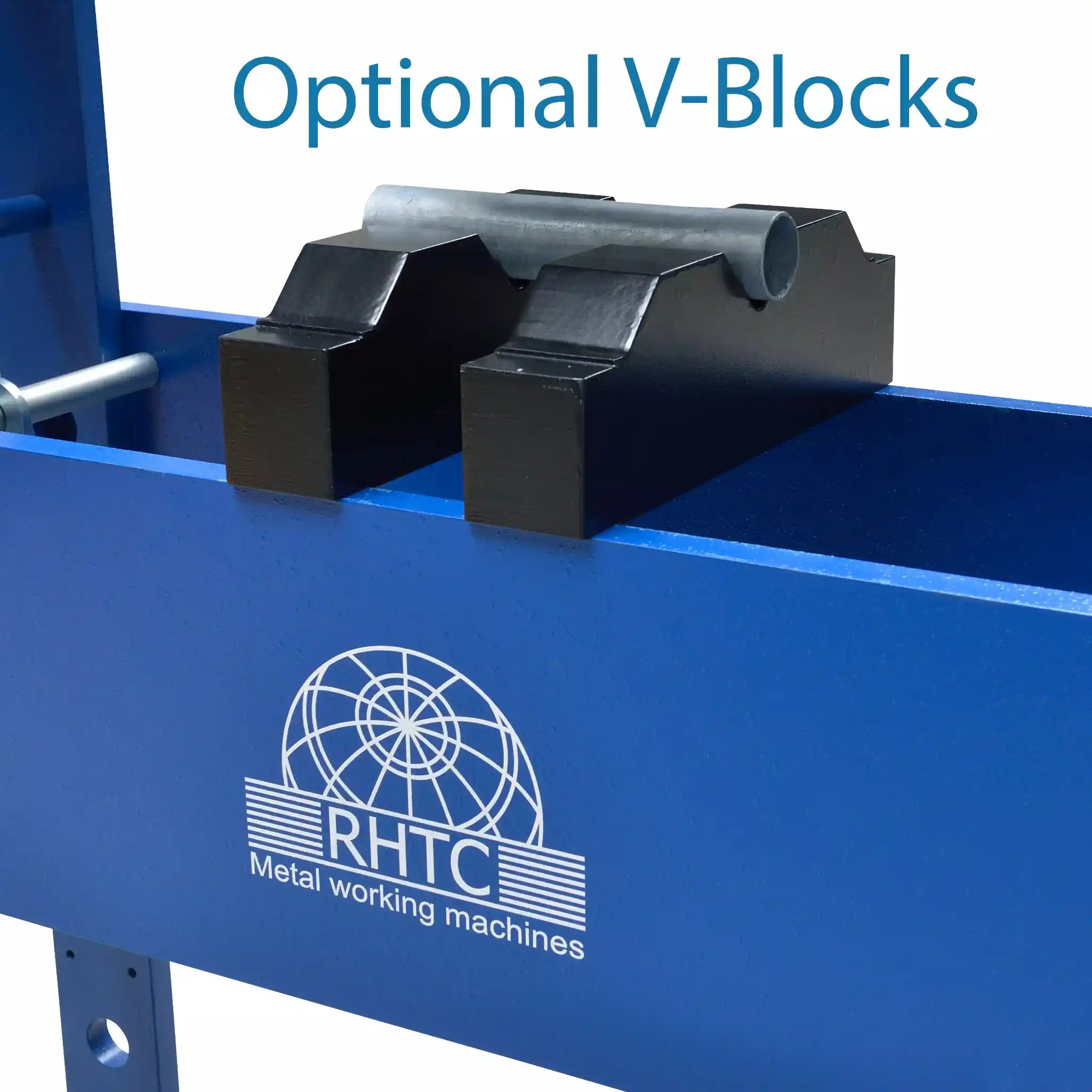

Optional accessories include V block sets for extra support, upper and lower table plates, and NC control for digital control of press settings.
