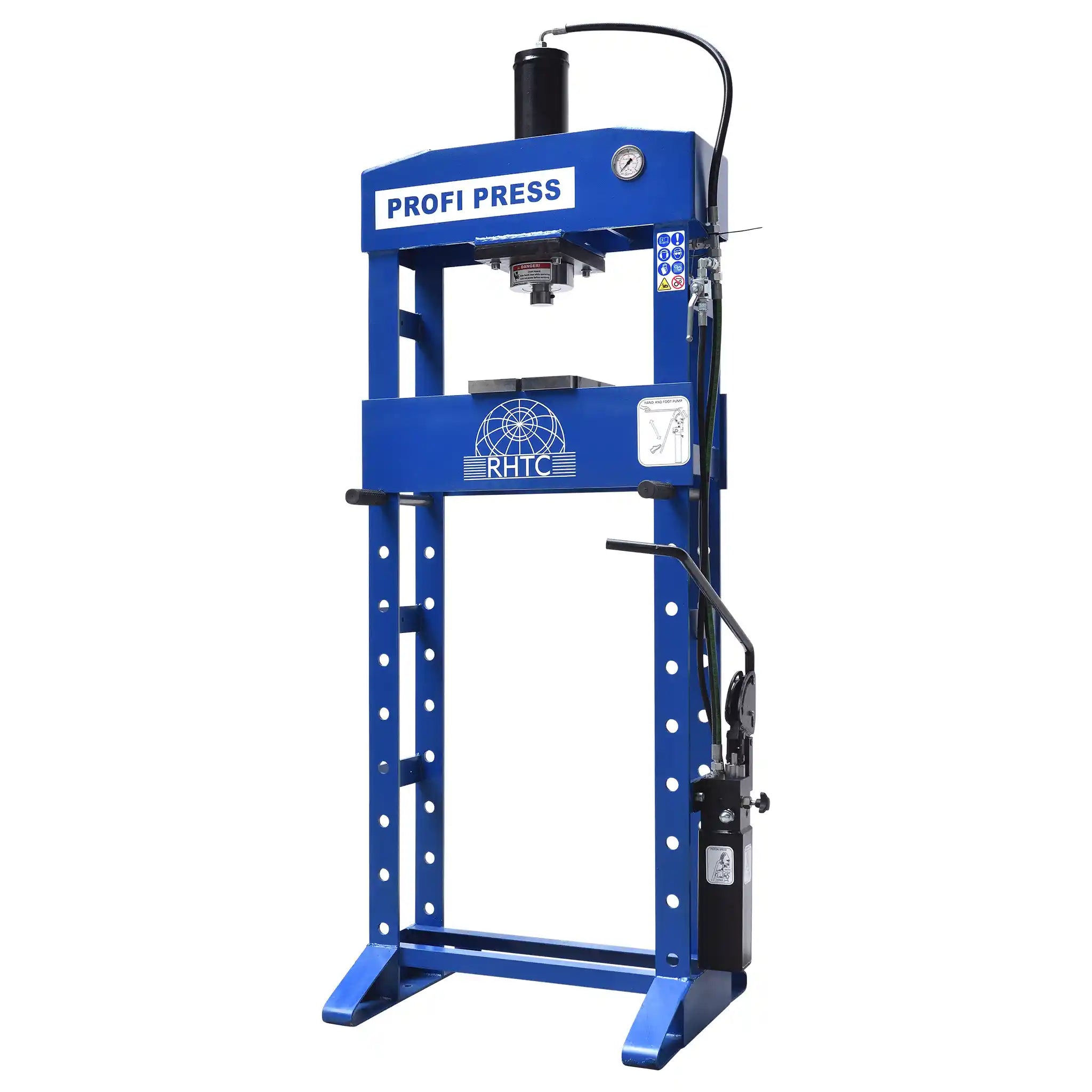

Profi Press 30 Ton HF-2 Hydraulic Press
The Profi Press 30 Ton HF 2 is a manually operated H frame hydraulic workshop press delivering 294.3 kN of pressing force for demanding workshop tasks. This European made press combines hand and foot pump operation with precision pressure monitoring for versatile pressing applications.
Built with a robust steel H frame construction, this press provides 565 mm of working width to accommodate a range of component sizes. The adjustable height work table lets you position different sized materials and products without difficulty, while the fixed cylinder design maintains stable operation throughout the pressing cycle.
The integrated manometer displays real time pressure readings, and the chrome plated piston returns automatically after each stroke. Manufactured in Europe to CE standards, this press combines Continental engineering quality with practical workshop functionality. The unit comes with a set of V blocks for additional workpiece support.
Applications
- Bearing installation and removal: including alternator bearings, power steering pump bearings, axle bearings, and transmission bearings
- Automotive component work: such as U-joints, seals, and bushings
- General pressing, bending, straightening, and forming tasks: in automotive, industrial, and repair shop environments
- Ball joint work: and other automotive assembly/disassembly operations
Key Features & Benefits

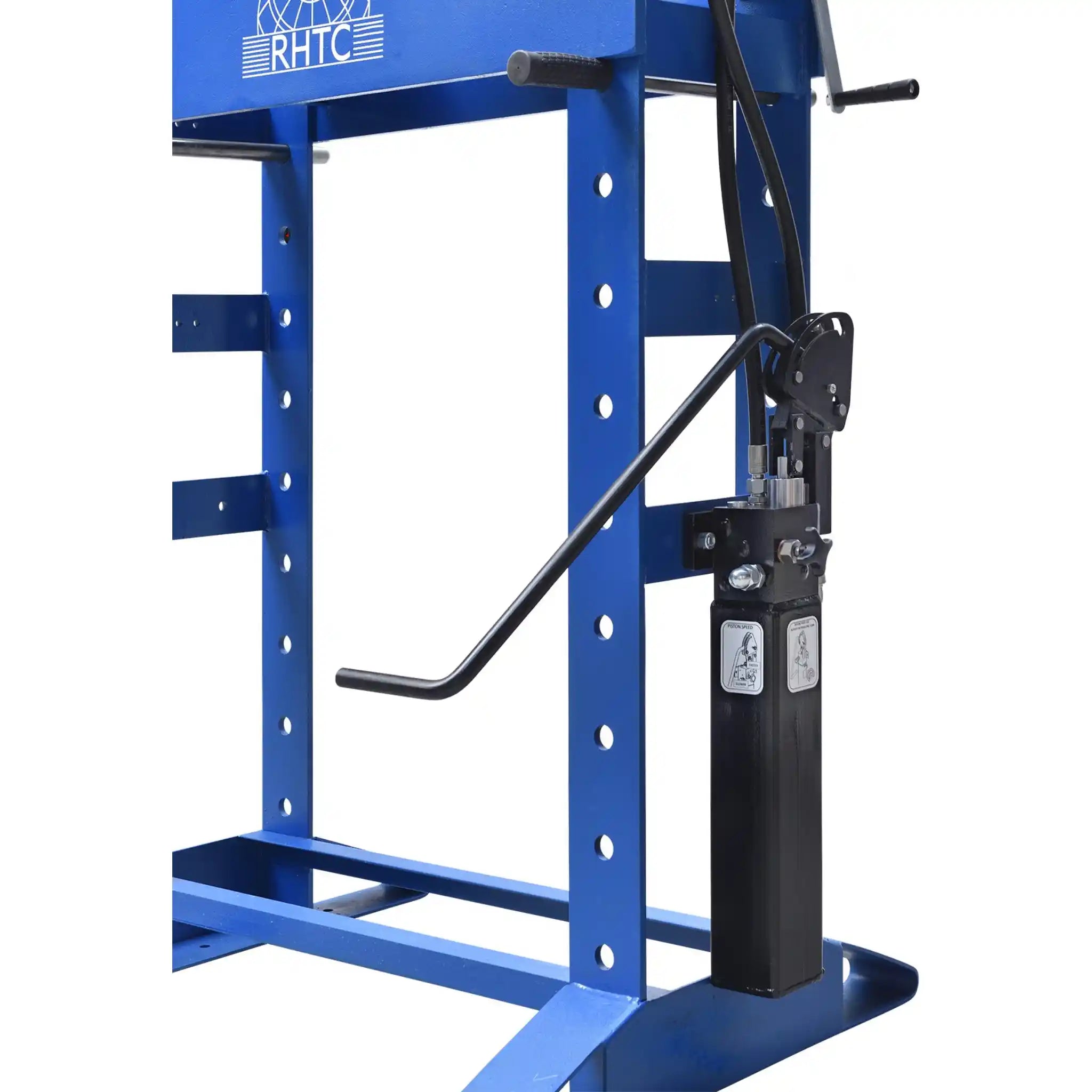

- Dual operation system: The hand pump is interchangeable with a foot pump, allowing you to choose your preferred operating method for different tasks
- Integrated pressure manometer: Monitor your applied force in real time for accurate, controlled pressing operations
- Adjustable height work table: Easily adapt to different material and product sizes without fixed positioning constraints
- Automatic piston return: The chrome-plated piston returns by itself after each stroke, streamlining your workflow
- 565 mm working width: Provides ample space for working with various component sizes
- Fixed cylinder design: The non-movable cylinder ensures stable, consistent operation
- European manufacturing: Made in Europe and delivered to CE standards for quality assurance

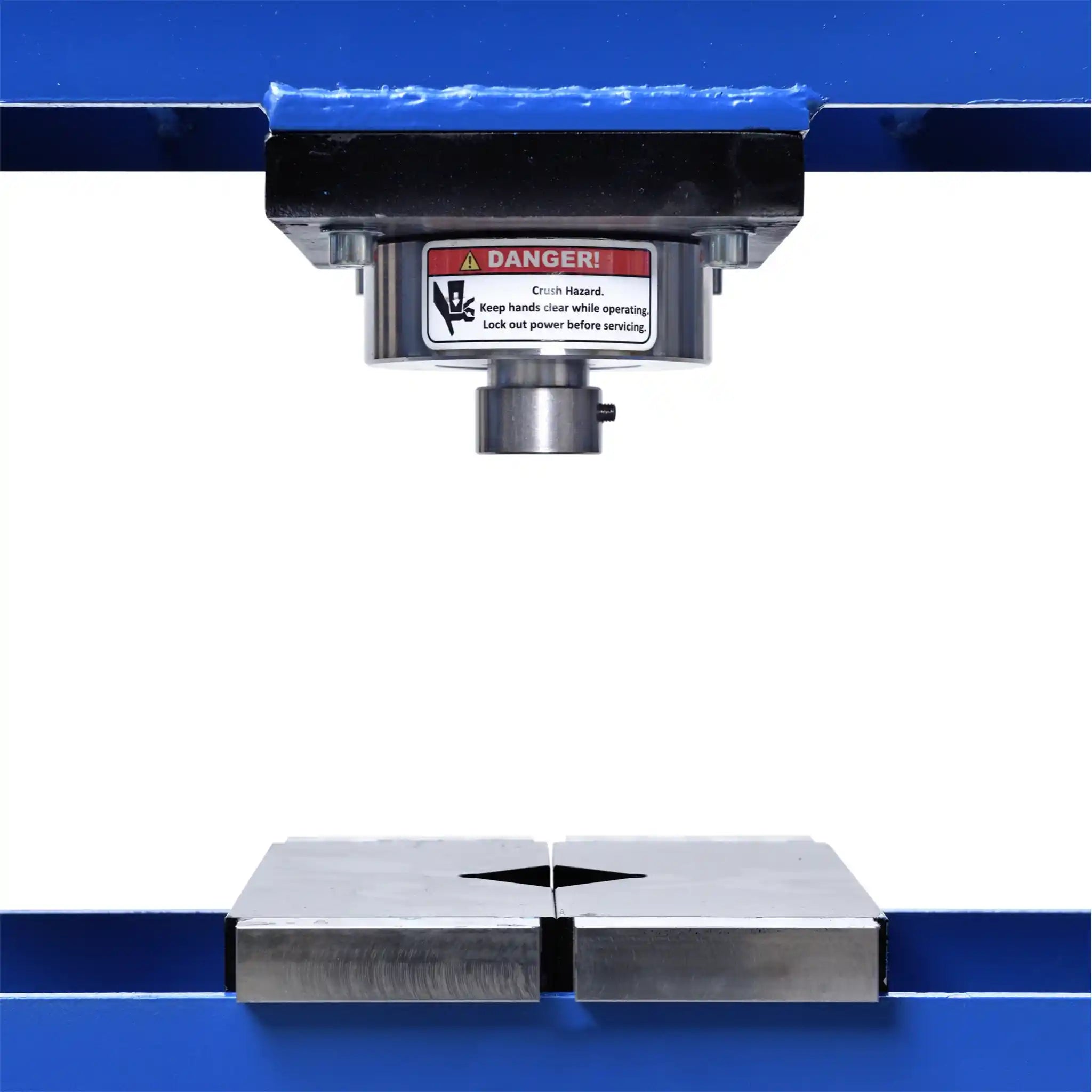

- Includes V-blocks: Supplied standard with V-blocks for extra workpiece support
What's in the Box
- 30 Ton HF-2 Workshop Press with integrated pressure manometer
- Set of V-blocks
Profi Press 30 Ton HF-2 Hydraulic Press Specifications
| Model | 30 Ton HF-2 |
|---|---|
| Pressure Force | 294.3 kN |
| Maximum Pressure | 374.6 bar |
| Cylinder Stroke | 160 mm |
| System Capacity | 1.65 dm³ |
Profi Press 30 Ton HF-2 Hydraulic Press Manuals & Downloads
Frequently Asked Questions
How does the hand and foot pump system work?
The hand pump is interchangeable with a foot pump on this model. This means you can swap between the two operation methods depending on your preference and the specific task at hand.
What does the fixed cylinder design mean?
The fixed cylinder means the hydraulic cylinder does not move. Instead, the height-adjustable work table allows you to position your workpiece at the correct height for pressing operations.
What is the chrome piston automatic return feature?
The piston is chrome-plated and returns automatically after each pressing cycle. This means you don't need to manually retract the piston between operations, making your work more efficient.
What are V blocks and why are they included?
V-blocks are support accessories that come standard with the press. They provide extra support for your workpieces during pressing operations, particularly useful for cylindrical components or irregular shapes that need stable positioning.
Is this suitable for automotive workshop use?
Yes, 30-ton presses are commonly used in automotive workshops for bearing installation and removal, U-joint work, seal fitting, bushing replacement, and ball joint operations. The 565 mm working width accommodates a variety of automotive components.
