Profi Press 30 Ton M/H-2 Hydraulic Press
The Profi Press 30 Ton M/H-2 is a motorised hydraulic workshop press with both electric joystick control and manual hand pump operation. This press delivers 297 kN (30 tonnes) of pressing force across a 750mm working width, making it suitable for professional metalworking and fabrication applications.
This EU manufactured press features a fixed cylinder design with a height adjustable working table that moves across six positions. The hydraulic system operates at two speeds, providing fast approach for positioning and slower controlled speed for actual pressing work.
The integrated pressure manometer on the front panel displays pressing force during operation, while the pressure regulation system allows you to control maximum force. The press features a double-acting cylinder for efficient operation and comes CE certified with a two-year warranty.
The 380mm piston stroke gives you substantial working range for various sized components. The working table adjusts using a chain system that works together with the hydraulic ram, allowing quick height changes between the six preset positions. The press weighs 385kg and stands 2120mm tall with a 1000mm width and 695mm depth.
Applications
- Bearing pressing: Install and remove bearings from housings, hubs, and assemblies with controlled force
- Metal forming operations: Bend brackets, flatten warped components, and shape sheet metal parts
- Straightening work: Correct bent shafts, twisted frames, and distorted metal components
- Assembly operations: Press-fit bushings, install components, and perform riveting tasks
- Automotive repair: Remove ball joints, press stubborn parts, and handle suspension component work
- General fabrication: Support welding projects, punch operations, and various pressing tasks in daily workshop operations
Key Features & Benefits

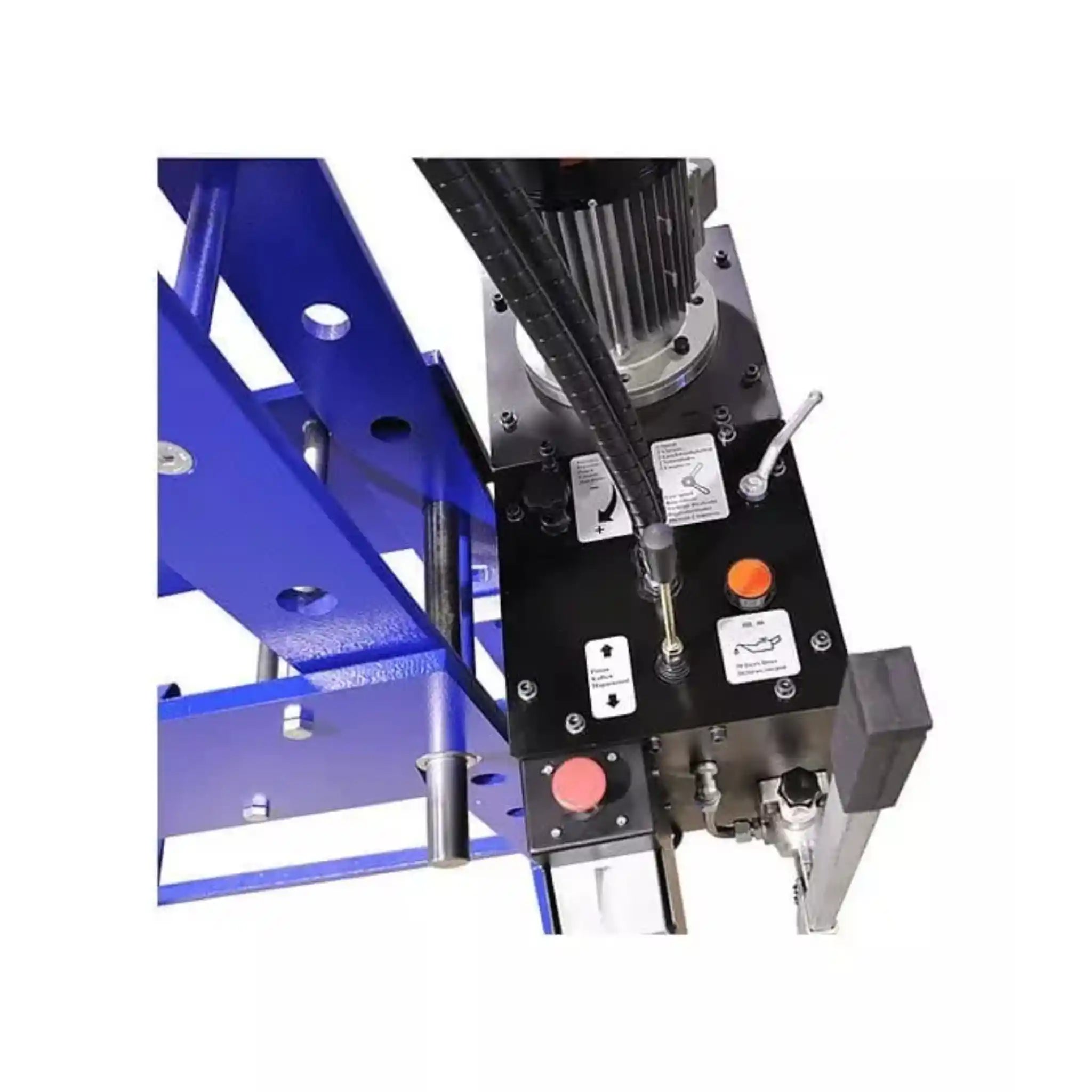

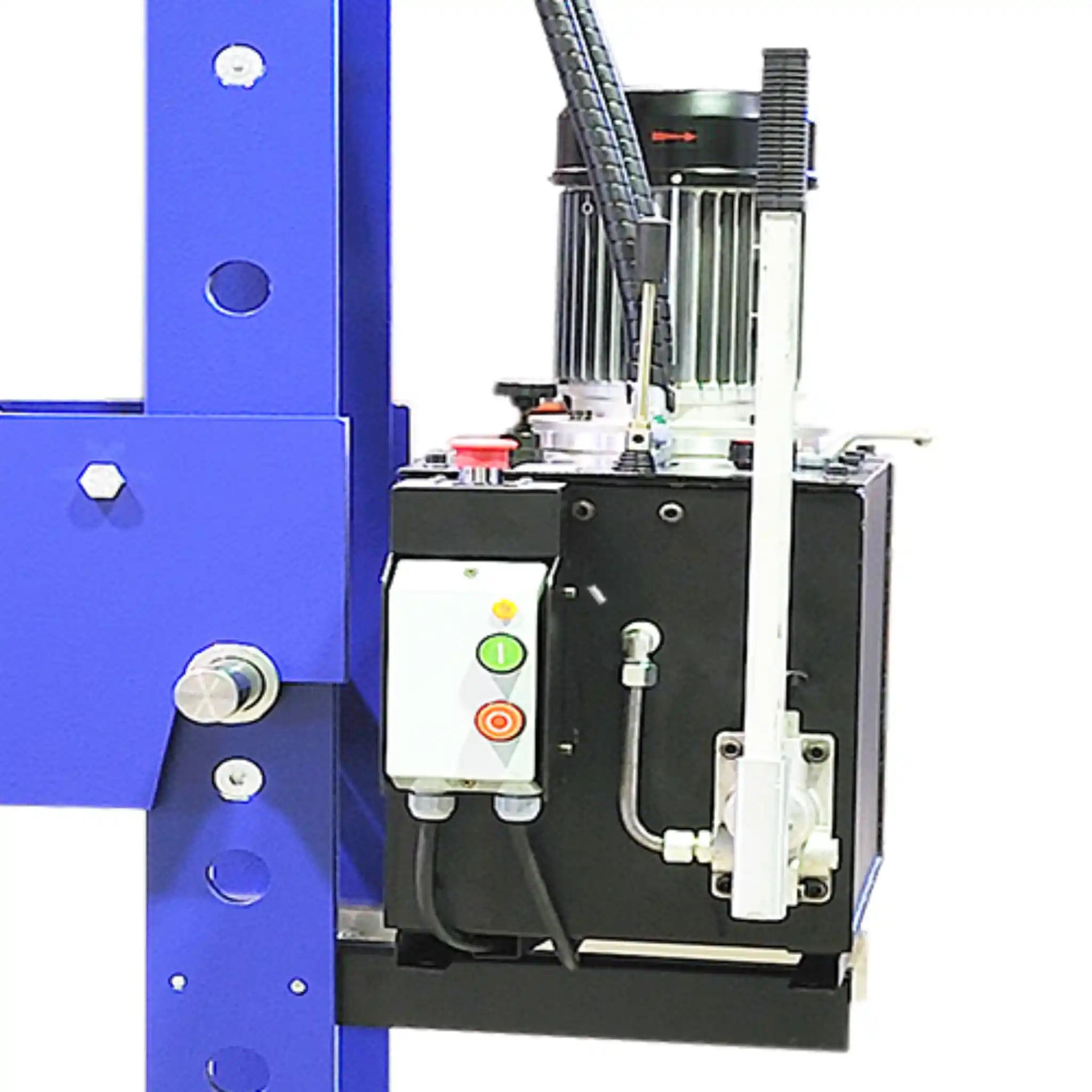

- Dual Control System: The press operates via electric joystick for convenient production work or manual hand pump for precision control. The hand pump sits on top of the hydraulic unit, giving you fine control when accuracy matters.
- Two-Speed Hydraulic System: The press approaches quickly at 9.8 mm/sec, then automatically switches to working speed of 3 mm/sec when it contacts resistance. Return speed operates at 14 mm/sec. This saves time on every cycle without sacrificing control.
- Pressure Monitoring and Regulation: The integrated manometer displays current pressing force, while the pressure regulation system lets you set limits. This helps you avoid over-pressing delicate parts and achieve consistent results.

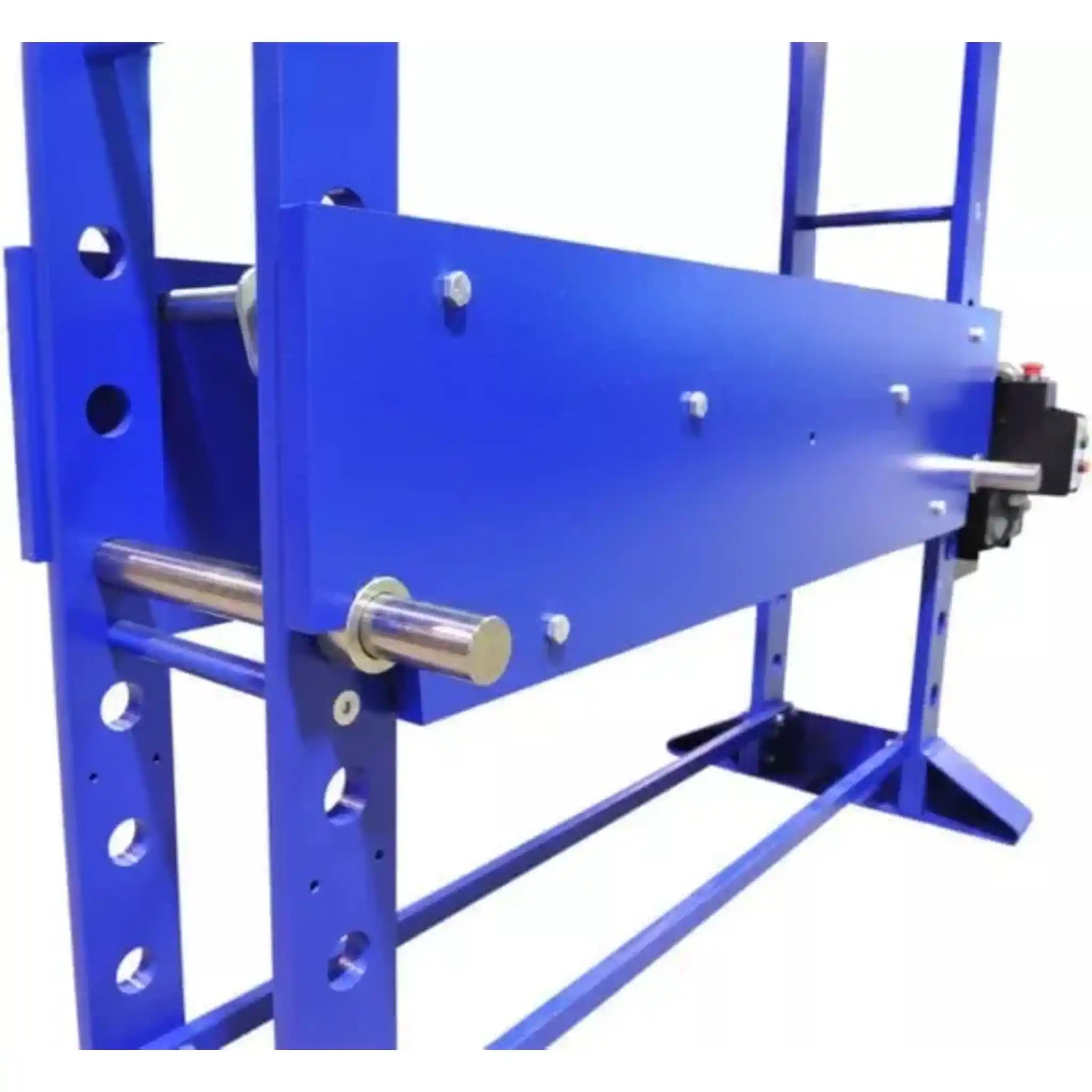

- Six-Position Adjustable Table: The working table adjusts across six height positions using the included chain system working with the hydraulic ram. This accommodates different workpiece sizes quickly.

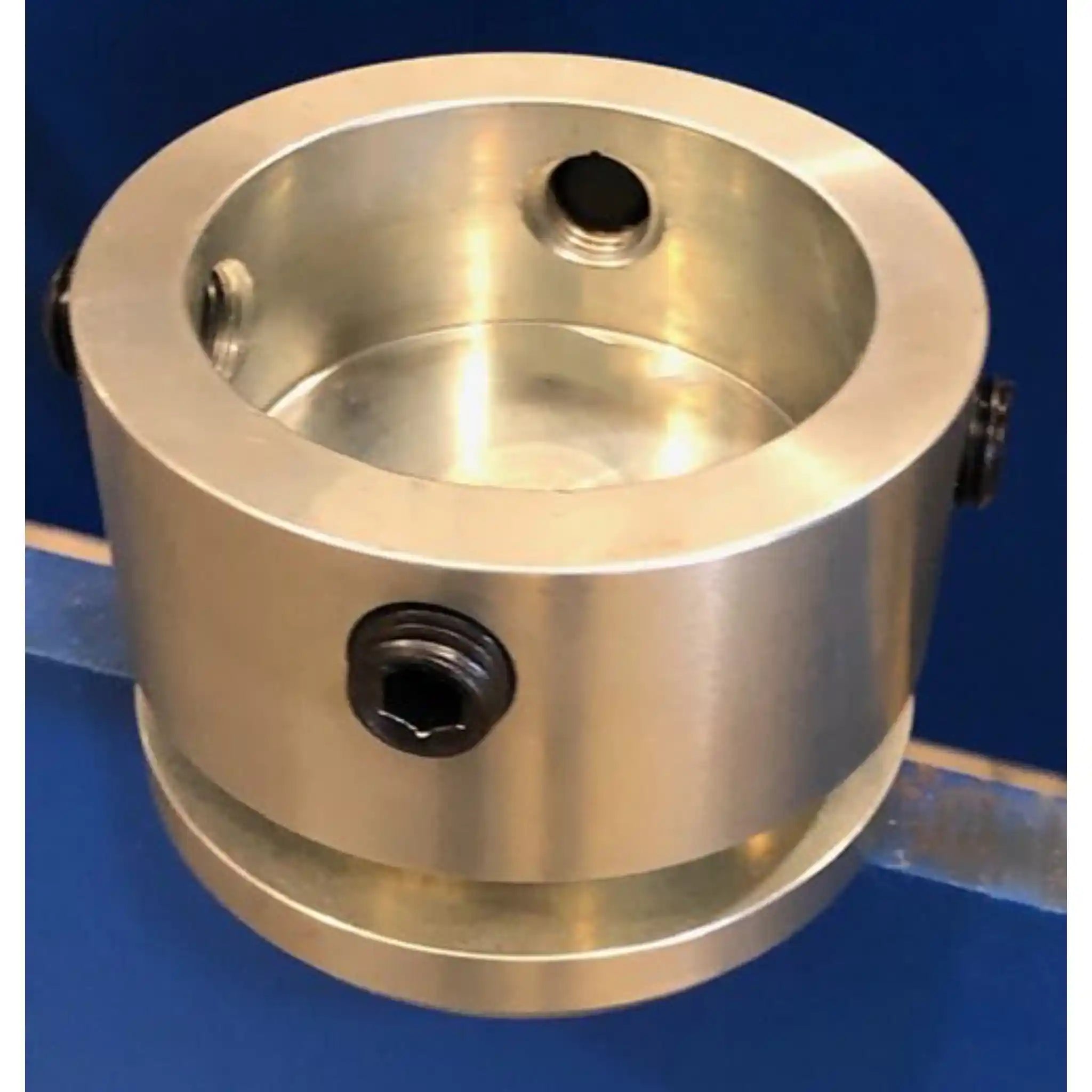

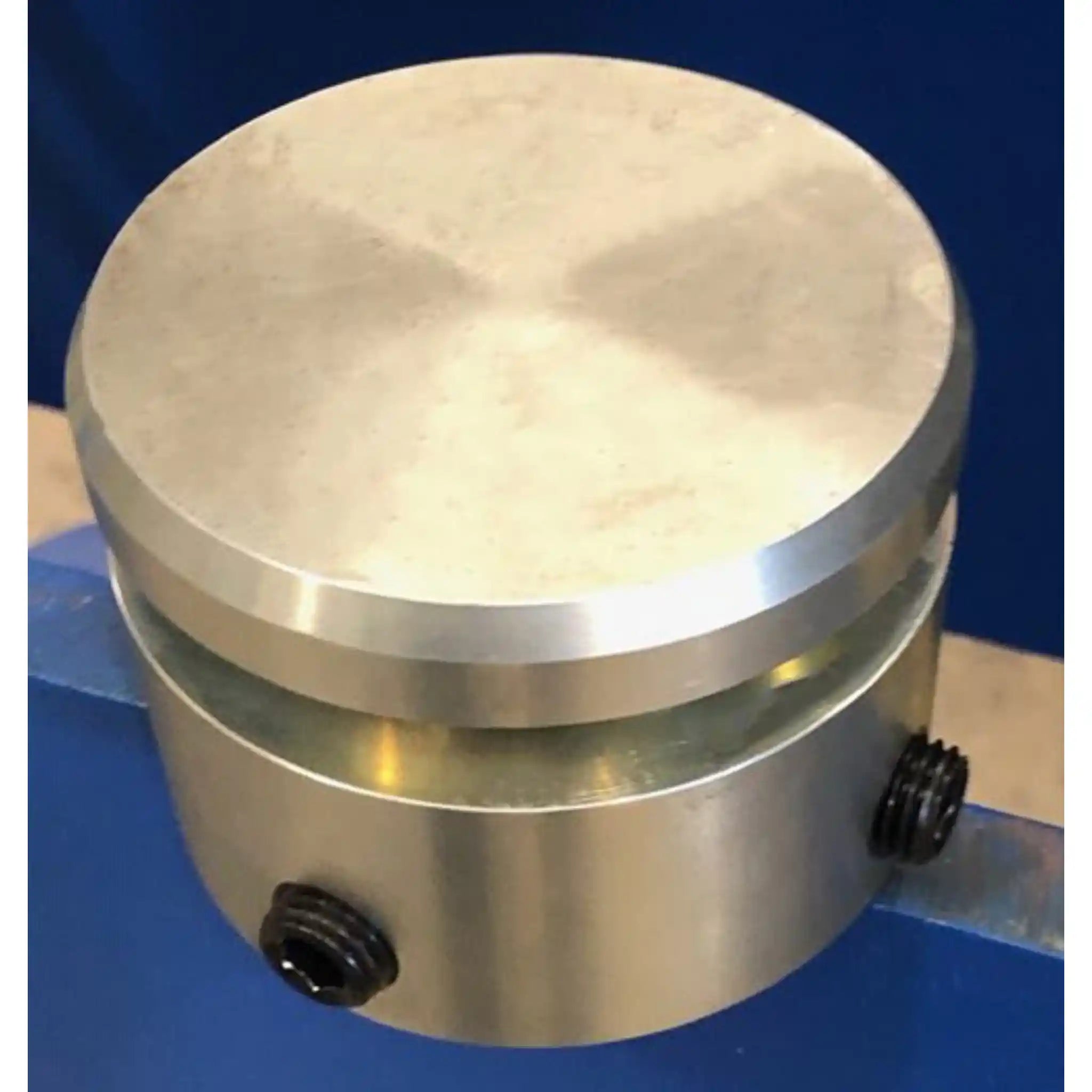

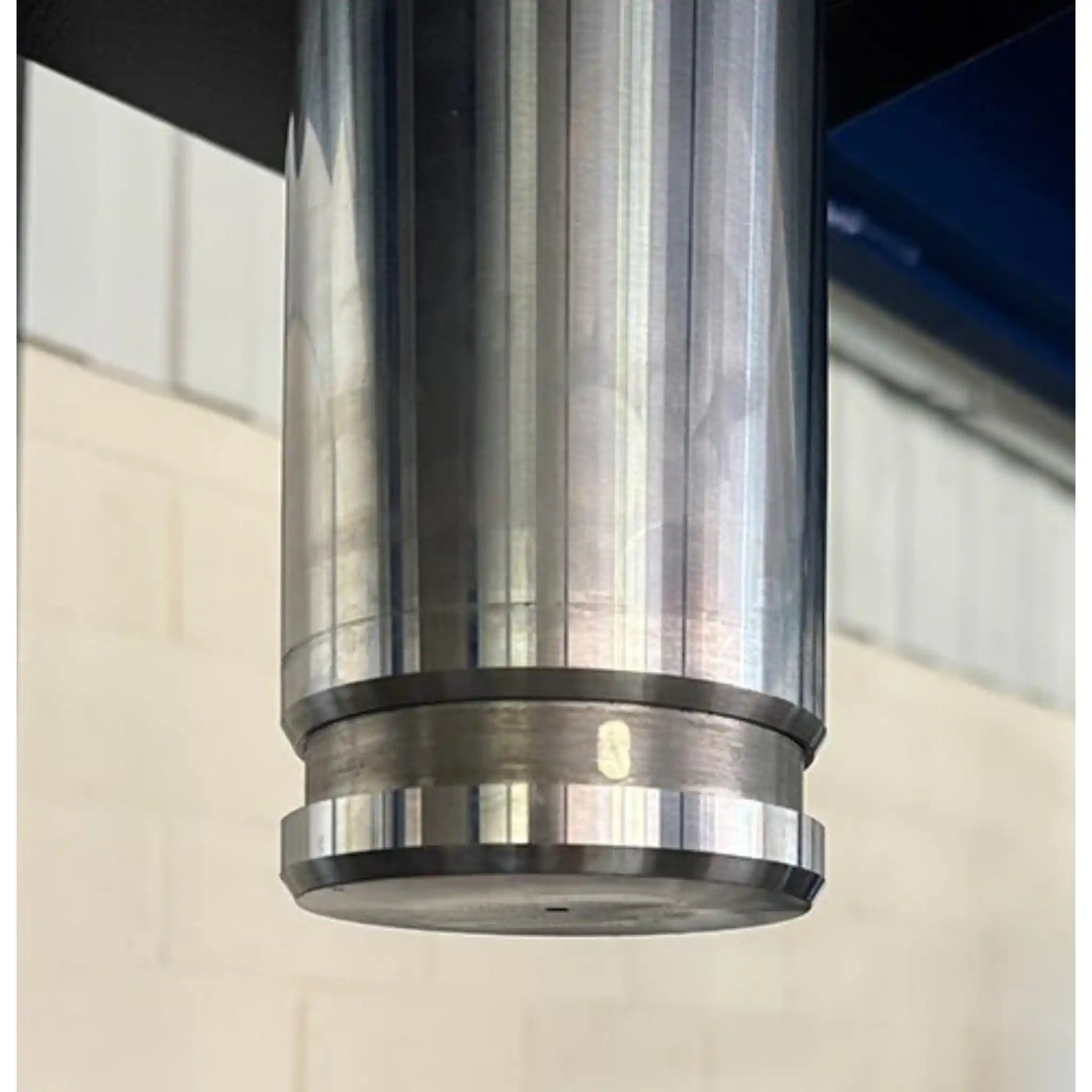

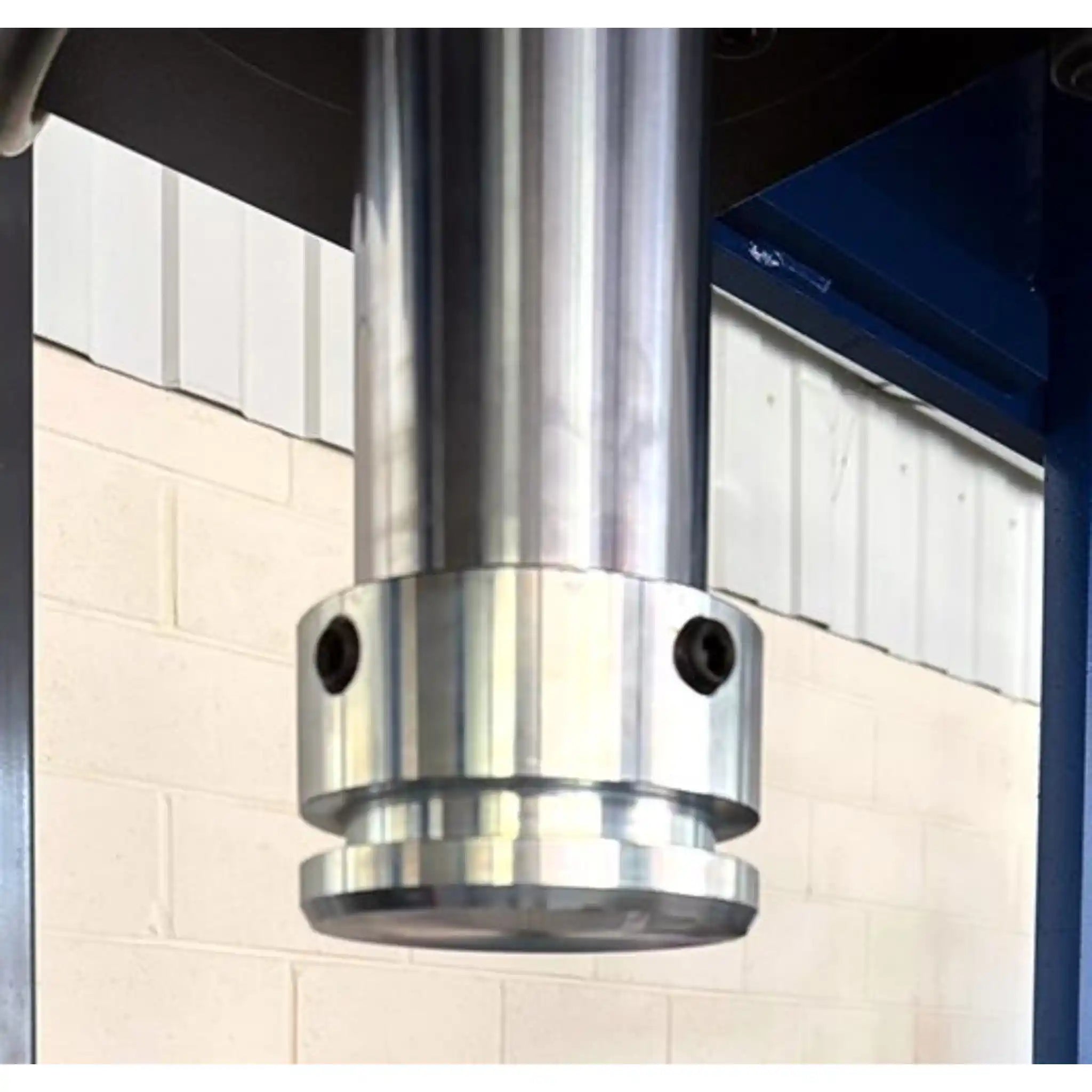

- Double-Acting Cylinder: The primary cylinder uses double-acting (dual-acting) design for reliable performance. The cylinder has a 130mm inside diameter, 60mm piston rod diameter, and 85mm piston head diameter.
- Substantial Working Capacity: With 750mm working width and 380mm stroke, you have room for larger components. The maximum pressure reaches 221 bar.
- EU Manufacturing and Certification: Made in the EU, CE certified, and backed by a two-year warranty.
What's Included
- 30 Ton M/H-2 Motorised Hydraulic Workshop Press (main unit)
- Integrated joystick controller (built into hydraulic unit)
- Manual hand pump (integrated on top of hydraulic unit)
- Six-position adjustable working table with chain adjustment system
- Integrated pressure manometer and regulation system
- Two-year manufacturer warranty
Profi Press 30 Ton M/H-2 Specifications
| Pressure Force | 297 kN (30 tonnes) |
|---|---|
| Maximum Pressure | 221 bar |
| Working Width | 750 mm |
| Piston Stroke | 380 mm |
| Working Speed | 3 mm/sec |
Profi Press 30 Ton M/H-2 Manuals & Downloads
Frequently Asked Questions
What's the difference between using the joystick versus the manual hand pump?
The electric joystick moves the piston up and down for regular production work, offering convenient operation without physical effort. The manual hand pump on top of the hydraulic unit provides precision control for delicate pressing tasks where you need finer adjustments.
Does this press need threephase electrical supply?
Yes, this motorised model requires 400V three-phase power at 50/60 Hz frequency. The 1.5 kW motor runs on this supply. Most industrial and commercial workshops have three-phase available as standard.
How does the table height adjustment work?
The working table adjusts across six positions using a chain system that works together with the hydraulic ram. This allows quick and easy adjustment to accommodate different workpiece heights without manual lifting.
What does the pressure regulation feature do?
The pressure regulation system lets you control the maximum force the press applies. Combined with the integrated manometer that displays current force, you can set precise limits to prevent damaging delicate components during pressing operations.
What's the benefit of the twospeed hydraulic system?
The press approaches your workpiece quickly at 9.8 mm/sec to save time, then operates at the slower working speed of 3 mm/sec for controlled pressing. This automatic speed change gives you both efficiency and precision without manual adjustments.
