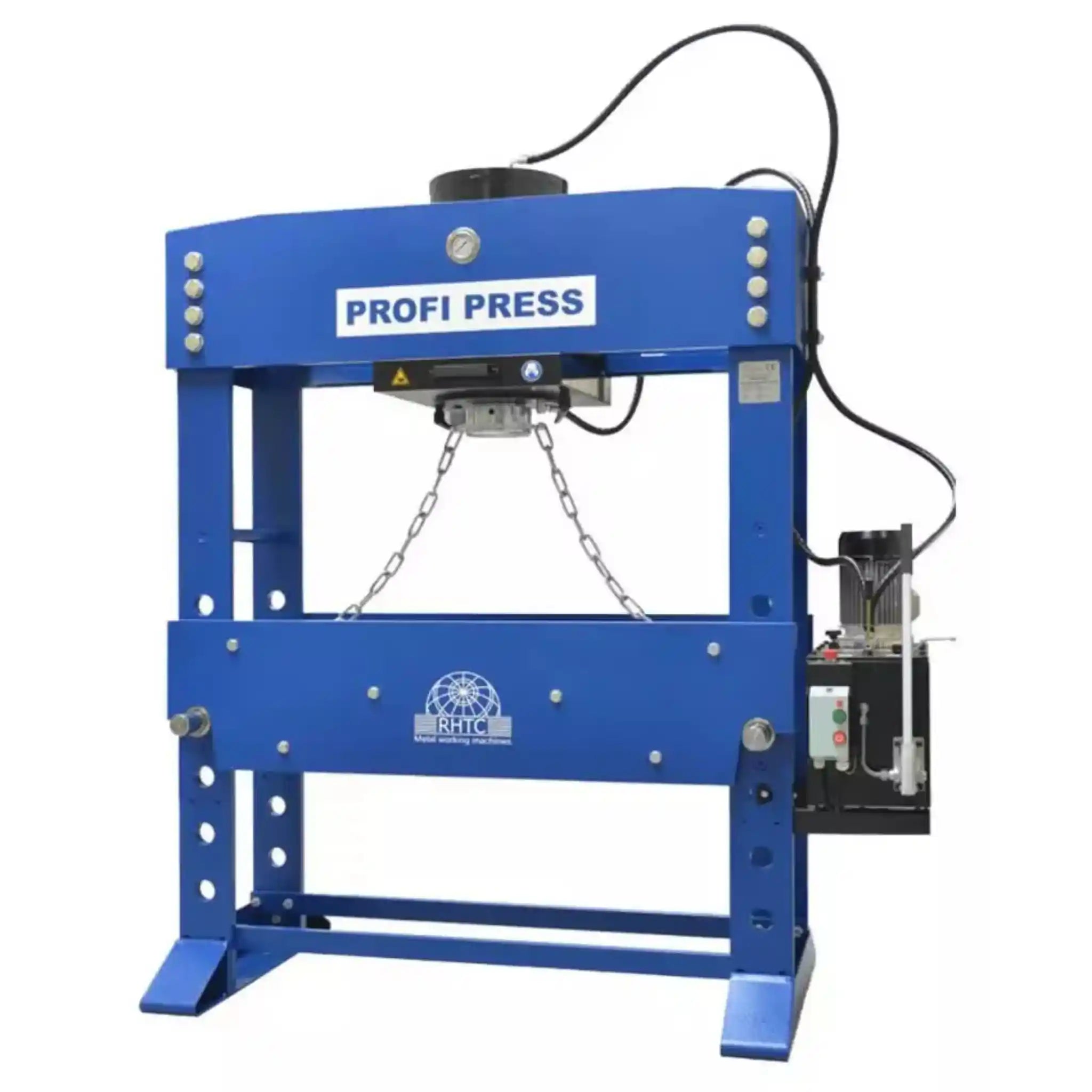

Profi Press 200 Ton M/H-M/C-2 Hydraulic Press
The Profi Press 200 Ton M/H-M/C-2 is a motorised hydraulic workshop press delivering 200 tons (1962 kN) of pressing force for heavy duty industrial applications. This CE certified European press combines motorised operation with precision hand control.
This 200 ton hydraulic workshop press is built in Europe and delivers serious pressing power with precise control. The movable cylinder slides left and right across the frame for flexible work positioning. The height adjustable work table provides 1300mm of working width between the columns.

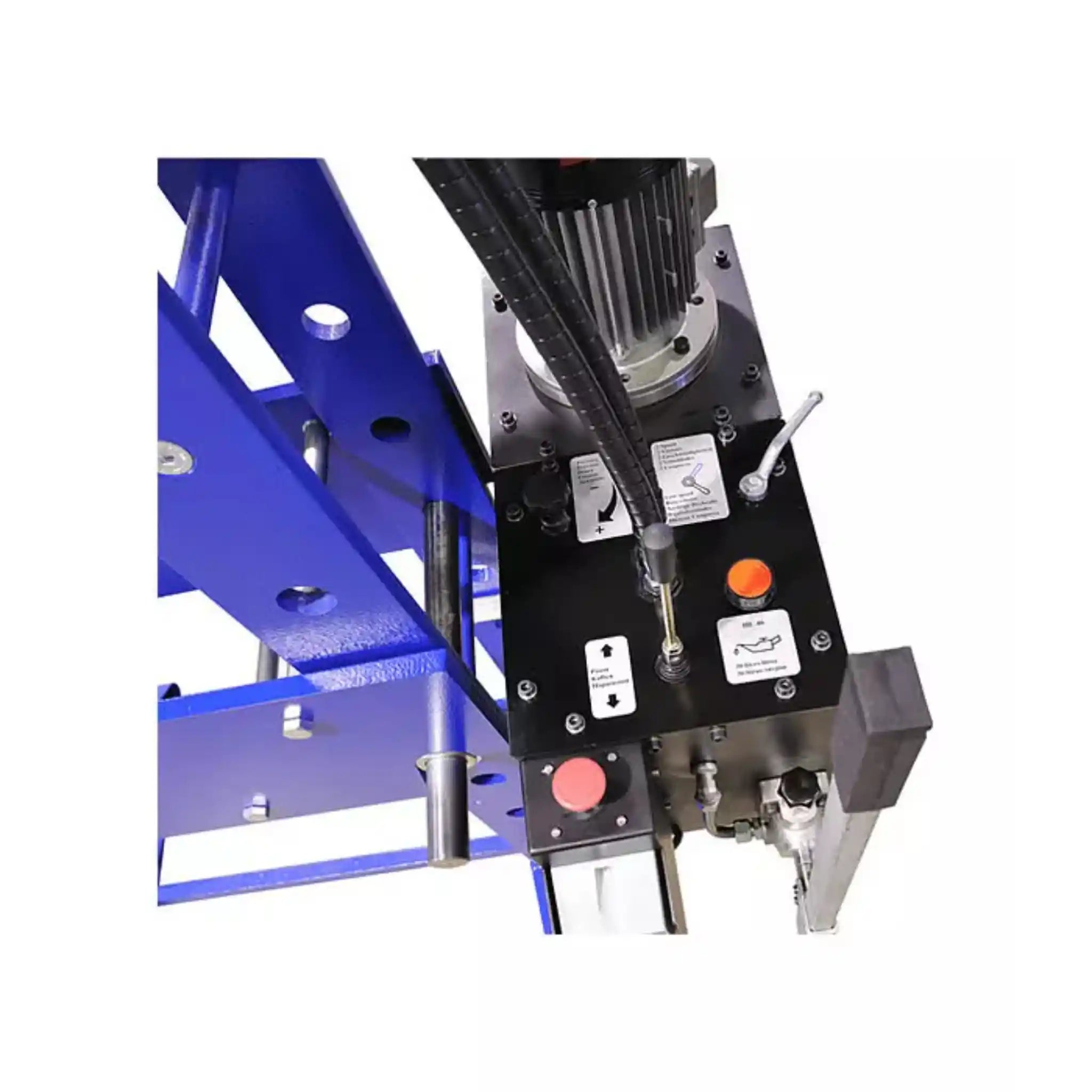

You can operate this press two ways. Use the joystick for motorised control, or switch to the hand pump when you need fine control for precision pressing. The hydraulic unit offers two speeds selectable via hand lever. Fast approach speed gets the cylinder to your work quickly at 5.73 mm/sec, then working speed slows to 1.84 mm/sec for controlled pressing. Return speed brings the cylinder back up at 7.08 mm/sec.
The integrated pressure gauge and regulator let you monitor and control pressing force throughout each operation. This press is designed for engineering workshops, vehicle repair facilities, manufacturing plants, and technical training centers. Made in Europe to CE certification standards and backed by a 2 year warranty.
Workshop press applications
- Press bearings in and out of housings and assemblies: Controlled force application for precise bearing installation and removal
- Straighten bent metal components including shafts and structural members: Restore components to proper specifications with measured pressing force
- Assemble press fit parts requiring controlled force: Join components with interference fits using precise pressure control
- Separate rusted or seized components: Apply controlled force to break free components that won't yield to lighter equipment
- Bend and form metal for fabrication work: Shape metal components for custom fabrication and repair projects
- Flatten warped parts to restore proper specifications: Correct warped or distorted metal components back to flat
Press features and benefits

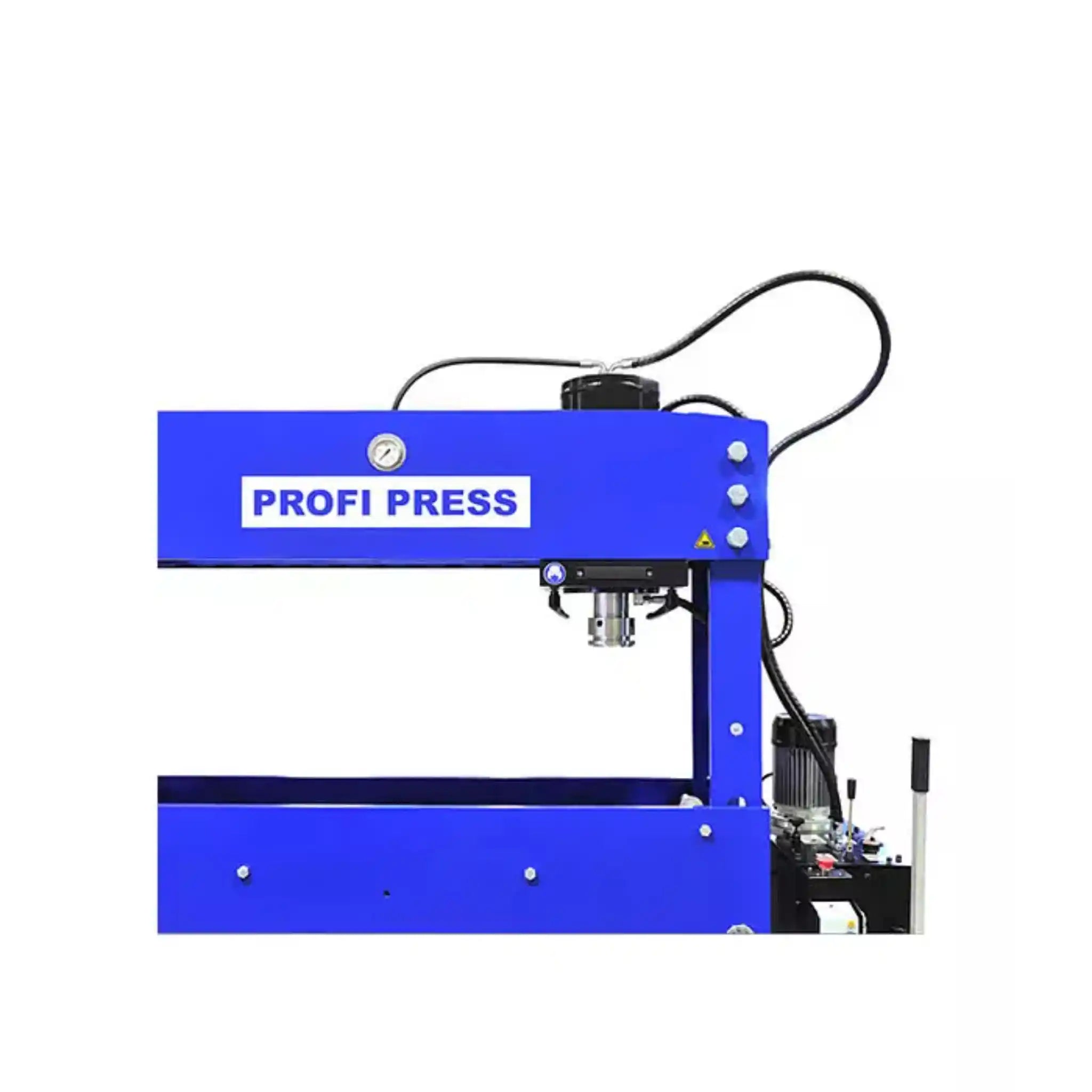

- Movable cylinder: Slides left and right for flexible work positioning across the frame width
- Dual operation modes: Gives you joystick controlled motorised pressing plus a hand pump for precision control
- Two speed hydraulic system: Offering selectable speeds via hand lever (5.73 mm/sec approach, 1.84 mm/sec working, 7.08 mm/sec return)

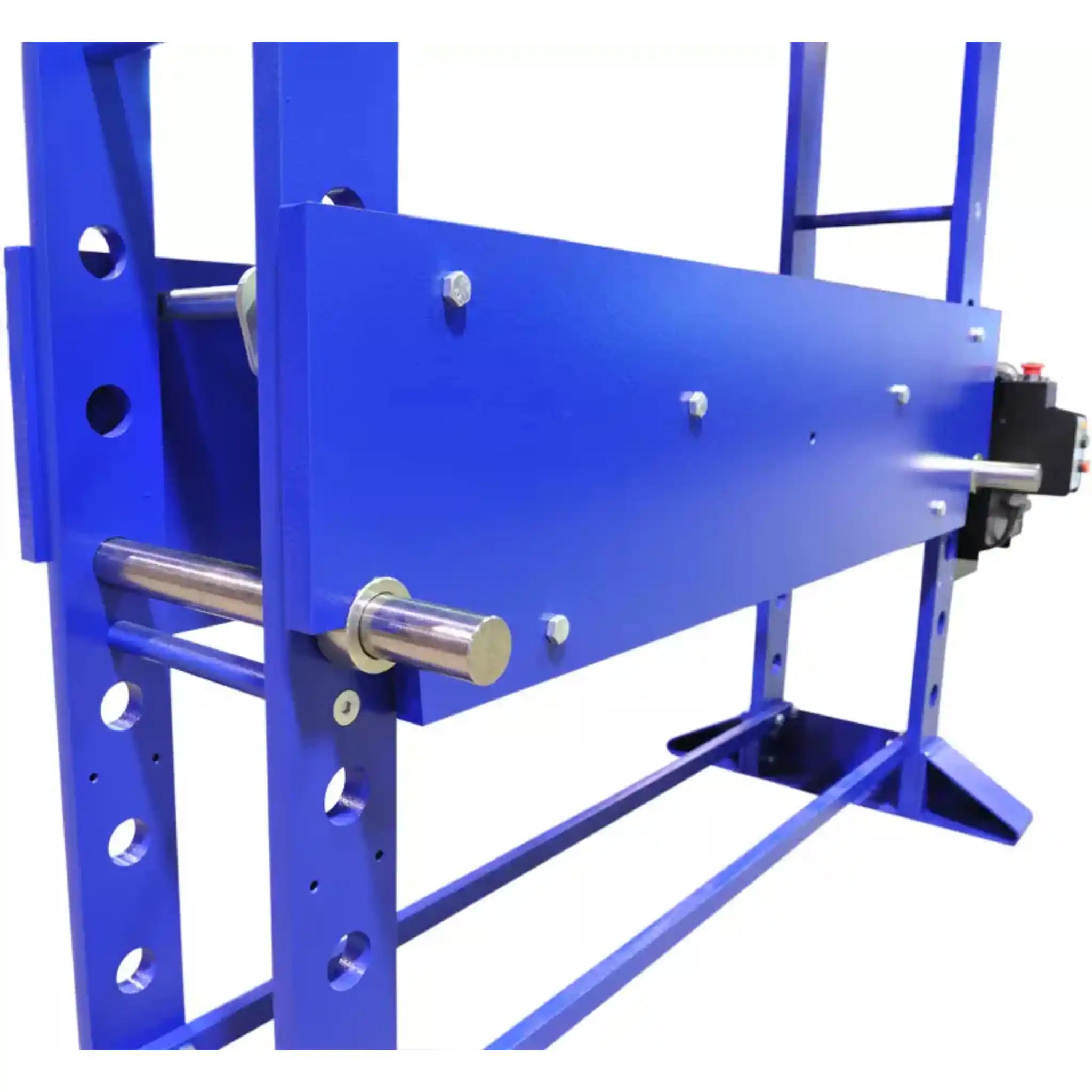

- Height adjustable work table: Provides1300mm working width and can be positioned at different heights with 150mm adjustment increments
- Integrated pressure gauge and regulator: Lets you monitor pressing force and set pressure limits

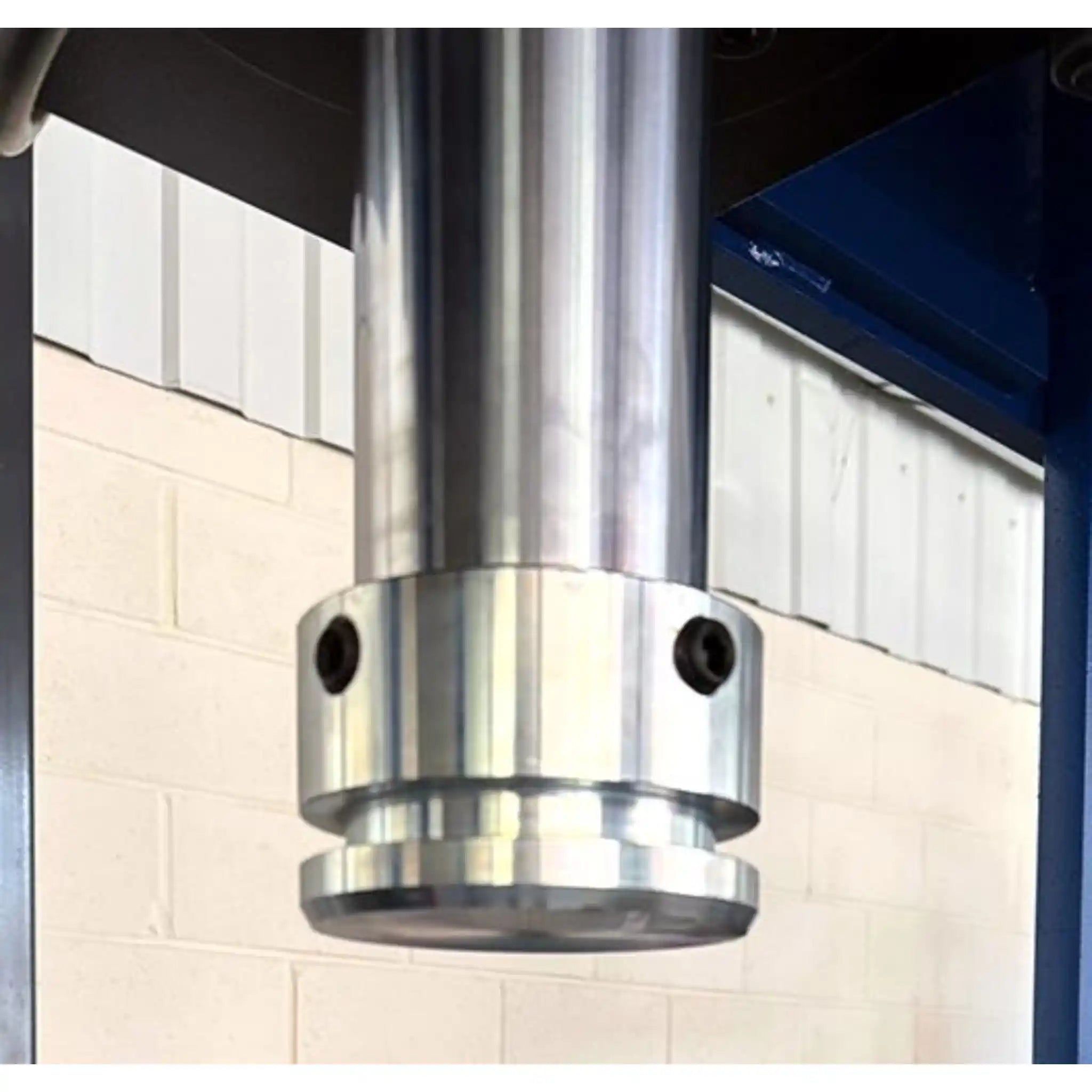

- Dual acting cylinder: Provides controlled pressing and return strokes
- Built to CE standards: With 2-year warranty and European manufacturing quality
What's Included
- 200 ton hydraulic workshop press
- Movable cylinder mechanism (left-right positioning)
- Height adjustable working table
- Integrated pressure manometer (gauge)
- Pressure regulation system
- Hydraulic unit with two speeds
Profi Press 200 Ton M/H-M/C-2 Specifications
| Pressing Capacity | 200 ton (1962 kN) |
|---|---|
| Maximum Pressure | 243 bar |
| Piston Stroke | 400 mm |
| Approach Speed | 5.73 mm/sec |
| Working Speed | 1.84 mm/sec |
Profi Press 200 Ton M/H-M/C-2 Manuals & Downloads
Frequently Asked Questions
Can I use both motorised and manual control on this press?
Yes. The press includes both a joystick for motorised operation and a hand pump for manual control. You can switch between these operating modes based on your needs.
What power supply does this press require?
The press requires 400V three-phase power at 50/60 Hz. The motor draws 3.0 kW and runs at 3000 rpm.
How do I adjust the work table height?
The work table is adjustable in height with 150mm increments, giving you flexibility for different workpiece sizes.
What speeds are available?
The hydraulic system offers two speeds selectable via hand lever. Approach speed is 5.73 mm/sec, working speed is 1.84 mm/sec, and return speed is 7.08 mm/sec.
What optional accessories are available?

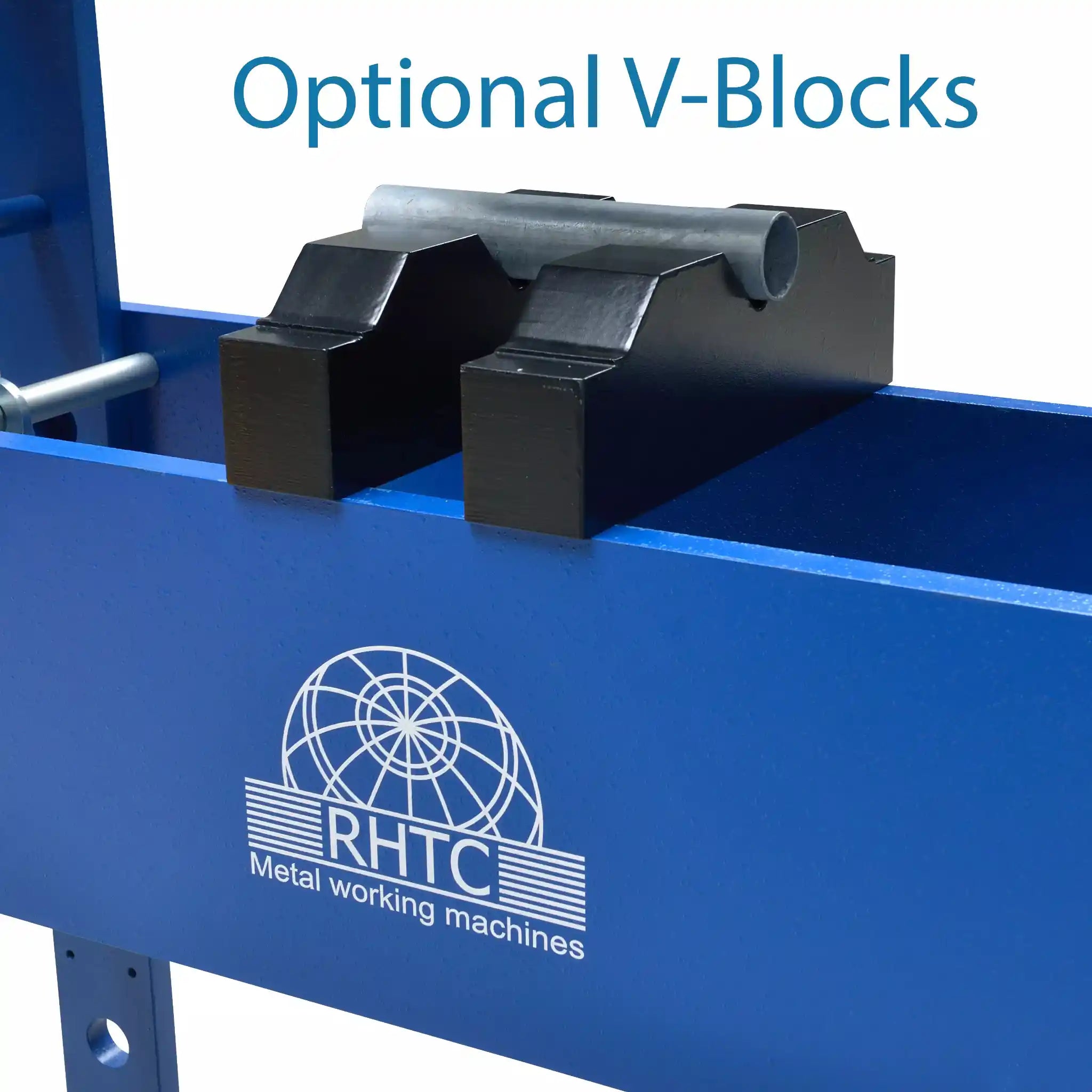

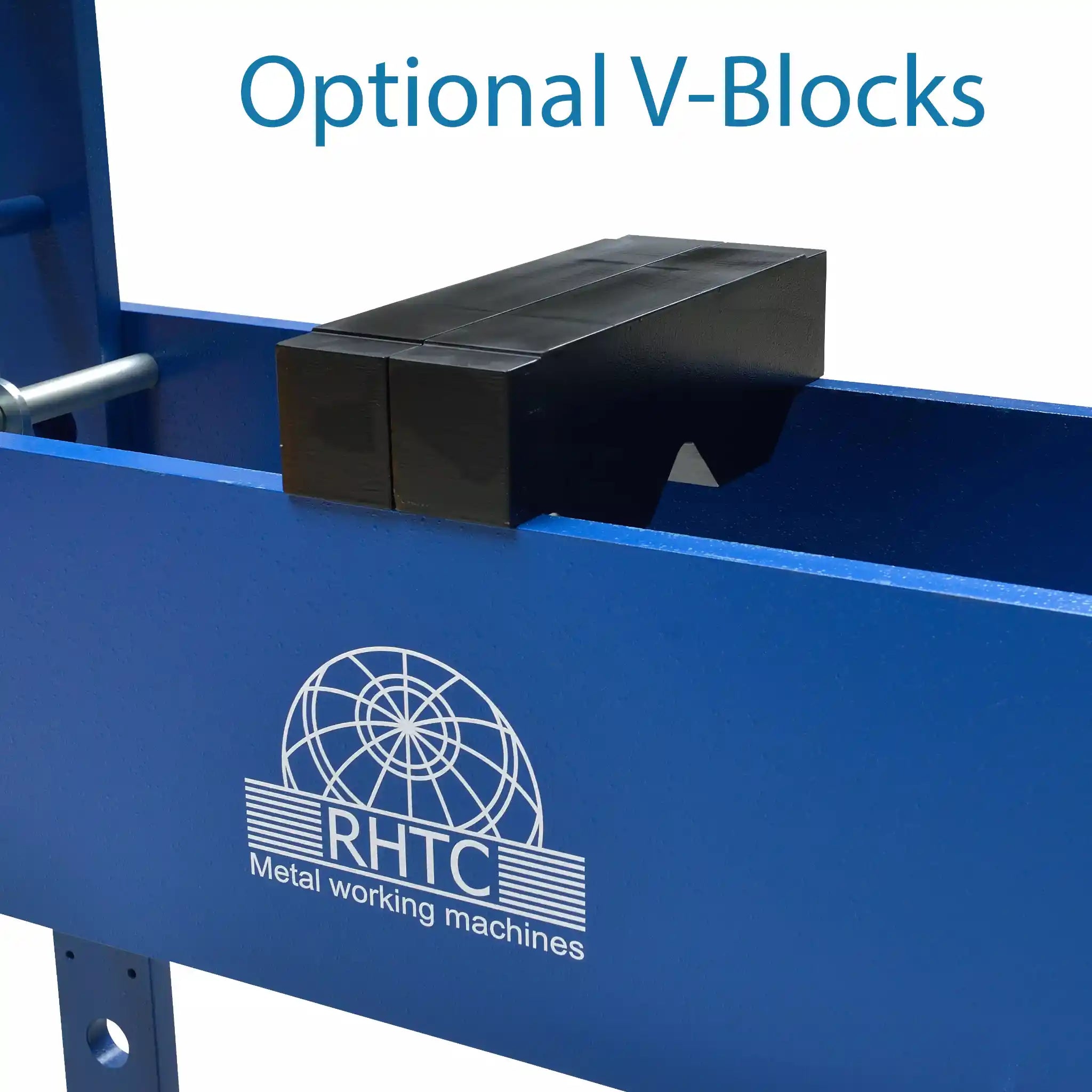

Optional accessories include foot pedal or hand remote controller, and V-block sets for extra support.
