Profi Press 160 Ton Hydraulic Press With 1500mm Width
Excl. VAT:
Incl. VAT:
Unsure if this is the right product for you?
Call Us Now - 020 4592 3439

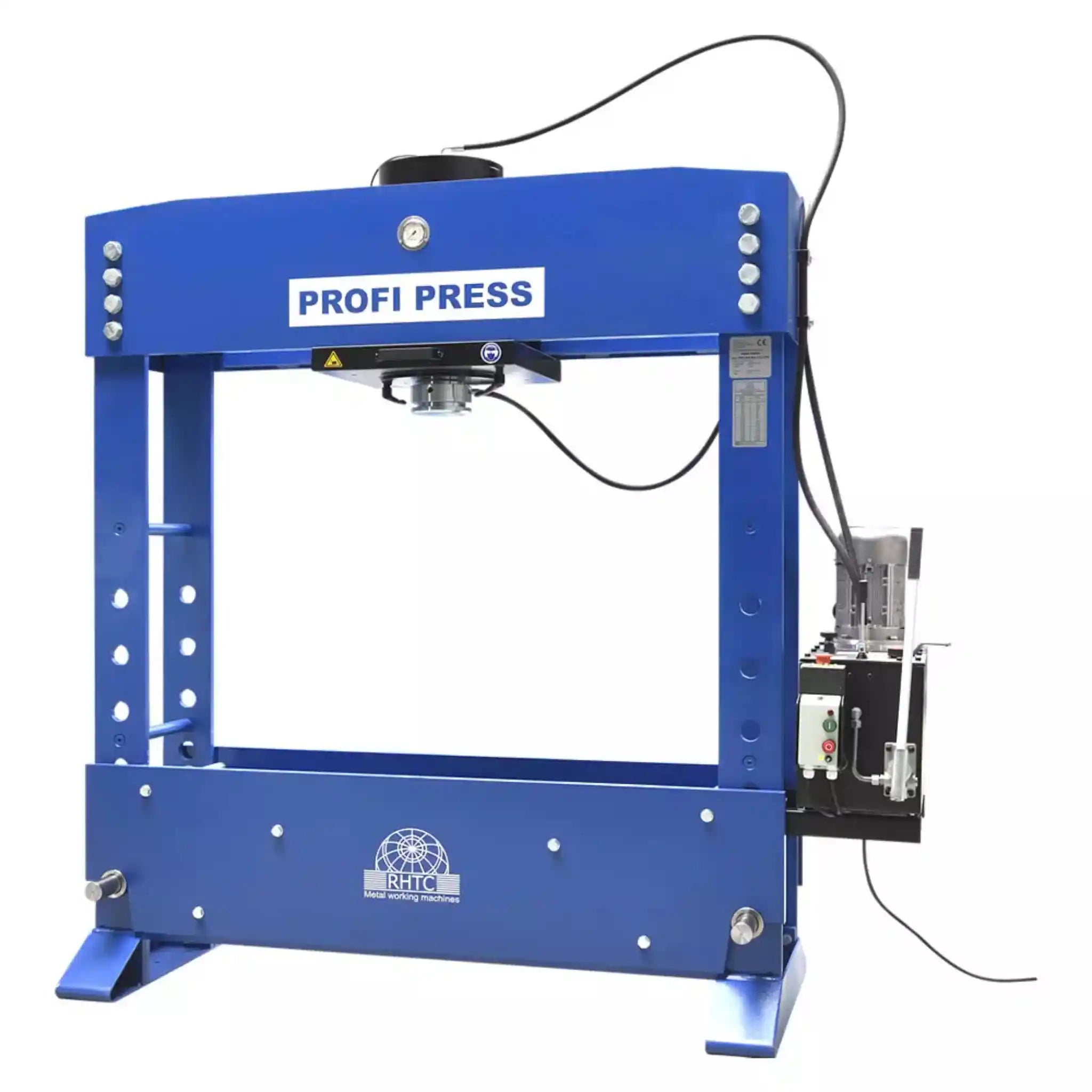

Profi Press 160 Ton M/H-M/C-2 Press With 1500mm Working Width
The Profi Press 160 Ton M/H-M/C-2 with 1500mm working width is a heavy duty motorised hydraulic workshop press designed for metal forming, straightening, and assembly operations requiring extra wide capacity.
Need to handle large workpieces that won't fit in standard presses? This 160 ton hydraulic press gives you 1500mm of working width, significantly wider than the standard model. This extra width makes it suitable for pressing operations on large shafts, bearings, and metal components that require greater lateral space.

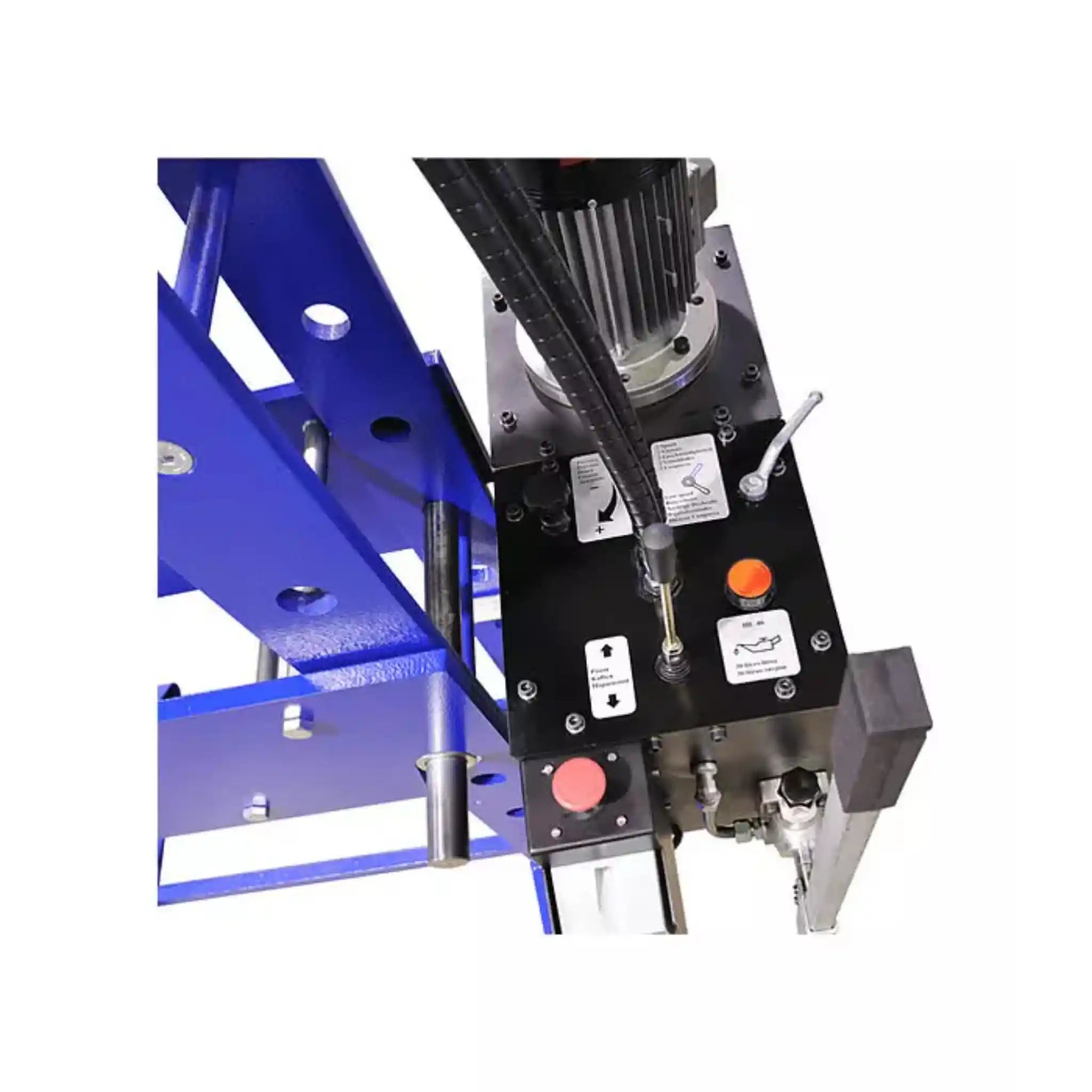

The press features dual operation modes. You can use the motorised joystick control for standard pressing tasks, then switch to the integrated hand pump when you need precise control. The movable cylinder slides left and right across the full working width, letting you position your pressing force where needed without repositioning heavy workpieces.
The press includes a double acting cylinder, which means it provides controlled movement in both directions. The height-adjustable worktable moves to six different positions in 150mm increments, accommodating parts of various sizes. An integrated pressure gauge manometer helps you monitor force accurately during pressing operations.
Manufactured exclusively in the EU to CE standards, this Profi Press comes with a 2-year warranty. It's designed for engineering workshops, maintenance facilities, and manufacturing operations that require reliable heavy duty pressing capability with extra-wide capacity.
Applications
- Bearing and bushing pressing: In and out of large housings and axle assemblies
- Straightening work: Bend shafts and bars up to 1500mm wide
- Metal forming: Bending and shaping wide workpieces
- Assembly operations: Controlled force application on large components
- Maintenance and repair: Workshops handling oversized parts
- General pressing: Where standard width presses are inadequate
Key Features and Benefits
- Extra wide 1500mm working width: Accommodates large workpieces that standard workshop presses cannot handle

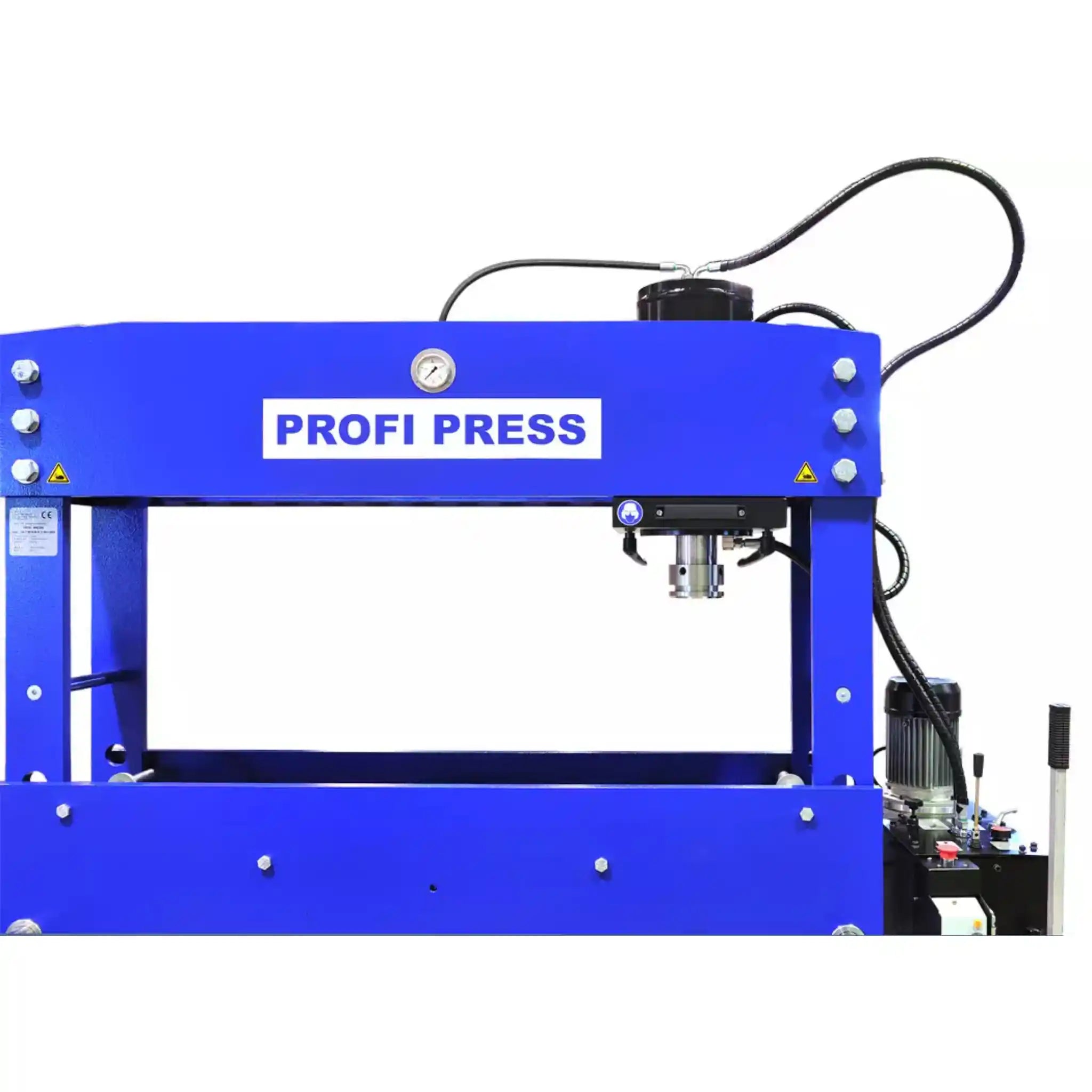

- Movable cylinder: Slides left and right across the table width for flexible positioning without moving heavy workpieces
- Dual operation modes: Motorised joystick control and manual hand pump for versatile operation
- Two speed hydraulic system: Fast approach at 7.48mm/sec and slower working speed at 2.40mm/sec for controlled pressing
- Height adjustable worktable: Six positions at 150mm increments adapts to different workpiece sizes
- Integrated pressure gauge manometer: Monitors pressing force for accurate, repeatable operations
- Double acting hydraulic cylinder: Controlled movement in both directions for safe operation
- Pressure regulation: Set and control maximum pressing force
- CE certified with 2 year warranty: Ensures compliance and long term reliability
What's Included
- Profi Press 160 Ton M/H-M/C-2 motorised hydraulic workshop press with 1500mm working width
- Movable double acting hydraulic cylinder
- Height adjustable worktable
- Motorised hydraulic power unit
Profi Press 160 Ton M/H-M/C-2 1500mm Specifications
| Press capacity | 160 ton (1570 kN) |
|---|---|
| Working width | 1500 mm |
| Piston stroke | 400 mm |
| Maximum hydraulic pressure | 255 bar |
| Working speed | 2.40 mm/sec |
Profi Press 160 Ton M/H-M/C-2 1500mm Manuals & Downloads
Frequently Asked Questions
Can this press be operated without electricity?
Yes. The press includes an integrated hand pump that allows full manual operation. This is useful for precision work requiring fine control over pressing force.
How do I adjust the worktable height?
The worktable adjusts to six different positions using 150mm increments. The adjustment is done manually, allowing you to set the height to suit different workpiece sizes.
What's the difference between this and the standard 160 ton press?
This model has an extra wide working width of 1500mm compared to the standard model's 1300mm width. All other specifications and features are the same as the standard 160 ton press.
What type of electrical connection does this press require?
The press requires a 400V three phase power supply at 50/60 Hz. The motor power is 3 kW.
Is the cylinder movable across the full width?
Yes. The cylinder moves left and right across the full working width, allowing you to position the pressing force exactly where needed on your workpiece.
