Profi Press 15 Ton Manual Press
Excl. VAT:
Incl. VAT:
Unsure if this is the right product for you?
Call Us Now - 020 4592 3439

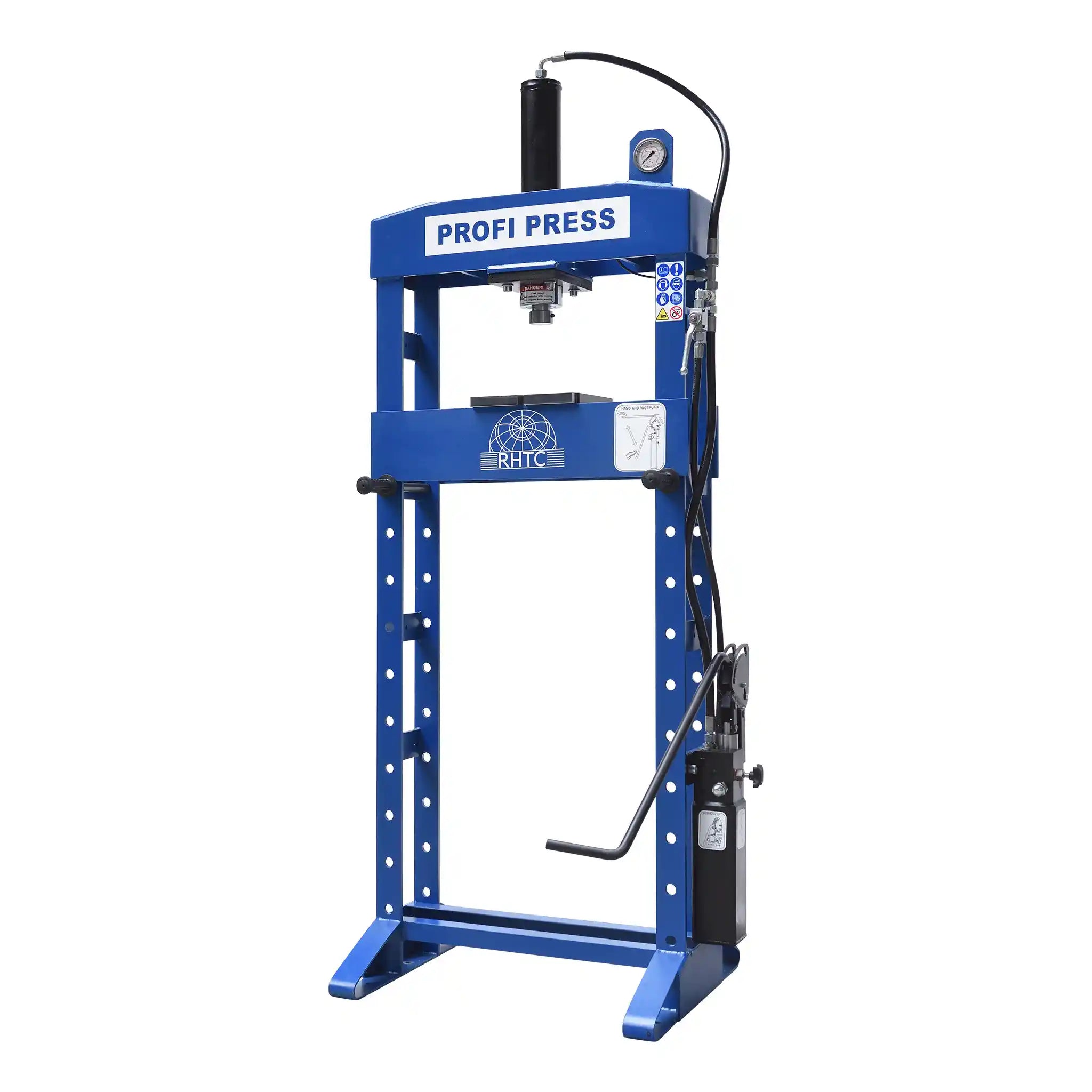

Profi Press 15 Ton HF-2 Workshop Press
The Profi Press 15 Ton HF 2 is a manual hydraulic workshop press that you can operate by hand or foot, with an interchangeable pump system that gives you flexibility in how you work.
This H frame hydraulic press features a fixed cylinder design with a height adjustable work table, allowing you to easily work with different material and product sizes without constant repositioning. The hand and foot operated system includes a manometer for pressure monitoring and a chrome piston that returns automatically after each stroke. You get a set of V-blocks included as standard for extra support when working with cylindrical parts.
Made in Europe and delivered according to the latest CE standards, this manual workshop press is built from quality steel for precise workshop pressing tasks and comes with a 1 year warranty.
Applications
- Bearing pressing and bushing replacement: Installing and removing bearings and bushings in automotive and machinery repair work
- Straightening operations: Correcting bent or uneven metal parts and components back to their proper shape
- Metalwork bending and folding: Forming sheet metal, brackets, and structural components for fabrication projects
- Pressing and separating parts: Pressing locked parts together or separating rusted components that won't come apart
- General fabrication work: Punching, flattening warped parts, and holding welding projects securely
Key Features & Benefits

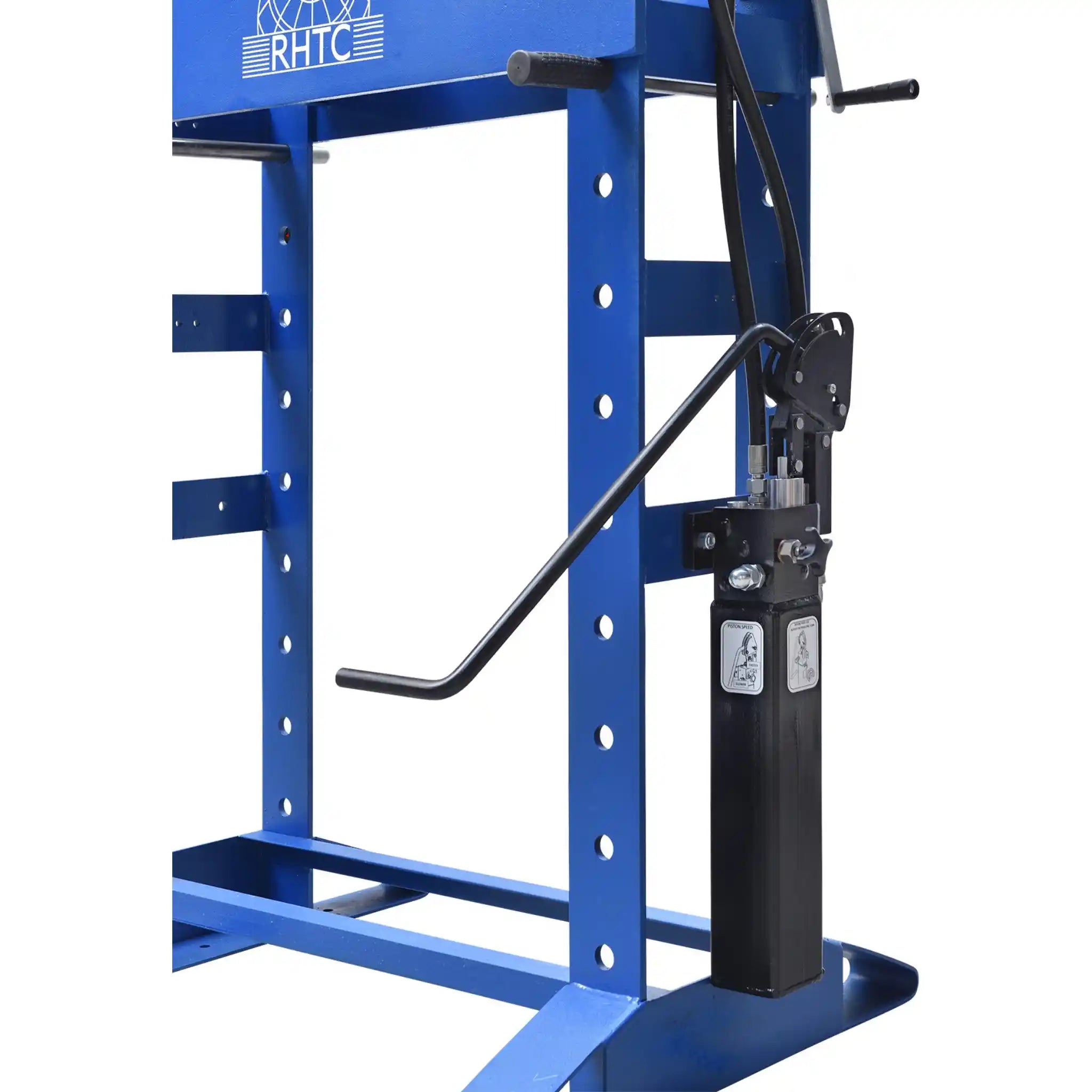

- Hand and Foot Operation: The handpump is interchangeable with a foot pump, giving you the freedom to choose the most comfortable operating method for each task. When you need both hands to position parts, switch to foot operation for hands-free control
- Height-Adjustable Work Table: The work table adjusts easily in height, allowing you to work efficiently with different material and product sizes without complex setup changes
- Fixed Cylinder Design: This press features a fixed cylinder rather than a movable one, providing stability during pressing operations
- Manometer Included: The built-in pressure gauge lets you monitor the exact pressure you're applying during each operation, ensuring you have precise control over the pressing force
- Automatic Piston Return: The chrome piston returns automatically after each stroke, speeding up your work and reducing fatigue during repetitive tasks
- V-Blocks Supplied as Standard: A set of V-blocks comes included with the press, providing extra support for cylindrical workpieces right from the start
- European Manufacturing: Manufactured in the Netherlands from quality steel with highly precise construction, this press is built to professional workshop standards
- CE Certified with Warranty: Delivered according to the latest CE standards and backed by a 1-year warranty for peace of mind with your purchase
What's in the Box
- 15 Ton HF-2 hydraulic workshop press
- Interchangeable hand and foot pump
- Manometer (pressure gauge)
- Set of V-blocks

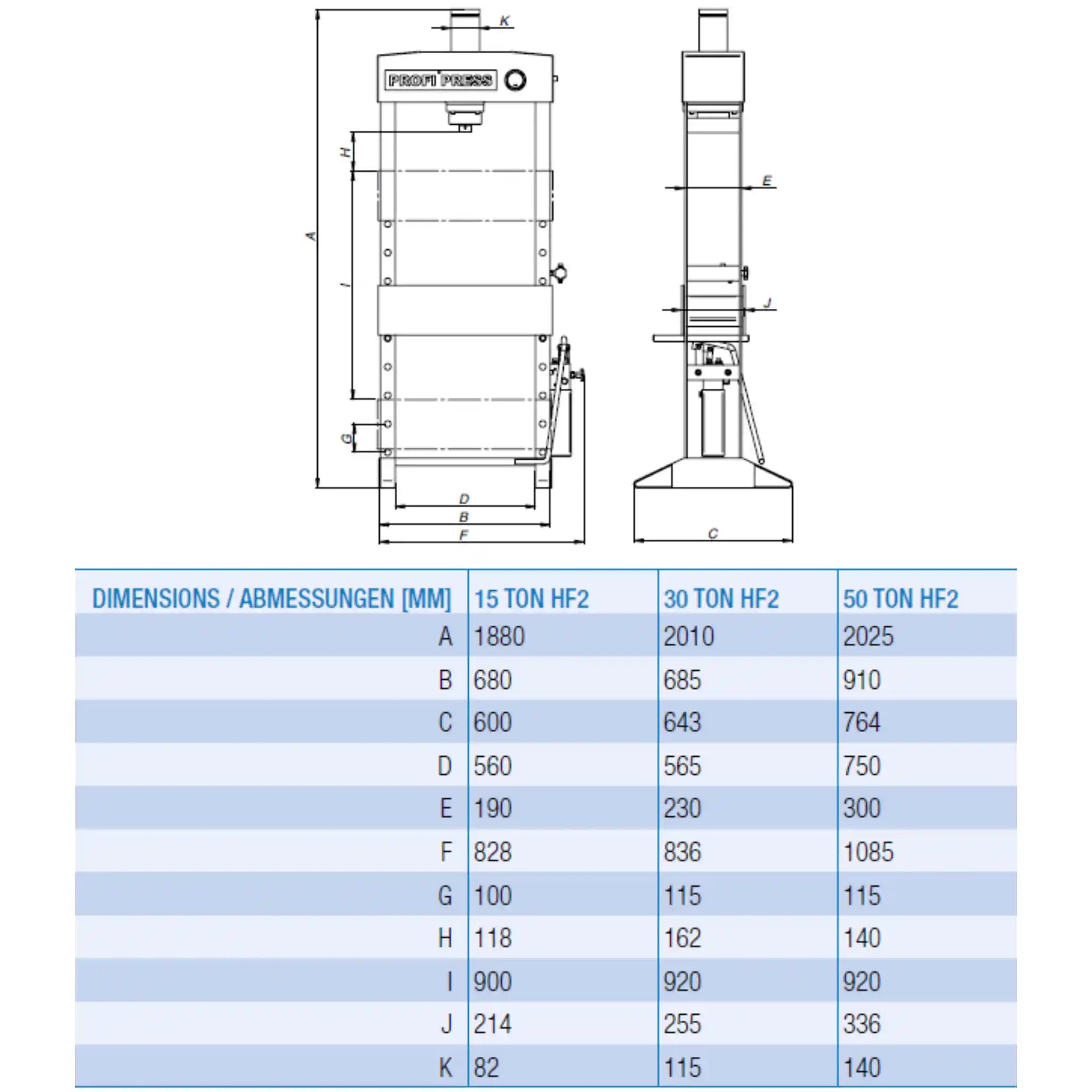

Profi Press 15 Ton HF 2 Technical Specifications
| Pressure Force | 147.15 kN (15 Ton) |
|---|---|
| Maximum Pressure | 382.2 bar |
| Cylinder Stroke | 160 mm |
| System Capacity | 1.65 dm³ |
| Working Width | 560 mm |
Profi Press 15 Ton HF 2 Manuals & Downloads
Frequently Asked Questions
Can I operate this press by myself?
Yes, the 15 Ton HF-2 is designed for single-operator use. The interchangeable hand and foot pump system means you can switch to foot operation when you need both hands free to position your workpiece, or use the hand pump when you prefer manual control.
What's the working width of this press?
The working width is 560 mm, which determines the maximum width of materials you can fit between the H-frame uprights.
How does the height adjustment work?
The work table height is very easy to adjust, allowing you to quickly accommodate different material and product sizes. This adjustability means you can work efficiently without needing spacers or makeshift supports for various workpiece heights.
Is this press suitable for bearing work?
Yes, hydraulic workshop presses are extensively employed in workshops for bearing pressing and straightening work. The included V-blocks provide proper support for cylindrical parts during bearing installation or removal operations.
What warranty does this press come with?
The press is backed by a 1-year manufacturer warranty and is CE certified, ensuring it meets European safety and quality standards.
