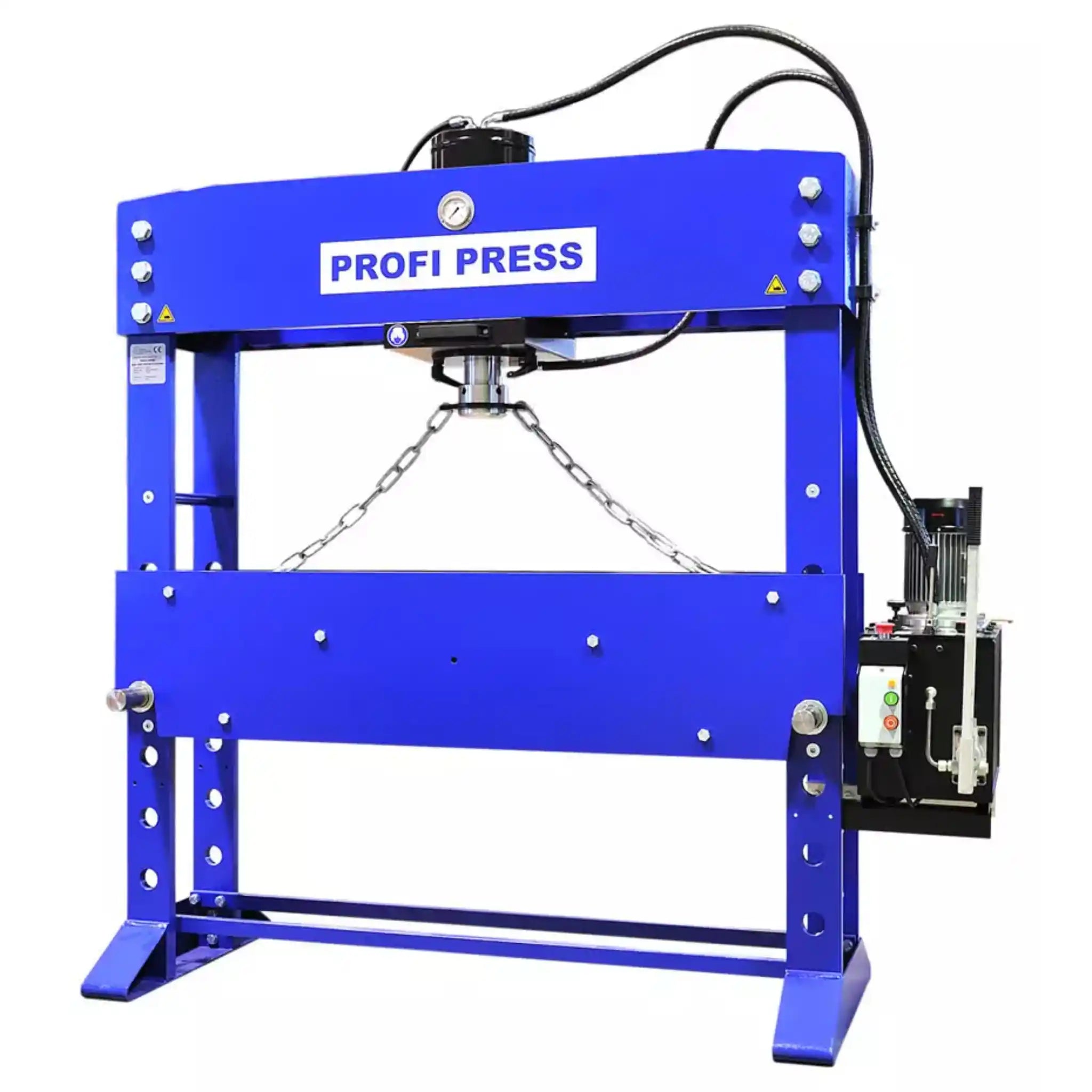

Profi Press 100 Ton M/H-M/C-2 With 1500mm Working Width
The Profi Press 100 Ton M/H-M/C-2 D=1500 delivers 981 kN (100 tonnes) of pressing force across an extra-wide 1500mm working width, perfect for larger components that won't fit standard presses. This EU manufactured motorised press gives you the flexibility of joystick control for fast production work or hand pump operation for precision pressing.
Why the extra width matters for your workshop
This 100-ton press handles the jobs your standard press can't. With 1500mm of working width (50% wider than standard 1000mm models), you can press larger truck components, wide fabrications, and oversized assemblies without modification or repositioning.
Two ways to control, one powerful press
You get both motorised and manual control in one machine. Use the top mounted joystick for fast, repetitive pressing operations. Switch to the integrated hand pump when you need precise control for delicate work like bearing installation or shaft fitting. The hydraulic system automatically switches between fast approach (7.54mm/sec) and slower working speed (2.47mm/sec) when it detects pressure.
Built to last, backed by warranty
This press is manufactured in the EU and comes with full CE certification for UK workplace compliance. You get a 2-year warranty. The movable cylinder slides left and right across the full working width, letting you position pressing force exactly where you need it without moving heavy workpieces.
Applications
- Bearing installation and removal: Press wheel bearings, axle bearings, and industrial bearing housings. The wide working width accommodates truck hubs and larger automotive components.
- Shaft and press-fit work: Install and remove press-fit components including bushings, gears, pulleys, and couplings. The hand pump gives you the precise force control needed for delicate components.
- Straightening operations: Correct bent shafts, beams, plates, and fabricated assemblies. Adjust the table height and move the cylinder to position workpieces exactly where needed.
- Metal forming and bending: Bracket bending, metal folding, and fabrication work. Compatible with brake press tooling for repeatable bends.
- Assembly and disassembly: General press-fit assembly in manufacturing. Separate seized or corroded components in maintenance work. Controlled force application for riveting.
- Component testing: Load testing fabricated parts and validating weld joints under controlled pressure conditions.
Key Features & Benefits
- Extra Wide 1500mm Working Width: Handle larger workpieces that won't fit standard presses. Truck components, wide fabrications, agricultural equipment, and structural sections all fit with room to spare.
- Dual Control: Joystick + Hand Pump: Fast motorised operation when you need speed. Precise manual control when you need accuracy. One press does both jobs without compromise.

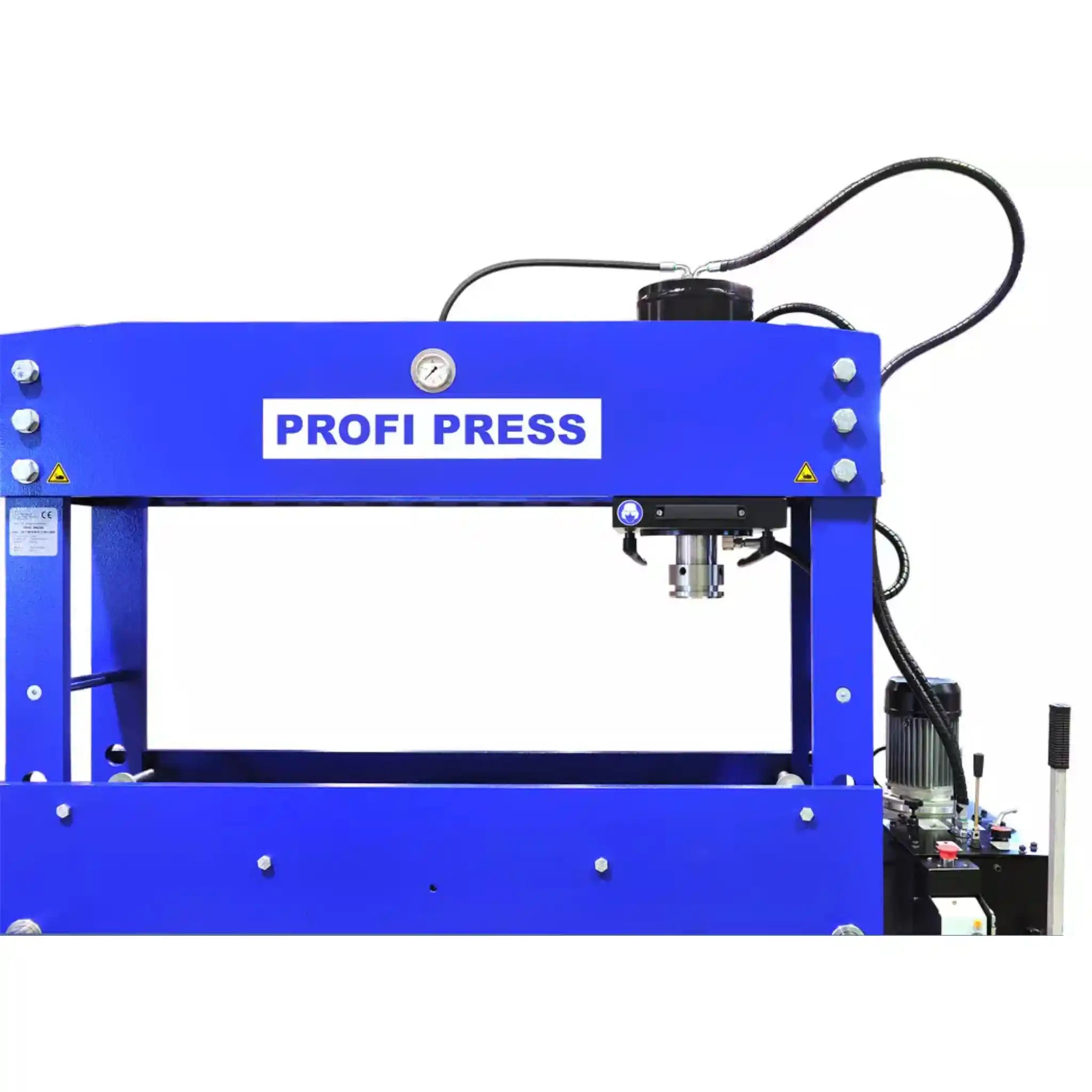

- Movable Cylinder Positioning: The pressing head slides horizontally across the full working width. Position force exactly where needed without repositioning heavy workpieces.
- Automatic Two-Speed System: Fast approach at 7.54mm/sec reduces cycle times. Automatic switch to 2.47mm/sec working speed when pressure is detected prevents sudden impact and protects your work.

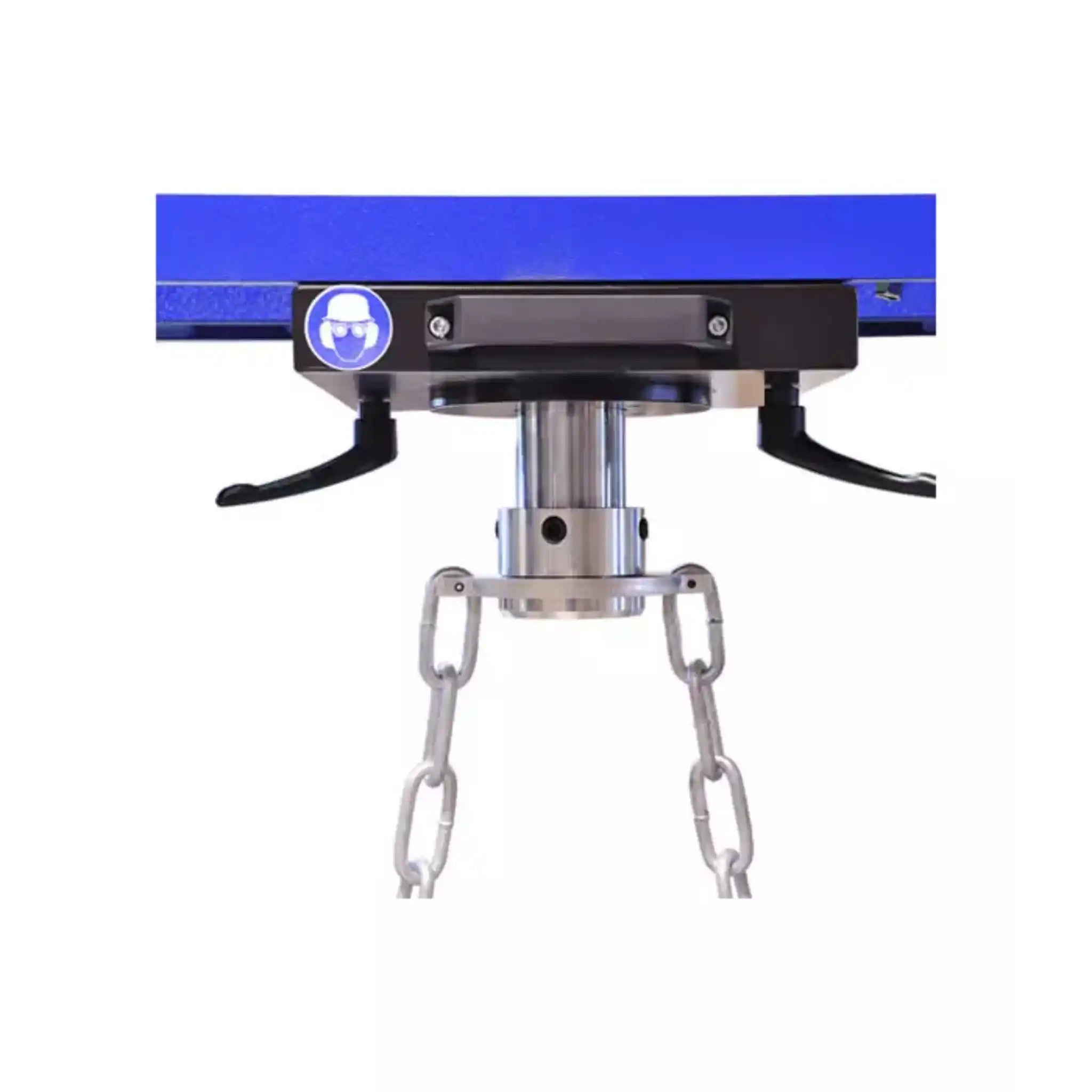

- Height-Adjustable Table (6 Positions): Quick setup for different workpiece heights using the cylinder chain hoist system. 150mm increments give you flexibility for diverse jobs.
- Integrated Pressure Control: Built-in manometer lets you monitor pressing force in real-time. Pressure regulation allows you to set exact tonnage for specific applications.
- EU Manufacture with 2-Year Warranty: Built in Europe with quality components. CE certified for UK workplace compliance.
- Double-Acting Cylinder: 380mm stroke with chrome piston provides reliable, consistent performance. Top-quality hydraulic components for long service life.
What's in the Box
- Complete hydraulic press with H-frame structure

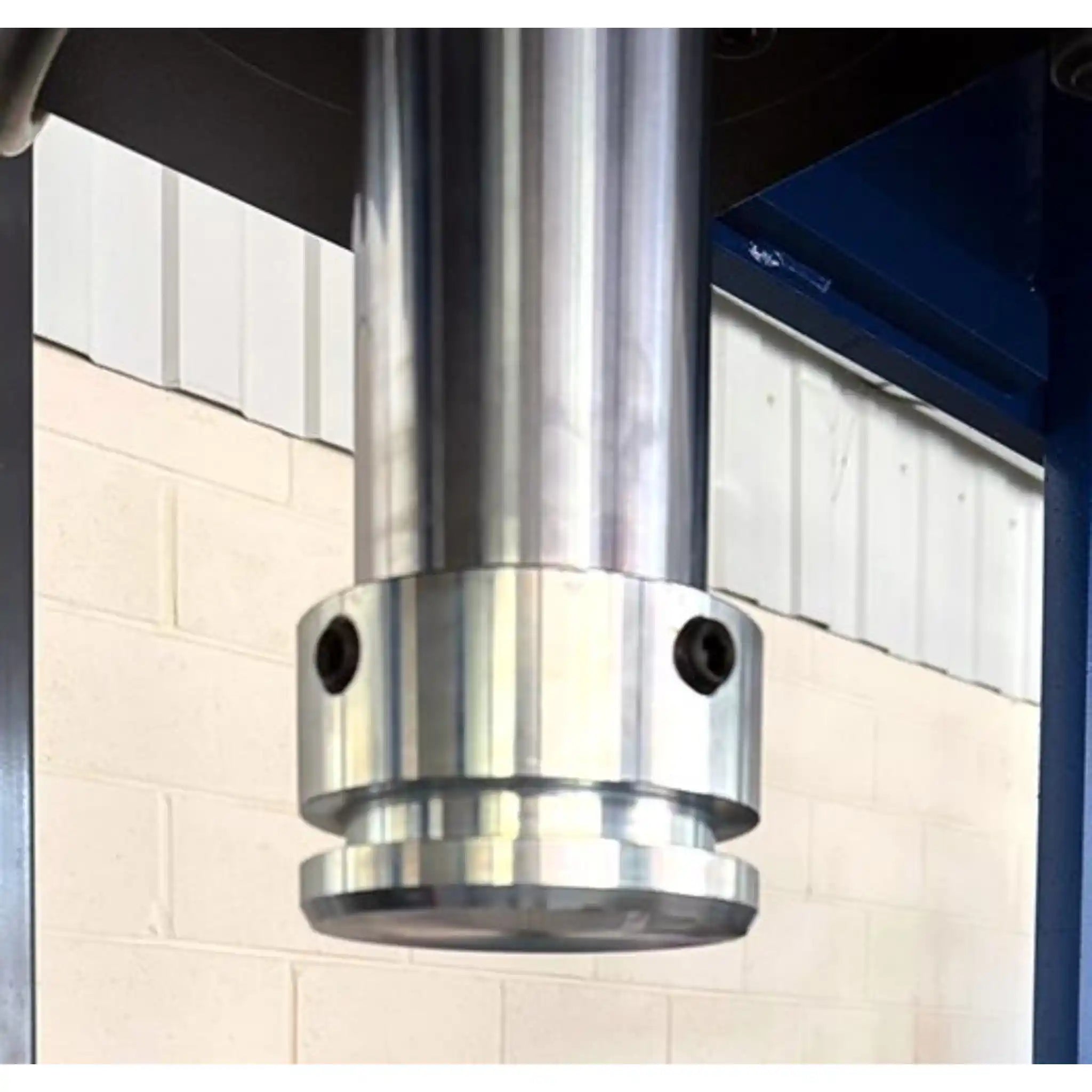

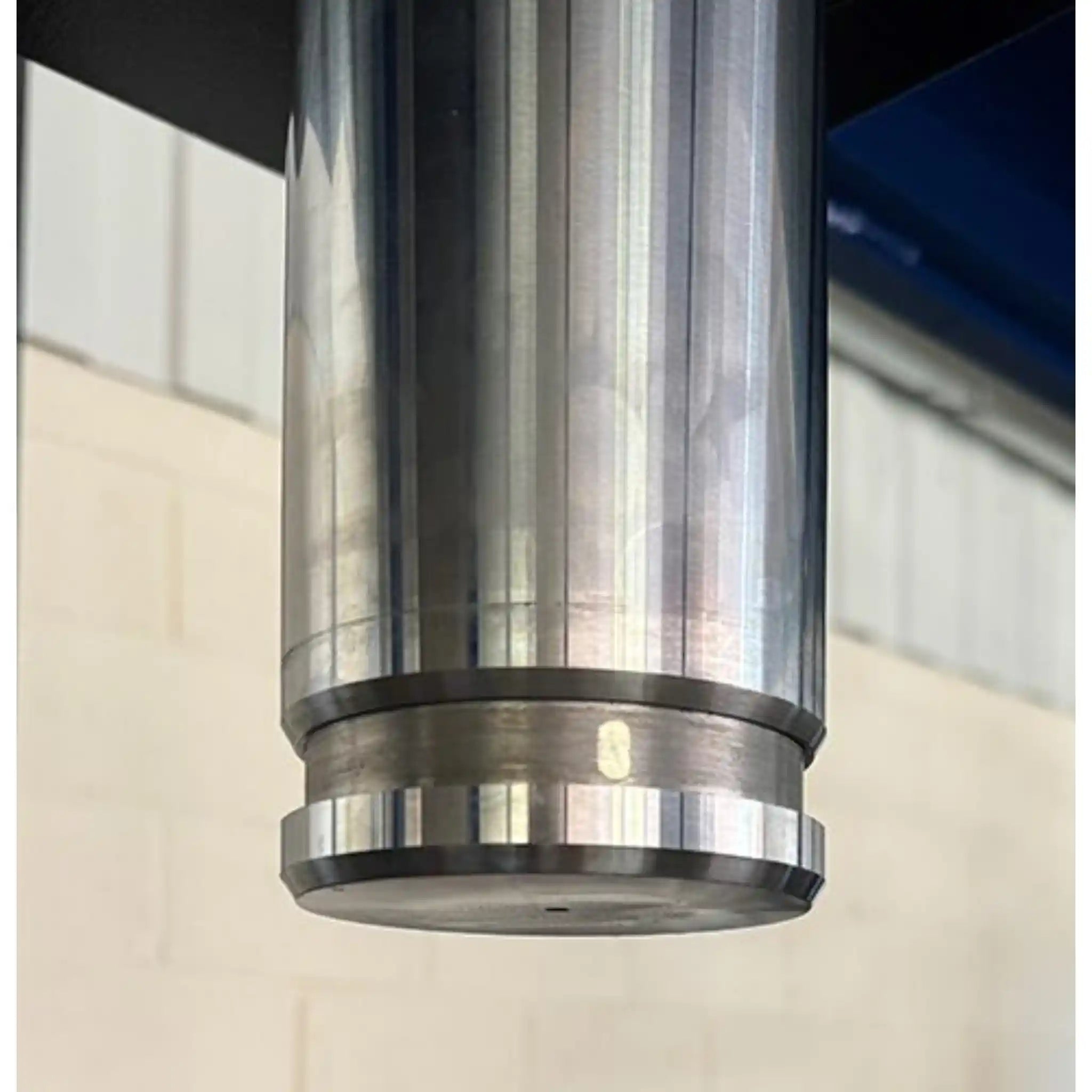

- Double acting hydraulic cylinder with chrome piston (380mm stroke)
- Motorised hydraulic power unit (2.2kW, 400V 3-phase, 50/60Hz)
- Top-mounted joystick control
- Integrated hand pump for manual operation
- Integrated pressure manometer
- Integrated pressure regulation valve
- Two-speed hydraulic system
- Height-adjustable working table with chain hoist mechanism

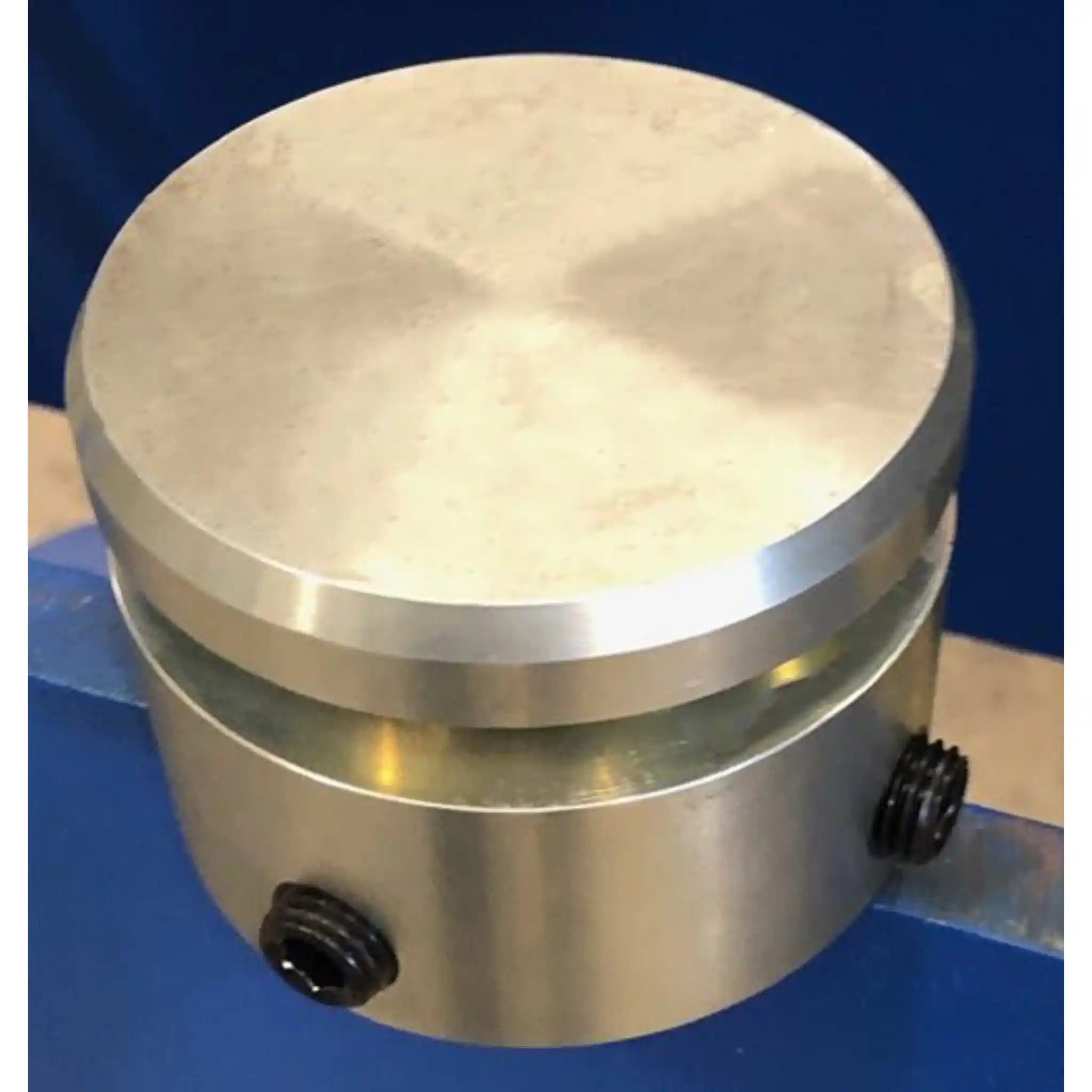

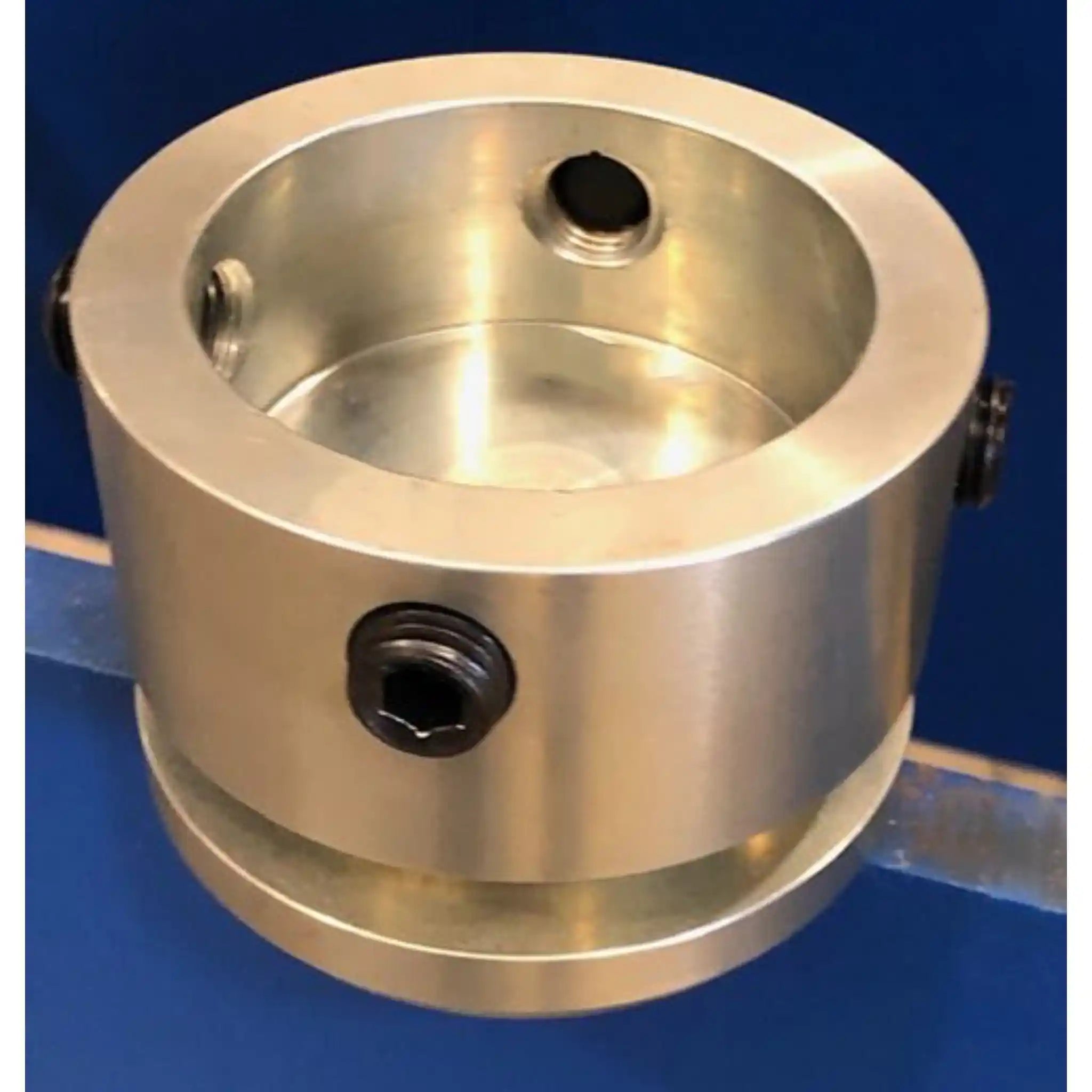

- Piston head (120mm diameter)
Profi Press 100 Ton M/H-M/C-2 1500mm Specifications
| Pressing force | 981 kN (100 tonnes) |
|---|---|
| Maximum system pressure | 258 bar |
| Piston stroke | 380 mm |
| Working width | 1500 mm |
| Working speed | 2.47 mm/sec |
Profi Press 100 Ton M/H-M/C-2 1500mm Manuals & Downloads
Frequently Asked Questions
What power supply does this press require?
The standard machine requires 400V three-phase at 50/60Hz, which is typical for UK industrial workshops. A single-phase motor is available as a customisation option if you don't have three-phase power, but this needs to be specified when ordering.
How do you adjust the working table height?

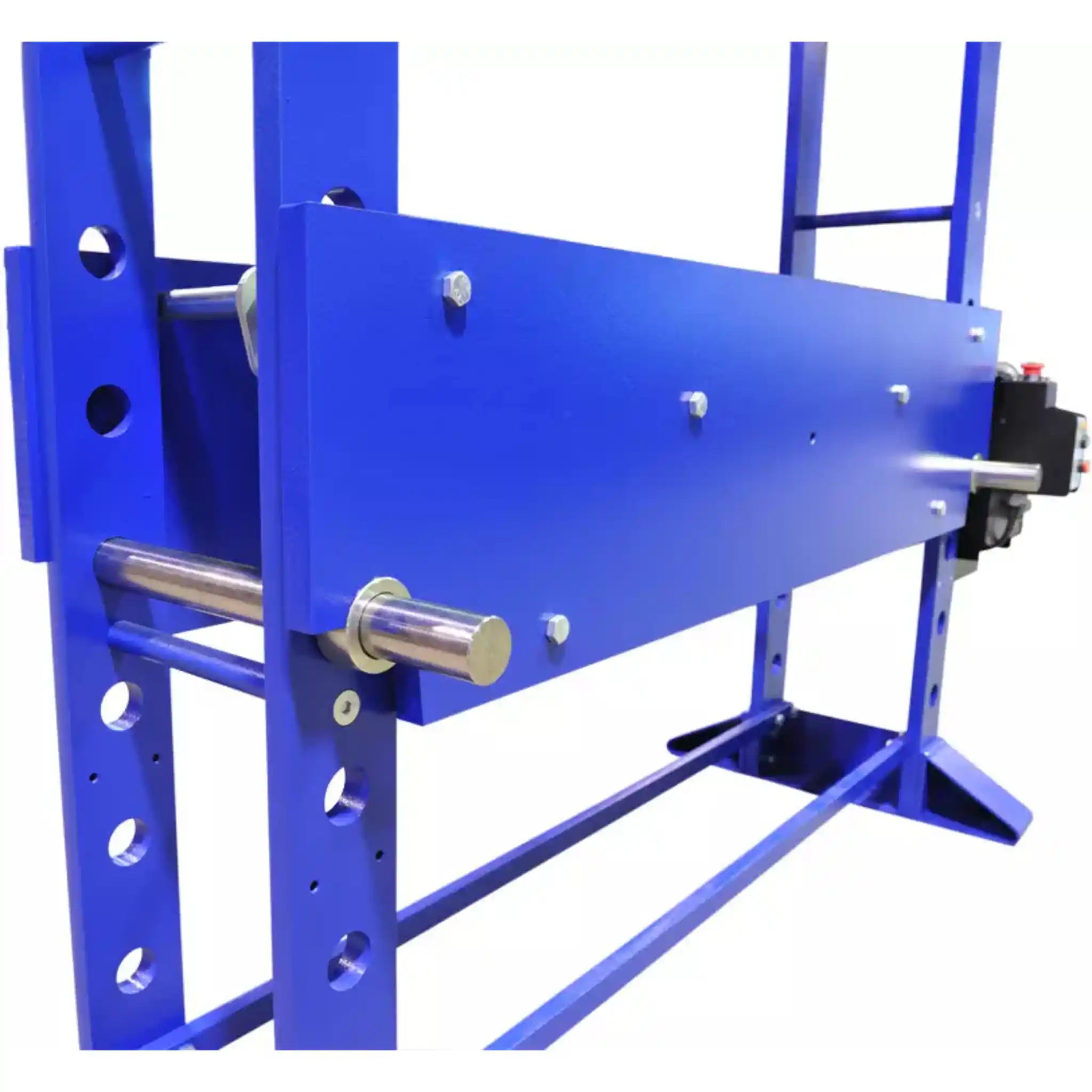

The table adjusts to 6 positions in 150mm increments using an integrated chain hoist system. This is quick and tool-free. You simply use the hoist to raise or lower the table and reposition the support pins.
What's the difference between this 1500mm model and the standard 100ton press?
This D=1500 variant provides 1500mm working width compared to the standard model's 1000mm. That's 50% more lateral working capacity. The wider frame increases weight to 1145kg, but all other specifications remain the same: pressing force, stroke, speeds, and features are identical.
Can you use both the joystick and hand pump?
Yes, you can switch between them as needed. Use the joystick for fast, repetitive pressing operations. Switch to the hand pump when you need precise control for delicate pressing operations. Both control the same hydraulic system.
What safety certifications does the press have?
The Profi Press is CE certified for use in the UK and EU. This confirms it meets essential health and safety requirements for workplace use. Optional safety guarding is available if you need enhanced protection for specific applications.
How does the twospeed system work?
The hydraulic system approaches quickly at 7.54mm/sec to save time. When it detects counterpressure from the workpiece, it automatically switches to the slower 2.47mm/sec working speed. This prevents sudden impact forces that could damage components. Return speed is 9.06mm/sec for rapid reset.
