Profi Press 100 Ton Hydraulic Press
Excl. VAT:
Incl. VAT:
Unsure if this is the right product for you?
Call Us Now - 020 4592 3439

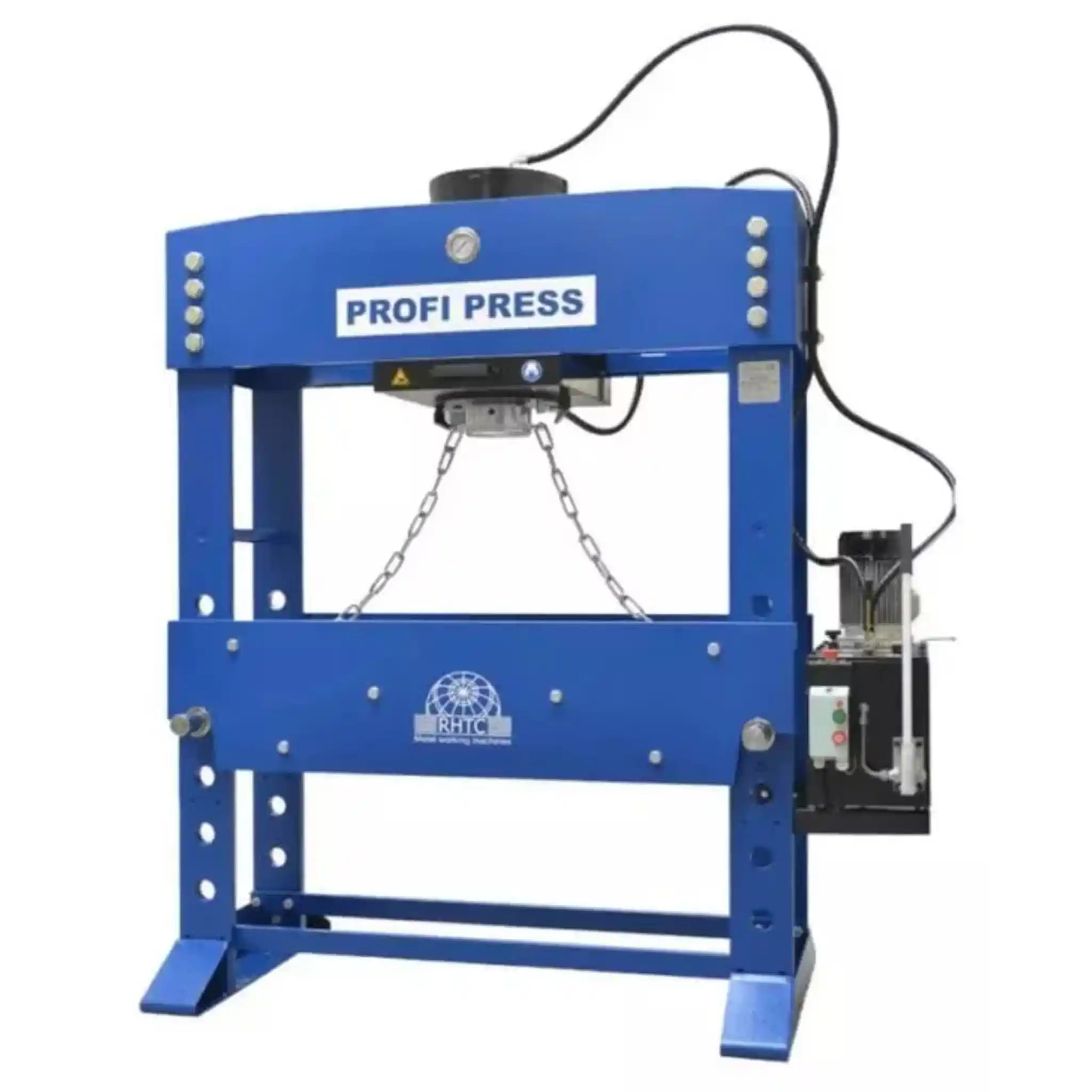

Profi Press 100 Ton M/H-M/C-2 Hydraulic Press
The Profi Press 100 Ton M/H-M/C-2 is a professional grade motorised hydraulic workshop press designed for demanding metalworking and fabrication tasks. This is RHTC's all time best selling workshop press, manufactured exclusively in Europe with high quality steel and components.
This machine gives you exceptional versatility through its dual operating system. While classified as motorised, it includes a hand pump facility for intricate precision presswork or when you prefer manual control. The hydraulic cylinder moves left and right along the frame, and combined with the height adjustable working table, you can address virtually all pressing applications.
The press is CE certified and manufactured in the EU. Every machine comes with a comprehensive 2 year warranty. When running in motorised mode, you get complete directional control through an integrated joystick, with 2 speeds selectable via an easily adjustable lever. The primary cylinder is a top quality dual acting design that delivers reliable performance across the full 380mm stroke.
Applications
- Bearing pressing: Installing bearings into housings or extracting seized bearings with controlled pressure
- Metalwork bending and folding: Shaping sheet metal and creating custom fabrications
- Straightening operations: Correcting uneven metal parts and flattening warped components
- Separating rusted parts: Breaking apart corroded assemblies that won't separate by hand
- Automobile part construction: Rebuilding suspension components and pressing bushings
- General pressing work: Punching holes, riveting assemblies, and compressing materials
Key Features & Benefits
- Movable Hydraulic Cylinder: The cylinder slides left and right along the frame, letting you position the pressing force exactly where you need it without repositioning heavy workpieces.
- Dual Operating System: Switch between motorised operation for production work and manual hand pump for precision tasks. This flexibility means you can choose the best method for each job.
- Two Speed Hydraulic System: Fast approach speed at 7.54 mm/sec gets you to the workpiece quickly, then switch to working speed at 2.47 mm/sec for controlled pressing. The return speed is 9.06 mm/sec.

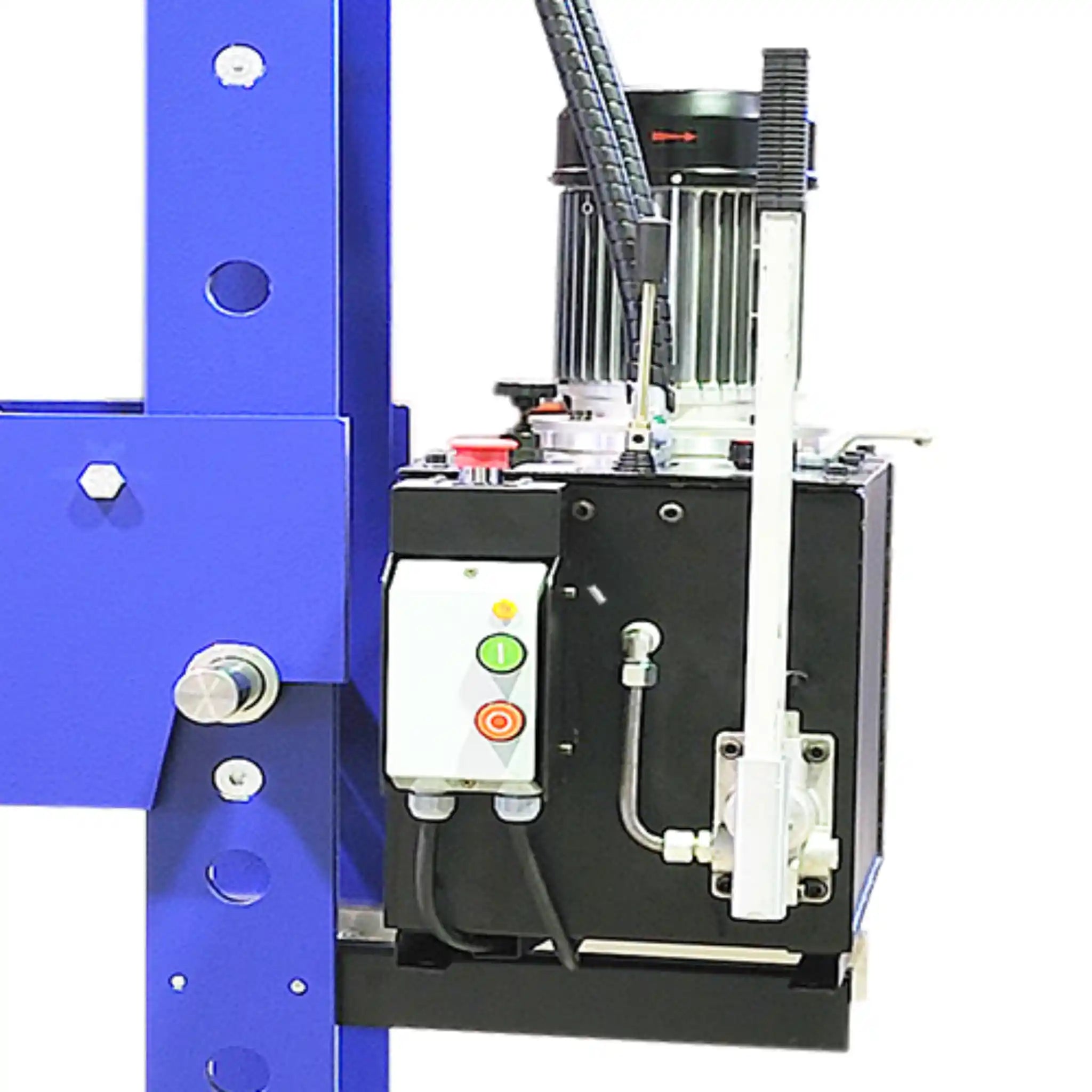

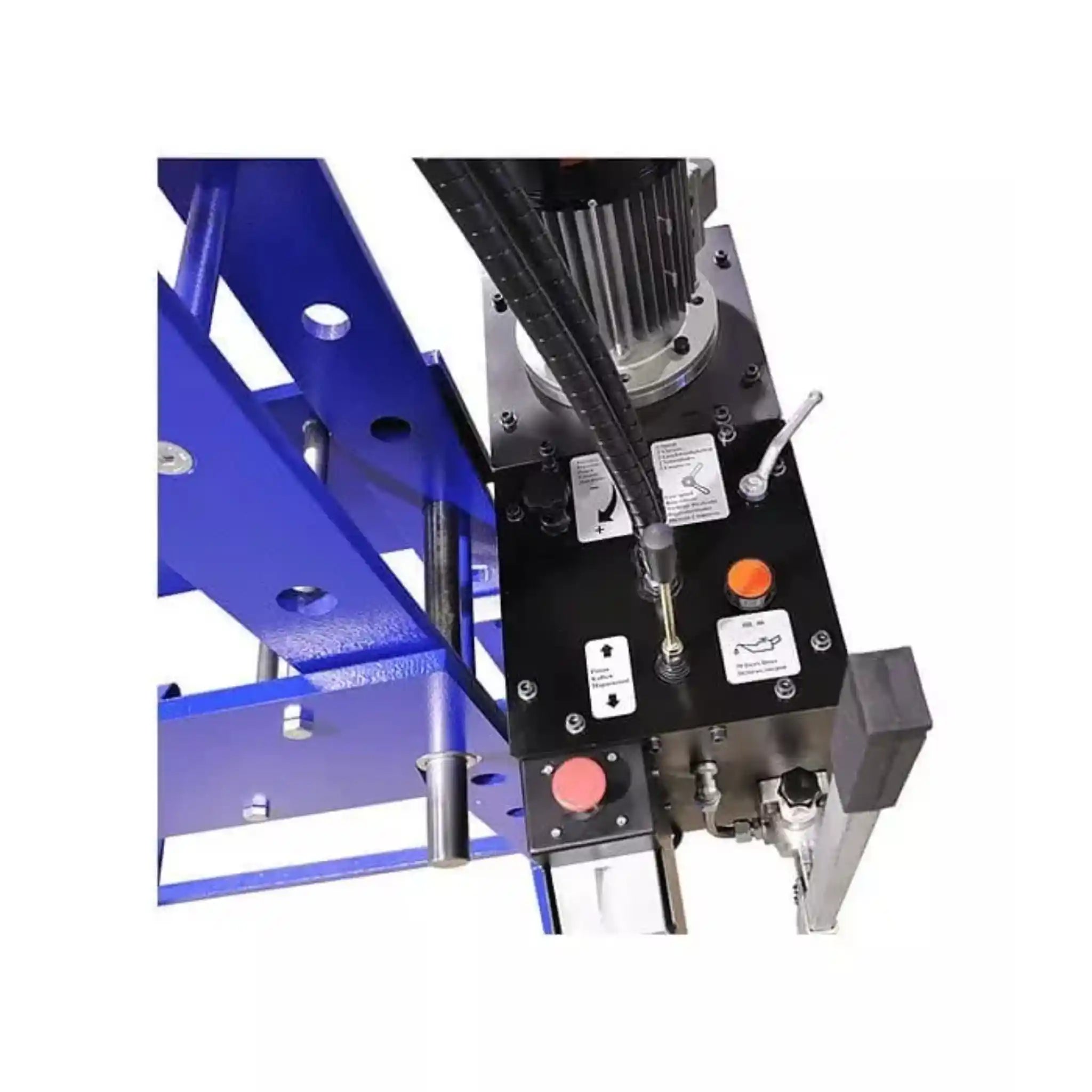

- Joystick Control: Complete directional control of the piston through an ergonomic joystick makes operation intuitive and straightforward.

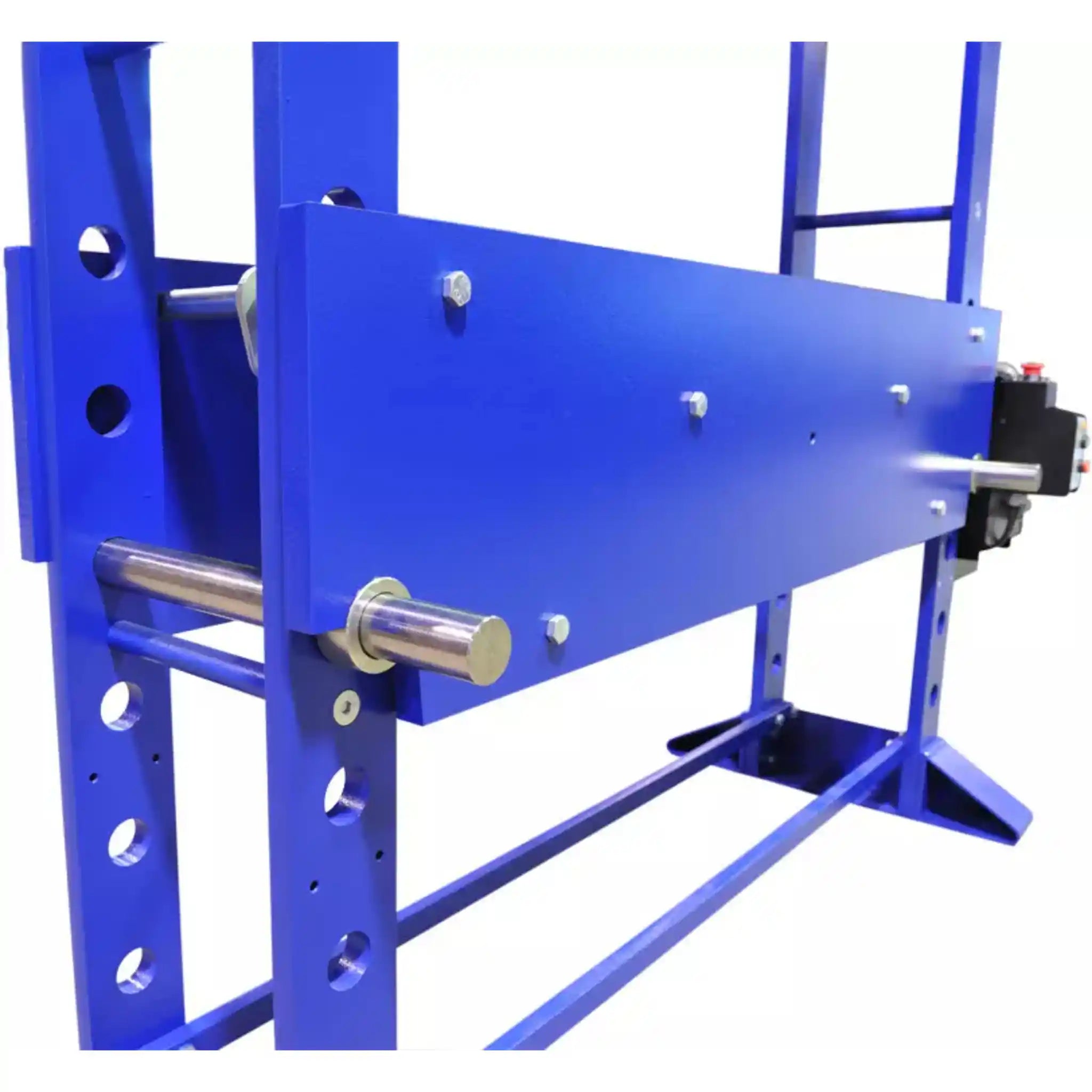

- Height Adjustable Working Table: Adjust the table height to accommodate different workpiece sizes, from short components to tall assemblies.
- Integrated Pressure System: Built in pressure regulation with an integrated manometer lets you monitor and control the applied force precisely.
- Generous Working Width: The 1100mm working width provides clearance for larger fabrications and wider sheet metal work.
- Multiple Control Options: Choose from foot pedal operation, hand remote controller, or two handed safety operation depending on your application requirements.
What's in the Box
- 100 Ton M/H-M/C-2 Motorised Hydraulic Workshop Press
Profi Press 100 Ton M/H-M/C-2 Specifications
| Pressure Force | 981 kN (100 tons) |
|---|---|
| Maximum Pressure | 258 bar |
| Piston Stroke | 380 mm |
| Working Width | 1100 mm |
| Motor Power | 2.2 kW |
Profi Press 100 Ton M/H-M/C-2 Manuals & Downloads
Frequently Asked Questions
What's the difference between motorised and manual operation?
Motorised mode uses the 2.2kW electric motor to power the hydraulic pump, giving you faster cycle times and consistent operation for production work. Manual mode uses the hand pump, which provides ultimate control for delicate pressing operations where you need precise force application. You can switch between modes depending on your specific task requirements.
How does the movable cylinder work?
The hydraulic cylinder slides left and right along the frame, allowing you to position the pressing force anywhere within the 1100mm working width. Combined with the height adjustable working table, this gives you exceptional flexibility for positioning workpieces and applying force exactly where needed.
What power supply does this press require?
This press requires a 400V three phase electrical supply at 50 or 60Hz, which is standard in UK and EU industrial facilities. The motor draws 2.2kW. Ensure you have appropriate circuit protection installed by a qualified electrician.
How do the two speeds work?
The hydraulic system provides two selectable speeds via an easily adjustable lever. The faster approaching speed (7.54 mm/sec) moves the piston quickly to the workpiece, then you switch to the slower working speed (2.47 mm/sec) for controlled pressing. This saves time on every cycle while maintaining precision.
Is this suitable for daily production use?
Yes, this is RHTC's all time best seller precisely because it handles continuous production work reliably. The machine is manufactured in the EU with top quality steel and components, carries CE certification, and includes a 2 year warranty. It's designed to meet the most demanding workshop needs.
