JS Tools Shrinker And Stretcher Pro For Sale

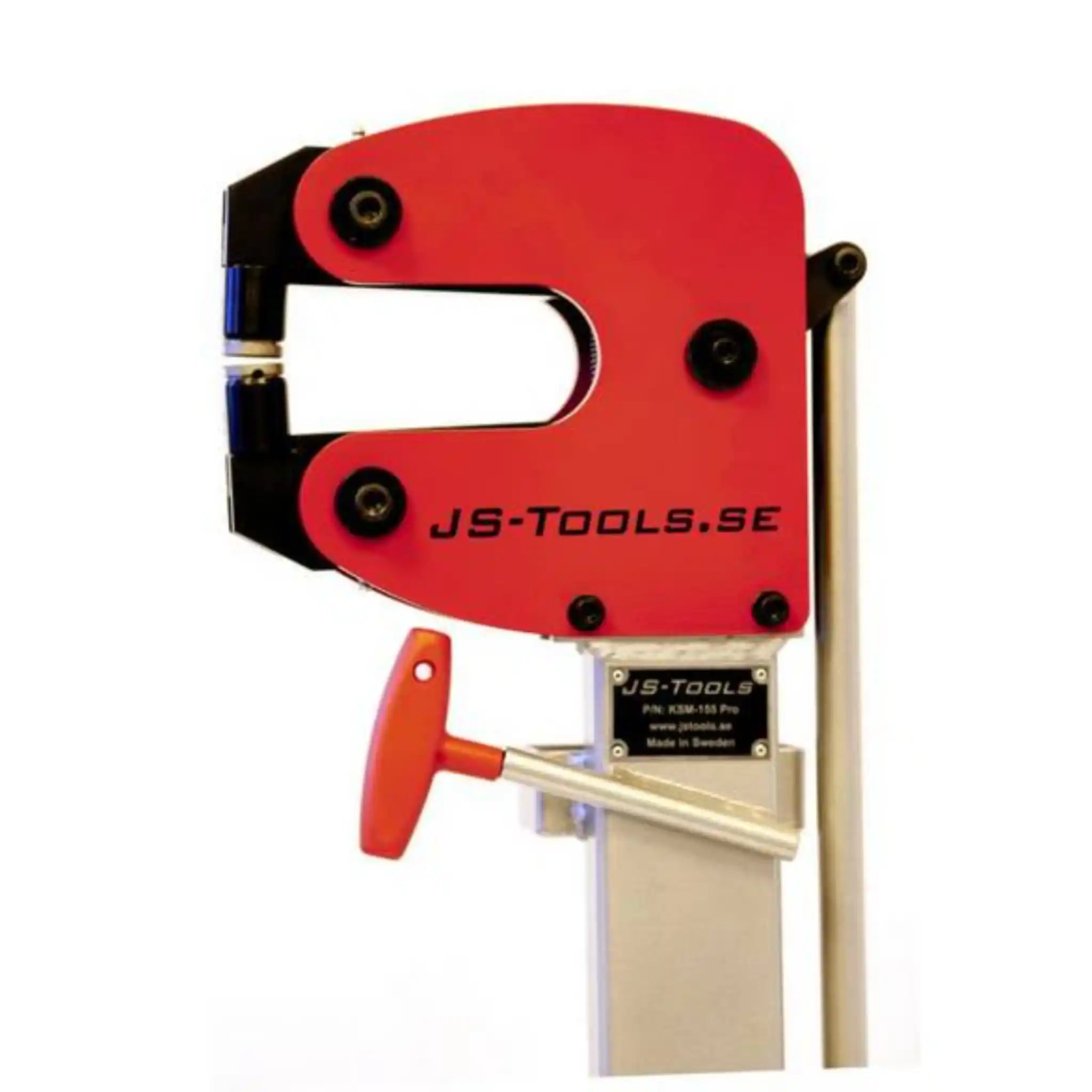

The JS Tools Shrinker & Stretcher PRO is a 155mm deep throat metal forming machine that allows you to shrink and stretch sheet metal and aluminum into complex curves and shapes. Suitable for both amateurs and professionals.
Developed by JS-Tools, the Shrinker & Stretcher PRO is a 70 lbs (31.75 kg) unit designed to help you form sheet metal and aluminum efficiently. The 155mm working depth allows you to shrink the edges of your workpieces and significantly reduce the time spent at an English wheel when forming semi-large details such as wheelhouses and MC-fenders. With this machine, you can create an inner wheelhouse for a classic car in less than 30 minutes.

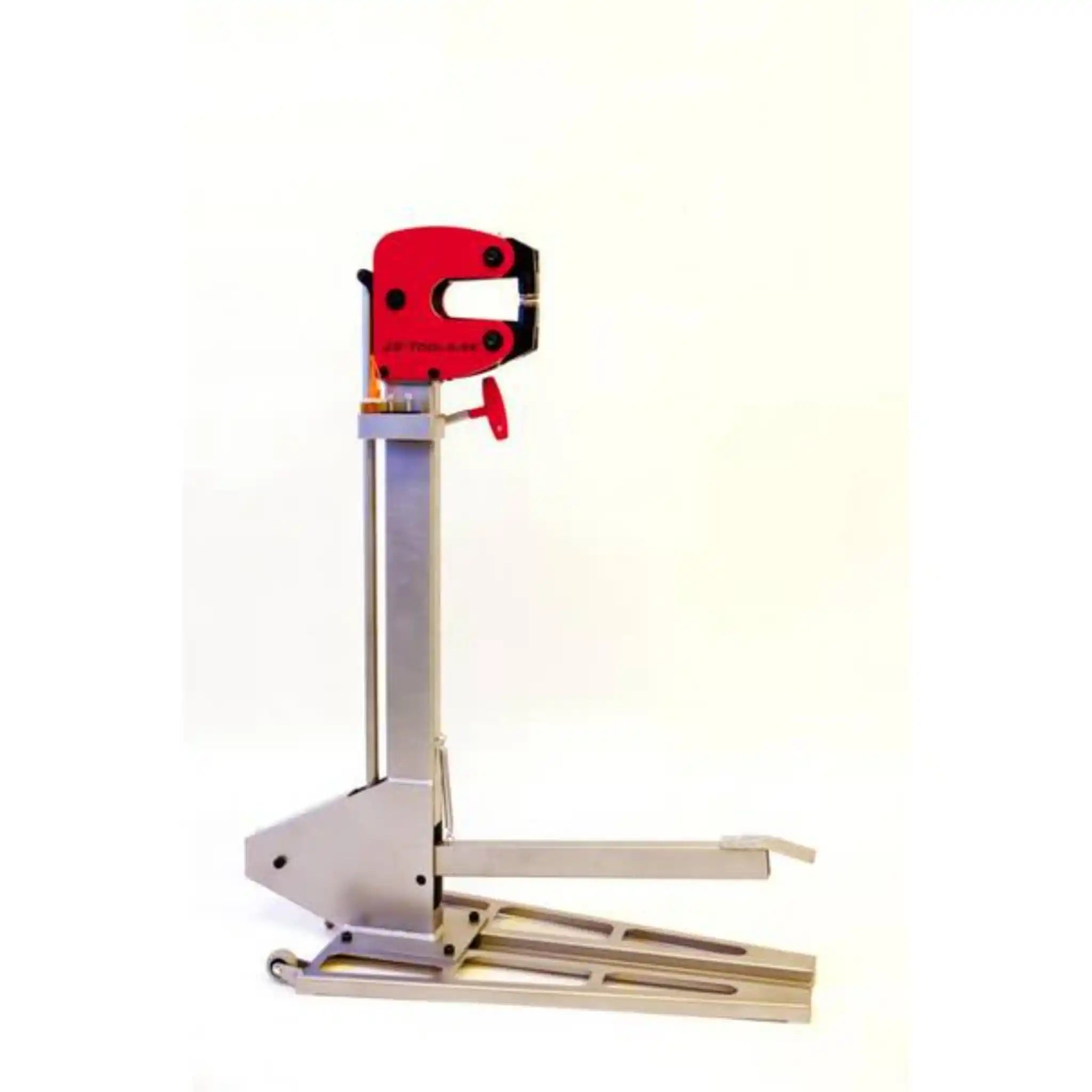

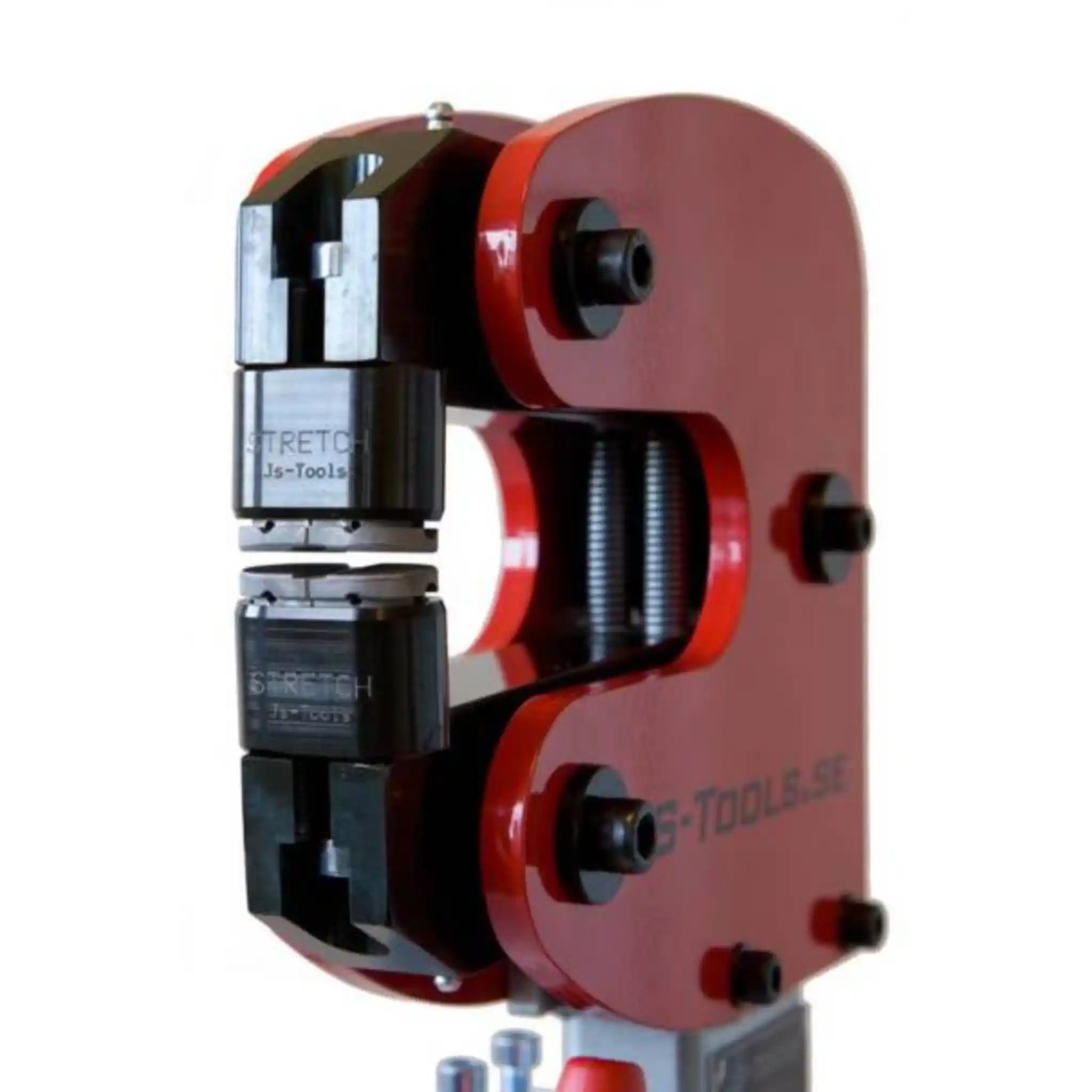

The unit operates via foot pedal, keeping both hands free to guide your workpiece for better control. The machine sits on a wheeled base, allowing you to move it around your workshop as needed. Jaws can be swapped between shrinking and stretching operations using the included wrench.
This machine suits professional fabricators, automotive restorers, custom vehicle builders, and serious metalworking enthusiasts who need to form compound curves in sheet metal and aluminum.
Product Video
Applications
- Automotive Restoration & Custom Fabrication: Form wheelhouses, MC-fenders, and body panels for classic cars and custom builds
- Sheet Metal Fabrication: Create compound curves and complex shapes in sheet metal components
- Aluminum Forming: Shape aluminum panels and components for various fabrication projects
Key Features & Benefits
- 155mm Deep Throat: Access deeper into panels to form curves on larger components like wheelhouses and fenders, reducing the need for extensive English wheel work

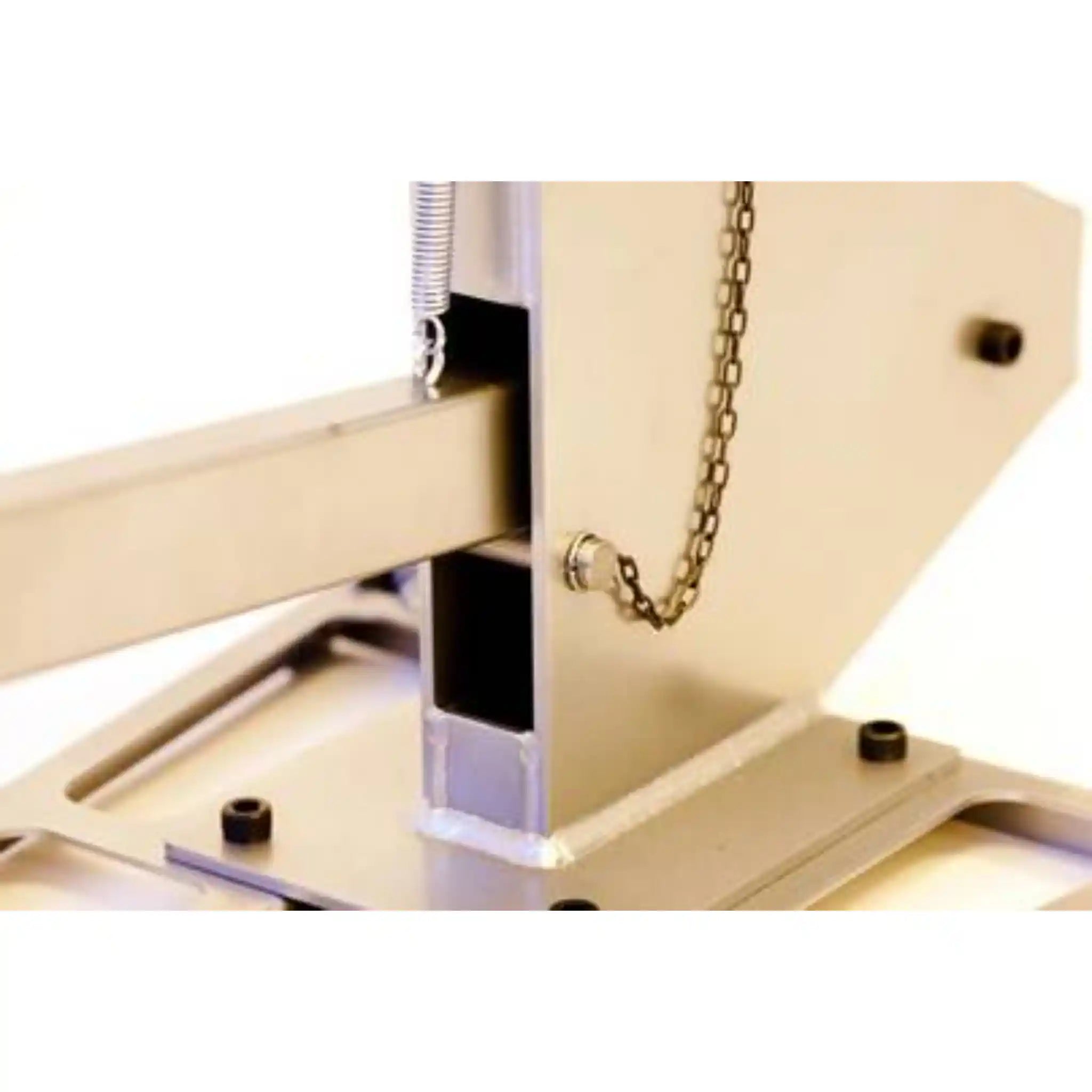

- Foot Pedal Operation: Keep both hands free to guide and control your workpiece during forming operations
- Wheeled Base Design: Move the machine easily around your workshop and position it where you need it
What's in the Box
- Shrinker & Stretcher PRO unit
- Product documentation
JS Tools Shrinker Stretcher Pro Specifications
| Working Depth | 155mm |
|---|---|
| Height | 1120mm |
| Width | 160mm |
| Depth | 770mm |
| Weight | 70 lbs (31.75 kg) |
JS Tools Shrinker Stretcher Pro Manuals & Downloads
Frequently Asked Questions
Q: Can I use this machine on both steel and aluminum?
A: Yes, the Shrinker & Stretcher PRO works with both sheet metal and aluminum. The machine handles mild steel up to 1.5mm (16 gauge) and aluminum up to 1.6mm thickness.
Q: How do I change between shrinking and stretching jaws?
A: The jaws swap out using the included wrench. The design allows for quick jaw changes to switch between shrinking and stretching operations.
Q: Does this need to be bolted down?
A: No. The unit is freestanding on a wheeled base, allowing you to position it where needed in your workshop and move it when necessary.
Q: What's the advantage of the 155mm throat depth?
A: The 155mm working depth allows you to reach further into panels when forming curves on larger components. This is particularly useful for forming wheelhouses, MC-fenders, and other semi-large details that would otherwise require more time on an English wheel.
Q: How long does the warranty last?
A: The Shrinker & Stretcher PRO comes with a 1 year warranty.
