JS Tools English Wheel For Sale

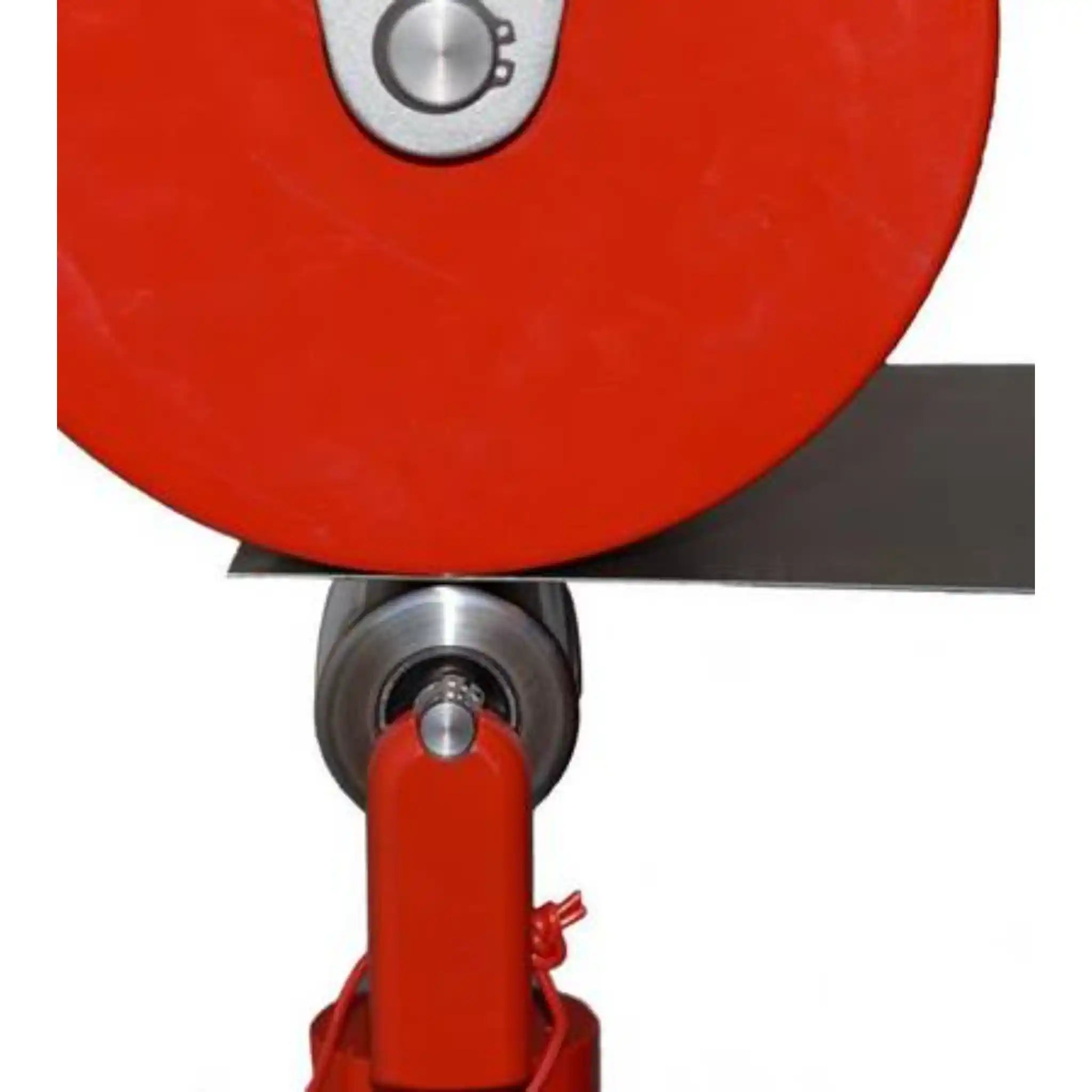

The JS Tools English Wheel features a very stable C frame design that lets you shape metal plates directly without sandbag pre work, saving you time while delivering quality results.
The JS Tools English Wheel eliminates the traditional sandbag pre work stage. Its very stable C-frame construction makes it fast to work up the plate without any preparation in the sandbag. You shape the plate directly, which saves you time and produces quality work.

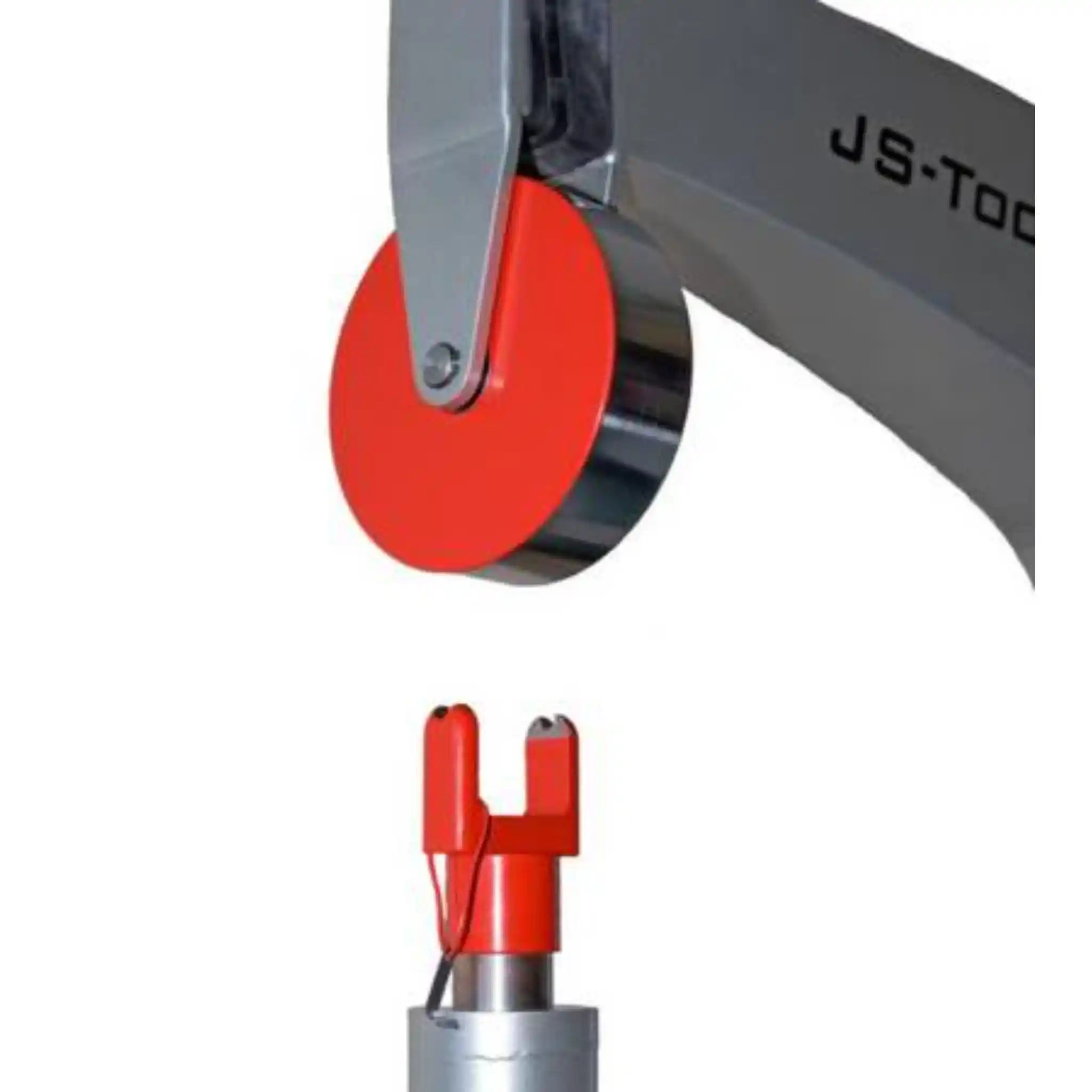

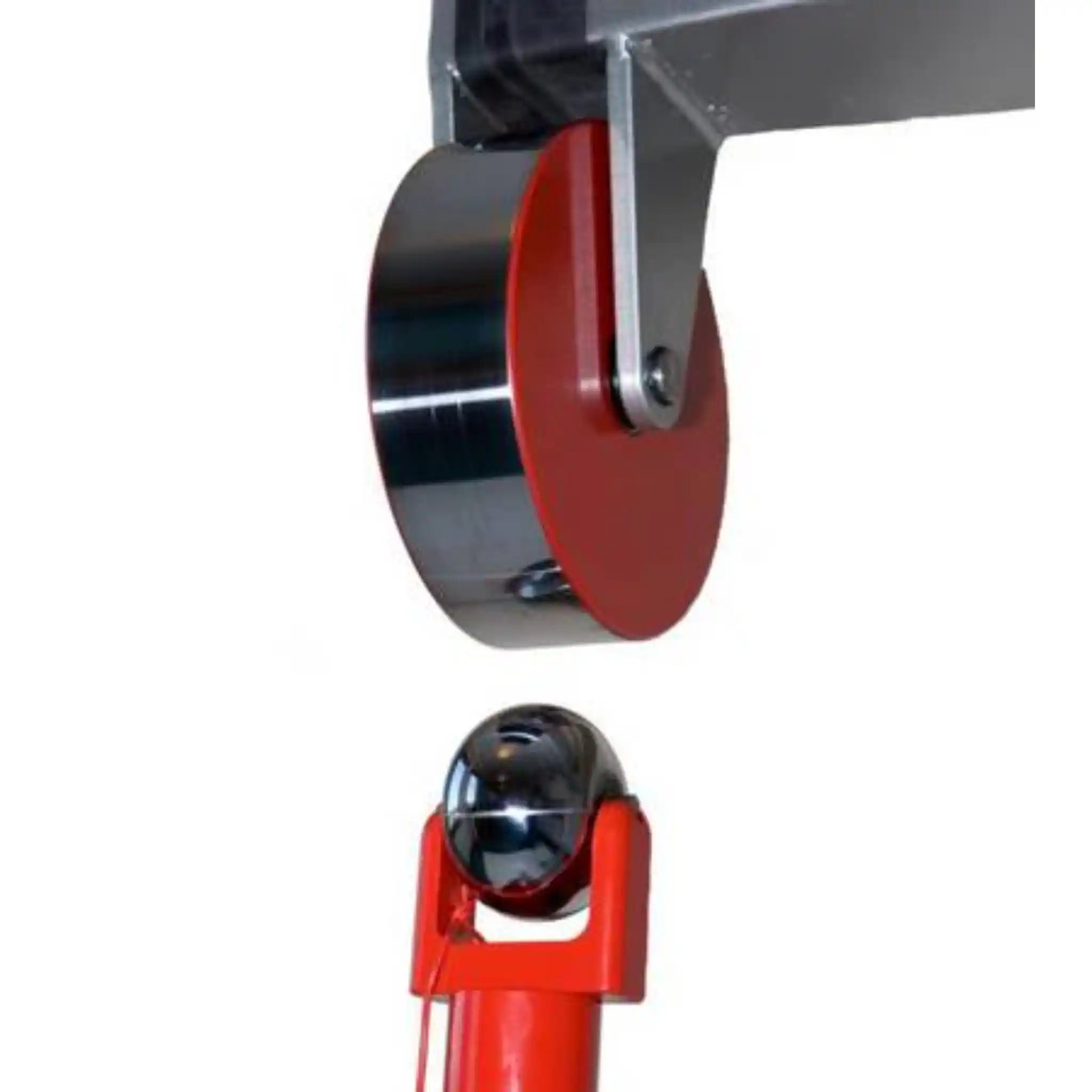

This wheeling machine is constructed from high quality steel and handles material up to 3mm (12 gauge) steel thickness. The machine comes with four lower wheels made of hardened tool steel. All rolls are polished for smooth operation. Transport wheels are built in, so you can move this 110kg machine around your workshop as needed.
The machine includes rubber bands that help the plate mold in one direction. Small shims let you tilt the bottom wheel to suit the specific job you're working on. This adjustability gives you control over your metal shaping work.
Applications
- Automotive Bodywork: create custom curved panels for cars and motorcycles
- Custom Fabrication: shape unique metal panels and forms
- Restoration Projects: repair and form curved sections on classic vehicles
Key Features & Benefits
- Very Stable C-Frame Construction: The stable C-frame makes it fast to work up the plate without sandbag pre-work. You shape plates directly and save time on preparation

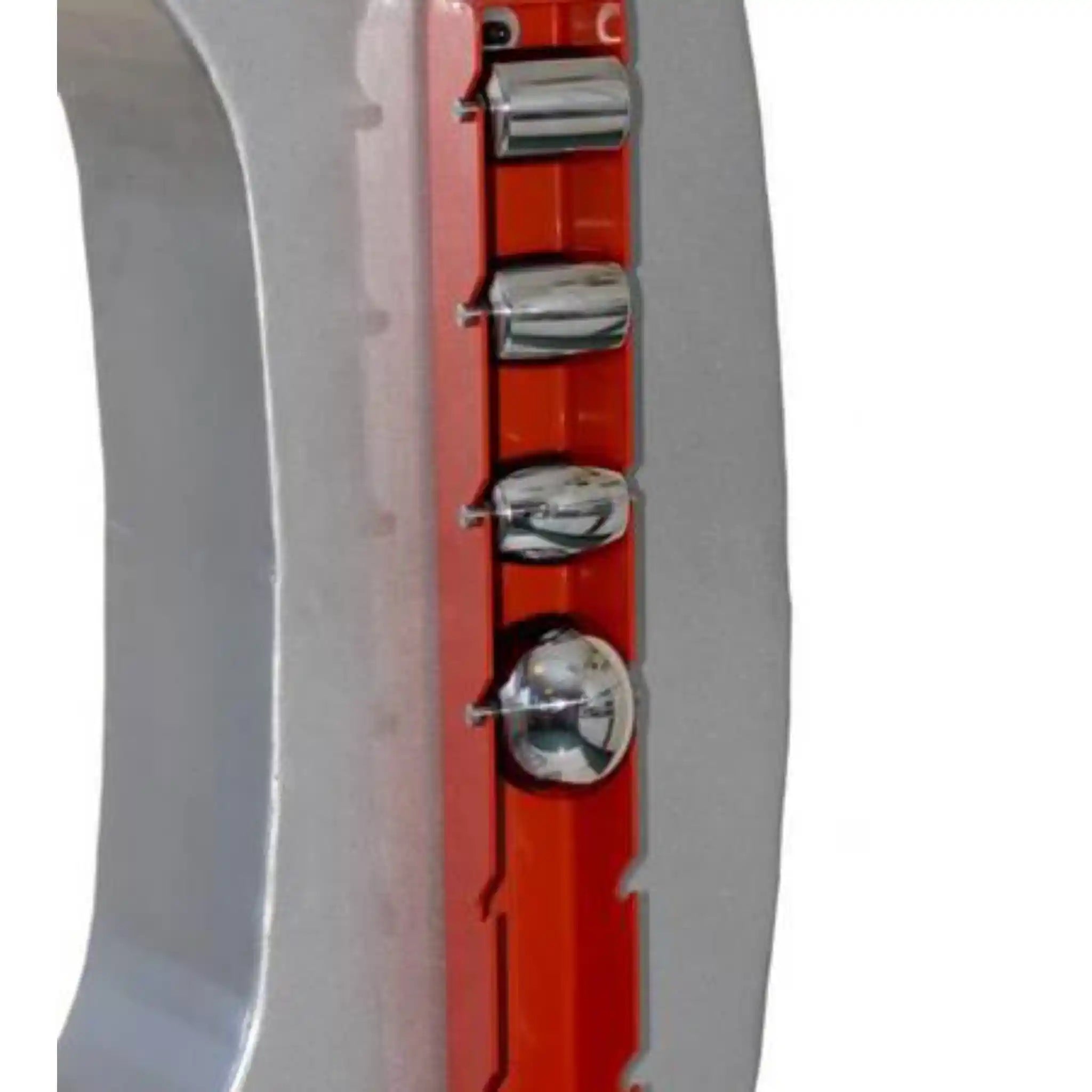

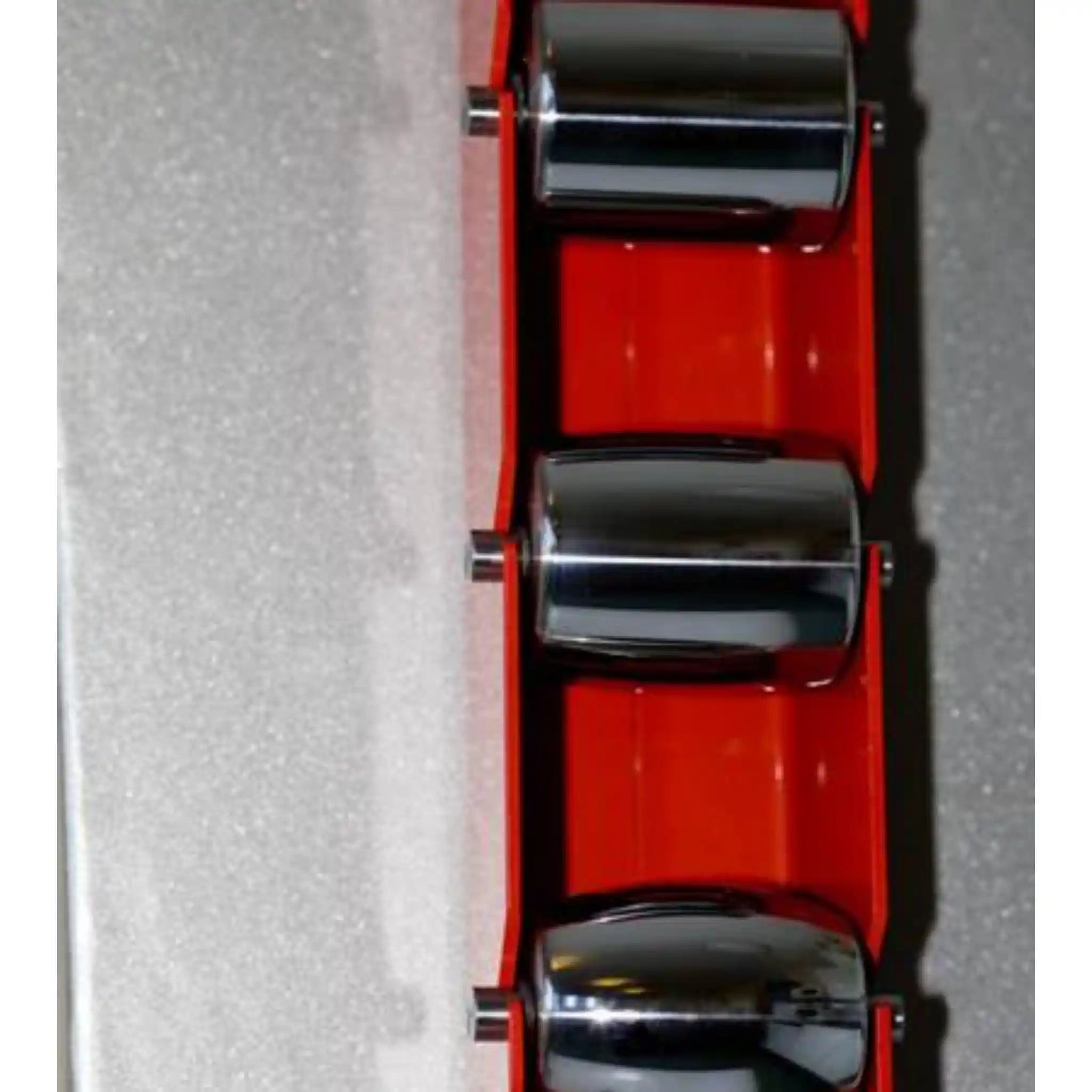

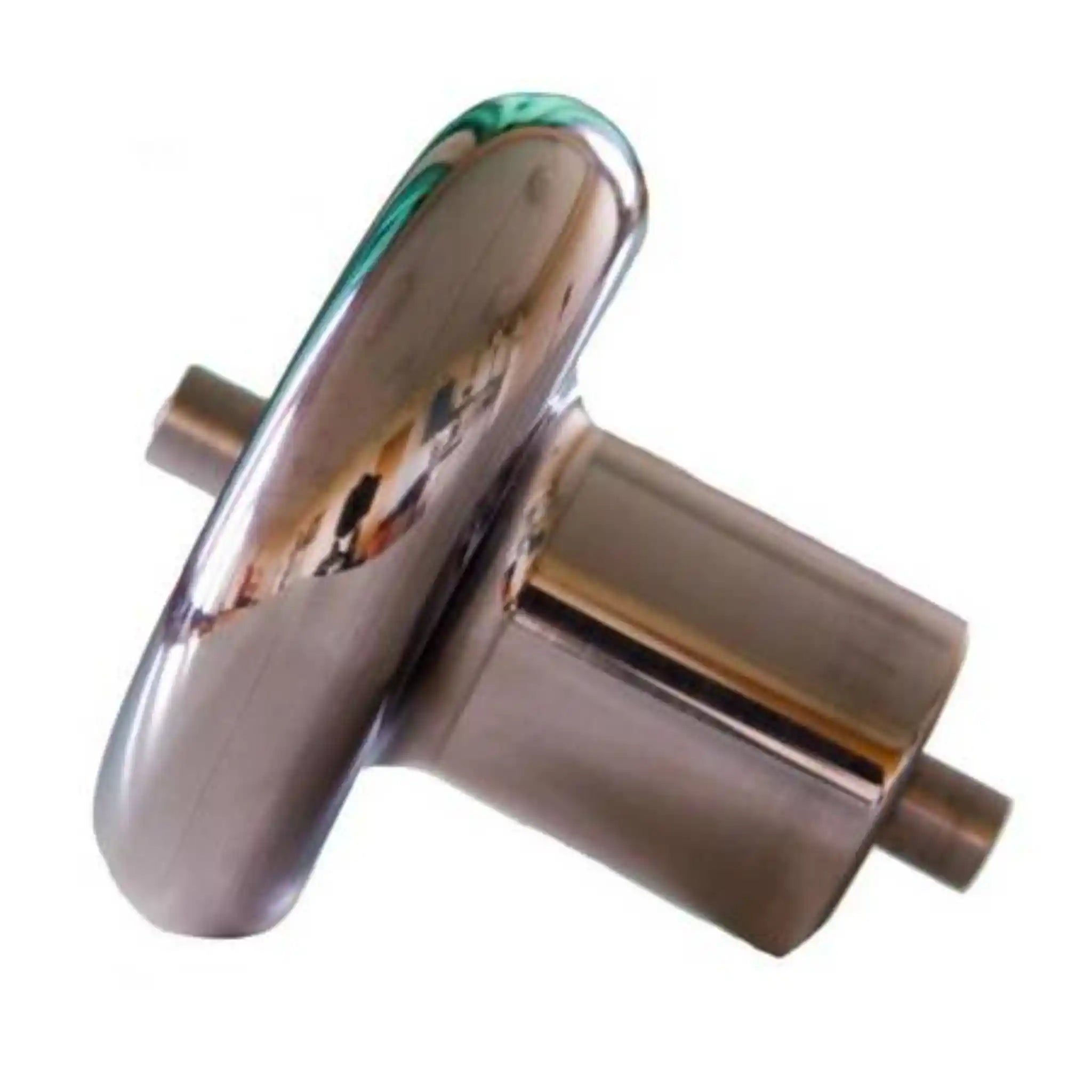

- Four Lower Wheels Included: Four hardened tool steel lower wheels come with the machine. All rolls are polished. This gives you different forming options right from the start
- Built-In Transport Wheels: Move the machine around your workshop easily. The transport wheels are included so you can reposition this 110kg machine where you need it
What's In The Box
- JS Tools English Wheel
- 4 hardened tool steel lower wheels (polished)
- Rubber bands
- Shims for bottom wheel adjustment
- Transport wheels (fitted to machine)
JS Tools English Wheel Specifications
| Construction Material | High quality steel |
|---|---|
| Weight | Approximately 110 kg |
| Overall Height | 1600mm (63") |
| Working Height | 1210mm (47.6") |
| Throat Depth | 730mm (28.7") |
JS Tools English Wheel Manuals & Downloads
Frequently Asked Questions
What material thickness can this machine handle?
According to JS Tools specifications, the English Wheel handles up to 3mm (12 gauge) steel. The manufacturer specifies steel capacity only in their technical documentation.
Does this need electricity or compressed air?
No. English wheels operate through manual mechanical leverage. This machine requires no electrical power or pneumatic connections.
What comes included with the machine?
The machine includes 4 hardened tool steel lower wheels (polished), rubber bands, shims for bottom wheel adjustment, and transport wheels fitted to the machine.
Can I move this around my workshop?
Yes. The machine has transport wheels built in so you can move it around the workshop. The machine weighs approximately 110kg.
What warranty does this come with?
JS Tools provides a 1 year warranty with this English Wheel.
