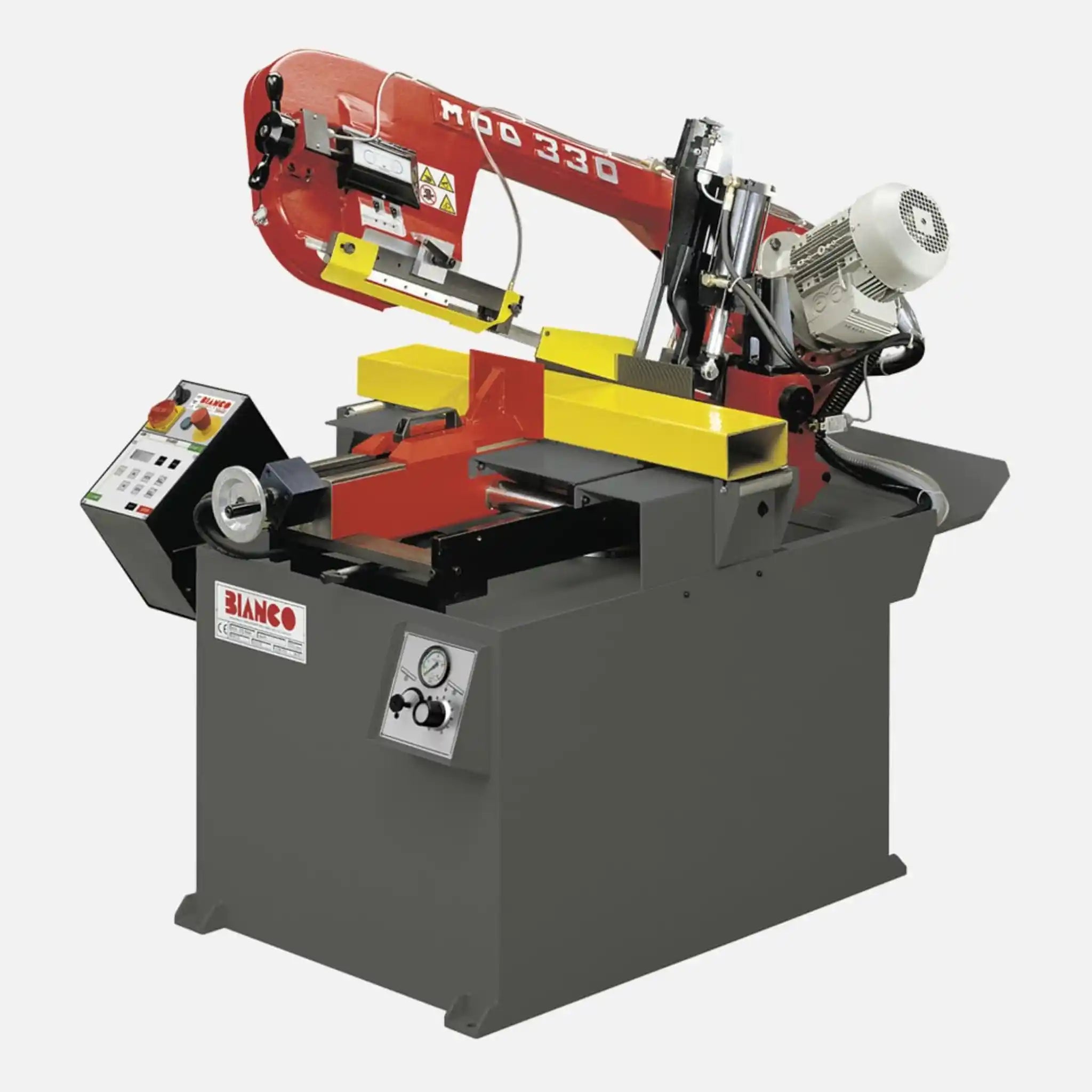

Bianco 330 Semi Automatic Bandsaw With Dual Mitre, Sliding Vice
The Bianco 330 SA DS MS is a semi automatic bandsaw with dual direction mitring capability, cutting up to 60° right and 45° left. The sliding vice system allows you to position materials quickly for efficient production cutting across a wide range of metal profiles.
When you need reliable metal cutting with flexible angle capabilities, the Bianco 330 SA DS MS delivers professional performance for fabrication shops, machine workshops, and production facilities. This semi automatic bandsaw handles straight cuts and precise mitres without requiring you to reposition heavy materials, saving time and reducing physical strain during daily operations.
The sliding vice is one of the key features that sets this machine apart from fixed-vice models. You can move the vice along the bed to position your workpiece exactly where you need it, then clamp it securely before starting the cutting cycle. The hydraulic bow movement provides controlled, consistent cutting with infinitesimal feed adjustment that you can fine-tune based on material type and size.
Bianco has equipped this bandsaw with encoder-based angle detection that displays your cutting angle digitally. When you rotate the bow to set up a mitre cut, the encoder reads the exact position and shows it on the digital display. This eliminates guesswork and helps you achieve accurate angles for structural assemblies, frames, and welded fabrications.
The dual-speed motor gives you two blade speed options: 35 m/min and 70 m/min. Lower speeds work well for harder materials like stainless steel and tool steel, helping preserve blade life and achieve quality finishes. Higher speeds suit softer materials like aluminium and mild steel when you're focused on production throughput. The integrated coolant system delivers cutting fluid to the blade during operation, washing away chips and keeping the blade cool.
Built in Italy by Bianco, a manufacturer with over 40 years of bandsaw expertise, this machine features an aluminium bow construction that provides rigidity during cutting operations. The low voltage electrical system meets CE safety standards, and the double safety button ensures safe cycle operation.
Applications
- Structural Steel Fabrication: Cut angles, channels, I-beams, and flat bar at precise mitres for building frames, staircases, and architectural metalwork
- Pipe and Tube Preparation: Produce accurate angled cuts on round and square tubes for welded assemblies in machinery frames, railings, and support structures
- General Production Cutting: Handle daily workshop cutting of solid bar stock, plate, and metal profiles up to 330mm rectangular capacity
- Automotive and Transport Components: Create precise cuts for chassis parts, brackets, and structural reinforcements
- Maintenance Workshop Operations: Quickly cut replacement parts and custom components with both straight and angled cutting capability
- Educational and Training Facilities: Provide students with hands-on experience using professional-grade semi-automatic equipment
Key Features & Benefits
- Sliding Vice for Quick Material Positioning: The sliding vice moves along the machine bed, letting you position your workpiece without wrestling with heavy bar stock. This design speeds up your workflow and reduces the physical effort required when handling long or heavy materials.
- Encoder-Based Angle Detection with Digital Display: The encoder system reads your exact bow position and displays the cutting angle digitally. You get precise angle information for every mitre setup, which is essential when producing components that need to fit together accurately in assemblies.
- Dual-Direction Mitring: 60° Right and 45° Left: You can cut angles in both directions without flipping materials or changing your setup. This capability saves considerable time when working on projects that require complementary angles or multiple mitre cuts.
- Aluminium Bow Construction: The aluminium bow provides structural stability during cutting operations. This rigid construction helps maintain blade alignment and cutting accuracy, especially when working with larger material capacities.
- Hydraulic Cutting with Infinitesimal Feed Adjustment: The hydraulic downfeed gives you controlled cutting throughout the entire cut. You can adjust the feed rate precisely based on your material type, optimising both blade life and cut quality. Once you start the cycle, the machine handles the cutting automatically.
- Dual-Speed Motor (35/70 m/min): Two blade speed settings let you match cutting performance to your material. Run the lower speed for harder metals to maximise blade life, or select the higher speed for softer materials when production speed is your priority.
- Integrated Coolant System: The built-in coolant pump delivers cutting fluid to the cutting zone, keeping the blade cool and washing away chips. This system helps achieve quality finishes and extends blade life by preventing heat buildup during cutting.
- Low-Voltage Electrical System: The machine uses a low-voltage electrical system that complies with CE safety standards. Combined with the double safety button for cycle start, this design ensures safe operation in your workshop environment.
What's in the Box
- Bianco 330 SA DS MS Semi-Automatic Bandsaw (fully assembled)
- Millimetre Rule 0-500mm with Mechanical Length Stop
- Discharge Tray
- Cutting Angle Digital Display
- Operating Manual and Safety Documentation
Bianco 330 SA DS MS Specifications
| Cutting Capacity at 90° | Round: 260mm / Square: 220mm / Rectangle: 330 x 120mm |
|---|---|
| Cutting Capacity at 45° Right | Round: 150mm / Square: 150mm / Rectangle: 190 x 150mm |
| Cutting Capacity at 60° Right | Round: 120mm / Square: 110mm / Rectangle: 120 x 120mm |
| Cutting Capacity at 45° Left | Round: 130mm / Square: 110mm / Rectangle: 190 x 100mm |
| Blade Dimensions | 3010 x 27 x 0.9mm |
Bianco 330 SA DS MS Manuals & Downloads
Frequently Asked Questions
What power supply does this bandsaw require?
The Bianco 330 SA DS MS requires a 400V three phase power supply at 50Hz, which is standard for industrial equipment in UK and EU workshops. If your facility only has single phase power, you'll need to arrange for three-phase installation or use a phase converter.
What materials can I cut with this bandsaw?
You can cut ferrous metals including mild steel, stainless steel, and tool steels, as well as non ferrous metals like aluminium, brass, and copper. The dual speed motor and adjustable hydraulic feed let you optimise settings for different material hardnesses. Always select the appropriate blade tooth pitch for your specific material and thickness.
What's the difference between Panel A and Panel B configurations?
The machine is available with two different control panel positions that affect the overall footprint. Panel B measures 150 x 160 x 170 cm while Panel A measures 75 x 145 x 170 cm. Both configurations have the same cutting capacity and features. Choose based on your workshop layout and space requirements.
What does DS MS mean in the model designation?
DS stands for "Doppio Senso" (dual-swivel in Italian), indicating this model can mitre in both directions: right and left. MS stands for "Morsa Scorrevole" (sliding vice in Italian), meaning the vice slides along the bed for easy material positioning. These features distinguish this model from standard SA (semi-automatic) models that only cut at 90° or mitre in one direction.
How do I maintain the coolant system?
Keep the coolant reservoir topped up with a proper water-soluble cutting fluid mixed at the manufacturer's recommended ratio. Check the coolant concentration regularly and change it periodically to prevent bacterial growth and maintain cutting performance. Clean the coolant tank and pump filter as specified in your operating manual.
Are spare parts readily available?
Bianco provides spare parts availability for 20 years from the date of manufacture. This long term parts commitment means you can keep your machine operating reliably well into the future, protecting your investment.
