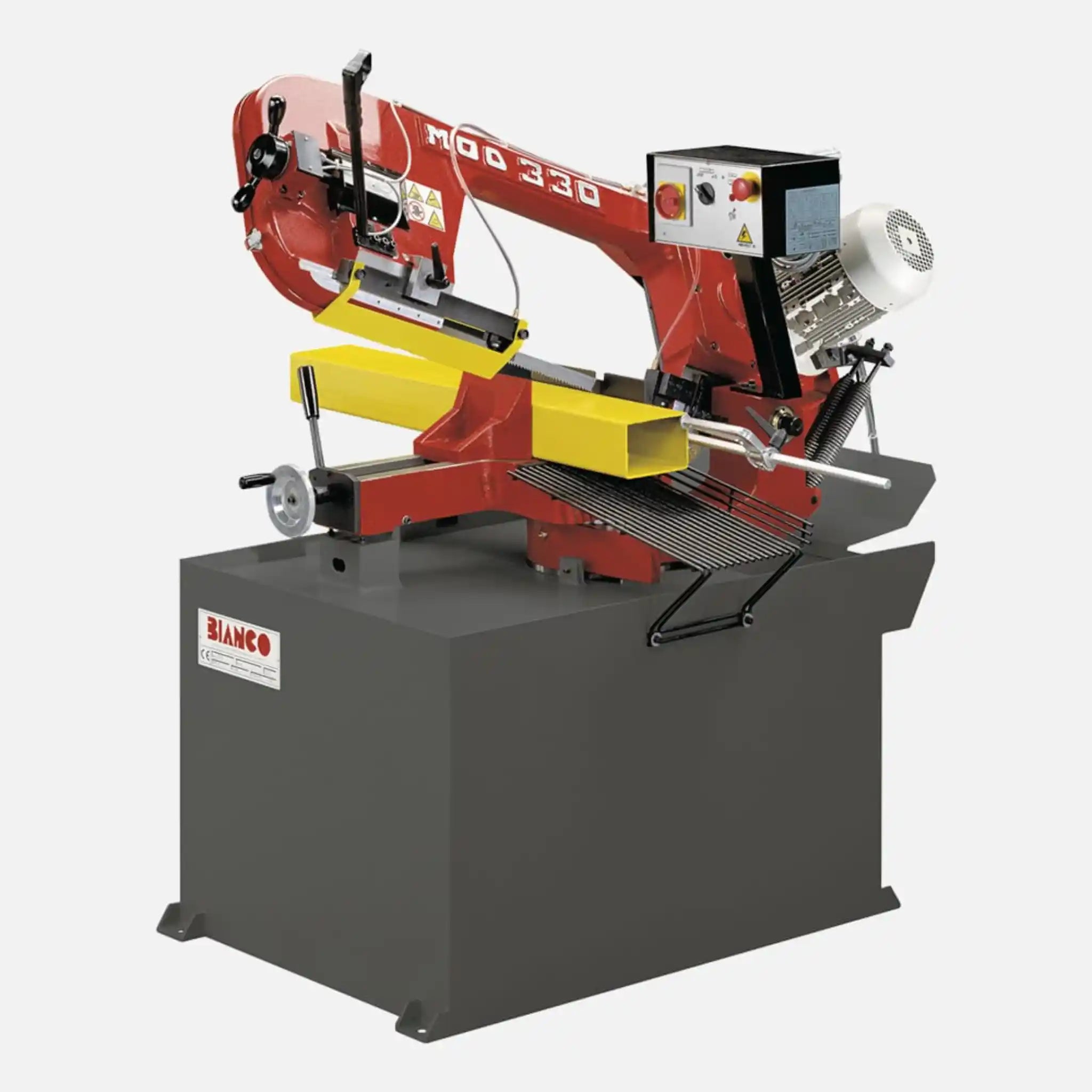

Bianco 330 Manual Bandsaw 60° Right Mitre
The Bianco 330 M is a robust manual horizontal bandsaw designed for precision cutting of structural metals up to 330mm x 120mm rectangular capacity. This Italian manufactured machine delivers accurate cuts at 90°, 45°, and 60° angles with a two-speed blade system for cutting various ferrous and non ferrous materials.
The Bianco 330 M is a compact manual bandsaw particularly suited for structural workshops and fabrication shops that need to cut small production batches with precision. The machine features straightforward manual operation, giving you direct control over cutting speed, feed pressure, and material positioning.
The bow is constructed from aluminium, providing a balance of rigidity and flexibility that maintains cutting accuracy throughout the machine's service life. The blade guidance system uses carbide-adjustable guides to keep your blade aligned during cuts, delivering straight edges with minimal finishing required. The machine operates with a two speed motor system, allowing you to select blade speeds of either 35 or 70 metres per minute depending on your material type.
Built to comply with CE low voltage electrical system standards, the 330 M requires 400V three-phase power and operates with a blade motor rated between 0.9 to 1.5 kW. The working surface sits at 830mm height, placing the cutting zone at a comfortable working level for operators. With a compact footprint of just 75 x 145 x 150cm and weighing 345kg, this machine fits into workshops where space is at a premium.
Bianco maintains availability of spare parts for their machines for 20 years, helping protect your investment and ensuring you can keep the machine running long-term.
Applications
- Structural steel fabrication: Cutting angles, channels, beams, and flat bar for frameworks, gates, and structural assemblies
- Machine shop preparation: Processing round bar, square stock, and rectangular profiles for component manufacturing and general machining operations
- Small batch production: Running consistent, repeatable cuts for production runs where manual control is preferred over full automation
- Tube and profile cutting: Handling square tubing, rectangular hollow sections, and round pipe for ductwork fabrication, building services, and industrial applications
- Workshop and training facilities: General metalworking tasks in fabrication shops, maintenance workshops, and vocational training environments where reliability and ease of use are priorities
- Mixed material cutting: Switching between mild steel, stainless steel, aluminium, and other metals throughout the working day without requiring machine changeovers
Key Features & Benefits
- 330 × 120mm rectangular cutting capacity at 90°: Handles substantial rectangular stock in a single pass, eliminating time-consuming multiple cuts or repositioning
- Adjustable angle cutting to 60°: The head rotates to 45° and 60° for mitre and bevel cuts, expanding your capability beyond straight cutting
- Two-speed blade operation (35 to 70 m/min): Select the appropriate speed for your material to optimise blade life and cut quality across different metals
- Manual operation for complete control: Direct operator control means no programming complexity, immediate response to varying materials, and the flexibility to adjust technique mid-cut
- Carbide-adjustable blade guides: Precision guides maintain blade alignment throughout extended cutting sessions, delivering consistent accuracy
- Compact 75 × 145 × 150cm footprint: Fits into smaller workshops and production areas where floor space is limited
- 260mm round bar capacity: Cuts solid round stock up to 260mm diameter at 90°, covering most common bar sizes
- Spare parts availability for 20 years: Bianco maintains parts availability for two decades, protecting your investment and ensuring long-term serviceability
What's Included
- Bianco 330 M bandsaw base unit with aluminium bow
- 3010 × 27 × 0.9mm bandsaw blade (fitted)
- Millimetre ruler (0-500mm) with mechanical length stop for precise material positioning
- Discharge tray for scrap management
- Blade cleaning brush for maintenance
- Infeed roller to assist material feeding
- Operator manual and CE compliance documentation
Bianco 330 M Technical Specifications
| Blade Size | 3010 × 27 × 0.9mm |
|---|---|
| Cutting Speed | 35 to 70 m/min (two speeds) |
| Cutting Capacity @ 90° (Round) | 260mm diameter |
| Cutting Capacity @ 90° (Square) | 240 × 240mm |
| Cutting Capacity @ 90° (Rectangular) | 330 × 120mm |
Bianco 330 M Manuals & Downloads
Frequently Asked Questions
Q: What materials can the Bianco 330 M cut?
A: The 330 M cuts ferrous metals including mild steel, stainless steel, and cast iron, as well as non ferrous metals like aluminium, copper, and brass. Use the slower 35 m/min speed for harder materials like stainless steel and tool steel, and the faster 70 m/min speed for softer materials like aluminium to optimise blade life and cut quality.
Q: What's the difference between the 330 M and semiautomatic or automatic models?
A: The 330 M is fully manual, requiring operator control for clamping, starting, and monitoring each cut. Semi-automatic models (330 SA) add hydraulic vice clamping and automatic cutting cycles with gravity downfeed, whilst fully automatic models (330 A) include material feeding systems and PLC control. Choose the 330 M if you need versatility and direct control for varied work, or upgrade to semi-automatic/automatic models for higher-volume repetitive cutting.
Q: Does the Bianco 330 M include a coolant system?
A: The specifications list a 0.06kW motor pump, but you should verify with your supplier whether coolant equipment is included as standard or available as an optional accessory for your specific configuration. The semi-automatic and automatic Bianco models clearly include coolant systems as standard features.
Q: What power supply does the machine require?
A: The Bianco 330 M requires 400V three-phase electrical supply (V400) with a blade motor rated between 0.9 to 1.5kW. The machine uses a low-voltage electrical system designed to meet CE safety standards.
Q: How do I maintain blade accuracy and extend blade life?
A: Keep the blade clean using the included brush to remove metal chips and debris after each session. Ensure proper blade tension and verify that the carbide blade guides are correctly adjusted to maintain alignment. Using the appropriate cutting speed for your material type significantly extends blade life. Run slower speeds for dense materials and faster speeds for softer metals.
Q: Is the Bianco 330 M suitable for a small workshop or training facility?
A: Yes, the compact 75 × 145 × 150cm footprint makes it appropriate for workshops with limited floor space. The straightforward manual operation suits training environments where students learn proper cutting technique without the complexity of automated systems. The machine's robust construction and 20-year parts availability make it a reliable long-term investment.
