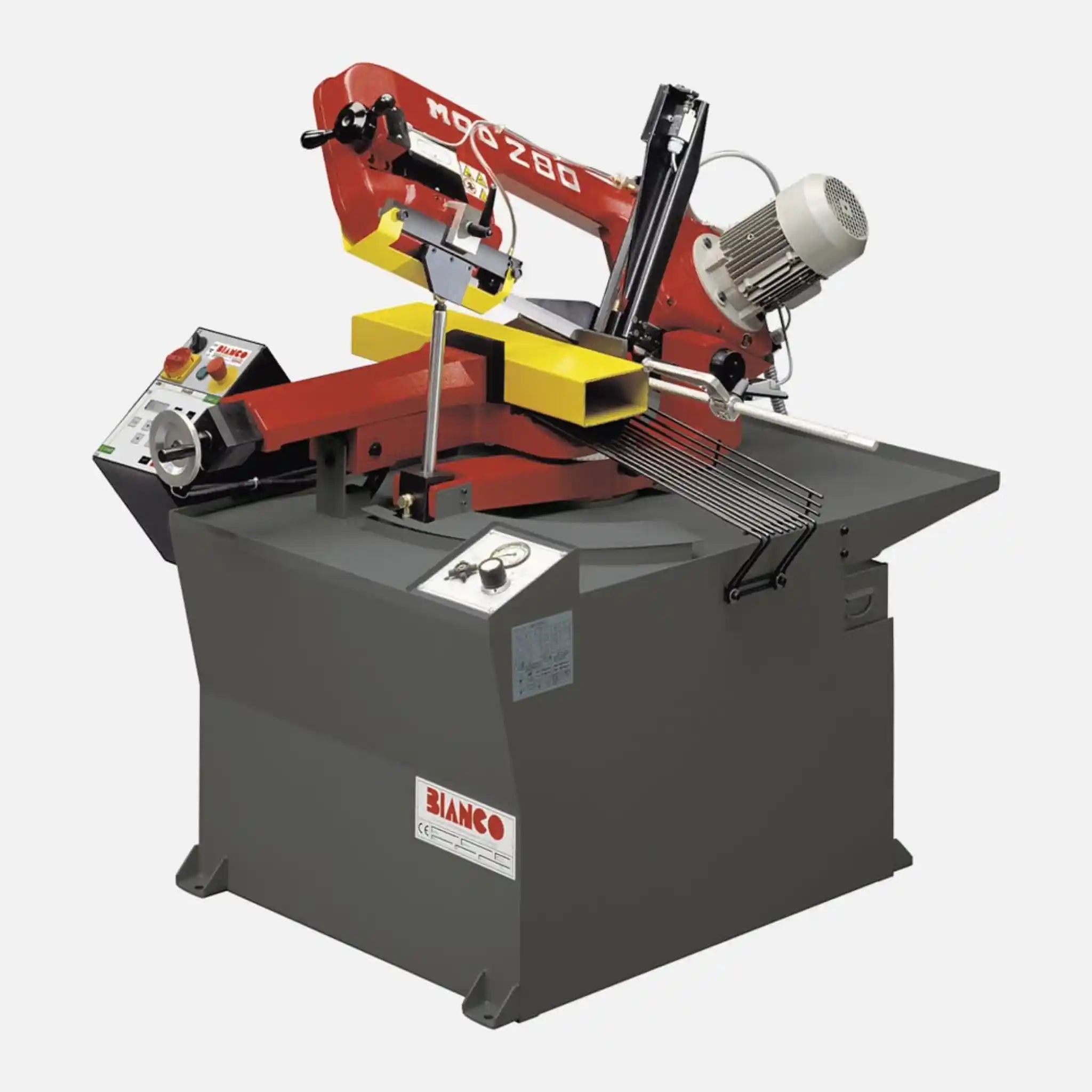

Bianco 280 Semi Automatic with Advanced Control Systems
The Bianco 280 SA is a professional semi automatic metal bandsaw designed for cutting structural profiles, tubes, and solid materials with angles up to 60 degrees. This Italian made machine combines hydraulic automation with straightforward operation for professional fabrication shops.
This semi automatic bandsaw automates the cutting cycle while giving you control over material positioning and setup. When you press the dual safety buttons, the machine handles the descent, cutting, and return automatically, which speeds up repetitive work and reduces operator fatigue.
The hydraulic system controls both the vice and the cutting bow movement, with adjustable pressure to match different materials and section sizes. The dual-speed motor operates at 35 m/min for harder materials or 70 m/min for softer metals like aluminium. The integrated coolant system keeps the blade cool during operation, which helps extend blade life.
The machine uses a pivot frame design with a working height of 800 mm. The cutting cycle includes automatic fast descent controlled by a feeler pin, working feed during cutting, and automatic return to the starting position. The low-voltage electrical system complies with EC safety standards.
Applications
- Structural steel fabrication: Cutting angles, channels, beams, and rolled sections for construction and building frameworks
- Tube and pipe work: Processing round and square tubing for assembly operations
- Metal profile cutting: Handling flat plates, bars, and structural sections for manufacturing
- Angled cuts: Creating precise mitres at 45° and 60° for joinery and assembly work
- Small to medium batch production: Efficient processing where semi-automation improves productivity without full CNC complexity
- Workshop and fabrication environments: Suitable for professional metalworking shops requiring reliable, repeatable cutting
Key Features and Benefits
- Hydraulic bow and vice movement: The hydraulic system controls the cutting head movement and workpiece clamping, with adjustable pressure to suit different materials and thicknesses
- Automatic cutting cycle: Press the dual safety buttons to start, and the machine automatically descends, cuts, and returns to the starting position, saving time on repetitive operations
- Dual-speed motor (35/70 m/min): Two cutting speeds let you optimize performance for different materials, with slower speeds for harder metals and faster speeds for softer materials
- Fast descent feature: Automatic fast up and down movement controlled by a feeler pin reduces non-cutting time between operations
- Infinitesimal cutting adjustment: Fine control over cutting pressure during the cycle allows you to adapt to material variations
- Pivot frame design: The swiveling head cuts at 90°, 45°, and 60° angles for versatile fabrication work
- Built-in coolant system: Integrated flood cooling reduces heat buildup and extends blade life
- Double safety buttons: Two-hand activation ensures safe operation and prevents accidental starts
- Low-voltage electrical system: EC compliant design meets European safety standards
What's in the Box
- Bianco 280 SA bandsaw machine with base
- Hydraulic pump and control system
- Blade motor (0.5-0.7 kW) and drive system
- Hydraulic unit motor (0.37 kW)
- Cooling pump motor (0.06 kW) and integrated coolant system
- Standard blade guide assemblies
- Safety guards and dual safety button controls
- Operator documentation
Bianco 280 SA Technical Specifications
| Machine Type | Semi-Automatic Pivot Frame Bandsaw |
|---|---|
| Blade Dimensions | 2450 x 27 x 0.9 mm (96-1/2" x 1" x 0.035") |
| Cutting Speed | 35 m/min / 70 m/min (dual speed) |
| Cutting Capacity 90° Round | 220 mm |
| Cutting Capacity 90° Square | 200 mm |
Bianco 280 SA Manuals & Downloads
Frequently Asked Questions
Q: What materials can the Bianco 280 SA cut?
A: This bandsaw is designed for cutting metals including steel, stainless steel, aluminium, brass, and other non-ferrous metals. The dual-speed motor lets you select the appropriate speed for different material types.
Q: How does the semiautomatic operation work?
A: You position and clamp your material in the vice, set the cutting angle if needed, then press the dual safety buttons to start the cycle. The machine automatically performs fast descent, controlled cutting, and returns to the starting position. You don't need to manually control the cutting feed.
Q: What's the difference between the 35 m/min and 70 m/min speeds?
A: The slower 35 m/min speed is for harder, tougher materials that require more controlled cutting. The faster 70 m/min speed is for softer materials like aluminium where faster cutting improves productivity. Selecting the correct speed for your material helps maximize blade life.
Q: Can this machine make angled cuts?
A: Yes, the pivot frame design allows cutting at 90° (straight), 45°, and 60° angles. You manually position the head to the desired angle, then the machine performs the automated cutting cycle at that angle.
Q: What power supply does it require?
A: The machine requires 400V three-phase power. The blade motor is 0.5-0.7 kW, the hydraulic unit is 0.37 kW, and the cooling pump is 0.06 kW.
Q: What maintenance does this machine require?
A: Regular maintenance includes checking blade tension, monitoring coolant levels, inspecting hydraulic system operation, and ensuring the safety systems function properly. Keep the coolant system clean and check blade guides for wear. Follow the manufacturer's maintenance schedule in the operator manual.
Q: How much space does it need?
A: The machine footprint is 1330 x 1300 mm (approximately 1.3 x 1.3 meters). You'll need additional clearance around the machine for material handling, operator access, and safety compliance.
Q: Is this machine suitable for production work?
A: Yes, the semi-automatic operation makes it ideal for small to medium production quantities. The automated cutting cycle speeds up repetitive operations compared to manual machines, while being more economical than fully automatic CNC bandsaws.
