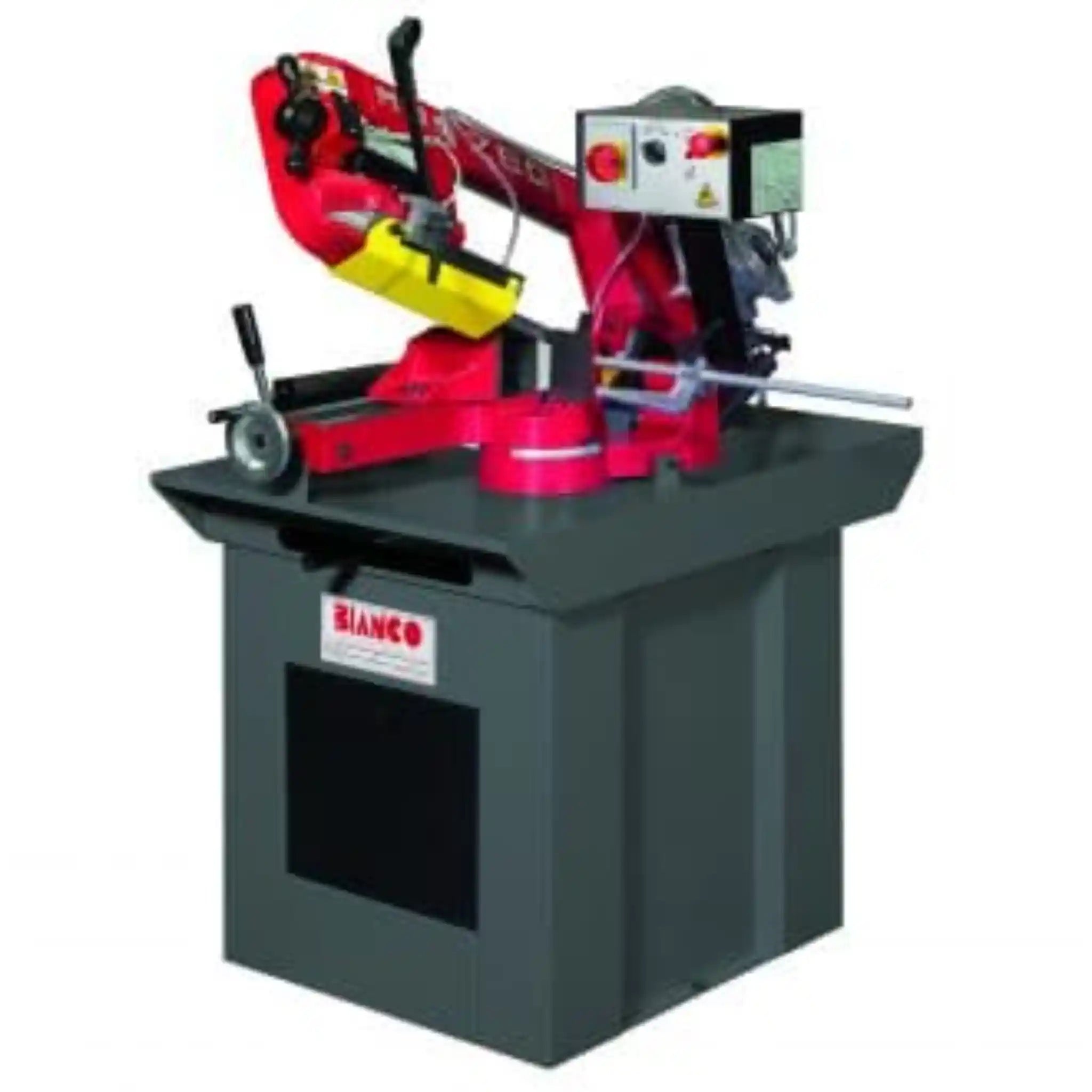

Bianco 280 Manual Bandsaw with Automatic Downfeed
The Bianco 280 M DA combines the proven reliability of the standard 280 M manual bandsaw with the addition of an automatic downfeed system, designed for structural workshops and fabrication shops that need to cut small batch quantities with precision.
This Italian-manufactured bandsaw is built on the established 280 M platform with one key enhancement: automatic descent assist. This feature adds controlled downward blade movement to reduce operator effort during cutting operations. The machine is specifically designed for workshops that need to cut small lots with high precision and reliability.
The bandsaw features an aluminium bow construction and a reducer unit with hardened and ground gears for long-term durability. The pivoting head can swivel up to 60° to the right, allowing you to make angled cuts without repositioning your workpiece. With a 220mm round cutting capacity at 90° and rectangular capacity up to 260x140mm, this machine handles a wide range of metal sections.
The two-speed motor operates at 35-70 m/min, giving you the flexibility to adjust cutting speed based on your material requirements. The working surface sits at 965mm height, and the machine includes an integrated coolant system with a 0.06 kW pump motor. Built to European CE standards with low-voltage electrical systems, this bandsaw provides professional capability in a compact 240kg package.
Applications
- Structural steel workshops: Cutting angle iron, channel sections, and hollow profiles
- General engineering shops: Processing bar stock and metal sections
- Fabrication workshops: Requiring angled cuts up to 60°
- Educational facilities: Training and educational institutions
- Maintenance workshops: Cutting materials to length
- Small batch production: Small batch production environments
Key Features & Benefits
- Automatic descent assist: Provides controlled downward blade movement to reduce operator effort during cutting operations
- Two-speed motor (35-70 m/min): Allows you to adjust cutting speed to suit different materials and cutting requirements
- 60° right-hand swivel head: Enables angled cuts without repositioning your workpiece, saving setup time
- Aluminium bow construction: Provides structural rigidity while keeping the overall machine weight manageable
- Hardened and ground gears: Ensures smooth, reliable power transmission and extended service life
- Integrated coolant system: Helps extend blade life and improve cut quality by keeping the cutting zone cool
- 220mm round capacity at 90°: Handles a wide range of common workshop materials in a compact machine footprint
- CE certified with low-voltage electrics: Meets European safety standards for workshop use
What's in the Box
- Bianco 280 M DA bandsaw with descent assist system
- Millimetre rule (0-500mm) with mechanical length stop
- Discharge tray for cut-off pieces
- Coolant system with reservoir and pump
- Operating manual and documentation
Bianco 280 M DA Specifications
| Model | Bianco 280 M DA (with Descent Assist) |
|---|---|
| Cutting Capacity - Round at 90° | 220mm |
| Cutting Capacity - Round at 45° | 160mm |
| Cutting Capacity - Round at 60° | 95mm |
| Cutting Capacity - Rectangular at 90° | 260 x 140mm |
Frequently Asked Questions
What's the difference between the 280 M and 280 M DA?
The 280 M DA adds an automatic descent assist system to the standard 280 M model. While the standard version requires manual control of the blade descent during cutting, the DA version provides automatic controlled descent to reduce operator effort.
What voltage options are available?
The 280 M DA is available in both 230V single phase and 400V three phase configurations. The 230V model (MOD_280DAM) provides flexibility for workshops without three phase power supply.
What blade size does this machine use?
The bandsaw uses standard 2450 x 27 x 0.9mm blades, which are readily available from industrial blade suppliers.
What's included as standard equipment?
The machine comes complete with a millimetre rule (0-500mm range) with mechanical length stop, discharge tray for cut pieces, infeed roller, and the coolant system with pump. This gives you everything needed to start cutting immediately.
How long are spare parts available for?
Bianco guarantees spare parts availability for 20 years from purchase, providing long term support for your investment.
