Baileigh VMD-828G Mill
The Baileigh VMD-828G is a space saving, gear driven vertical mill drill that combines professional milling and drilling capabilities in one compact machine, perfect for small to medium sized workshops that need versatility without sacrificing floor space.
Are you tired of choosing between a quality drill press and a milling machine because you don't have room for both? The VMD-828G solves this problem by delivering two essential metalworking functions in one efficient footprint. This isn't just a compromise, it's a true dual purpose machine that excels at both operations.
What makes this machine special is its gear driven head system. Unlike belt driven alternatives, you get six distinct speed settings (from 90 to 1,970 RPM) that let you dial in the perfect speed for your material and tooling. This means longer tool life, better surface finishes, and more precise results whether you're drilling stainless steel or milling aluminum. The robust 2 HP motor provides plenty of power for demanding cuts, while the wide cast iron column and rigid base eliminate flex and chatter even when you're working at full capacity.
This machine is ideal for small machine shops, educational institutions, prototype shops, maintenance facilities, and serious hobbyists who demand professional results. It's particularly popular with fabricators who need to perform both operations on parts without moving them between machines, saving time and maintaining accuracy. With generous travel distances (19.5" on the X-axis and 9" on the Y-axis), you'll have the workspace needed for most small to medium projects.
Applications
- Precision Part Manufacturing: Machine custom brackets, fixtures, and mechanical components with tight tolerances for automotive, aerospace, or industrial applications
- Tool and Die Work: Create dies, punches, and custom tooling for your shop with both drilling and surface milling capabilities
- Prototype Development: Rapidly fabricate one-off parts and prototypes for testing before committing to full production runs
- Repair and Maintenance Operations: Drill mounting holes and mill flat surfaces on equipment parts, engine blocks, or damaged components
- Educational Training: Teach fundamental machining skills with a machine that covers both milling and drilling operations without the cost of separate equipment
- Custom Metalwork Fabrication: Create decorative metalwork, custom enclosures, or specialized mounting plates for unique projects
Key Features & Benefits
- Six Gear-Driven Speed Options: Choose the optimal spindle speed for your material and tool. This means you'll extend your tool life significantly because you're always running at the right speed, not the "close enough" speed you'd get with a belt system.
- Dual-Purpose Design Saves Space: Get full milling and drilling capabilities without dedicating separate floor space to each machine. This is a game-changer for shops where every square foot matters.
- Professional 2 HP Motor (240V): You get plenty of torque for tough materials. This isn't an underpowered hobbyist machine; it's built to handle production work day after day.

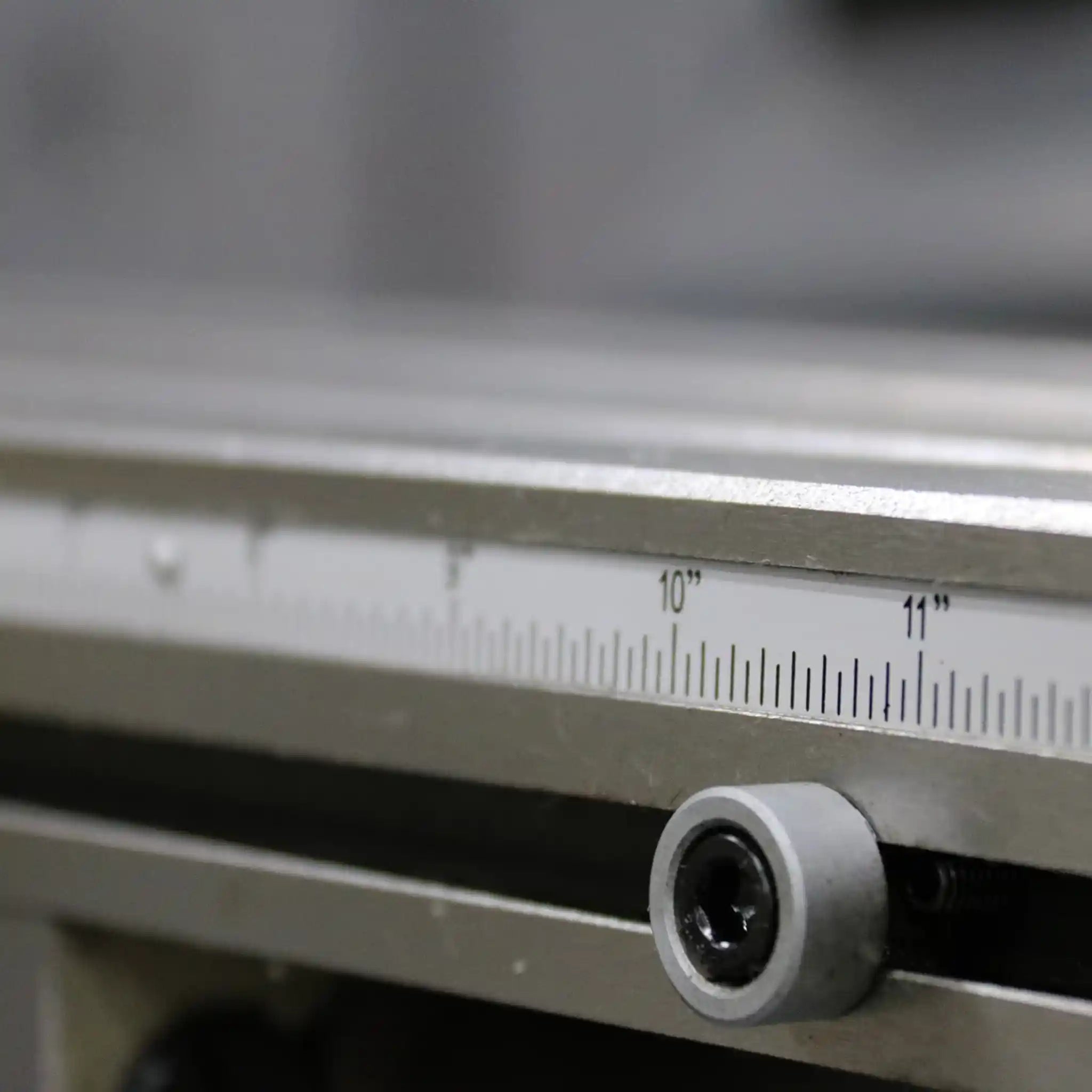

- Generous Work Table (28.75" × 8.25"): The milling-style table gives you room to work on larger parts and provides precise positioning with nearly 20 inches of X-axis travel and 9 inches on the Y-axis.
- Integrated Coolant System: The built-in 1/8 HP coolant pump comes standard, not as an expensive add-on. This keeps your tools cool, extends their life, and improves surface finishes on your work.
- R8 Spindle Taper: You get instant compatibility with the most common milling tooling standard. This means easy access to affordable tooling and quick tool changes.
- Rigid Construction Eliminates Flex: The wide cast column and heavy base (815 lbs) provide the stability you need for accurate work. You won't fight chatter or vibration when making heavy cuts.

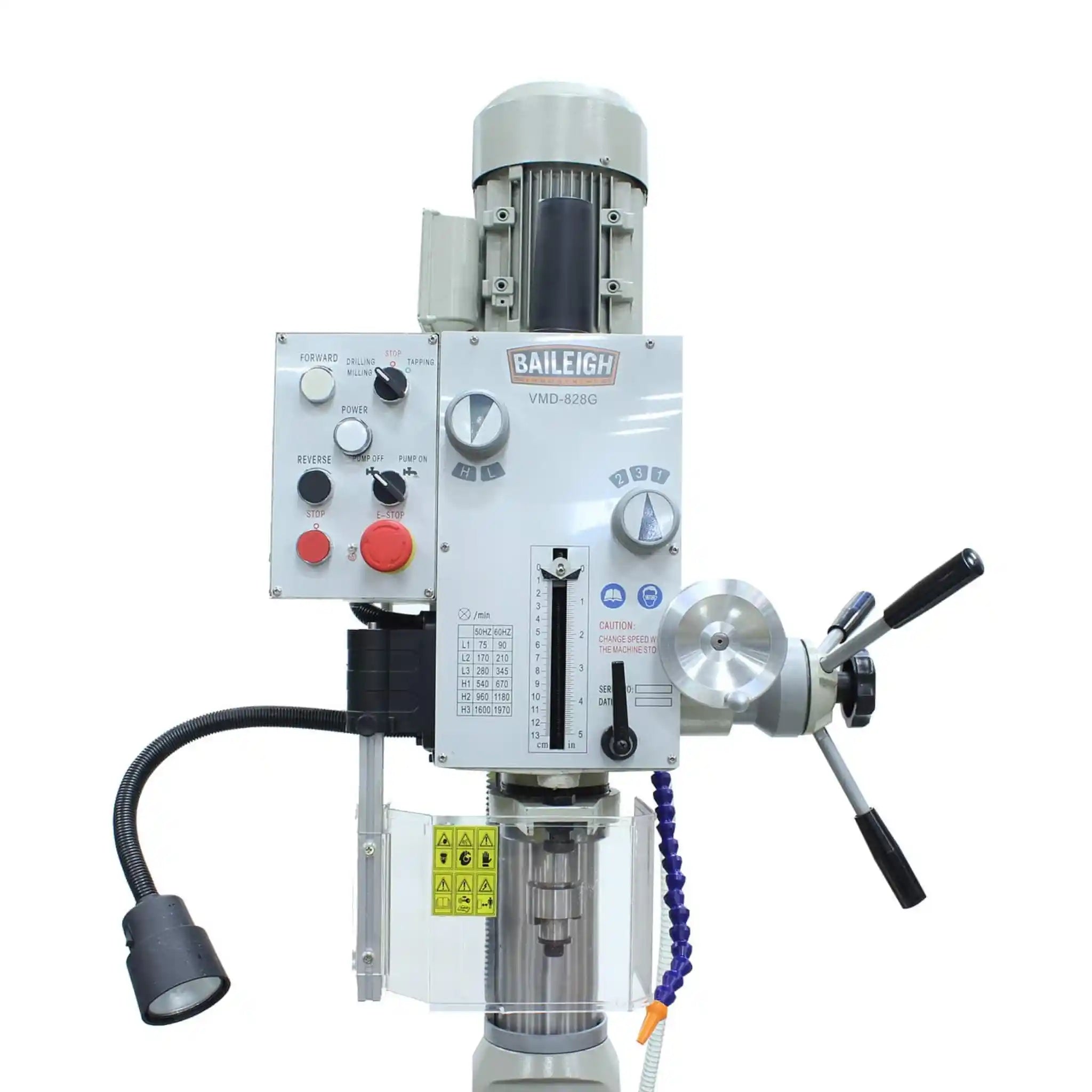

- Flexible Halogen Work Light: See exactly what you're doing with the included adjustable work light. This might seem minor, but good visibility is crucial for precision work and safety.
What's in the Box
- VMD-828G Vertical Mill Drill Machine
- Heavy-Duty Steel Stand (integrated base)
- Integrated Coolant System with 1/8 HP Pump
- Flexible Halogen Work Light
- R8 Spindle Taper (installed)
- Storage Cabinet (tool storage)
- 7/16" × 20" Draw Bar
- Owner's Manual and Documentation
- Warranty Registration Materials
Baileigh VMD-828G Specifications
| Model Number | VMD-828G |
|---|---|

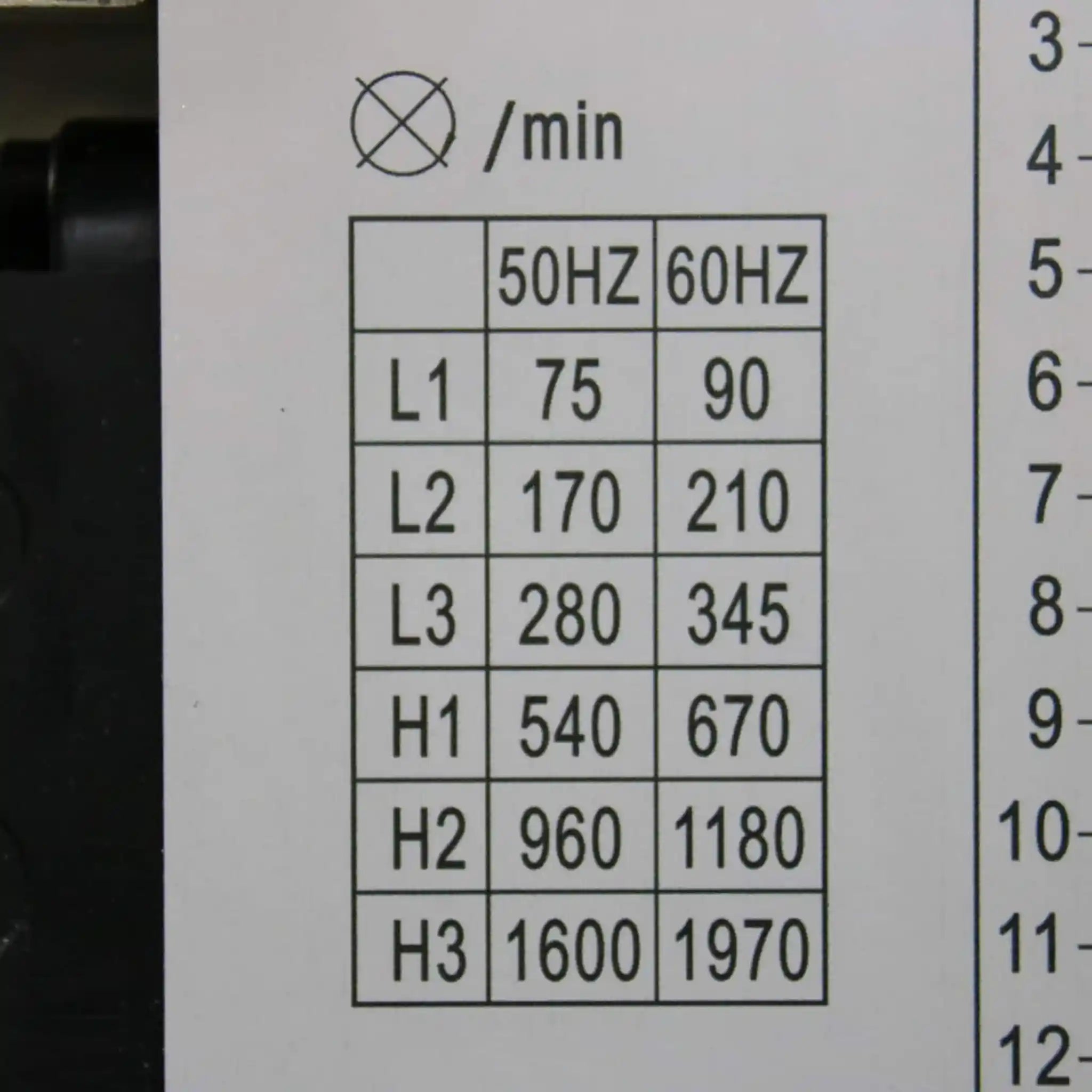

| Spindle Speeds | 90, 210, 345, 670, 1180, 1970 RPM (6 speeds) |
| Motor Power | 2 HP |
| Power Requirements | 240V single phase |
| Table Size | 28.75" × 8.25" |
| X-Axis Travel | 19.5" |
| Y-Axis Travel | 9" |

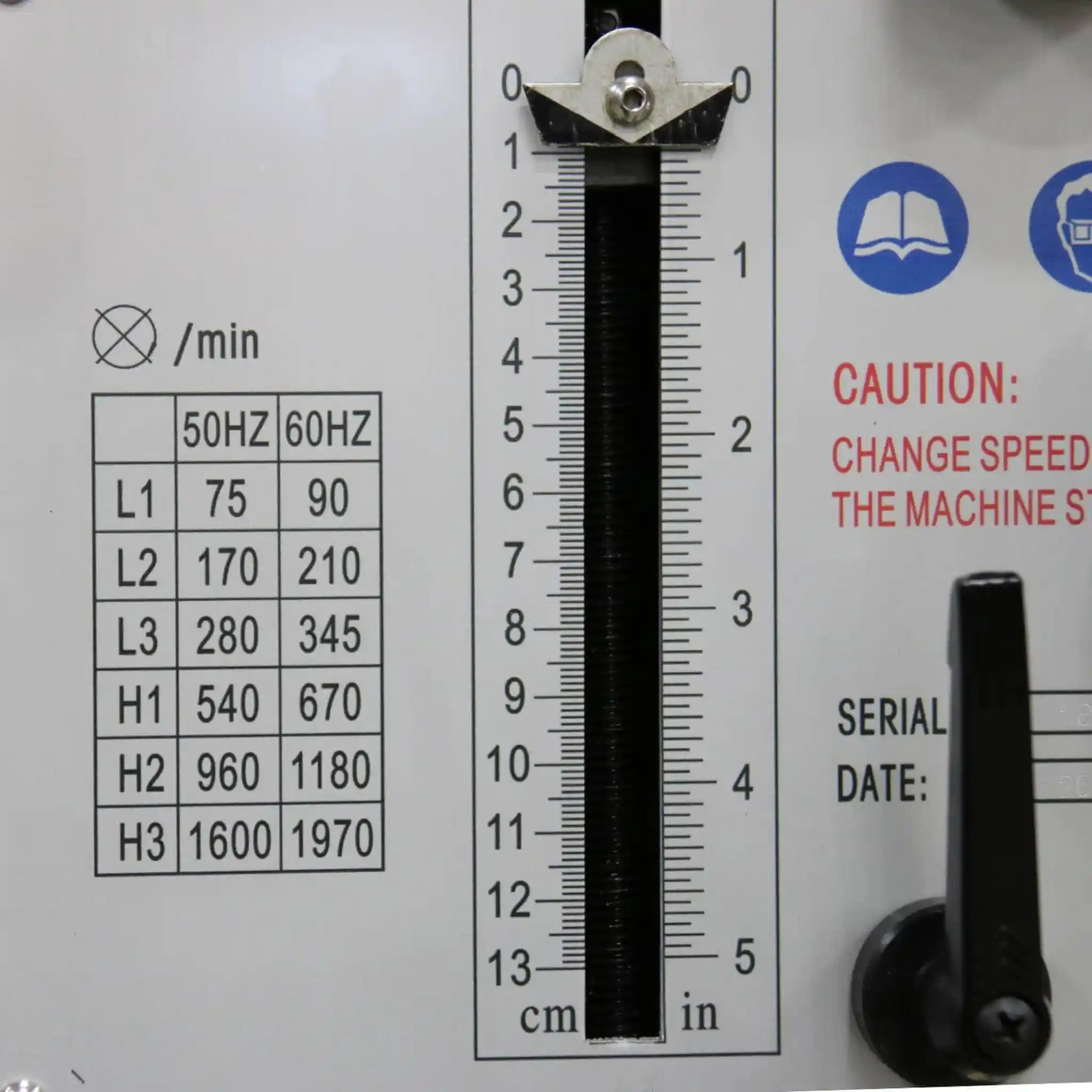

| Spindle Stroke/Travel | 4.75" |
| Spindle Nose to Base | 16.14" |
| Maximum Drilling Capacity | 1.5" |
Baileigh VMD-828G Manuals & Downloads
Frequently Asked Questions
What's the difference between a mill drill and a full milling machine?
A mill drill combines drilling and light to medium milling in one compact machine. While it won't replace a full-size knee mill for heavy production work, it handles most small shop operations beautifully and takes up about half the floor space. Think of it as the perfect middle ground for shops that need versatility without the footprint.
Can I use this with standard 110V power, or do I need special wiring?
The EU version (as specified) requires 240V single-phase power. You'll need a proper electrical outlet installed by a qualified electrician. Many shops already have 240V available for welders and compressors, so check your panel before ordering.
What types of tooling will I need to purchase separately?
You'll need R8 collets or an R8 drill chuck, end mills, drill bits, and a milling vise or clamping kit. The R8 taper is extremely common, so you'll find affordable options everywhere from local suppliers to online retailers.
Is this machine suitable for beginners, or do I need machining experience?
While some basic understanding of machining principles helps, this machine is straightforward to operate and many beginners start with similar equipment. The gear-driven head is actually easier to use than variable speed systems because you simply select your speed setting. Many technical schools use machines like this for training.
How difficult is maintenance on this machine?
Routine maintenance is simple: keep it clean, maintain proper lubrication on the ways and gears, and drain/refill the coolant system periodically. Baileigh provides lifetime technical support by phone, so you're never on your own if questions arise.
