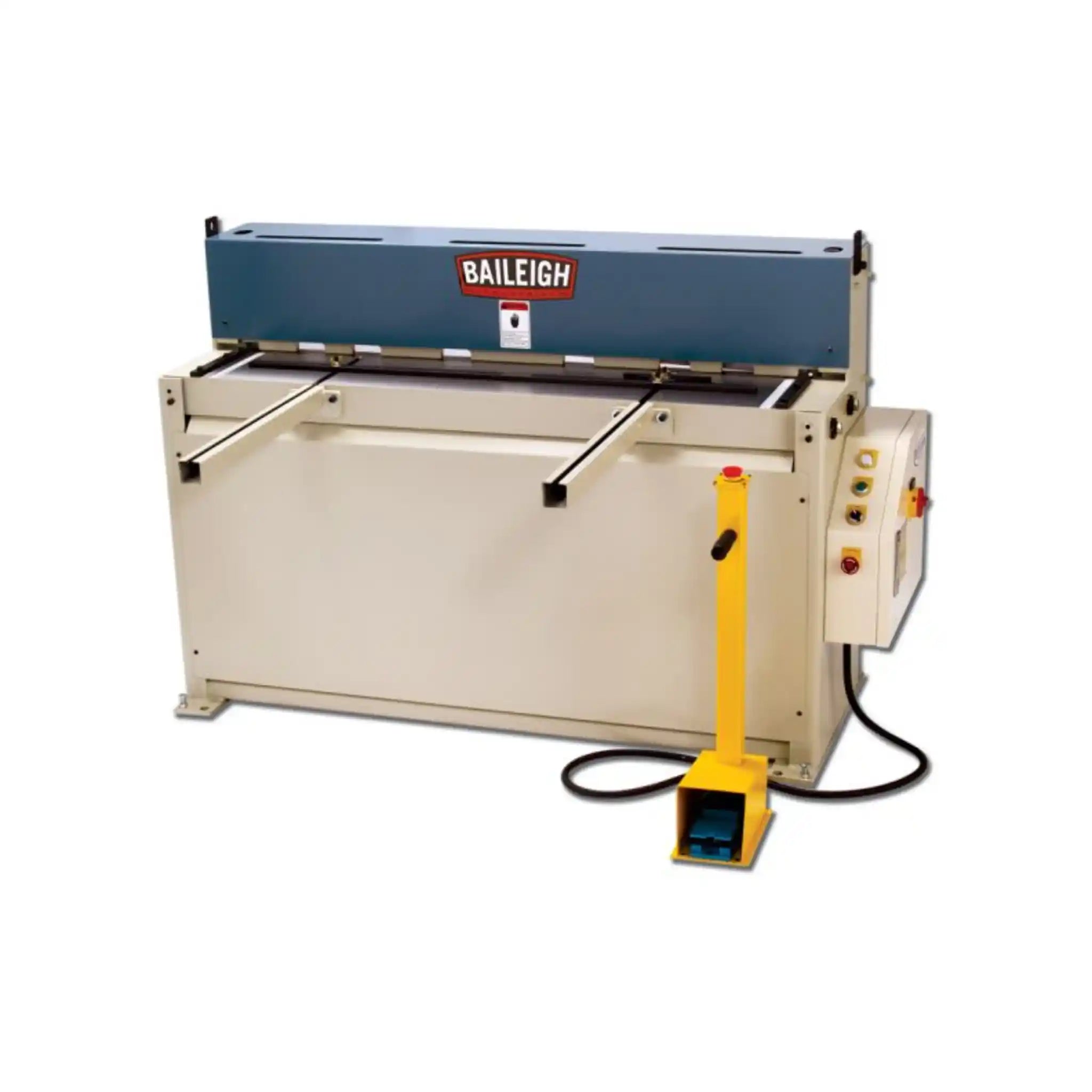

Baileigh SH-5214 Hydraulic Guillotine
The Baileigh SH-5214 is a 52-inch hydraulic sheet metal shear designed for professional fabrication shops that need reliable, accurate cutting of mild steel up to 14 gauge. With its robust construction and intelligent three mode operation, this machine delivers consistent performance for both production runs and custom work.
Are you tired of inconsistent cuts and constant blade replacements eating into your profits? The SH-5214 hydraulic shear solves these common fabrication headaches with a smart design that puts productivity first. This isn't just another piece of shop equipment, it's your solution for clean and repeatable cuts every single time.
Built on a fully welded steel plate frame, this shear gives you the strength and rigidity you need for accurate cutting without flex or deformation. The 3 HP hydraulic system powers through 14 gauge mild steel across the full 1321mm cutting length, while the intelligent three mode control system lets you work exactly how you need to. Whether you're setting up a complex cut in inch mode, making single precise cuts, or running production batches in auto mode at 35 strokes per minute, the SH-5214 adapts to your workflow.
What really sets this machine apart is how it's built to save you money over time. The blades feature four shearing edges, so when one edge dulls, you simply rotate them for a fresh cutting surface. That's four times the life from each blade set compared to traditional designs. The hydraulic hold-downs keep your material firmly against the table, eliminating that frustrating lift that ruins cuts and damages blades. Add in the adjustable 609mm back gauge for repeatable accuracy, and you've got a machine that pays for itself through reduced waste and downtime.
Perfect for sheet metal fabrication shops, HVAC contractors, auto body shops, and general manufacturing facilities, the SH-5214 handles everything from thin 24 gauge material right up to 2mm mild steel. It runs on standard 220V single-phase power, making it practical for shops without three-phase capability. With Baileigh's one-year parts warranty and lifetime technical support from metalworking professionals who actually understand your work, you're covered long after installation.
Applications
- Ductwork fabrication: Clean, burr-free edges on galvanized steel and aluminum sheets for professional installations where precision cuts ensure proper fit and weather-tight seals.
- Automotive and truck body panel cutting: Perfect for repair shops creating custom panels or trimming replacement parts to exact specifications with repeatable accuracy.
- Metal roofing and siding preparation: Handle architectural metal projects where precision cuts are essential for proper fit and weather-tight seals on commercial and residential installations.
- General fabrication shop work: Cut steel plate for brackets, enclosures, chassis components, and structural elements with the consistency your customers expect from professional metalwork.
- Prototyping and custom metalwork: The flexibility between single cuts and production runs keeps projects moving efficiently whether you're making one piece or one hundred.
- Sign manufacturing and metal art: Artists and sign makers get clean edges on various gauges of sheet metal without the burrs and deformation that come from lesser cutting methods.
Key Features & Benefits
- Four-edge rotating blades mean you get four times the cutting life: Dramatically reduce your operating costs and downtime for blade changes. When one edge dulls, just rotate the blade instead of stopping work to order new ones, keeping your shop productive.
- Three intelligent operating modes give you complete control: Inch mode lets you jog the blade down carefully for setup, single mode gives you one precise cut per pedal press for accuracy, and auto mode keeps cycling for production work at 35 strokes per minute.
- Hydraulic hold-downs eliminate material lift during cutting: This means cleaner cuts, longer blade life, and no wasted material from ruined pieces. Your material stays exactly where you put it throughout the entire cutting stroke.
- Adjustable 609mm back gauge with table guides ensures repeatable accuracy: Set it once and know that piece number one and piece number one hundred will be exactly the same dimension, eliminating measurement errors and wasted material.
- Welded steel plate construction provides the rigidity you need: Built for years of accurate cutting without flex or drift. This isn't a machine that will start cutting crooked after a year of use; it's engineered to maintain precision throughout its working life.
- 220V single-phase power keeps installation simple and affordable: You don't need expensive three-phase electrical work. Most shops already have the power you need, making setup straightforward and budget-friendly.
- Front arm extensions and table guides keep material square to the blade: Work more efficiently, especially when handling large sheets alone or cutting full-size material without constantly fighting to maintain alignment.
- High carbon chromium blades deliver long-lasting performance: These professional-grade blades maintain their edge longer than standard blades, giving you more cuts between rotations and saving money on replacements.
What's in the Box
- Baileigh SH-5214 hydraulic sheet metal shear (fully assembled and ready to use)
- High carbon chromium blades with four cutting edges (pre-installed)

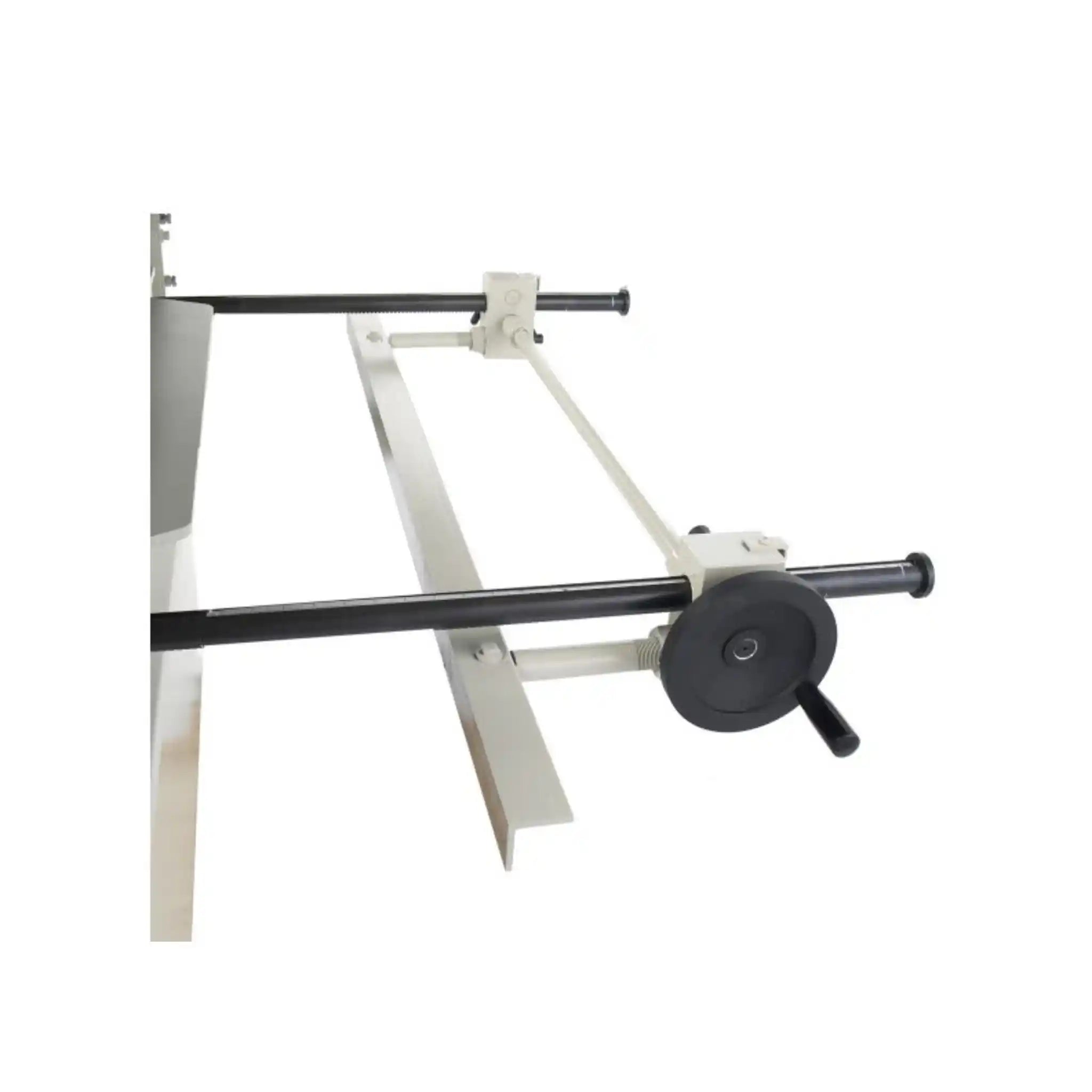

- Adjustable back gauge system (installed and calibrated)

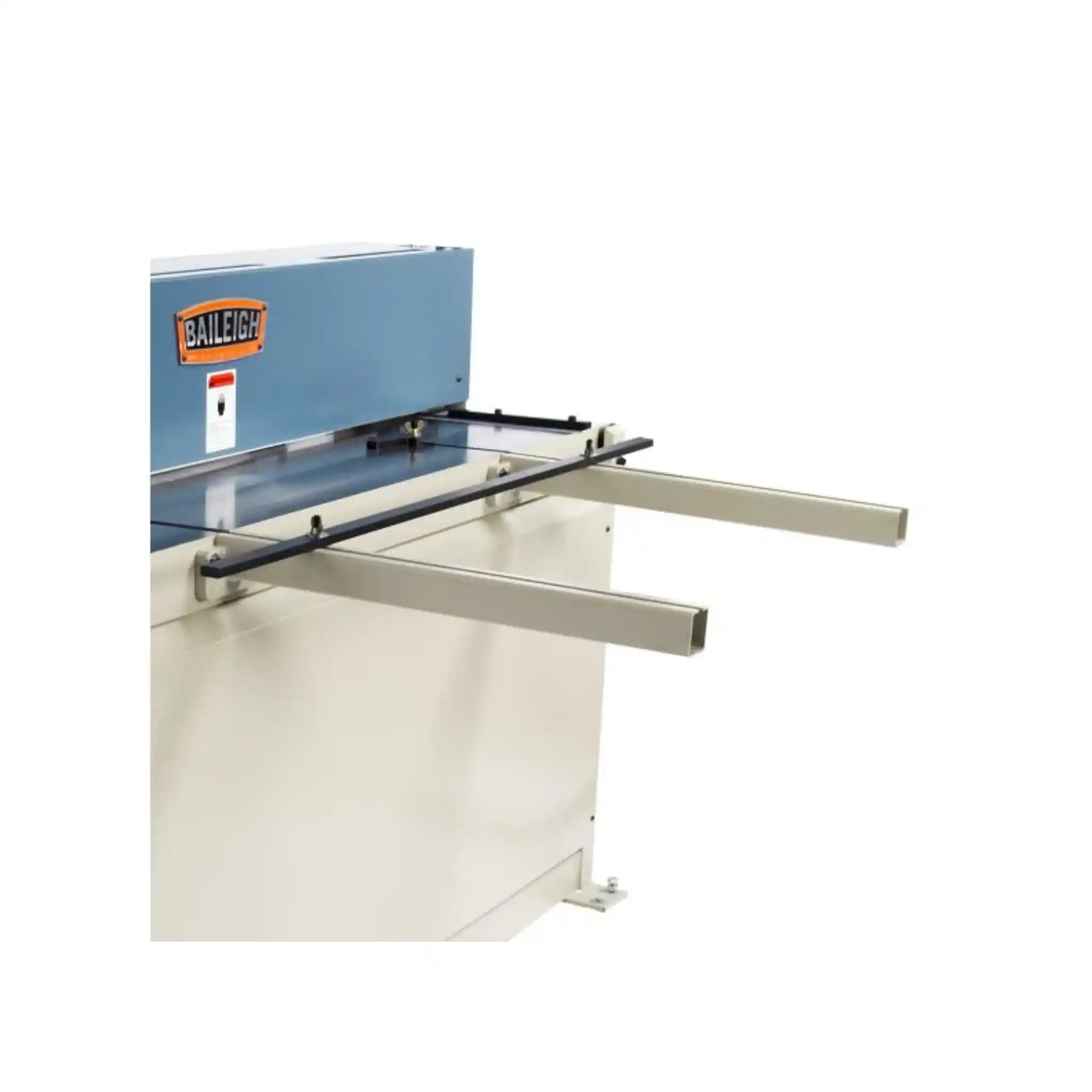

- Front arm extensions and table guides (installed)

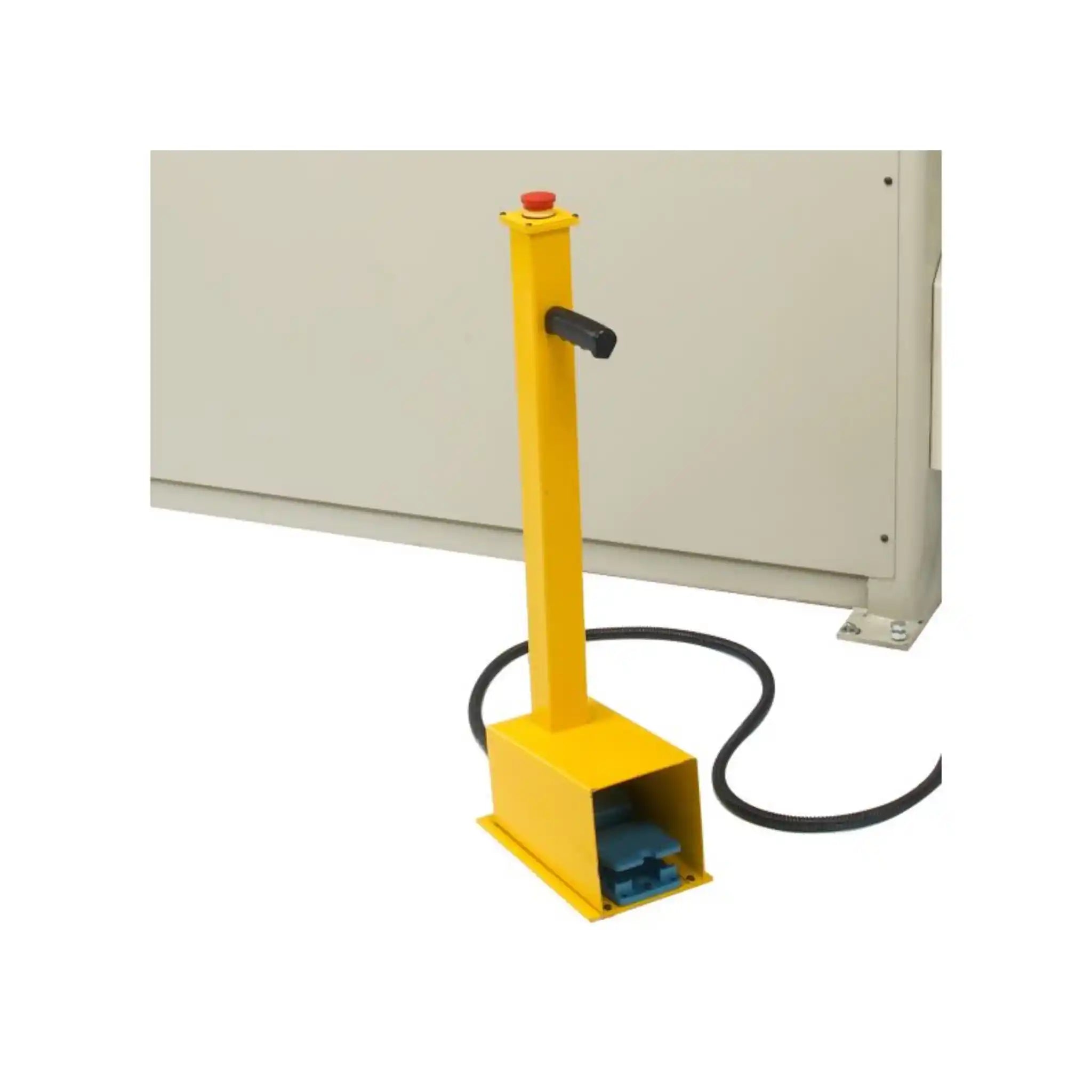

- Foot pedal control for hands-free operation

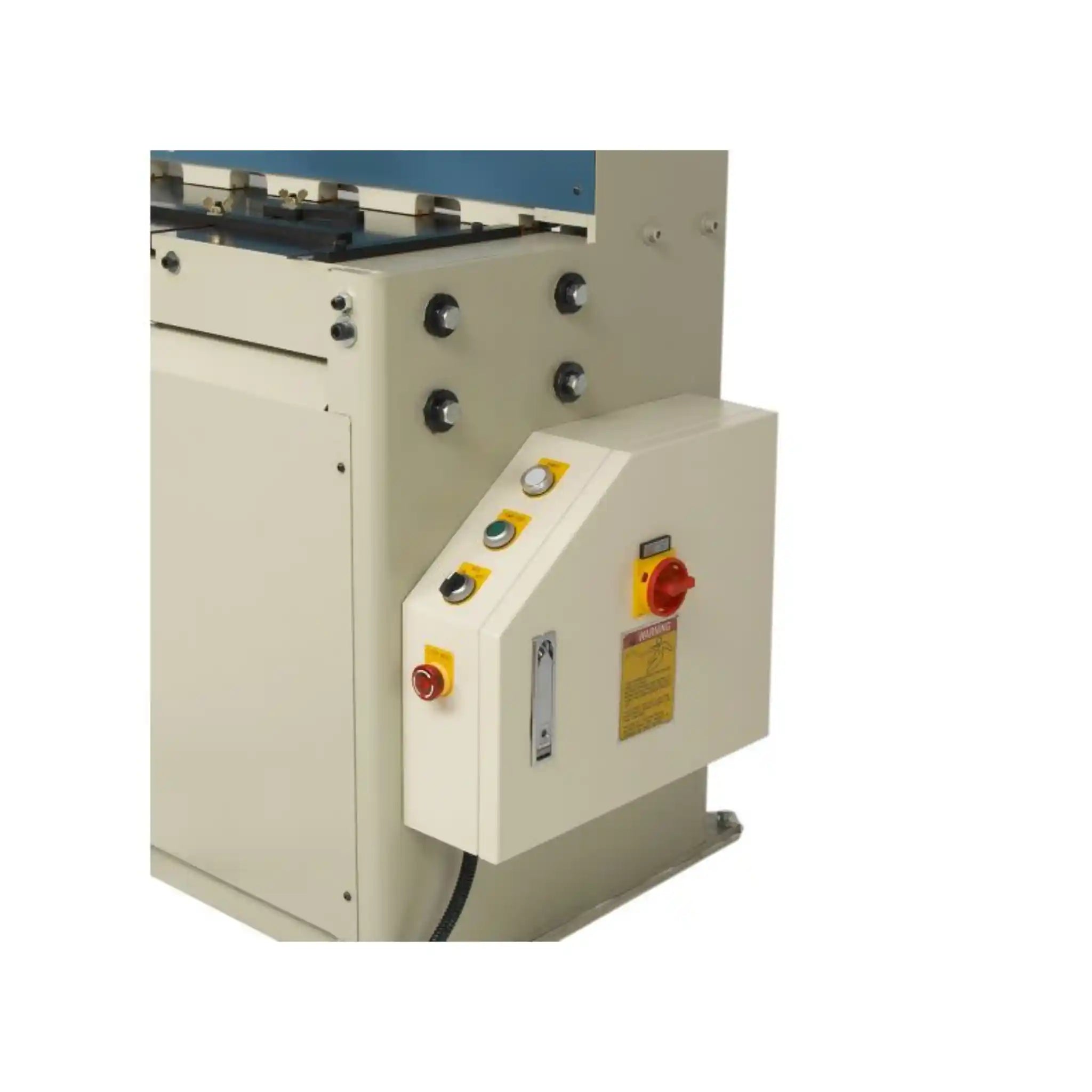

- Operator console with three-mode selector switch
- Hydraulic hold-down system (installed and functional)
- Owner's manual with complete operating instructions
- Safety documentation and guidelines
- One-year parts warranty documentation
- Lifetime technical support contact information
Baileigh SH-5214 Specifications
| Model Number | SH-5214 |
|---|---|
| Shear Length | 1321mm (52 inches) |
| Maximum Capacity - Mild Steel | 2mm (14 gauge) |
| Maximum Capacity - Stainless Steel | 18 gauge |
| Minimum Cutting Capacity | 24 gauge |
| Motor Power | 3 HP |
| Strokes Per Minute (Auto Mode) | 35 |
| Back Gauge Length | 609mm (24 inches) |

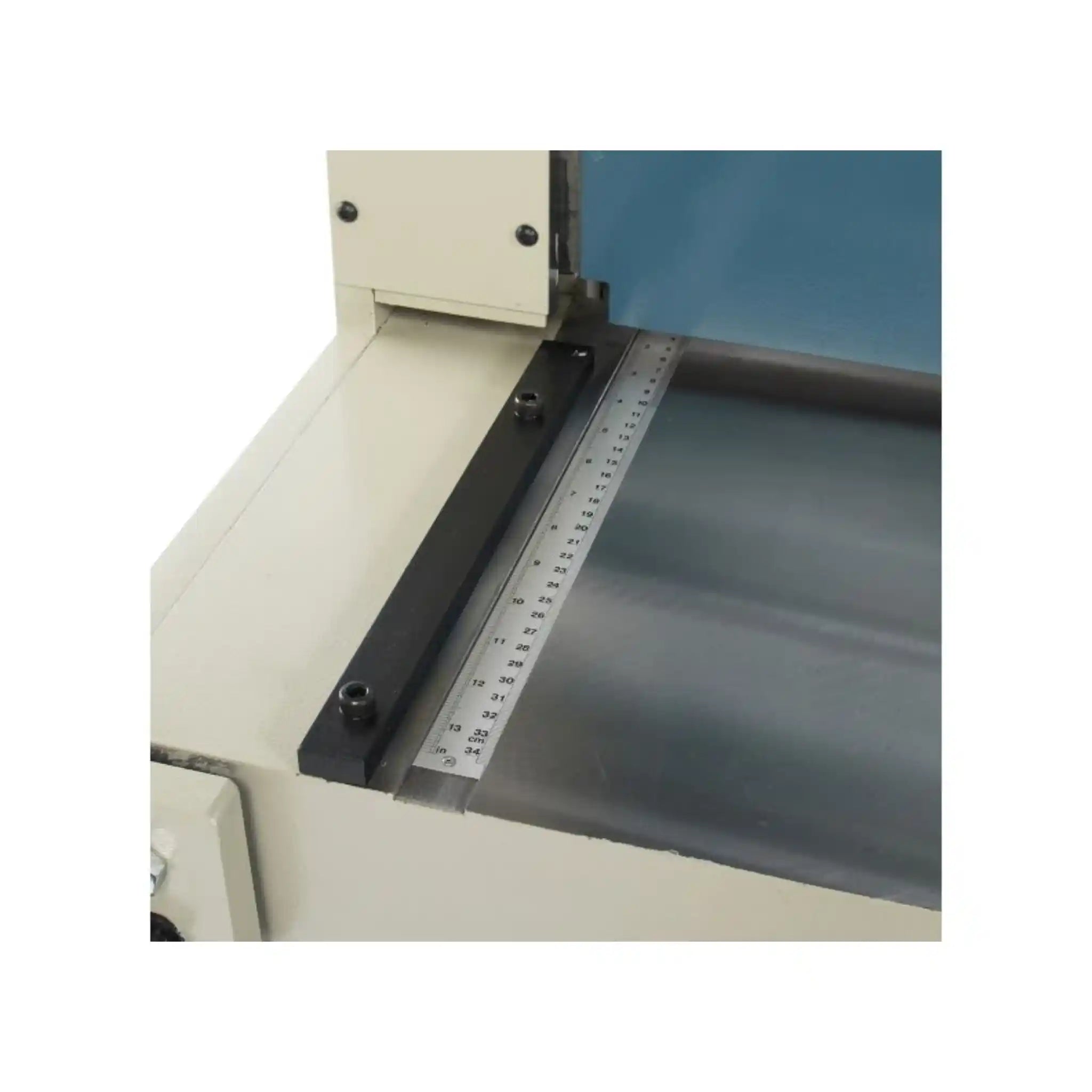

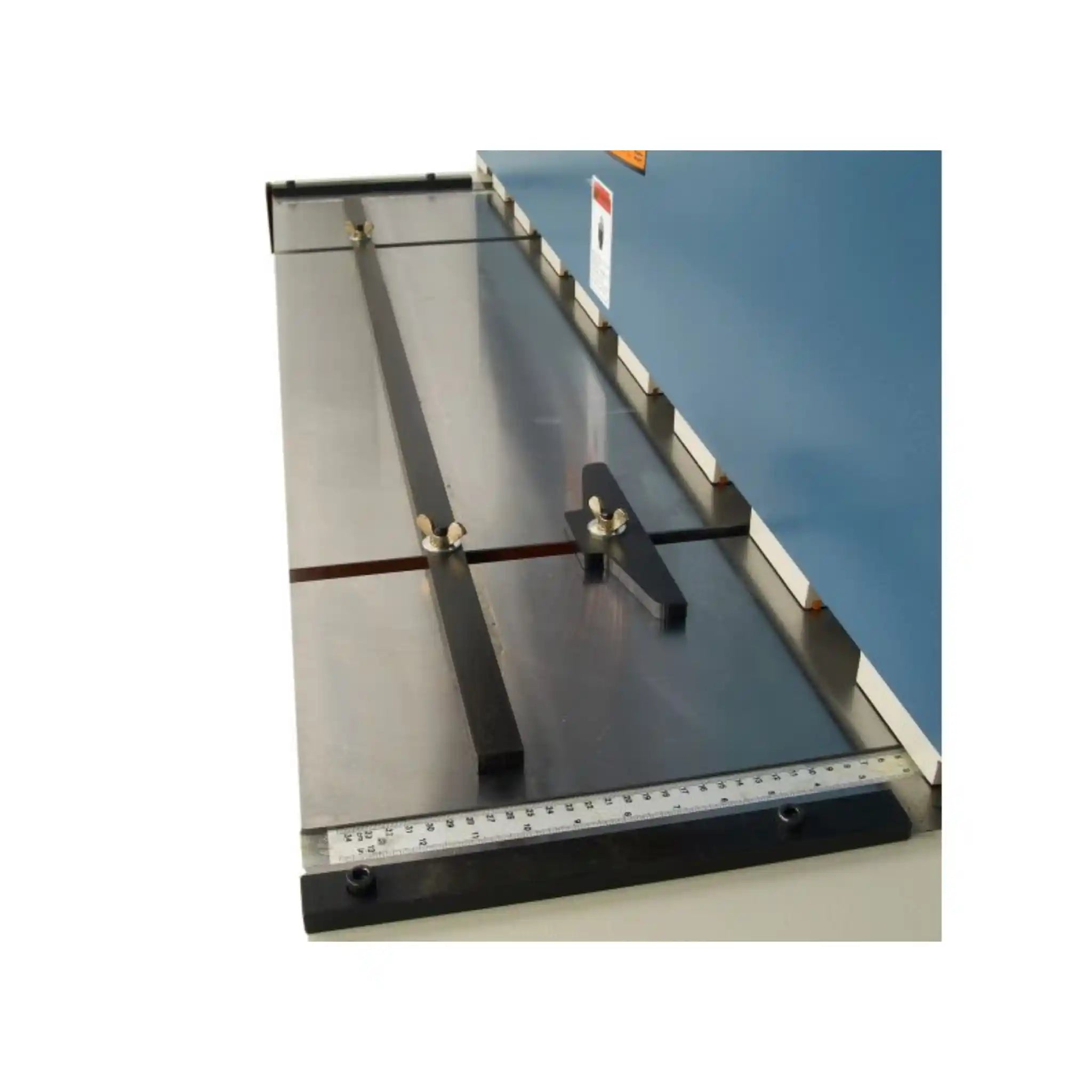

| Front Gauge Length | 609mm (24 inches) |
| Blade Angle | 1 degree |
| Power Requirements | 220V, Single Phase |
| Current Draw | 20 Amps |
Baileigh SH-5214 Manuals & Downloads
Frequently Asked Questions
How difficult is installation and setup?
The SH-5214 arrives fully assembled and ready to work. You'll need 220V single-phase power (20 amp circuit recommended) and a solid, level floor that can support 864kg. Most shops can have it operational within a few hours. Because it doesn't require three-phase power, electrical setup is straightforward for any qualified electrician. The machine does require freight delivery with lift gate service, so ensure you have forklift access or a loading dock for unloading.
What kind of maintenance does this shear require?
Maintenance is minimal and straightforward. You'll want to keep the hydraulic system filled with proper fluid and check levels monthly. The blade edges should be inspected regularly for wear, and you'll rotate them when cutting performance decreases. Lubricate the back gauge mechanism and keep the table clean of metal debris. Most shops find they can handle all routine maintenance in-house without special tools. Replacement parts and blades are stocked by Baileigh for fast shipping when you need them.
Can I cut materials other than mild steel?
Absolutely. The SH-5214 handles a variety of sheet metals within its capacity range. You can cut aluminum, stainless steel (up to 18 gauge), copper, brass, and other non-ferrous metals. The adjustable back gauge and hold-downs work with any sheet material. Just remember that harder materials like stainless steel have reduced maximum thickness compared to mild steel. The four-edge blade design is particularly valuable when cutting abrasive materials like stainless.
Is the auto mode fast enough for production work?
At 35 strokes per minute, the SH-5214 provides excellent throughput for medium-duty production runs. You can process a significant volume of parts per hour while maintaining cut quality. For shops doing extremely high-volume work, Baileigh offers heavier-duty models, but most fabrication shops find the SH-5214's speed ideal for balancing productivity with precision. The ability to quickly switch between single and auto modes also makes it versatile for mixed production and custom work.
What support is available if I have problems?
Baileigh backs the SH-5214 with a comprehensive one-year parts warranty covering manufacturing defects. More importantly, you get lifetime technical support by phone from Baileigh representatives who have hands-on metalworking experience. These aren't script-reading call center employees; they're people who understand fabrication and can provide practical solutions. Replacement parts and blades ship quickly from Baileigh warehouses, minimizing any downtime if you do need service.
