Baileigh SH-5210 Hydraulic Guillotine
The Baileigh SH-5210 is a professional grade hydraulic sheet metal shear that delivers precise, clean cuts through 10 gauge mild steel across a full 52 inch width, perfect for fabrication shops looking for reliable performance without three-phase power requirements.
Need a shear that can handle serious production work but doesn't require three-phase power? The SH-5210 solves that problem perfectly. This machine was one of the foundational products that built Baileigh's reputation for quality, and it's easy to see why. You get industrial grade cutting capability powered by a 5 hp motor running on standard 220V single-phase power, making it ideal for workshops where three-phase isn't available or practical.
What makes this shear stand out is its robust construction. The fully welded steel frame eliminates flex and deflection, which means you get perfect, square cuts every single time, even when working at full capacity. Whether you're cutting mild steel, stainless steel, or aluminum, the SH-5210 handles it with consistent precision. At 28 strokes per minute, you can maintain steady production without sacrificing cut quality.
The machine is designed with the operator in mind. Three cutting modes (Inch, Single, and Auto) give you complete control over your workflow. The adjustable 24-inch backgauge ensures repeatability when you need multiple identical cuts, while the front support arms and table guides keep your material perfectly square to the blade. This isn't just a machine; it's a reliable partner for your fabrication work that will serve you well for years to come.
Applications
- HVAC Fabrication: Creating ductwork, panels, and sheet metal components with precise, clean cuts that require minimal finishing work.
- Automotive & Truck Body Repair: Cutting replacement panels, floor pans, and custom body components for restoration and repair projects.
- Custom Metal Fabrication: Producing enclosures, cabinets, brackets, and architectural metalwork where accuracy and repeatability matter.
- Sheet Metal Job Shops: High-volume production cutting where consistent quality and speed are essential for profitability.
- Agricultural Equipment Manufacturing: Fabricating guards, panels, and structural components from various gauge materials.
- General Metalworking & Prototyping: Versatile cutting solution for schools, makerspaces, and small manufacturers working with thin to medium-gauge sheet metal.
Key Features & Benefits
- Single-Phase Power Convenience: Runs on 220V single-phase power, so you can install it in virtually any shop without expensive electrical upgrades. This saves you thousands compared to three-phase machines while delivering the same cutting performance.
- Full 52-Inch Cutting Capacity: Handle standard 4-foot sheets with room to spare. The 1321mm (52") cutting length lets you process full-width materials without multiple passes, speeding up your workflow and reducing handling time.

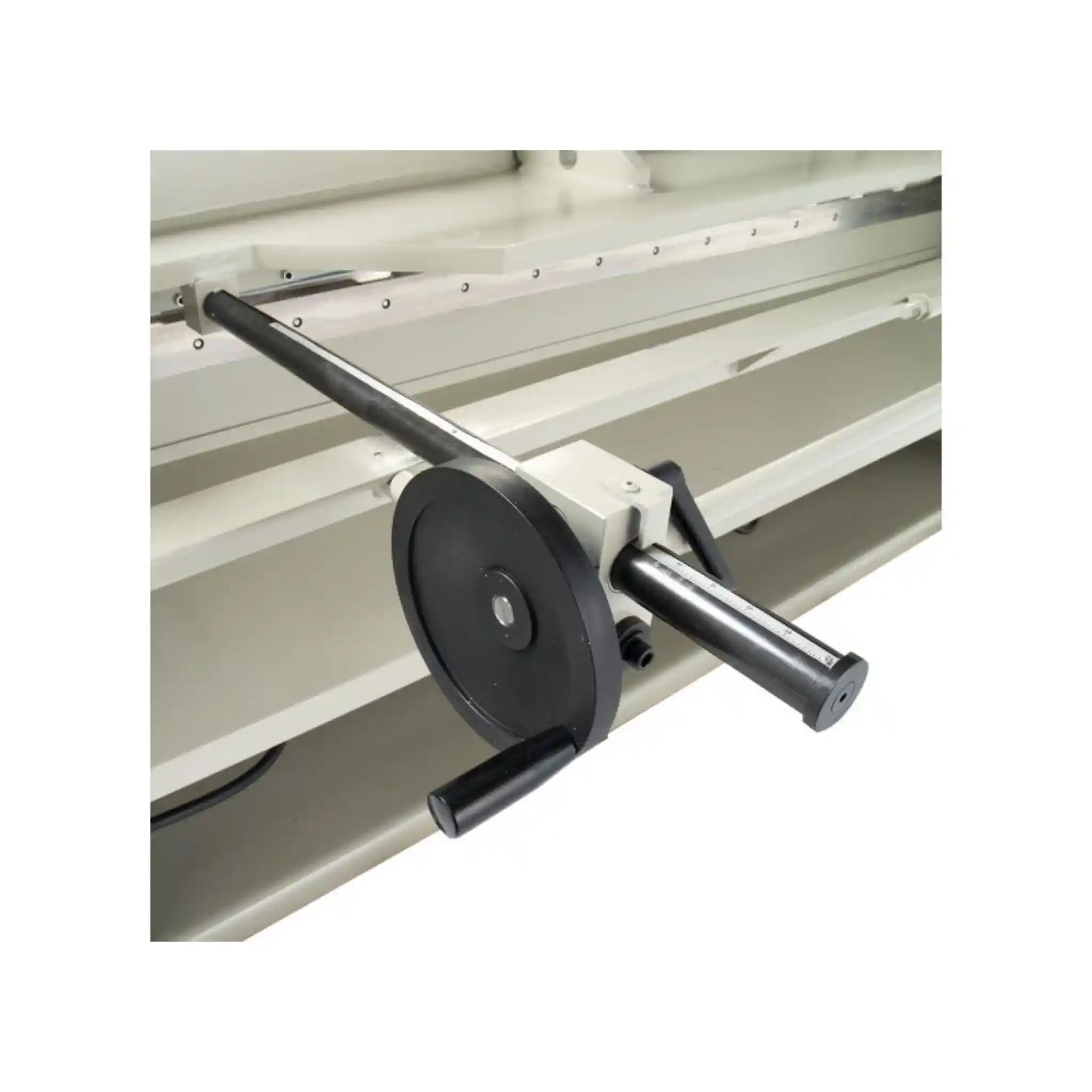

- Precision Backgauge System: The adjustable backgauge (up to 17159mm positioning range) ensures perfect repeatability. Set it once and make dozens of identical cuts without remeasuring, dramatically improving efficiency for production runs.

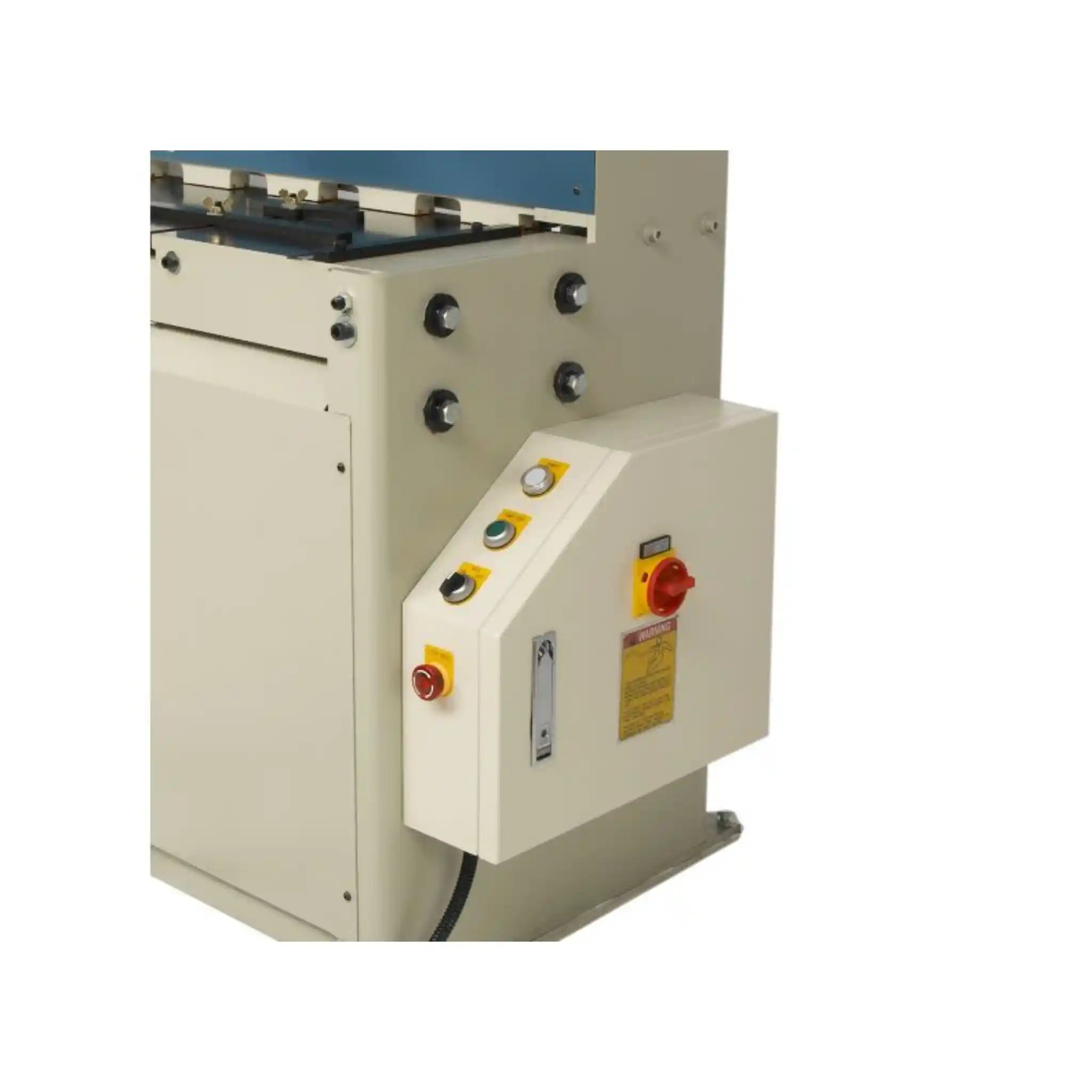

- Triple Operating Modes: Choose Inch mode to carefully position the blade, Single mode for one controlled cut per pedal press, or Auto mode for continuous production. This flexibility adapts to both precision work and high-volume cutting.
- Four-Sided Replaceable Blades: The high carbon chromium blades feature four cutting edges. When one edge dulls, simply rotate the blade to a fresh edge. This extends blade life significantly and saves you money on replacements and downtime.
- Hydraulic Hold-Down System: Powerful hydraulic clamps secure your material firmly to the table during cutting, eliminating material lift and ensuring clean, accurate cuts while extending blade life.

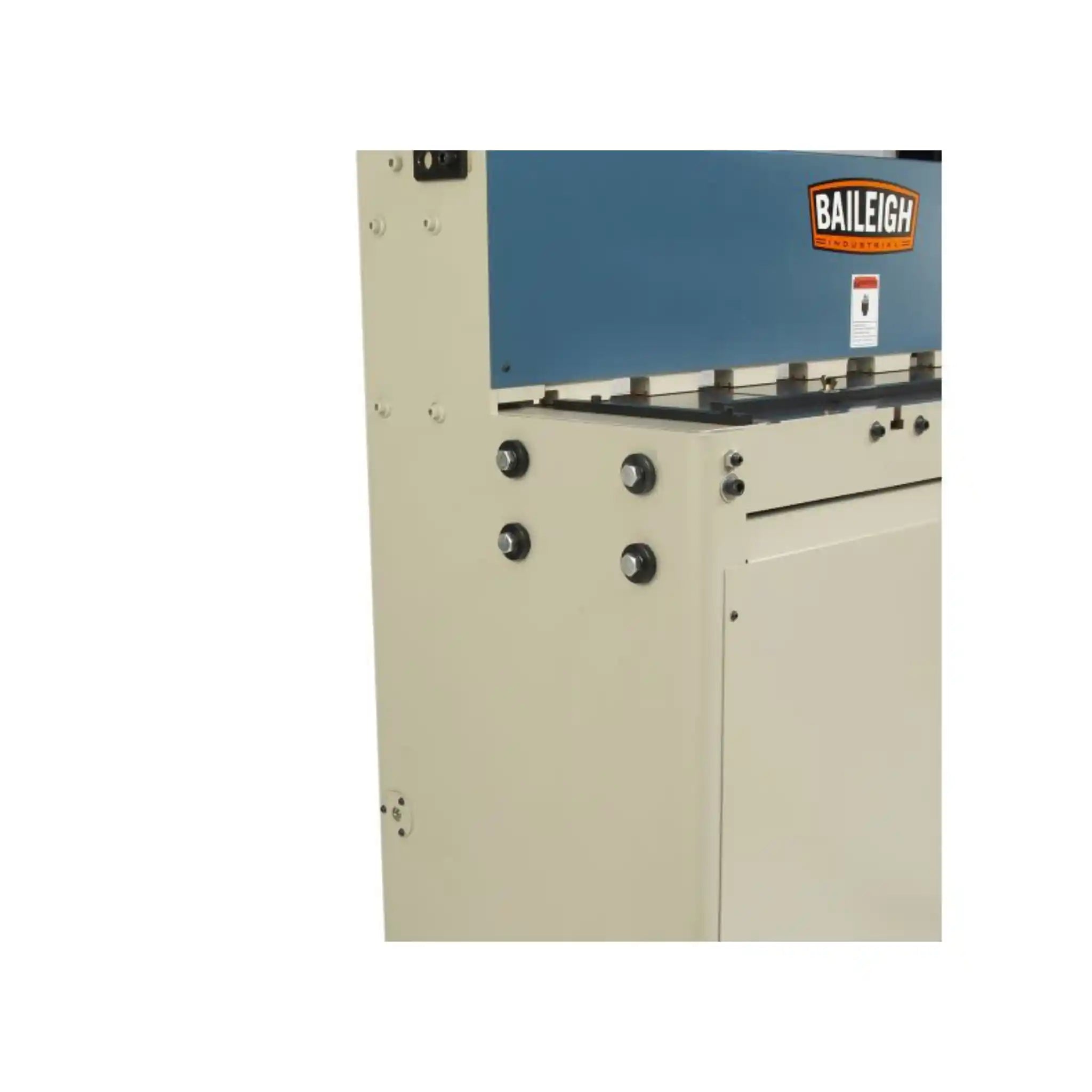

- Welded Steel Frame Construction: The rigid, fully welded plate steel frame prevents flex even at maximum capacity. This means your cuts stay accurate year after year, with no degradation in quality over time.

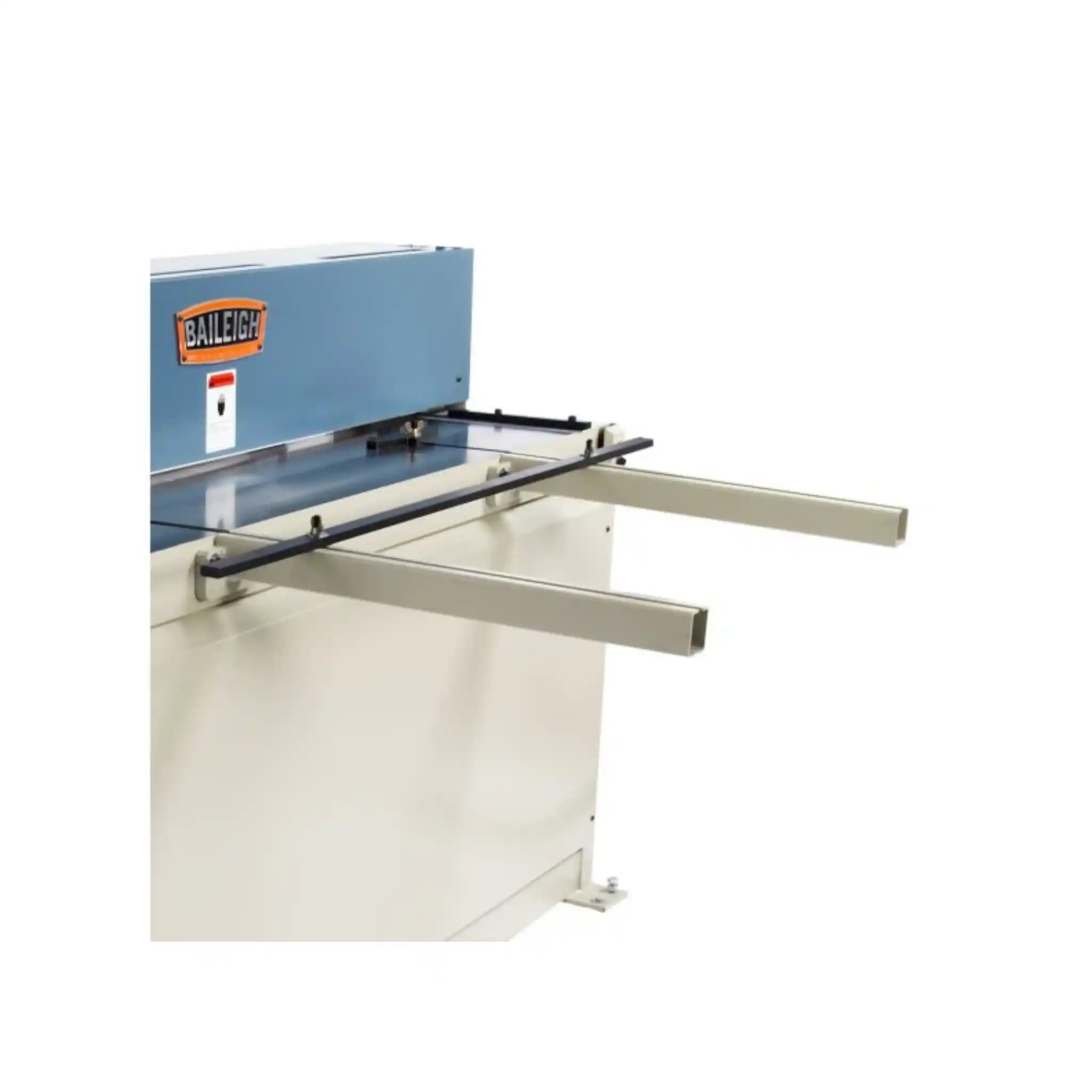

- Front Support System: Integrated front support arms and table guides keep your material perfectly square to the blade, eliminating the need for marking guide lines and reducing setup time.
What's in the Box
- Baileigh SH-5210 Hydraulic Sheet Metal Shear (fully assembled)
- High carbon chromium shear blades (installed, four-sided)

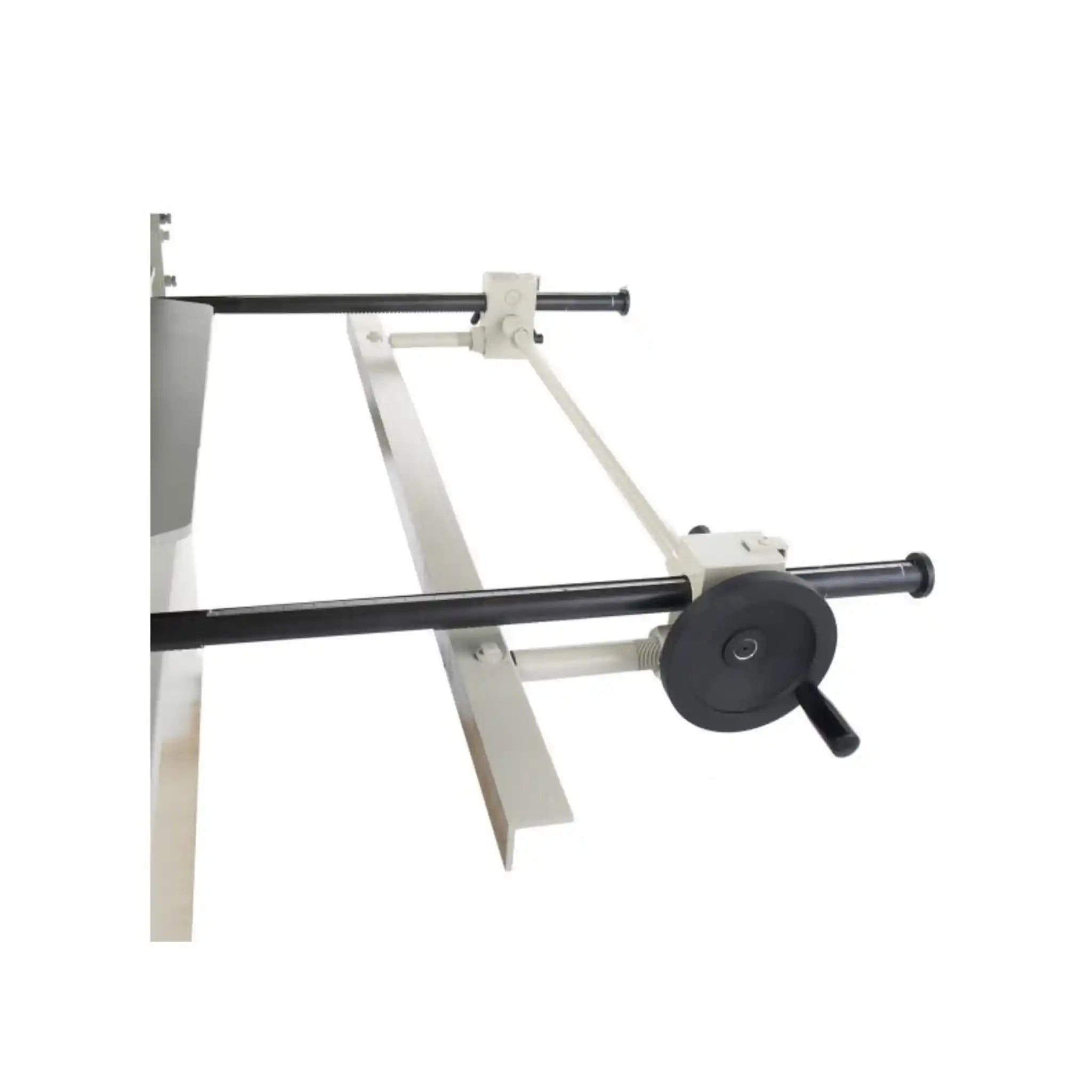

- Adjustable backgauge system with positioning scale
- Front support arms and table guides
- Hydraulic hold-down system

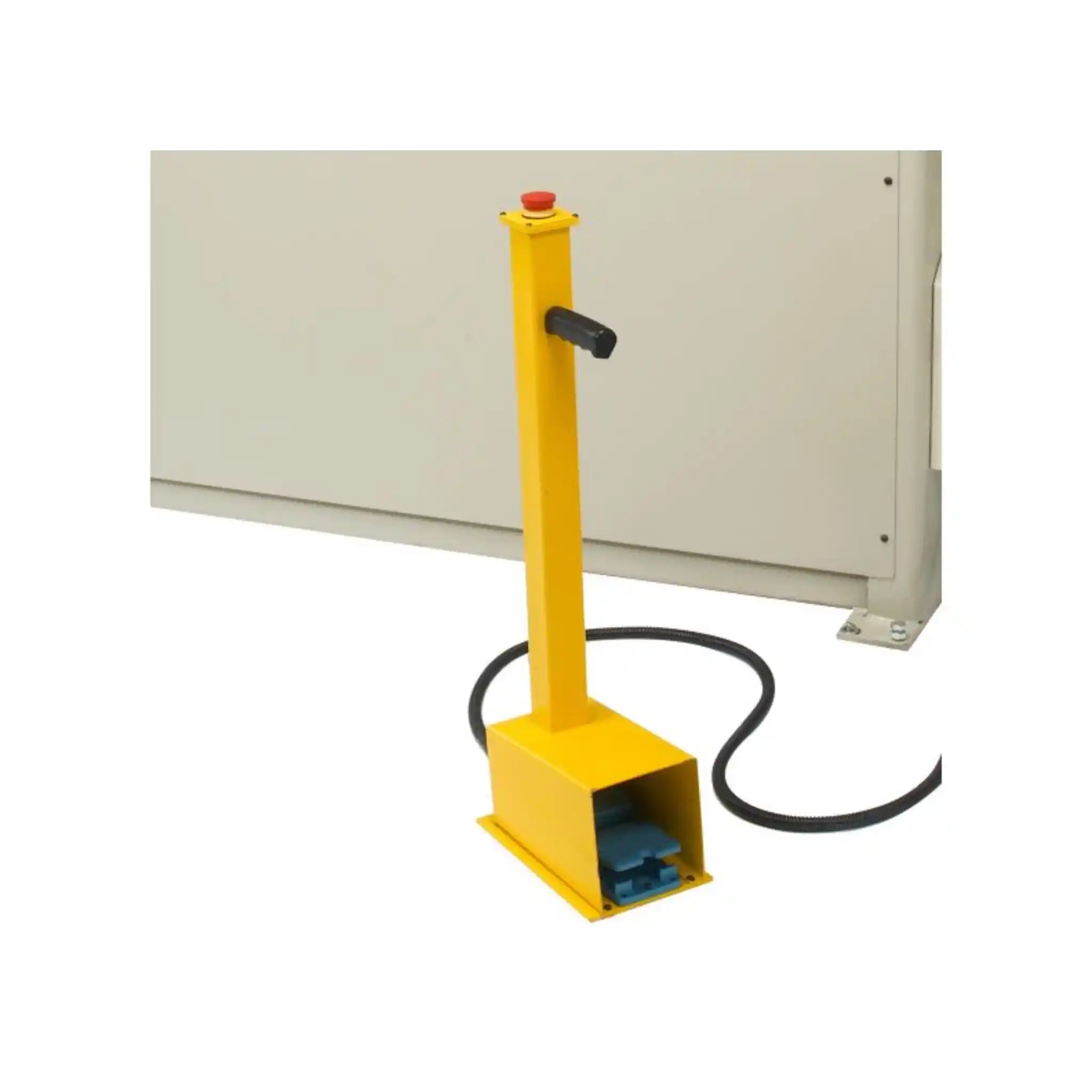

- Foot pedal control
- Operator's manual and safety documentation
- Parts diagram and maintenance guide
- 1-year parts warranty documentation
- Lifetime technical support access information
Baileigh SH-5210 Specifications
| Model Number | SH-5210 |
|---|---|
| Shear Length | 1321 mm (52 inches) |
| Maximum Capacity (Mild Steel) | 10 gauge (3.4mm) |
| Maximum Capacity (Stainless Steel) | 13 gauge |
| Minimum Material Thickness | 24 gauge mild steel |
| Motor Power | 5 hp |
| Power Requirements | 220V, 1-Phase |
| Cutting Speed | 28 strokes per minute |
| Backgauge Length | 17159 mm |

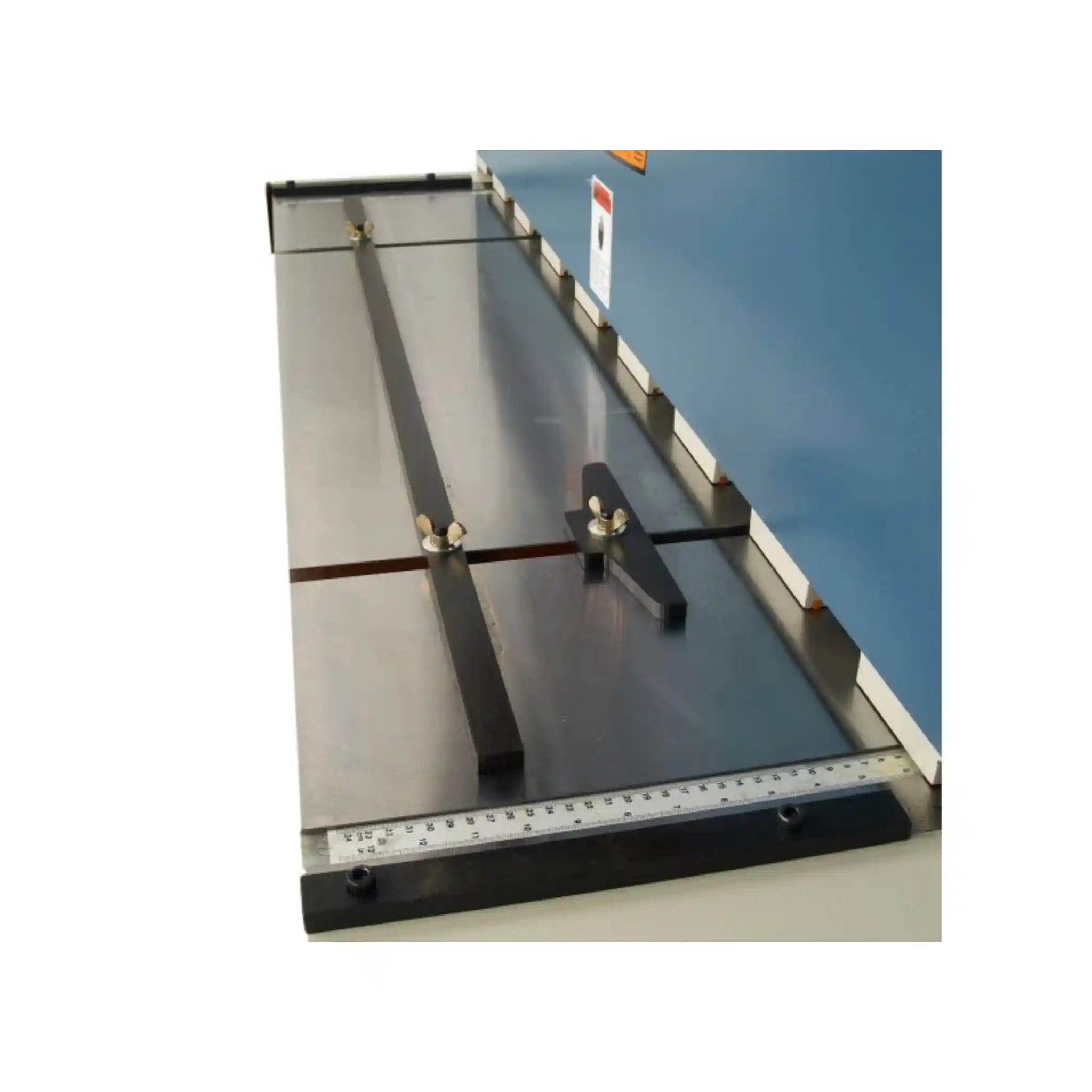

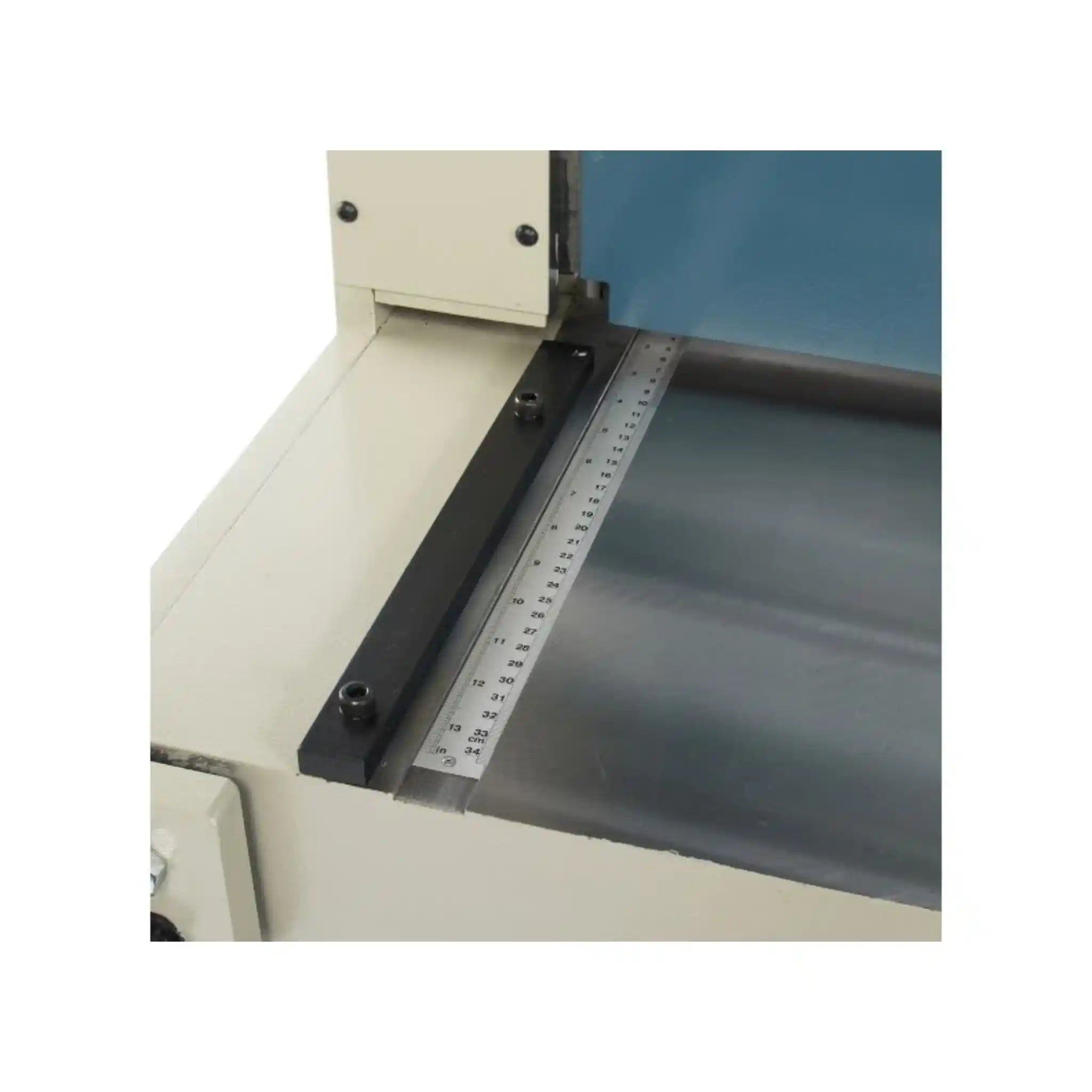

| Front Gauge Length | 609 mm (24 inches) |
Baileigh SH-5210 Manuals & Downloads
Frequently Asked Questions
What's the difference between the SH5210 and the SH5210HD?
The SH-5210 is the single-phase version perfect for most fabrication shops, running on 220V single-phase power with a 5 hp motor at 28 strokes per minute. The SH-5210-HD is the heavy-duty three-phase version with a 7.5 hp motor, 35 to 47 strokes per minute, and additional features like adjustable blade angle and roller bars on the table. If you don't have three-phase power or don't need the extra speed for continuous production, the SH-5210 is the economical choice that still delivers professional results.
How long do the blades last, and what's the replacement cost?
Blade life depends heavily on your usage, material types, and cutting frequency, but the four-sided design significantly extends longevity. When one edge dulls, you can rotate the blade to use a fresh edge, giving you four times the life of a single-edge blade. Plus, the blades can be resharpened multiple times before replacement is needed. Baileigh stocks replacement blades for fast shipping, and many fabricators report years of service from a single set with proper maintenance and rotation.
Can this shear handle stainless steel and aluminum?
Yes! While the maximum capacity rating is for mild steel (10 gauge), the SH-5210 handles stainless steel up to 13 gauge and aluminum as well. Keep in mind that harder materials like stainless steel will require more careful blade maintenance and may wear blades faster than mild steel. The hydraulic hold-downs are especially helpful when cutting stainless, as they prevent material movement during the cut.
What kind of maintenance does the SH5210 require?
Maintenance is straightforward and minimal. The hydraulic system is located at the front for easy fluid checks and changes. Regular tasks include checking hydraulic fluid levels, keeping the ways clean and lubricated, inspecting blade condition, and ensuring the backgauge remains properly calibrated. The welded steel construction means there's no frame maintenance needed. Baileigh provides a comprehensive maintenance guide with your machine, and their lifetime technical support team can answer any questions that arise.
Do I need special electrical service to run this machine?
You need 220V single-phase power, which is commonly available in most commercial and industrial settings. This is a significant advantage over three-phase machines, as you likely won't need expensive electrical service upgrades. The 5 hp motor draws reasonable amperage, but you should have a qualified electrician verify your circuit can handle the load and install the appropriate disconnect and wiring. Always consult local electrical codes and the machine's electrical specifications before installation.
