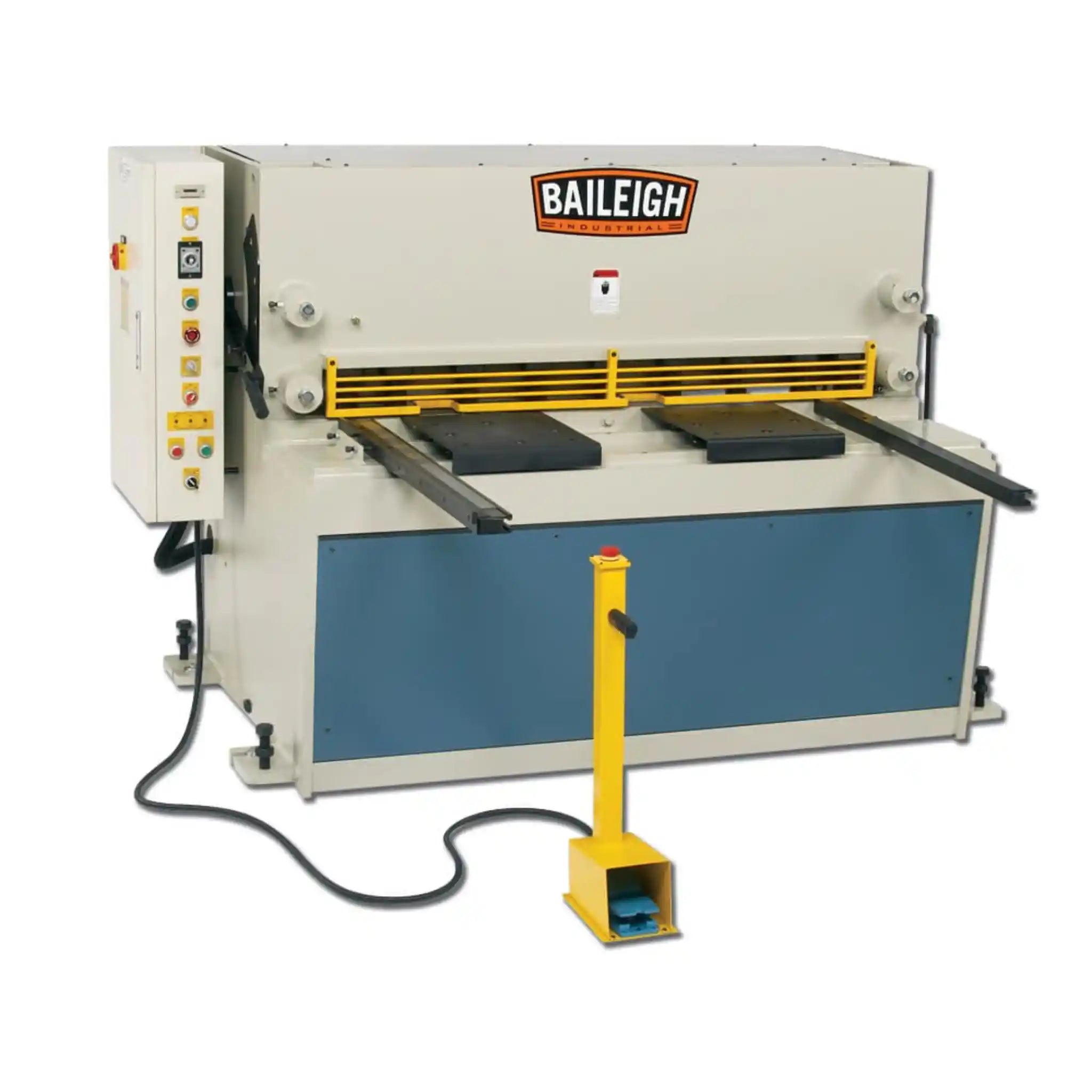

Baileigh SH-5203-HD Hydraulic Guillotine
The Baileigh SH-5203-HD is a professional grade hydraulic sheet metal shear engineered for heavy duty industrial cutting applications. With a 1321mm (52") cutting capacity and the power to slice through 6.5mm mild steel, this machine delivers precision, reliability, and efficiency for your most demanding metalworking projects.
When you need a shear that can handle anything you throw at it, the SH-5203-HD stands ready. This isn't just another piece of shop equipment; it's a workhorse built with industrial grade components designed to outlast and outperform for decades to come.
What makes this shear exceptional? The fully welded plate steel frame provides rock-solid stability that translates directly to cleaner cuts and longer blade life. You'll appreciate how the industrial hydraulic system handles thick material with ease, while the adjustable blade gap and rake angle (from 1/2° to 2°) give you precise control over cut quality. Whether you're working with thin gauge materials or pushing the limits at 6.5mm mild steel, this machine adapts to your needs.
Perfect for metal fabrication shops, manufacturing facilities, HVAC contractors, and sheet metal workers, the SH-5203-HD combines power with surprising simplicity. Three operating modes (jog, single cycle, and continuous) mean you can tackle custom one-off projects in the morning and switch to high volume production runs in the afternoon. The intuitive control panel puts everything at your fingertips, while the shadow light cutting guide ensures accuracy even on those critical precision cuts.
Applications
- Metal Fabrication & Custom Work: Cut sheet metal components for custom fabrication projects, architectural metalwork, and bespoke manufacturing with precision and repeatability.
- Ductwork Production: Efficiently produce ductwork components, flashing, and fittings for heating, ventilation, and air conditioning installations.
- Automotive & Transportation: Shear body panels, brackets, and structural components for automotive repair, restoration, and custom vehicle fabrication.
- Industrial Manufacturing: Support high-volume production runs for appliance manufacturing, electrical enclosures, and industrial equipment components.
- Construction & Roofing: Process metal roofing materials, flashing, trim, and structural steel components for construction and roofing applications.
- Maintenance & Repair Shops: Handle diverse cutting requirements for equipment repair, machinery refurbishment, and general metal maintenance work.
Key Features & Benefits

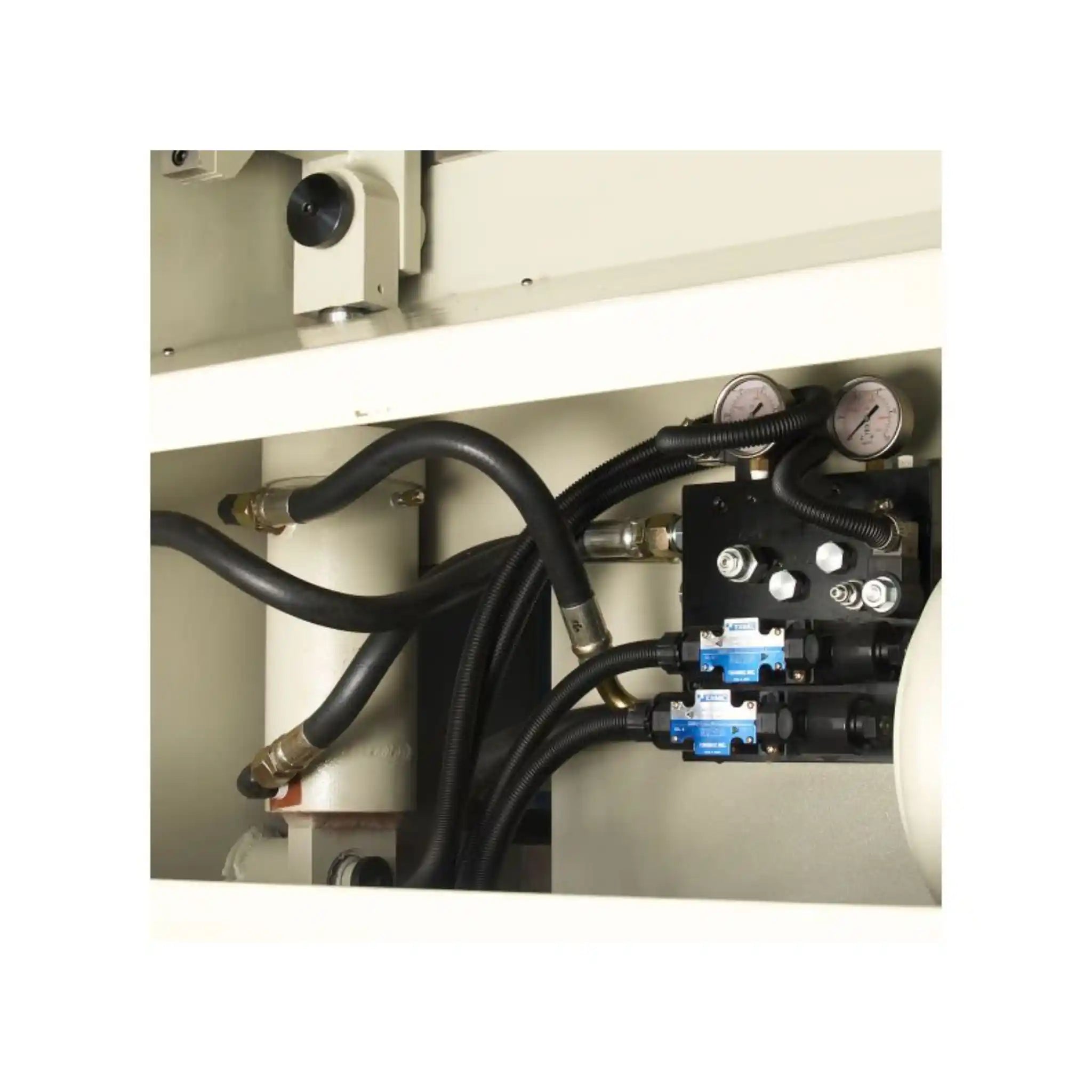

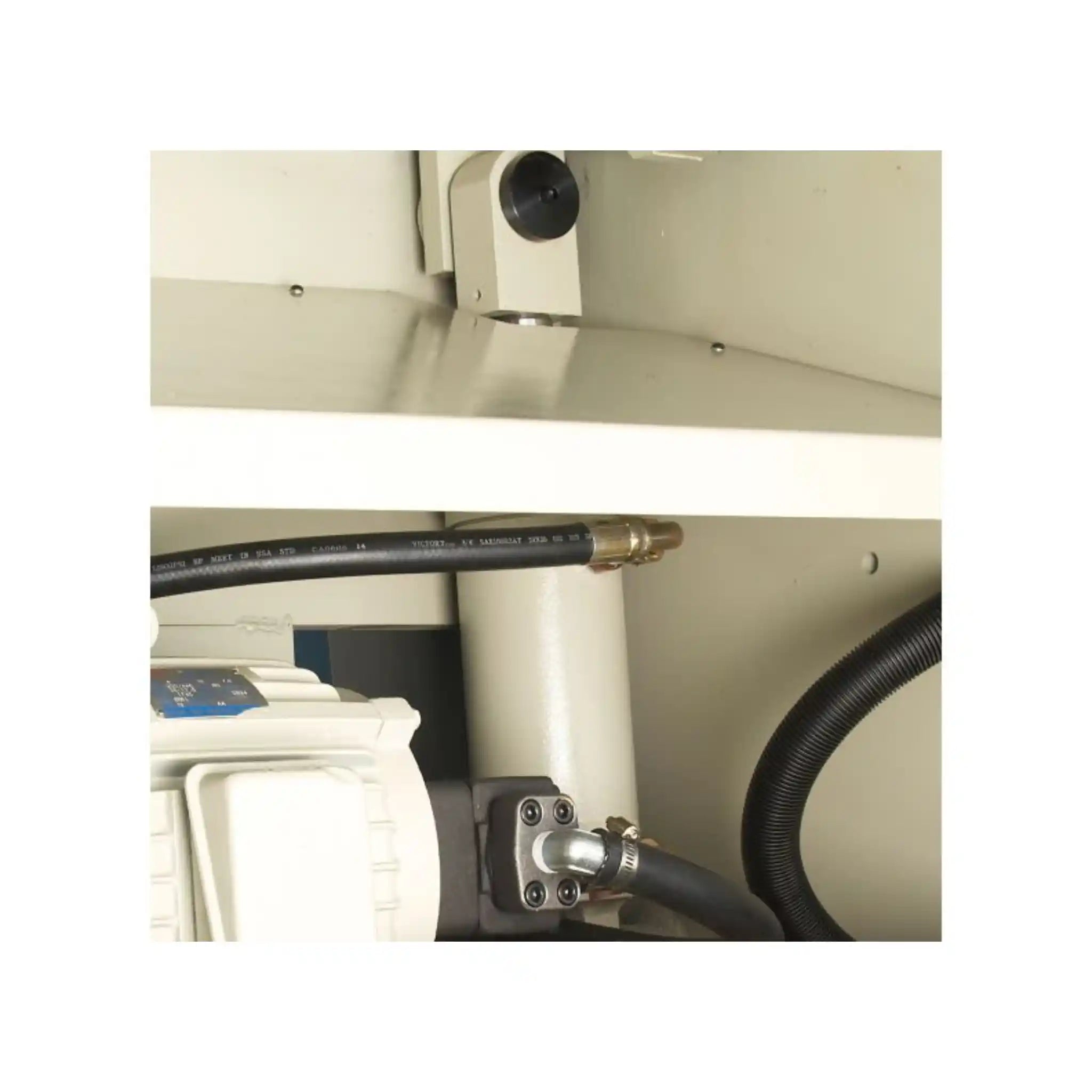

- Powerful 15 HP Motor with Industrial Hydraulics: You get the muscle to cut through 6.5mm mild steel and 4.5mm stainless steel over the full 1321mm length. This means no compromises on material thickness, even on wide sheets.
- Adjustable Blade Gap & Rake Angle: Quick adjustments in seconds let you switch between material thicknesses without crimping or folding. Cleaner cuts mean less waste and finishing time, putting money back in your pocket.
- Three Flexible Operating Modes: Choose jog mode for precise positioning, single cycle for individual cuts, or automatic mode for production runs. This versatility means one machine handles everything from prototypes to volume production.

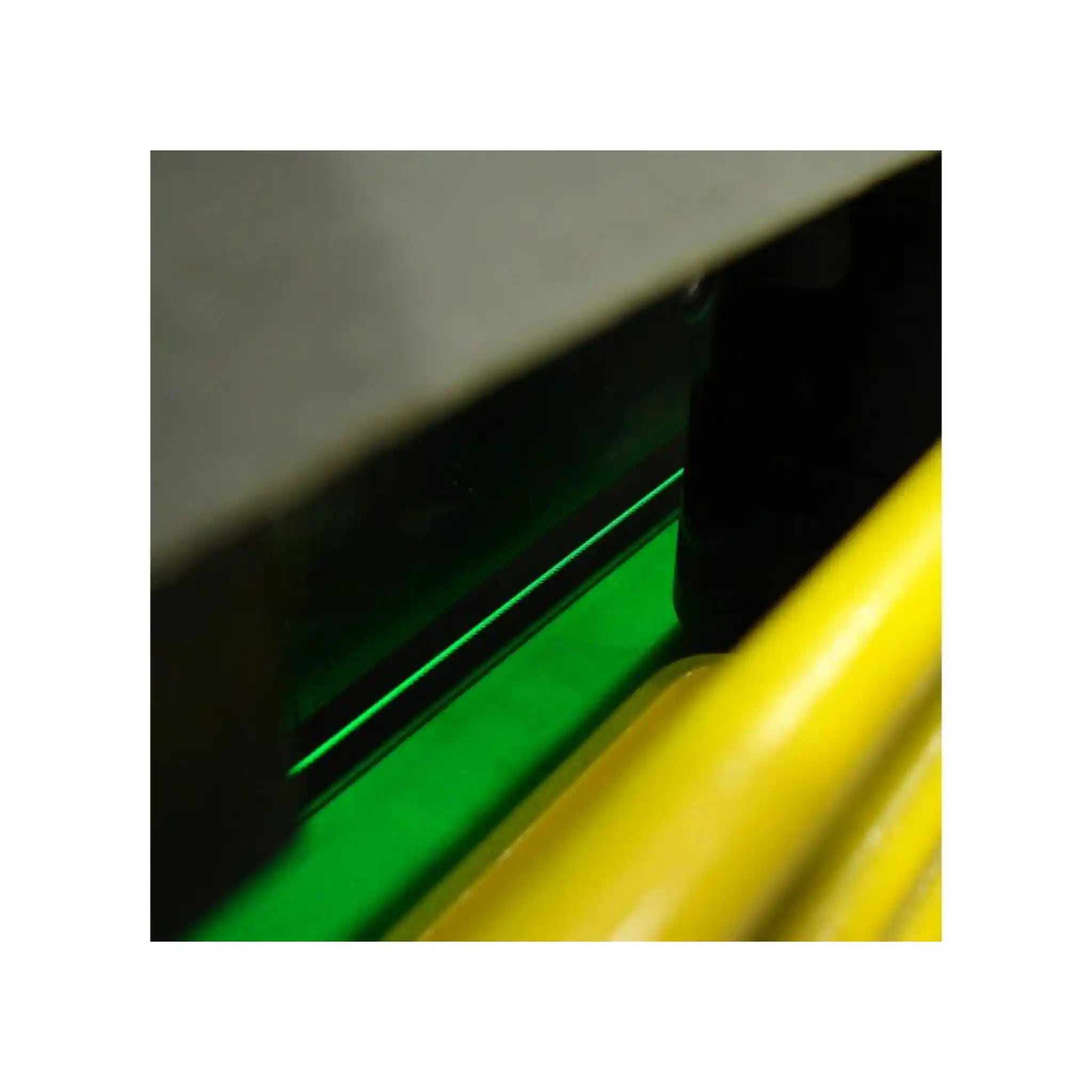

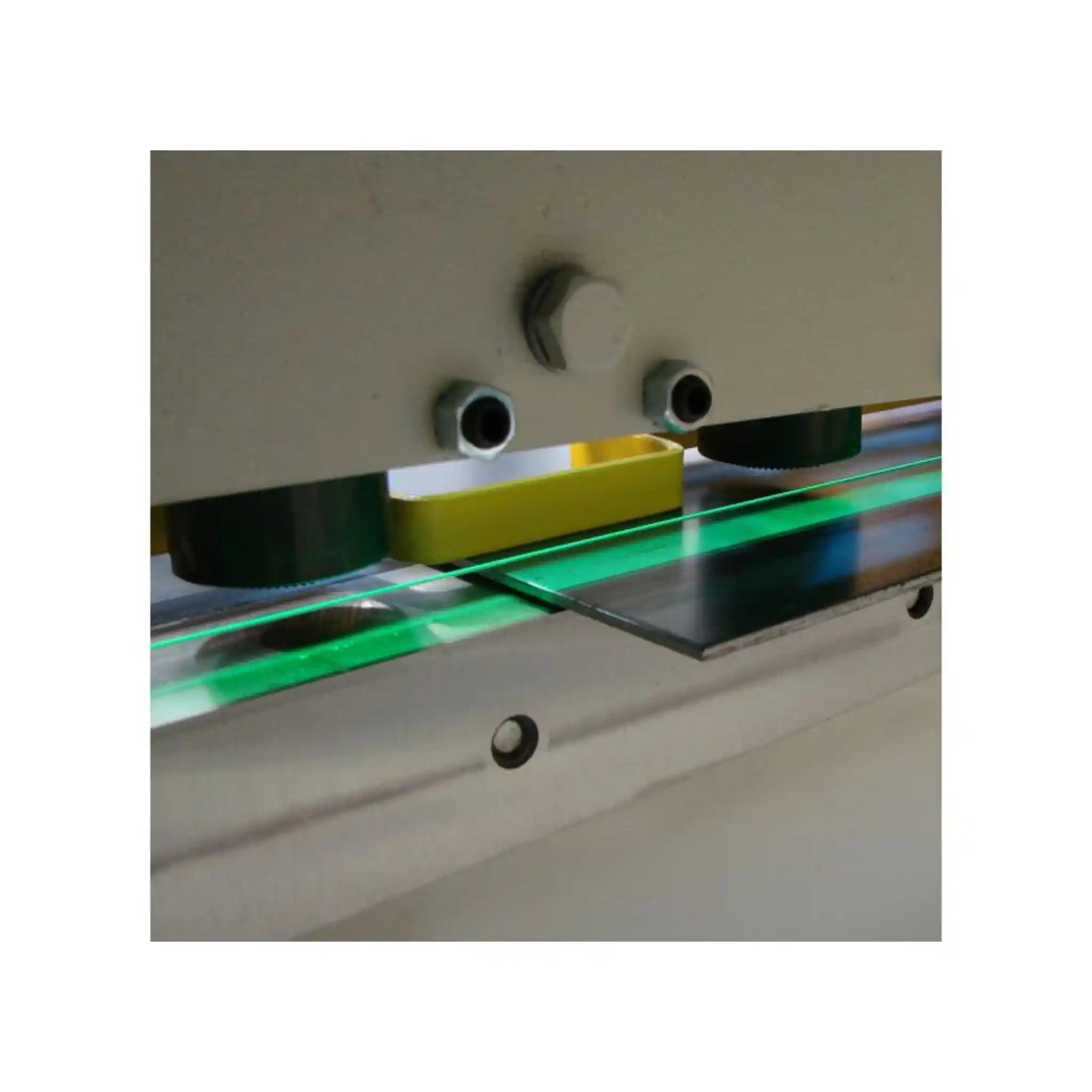

- Shadow Light Cutting Guide: The full-length shadow line ensures perfect cut placement every time. No more measuring twice and cutting once; you'll see exactly where the blade will land.
- Four-Sided Replaceable Blades: High carbon chromium blades can be flipped and resharpened multiple times before replacement. This design significantly reduces your operating costs over the machine's lifetime.

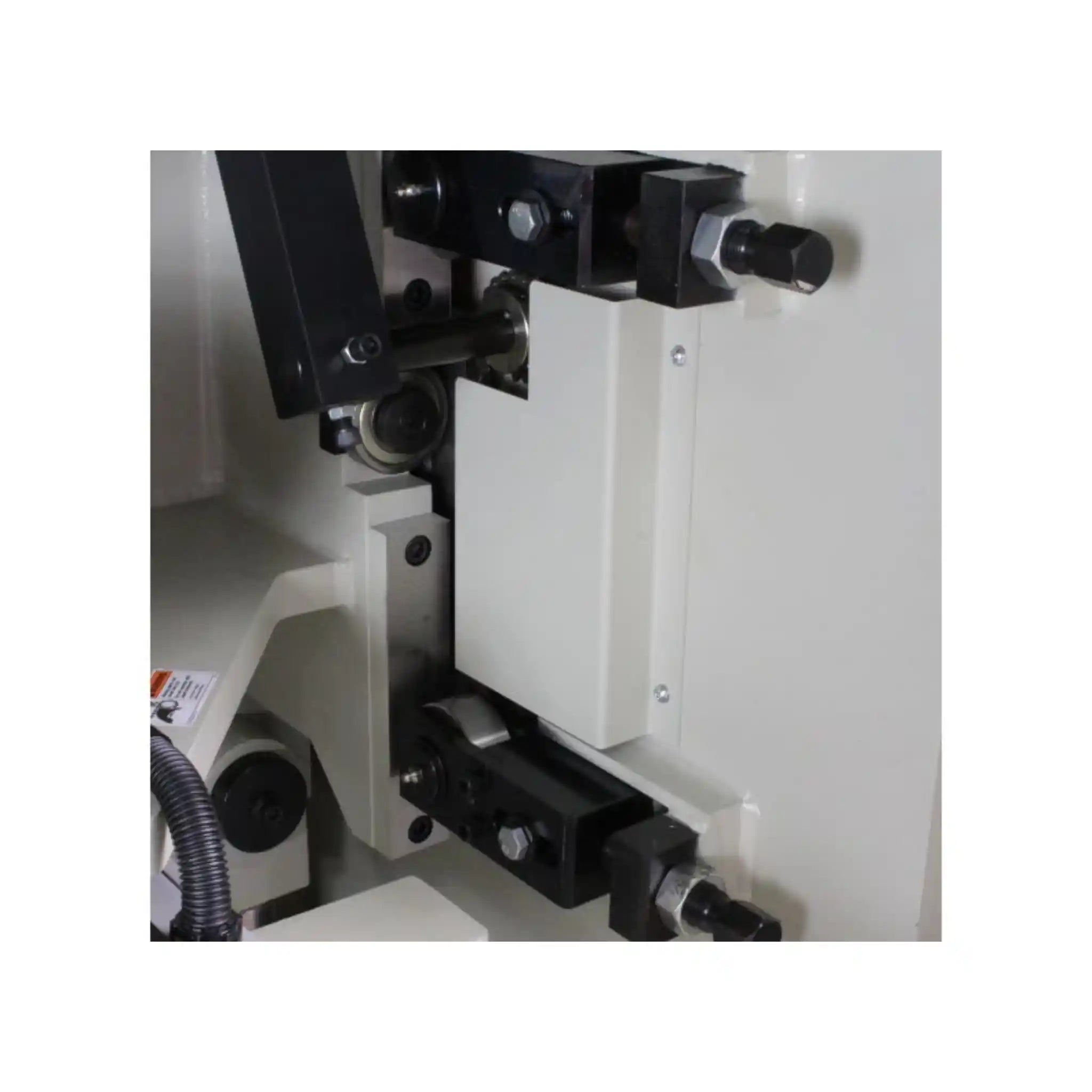

- Heavy Support Arms & Material Guides: Keep your material perfectly square to the blade for consistent, accurate cuts. The robust support system handles heavy plate steel with ease, reducing operator fatigue.
- Production Counter & Simple Controls: Track your output for production planning while enjoying straightforward operation. Just press the foot pedal and let the hydraulic system do the heavy lifting.

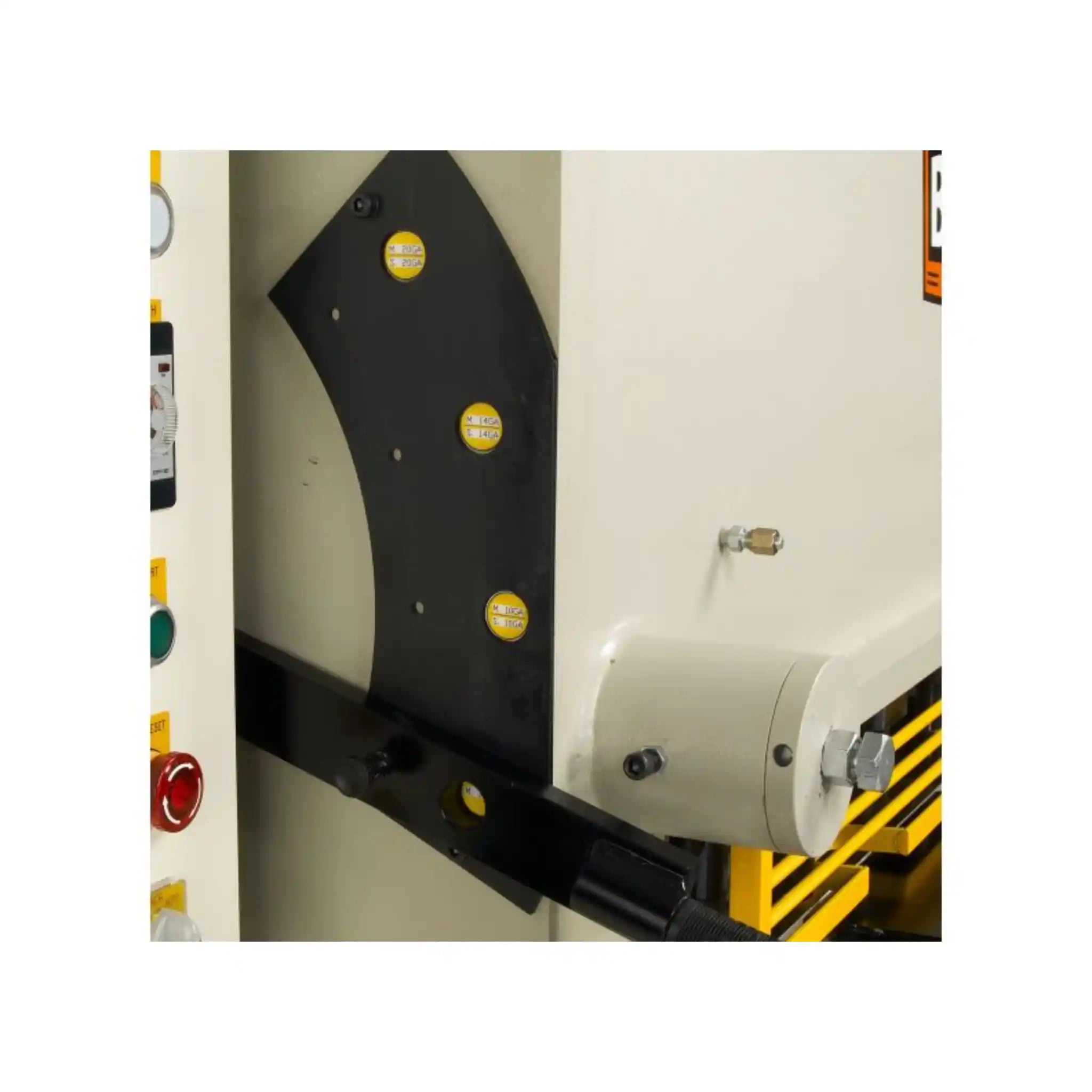

- Built for Decades of Service: The fully welded plate steel frame eliminates flex and vibration, ensuring accuracy that lasts. Baileigh backs this with a 1-year parts warranty and lifetime technical support from experienced metalworkers.
What's in the Box
- Baileigh SH-5203-HD Hydraulic Shear (fully assembled)
- High carbon chromium blades (2-sided upper blade, 4-sided lower blade installed)
- Heavy support arms with material guides
- Foot pedal control
- Shadow light cutting guide system
- Complete control panel with rake adjustment controls
- Production counter
- Jog/run/stop control switches
- Blade gap adjustment handle
- Operator's manual with safety guidelines
- Technical specifications sheet
- Warranty registration card
- Maintenance and blade sharpening guide
Baileigh SH-5203-HD Specifications
| Model | SH-5203-HD |
|---|---|
| Shear Length | 1321 mm (52") |
| Maximum Cutting Capacity (Mild Steel) | 6.5 mm |
| Maximum Cutting Capacity (Stainless Steel) | 4.5 mm |
| Motor Power | 15 hp |
| Power Supply | 400V, 3-Phase |
| Strokes Per Minute | 16-24 (adjustable) |
| Blade Angle | 1/2° to 2° (adjustable) |

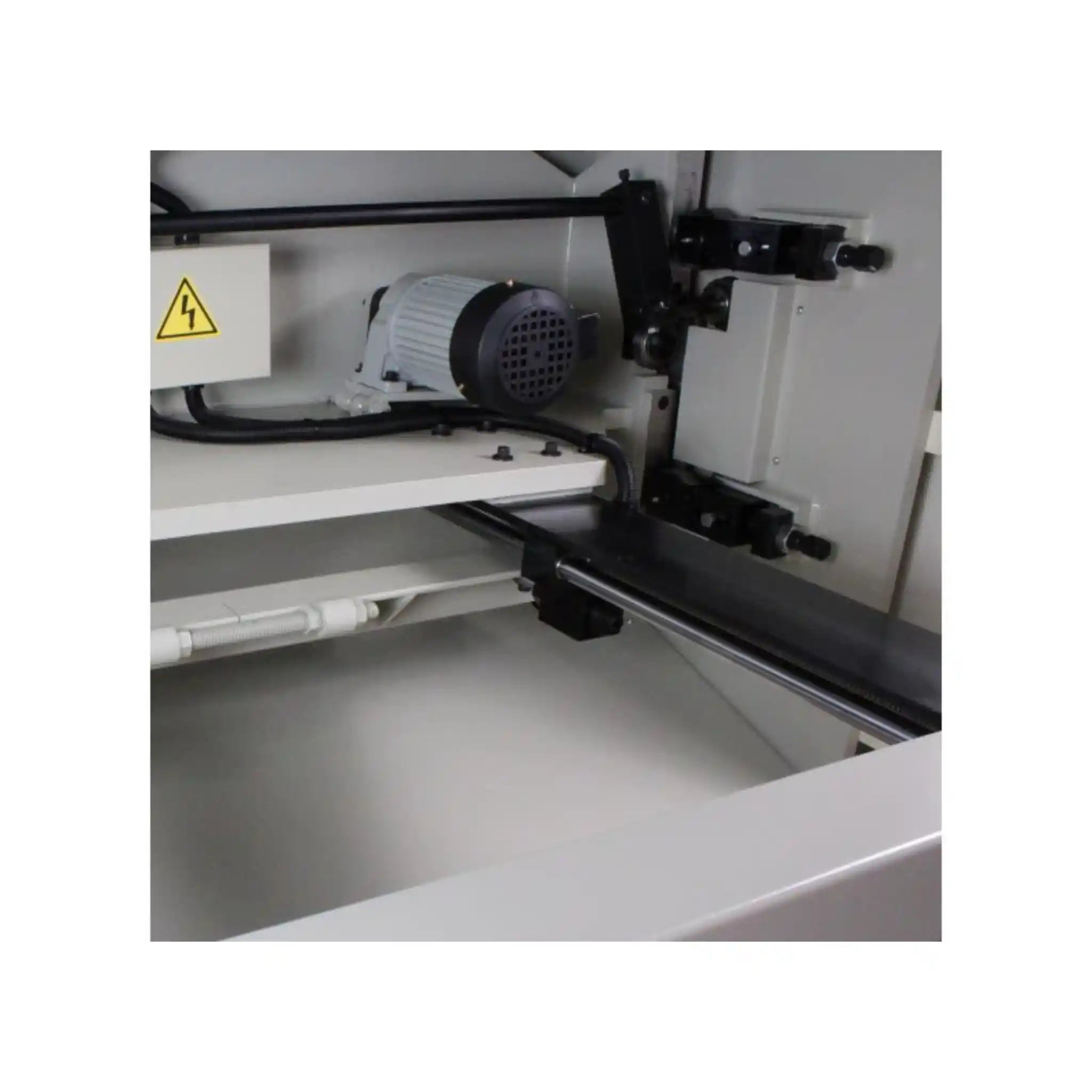

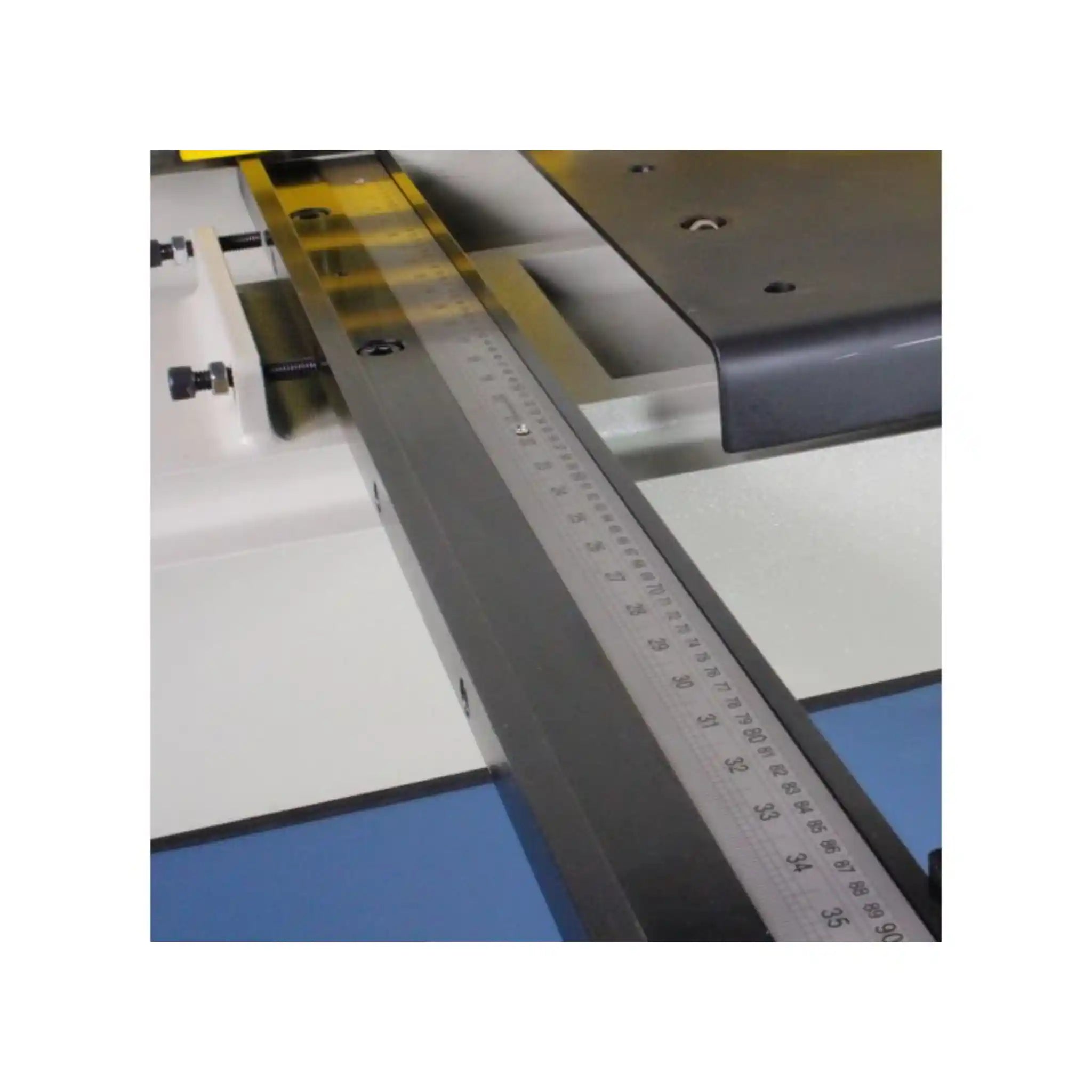

| Back Gauge Length | 17163 mm |
| Front Gauge Length | 1000 mm |
Baileigh SH-5203-HD Manuals & Downloads
Frequently Asked Questions
What electrical requirements do I need for the SH5203HD?
The machine requires a 400V, 3-phase electrical supply with appropriate amperage for the 15 hp motor. You'll need a qualified electrician to ensure proper installation and circuit protection. Check your facility's power capacity before ordering, or contact your dealer for specific electrical requirements.
How often do the blades need sharpening or replacement?
Blade life depends on your usage and materials, but the four-sided lower blades can be rotated up to four times before sharpening is needed. Upper blades are two-sided. With proper maintenance and appropriate material selection, blades can last thousands of cuts. Replacement blades are readily available from Baileigh's warehouse.
Can this shear handle aluminum and other nonferrous metals?
Absolutely! While the specs list mild steel and stainless steel capacities, the SH-5203-HD handles aluminum, copper, brass, and other non-ferrous metals exceptionally well. Softer materials typically allow for slightly thicker cuts than the rated steel capacity. Adjust your blade gap and rake angle for optimal results with different materials.
How difficult is it to operate for someone new to hydraulic shears?
The SH-5203-HD is remarkably user-friendly. Simple foot pedal operation combined with clearly labeled controls makes it accessible even if you're new to hydraulic shears. The jog mode lets you practice positioning before making cuts. Many operators are comfortable after just a few hours of use, though we always recommend proper training and adherence to safety protocols.
What maintenance does this machine require?
Routine maintenance is straightforward: regular hydraulic fluid checks, keeping the machine clean, periodic blade adjustments, and occasional lubrication of moving parts. The solid construction means less downtime and fewer repairs. Baileigh provides comprehensive maintenance guidelines in the operator's manual, and their lifetime technical support team is always available to answer questions.
