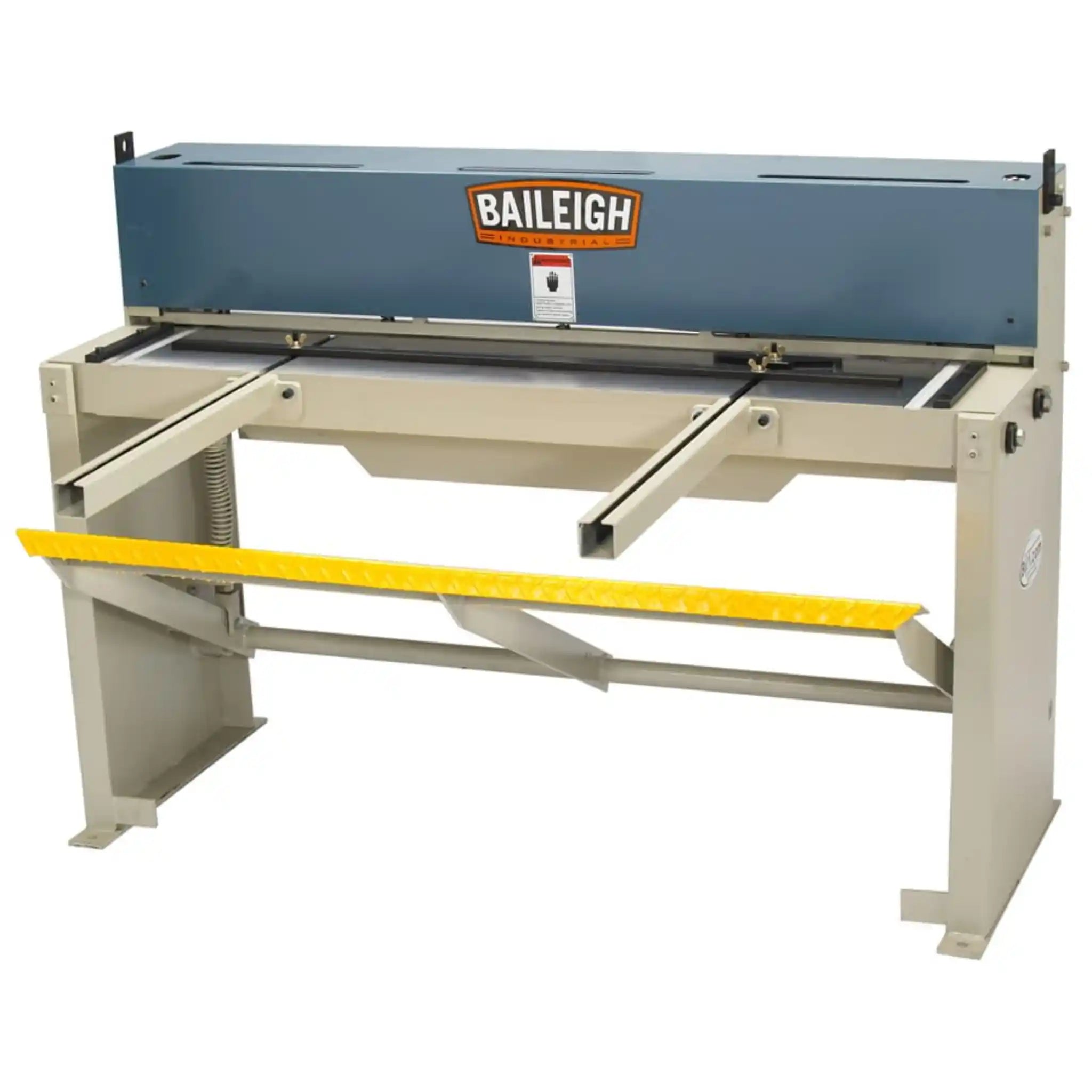

Baileigh SF-5216 Heavy Duty Manual Foot Guillotine
The Baileigh SF-5216 is a heavy duty manual foot shear that delivers professional-grade cutting performance for 16-gauge mild steel across its full 52-inch (1321mm) width. Built with solid steel construction and premium components, this stomp shear offers exceptional accuracy and durability for fabrication shops, educational institutions, and maintenance facilities.
Looking for a reliable way to cut sheet metal without the complexity and cost of hydraulic systems? The SF-5216 foot shear from Baileigh Industrial gives you the power to make clean, accurate cuts with simple foot-pedal operation.
This machine is engineered for serious metalworking. The solid steel frame provides the rigidity you need to minimize material deformation during cutting, which means better cut quality and less waste. With its four sided high chromium blades, you get extended blade life because you can rotate and resharpen them multiple times before replacement is needed. The integrated oiling system keeps everything running smoothly with minimal friction, reducing maintenance time and extending the life of your investment.
Whether you're cutting mild steel, stainless steel, aluminum, or even plastics, the SF-5216 handles it with ease. The front and back gauge systems (each with 609mm travel) let you set up repeatable cuts quickly, saving you time on production runs. Made in Taiwan to Baileigh's exacting standards, this shear combines affordability with the quality and precision you'd expect from far more expensive machines.
Applications
- Ductwork Fabrication: Cut sheet metal panels and components for heating, ventilation, and air conditioning systems with precision
- Automotive Restoration: Perfect for cutting body panels, floor pans, and custom trim pieces when restoring classic cars or building custom vehicles
- General Metal Fabrication: Create enclosures, brackets, panels, and structural components for industrial and commercial projects
- Educational Workshops: Ideal for technical schools and training facilities teaching sheet metal working and fabrication techniques
- Architectural Metalwork: Cut materials for decorative panels, cladding, railings, and custom architectural features
- Sign Making: Produce clean cuts on aluminum and steel sheets for signage and display fabrication
Key Features & Benefits

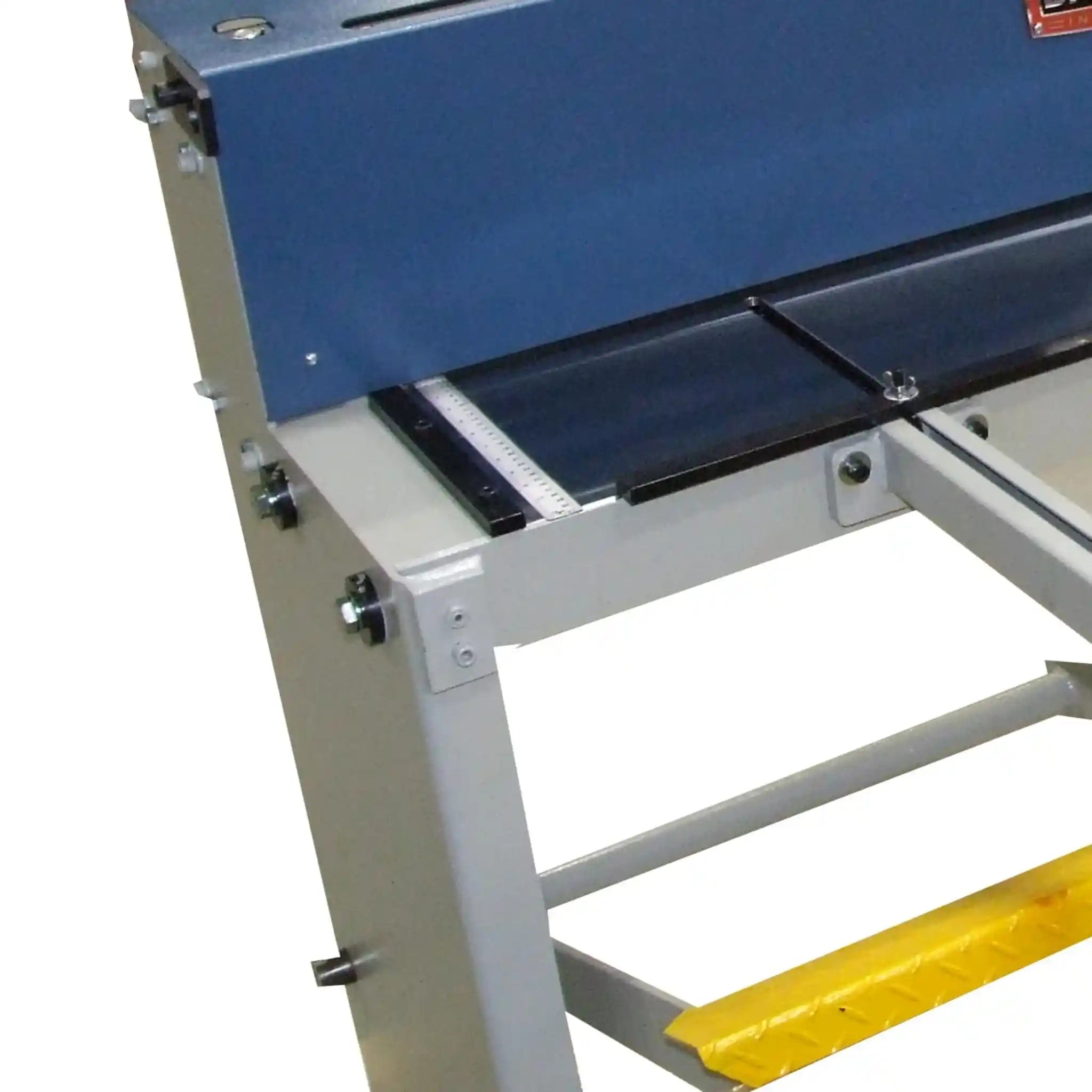

- Premium Build Quality: Solid steel construction provides exceptional rigidity for straight, true cuts even at full capacity. Less material warping and better edge quality compared to lighter-duty machines

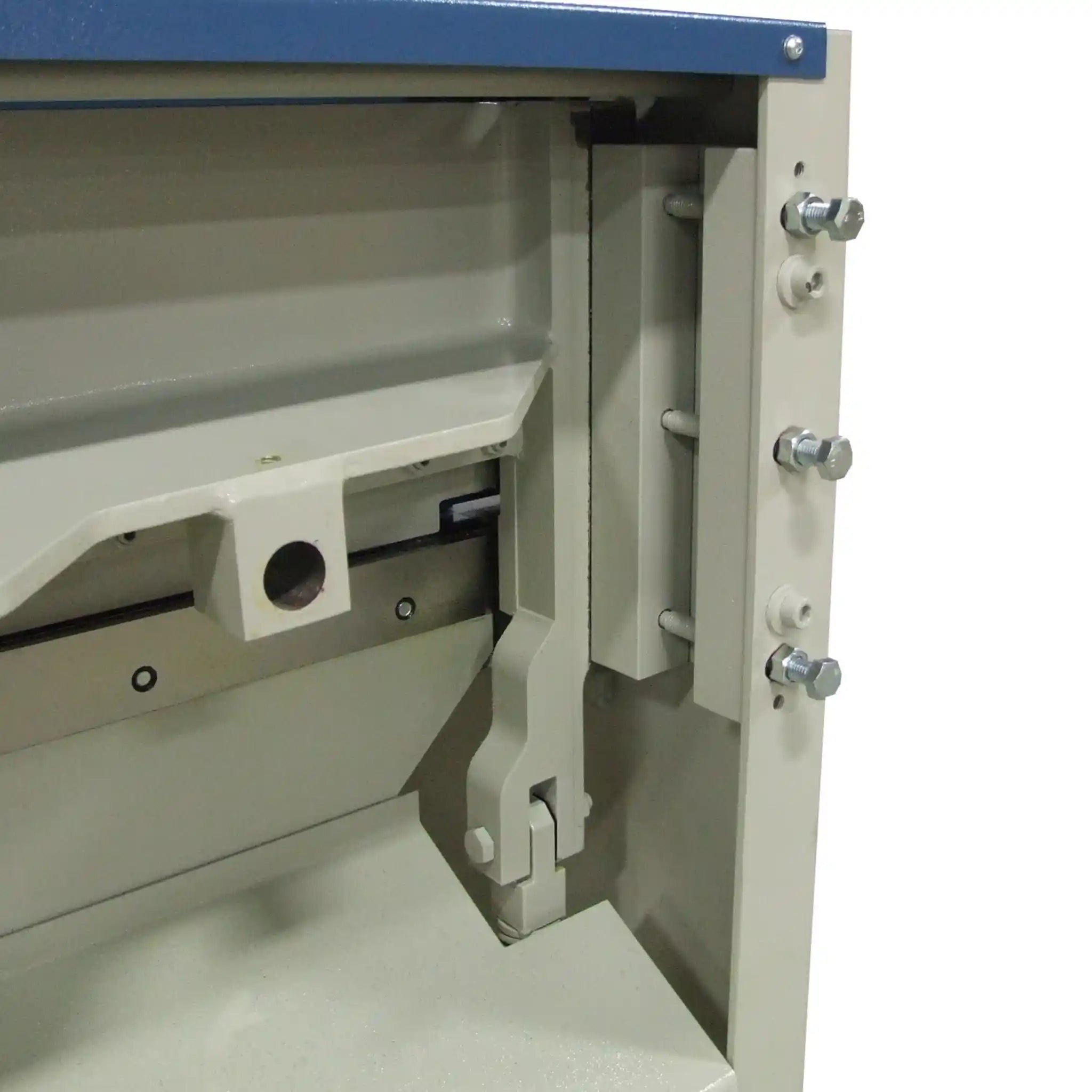

- Four-Sided High Chromium Blades: Premium blades give you four cutting edges instead of just one or two. Rotate when one edge dulls and resharpen multiple times to dramatically reduce long-term operating costs

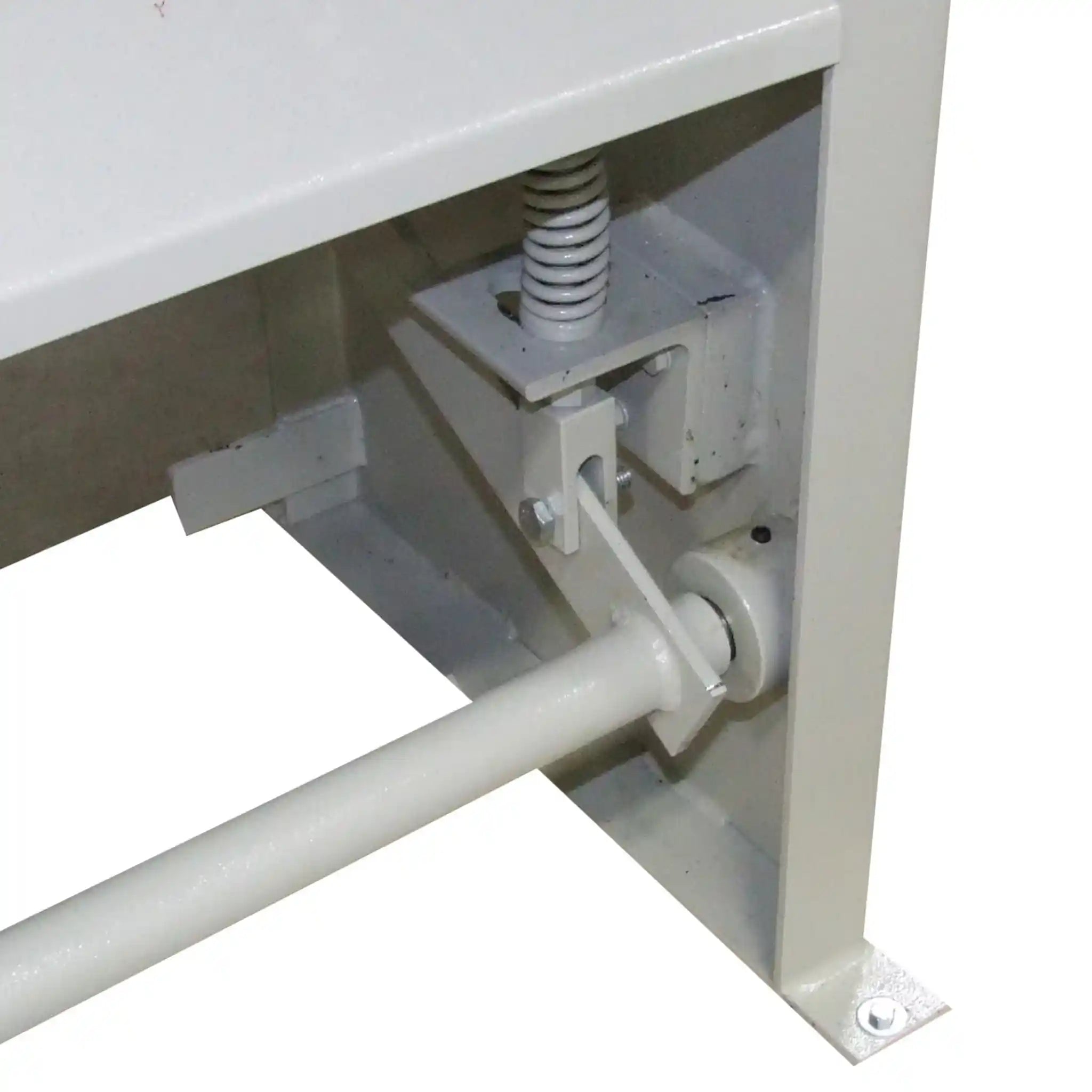

- Simple Foot-Pedal Operation: No complicated controls to master. Position your material, press the foot pedal, and you're done. Less training time for new operators and faster production

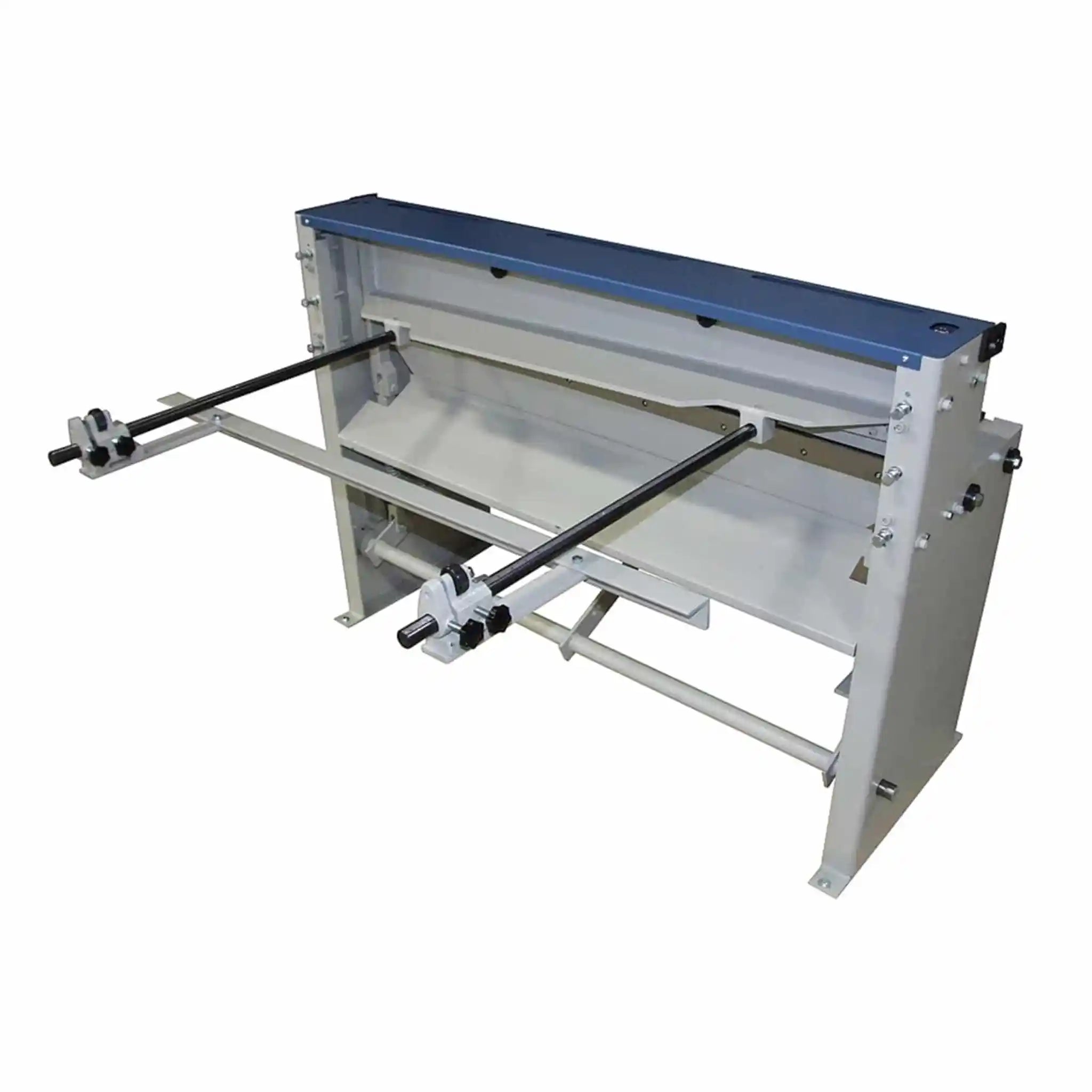

- Dual Gauge System for Repeatable Cuts: Both front and back gauges give you 609mm (24") of adjustment range. Set your measurement once and produce identical parts all day, saving material and reducing errors
- Integrated Oiling System: Built-in oilers make maintenance straightforward. Regular lubrication keeps friction low and moving parts operating smoothly for consistent performance year after year
- Safety-First Design: Integrated finger guard protects operators during cutting. Foot-operated control keeps hands free and clear of the cutting area for peace of mind on every cut
- Wide Material Compatibility: Handles 16-gauge mild steel and 20-gauge stainless steel, plus aluminum, copper, brass, and plastic materials. A true workhorse for diverse fabrication needs
- Professional Support and Warranty: Backed by Baileigh's 1-year parts warranty and lifetime technical support from their Wisconsin team. Replacement parts and blades kept in stock for fast shipping
What's in the Box
- 1 × SF-5216 Manual Foot Shear (fully assembled)
- 1 × Set of installed four-sided high chromium blades (upper and lower)
- 1 × Integrated finger guard (pre-installed)
- 1 × Front gauge assembly (installed)
- 1 × Back gauge assembly (installed)
- Built-in oiling system (integrated into frame)
- Owner's manual and operation guide
- Warranty registration information
Baileigh SF-5216 Specifications
| Model | SF-5216 |
|---|---|
| Shear Length | 1321 mm (52") |
| Maximum Capacity (Mild Steel) | 16 gauge (1.6 mm) |
| Maximum Capacity (Stainless Steel) | 20 gauge |
| Front Gauge Length | 609 mm (24") |
| Blade Angle | 1° |
| Operation Type | Manual (foot-pedal operated) |
| Blade Material | High carbon chromium steel (four-sided) |
| Frame Construction | Solid steel welded construction |
| Power Requirements | None (manual operation) |
| Warranty | 1-year parts warranty |
Baileigh SF-5216 Manuals & Downloads
Frequently Asked Questions
Can this shear handle materials other than steel?
Absolutely! While the SF-5216 is rated for 16-gauge mild steel and 20-gauge stainless steel, it works beautifully with aluminum, copper, brass, and even plastic materials. Just remember that softer materials like aluminum may allow you to work with slightly thicker gauges within the machine's physical capacity.
How difficult is it to operate for someone new to foot shears?
The SF-5216 is designed for ease of use. If you can use a foot pedal, you can operate this shear. Simply place your material between the blade and table, adjust your gauges for the cut location, and press the foot pedal. Most operators become comfortable within their first session. The spring-assisted operation reduces the physical effort required.
How long do the blades last, and what's the replacement cost?
The four-sided high chromium blades are extremely durable. When one edge dulls, you can rotate the blade to expose a fresh cutting edge, giving you four uses per blade set. You can also resharpen the blades multiple times. Typical blade life varies based on usage intensity and materials cut, but many shops go years before needing replacements. Baileigh keeps replacement blades in stock at their Wisconsin facility for quick shipping.
What kind of maintenance does the SF5216 require?
Maintenance is straightforward thanks to the built-in oiling system. Regular lubrication of moving parts (following the schedule in your owner's manual) is the primary maintenance task. Periodically check blade alignment and condition, and keep the machine clean. The solid steel construction means there are no hydraulic systems, motors, or electrical components to maintain.
Will this machine fit in my shop, and what are the installation requirements?
The SF-5216 has a footprint of approximately 1702 × 813 mm and requires a solid floor that can support 454 kg. Because it's manually operated, you don't need any electrical connections or special utilities. Just position it on a level surface with adequate working space around it (particularly in front for material handling), and you're ready to go. Many shops bolt it to the floor for added stability, though this isn't strictly necessary.
