Baileigh RDB-175 Hydraulic Rotary Draw Tube and Pipe Bender
Excl. VAT:
Incl. VAT:
Why Shop With Us?
✅ Free UK Delivery
✅ 30-Day Easy Returns
✅ Price Match Guarantee
✅ Manufacturer’s Warranty

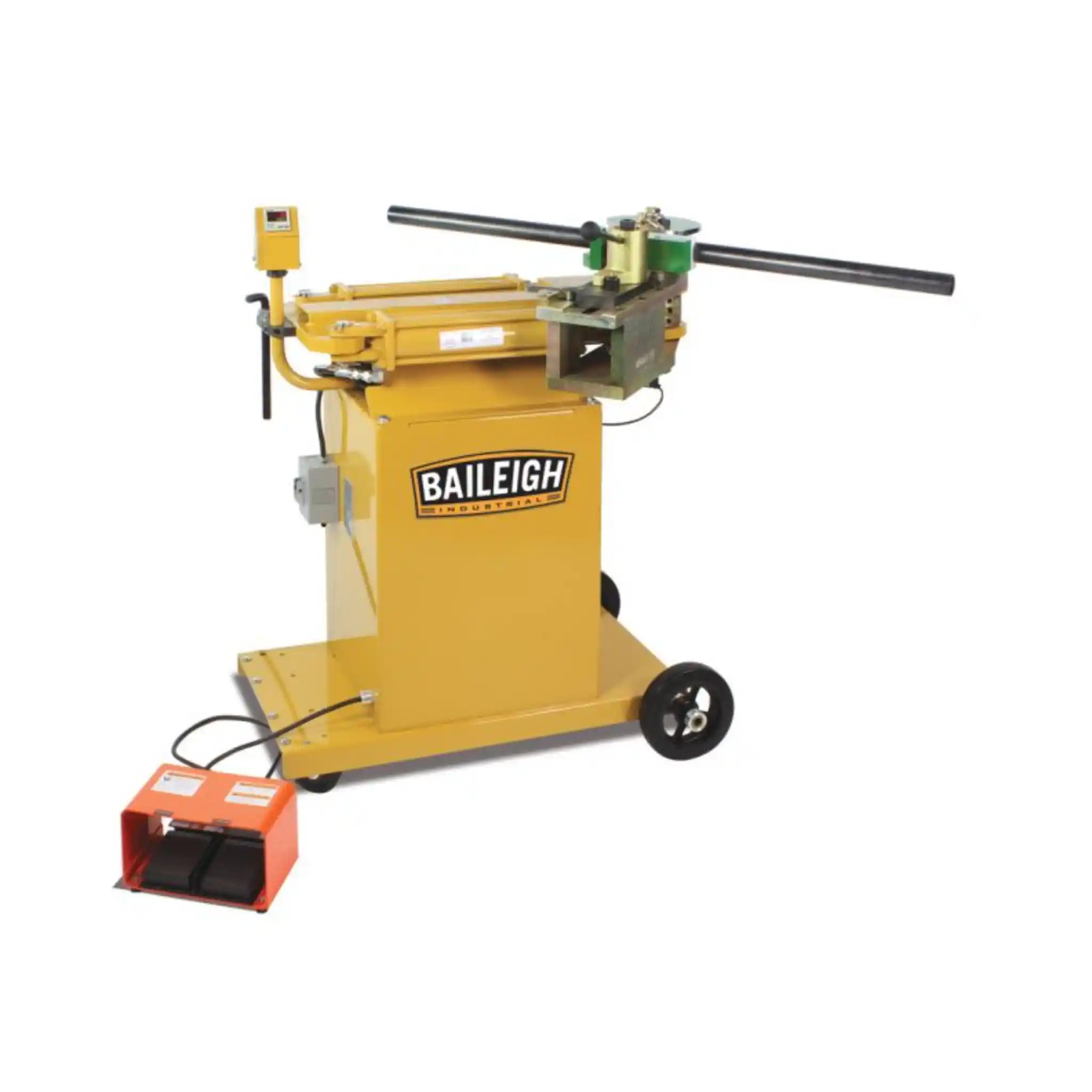

Baileigh RDB-175 Hydraulic Tube Bender
The Baileigh RDB-175 is a professional grade hydraulic rotary draw bender that delivers exceptional speed and precision for bending tubes, pipes, and square materials up to 64mm diameter, making it the perfect solution for fabricators who demand both efficiency and accuracy.
Are you tired of slow, imprecise tube bending that holds up your projects? The Baileigh RDB-175 changes everything. This American-made hydraulic rotary draw bender is built to tackle your toughest bending challenges with remarkable speed and pinpoint accuracy. Completing full 180 degree bends in just 12 seconds, it's nearly three times faster than its predecessor while maintaining the precision you need for professional results.
What makes the RDB-175 truly special is its intelligent design. The digital readout system measures bend angles directly on the die head spindle, giving you true, accurate readings instead of approximations. This means you can set your desired angle using the programmable auto stop feature and walk away knowing each bend will be perfect, every single time. No more guesswork, no more wasted material, no more frustration.
Whether you're a custom fabricator building one off chassis, a contractor installing handrails, an industrial manufacturer producing boilers, or an artist creating metal sculptures, the RDB-175 adapts to your needs. It handles everything from delicate 6mm diameter tubes to robust 64mm mild steel tubing with 3mm walls. The hands free foot pedal control leaves you free to guide your material precisely where you need it, while the ratcheting counter die adjustment means you can swap tooling quickly when switching between different tube sizes. With over 5,000 compatible die sets available from Baileigh, you'll find the perfect tooling for virtually any application. Plus, you're backed by a one year parts warranty and lifetime technical support from experienced Baileigh representatives who understand metalworking inside and out.
Applications
- Custom Vehicle Fabrication: Build roll cages, chassis components, exhaust systems, and custom frames with precise, consistent bends that meet safety standards
- Architectural Metalwork: Create elegant handrails, balustrades, decorative barriers, and structural supports for commercial and residential projects
- Industrial Manufacturing: Produce boiler tubes, heat exchangers, HVAC components, and industrial piping systems with repeatable accuracy
- Metal Art and Sculpture: Shape complex curves and artistic forms in steel, stainless steel, and aluminum for galleries, public installations, and commissioned pieces
- Furniture and Product Design: Craft modern furniture frames, lighting fixtures, display racks, and custom product prototypes with smooth, professional bends
- Motorsports and Performance: Fabricate racing chassis, suspension components, roll bars, and custom exhaust manifolds that meet competition requirements
Key Features & Benefits
- Lightning-Fast Operation: Complete 180-degree bends in just 12 seconds. That's nearly 300% faster than comparable models, meaning you'll finish more jobs in less time and maximize your productivity.
- Precision Digital Control: The programmable auto-stop feature with digital degree indicator eliminates guesswork. Set your desired angle once and the machine delivers perfect, repeatable bends automatically, reducing material waste and ensuring consistency across every piece.
- True Angle Measurement: Unlike benders that measure cylinder position, the RDB-175 reads angles directly from the die head spindle. This gives you the most accurate bend readings possible, so what you program is exactly what you get.
- Hands-Free Operation: The foot pedal control system keeps your hands free to guide and support your material throughout the bend. This gives you better control, improves safety, and results in cleaner, more accurate bends.

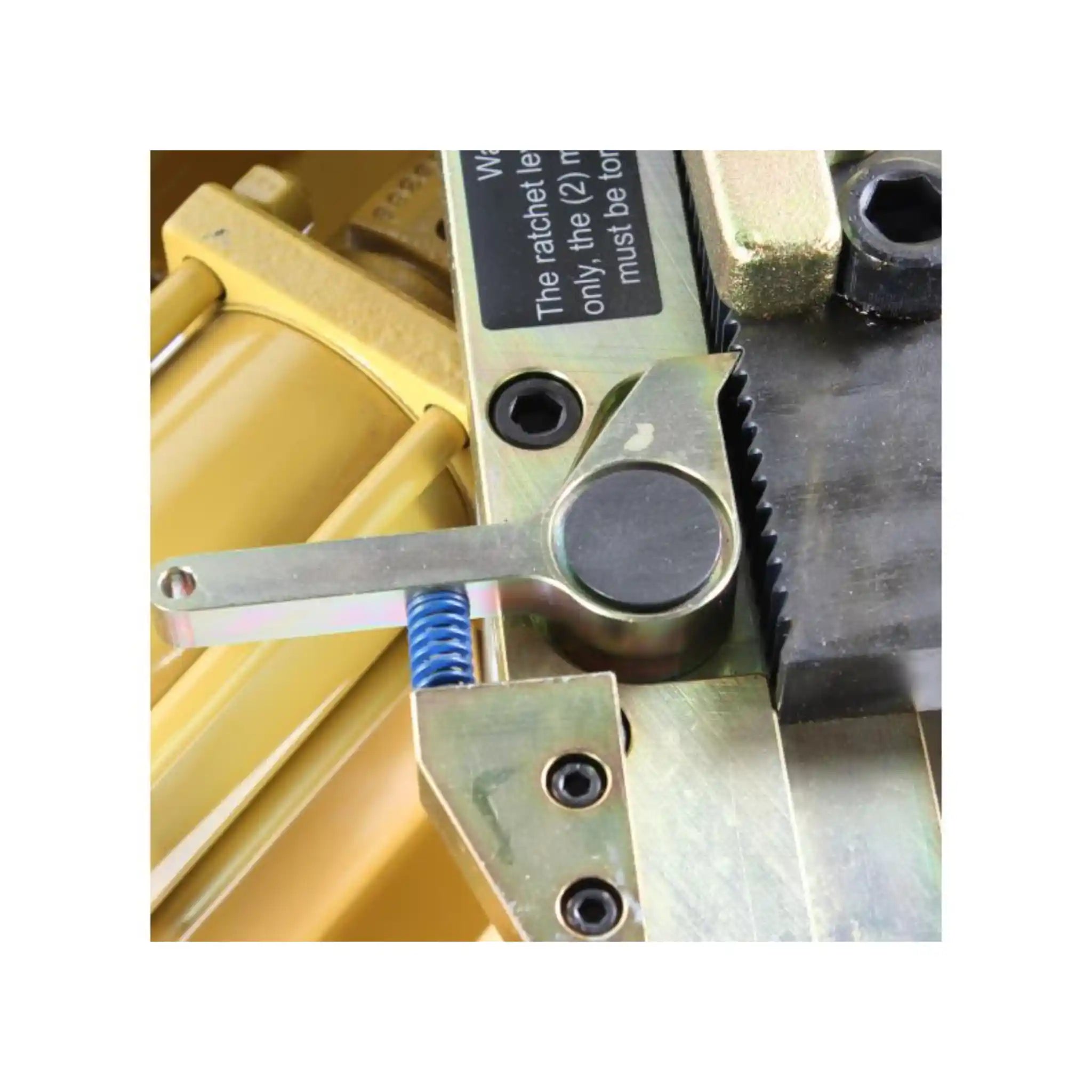

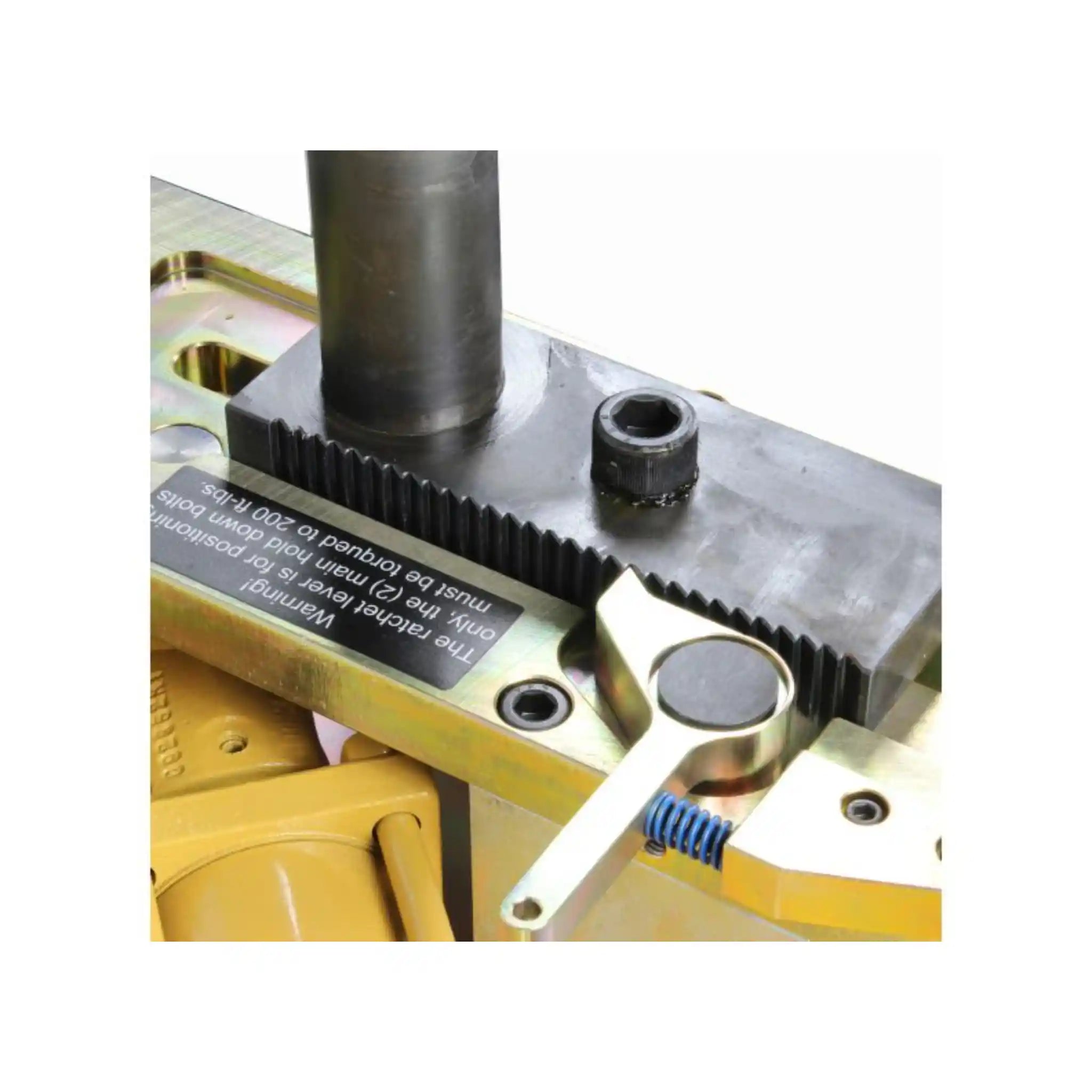

- Quick Tooling Changes: The ratcheting counter die adjustment system lets you swap between different tube sizes in seconds, not minutes. When you're working with multiple materials, this feature alone can save you hours of setup time.
- Versatile Material Capacity: From 6mm to 64mm diameter tubes in mild steel, stainless steel, chromoly, and aluminum, this machine handles an impressive range of materials. Whether you're bending thin-wall tubing or heavy schedule 40 pipe, the RDB-175 delivers consistent results.
- Clear Workspace Design: With no valves on top of the machine, you have plenty of open space for complex, multi-plane bends. This thoughtful design lets you work with longer pieces and create intricate shapes without obstruction.
- Extensive Tooling Options: Choose from over 5,000 available die sets to match your specific application. This vast selection ensures you'll always have the right tooling for your project, whether it's standard work or something specialized.
What's in the Box
- Please Note: The Baileigh RDB-175 is shipped as the base machine only. Tooling (dies, mandrels, and wiper dies) must be purchased separately to match your specific tube sizes and applications.
- RDB-175 Hydraulic Tube Bender (base machine)
- Digital degree indicator with programmable controls
- Foot pedal control system
- Ratcheting counter die holder assembly
- Operator's manual and safety documentation
- 1-year manufacturer's parts warranty
- Lifetime technical support access
Baileigh RDB-175 Specifications
| Model Number | RDB-175 |
|---|---|
| Bending Style | Hydraulic Rotary Draw |
| Maximum Bending Speed | 12 seconds to 180° |
| Degrees Per Stroke | 180° |
| Minimum Centerline Radius | 13mm (1/2") |
| Maximum Centerline Radius | 229mm (9") |
| Minimum Outside Diameter | 6mm (1/4") |
| Mild Steel Solid Rod Capacity | 32mm (1-1/4") |
| Mild Steel Pipe (Schedule 40) | 60mm × 4mm wall (2") |
| Mild Steel Round Tube | 64mm × 3mm wall (2-1/2") |
| Mild Steel Square Tube | 50mm × 3mm wall (2") |
Baileigh RDB-175 Manuals & Downloads
Frequently Asked Questions
Does the RDB175 come with dies and tooling?
No, the RDB-175 is sold as a base machine only. You'll need to purchase dies, mandrels, and other tooling separately based on the specific tube sizes and materials you plan to bend. This gives you the flexibility to invest in exactly the tooling you need for your applications. Baileigh offers over 5,000 die set options, and their team can help you select the right tooling package for your needs.
What's the difference between the 110V and 220V models?
The primary difference is the power supply. The 220V, 50Hz single-phase model (featured here with EU specifications) is designed for European and international markets with that electrical standard. Performance characteristics remain the same across both voltage options. Make sure to order the model that matches your facility's electrical system.
Can I bend stainless steel and aluminum on the same machine?
Yes! The RDB-175 handles mild steel, stainless steel, chromoly, and aluminum. However, you may need different tooling for different materials to achieve the best results, especially when working with softer materials like aluminum that require mandrel support for thin-wall applications. The machine's versatility is one of its strongest features.
How difficult is it to change between different tube sizes?
Very easy. The RDB-175 features a ratcheting counter die adjustment system that allows quick tooling changes. Once you're familiar with the process, you can swap dies in just a few minutes. This is a huge time-saver if you're running a shop that works with multiple tube sizes throughout the day.
What kind of training or experience do I need to operate this machine?
While the RDB-175 is designed to be user-friendly with its digital controls and auto-stop programming, we recommend that operators have basic metalworking knowledge and familiarity with tube bending principles. Baileigh provides comprehensive manuals and lifetime technical support. Many users also find it helpful to watch tutorial videos or attend training sessions to get the most out of their machine. The learning curve is reasonable, especially if you have experience with manual tube bending.
What maintenance does the RDB175 require?

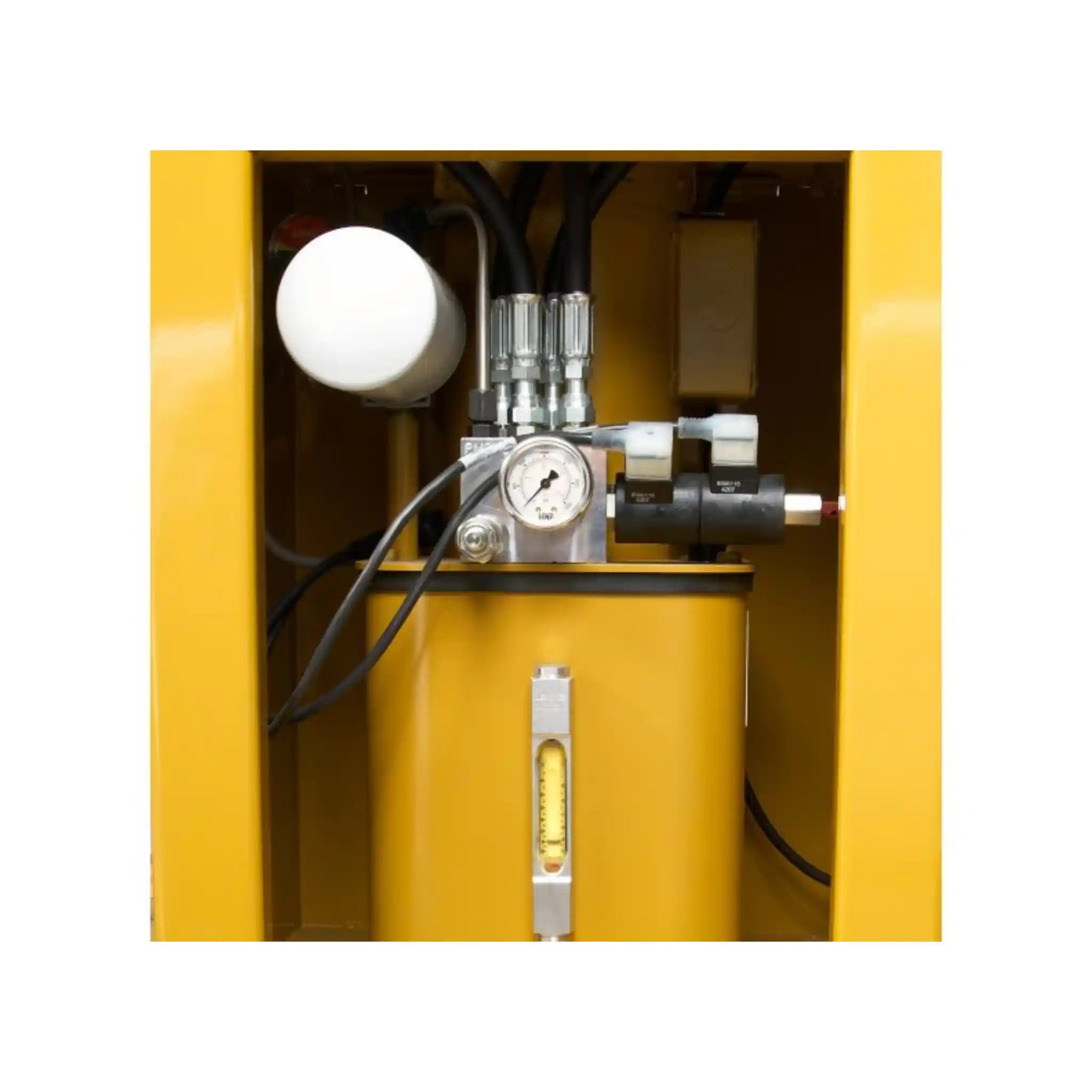

Regular maintenance is straightforward and includes checking hydraulic fluid levels, inspecting hydraulic hoses and connections, keeping the machine clean, and lubricating moving parts as specified in the operator's manual. The robust construction means minimal downtime, and Baileigh's lifetime technical support is available if you ever have questions or concerns. Following the maintenance schedule will ensure years of reliable operation.
