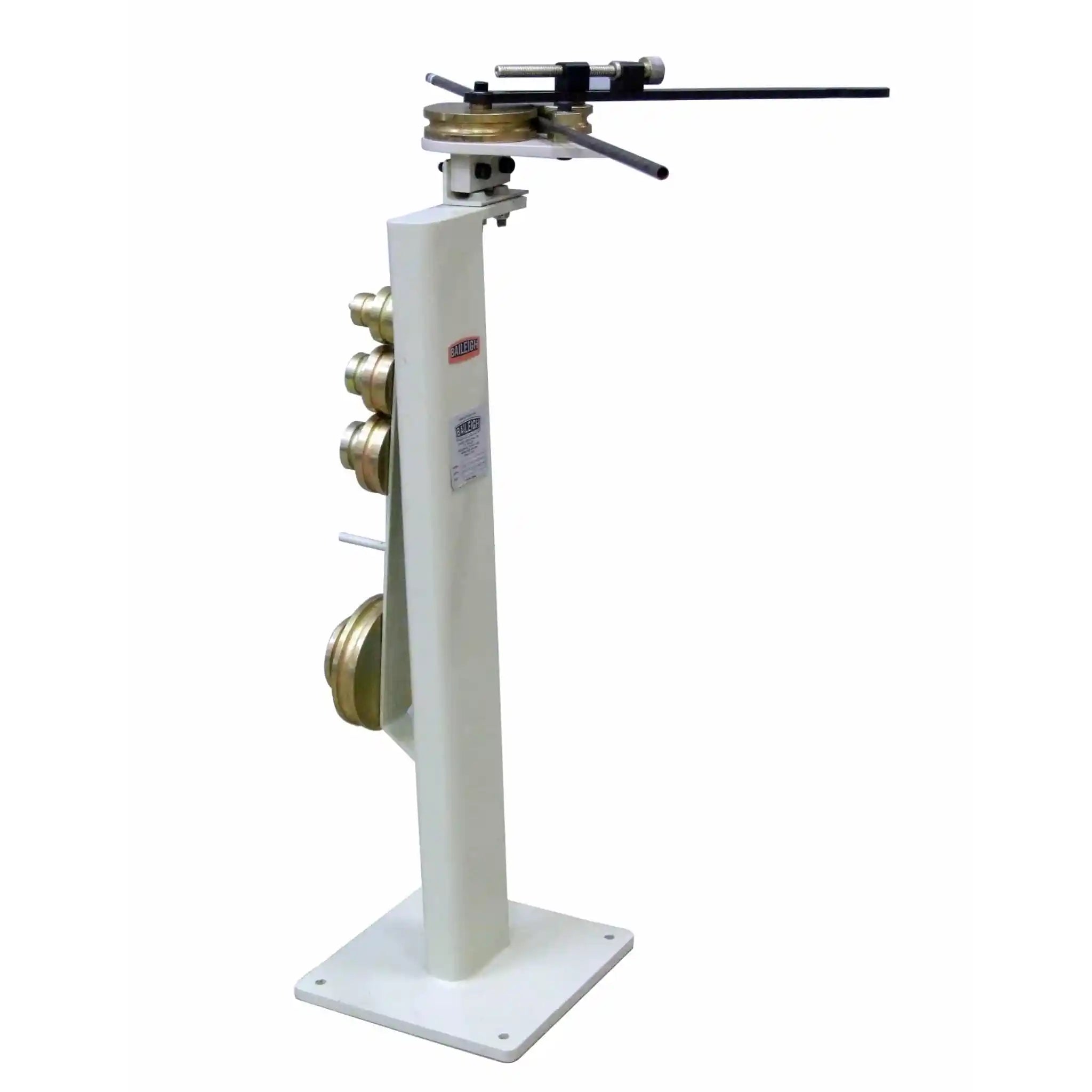

Baileigh RDB-10 Manual Rotary Draw Tube Bender
The Baileigh RDB-10 is a precision manual rotary draw tube bender that gives you professional-quality bends from 1/4" to 5/8" tubing, perfect for creating flawless brake lines, fuel lines, and hydraulic lines in your workshop or garage.
If you've ever struggled with kinked brake lines or uneven bends in your fabrication projects, the RDB-10 is about to change how you work. This isn't just another bending tool. It's a precision engineered machine that delivers consistent, professional results every single time.
What makes the RDB-10 special? It comes complete with 10 different die sets right out of the box, covering five different tube sizes (1/4", 5/16", 3/8", 1/2", and 5/8") in both 3D and 5D radius configurations. This means you have the flexibility to tackle virtually any small diameter tubing project without purchasing additional tooling. Whether you're restoring a classic car, building a race vehicle, or maintaining aircraft, this bender handles mild steel, stainless steel, aluminum, and copper with equal ease.
The RDB-10 sits securely on a heavy duty pedestal that keeps everything stable while you work. You can bend tubing up to a full 180 degrees, and thanks to its rotary draw design, creating complex serpentine bends with tight radii becomes surprisingly straightforward. The included tooling rack keeps all your dies organized and within reach, so you spend less time searching and more time bending. For fabricators, mechanics, and restoration specialists who demand precision without the cost of hydraulic systems, the RDB 10 delivers exceptional value and performance.
Product Video
Applications
- Automotive Brake Line Fabrication: Create perfect brake lines for classic car restorations or custom builds without flattening or kinking.
- Race Car Plumbing Systems: Fabricate fuel lines, oil lines, and coolant lines with precision bends that meet motorsport standards.
- Aircraft Maintenance and Restoration: Bend hydraulic lines and air lines to exact specifications for aircraft repairs.
- Custom Motorcycle Builds: Form brake lines, throttle cables housings, and fluid lines with tight, professional bends.
- Hydraulic System Installation: Create custom hydraulic lines for industrial machinery, agricultural equipment, and mobile hydraulics.
- General Fabrication Work: Perfect for job shops, maintenance facilities, and hobbyists who need reliable tube bending capabilities.
Key Features & Benefits
- Complete Die Set Included: You receive all 10 die sets from day one, giving you immediate versatility across five tube sizes without additional investment. This means you can start working on multiple projects right away.
- 180-Degree Bending Capacity: Bend tubing through a full 180 degrees in a single operation. This capability lets you create U-bends and tight return lines without repositioning your work.
- Serpentine Bend Capability: The rotary draw design allows you to create complex serpentine patterns with very tight radii. What does this mean for you? You can route lines through confined spaces and around obstacles with precision.
- Multi-Material Compatibility: Works beautifully with mild steel, stainless steel, aluminum, and copper tubing. One machine handles all your material needs, saving you from buying specialized equipment for different metals.
- Heavy-Duty Pedestal Base: The substantial steel pedestal keeps the bender rock-solid during operation. This stability translates directly to more accurate bends and better consistency across multiple pieces.

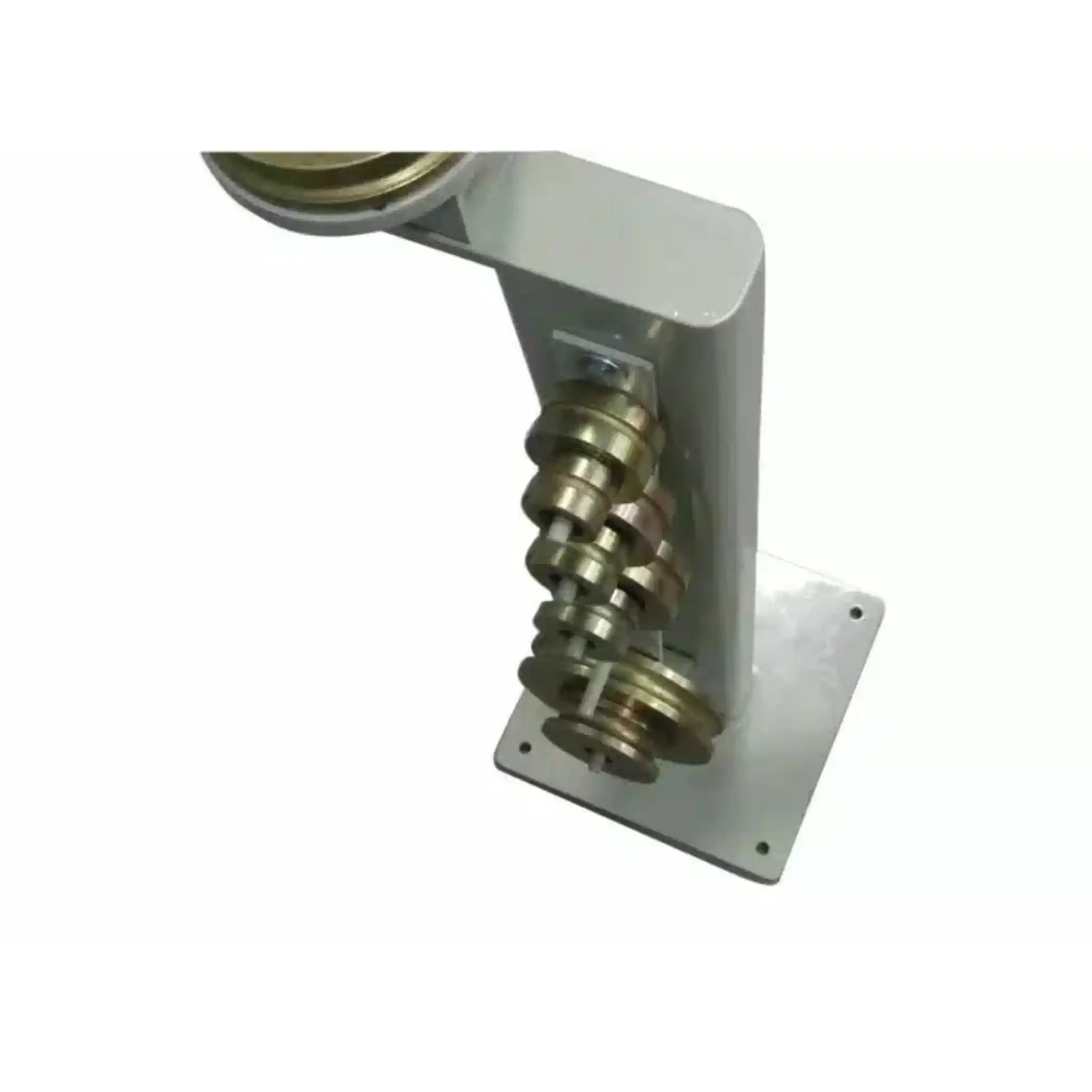

- Integrated Tooling Rack: Keep all your dies organized and accessible right on the machine. You'll appreciate this when switching between sizes during complex projects.
- Manual Operation: No electrical requirements mean you can use it anywhere in your shop, at remote job sites, or in areas without convenient power access. Plus, manual operation gives you complete control over bending speed and pressure.
- Compact Footprint: Despite its robust construction, the RDB-10 won't dominate your workspace. It fits comfortably in most shop environments while delivering industrial-grade performance.
What's in the Box
- RDB-10 Manual Tube Bender (main unit)
- Heavy-duty steel pedestal base
- Integrated tooling rack

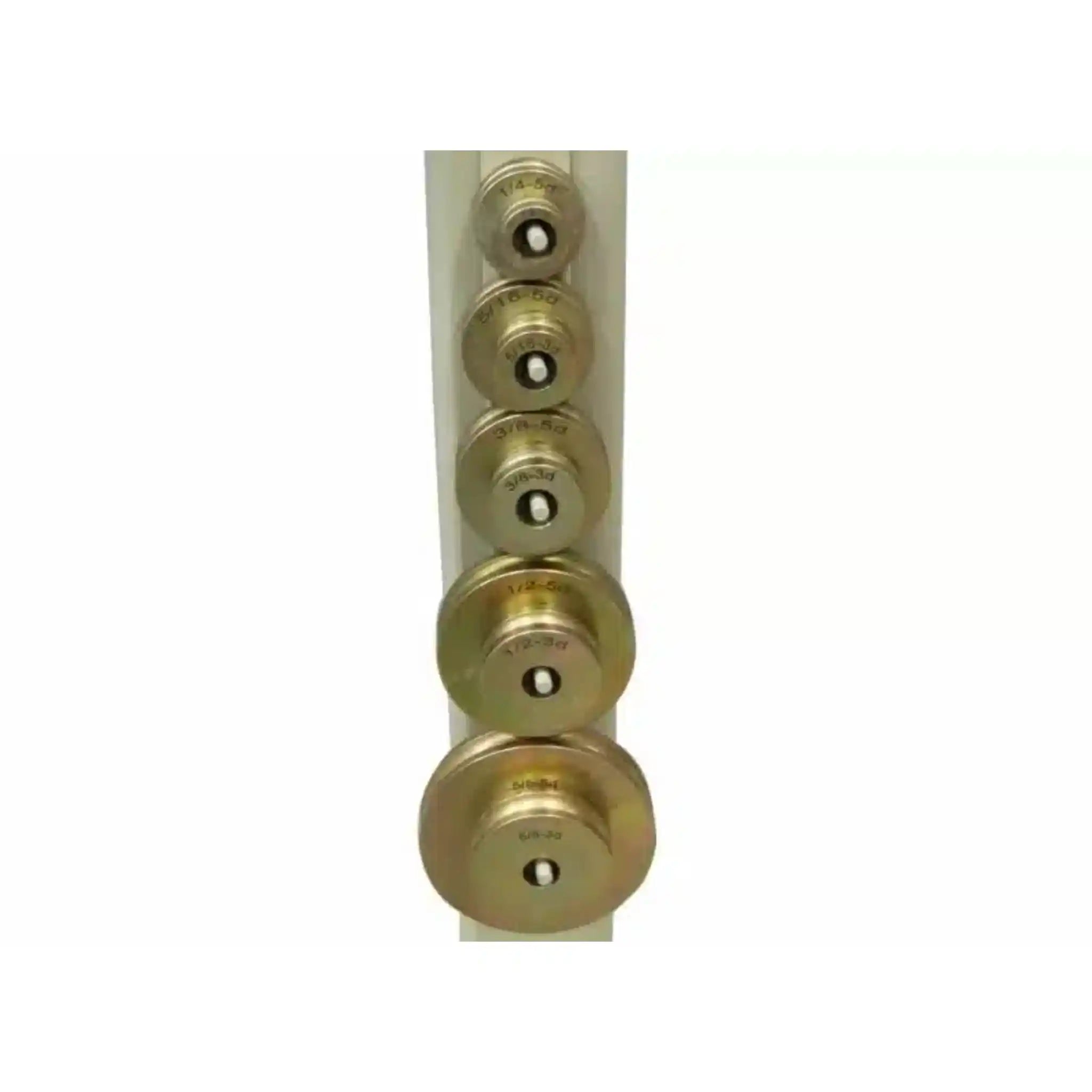

- 1/4" x 3D die set (6.350mm x 3D)
- 1/4" x 5D die set (6.350mm x 5D)
- 5/16" x 3D die set (7.938mm x 3D)
- 5/16" x 5D die set (7.938mm x 5D)
- 3/8" x 3D die set (9.525mm x 3D)
- 3/8" x 5D die set (9.525mm x 5D)
- 1/2" x 3D die set (12.7mm x 3D)
- 1/2" x 5D die set (12.7mm x 5D)
- 5/8" x 3D die set (15.875mm x 3D)
- 5/8" x 5D die set (15.875mm x 5D)
- Operator's manual and safety documentation
- Assembly hardware
Baileigh RDB-10 Specifications
| Model Number | RDB-10 |
|---|---|
| Operation Type | Manual |
| Tube Capacity Range | 1/4" to 5/8" OD (6.35mm to 15.875mm) |
| Maximum Bend Angle | 180 degrees |
| Included Die Sets | 10 (5 sizes in 3D and 5D configurations) |
| Compatible Materials | Mild steel, stainless steel, aluminum, copper |
| Bending Method | Rotary draw |
| Power Requirements | None (fully manual) |
Baileigh RDB-10 Manuals & Downloads
Frequently Asked Questions
Is the RDB10 difficult to set up?
Not at all. The RDB-10 arrives fully assembled on its pedestal with the tooling rack already installed. You simply unpack it, place it in your workspace, and you're ready to bend. There's no complicated assembly, no electrical hookups, and no calibration required. Most users are making their first bend within 15 minutes of opening the box.
What's the difference between 3D and 5D dies?
The "D" refers to the centerline radius as a multiple of the tube diameter. A 3D die creates a tighter bend (three times the tube diameter), while a 5D die produces a gentler, wider bend (five times the tube diameter). Why does this matter? Tighter bends (3D) save space but may require thinner wall tubing, while gentler bends (5D) are better for thicker wall materials and reduce the risk of kinking. Having both options gives you flexibility based on your application and material.
Can I bend square or rectangular tubing with the RDB10?
The RDB-10 is specifically designed for round tubing and pipe. If you need to bend square or rectangular tubing, you'll want to look at Baileigh's larger models like the RDB-100 or RDB-050, which accept square tube die sets. The RDB-10 excels at round tube applications like brake lines, fuel lines, and hydraulic lines.
Will this work for stainless steel brake lines?
Absolutely. The RDB-10 handles stainless steel beautifully, making it ideal for brake line fabrication. Many automotive restoration specialists and race car builders rely on the RDB-10 specifically for stainless brake lines because it produces smooth, kink-free bends that meet safety standards. Just ensure your wall thickness is appropriate for the die radius you're using.
Do I need any special maintenance?
The RDB-10 is refreshingly low-maintenance. Keep the pivot points lightly lubricated, wipe down the dies after use to prevent corrosion, and store it in a dry environment. That's really all it takes. There are no hydraulics to maintain, no electrical components to fail, and the steel construction is built to last for decades with minimal care.
