Baileigh RD-1600H Radial Drill

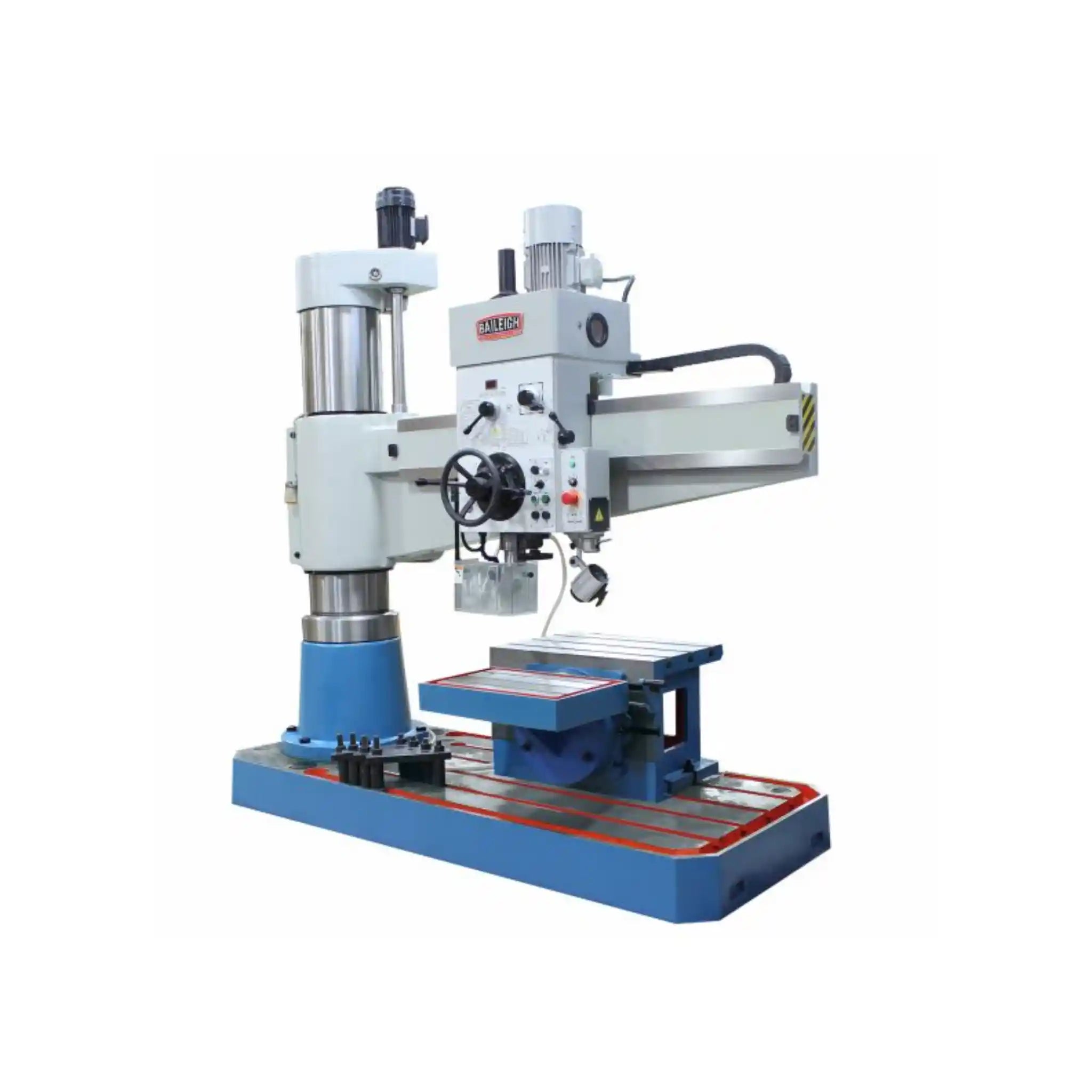

The Baileigh RD-1600H is a heavy duty hydraulic radial drill press that brings industrial grade precision to your fabrication shop, featuring a powerful 5.25hp motor and an exceptional 63 inch reach that eliminates the need to constantly reposition heavy workpieces.
Are you tired of struggling to move massive steel plates and heavy fabrications just to drill a few holes? The RD-1600H Hydraulic Radial Drill Press is engineered specifically for your shop. This isn't your average drill press. With its impressive 63-inch radial arm reach and robust 2-inch drilling capacity, you can position the drill head exactly where you need it while your workpiece stays put on the table.
What makes this machine stand out in busy fabrication environments is its hydraulic power downfeed system. You get consistent, controlled drilling pressure that produces cleaner holes and extends your tooling life. The MT5 spindle taper handles serious cutting tools, while 16 different spindle speeds (ranging from 25 to 2000 rpm) give you the flexibility to work with everything from soft aluminum to hardened steel. Whether you're running a small batch job or tackling one-off custom fabrications, this machine adapts to your workflow.
Built for professional metalworking shops, maintenance facilities, and heavy equipment repair operations, the RD-1600H comes fully equipped with features that other manufacturers charge extra for. The integrated industrial coolant system keeps your bits sharp and your holes precise. The included work light means you can see exactly what you're doing, even in dimly lit corners of your shop. And that box shaped worktable? It provides the rock-solid stability you need when drilling large, awkward pieces.
Applications
- Heavy Structural Steel Fabrication: Drill mounting holes in large I-beams, channels, and plates without breaking your back moving them around your shop
- Equipment Maintenance and Repair: Position the drill head over fixed machinery bases, large castings, and equipment housings that simply can't be moved to a standard drill press
- Custom Metal Fabrication: Handle one-off projects and prototype work where flexibility matters more than production speed
- Pressure Vessel and Tank Manufacturing: Precisely drill connection points, inspection ports, and mounting holes in large cylindrical workpieces
- Tapping Operations: The power downfeed and variable speed control make this machine exceptional for creating threaded holes in tough materials
- Countersinking and Counterboring: Clean up bolt holes and create recessed areas for fastener heads with professional results
Key Features & Benefits
- Massive 63-Inch Reach: Your workpiece stays on the table while you bring the drill to the work. This means less time wrestling with heavy materials and more time making chips. Perfect for large plate work and structural fabrication.
- Powerful 5.25hp Motor with 220V Three-Phase: You get the torque you need for drilling 2-inch holes through thick steel plate. This isn't a hobby machine, it's built to run all day in a production environment.
- 16-Speed Range (25-2000 RPM): Find the perfect cutting speed for your material. Slow speeds for large diameter holes and hard materials, higher speeds for smaller bits and softer metals. No compromises.
- Hydraulic Power Downfeed: Consistent feed pressure means better surface finish, longer tool life, and less operator fatigue. Set it and let the hydraulics do the work while you focus on accuracy.
- Heavy-Duty MT5 Spindle: This oversized spindle taper handles serious cutting forces without deflection. When you're drilling at capacity, you need this kind of rigidity.
- Integrated Industrial Coolant System: Keep your cutting edges sharp and your holes within tolerance. The built-in coolant delivery means you're not juggling a manual pump while trying to drill.

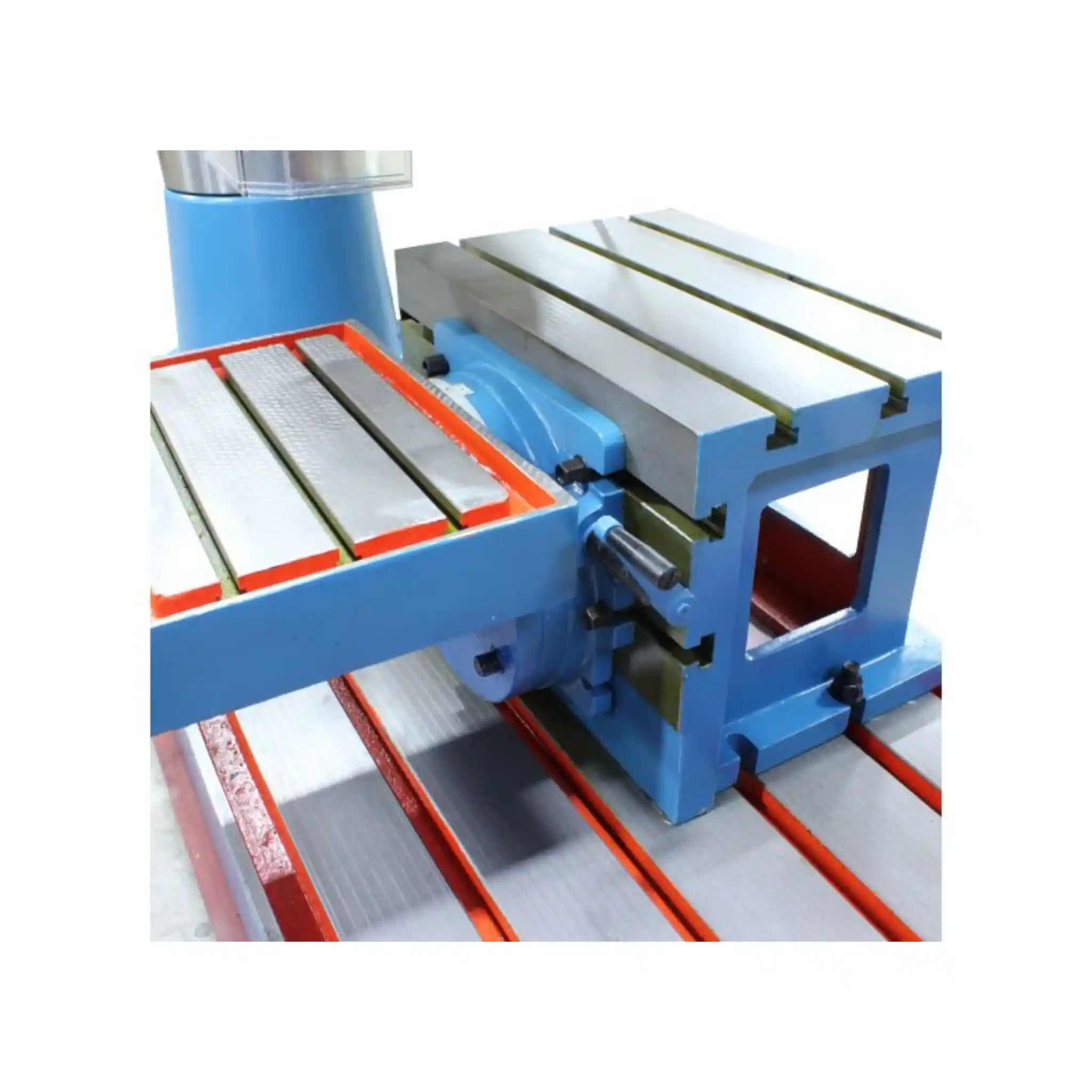

- Box-Shaped Worktable (24.8" x 19.6" x 19.6"): The rigid box construction won't flex under heavy workpieces. T-slots let you secure oddly shaped parts with confidence.
- Professional Accessory Package Included: Unlike competitors who nickel and dime you for extras, Baileigh includes the spindle protection cover, quick chuck, tapping chuck, coolant system, and work light as standard equipment.
What's in the Box
- Baileigh RD-1600H Hydraulic Radial Drill Press (fully assembled main unit)
- Quick Chuck for fast bit changes
- Tapping Chuck for thread-cutting operations
- Spindle Protection Cover to prevent damage during non-use
- Industrial Coolant System with integrated pump and reservoir
- Work Light for improved visibility
- Box-Shaped Worktable with T-slot configuration
- Owner's Manual and operation documentation
- One-Year Parts Warranty backed by Baileigh's support team
- Lifetime Technical Support access to experienced technicians
Baileigh RD-1600H Specifications
| Model Number | RD-1600H |
|---|---|
| Maximum Drilling Capacity | 2″ (50mm) |
| Distance from Spindle to Column Center | 13.7″ to 63″ (350mm to 1600mm) |
| Column Diameter | 13.7″ (350mm) |
Baileigh RD-1600H Manuals & Downloads
Frequently Asked Questions
What size floor space do I need for this machine?
You'll want to plan for approximately 10 feet by 10 feet of floor space to accommodate the machine and allow for the radial arm's full range of motion. Don't forget to factor in clearance for loading and unloading large workpieces. The machine weighs nearly 5 tons, so you'll also need a reinforced concrete floor and rigging equipment for installation.
Can this machine handle tapping operations, or just drilling?
Absolutely! The RD-1600H is excellent for tapping. The included tapping chuck, variable speed control, and hydraulic power downfeed make it ideal for creating threaded holes. The 16-speed range lets you dial in the perfect RPM for your tap size and material. Many shops use this machine primarily for tapping large structural components.
What's the difference between this standard RD1600H and the VS (Variable Speed) model?
The standard RD-1600H uses a 16-speed gear-driven transmission that you change manually, similar to a manual car transmission. The RD-1600H-VS model features inverter-driven variable speed control, giving you infinite speed adjustment within the range with a simple dial. If you frequently change speeds or need very specific RPMs, the VS model offers more convenience. For most fabrication work, the standard 16-speed model provides all the versatility you need.
Do I need special electrical service for this machine?
Yes, the RD-1600H requires 220V three-phase power. This is standard in most industrial facilities, but if you're setting up a new shop or working from a residential location, you'll need to have three-phase service installed by a licensed electrician. Some areas may require a phase converter if three-phase power isn't available.
How difficult is it to move the radial arm and position the drill head?
The hydraulic clamping system makes positioning smooth and secure. You release the hydraulic clamps, manually swing the arm to your desired position, then re-engage the clamps. The arm moves relatively easily despite the machine's size, and once clamped, it stays exactly where you put it with zero drift during drilling. The whole process takes just seconds once you're familiar with the controls.
