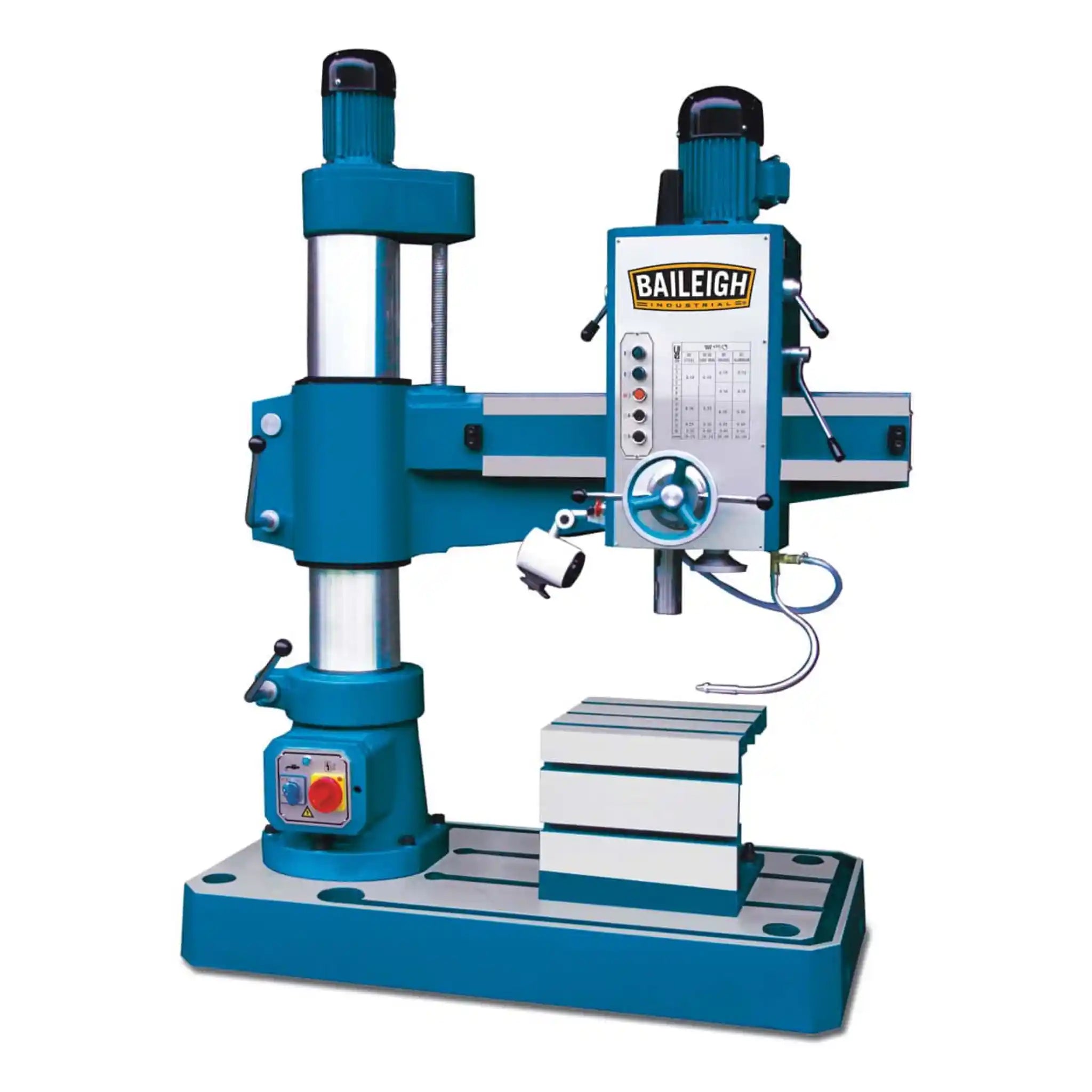

Baileigh RD-1000M Heavy Duty Radial Drill
The Baileigh RD-1000M is a professional grade mechanical radial drill press engineered for large fabrication shops that need exceptional reach and drilling capacity up to 1.57 inches. With its impressive 39.3-inch radial reach and robust 4 hp motor, this machine lets you tackle oversized workpieces without constantly repositioning heavy materials.
When you're working with large fabrications, structural steel, or heavy assemblies, moving your workpiece isn't always practical or safe. That's where the RD 1000M radial drill press changes everything. This powerhouse machine brings the drill to your work, not the other way around.
Built with heavy duty construction throughout, the RD-1000M features a substantial 9.4-inch column and a radial arm that extends nearly 40 inches from center. This means you can drill precisely positioned holes across massive workpieces while they remain securely fixed to the generous box shaped worktable. The 4 hp motor delivers consistent power through a gear head drive system, giving you variable spindle speeds from 71 to 1,800 rpm. Whether you're drilling small pilot holes or boring large diameter openings, you'll have the right speed for your material and tooling.
The power downfeed system takes the strain off your operations, providing controlled, consistent feed rates that improve hole quality and extend tool life. The MT4 spindle taper accommodates a wide range of tooling, while the included coolant system helps manage heat during demanding operations. This is precision drilling equipment designed for shops that do serious metalworking, from structural fabrication to heavy equipment repair. You get the flexibility of a radial arm combined with the power and accuracy needed for professional results.
Product Video
Applications
- Large Structural Steel Fabrication: Drilling bolt holes in beams, frames, and assemblies without moving heavy workpieces
- Heavy Equipment Repair and Maintenance: Boring, reaming, and tapping operations on machinery components and housings
- Custom Fabrication Projects: Creating precise hole patterns in brackets, mounting plates, and custom metalwork
- Shipyard and Marine Applications: Drilling in large hull sections, deck components, and marine assemblies
- Industrial Maintenance Operations: On-site drilling, tapping, and counterboring in fixed equipment and structures
- Tool and Die Shops: Precision drilling, boring, and reaming in molds, dies, and large tooling fixtures
Key Features & Benefits
- Exceptional 39.3" Radial Reach: You can access any point across large workpieces without repositioning, saving time and reducing the risk of alignment errors. This massive reach means fewer setups and faster throughput on big jobs.
- Powerful 4 HP Motor with Variable Speeds: Get the torque you need for heavy drilling while maintaining the flexibility to adjust speeds (71-1,800 rpm) for different materials and bit sizes. More power means cleaner cuts and longer tool life.
- Power Downfeed System: Four automatic feed options (.005" to .02") take the guesswork out of drilling. You'll achieve consistent results while reducing operator fatigue on repetitive jobs.
- Heavy-Duty Construction Throughout: Built with industrial-grade components including a massive 9.4-inch column that won't flex or vibrate, even under heavy loads. This rigidity translates directly to more accurate holes.
- MT4 Spindle Taper: This industry-standard taper gives you access to a huge range of tooling options. Whether you need drill chucks, boring heads, or specialty tooling, you're covered.
- Integrated Coolant System: Keep your bits cool and chips under control with the built-in coolant delivery system. This extends tool life, improves finish quality, and makes cleanup easier.
- Box-Shaped Worktable Design: The robust 15.7" x 17.7" table with T-slots provides solid support and multiple clamping options for secure workpiece fixturing.
- Professional Safety Features: Includes safety guard and emergency stop controls, meeting industrial safety standards while protecting your operators.
What's in the Box
- RD-1000M Radial Drill Press (fully assembled main unit)
- MT4 Spindle with Quick-Change Chuck
- Tapping Chuck for thread-cutting operations
- Coolant System with reservoir and pump
- Safety Guard Assembly
- Drill Drift and Spindle Key Set
- Box-Shaped Worktable with T-slots
- Operator's Manual with specifications and maintenance guidelines
- Parts Diagram and Warranty Registration Card
Baileigh RD-1000M Specifications
| Model Number | RD-1000M |
|---|---|
| Maximum Drill Capacity | 1.57" (40mm) |
| Radial Reach (Spindle to Column Center) | 7.8" to 39.3" |
| Column Diameter | 9.4" |
| Spindle Taper | MT4 (Morse Taper 4) |
| Spindle Travel | 9.8" |
| Spindle Speed Range | 71 to 1,800 rpm (variable) |
| Motor Power | 4 hp |
| Power Requirements | 400V, 3-phase |
Baileigh RD-1000M Manuals & Downloads
Frequently Asked Questions
What's the difference between this mechanical model and a hydraulic radial drill?
The RD-1000M uses mechanical gear-driven downfeed, which gives you precise control and is generally more economical to maintain. Hydraulic models offer smoother operation and easier one-handed control but at a higher price point. For most fabrication shops, the mechanical system provides excellent performance with lower operating costs.
Can this drill handle tapping operations, or is it just for drilling?
Absolutely! The RD-1000M comes with a tapping chuck specifically for thread-cutting operations. The variable speed control and power downfeed make it excellent for tapping, boring, reaming, countersinking, and counterboring in addition to standard drilling.
What kind of electrical service do I need for this machine?
You'll need 400V three-phase power. This is standard in most industrial facilities, but if you're setting up a new shop, you'll want to verify your electrical service can accommodate it. Consult with a licensed electrician about your specific installation requirements.
How difficult is it to move and install this machine?
At 3,740 pounds, you'll definitely need proper lifting equipment (forklift or overhead crane) and professional riggers for installation. The machine ships on a pallet and requires floor mounting for stability. Budget for professional installation unless your facility has experienced machinery installation personnel.
What ongoing maintenance does this drill press require?
Regular maintenance is straightforward: keep the ways and column lubricated, maintain proper oil levels in the gearbox, check belt tension periodically, and clean the coolant system regularly. The operator's manual includes a detailed maintenance schedule. With proper care, this machine will serve your shop for decades.
Is this suitable for drilling aluminum and other nonferrous metals?
Yes! The variable speed range (71-1,800 rpm) and adjustable feed rates make it perfect for aluminum, brass, copper, and other non-ferrous materials. Just select the appropriate speed and feed rate for your specific material, which you'll find in standard machining handbooks or the operator's manual.
