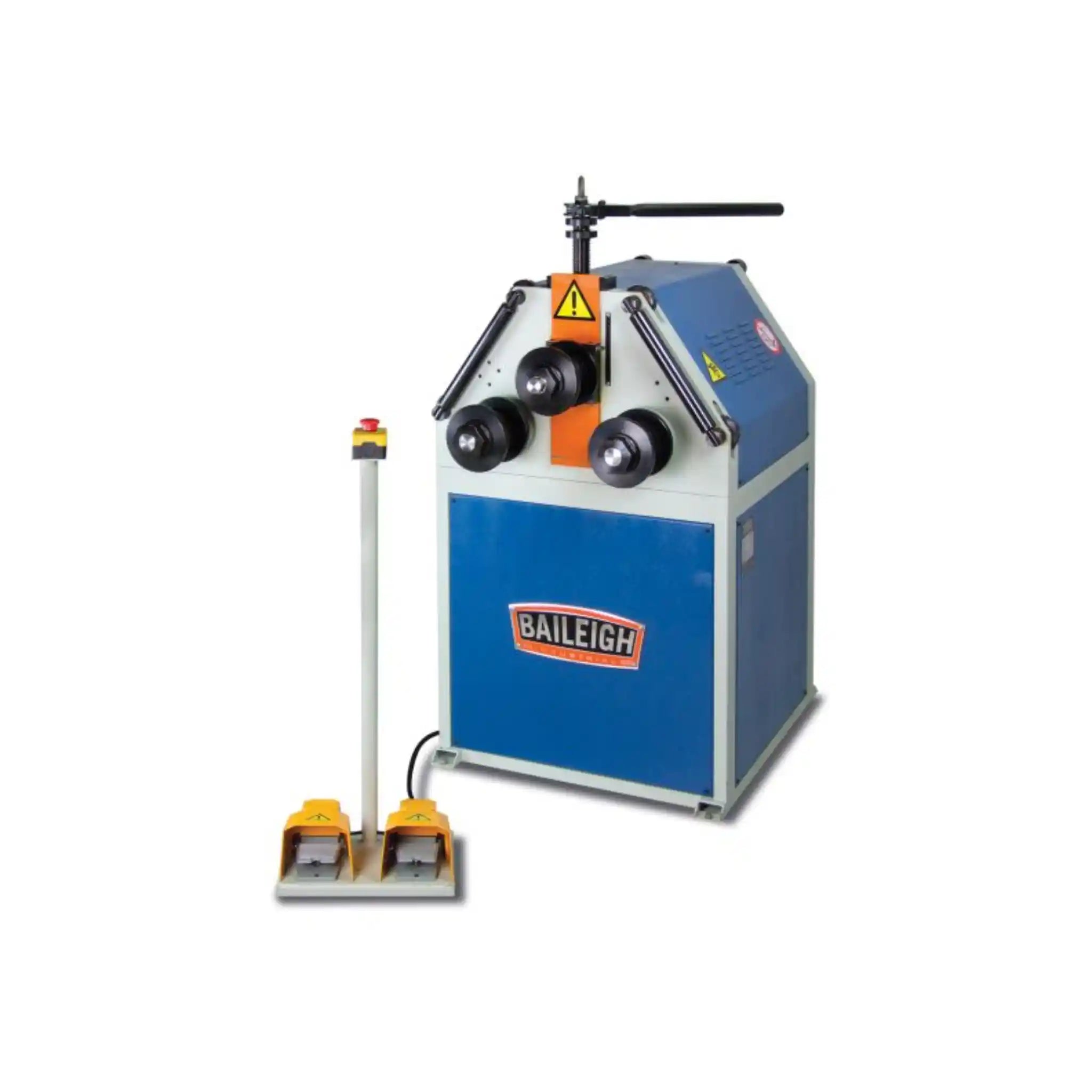

Baileigh R-M55 Manual Ring Roller

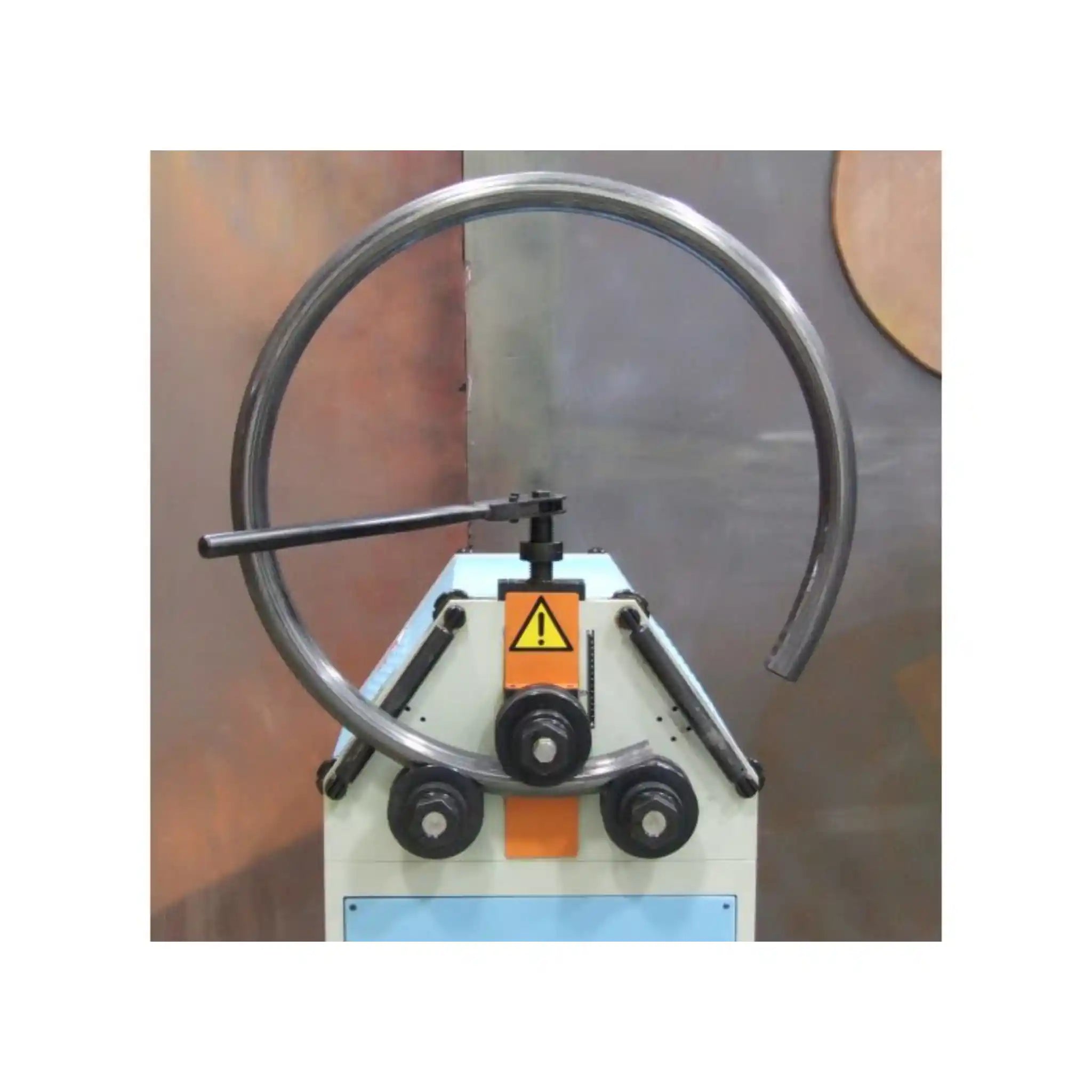

The Baileigh R-M55 is a professional grade manual ring roller that delivers impressive bending capacity for pipes up to 60mm, tubes, angle iron, and flat bar. This versatile machine combines rugged Portuguese engineering with user friendly controls, making it perfect for both workshop fabrication and on site projects.
Looking for a roll bender that can handle serious metalworking projects without the complexity of hydraulic systems? The R-M55 has been Baileigh's flagship manual ring roller since its introduction, and for good reason. This machine redefines what you can expect from a manual bender.
Built with a heavy duty steel plate framework, the R-M55 gives you the muscle to bend 60mm pipe (Schedule 40) with ease. That's impressive capacity for a manual top shaft, two driven roll machine. What makes this possible? A variable speed inverter with overload protection that lets you fine tune the rolling speed for each material you work with. Whether you're bending mild steel, aluminum, or other metals, you have complete control over the process.
Here's what sets the R-M55 apart: versatility. You can operate it vertically for compact rolling projects or flip it horizontally on its back for larger work. The machine has mounting feet on both the bottom and back, giving you flexibility to adapt to your project needs. It requires just 220V single phase power, making it practical for any fabrication shop or even field work on job sites. With foot pedal controls, segment rolls, and lateral roll guides included as standard, you get everything you need to produce clean, twist free bends right out of the box.
Product Video
Applications
- Handrail and Balustrade Fabrication: Create smooth curves for architectural metalwork, from commercial buildings to residential properties
- Roll Cage and Frame Building: Bend tubes and pipes for automotive roll cages, go-karts, and custom vehicle frames
- HVAC and Ductwork: Form round and square tubing for custom ventilation systems and ductwork solutions
- Ornamental Metalwork: Craft decorative circles, arches, and curved elements for gates, railings, and artistic installations
- Industrial Equipment Fabrication: Bend structural components for machinery frames, conveyors, and equipment housings
- Agricultural and Construction Projects: Create curved components for farm equipment, trailers, and construction fixtures
Key Features & Benefits
- Dual Position Operation: Switch between vertical mode for small projects and horizontal mode for larger work. This flexibility means you can tackle everything from tight radius bends to long, sweeping curves without limitations.
- Variable Speed Control: Fine-tune your rolling speed to match your material. This precision gives you better control over the bending process and helps prevent material damage or distortion.
- Overload Protection: The built-in inverter monitors the load and protects your investment from damage. This extends the machine's lifespan and gives you peace of mind during heavy-duty operations.

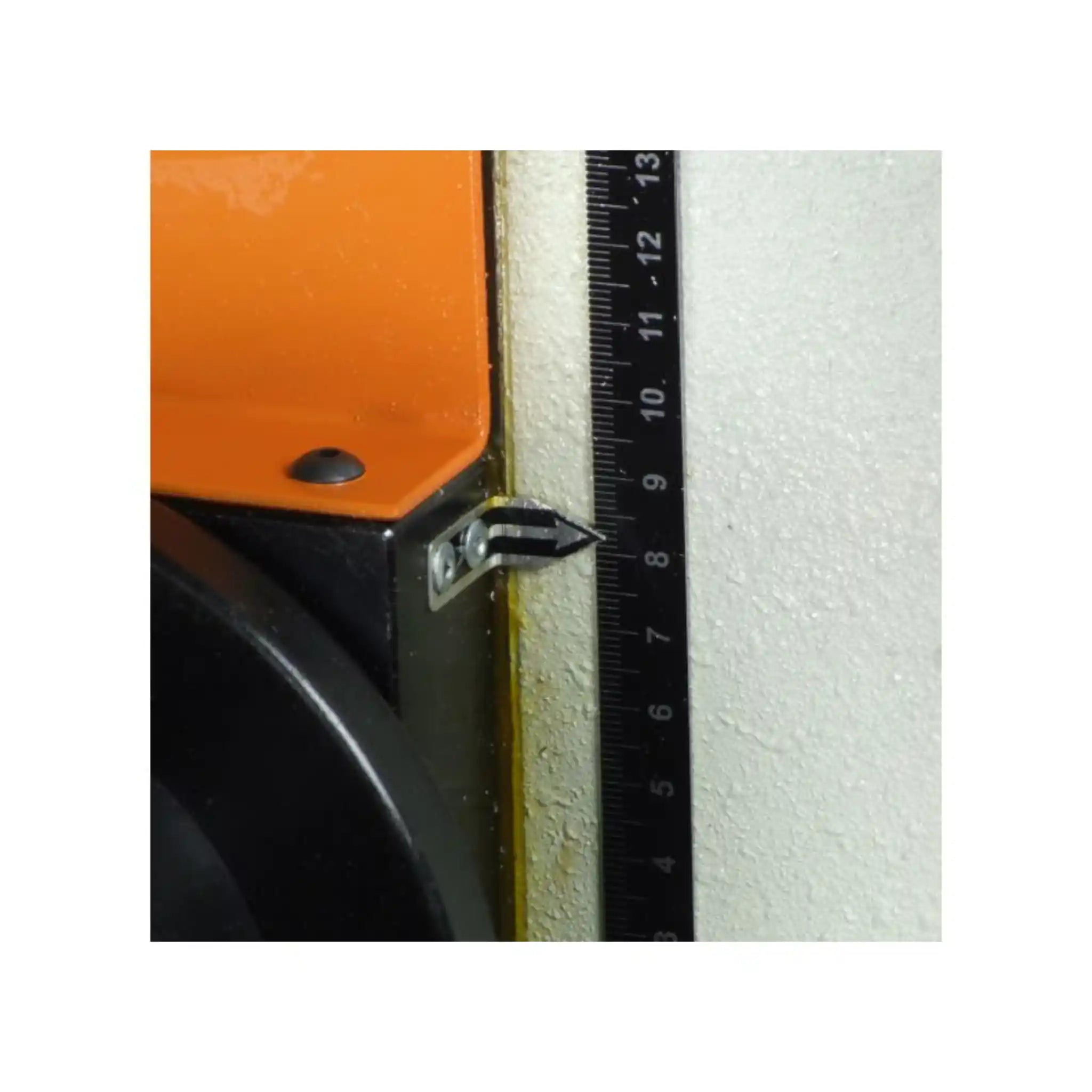

- Repeatable Accuracy: An easy-to-read scale shows the exact top roll position, so you can achieve consistent bends for production runs. No more guesswork or trial and error.

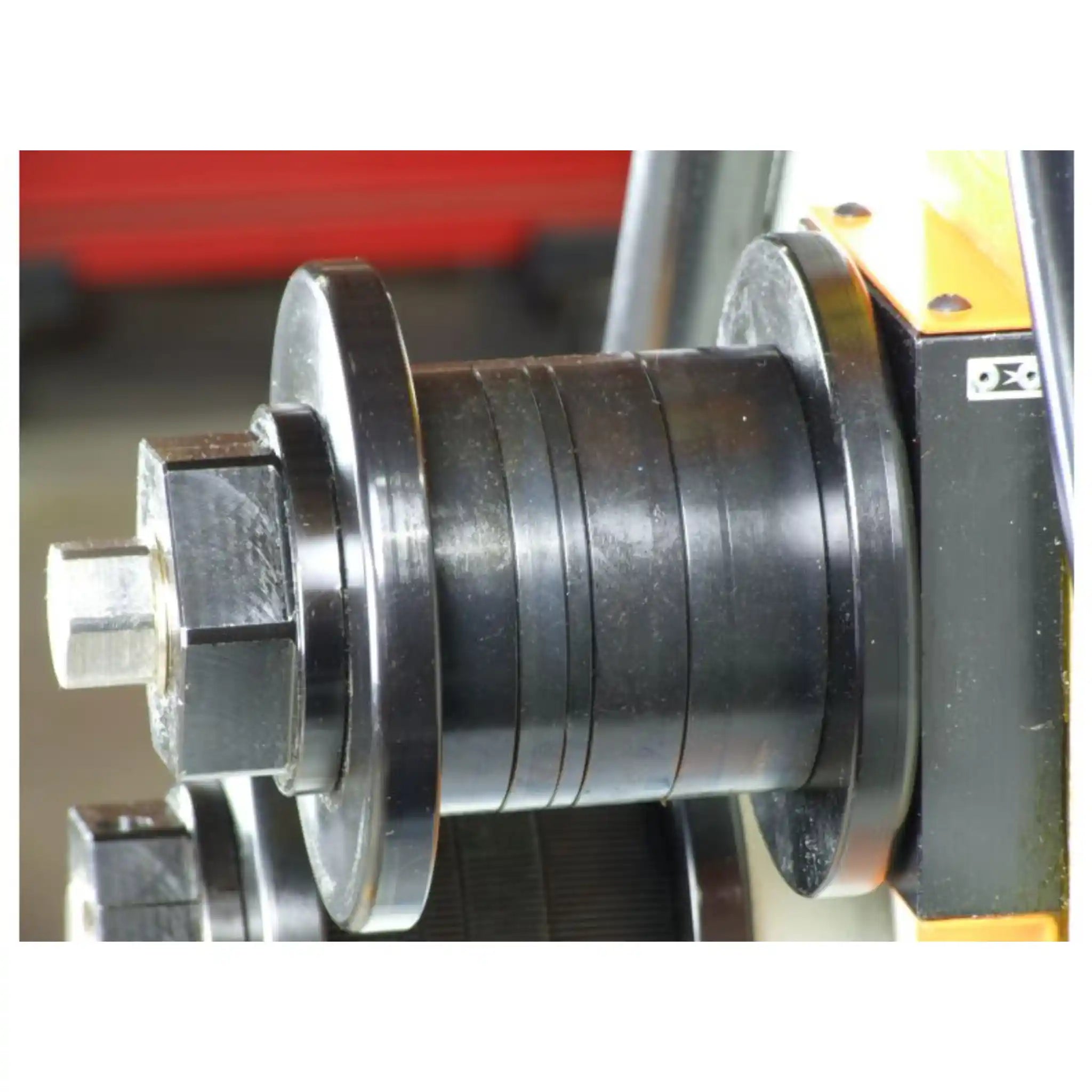

- Twist-Free Results: Included segment rolls and lateral roll guides keep your material tracking straight during the bend. You get professional results without material twisting or wandering.

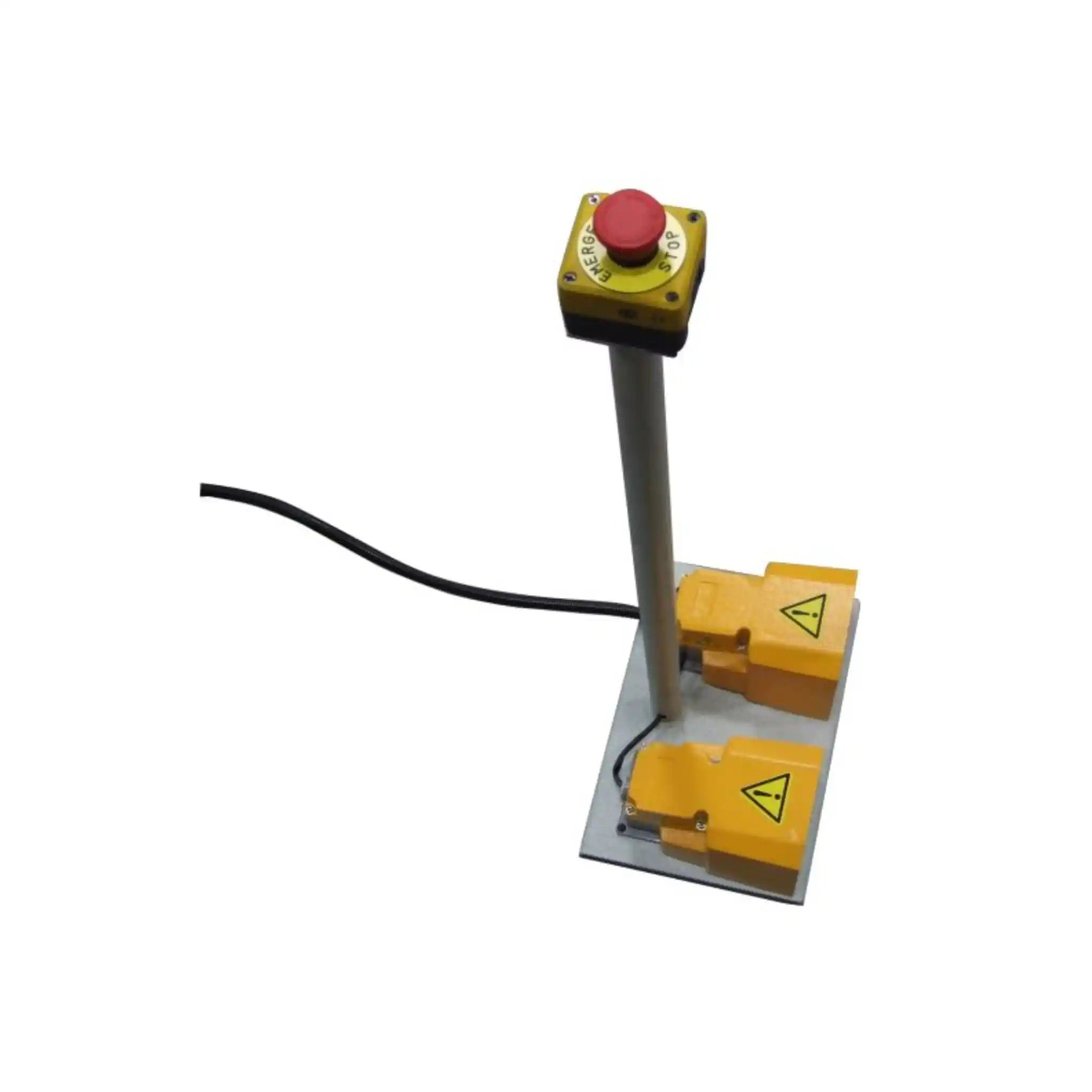

- Convenient Foot Pedal Control: Start and stop the machine hands-free, keeping both hands on your workpiece for better control and safety.
- Portuguese Quality Construction: Built in Portugal with heavy steel construction that ensures long-wearing accuracy and reliability. This machine is built to last for years of daily shop use.
- Expandable Tooling Options: Accept optional roll sets for different profiles including various sizes of tubing, pipe, angle iron, and more. One machine adapts to multiple applications.
What's in the Box

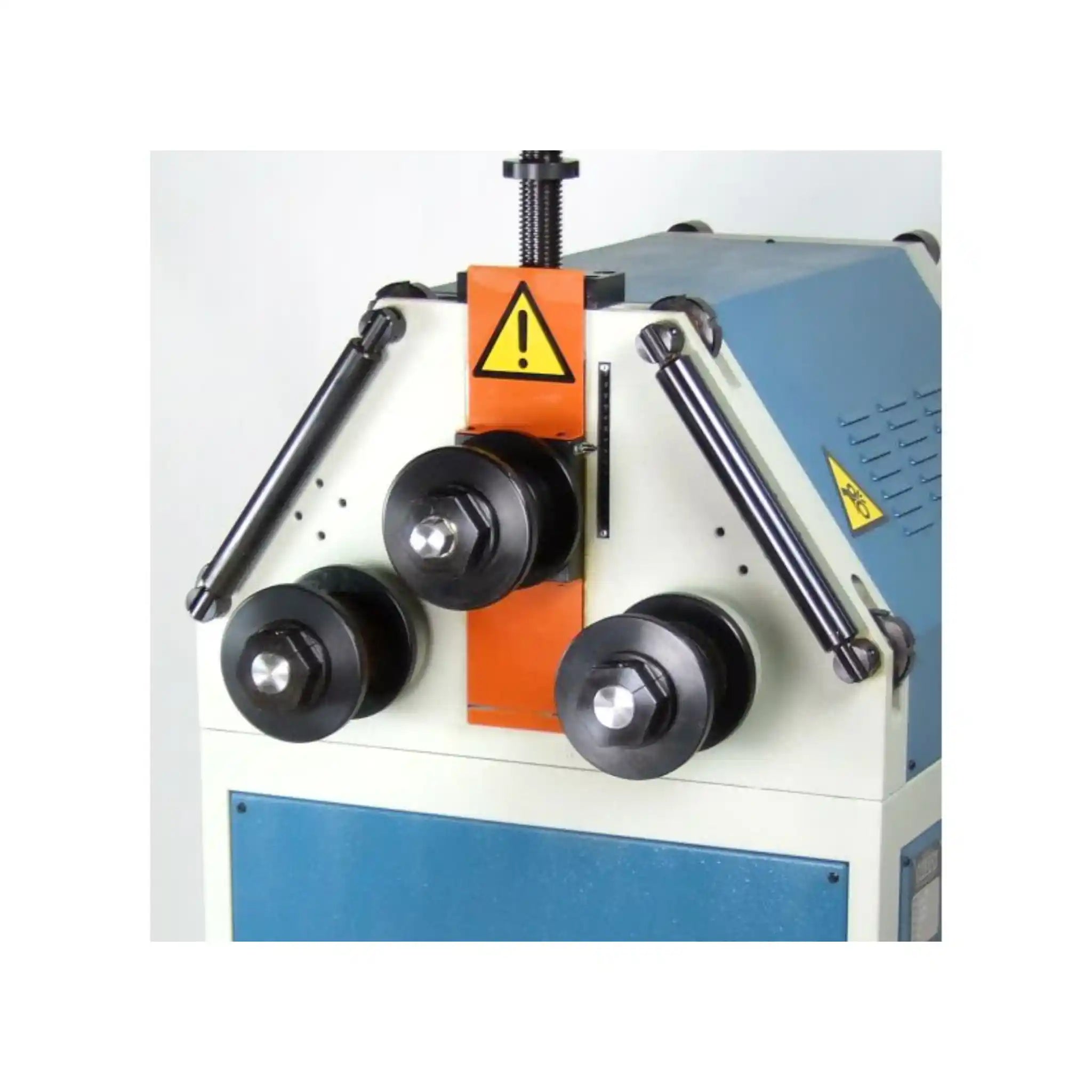

- R-M55 Ring Roller (main unit with 2 driven rolls and 1 manual top roll)
- Standard segment roll tooling set (pre-installed)
- Lateral roll guides
- Foot pedal controls

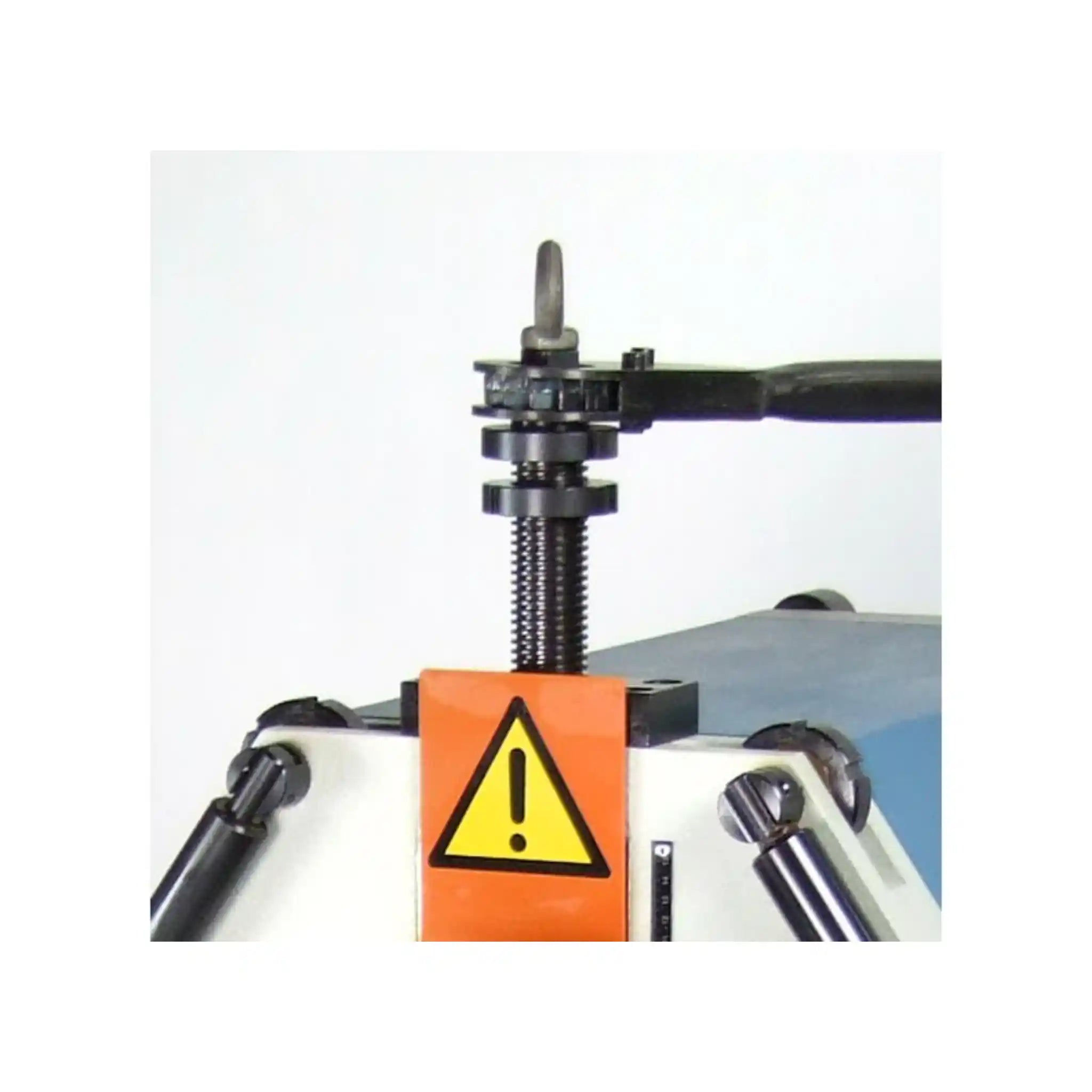

- Large ratchet handle for manual top roll adjustment
- Mounting feet for both vertical and horizontal operation
- User manual and safety documentation
- 1-year manufacturer's warranty
- Lifetime technical support access
Baileigh R-M55 Specifications
| Model Number | R-M55 |
|---|---|
| Country of Manufacture | Portugal |
| Drive System | 2 Driven Rolls (3 rolls total) |
| Roll Adjustment | Manual |
| Pipe Capacity | 48mm (3mm wall) / Min. Dia: 1,000mm |
| Round Tube Capacity | 60mm (2mm wall) / Min. Dia: 1,100mm |
| Square Tube Capacity | 40mm (3mm wall) / Min. Dia: 1,219mm |
| Motor Power | 1.5 hp |
| Power Requirements | 220V / 1-phase |
Baileigh R-M55 Manuals & Downloads
Frequently Asked Questions
Can I use the RM55 on job sites, or is it only for workshop use?
Absolutely! The R-M55 is designed for portability and versatility. It runs on standard 220V single-phase power, which is commonly available on most job sites. The dual-position mounting (vertical or horizontal) means you can set it up wherever you need it. Just ensure you have adequate power supply and a stable working surface.
What's the difference between
Great question! "Easy way" means bending the flat bar along its wider dimension (the material bends like an arch), while "hard way" means bending it on edge (the material stands tall during the bend). Hard way bending requires more force, which is why the capacity is smaller. The R-M55 can handle both orientations depending on your project needs.
Do I need special tooling for different materials and profiles?
The R-M55 comes with standard segment roll tooling that works for general-purpose bending. However, for optimal results with specific profiles like heavy-wall pipe, large angle iron, or specialized tube sizes, optional tooling sets are available. Contact Baileigh or your supplier to discuss your specific applications, they'll help you choose the right tooling.
How accurate is the bending, and can I repeat the same bend for production work?
The R-M55 features an easy-to-read scale that indicates the exact position of the top roll. Once you've dialed in your settings for a particular bend, you can record the position and repeat it consistently for production runs. This makes it perfect for jobs requiring multiple identical pieces.
What kind of maintenance does the RM55 require?
The R-M55 is built for low maintenance. Regular tasks include keeping the rolls clean, lubricating moving parts according to the manual, and checking belt tension periodically. The overload-protected inverter helps prevent damage from improper use. Baileigh provides lifetime technical support, so you can always call their team if you have maintenance questions or need troubleshooting help.
