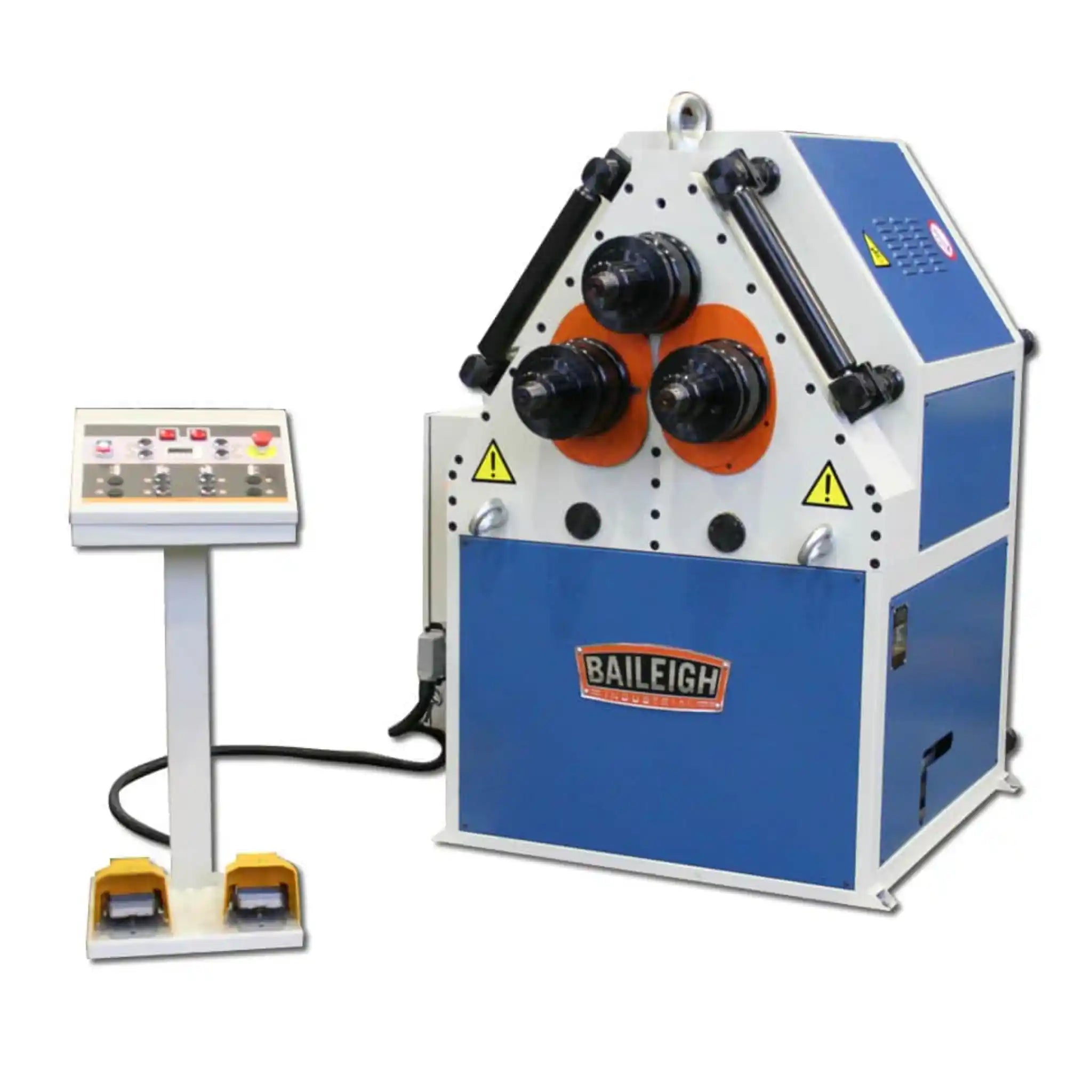

Baileigh R-H65 Roll Bender
The Baileigh R-H65 is a professional grade hydraulic double pinch roll bender designed to deliver precision, power, and reliability for fabrication shops that demand consistent, high quality metal forming without the premium cost of CNC equipment.
Looking for a roll bender that can handle demanding production work without breaking your budget? The R-H65 brings you the performance and precision of advanced rolling technology in a machine built for everyday reliability. With its capacity to bend 60mm x 4mm pipe and impressive versatility across multiple material profiles, this is the workhorse that grows with your business.
What makes this machine different? It's all about the double pinch design. Unlike traditional single pinch rollers that leave you with wasted straight sections at the beginning and end of each bend, the R-H65's dual independent bottom rolls let you pre bend and post bend your material. That means less waste, faster production, and more profit in your pocket at the end of the day.
Built in Portugal with Baileigh's signature commitment to quality, the R-H65 features a rigid electro welded steel plate frame that won't flex even when you're pushing it to full capacity. The 6.5 HP hydraulic motor powers all three driven rolls, while hydraulic encoders constantly communicate with the digital readout to give you exact positioning every single time. Whether you're bending one piece or running a production batch of 500, you'll get the same precise results.
Applications
- Architectural Metalwork: Create curved railings, decorative archways, and custom metal features for buildings and public spaces
- Industrial Fabrication: Form large diameter rings, cylinders, and curved sections for tanks, machinery housings, and structural components
- Custom Vehicle Fabrication: Bend roll cages, exhaust systems, chassis components, and decorative trim pieces with precision
- Agricultural Equipment: Manufacture hay hoops, curved framework, and specialized farm machinery components
- HVAC Ductwork: Roll smooth, uniform curves in sheet metal for commercial ventilation and air handling systems
- Furniture & Art: Create curved metal furniture frames, sculptural pieces, and artistic installations with consistent radii
Key Features & Benefits
- Double Pinch Technology: The fixed top roll and two independently controlled bottom rolls work together to eliminate waste. You can pre-bend and post-bend material, cutting down on those frustrating straight sections that usually end up in your scrap bin.
- Digital Readout with Programmable Controls: Never guess at your settings again. The digital display shows you exactly where each roll is positioned, making it simple to replicate bends for production runs. Input your bend patterns from the convenient operator podium and watch consistency become your new normal.
- Industrial-Grade Hydraulic System: With 6.5 HP of hydraulic power driving all functions, you get smooth, controlled bending even at maximum capacity. The hydraulic encoders constantly monitor roll position for accuracy you can depend on.
- Built to Last Construction: The heavy electro-welded steel plate frame means this machine will still be delivering accurate bends years from now. No flex, no compromise, just solid performance that maintains precision over thousands of cycles.
- Versatile Material Capacity: From pipe and tube to flat bar, solid round stock, angle iron, and square tube, this machine handles diverse profiles. The included segment rolls let you tackle multiple shapes right out of the box.
- Foot Pedal Operation: Keep your hands free for material handling. Run the roller forward or reverse with simple foot controls while you guide your workpiece.
- Professional Support: Backed by Baileigh's 1-year warranty and lifetime technical support by phone. When you have questions or need troubleshooting help, experienced representatives are just a call away.
- Vertical and Horizontal Operation: Tackle smaller diameter work in the vertical position, then tip the machine back for horizontal operation when you need to roll larger radii. This flexibility means one machine handles a wider range of projects.
What's in the Box
- R-H65 Hydraulic Double Pinch Roll Bender (main unit)

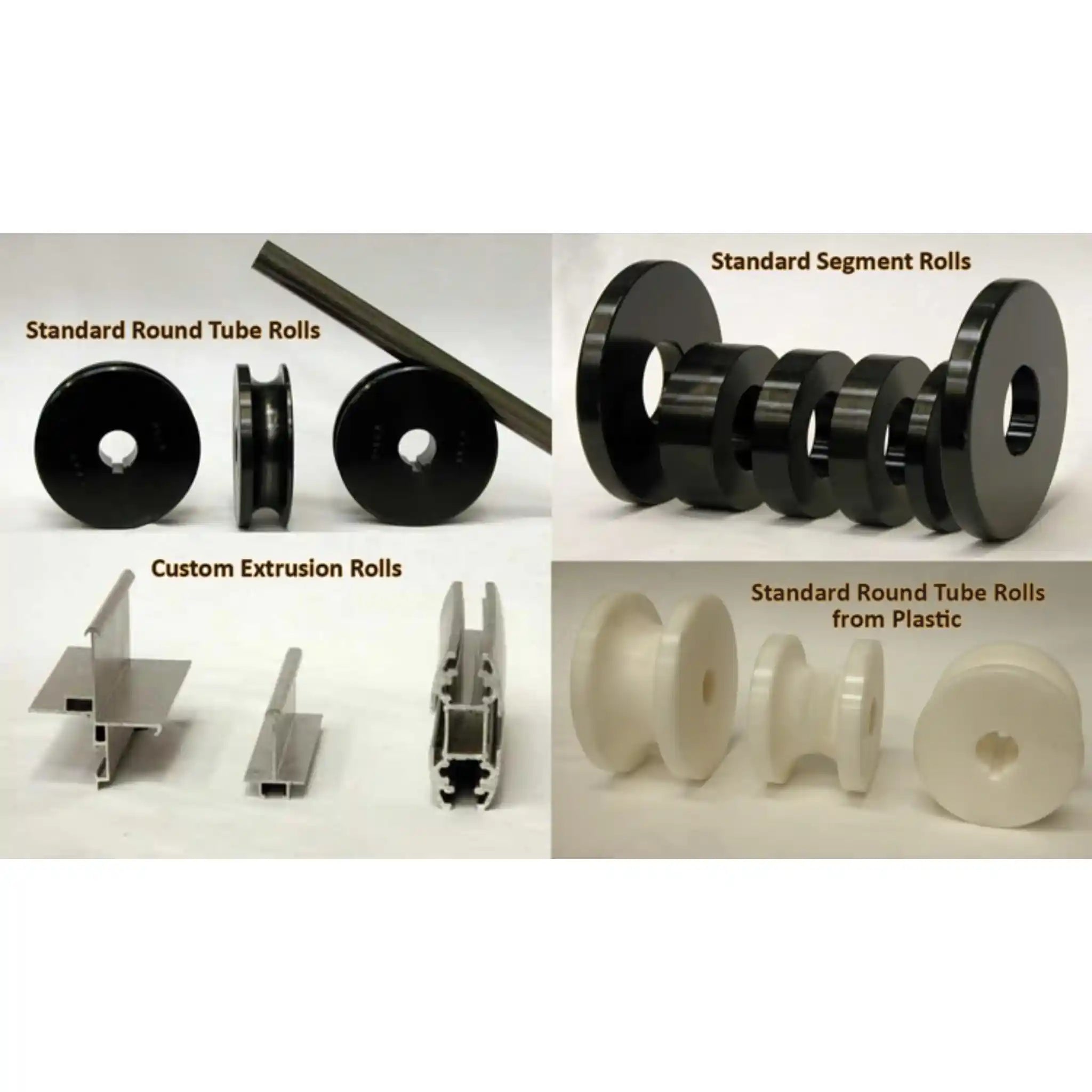

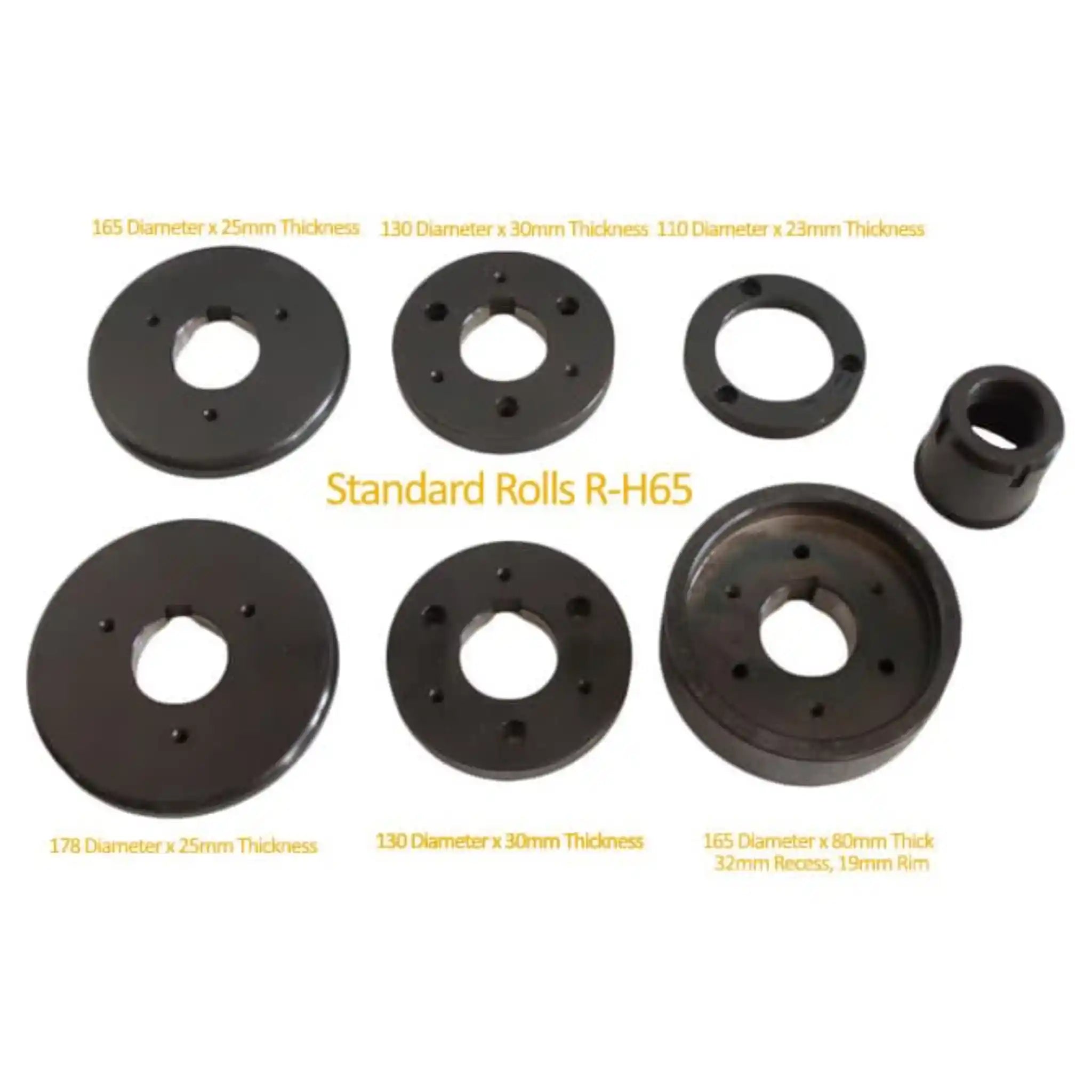

- Complete set of segment rolls for multiple profiles (pipe, tube, flat bar, solid round stock)
- Programmable controller podium with digital readout
- Foot pedal controls for forward and reverse operation
- Operator's manual and documentation
- 1-year parts warranty certificate
- Lifetime technical support access information
Baileigh R-H65 Specifications
| Model Number | R-H65 |
|---|---|
| Country of Manufacture | Portugal |
| Power Requirements | 400V / 3-phase |
| Motor | 6.5 HP |
| Driven Rolls | 3 (all rolls driven) |
| Roll Adjustment | Hydraulic |
| Pinch Design | Double Pinch |
| Digital Readout | Yes |
| Machine Dimensions (L x W x H) | 1524mm x 1524mm x 1727mm (60" x 60" x 68") |
| Shipping Weight | 1110 kg (2,447 lbs) |
Frequently Asked Questions
Can I use this machine with singlephase power in my shop?
The R-H65 requires 400V 3-phase power to operate. If you only have single-phase power available, you'll need to install a phase converter or consider Baileigh's manual or smaller hydraulic models that run on single-phase power.
What materials can I bend with the included segment rolls?
The standard segment rolls handle pipe, round tube, square tube, solid round stock, flat bar (both orientations), and angle iron. The versatility covers most common fabrication needs right out of the box.
How difficult is it to change between different material profiles?
Changing rolls is straightforward and can typically be done in minutes once you're familiar with the process. Baileigh also offers optional specialized tooling sets if your work requires dedicated rolls for specific profiles.
What's the learning curve for operating this machine?
Most operators become comfortable with basic operations within a few hours. The digital readout and programmable controls make it much easier than traditional mechanical roll benders. For complex bending sequences, expect to invest a day or two of practice to master the technique.
Do I need special foundation or mounting requirements?
The R-H65 should be installed on a solid, level concrete floor. At 1110 kg, it's heavy enough to be stable during operation, but you'll want adequate floor strength and space around the machine for material handling, especially when working with longer pieces.
