Baileigh R-H55 Hydraulic Angle Roll Bender

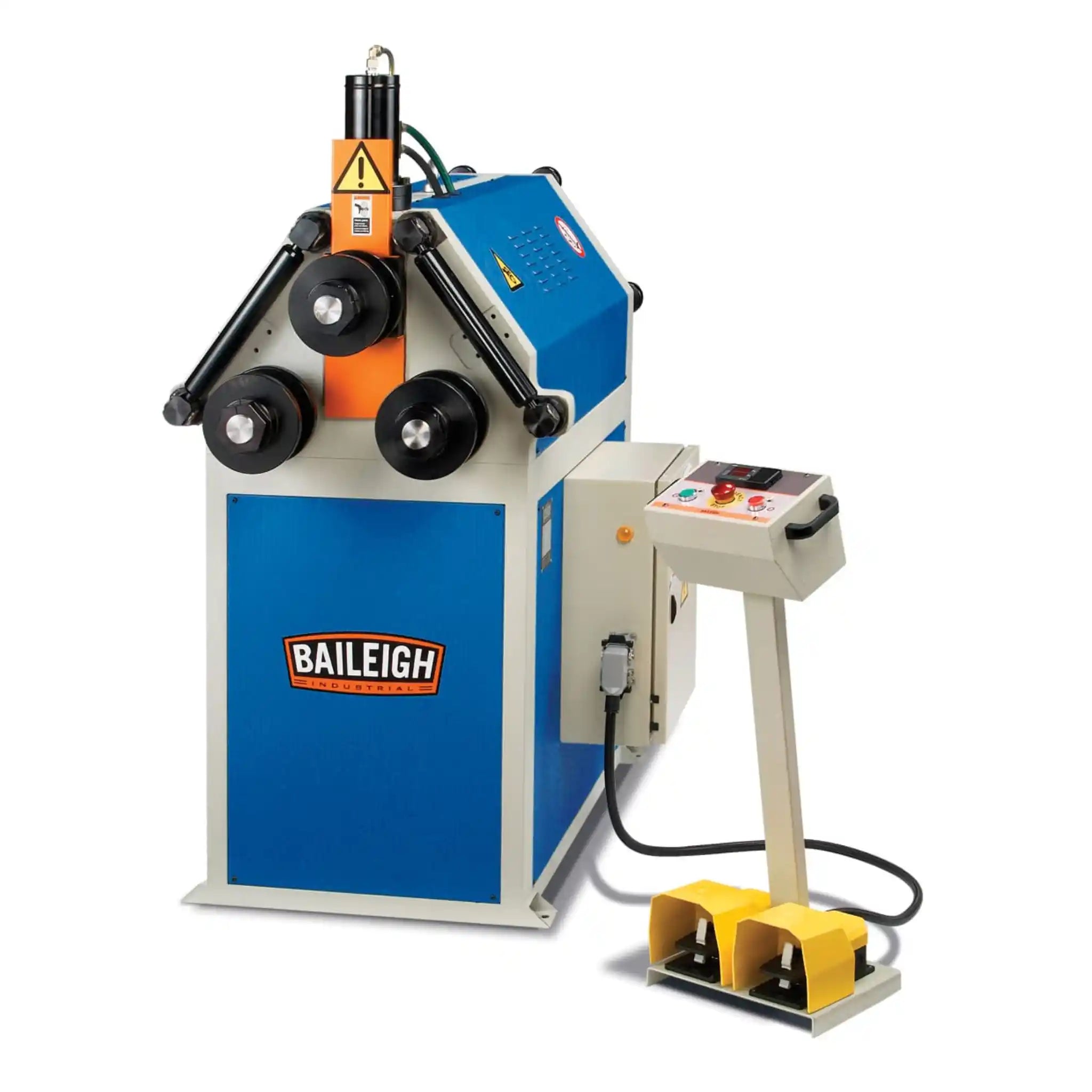

The Baileigh R-H55 is a professional grade hydraulic angle roll bender designed to transform pipe, tube, bar, and angle iron into large sweeping radii with precision and repeatability.
Are you tired of manual bending taking forever and producing inconsistent results? The R-H55 solves these problems with its hydraulic-powered system and digital readout technology. This isn't just another roll bender. It's a complete bending solution that transforms how you approach curved metalwork.
Think about your toughest bending jobs. That massive handrail project. Those architectural features with large radius curves. The structural components that need to match perfectly. The R-H55 handles all of it with impressive capacity: up to 73mm round pipe with 5mm wall thickness, 101mm square tube, and 76mm angle iron. The three driven rolls, powered by a robust 3 HP motor with direct drive transmission, deliver the muscle you need without compromising precision.
What sets this machine apart is its smart approach to production work. The hydraulic cylinder system with digital readout (DRO) lets you save position settings and repeat bends with absolute accuracy. No more measuring, guessing, and hoping each piece matches the last. Program your settings once, and the R-H55 remembers them perfectly. For fabrication shops running multiple identical pieces, this feature alone can save hours and virtually eliminate scrap.
Product Video
Applications
- Architectural Metalwork: Create stunning curved handrails, staircases, and decorative features for commercial and residential projects
- Structural Fabrication: Bend large-radius components for building frames, support structures, and industrial applications
- Custom Automotive Work: Form roll cages, exhaust systems, chassis components, and custom tube frames for specialty vehicles
- Agricultural and Industrial Equipment: Fabricate hay hoops, equipment frames, conveyor systems, and machinery components
- Ornamental Ironwork: Produce rings, circles, and spiral designs for gates, railings, and artistic metalwork installations
- HVAC and Ductwork: Shape large-diameter pipe and tube for industrial ventilation and process piping systems
Key Features & Benefits

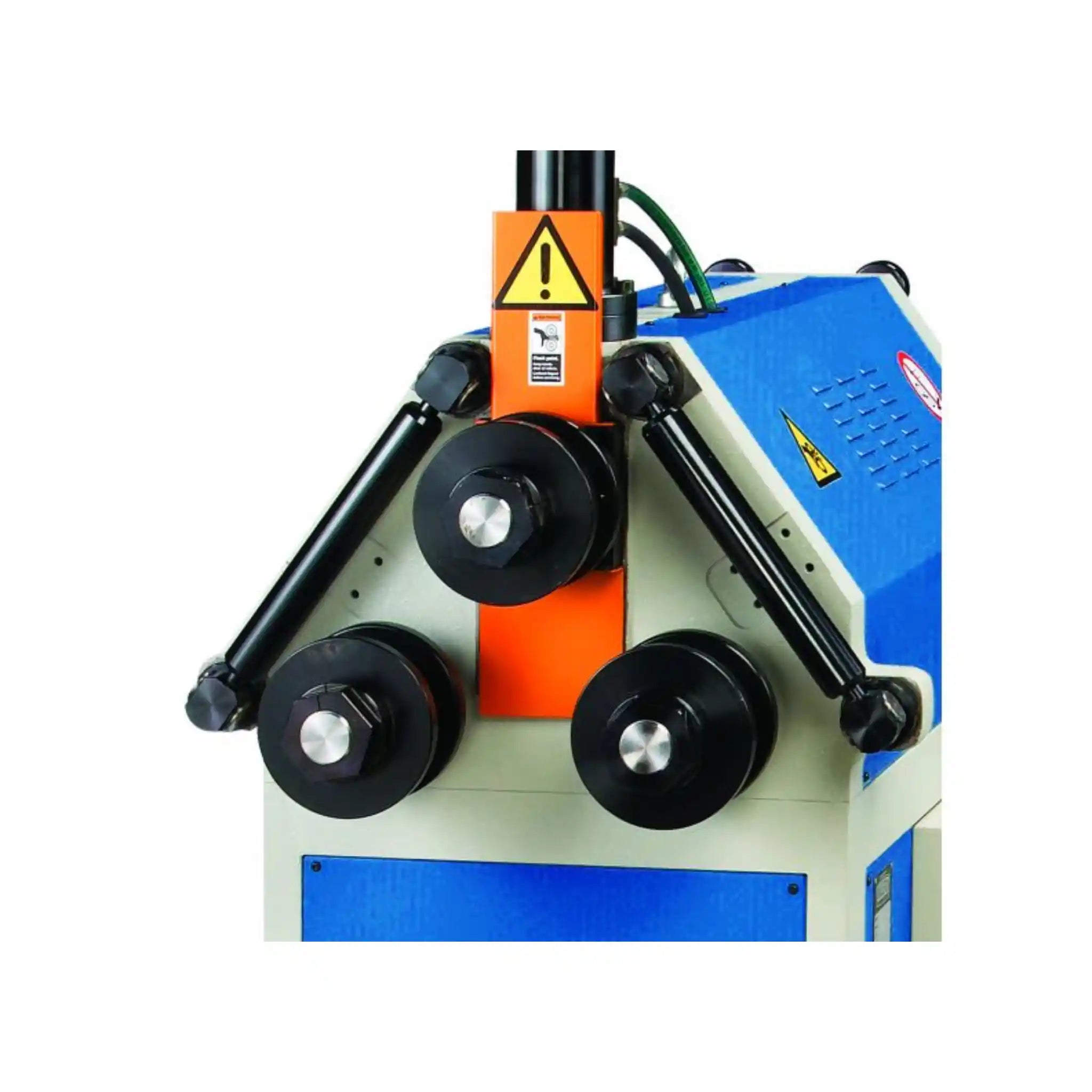

- Three Driven Rolls with Powerful Motor: Unlike cheaper two-roll machines, all three rolls on the R-H55 are powered by a 3 HP motor with direct drive transmission for consistent bending pressure throughout the entire curve.

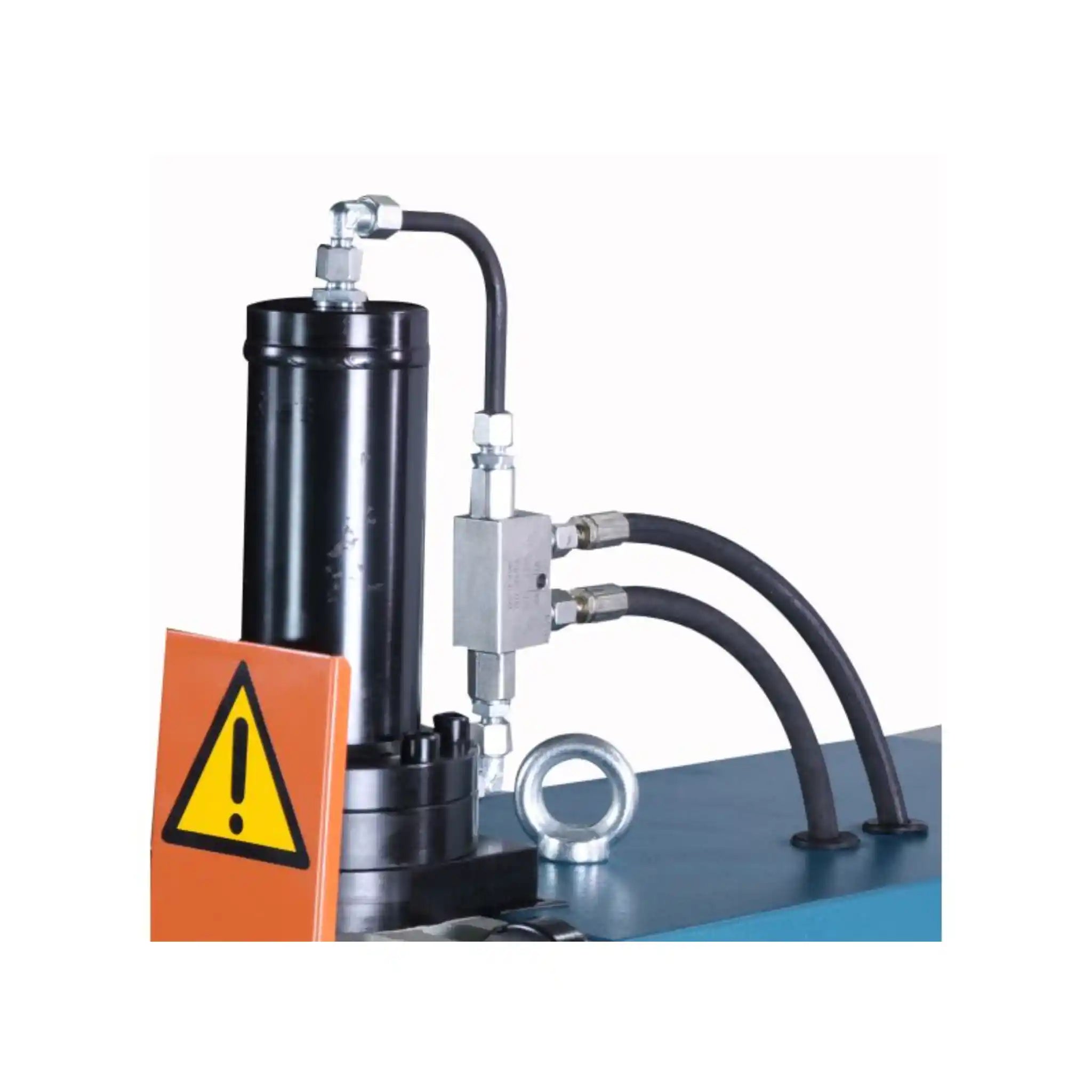

- Hydraulic Top Roll Adjustment: Say goodbye to manual cranking and sore arms. The industrial-grade hydraulic system positions your top roll precisely where you need it with ease.
- Digital Readout (DRO) for Perfect Repeatability: The integrated digital display shows you the exact position of your top roll in real time. Save these settings for production runs and produce identical bends hour after hour.
- Dual-Position Operation: Work smarter, not harder. Set the machine vertically for smaller diameter work or tilt it back to horizontal position for larger radii that need more room.
- Single Pinch Design for Efficiency: The R-H55 uses a single pinch configuration that's ideal for most fabrication work, giving you better control over the bending process.
- Heavy Steel Plate Construction: Built from thick steel plate and mounted on a fully welded housing, this machine won't flex or lose accuracy even when bending at maximum capacity.
- Premium Components Throughout: Features Siemens controls, machined steel shafts, and industrial-grade hydraulics for reliability and longevity.

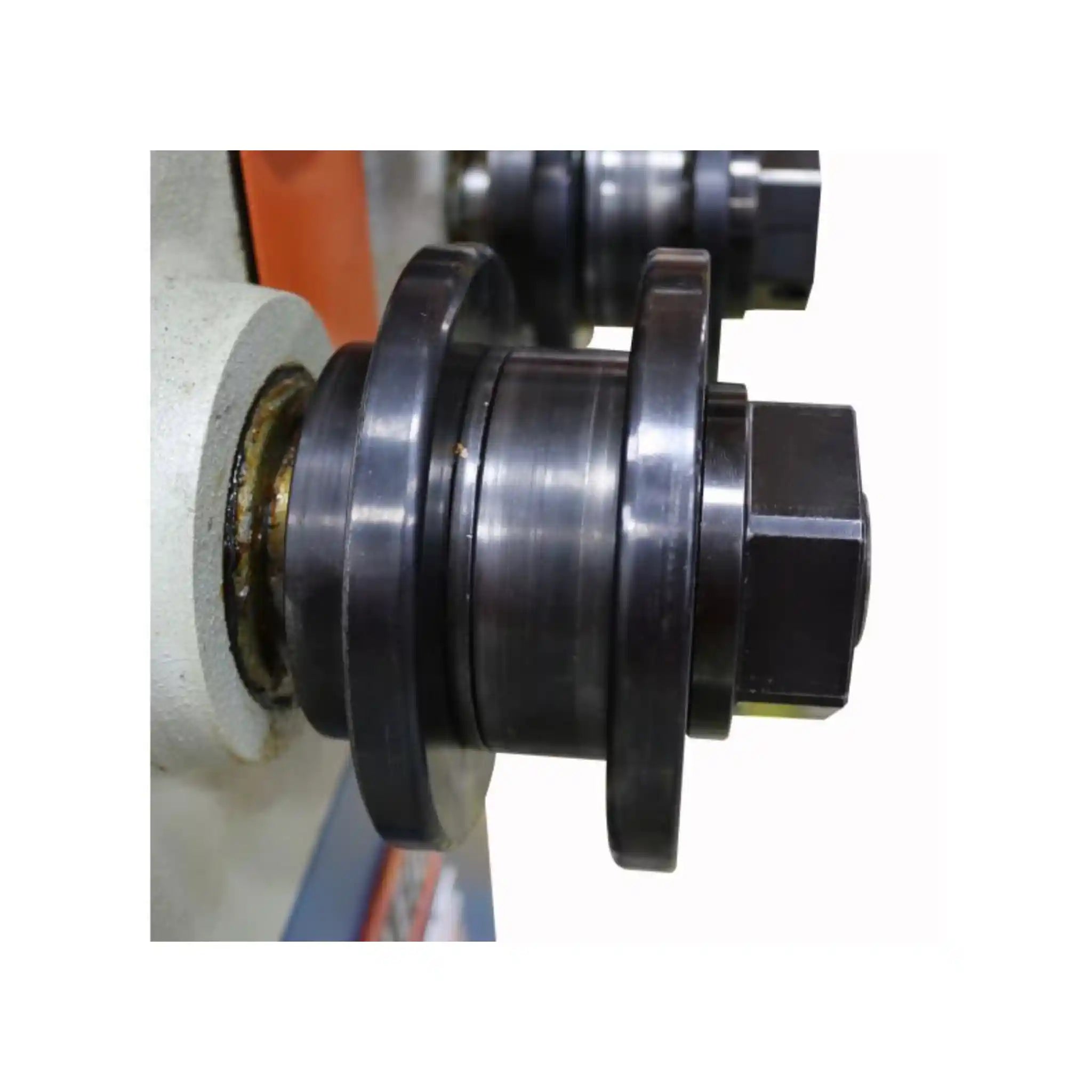

- Complete Standard Package: Comes complete with segment rolls for various profiles, lateral roll guides to prevent twisting, and an operator-friendly control station.
What's in the Box
- R-H55 hydraulic angle roll bender (main unit)

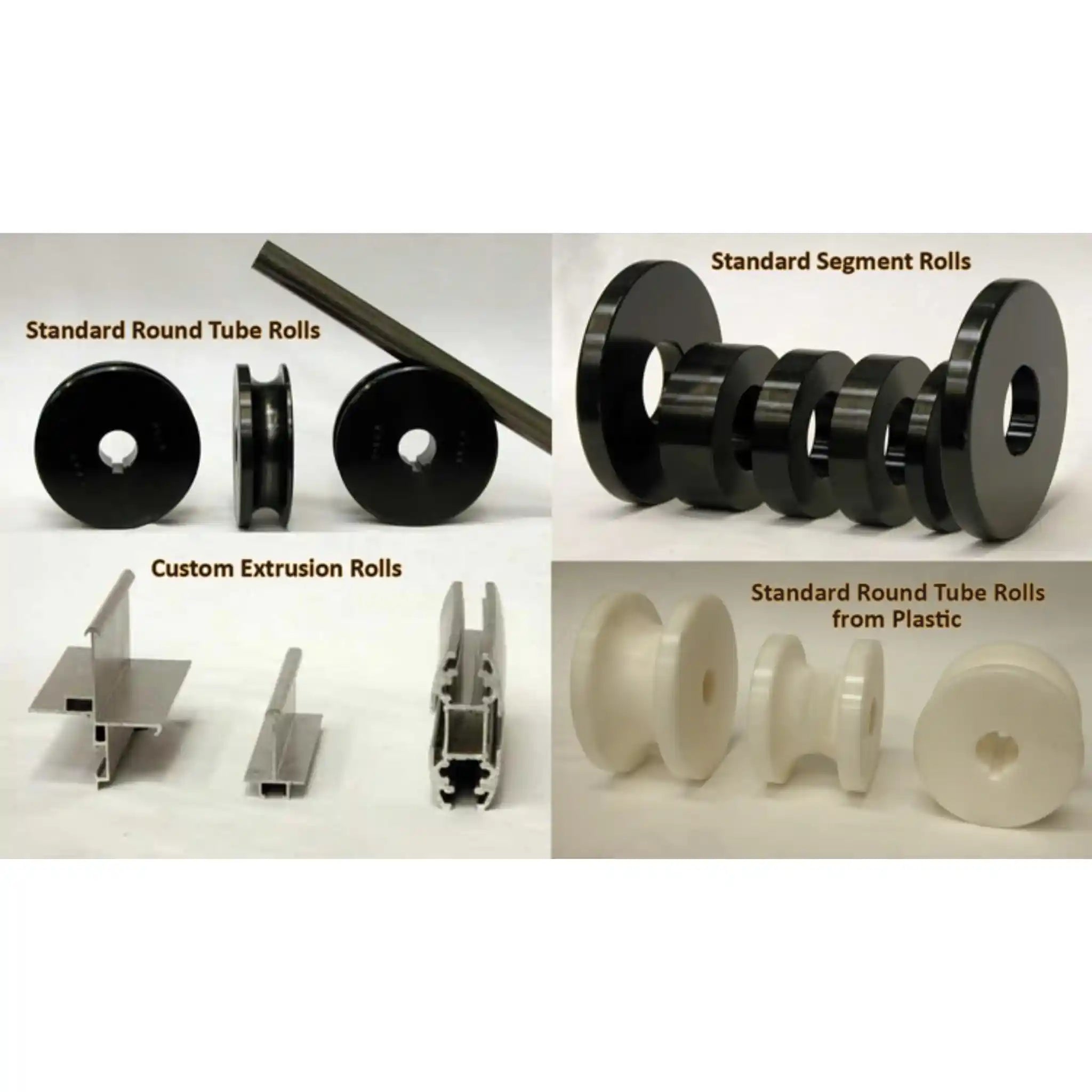

- Set of hardened segment rolls (standard configuration)
- Lateral roll guides for material positioning and coiling
- Digital readout control system

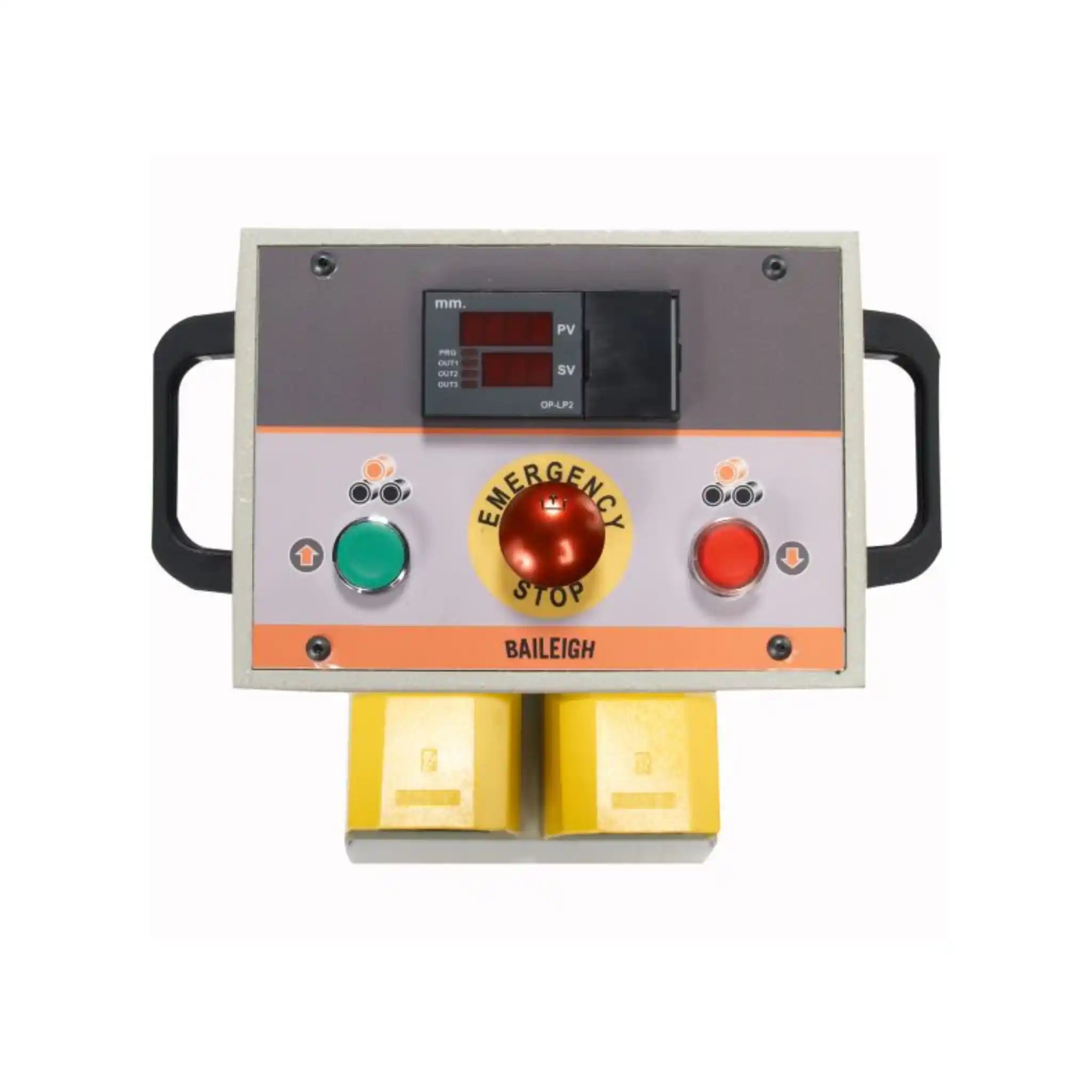

- Operator control pedestal with hydraulic controls

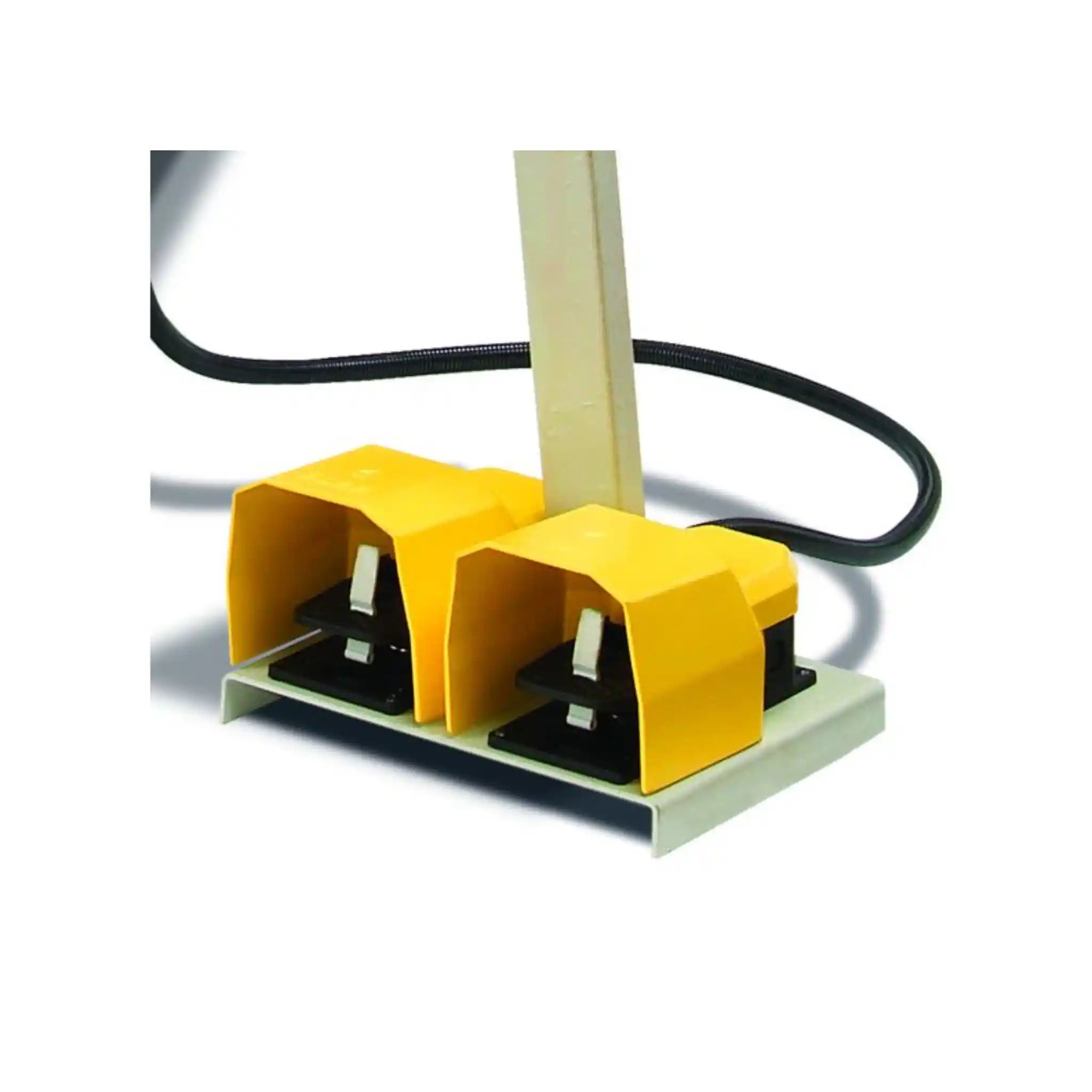

- Foot pedal for forward/reverse operation
- Owner's manual and documentation
- Warranty registration materials
Baileigh R-H55 Specifications
| Model Number | R-H55 |
|---|---|
| Power Requirements | 220V / 1-phase |
| Motor Power | 3 HP |
| Operating Speed | 11 RPM |
| Number of Driven Rolls | 3 |
| Roll Adjustment Type | Hydraulic |
| Pinch Configuration | Single |
| Digital Readout | Yes |
Baileigh R-H55 Manuals & Downloads
Frequently Asked Questions
Can I run this machine on standard workshop power?
Yes! The R-H55 operates on 220V single-phase power, which is standard in most fabrication shops. No special electrical setup required, making installation straightforward.
How difficult is it to change between different roll sets?
Roll changes are designed to be quick and straightforward. Baileigh engineers the tooling for easy swap-outs, so you can switch between different profiles without lengthy downtime. Most operators can complete a roll change in under 30 minutes once familiar with the process.
What kind of maintenance does the RH55 require?
Routine maintenance is minimal. Keep the hydraulic system fluid at proper levels, lubricate moving parts according to the maintenance schedule, and keep rolls clean. The rugged construction and quality components mean less maintenance headache and more productive shop time.
Is this machine suitable for production work or just oneoff jobs?
Both! The digital readout system makes the R-H55 excellent for production runs where you need identical bends across multiple pieces. At the same time, the flexibility and easy adjustment make it perfect for custom, one-off fabrication work. You get the best of both worlds.
What warranty and support comes with the RH55?
Baileigh Industrial backs the R-H55 with a comprehensive 1-year parts warranty and lifetime technical support by phone. Their experienced team is always available to help with applications, troubleshooting, or advice on getting the most from your machine.
Can I bend stainless steel or aluminum with this machine?
Yes, but capacities will vary based on material properties. The specifications listed are for mild steel (60,000 PSI tensile strength). For other materials like stainless steel or aluminum, contact Baileigh's technical team for specific capacity information and potential tooling requirements.
