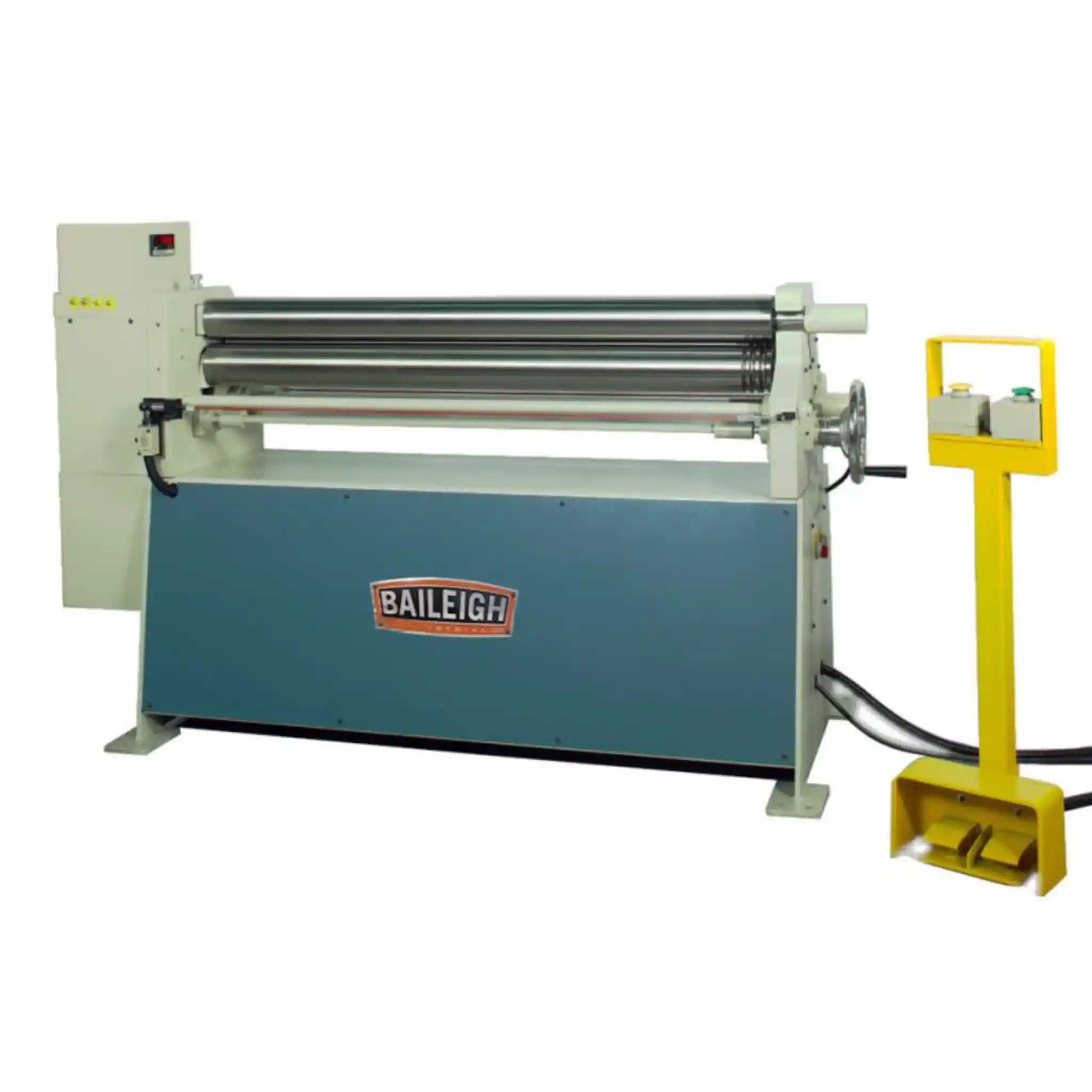

Baileigh PR-413 Plate Roller
The Baileigh PR-413 is a heavy-duty hydraulic plate roll designed to bend up to 2.3mm (13 gauge) mild steel across its full 1219mm (48") forming width, perfect for fabricators who need reliable performance without the limitations of a standard slip roll.
Are you tired of being limited by your slip roll when you need to work with thicker materials? The PR-413 plate roll changes the game. This industrial grade machine gives you the power to handle up to 2.3mm mild steel over its entire width, opening up possibilities that were previously out of reach for your shop.
Built with precision and durability in mind, the PR-413 features a robust steel frame machined to exacting tolerances, ensuring accuracy that lasts for years even at full capacity. The machine's hydraulically controlled back roll gives you precise control over your bends, while the convenient foot pedal operation keeps your hands free to guide the material. Whether you're creating cylinders for tanks, forming ductwork, or bending custom enclosures, this plate roll delivers consistent, repeatable results.
What really sets the PR-413 apart is its versatility. Running on standard 220V single phase power means you can install it in almost any workshop without special electrical requirements. The digital readout tracks the back roll position, so you can replicate successful bends with confidence. Plus, with three wire grooves built in, you're ready to form wire rings whenever your projects demand it.
Applications
- Storage Tank Fabrication: Create cylindrical tank shells for agricultural, industrial, and commercial storage applications with precise diameter control
- Metal Ductwork Construction: Form curved ductwork sections for HVAC systems, ventilation, and industrial exhaust systems
- Pipe and Tube Forming: Roll conveyor pipes, downspouts, and custom piping for water, gas, and material handling systems
- Machine Housings and Enclosures: Bend protective covers, guards, and housings for industrial equipment and machinery
- Architectural Metalwork: Produce curved panels, columns, and decorative elements for building facades and interior designs
- Wire Ring Production: Utilize the three integrated wire grooves to form precise wire rings for specialty applications
Key Features & Benefits
- Full-Width Capacity: Roll 2.3mm mild steel across the entire 1219mm width, giving you the flexibility to handle substantial projects without worrying about material thickness limitations

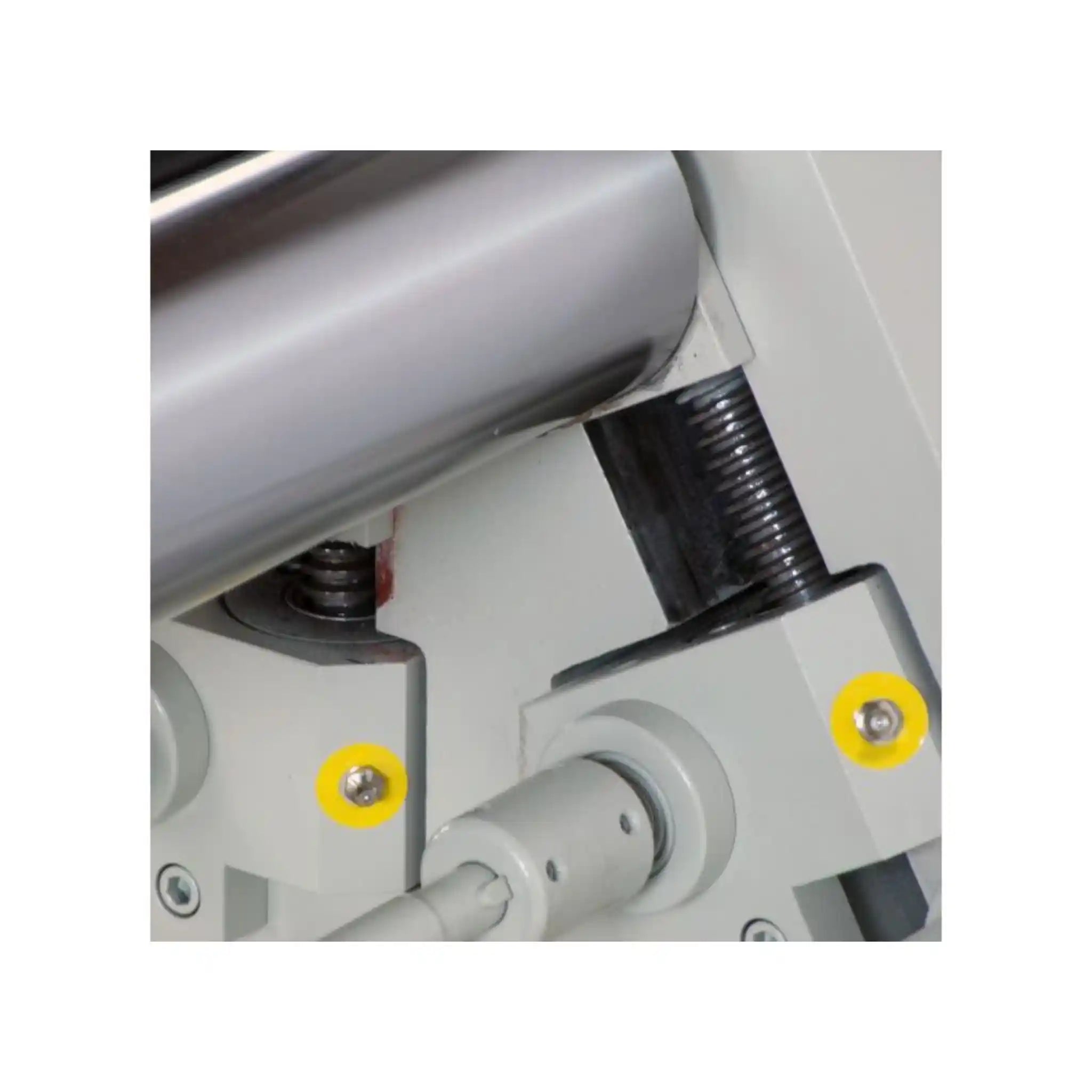

- Hydraulic Back Roll Control: The industrial-grade hydraulic system moves your back roll up and down with precision, and tilts left and right for coning operations. This means you can create both straight cylinders and tapered cone shapes for specialized applications

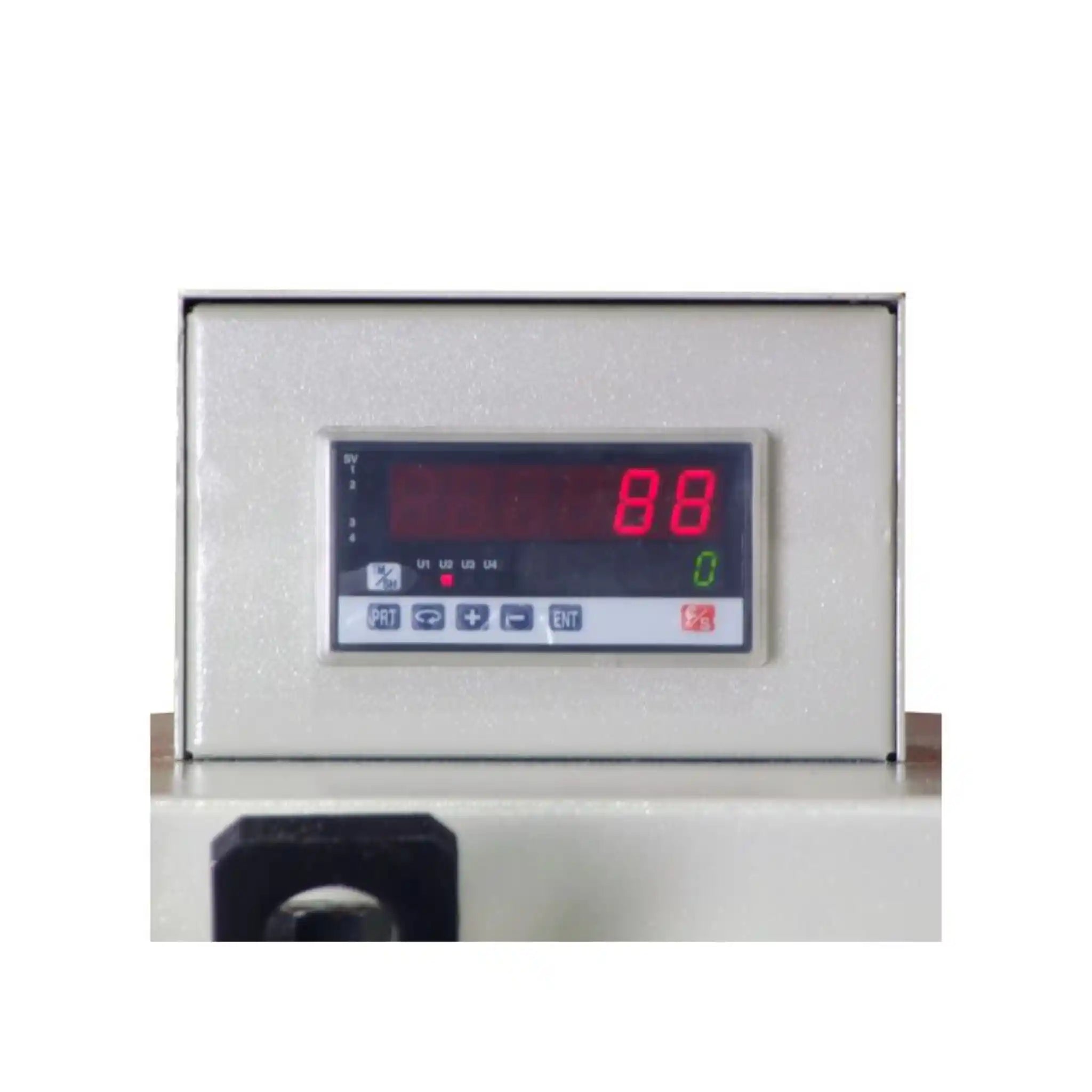

- Digital Readout for Repeatability: Never guess your settings again. The DRO displays the exact back roll position, allowing you to replicate successful bends consistently and reduce material waste from trial and error

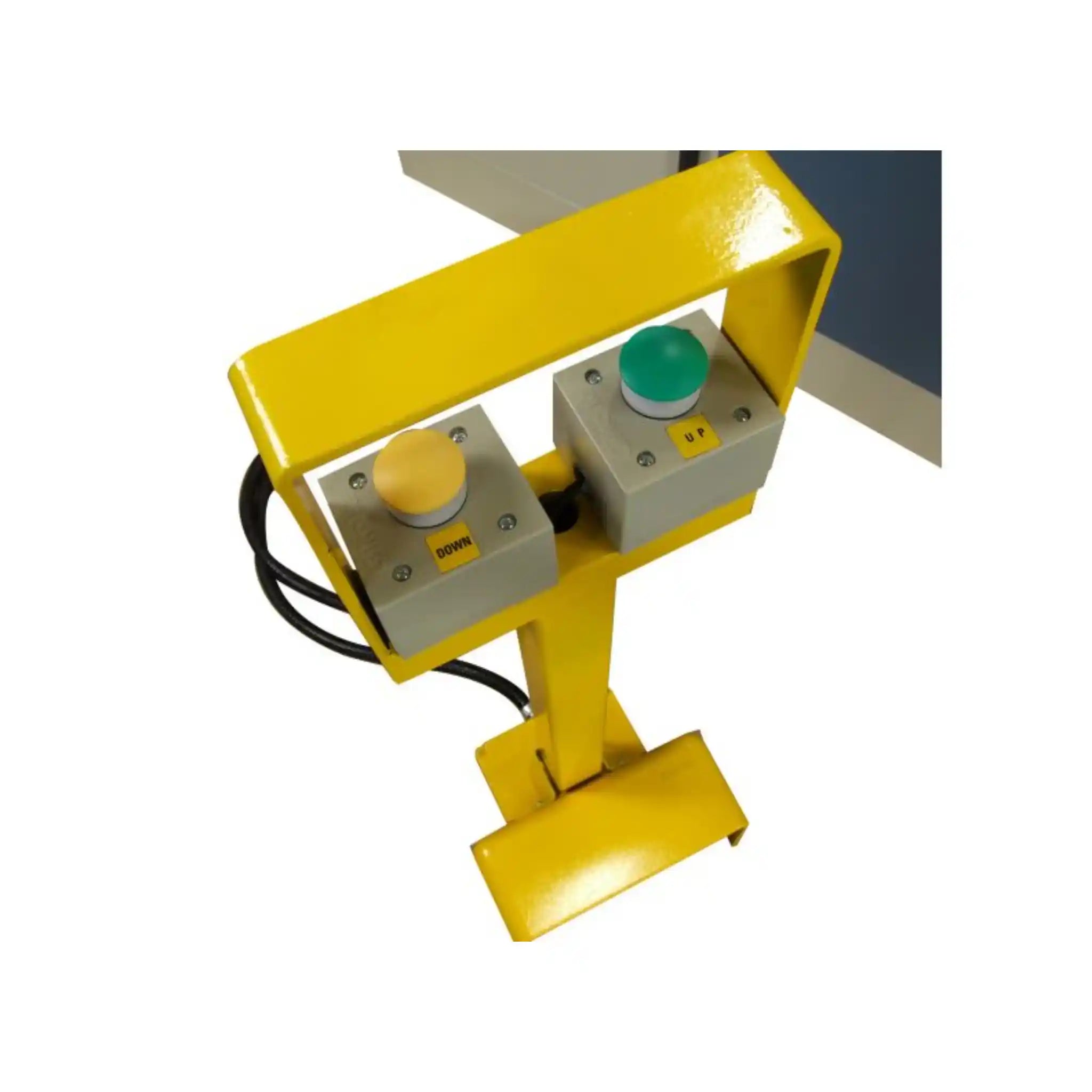

- Foot Pedal Operation: Keep your hands free to guide material through the rolls. Forward and reverse foot pedals, plus buttons for back roll adjustment, give you complete control without reaching for hand controls
- Three Driven Rolls: All three rolls are powered, ensuring smooth material feed and better control over thicker materials. This feature helps you achieve uniform curves without material slippage
- Standard Single-Phase Power: Runs on 220V single-phase electricity, which is available in most workshops. You won't need expensive three-phase power installations or converters

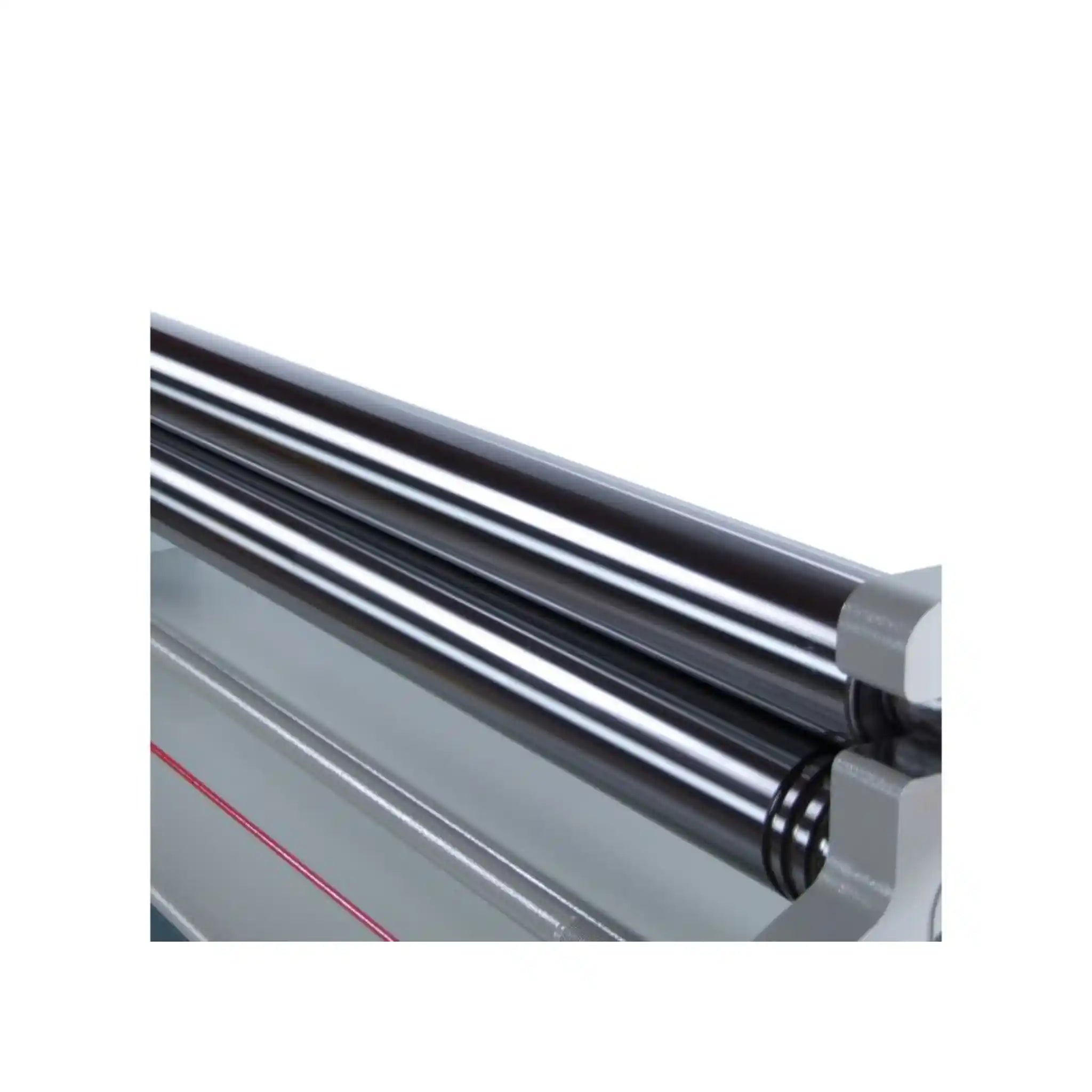

- Built-in Wire Grooves: Three wire grooves (9mm, 10mm, and 13mm) are machined into the rolls, ready when you need to form wire rings without additional tooling

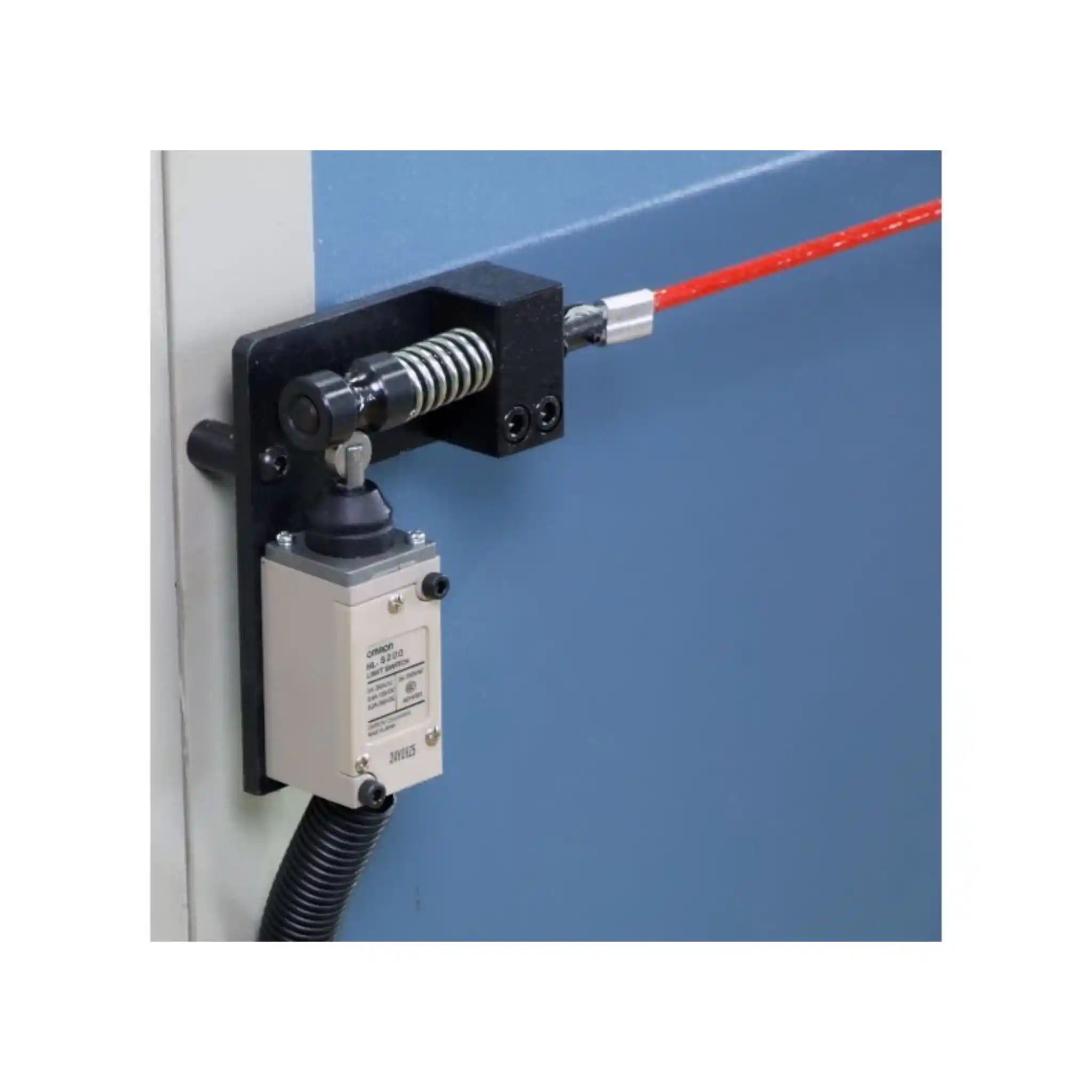

- Safety Features: Emergency stop cables on both the front and back of the machine ensure you can immediately halt operation from either side, protecting you and your team
What's in the Box
- Baileigh PR-413 Hydraulic Plate Roll (main unit)
- Foot pedal control station with forward/reverse controls
- Digital readout display unit
- Emergency stop cables (front and rear)
- Wire grooves (3 sizes: 9mm, 10mm, 13mm) integrated into rolls
- Operator's manual and technical documentation
- 1-year parts warranty
- Lifetime technical support by phone
Baileigh PR-413 Specifications
| Model Number | PR-413 |
|---|---|
| Forming Width | 1219mm (48") |
| Capacity (Mild Steel) | 2.3mm (13 gauge) |
| Number of Driven Rolls | 3 |
Baileigh PR-413 Manuals & Downloads
Frequently Asked Questions
How does the PR413 compare to a standard slip roll?
While slip rolls are excellent for lighter gauge materials, the PR-413 handles significantly thicker stock (up to 2.3mm mild steel) and provides hydraulic control for more precise bending. If you regularly work with 13 gauge or thicker material, this plate roll will save you time and expand your capabilities beyond what a slip roll can offer.
Can I create cones as well as cylinders?
Absolutely! The hydraulic system allows the back roll to tilt left and right, which is exactly what you need for coning operations. This means you can produce both straight cylinders and tapered cone shapes for funnels, hoppers, and specialized fabrication projects.
What kind of maintenance does the PR413 require?
The PR-413 is designed for minimal maintenance. Regular tasks include checking hydraulic fluid levels, keeping the rolls clean and lightly oiled to prevent rust, and ensuring all electrical connections remain secure. The machine's robust construction means it's built to withstand years of daily use without constant attention.
Do I need special power to run this machine?
No special power is required. The PR-413 runs on standard 220V single-phase power, which is commonly available in most workshops. You won't need to install expensive three-phase service or purchase power converters.
How accurate are the bends, and can I repeat them?
The digital readout gives you precise feedback on the back roll position, making it easy to replicate successful bends. The machined steel frame maintains tight tolerances even under full load, ensuring consistent accuracy across multiple pieces. This combination means you can confidently produce matching parts for projects requiring uniformity.
