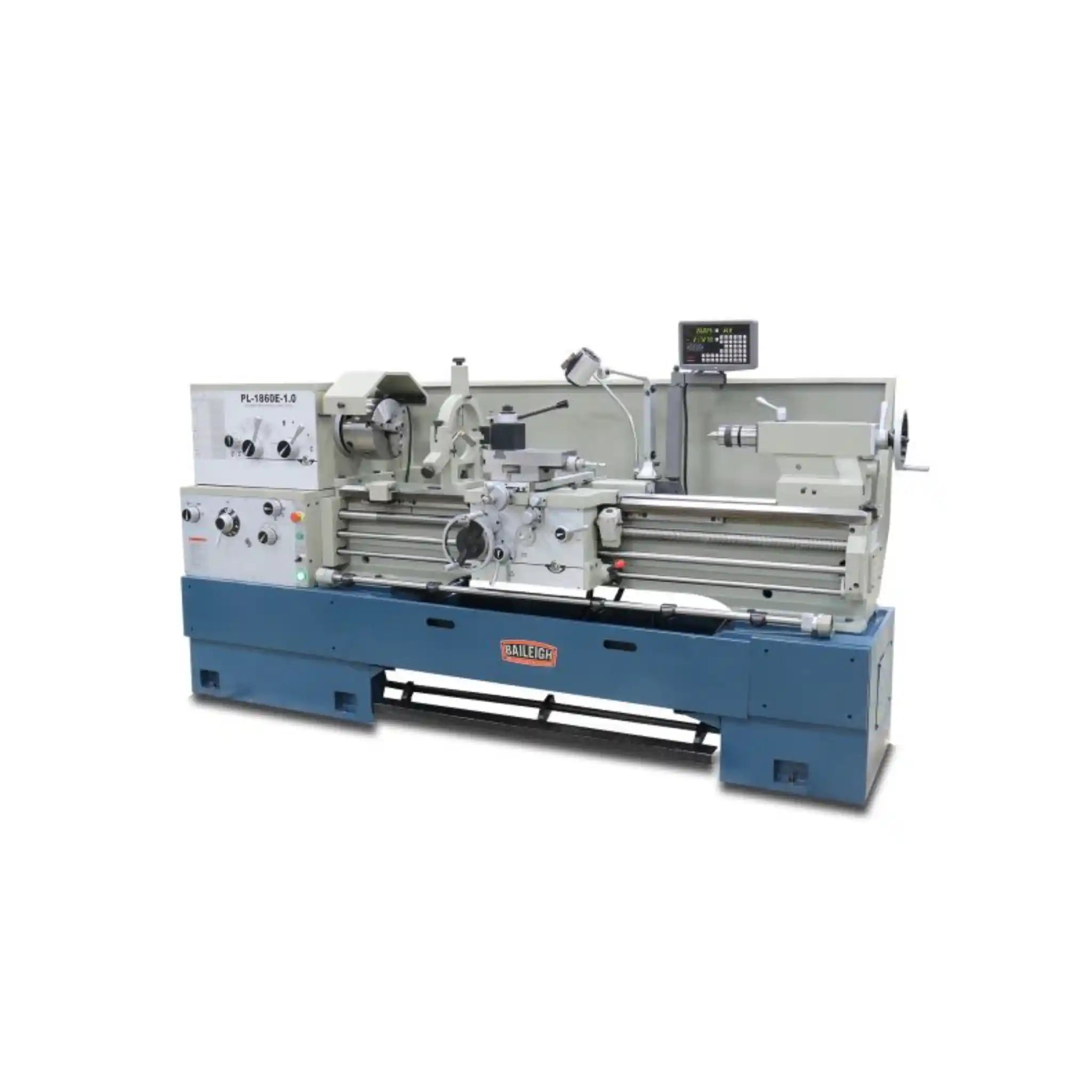

Baileigh PL-1860E Economical Precision Lathe
The Baileigh PL-1860E is a professional grade toolroom lathe that delivers exceptional value with features typically reserved for premium machines. With an 18-inch swing capacity, 60-inch between centers, and a robust 7.5 HP motor, this lathe gives you the precision and power needed for serious metalworking projects without breaking your budget.
Are you looking for a large capacity lathe that doesn't compromise on quality? The PL-1860E was designed specifically for small to mid sized machine shops, technical schools, and manufacturing facilities that need professional grade performance at an economical price point.
What sets this lathe apart is its impressive standard equipment package. You get features that most competitors charge extra for, including a 2-axis digital readout system for precise measurements, both 8-inch and 13-inch chucks for versatility, and an integrated coolant system that keeps your work cool during extended operations. The machine arrives fully assembled and ready to work, so you can start turning parts immediately without spending hours on setup.
Built on a massive cast iron base with precision ground, hardened, and polished ways, the PL-1860E delivers smooth, accurate movement and exceptional rigidity. The cross ribbed bed design adds structural integrity, while the gap lathe configuration gives you the flexibility to handle oversized diameter work when needed. With 12 variable spindle speeds ranging from 25 to 2000 RPM and 42 different feed options, you'll have precise control for everything from delicate finishing passes to aggressive material removal.
Applications
- Production Turning: Efficiently produce medium to large diameter shafts, bushings, and cylindrical components for manufacturing operations
- Prototype Development: Create one-off parts and prototypes with the precision and versatility needed for engineering applications
- Repair and Maintenance: Handle shaft repairs, bearing journals, and component refurbishment in maintenance shops and repair facilities

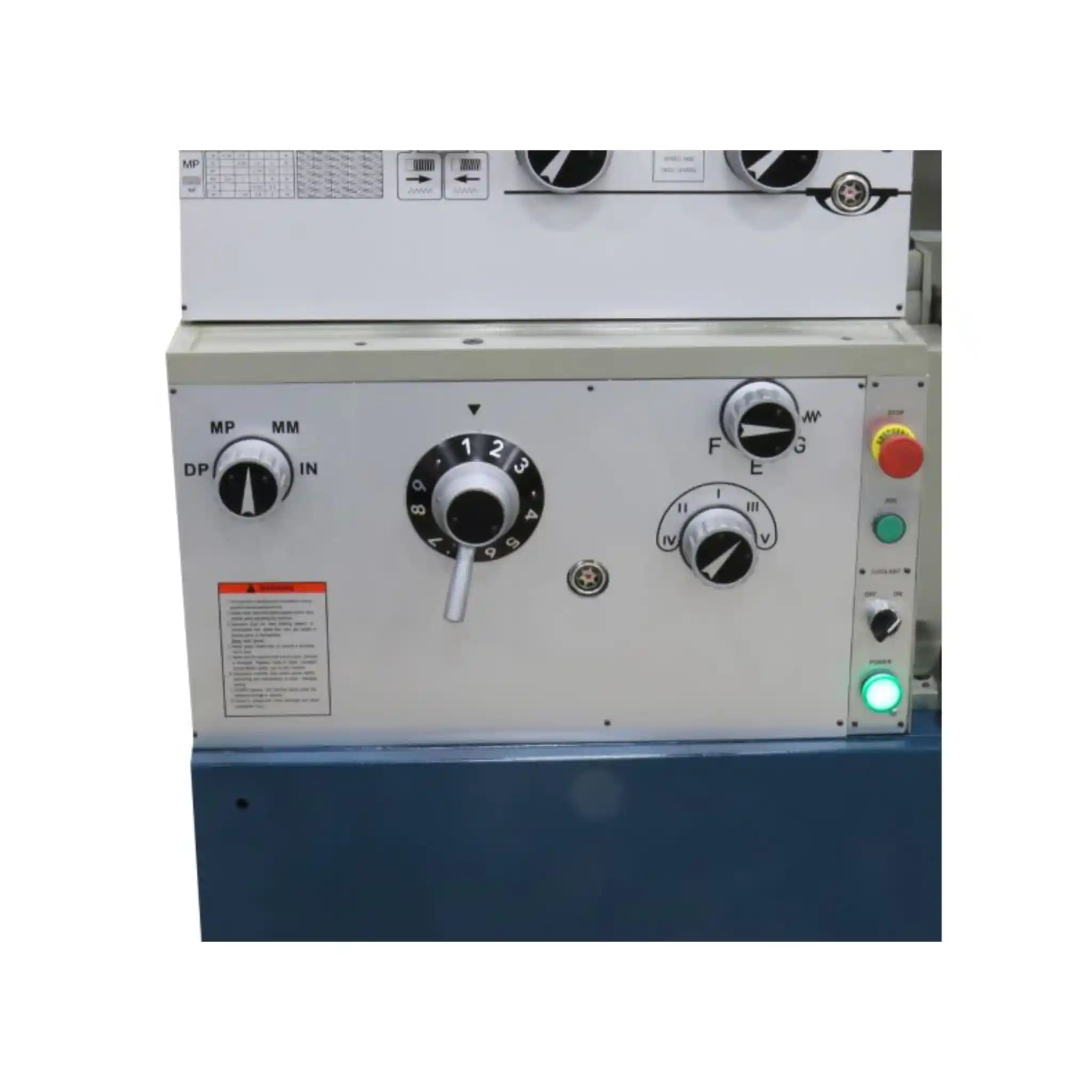

- Threading Operations: Cut precision metric, imperial, diametrical, and modular threads with 185 different thread options available
- Educational Training: Provide students with hands-on experience on professional-grade equipment that mirrors industry standards
- Tool and Die Work: Machine precision tooling components, fixtures, and custom dies with repeatable accuracy
Key Features & Benefits

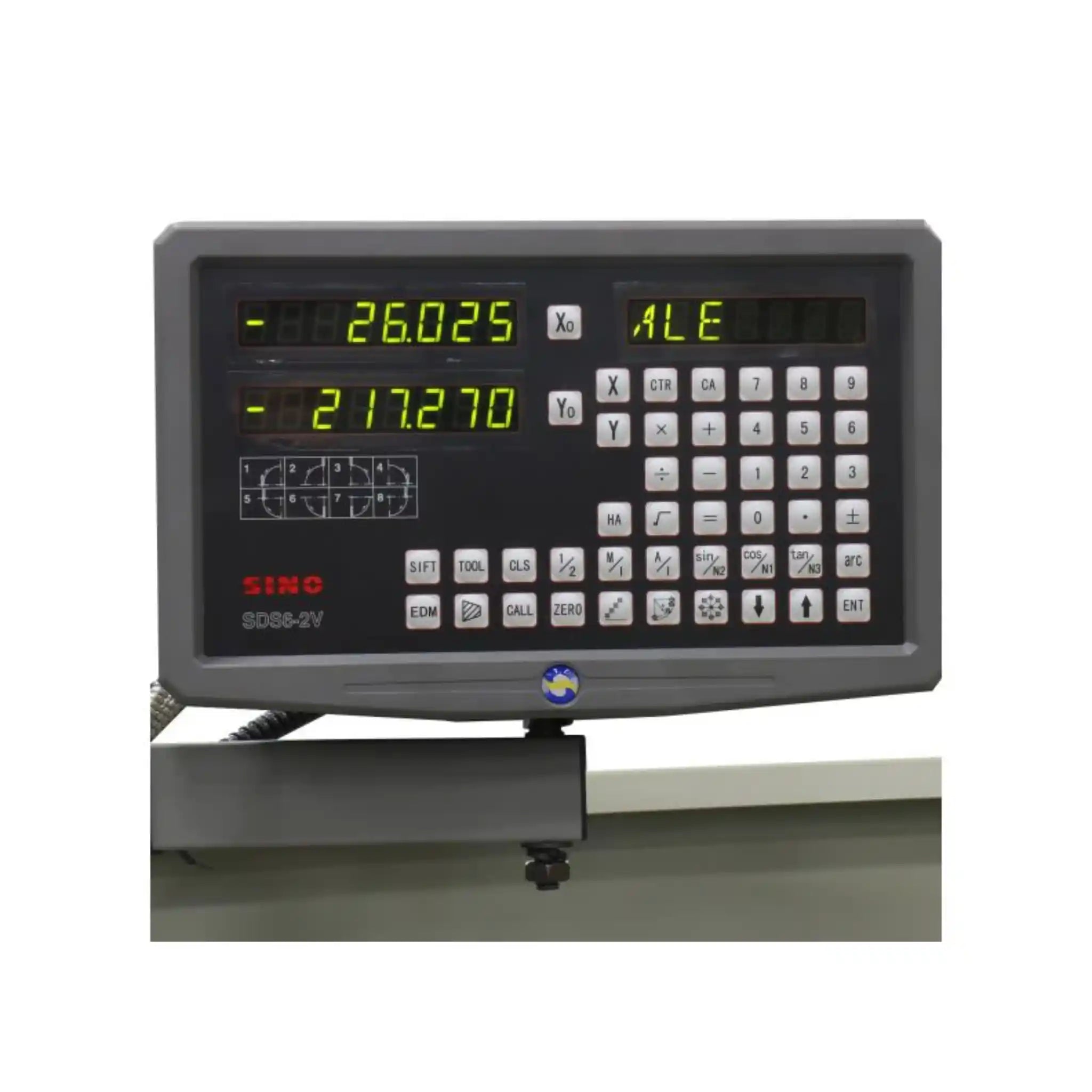

- 2-Axis Digital Readout (DRO) System: Stop squinting at dial indicators and eliminate calculation errors. The built-in DRO displays your exact position in real-time, helping you achieve tight tolerances consistently and work faster with confidence.

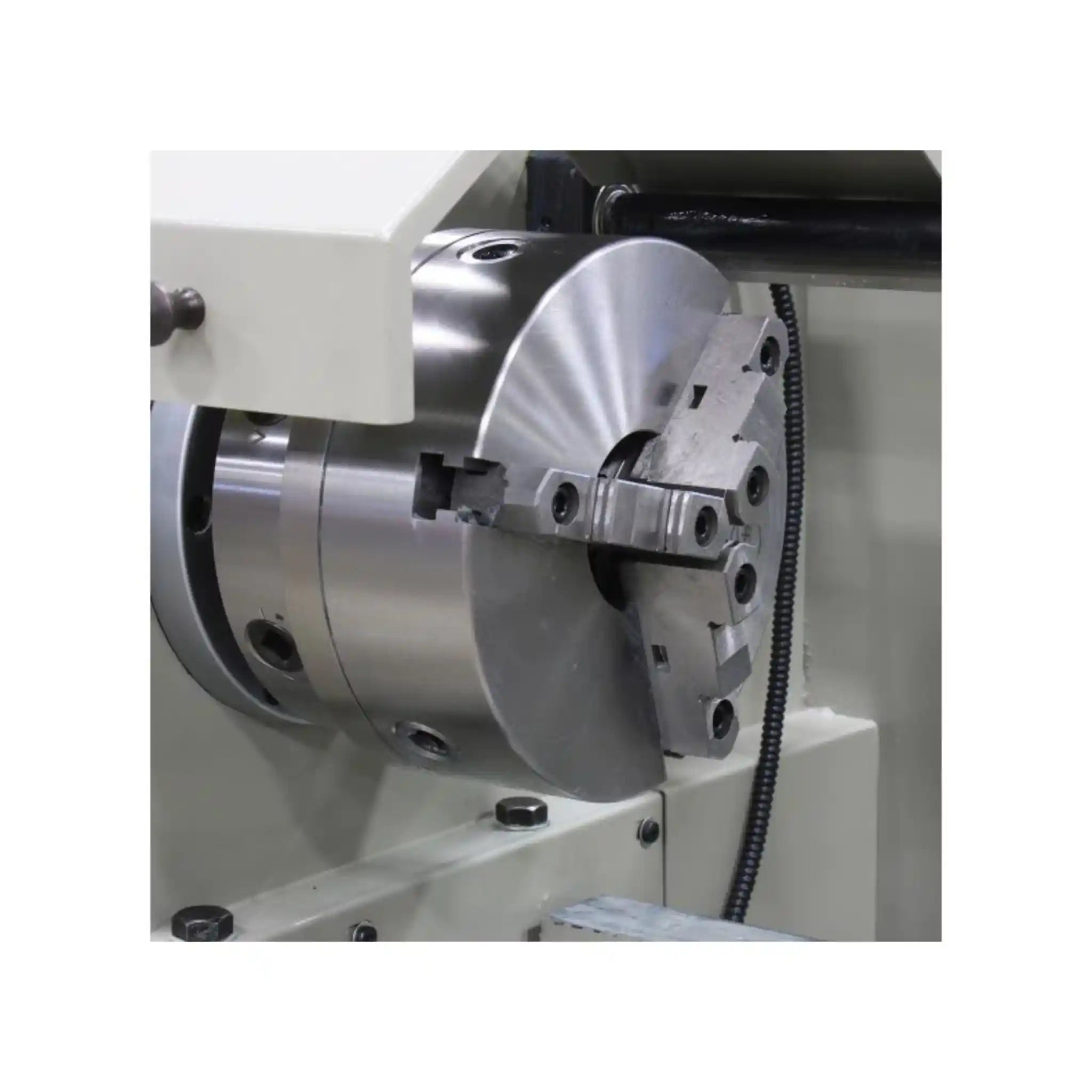

- Dual Chuck System Included: You get both an 8-inch 3-jaw universal chuck for quick, centered work and a massive 13-inch 4-jaw independent chuck for irregular shapes or off-center turning. This means you're ready for any project without additional investments.

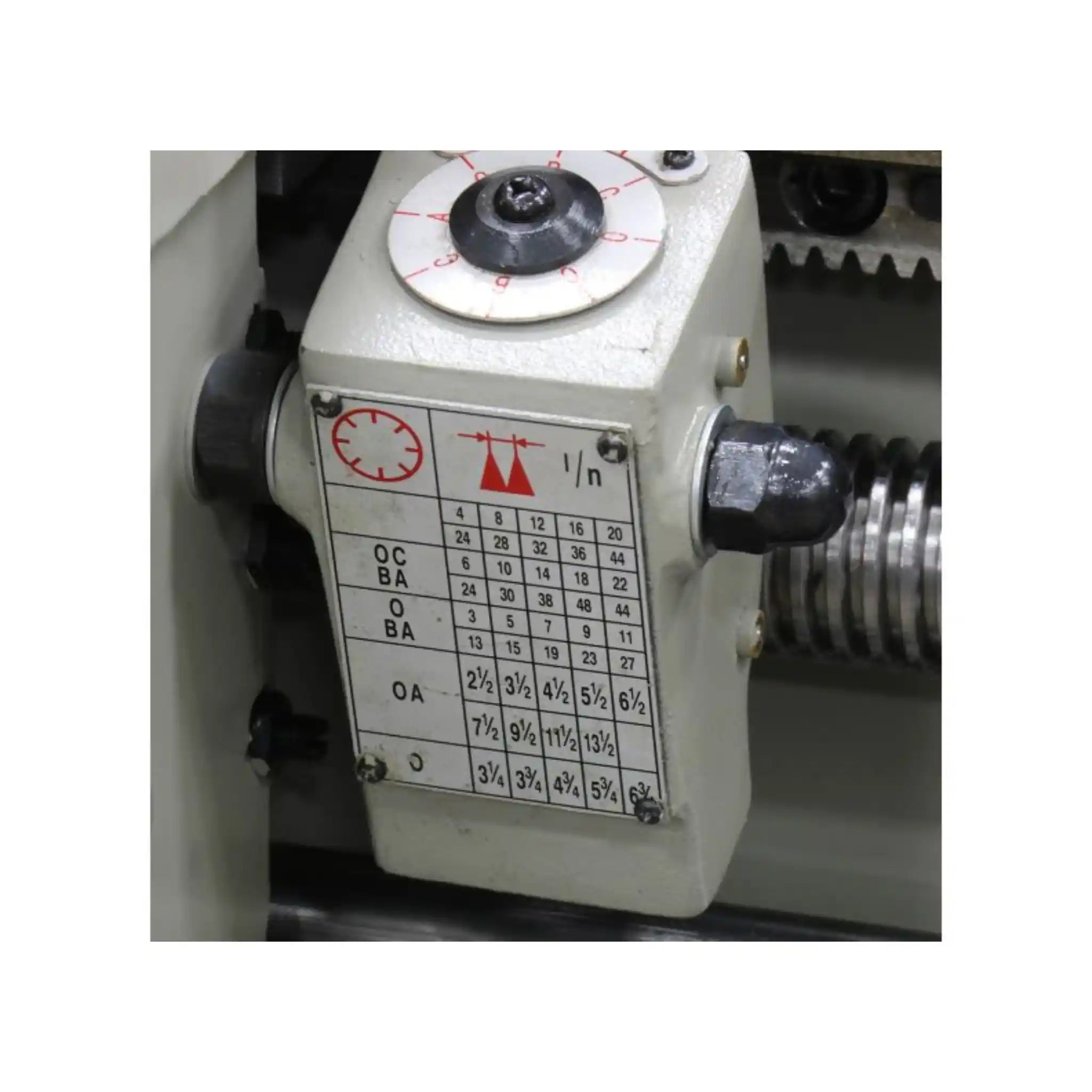

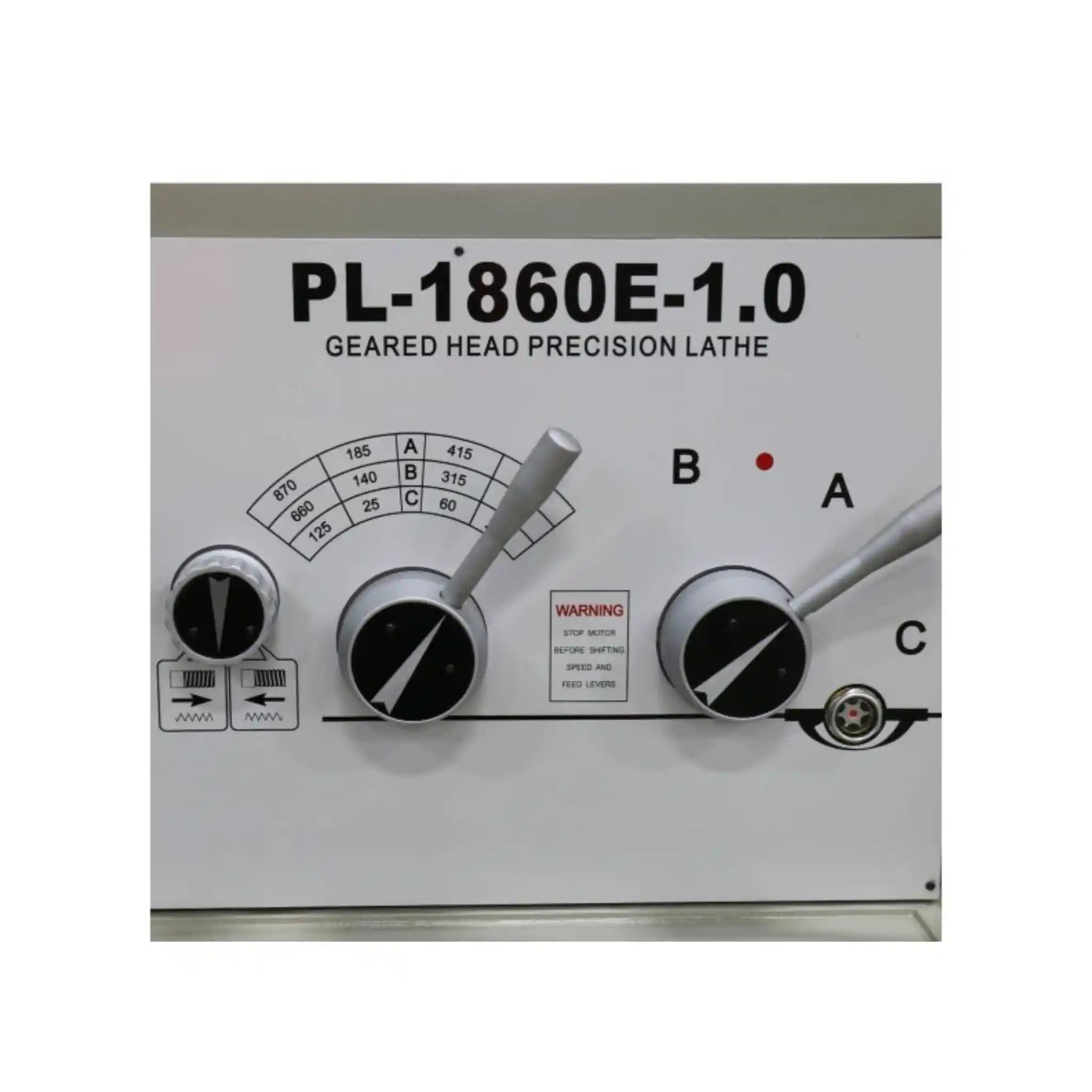

- Variable Speed Control (25-2000 RPM): Find the perfect speed for your material and cutting tool with 12 distinct speed settings. Whether you're finishing aluminum at high speeds or taking heavy cuts in steel at lower RPMs, you'll have the right speed for the job.

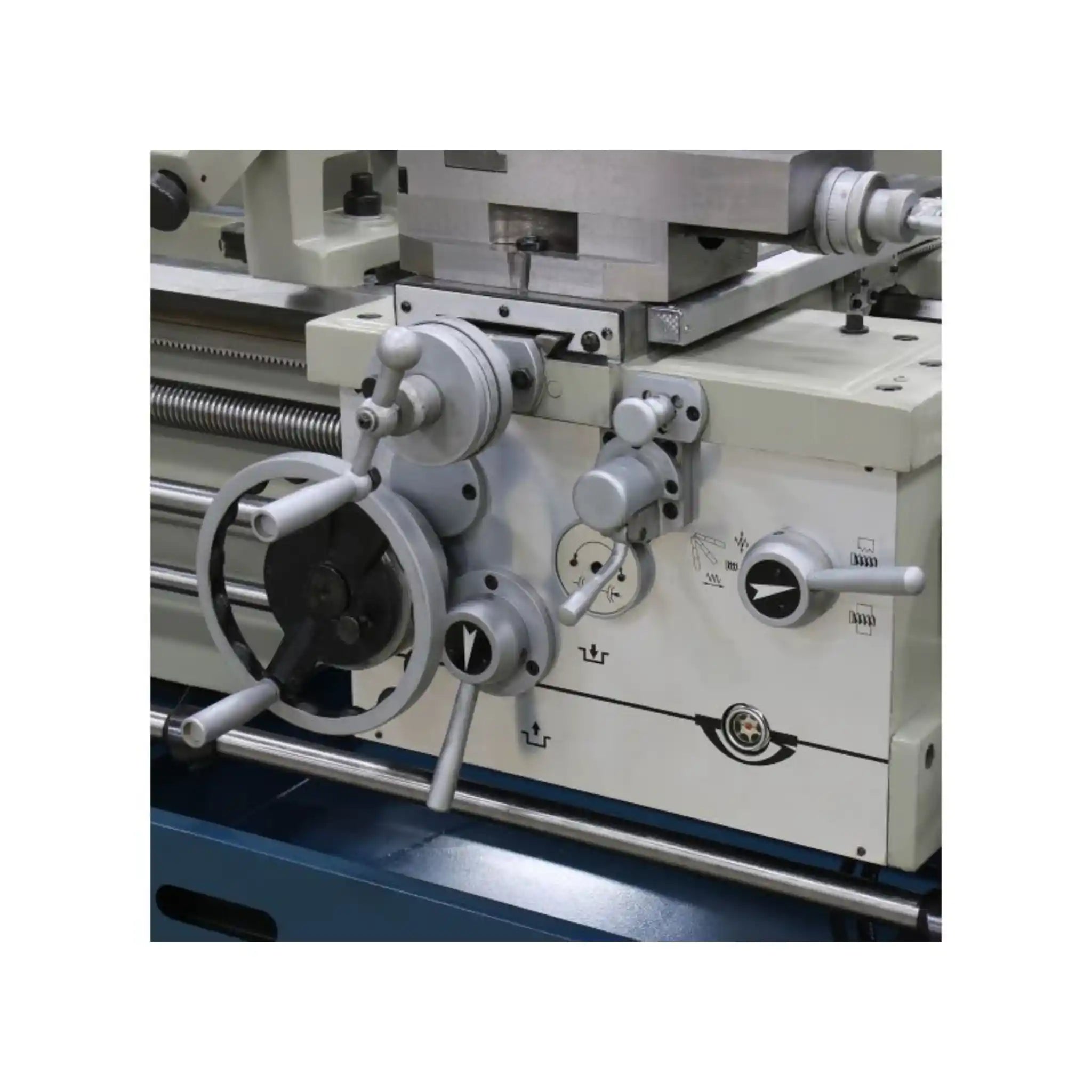

- Precision Ground and Polished Ways: Experience buttery-smooth carriage movement that translates to superior surface finishes. The hardened ways resist wear over time, maintaining accuracy for years even under demanding production conditions.
- Integrated Coolant System: Keep your cutting tools and workpieces cool during extended operations. The built-in coolant system with rear splash guard extends tool life, improves surface finish, and allows you to push your feeds and speeds without worry.
- Gap Lathe Design: Need to turn a large diameter flange or gear? Simply remove the gap section to accommodate workpieces up to 690mm (27 inches) in diameter, giving you flexibility when oversized projects come your way.
- Safety Features Built In: The headstock chuck guard includes an automatic safety switch that protects you during operation, while the emergency foot brake gives you instant stopping power when you need it most.
- Lifetime Technical Support: You're not just buying a machine, you're gaining a partner. Baileigh backs you up with lifetime phone support from their metalworking experts and maintains parts inventory at their Wisconsin headquarters for fast shipping when you need replacements.
What's in the Box
- Fully assembled PL-1860E precision lathe ready to operate
- 8-inch 3-Jaw Universal Chuck for quick, centered clamping of round stock
- 13-inch 4-Jaw Independent Chuck for irregular shapes and off-center work
- 8-inch Back Plate (standard mounting plate included)
- 2-Axis Digital Readout (DRO) factory installed and calibrated

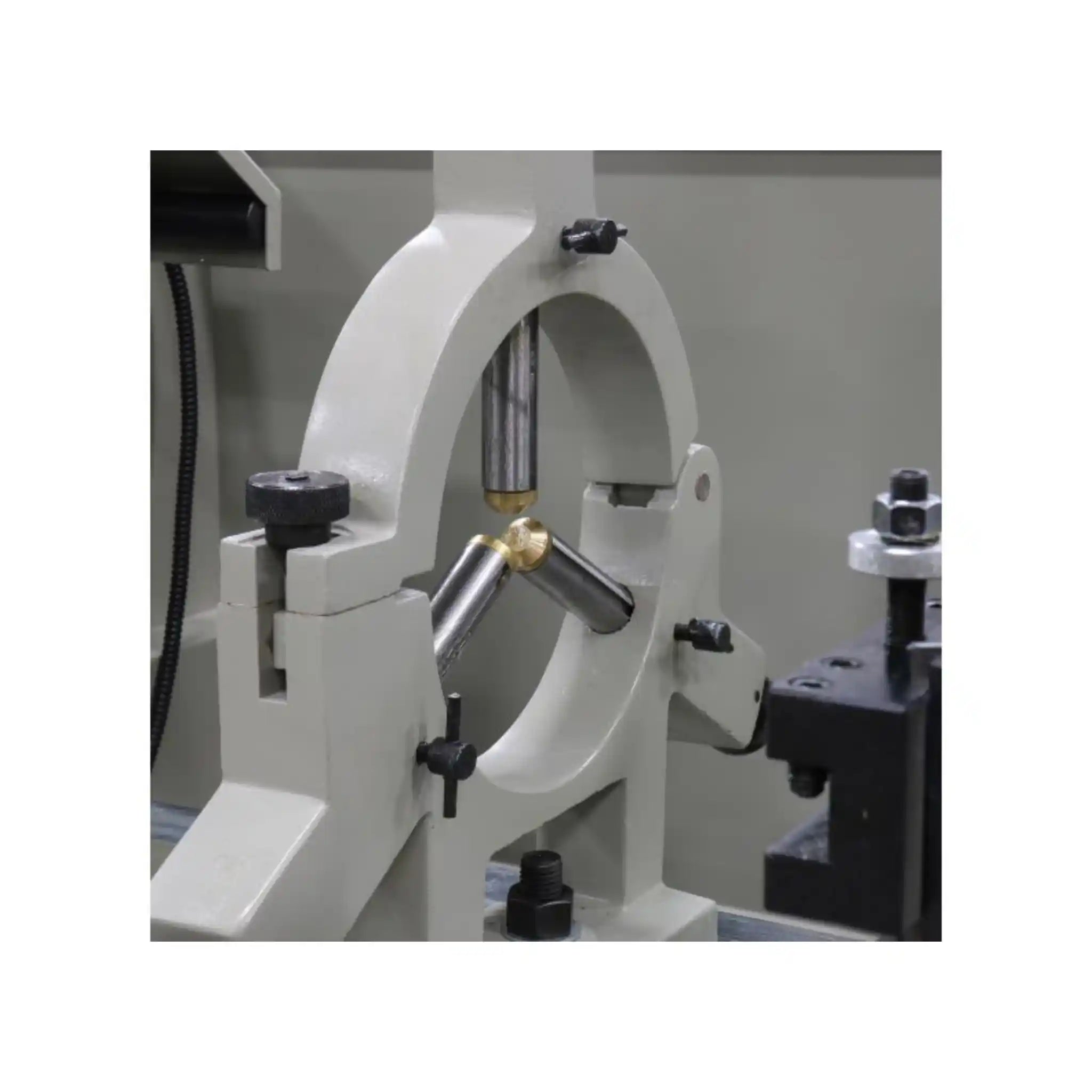

- Steady Rest to support long workpieces and prevent deflection
- Follow Rest that travels with the cutting tool for extended length operations
- Integrated Coolant System with pump, reservoir, and distribution nozzle
- Halogen Work Light to illuminate your work area for better visibility
- Headstock Chuck Guard with automatic safety microswitch
- Rear Splash Guard to keep coolant contained in the work area
- Emergency Foot Brake for immediate spindle stopping
- Operator's Manual with complete documentation for setup and operation
- 1-Year Parts Warranty for factory warranty coverage and peace of mind
Baileigh PL-1860E Specifications
| Max. Swing Over Bed | 460 mm (18.1") |
|---|---|
| Max. Swing Over Cross Slide | 274 mm (10.8") |
| Max. Swing In Gap (Diameter) | 690 mm (27.2") |
| Center Length (Between Centers) | 1530 mm (60.2") |
| Bed Width | 300 mm (11.8") |
| Spindle Bore | 58 mm (2.28") |
| Spindle Nose | D1-6" |
| Speed Range | 25 - 2000 RPM |
| Number of Speed Settings | 12 |
| Main Motor | 7.5 HP (5.6 kW) |
| Power Requirements | 400V, 3-phase |
| Cross Slide Travel | 230 mm (9.1") |

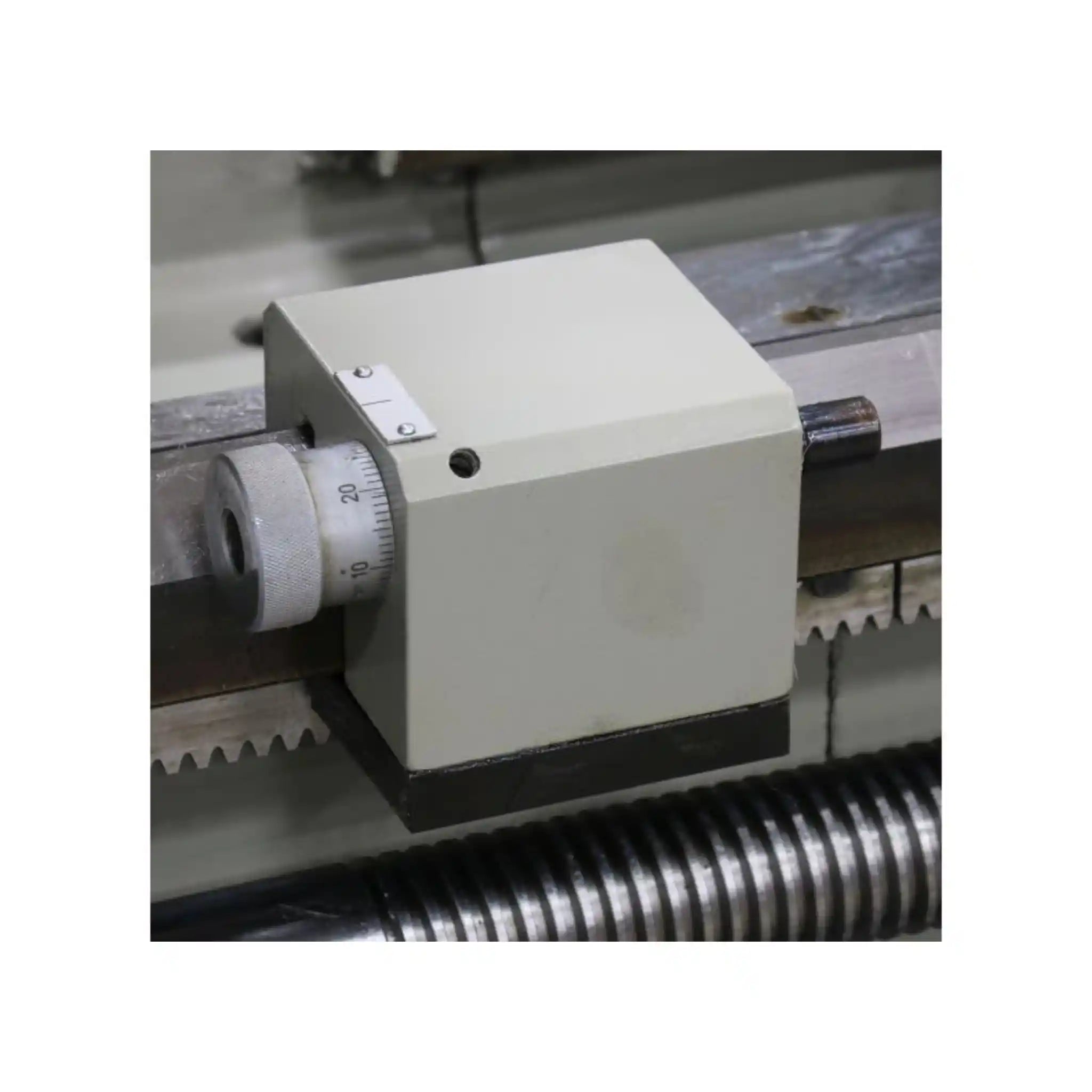

| Compound Rest Travel | 120 mm (4.7") |
| Shipping Weight | 2385 kg (5,258 lbs) |
| Shipping Dimensions | 2720 x 1040 x 1370 mm (107" x 41" x 54") |
Baileigh PL-1860E Manuals & Downloads
Frequently Asked Questions
What type of power supply do I need for the PL1860E?
The machine requires 400-volt, 3-phase electrical service, which is standard in most commercial and industrial facilities. If you're unsure about your power availability, consult with a licensed electrician before purchasing. Note that US models may operate on 220V 3-phase, so confirm specifications for your region.
Do I need special equipment to unload and install this lathe?
Yes, due to the substantial weight (2385 kg/5,258 lbs), you'll need either a loading dock with a forklift or a liftgate service from the freight carrier. The machine arrives fully assembled and requires minimal setup, just bolt it to the floor, connect power, and you're ready to work.
What's the difference between the 3jaw and 4jaw chucks included?
The 8-inch 3-jaw chuck automatically centers round stock, making it perfect for quick setup on symmetrical workpieces. The 13-inch 4-jaw chuck has independently adjustable jaws, giving you the ability to hold irregular shapes, work off-center, or handle larger diameter pieces with precision control.
Can this lathe handle both metric and imperial threading?

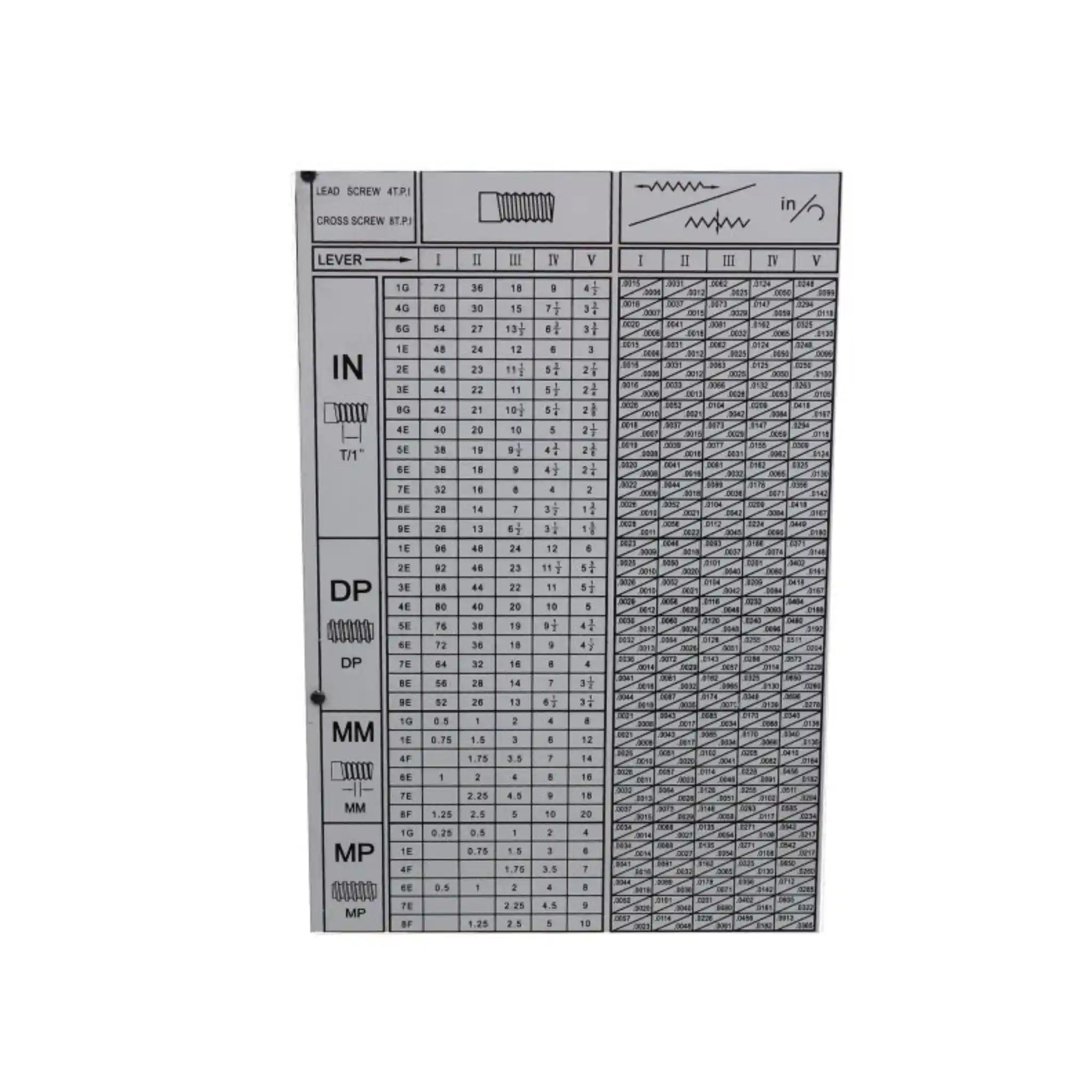

Absolutely! The PL-1860E offers comprehensive threading capabilities with 185 total thread options including 41 metric pitches, 60 imperial threads per inch, 50 diametrical pitches, and 34 module pitches. You can cut virtually any common thread type without additional attachments.
What kind of maintenance does the PL1860E require?
Regular maintenance is straightforward: keep the ways clean and properly lubricated, maintain proper coolant levels, and periodically check belt tension and alignment. The hardened, polished ways are highly wear-resistant, and Baileigh's lifetime technical support is available to guide you through any maintenance questions.
