Baileigh PL-1860 Precision Metal Lathe

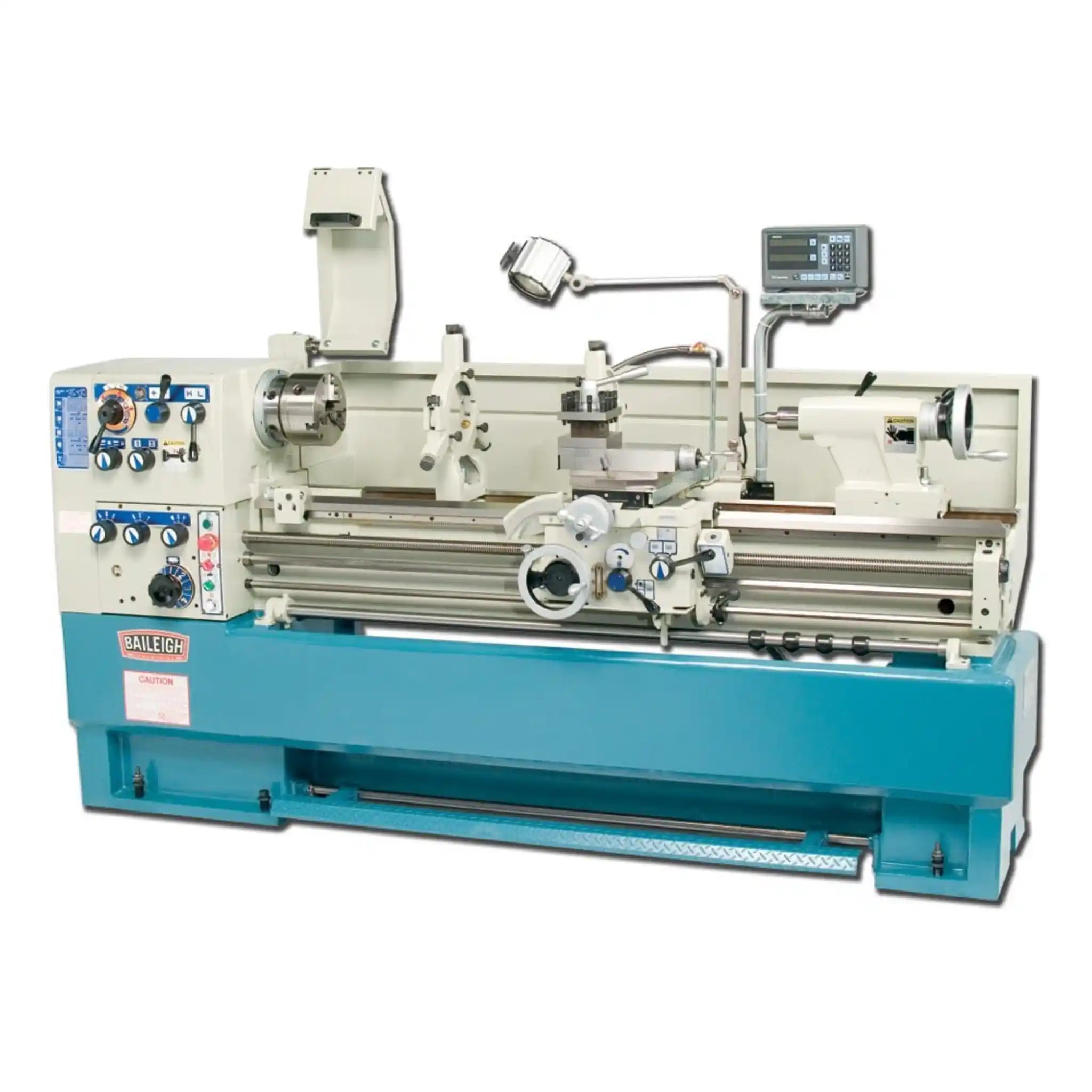

The Baileigh PL-1860 is a heavy duty precision engine lathe designed for professional machine shops and industrial facilities. With an impressive 18-inch swing over bed and 60 inch between centers, this powerhouse delivers exceptional accuracy and reliability for demanding metalworking applications.
When you need a lathe that can handle serious production work without compromising on precision, the PL-1860 stands ready to deliver. Built on a 100% cast iron base weighing 2,300 kg, this machine provides the rock solid foundation necessary for maintaining tight tolerances, even when you're pushing heavy cuts through tough materials.
You're getting professional-grade construction here. The precision ground and hardened slideways are coated with Turcite-B®, which means they'll glide smoothly for years while resisting wear, even under the most grueling conditions. The factory-installed Mitutoyo® 2-axis digital readout system takes the guesswork out of your measurements, helping you achieve consistent, high quality results on every job.
With 13 spindle speeds ranging from 31 to 2,000 rpm and a robust 7.5 hp motor, you have the versatility to tackle everything from delicate finishing passes to aggressive material removal. The gap lathe design is particularly clever: when you need to turn a larger diameter piece, simply remove a section of the slide to accommodate workpieces up to 640mm in diameter.
Applications
- Production Machining: High-volume manufacturing where consistency and reliability are non-negotiable. The DRO system and rigid construction ensure repeatable accuracy across hundreds of parts.
- Precision Threading: Create metric threads (54 options from 0.414mm pitch), imperial threads (41 options from 256 TPI), diametrical threads (33 options), and module threads (45 options) with confidence.
- Heavy-Duty Turning: Remove substantial material quickly thanks to the 7.5 hp motor and 13-speed gearbox. Perfect for roughing operations on large diameter workpieces.
- Tool Room Work: The gap lathe configuration lets you handle oversized components that won't fit on standard lathes, making it ideal for repair work and custom fabrication.
- Educational Facilities: Technical schools and training centers benefit from the comprehensive feature set, helping students learn on professional equipment.
- Automotive and Aerospace Components: Machine shafts, flanges, bushings, and custom parts to exacting specifications with the precision ground ways and DRO system.
Key Features & Benefits
- Cast Iron Construction You Can Count On: Your lathe is built from 100% cast iron, not a composite base with a cast iron bed. This means superior vibration damping, thermal stability, and longevity.
- Mitutoyo® Digital Readout System: Stop squinting at manual dials. The factory-installed 2-axis DRO gives you precise, real-time position feedback for faster setups and fewer measuring errors.
- Turcite-B® Protected Ways: The precision-ground and hardened slideways are coated with Turcite-B®, a low-friction material that protects against wear and provides smooth, consistent movement throughout the machine's lifespan.
- Versatile Threading Capabilities: With 54 metric thread options, 41 imperial options, 33 diametrical options, and 45 module options, you can handle virtually any threading requirement that comes through your shop.
- Gap Lathe Flexibility: Need to turn a flange or disk that exceeds the standard swing? The removable gap section increases your maximum swing to 640mm (25.2 inches) in diameter.
- Powerful 7.5 HP Motor with 13 Speeds: The robust motor combined with 13 speed settings (31 to 2,000 rpm) means you always have the right combination of torque and speed for your material and operation.
- Comprehensive Feed Options: With 41 longitudinal feed options and 41 cross feed options, you have precise control over your cutting parameters for optimal surface finish and tool life.
- Integrated Safety Features: The headstock chuck guard with automatic safety switch protects you from accidents, and the emergency foot brake provides additional peace of mind during operation.
What's in the Box
- PL-1860 Precision Engine Lathe (fully assembled)

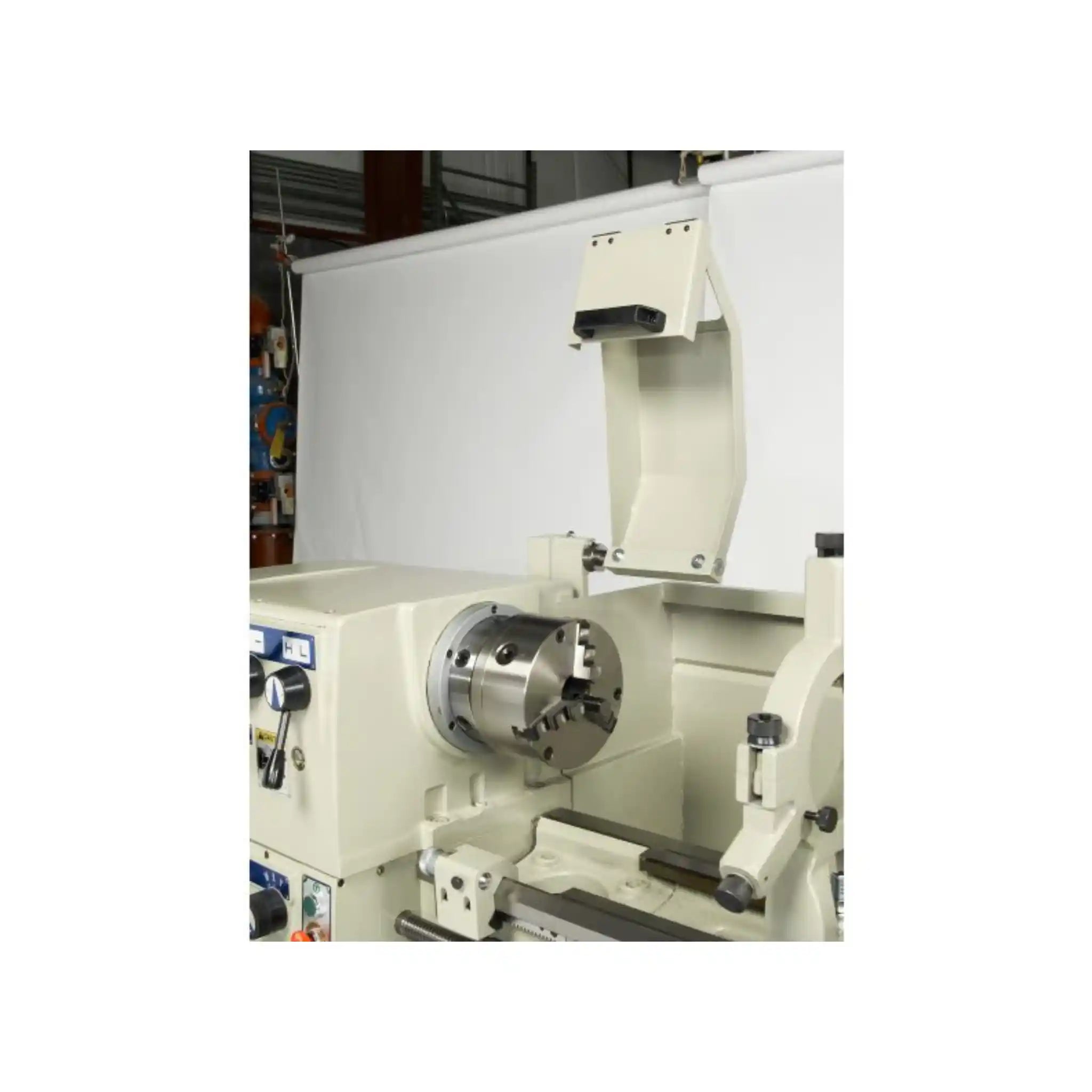

- 8-inch 3-Jaw Universal Chuck for quick workpiece setup
- 8-inch Back Plate for mounting custom fixtures
- Steady Rest for supporting long, slender workpieces
- Follow Rest for additional support during turning operations
- Mitutoyo® 2-Axis Digital Readout System (factory installed)
- Micrometer Saddle Stop for precise length control and repeatable operations
- Integrated Coolant System with 1/8 HP Pump and rear splash guard
- Halogen Work Light for improved visibility of your cutting zone
- Emergency Foot Brake for quick stops when needed
- Headstock Chuck Guard with Automatic Safety Switch
- Operator's Manual and documentation
- 1-Year Parts Warranty with lifetime technical support
Baileigh PL-1860 Specifications
| Model Number | PL-1860 |
|---|---|
| Motor Power | 7.5 hp (5.5 kW) |
| Power Requirement | 400V Three-Phase |
| Speed Range | 31 to 2,000 rpm |
| Number of Speeds | 13 |
| Spindle Bore | 60 mm (2.36") |
| Center Length (Distance Between Centers) | 1,524 mm (60") |
| Center Height | 230 mm (9.06") |
| Max. Swing Over Bed | 458 mm (18.03") |
| Max. Swing Over Cross Slide | 288 mm (11.34") |
| Max. Swing in Gap (Diameter) | 640 mm (25.2") |
| Max. Swing in Gap (Length) | 155 mm (6.1") |
| Bed Length | 17,173 mm |
| Bed Width | 300 mm (11.81") |
| Bed Height | 310 mm (12.2") |
| Coolant Motor | 1/8 hp |
| Warranty | 1-year parts warranty, lifetime technical support |
Baileigh PL-1860 Manuals & Downloads
Frequently Asked Questions
What type of power do I need to run this lathe?
The PL-1860 requires 400V three-phase power. You'll need to ensure your facility has the appropriate electrical service. If you only have single-phase power available, you may need to install a rotary phase converter or consult with an electrician about upgrading your service.
Is assembly required when the lathe arrives?
No extensive assembly is required. The lathe ships as a complete unit, though you'll need appropriate equipment (forklift or overhead crane) to move it off the delivery truck and position it in your shop. You should have a loading dock or lift gate service arranged. Once in place, you'll need to level the machine, connect the electrical supply, and perform the initial setup procedures outlined in the operator's manual.
What ongoing maintenance does this lathe require?
Regular maintenance is straightforward. Keep the ways clean and properly lubricated, check oil levels in the gearbox and apron, ensure the coolant system is filled and clean, and periodically inspect belts and adjust as needed. The Turcite-B® coating on the ways significantly reduces wear and maintenance compared to uncoated lathes. Detailed maintenance schedules are provided in your operator's manual.
Can this lathe handle stainless steel and other difficult materials?
Absolutely. The 7.5 hp motor and rigid cast iron construction give you the power and stability needed for challenging materials like stainless steel, Inconel, and hardened alloys. The variable speed ranges and comprehensive feed options let you optimize cutting parameters for different materials. The integrated coolant system helps manage heat during heavy cuts in difficult materials.
What if I need replacement parts or technical support?
Baileigh backs the PL-1860 with a 1-year parts warranty and lifetime technical support. Replacement parts are kept in stock at their Wisconsin headquarters for fast shipping. You can call their team of experienced metalworking experts any time you need assistance, whether you're troubleshooting an issue, optimizing cutting parameters, or planning a complex setup.
How does the gap lathe feature work?
The gap lathe design allows you to remove a section of the bed near the headstock. This increases your maximum swing capacity from 458mm over the bed to 640mm in diameter for short workpieces (up to 155mm in length). It's perfect for machining large diameter flanges, gears, or face plates that wouldn't fit in the standard configuration. The removable section reinstalls easily when you need the full bed length support.
