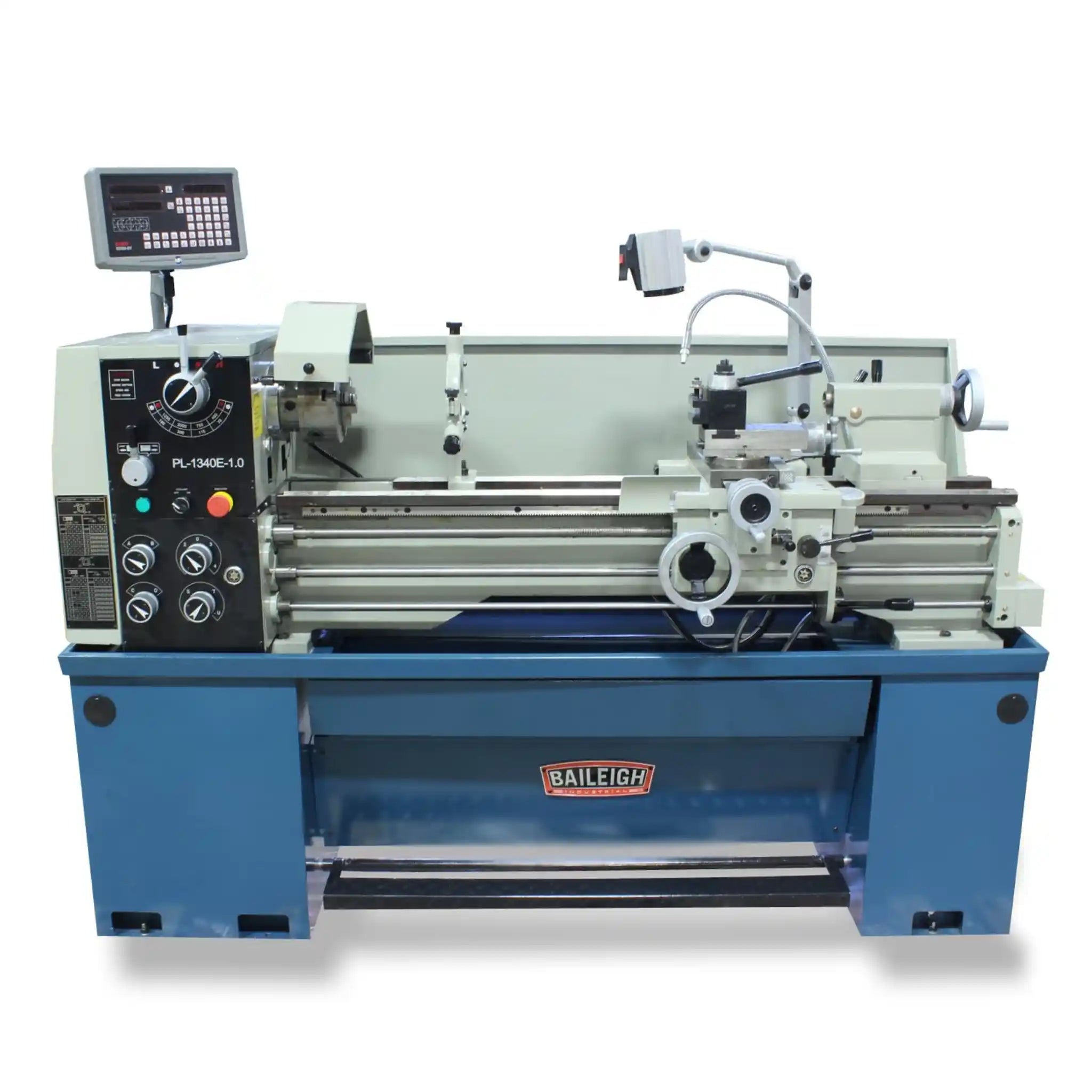

Baileigh PL-1340E Economical Precision Lathe
The Baileigh PL-1340E is a gear head precision metal lathe that delivers professional grade performance at an entry level price, making it the perfect solution for small to medium sized machine shops, educational facilities, and fabrication shops looking to upgrade without breaking the bank.
Are you tired of outdated equipment holding back your shop's productivity? The Baileigh PL-1340E metal lathe changes the game by offering features that competing models simply don't include. Right out of the crate, you'll find a digital readout (DRO) system and quick change tool post already installed, saving you time and money on upgrades.
This isn't just another entry level lathe. The PL-1340E comes built with precision ground and hardened ways that maintain tight tolerances for years, ensuring your work stays accurate project after project. The high quality castings deliver smooth, chatter free cuts that extend your tooling life and improve finish quality. With a 13" swing over bed and 40" between centers, you have plenty of capacity for a wide range of turning projects.
What really sets this lathe apart is its convenience. Running on 220-volt single phase power means you can plug it in almost anywhere without expensive three phase installation. The eight spindle speeds from 70 to 2000 RPM give you the flexibility to tackle everything from delicate finishing passes to aggressive roughing cuts. Whether you're producing custom parts, repairing machinery, or teaching the next generation of machinists, the PL-1340E gives you professional results without the professional price tag.
Applications
- Precision shaft and spindle turning: Create custom machinery components and repair work with professional accuracy
- Threading operations: Cut both metric and standard threads on bolts, studs, and custom fasteners
- Automotive restoration and modification: Refinish brake rotors, produce custom axles, and machine engine components
- Educational training programs: Provide schools with reliable, feature-rich equipment for teaching machining fundamentals
- Small batch production runs: Manufacture custom parts, prototypes, and specialty components efficiently
- Gunsmithing projects: Perform barrel threading, action work, and custom firearms component fabrication
Key Features & Benefits
- Pre-installed Digital Readout (DRO): Track your measurements with precision and repeatability, eliminating costly errors and reducing setup time. This feature alone saves you hundreds of dollars compared to other entry-level lathes.
- Quick-Change Tool Post: Stop wasting time screwing and unscrewing tool holders. Switch between tools in seconds, not minutes, keeping your workflow smooth and your productivity high.
- Precision-Ground and Hardened Ways: These aren't just any slideways. The hardened, ground surfaces maintain accuracy over years of use, so your tolerances stay tight even after thousands of hours of operation.
- Versatile Threading Capability: Cut both metric (0.4 to 7 mm) and standard threads without special equipment. Whether you're working on European machinery or American parts, you're covered.
- Dual Chuck System Included: The 6" three-jaw chuck handles round stock quickly, while the 8" four-jaw chuck grips square, irregular, or off-center work. You get the flexibility to tackle any project that comes through your door.

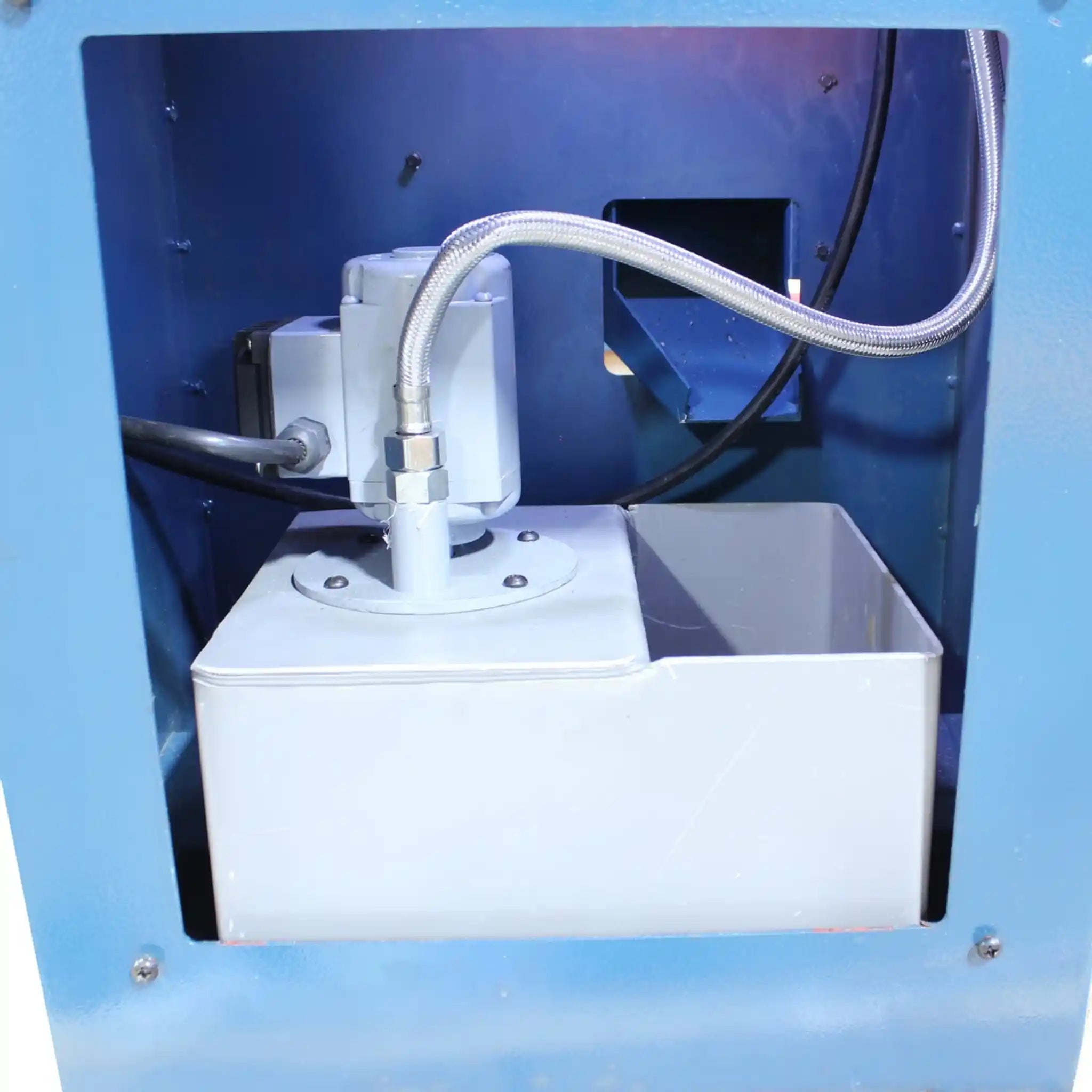

- Integrated Coolant System: Extend tool life and improve surface finish with the built-in coolant delivery. The splash guard keeps your work area cleaner and safer.
- Emergency Foot Brake: Stop the spindle instantly when needed. This safety feature gives you peace of mind and quick control in unexpected situations.
- Halogen Work Light: See what you're cutting with the included work light. Better visibility means better accuracy and safer operation, especially during intricate work.
What's in the Box
- Baileigh PL-1340E Precision Metal Lathe
- 6" Three-Jaw Chuck (self-centering)
- 8" Four-Jaw Chuck (independent)
- Face Plate for mounting large, short workpieces

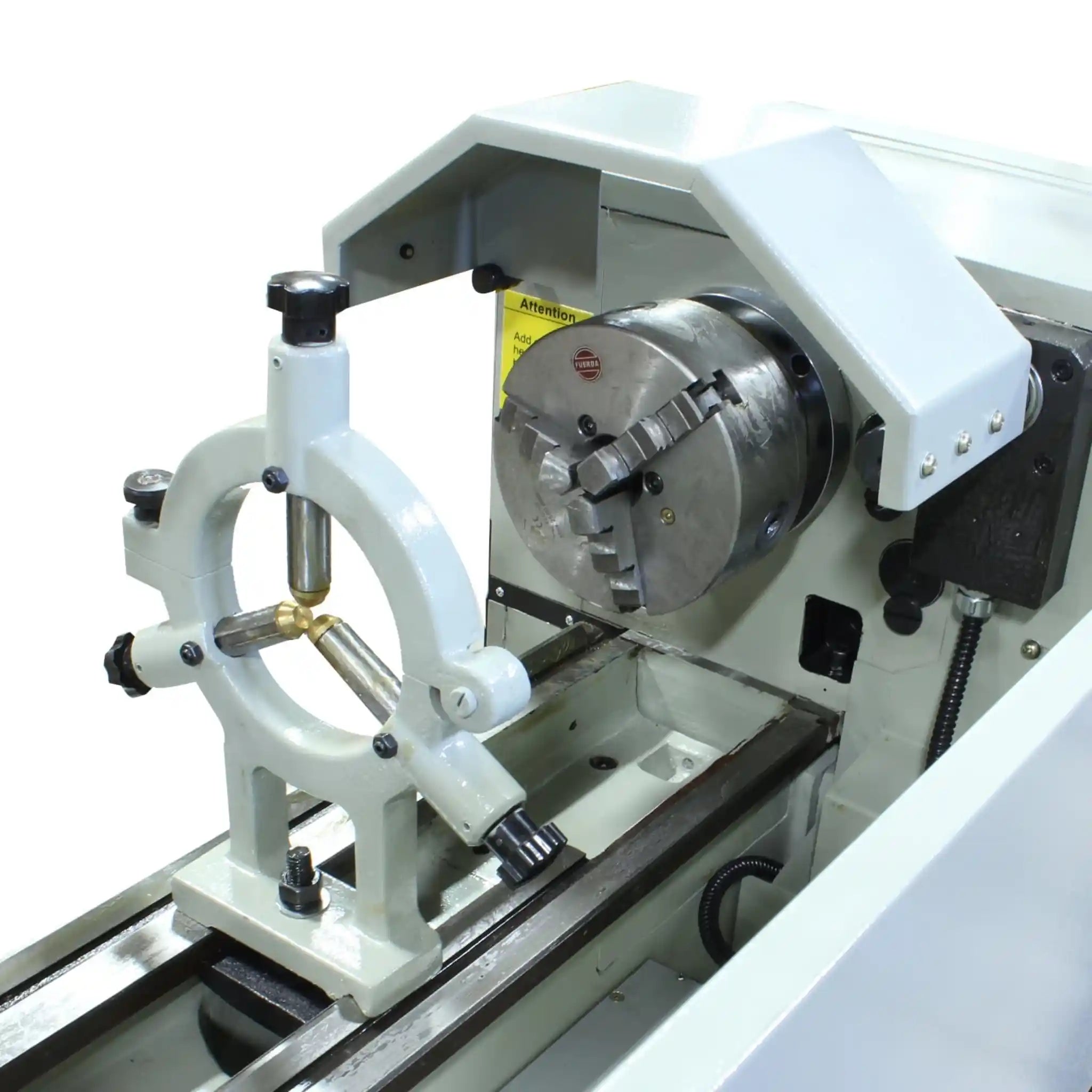

- Steady Rest for supporting long, slender work

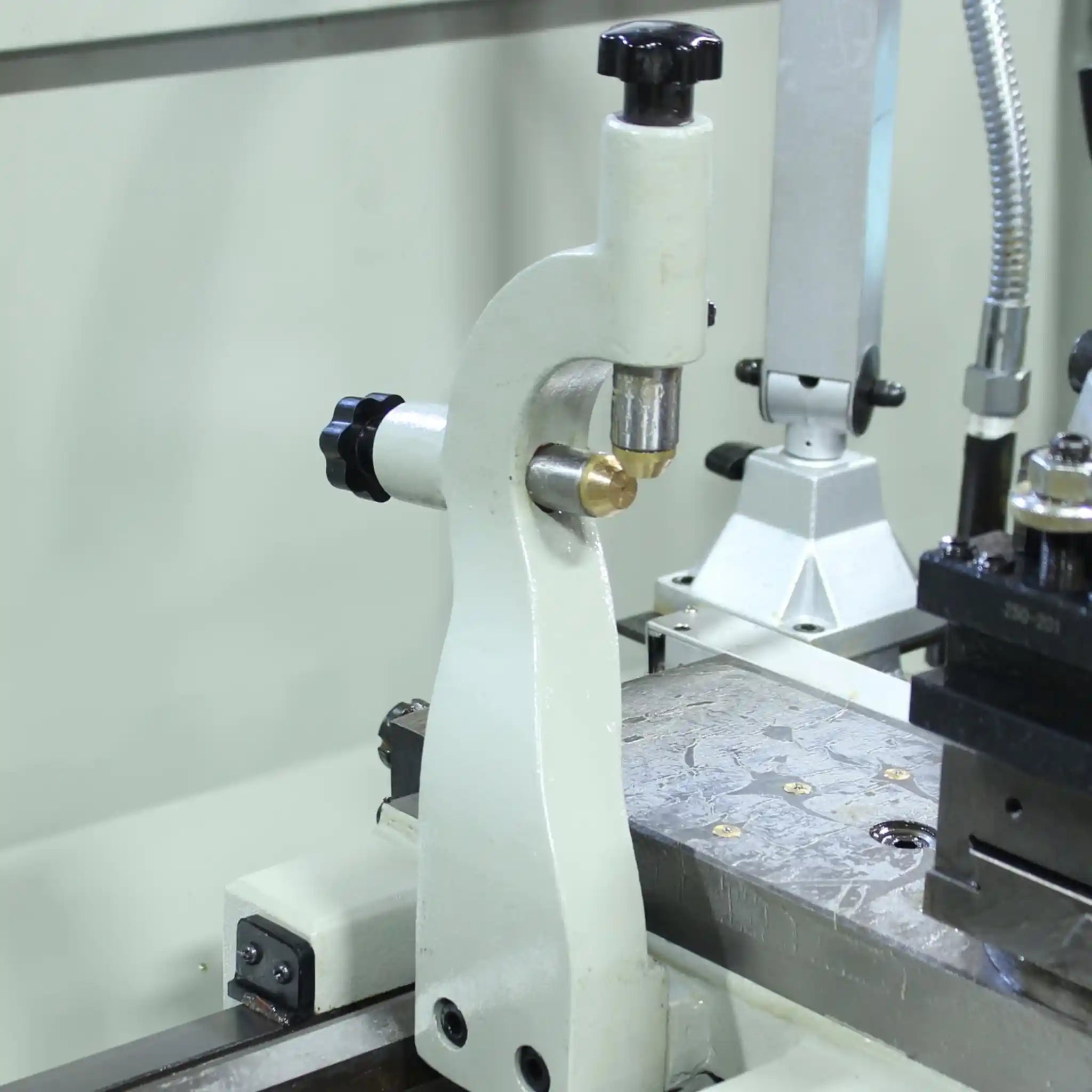

- Follow Rest for additional shaft support during turning

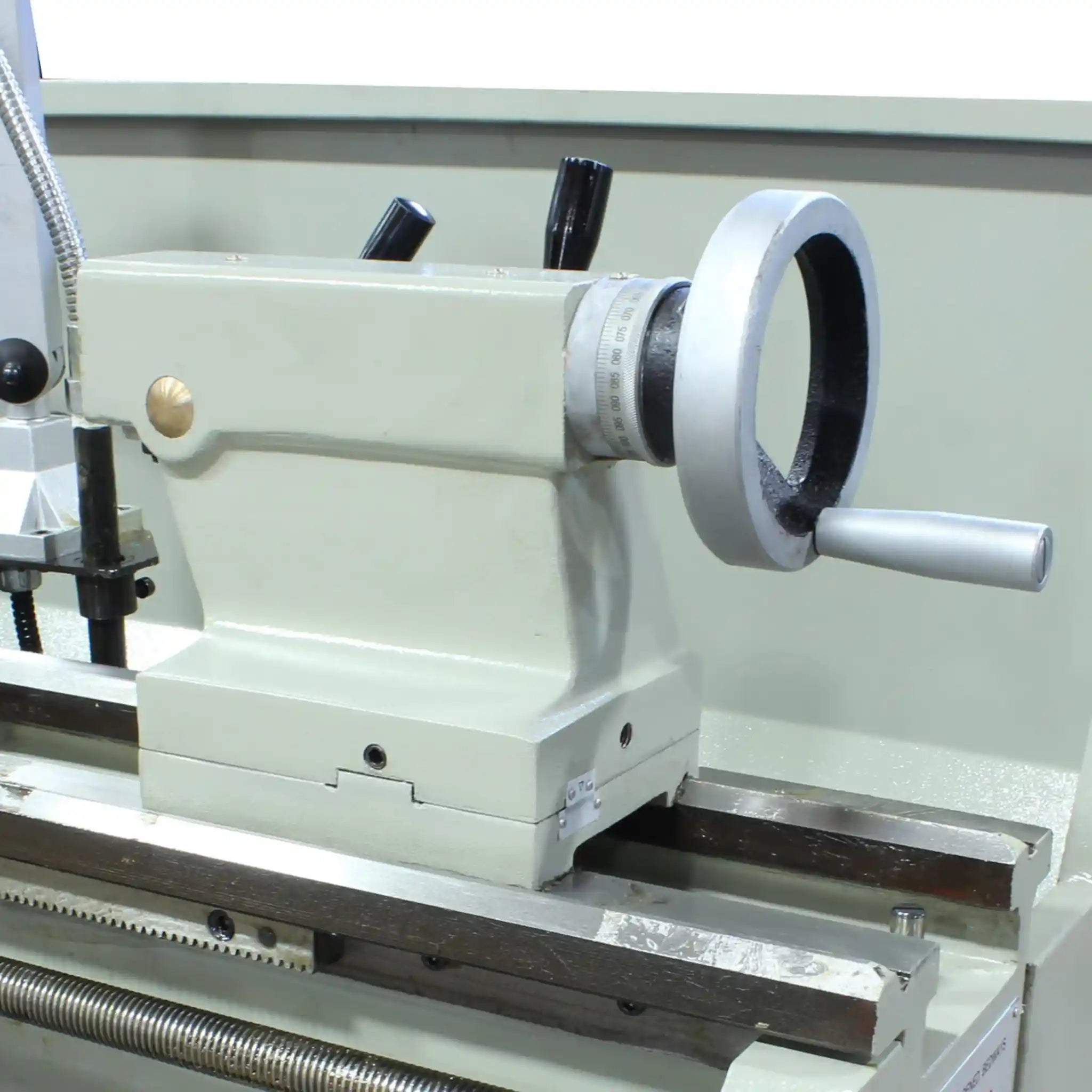

- Live Center for tailstock support

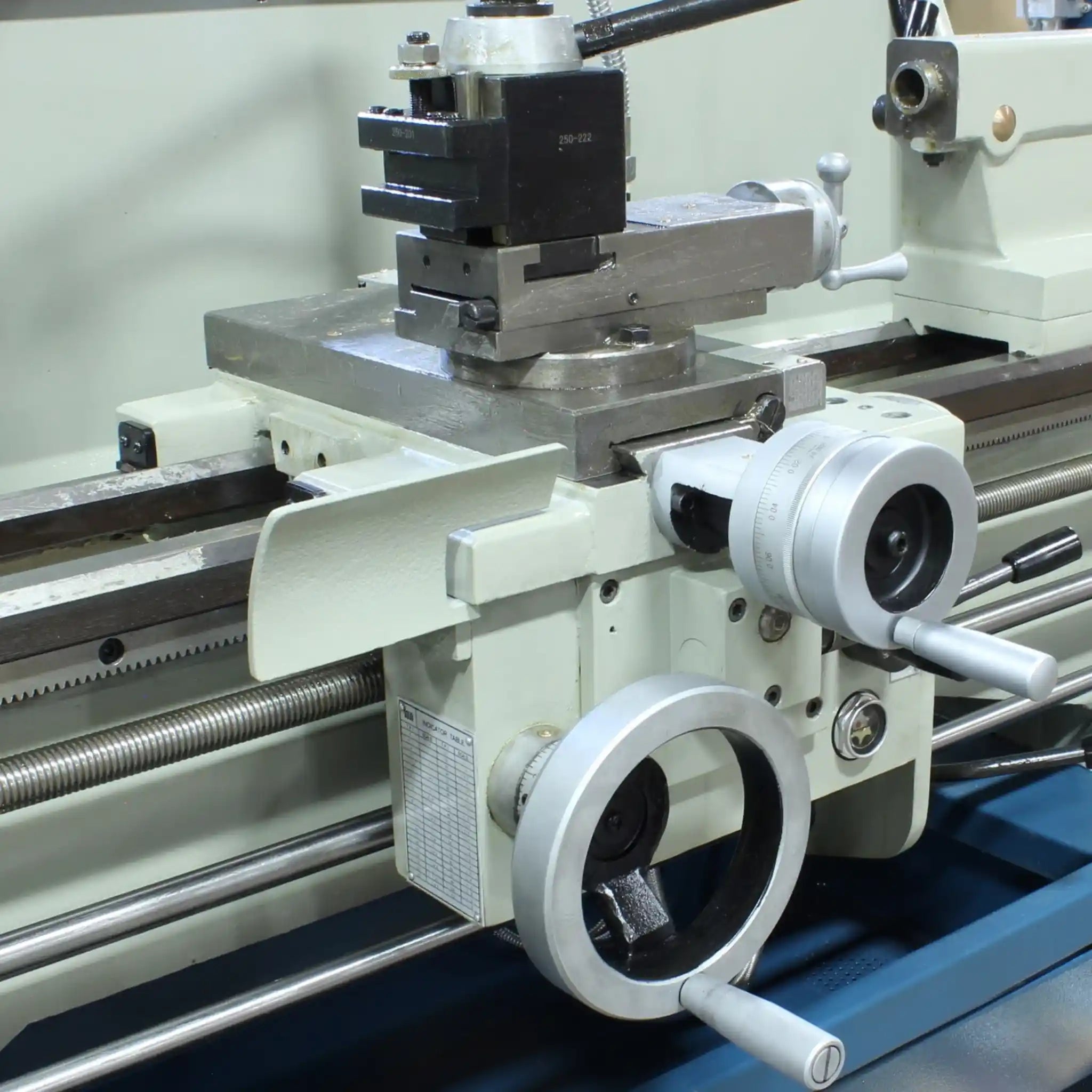

- Quick-Change Tool Post with holders
- Integrated Coolant System with splash guard
- Halogen Work Light
- Removable Chip Tray
- Foot Brake system
- 2-Axis Digital Readout (DRO) pre-installed
- Operator's Manual and documentation
- One-year manufacturer warranty
Baileigh PL-1340E Specifications
| Model Number | PL-1340E |
|---|---|
| Swing Over Bed | 330 mm (13") |
| Swing Over Cross Slide | 197 mm (7.75") |
| Swing In Gap | 477 mm (18.75") |
| Distance Between Centers | 1016 mm (40") |
| Length of Gap | 127 mm (5") |
| Spindle Nose | D1-4" |
| Spindle Bore | 38 mm (1.5") |
| Spindle Bore Taper | Morse #6 |
| Spindle Speeds | 9 speeds: 70-2000 RPM |
Baileigh PL-1340E Manuals & Downloads
Frequently Asked Questions
Can I run this lathe in my shop without threephase power?
Absolutely! The PL-1340E runs on standard 220-volt single-phase power, which is available in most shops and garages. No expensive phase converters or electrical upgrades required. Just wire it up and you're ready to start turning.
Is assembly required, or can I start using it right away?
The lathe ships fully assembled and ready to work. Simply uncrate it, bolt it to your floor or stand, connect the power, fill the coolant reservoir, and you're in business. The DRO and accessories come pre-installed, saving you hours of setup time.
What materials can I machine with this lathe?
The PL-1340E handles steel, stainless steel, aluminum, brass, bronze, copper, and plastics with ease. The variable speed range (70-2000 RPM) lets you dial in the perfect cutting speed for any material, from soft aluminum to tough stainless.
How does the digital readout help with accuracy?
The 2-axis DRO displays your exact position on both the cross slide and carriage, eliminating measuring errors and improving repeatability. When you need to make multiple identical parts or return to a specific dimension, the DRO ensures you hit your measurements every time.
What kind of maintenance does this lathe require?
Routine maintenance is straightforward. Keep the headstock and gearbox oil levels topped up (check the sight glass regularly), maintain proper lubrication on the ways, and keep the coolant system clean. The operator's manual includes a complete maintenance schedule to keep your lathe running smoothly for years.
