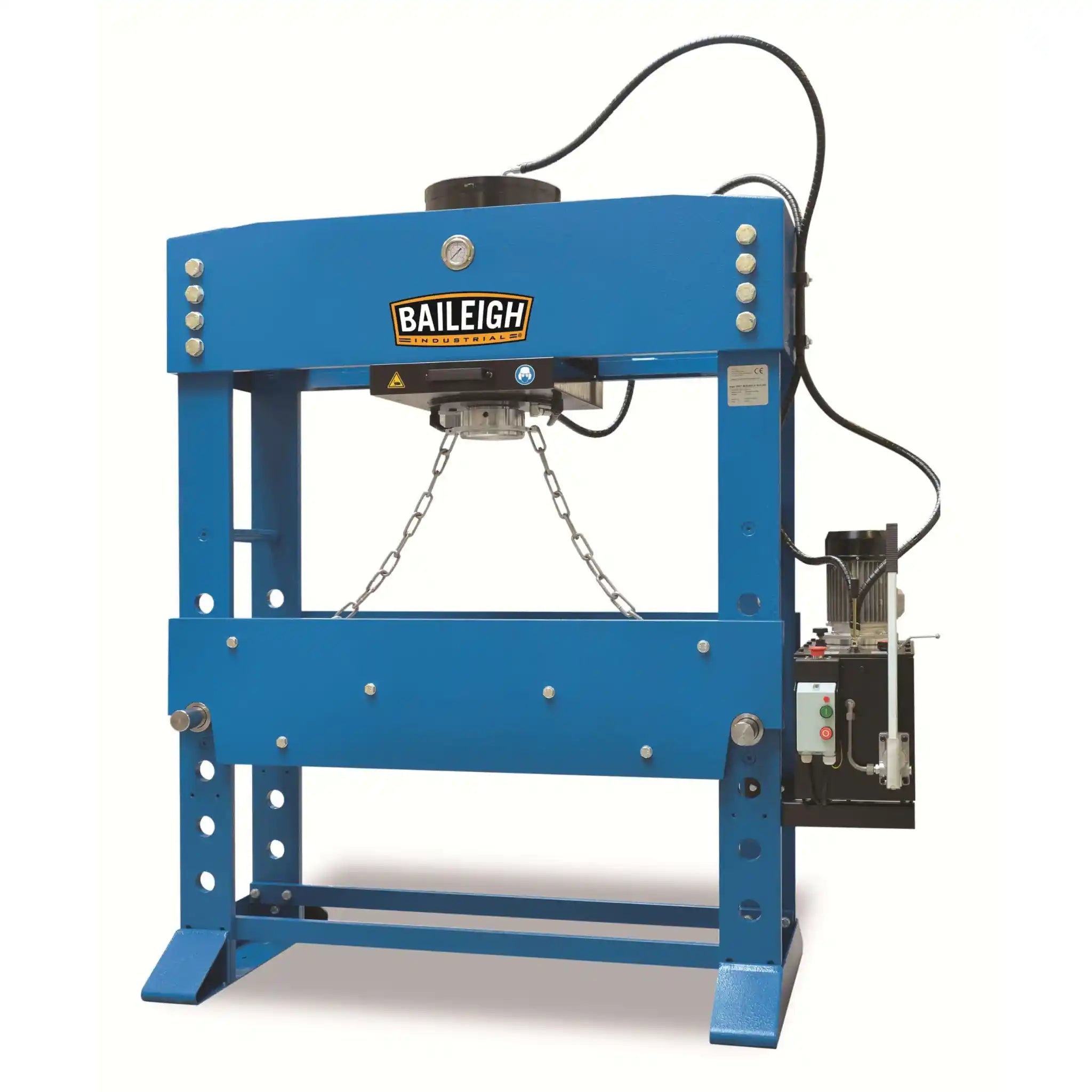

Baileigh HSP-200M Hydraulic Shop Press
The Baileigh HSP-200M is a powerful 200-ton hydraulic shop press built in the Netherlands, designed to handle your toughest metal fabrication, automotive repair, and manufacturing tasks with precision and reliability.
When you need serious pressing power for your workshop, the HSP-200M delivers exactly what you're looking for. This isn't just another shop press; it's a precision engineered workhorse that combines 200 tons of force with intelligent design features that make your job easier.
What sets this press apart? The movable cylinder design lets you position the pressing force exactly where you need it across the 1200mm working width. No more struggling to center your workpiece or compromising on off-center projects. The cast steel framework gives you rock solid stability, while the integrated pressure gauge keeps you informed and in control throughout every operation.
This European manufactured press runs on a 3kW motor with a piston style hydraulic pump system, giving you smooth, controlled force delivery. Whether you're pressing bearings onto shafts, straightening bent metal, or stamping parts, the 400mm cylinder stroke provides plenty of range for most jobs. The 30-liter oil capacity means longer run times between fills, and the efficient pump speed of 1.5/5.17 gallons per minute keeps your workflow moving.
Perfect for automotive shops, metal fabrication facilities, manufacturing plants, and serious home workshops, the HSP-200M is backed by Baileigh's reputation for quality and comes with lifetime technical support. You're not just buying equipment; you're investing in a tool that will serve your shop for decades.
Applications
- Bearing Installation & Removal: Press bearings, bushings, and pulleys onto or off shafts with precise control and consistent pressure
- Metal Straightening & Forming: Correct bent metal parts, flatten warped materials, and restore components to spec
- Gear & Bushing Work: Remove stubborn gears, install bushings, and handle universal joint replacements with confidence
- Stamping & Punching: Create custom stampings, punch holes in thick materials, and perform light production runs
- Assembly Operations: Press-fit parts together, install pins and dowels, and handle general assembly tasks
- Automotive Repairs: Handle suspension work, body panel straightening, and heavy-duty component repairs
Key Features & Benefits
- 200-Ton Pressing Capacity: You get massive force for tackling the jobs that smaller presses can't handle, from thick steel to stubborn bearings that won't budge.
- Movable Cylinder Design: Position your cylinder left or right within the frame so you can work on off-center projects without awkward workarounds or compromised results.
- 1200mm Wide Working Area: This generous 47-inch working width gives you the flexibility to handle larger workpieces and multiple items at once.
- 400mm Cylinder Stroke: With nearly 16 inches of travel, you have plenty of range for deep pressing operations without constant repositioning.
- Built-in Pressure Gauge: Monitor your pressing force in real-time so you know exactly how much pressure you're applying, preventing over-pressing and potential damage.
- Piston-Style Hydraulic Pump: The reliable 3kW motor drives a piston pump that delivers consistent, controlled force with smooth operation and long-term durability.
- European Manufacturing: Made in the Netherlands, this press meets strict European quality standards for construction, safety, and performance.
- Included V-Block Set: Start working right away with the 2-piece V-block set included, perfect for round stock and irregular shapes.
What's in the Box
- HSP-200M Hydraulic Shop Press (fully assembled H-frame)
- 3kW Hydraulic Power Unit (integrated)
- 2-Piece V-Block Set
- Pressure Gauge (installed)
- Hydraulic Oil (30 liters system capacity, 12 liters working capacity)
- Owner's Manual & Technical Documentation
- Warranty Registration Information

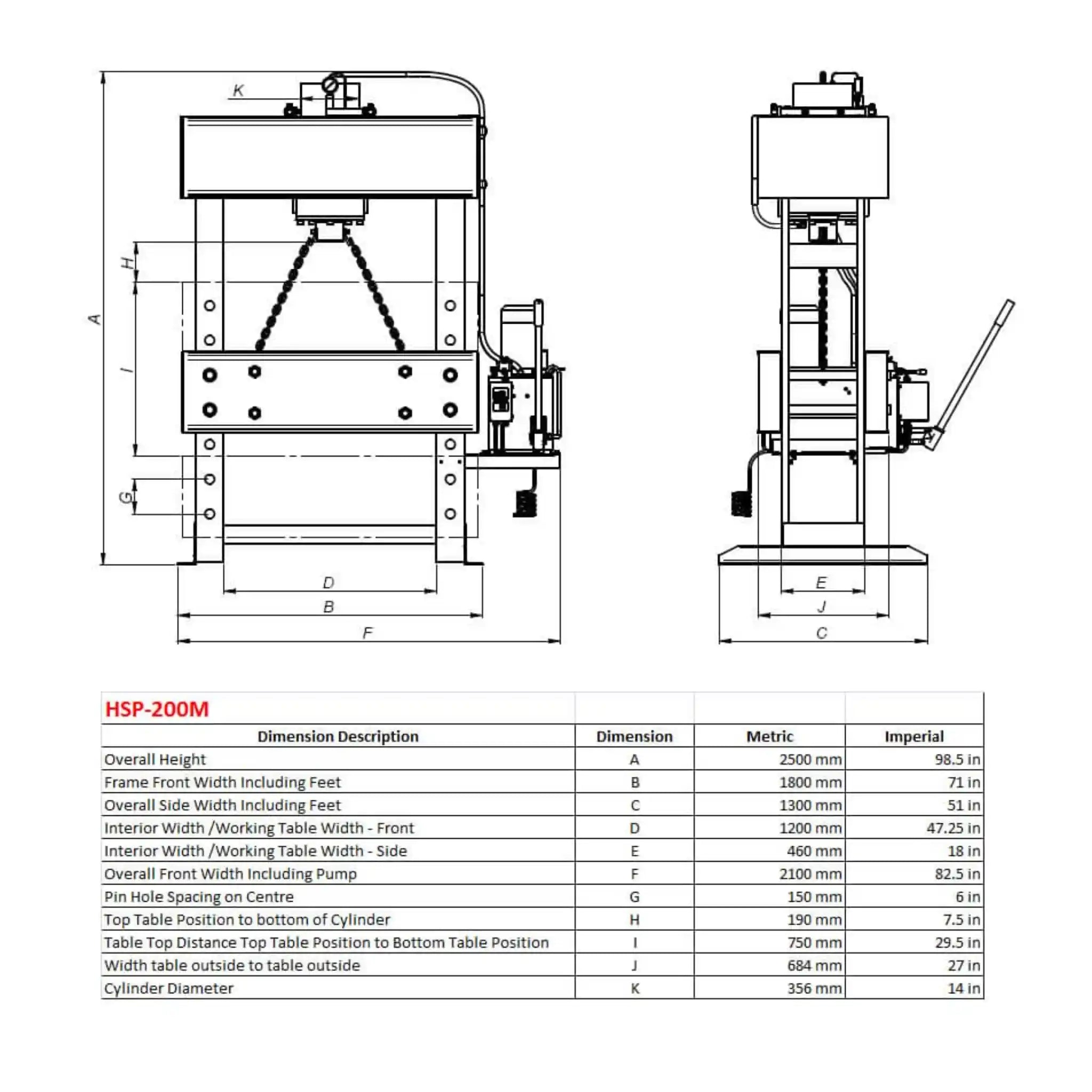

Technical Specifications
| Model Number | HSP-200M |
|---|---|
| Maximum Capacity | 200 ton |
| Working Width | 1200 mm (47.2 inches) |
| Cylinder Stroke | 400 mm (15.7 inches) |
| Motor Power | 3 kW (4 HP) |
| Power Requirements | 400V / 3-Phase |
Frequently Asked Questions
What type of hydraulic oil should I use?
Use a clean, light hydraulic oil such as Mobil DTE 24 or equivalent. The system holds 30 liters total with 12 liters working capacity. Always check your oil level regularly and keep the system topped up for optimal performance.
Can I run this press on singlephase power?
No, the HSP-200M requires 400V three-phase power. You'll need to ensure your facility has the proper electrical infrastructure. If you only have single-phase power available, you may want to consider a different model or consult with an electrician about phase converter options.
How much maintenance does this press require?
Maintenance is straightforward. Check hydraulic oil levels weekly, inspect for leaks around fittings and seals, keep the press clean, and verify the pressure gauge is functioning properly. Change or filter the hydraulic oil after 5,000 hours of operation. Regular maintenance takes just minutes but extends the life of your press significantly.
Will the cylinder really move side to side for offcenter work?
Yes! This is one of the standout features. The cylinder slides horizontally within the frame, allowing you to position it anywhere across the 1200mm working width. This means you can work on irregularly shaped pieces or apply force exactly where needed without repositioning your workpiece.
What comes with the press for holding round stock?
The press includes a 2-piece V-block set that's perfect for securing round stock like shafts, pipes, and cylindrical parts. The V-blocks provide stable, centered support for pressing operations on round materials.
