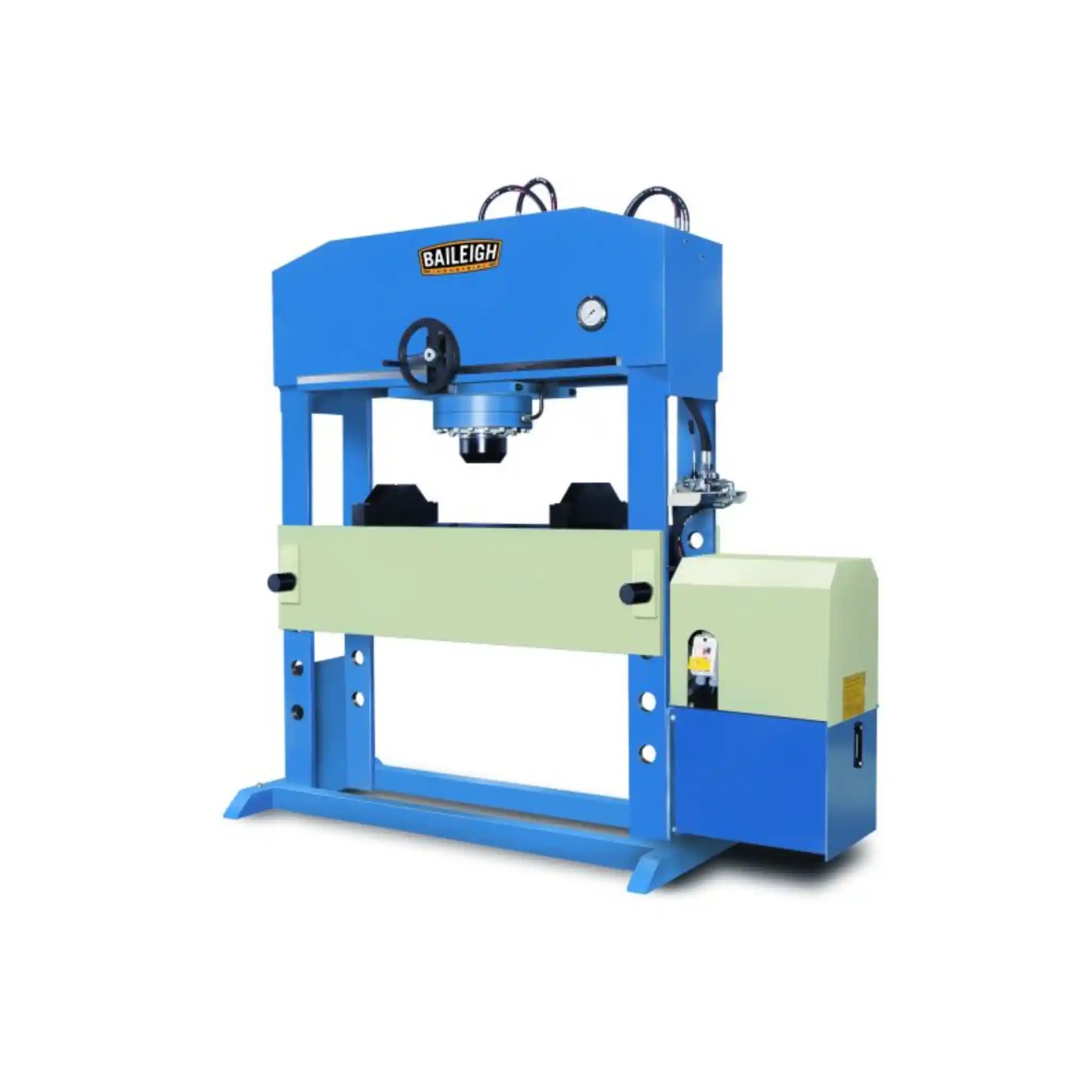

Baileigh HSP-176M-1500 Hydraulic Press
The Baileigh HSP-176M-1500 is a professional grade hydraulic workshop press delivering a massive 176 US tons (160 metric tonnes) of pressing force across an extra wide 61.75" working width, designed for engineering workshops, fabrication shops, and technical training facilities that demand maximum power and versatility.
When you need serious pressing power that doesn't compromise on workspace, the HSP-176M-1500 delivers. This isn't just another shop press—it's a heavy-duty workhorse built with a fully welded steel framework that can handle maximum capacity pressure day after day without breaking a sweat.
What makes this press stand out is its exceptional 61.75" (1,568mm) working width combined with impressive force capacity. That extra-wide bed means you can tackle larger assemblies and off-center work without the constant repositioning that eats up your valuable time. The movable 11" (279mm) cylinder slides left and right within the frame, giving you pinpoint accuracy for those tricky off center pressing jobs. Whether you're pressing bearings, straightening bent components, or assembling heavy machinery, this press gives you the room and power to work efficiently.
You're in complete control with both electric motor operation (4 hp running on 220V 3-phase) and manual hand pump backup. The two-speed hydraulic system with rapid descent and slower working speeds lets you match the press speed to your specific job. The 5.90" (150mm) chrome piston automatically returns after each press cycle, saving you time and keeping your workflow moving. Plus, the motorized table height adjustment uses hydraulic powered lifting chains, so you can position heavy workpieces without straining your back or wasting time with manual cranking.
Applications
- Bearing Installation and Removal: Press bearings in and out of housings, shafts, and assemblies with precision control—perfect for automotive, agricultural, and industrial machinery repair
- Metal Straightening and Forming: Straighten bent shafts, frames, and structural components, or form metal parts to exact specifications
- Heavy Assembly Work: Join components, install bushings, and assemble large mechanical parts where precise alignment and massive force are critical
- Testing and Quality Control: Perform load testing on components and assemblies to verify strength and durability before they leave your shop
- Tool and Die Work: Press tooling components, create dies, and perform precision metal fabrication tasks
- Hydraulic Fitting Installation: Install hydraulic fittings, seals, and components in heavy equipment and machinery
Key Features & Benefits
- Massive Pressing Power: You get enough force to tackle the toughest jobs without ever worrying about running out of pressure. This means fewer limitations and more projects you can confidently take on in-house.
- Extra-Wide 61.75" (1,568mm) Working Width: That massive workspace means you're not constantly fighting to fit larger assemblies or having to reposition workpieces. You can work on bigger projects with confidence and efficiency.
- Movable Cylinder Design: The 11" (279mm) diameter cylinder slides left and right within the frame, so you can apply pressure exactly where you need it—even on off-center work. No more struggling with awkward positioning or using makeshift solutions.
- Dual Operation Modes (Motor + Manual): Switch between electric motor operation for production work and manual hand pump for precision control. You're never stuck waiting for the motor when you need that final fine adjustment, and you've got backup power if electrical issues arise.
- Two-Speed Hydraulic System: Rapid advance gets you to the workpiece quickly (10mm per second return speed), then slower working speed (6.35mm per second) gives you the control you need. This saves you time without sacrificing precision.
- Automatic Piston Return: The 5.90" (150mm) chrome piston automatically returns to the top position after each press cycle. That means less time between jobs and more consistent workflow—you're not manually cranking or waiting for resets.
- Motorized Table Height Adjustment: Lifting chains attach to the hydraulic ram to do the heavy lifting for you. Adjust table height effortlessly, even with heavy workpieces positioned. Your back will thank you after a long day in the shop.
- Built to Last Construction: Fully-welded steel framework designed to handle maximum capacity every single day. This press is engineered for shops that need reliable performance under demanding conditions, not occasional hobby use.
What's in the Box
- HSP-176M-1500 Hydraulic Press (fully assembled main unit)
- Set of V-Blocks for secure positioning of round stock and irregular shapes
- Pressure Gauge for monitoring and controlling applied force
- User Manual with complete operating instructions and safety guidelines
- Warranty Documentation (1-year parts warranty)
Baileigh HSP-176M-1500 Specifications
| Model Number | HSP-176M-1500 |
|---|---|
| Maximum Pressing Capacity | 176 US tons / 160 metric tonnes |
| Working Width | 61.75" (1,568 mm) |
| Cylinder Diameter | 11" (279 mm) |
| Cylinder Stroke | 11.8" (300 mm) |
| Piston Head Diameter | 5.90" (150 mm) |
Baileigh HSP-176M-1500 Manuals & Downloads
Frequently Asked Questions
What's the difference between US tons and metric tonnes for this press?
This is important to understand! The HSP-176M-1500 delivers 176 US tons (also called short tons), which equals 160 metric tonnes. If you're working in the UK or EU where metric is standard, you're getting 160 tonnes of pressing force. US tons are slightly lighter than metric tonnes (1 US ton = 0.907 metric tonnes), so always use the metric rating if that's your standard measurement system.
What type of electrical service do I need for this press?
You'll need 220V 3-phase power. This is standard in most industrial facilities but may require an electrician to install if you're setting up in a smaller shop. The 4 hp (3 kW) motor draws moderate power, so most industrial electrical services can handle it without upgrades.
Can I still use the press if the motor fails or I lose power?
Absolutely! The HSP-176M-1500 includes a manual hand pump backup system. While it's slower than motor operation, you can complete critical jobs even during power outages or if the motor needs service. This dual-operation feature is a real lifesaver in production environments.
How do I move and install something this heavy?
At 2,095 kg (4,620 lbs), you'll definitely need professional rigging equipment or a forklift. Most customers use a forklift or overhead crane for positioning. The press ships on a pallet, and you'll want to plan your shop layout carefully before delivery. Many buyers arrange for machinery movers if they don't have in-house rigging capabilities.
What maintenance does this press require?
Regular maintenance is straightforward: check and maintain proper hydraulic fluid levels, inspect hoses and connections for leaks, keep the cylinder chrome surface clean, and lubricate moving parts per the manual. The industrial-grade hydraulic system is designed for reliability with minimal maintenance when treated properly.
Will this handle pressing out large bearings and bushings?
With its impressive force capacity and 300mm (11.8") stroke, you've got plenty of power and range for even the most stubborn bearings and bushings. The movable cylinder and wide bed mean you can position work exactly where you need it. Many shops use this size press specifically for heavy equipment and large machinery bearing work.
Is this press suitable for production environments or just occasional use?
This is absolutely a production-grade machine. The fully-welded steel construction and industrial hydraulic system are engineered for daily heavy use. Many fabrication shops, maintenance facilities, and manufacturing operations run these presses continuously. The 1-year warranty and lifetime technical support back up Baileigh's confidence in this press for demanding applications.
