Baileigh HSP-176M Hydraulic Press - 160 Ton

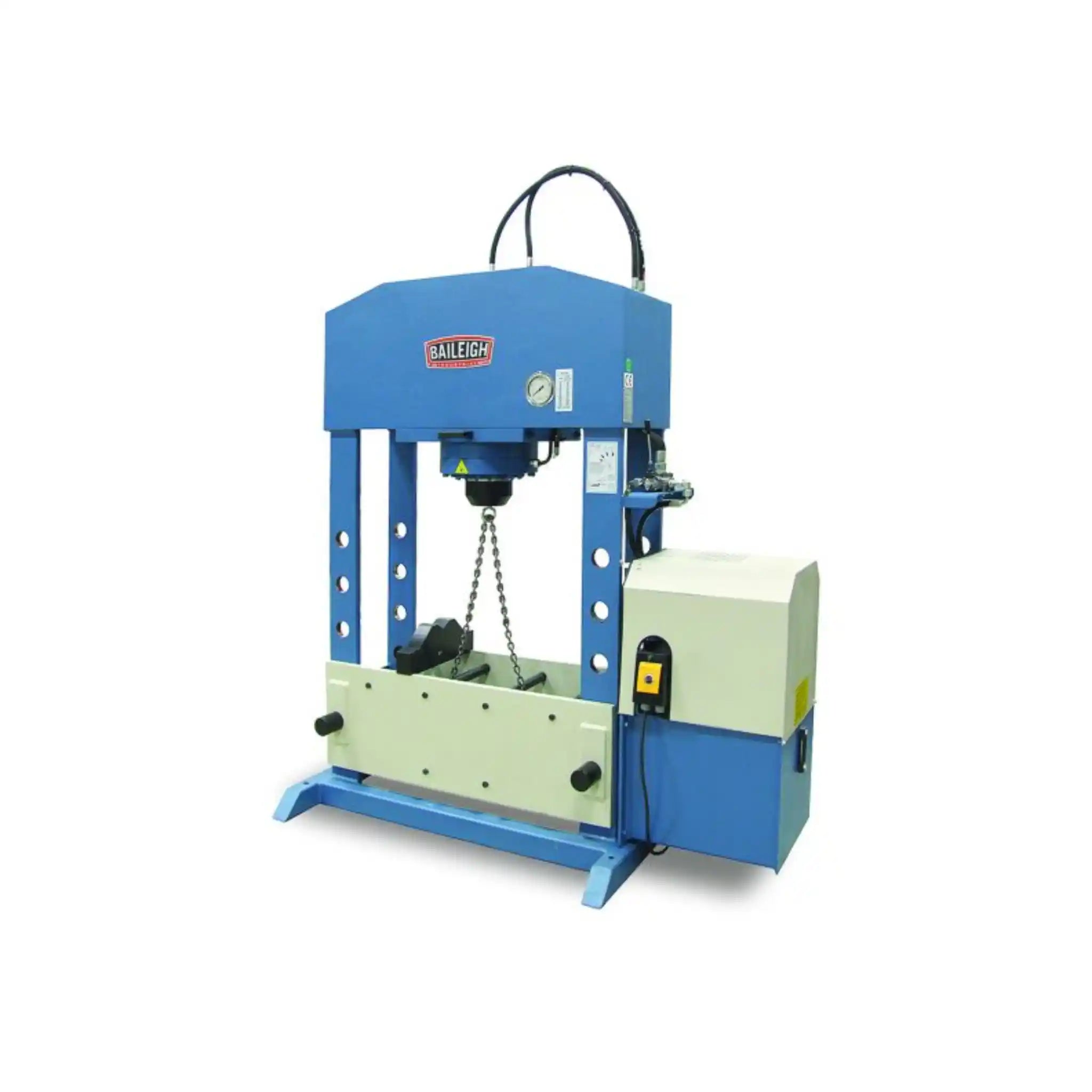

The Baileigh HSP-176M is a professional grade hydraulic shop press delivering an impressive 160 metric tons of pressing force, designed for heavy duty metalworking applications where power, precision, and reliability are essential.
Need serious pressing power for your workshop? The HSP-176M is built to handle your toughest jobs day after day without compromise. This isn't just another shop press, it's a workhorse engineered with industrial grade components and a fully welded 3/8" steel plate framework that stands up to maximum capacity pressure every single day.
What sets this press apart is its versatility and user-focused design. You get dual hydraulic speeds that let you switch between rapid advance for positioning and slower approach for precision work. Whether you're pressing bearings, straightening heavy components, or tackling general assembly tasks, this machine adapts to your needs. The movable cylinder design means you're not limited to center-line work, slide it left or right within the frame to handle off center parts with ease.
Perfect for engineering workshops, metal fabrication shops, automotive repair facilities, and technical training institutions, the HSP-176M combines European build quality with practical features that make your work faster and less physically demanding. The motorized table height adjustment uses hydraulic power and lifting chains to do the heavy lifting, so you can focus on the work instead of straining your back.
Applications
- Bearing Installation and Removal: Press bearings in and out of housings with controlled, even force
- Metal Straightening and Forming: Bend, straighten, and shape heavy metal components with precision
- Assembly Operations: Join components that require significant pressing force for proper fit
- Component Testing: Apply controlled pressure to test part strength and assembly integrity
- Shaft and Bushing Work: Install or remove shafts, bushings, and press-fit components
- Off-Center Pressing Tasks: Handle asymmetrical or oddly-shaped workpieces thanks to the movable cylinder design
Key Features & Benefits
- Massive 160-Ton Capacity: Tackle jobs that would overwhelm lighter presses, giving you the power to handle virtually any pressing task in your shop

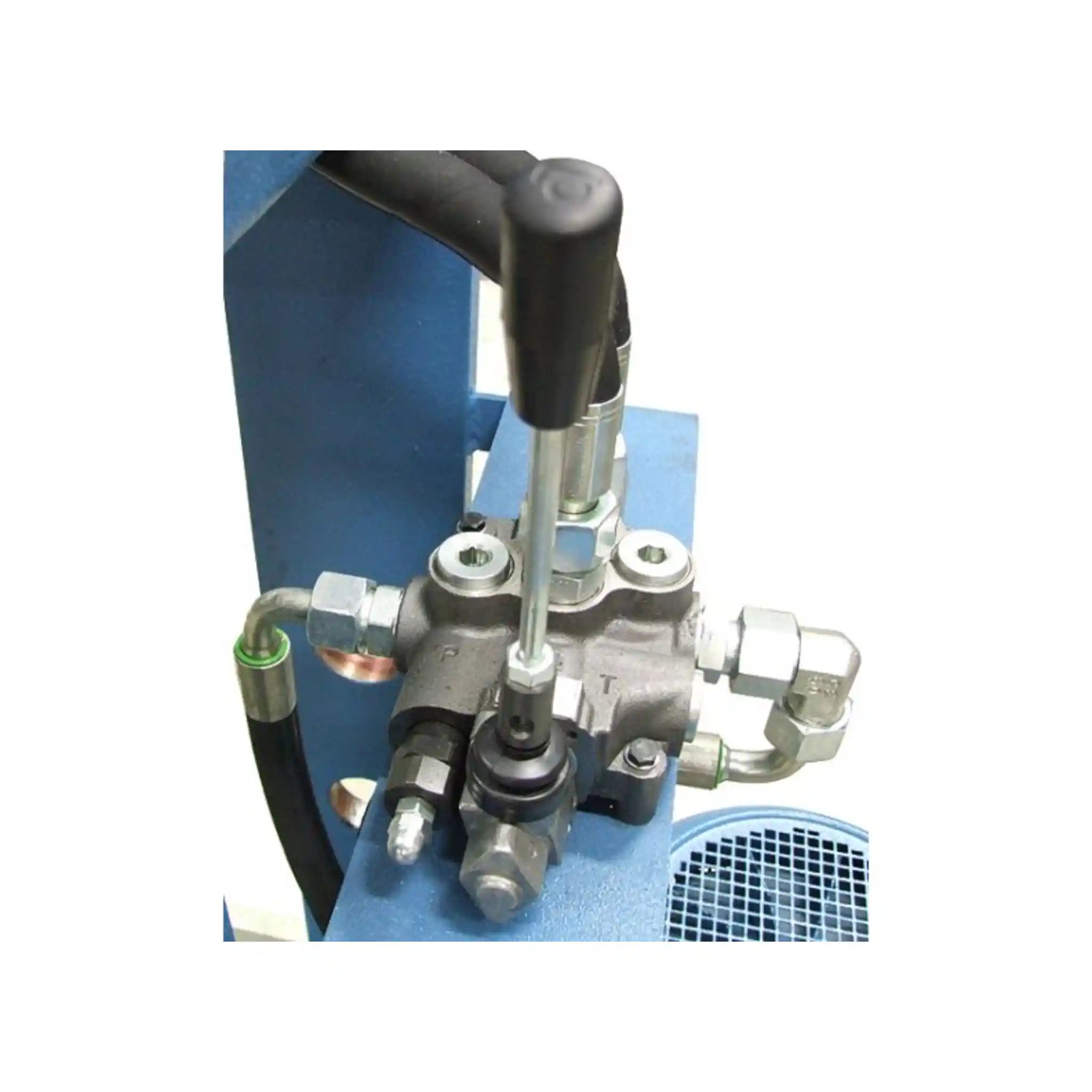

- Dual-Speed Hydraulic System: Switch between rapid advance for quick positioning and slower approach speed for precise control—you choose the right speed for each application
- Electric or Manual Operation: Run it with the 3 kW motor for continuous work, or switch to the hand pump for precise control on delicate operations

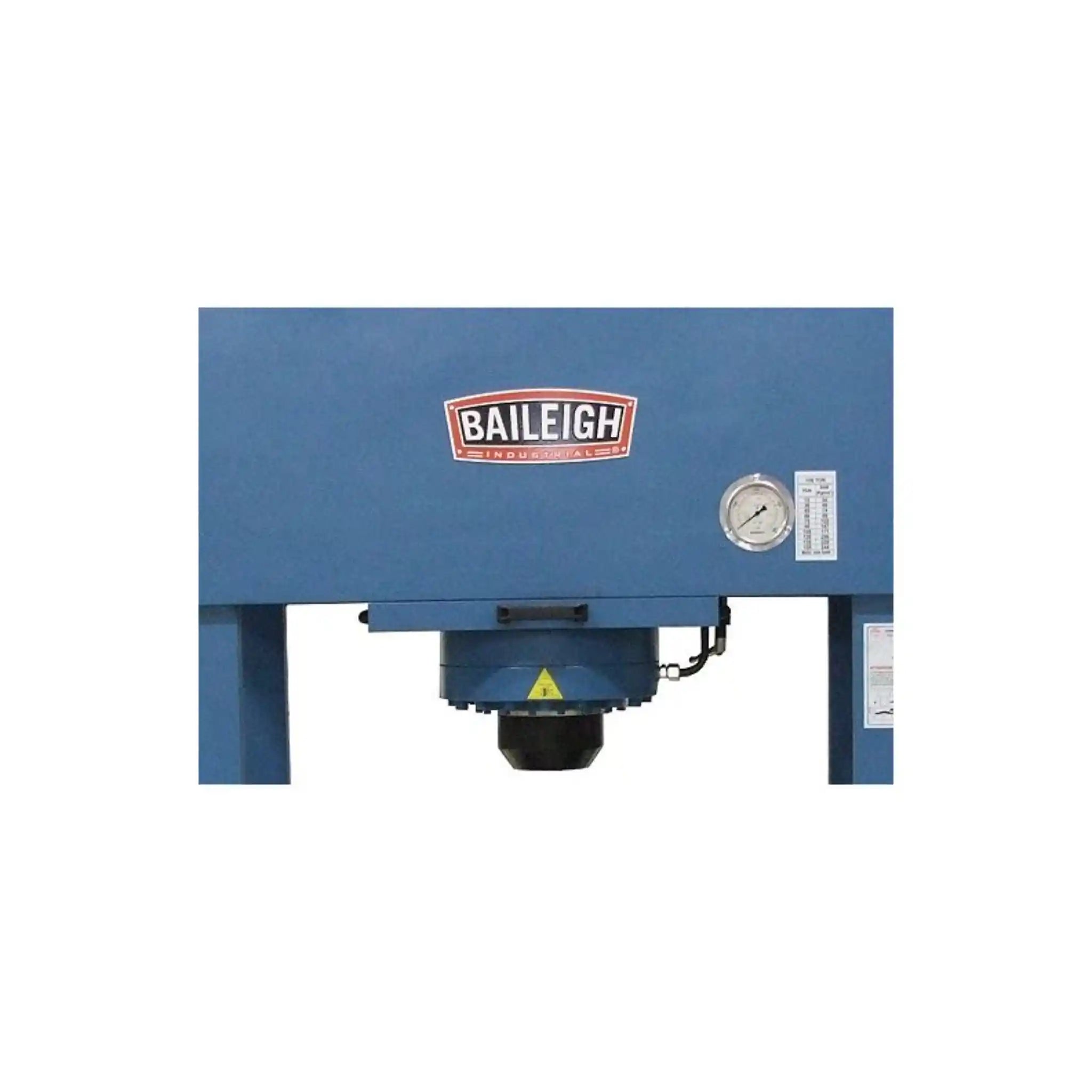

- Movable Cylinder Design: Slide the cylinder left or right within the frame to handle off-center parts without repositioning your workpiece
- Motorized Table Height Adjustment: Forget struggling with manual cranks—lifting chains and hydraulic power adjust your work table height effortlessly
- Chrome Piston with Auto-Return: The 150mm chrome-plated piston automatically returns to the top position after pressing, saving you time on every cycle
- Built to Last: Fully-welded 3/8" steel plate construction means this press can handle maximum capacity every day without flexing or fatigue
- Stable Work Surface: Dual sets of 3" round stock supports keep your work table rock-solid, even under maximum pressure
What's in the Box
- HSP-176M hydraulic shop press with fully-welded steel frame
- Industrial-grade 3 kW hydraulic power unit (400V, 3-phase)
- Integrated hand pump for manual operation
- Chrome-plated hydraulic cylinder (323mm diameter)
- Adjustable work table with dual support sets
- Motorized table height adjustment system with lifting chains
- Set of V-blocks for versatile workpiece positioning
- Pressure gauge for monitoring applied force
- User manual and documentation
- 1-year parts warranty coverage
- Lifetime technical support access
Baileigh HSP-176M Specifications
| Model Number | HSP-176M |
|---|---|
| Maximum Pressing Capacity | 160 metric tons |
| Cylinder Diameter | 323 mm (12.7") |
| Piston Head Diameter | 150 mm (5.9") |
| Cylinder Stroke | 400 mm (15.75") |
| Motor Power | 3 kW (4 hp) |
| Power Requirements | 400V / 3-Phase |
Baileigh HSP-176M Manuals & Downloads
Frequently Asked Questions
What power supply do I need for this press?
The HSP-176M requires 400V 3-phase power. This is standard industrial power, but make sure your facility has this available before ordering. If you're unsure, consult with an electrician about your power setup.
Can I use this press for offcenter work?
Absolutely! One of the standout features is the movable cylinder design. You can slide the cylinder left or right within the frame, making it perfect for pressing parts that aren't centered or have irregular shapes.
How difficult is it to adjust the table height?
It's incredibly easy—that's the beauty of the motorized system. Lifting chains connect to the hydraulic ram, so the press does all the work. No manual cranking or straining required, which is a huge advantage when you're working with this size equipment.
What's the difference between automatic and manual operation?
Automatic mode uses the electric motor to power the hydraulic system—great for continuous work and faster cycles. Manual mode uses the hand pump, giving you precise control for delicate operations or when you need to feel exactly how much force you're applying. You can switch between modes as needed.
Is this press suitable for a smaller shop or just industrial facilities?
While it's definitely a serious piece of equipment designed for professional use, many mid-sized shops find it perfect when they regularly handle heavy pressing jobs. The key consideration is whether you have 400V 3-phase power and adequate floor space (it's about 7.5 feet tall and weighs over 3,400 lbs). If you have those, and you need this level of capacity, it's an excellent investment that will serve you for years.
