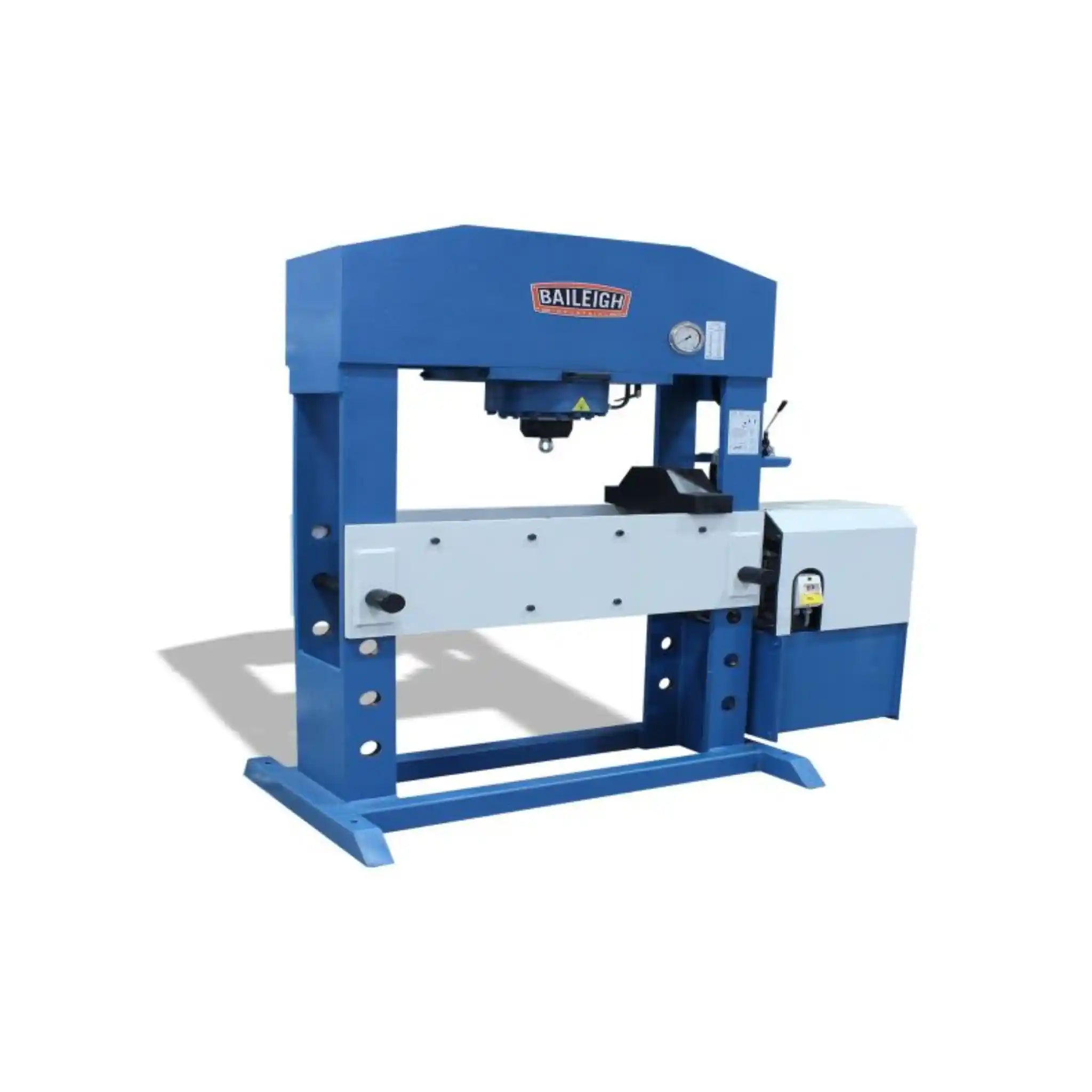

Baileigh HSP-110M-1500 59" Hydraulic Press
The Baileigh HSP-110M-1500 is a professional-grade 100-ton hydraulic workshop press featuring an extra wide 59" working width, dual motor/manual operation, and precision European engineering designed for heavy duty industrial applications.
When you need reliable power for demanding metalworking tasks, the HSP-110M-1500 delivers where it counts. This isn't just another workshop press, it's a precision engineered tool built in the Netherlands to exacting CE standards that combines raw 100-ton pressing power with the versatility you need in a modern fabrication environment.
What sets this press apart is its exceptional 59-inch working width, giving you the flexibility to handle oversized components that would be impossible on standard presses. Whether you're running a busy repair shop, managing a production facility, or training the next generation of technicians, you'll appreciate how the HSP-110M-1500 adapts to your workflow.
Applications
- Bearing Installation and Removal: Press bearings in and out of housings with controlled force, preventing damage to expensive components
- Metal Straightening and Alignment: Straighten bent shafts, frames, and structural components back to specification
- Bushing and Gear Installation: Install tight-fitting bushings, gears, and pulleys with precision and consistency
- Assembly Operations: Join interference-fit parts for automotive, machinery, and industrial equipment
- Testing and Quality Control: Apply controlled pressure to test component strength and assembly integrity
- U-Joint and CV Joint Service: Remove and install universal joints and CV joints in automotive and heavy equipment applications
Key Features & Benefits
- Exceptional 59" Working Width: Handle oversized components and wide assemblies that won't fit on standard presses, eliminating limitations on the jobs you can take on
- Dual Operation Flexibility: Switch between electric motor operation for high-volume work and manual hand pump for precise control – speed when you need it, precision when it matters
- Movable Cylinder Design: Position the cylinder left or right within the frame to apply force exactly where needed, perfect for off-center pressing operations

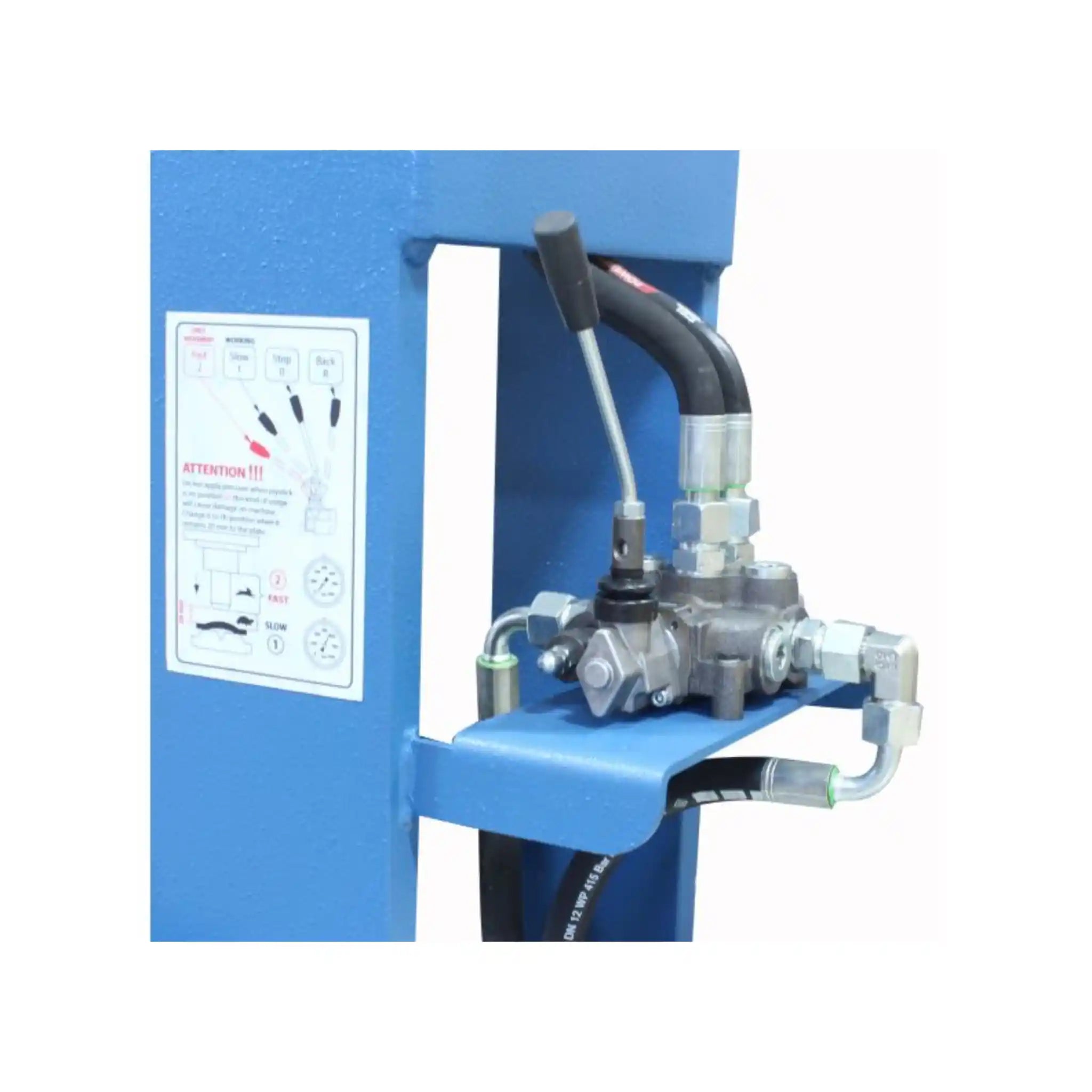

- Two-Speed Hydraulic System: Rapid descent gets you to the workpiece quickly, then slow speed with pressure regulator gives you control for critical pressing operations

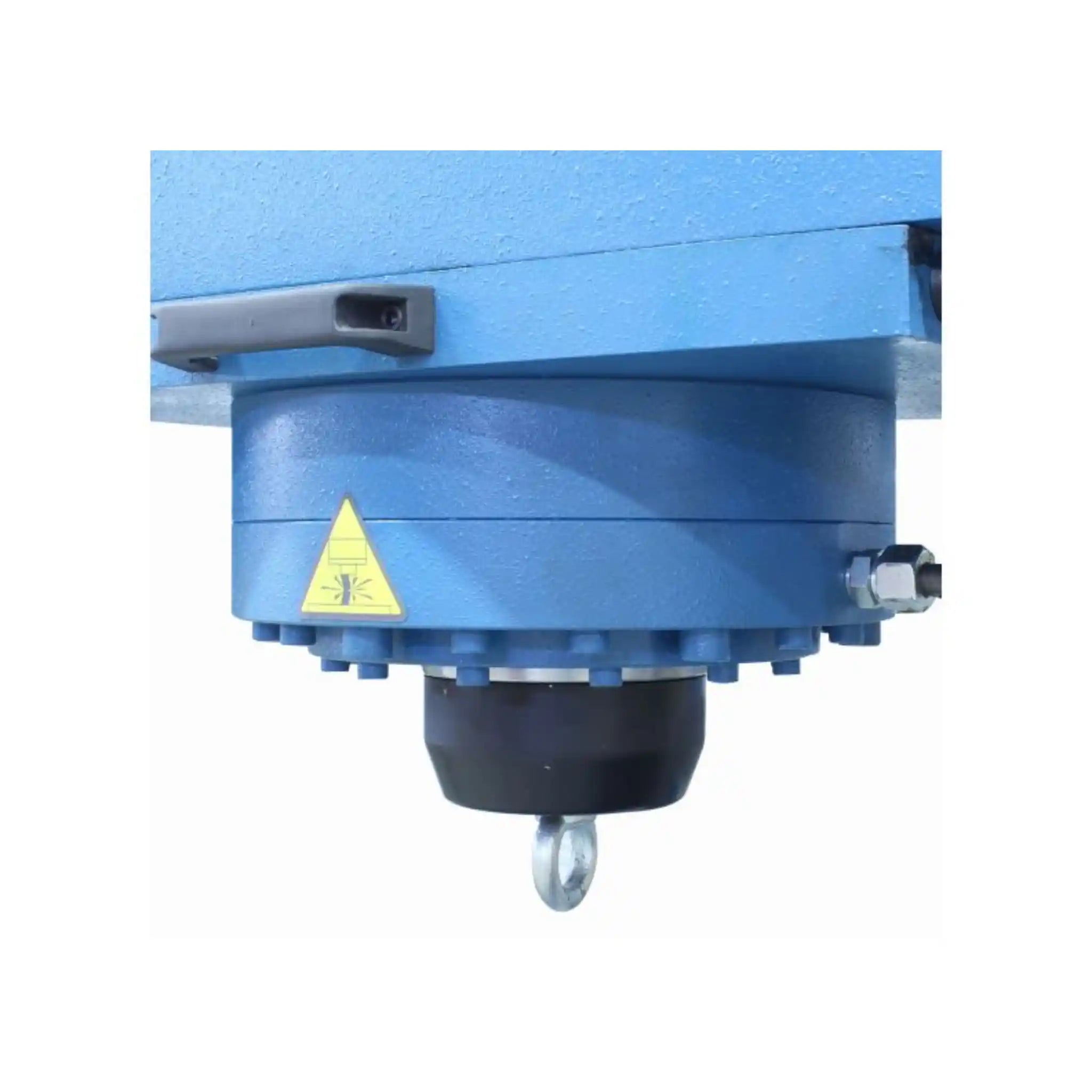

- Automatic Piston Return: Chrome-plated piston automatically returns to top position after each operation, saving time between jobs
- Heavy-Duty Construction: Welded steel framework maintains rigidity under full 100-ton load, ensuring accuracy and safety without flexing
- Adjustable Work Table: Easily adjust the work table height using hydraulic cylinder and lifting chains, accommodating various workpiece sizes
- Built-In Pressure Monitoring: Pressure manometer lets you monitor applied force in real-time, preventing over-pressing and ensuring consistent results
What's in the Box
- HSP-110M-1500 Hydraulic Press (fully assembled main unit)
- 2.2kW Electric Motor with power controls (400V 3-phase)
- Manual hand pump assembly
- Chrome-plated hydraulic piston with screw head
- Pressure manometer gauge
- Adjustable work table with hydraulic lifting system
- User manual and documentation
- CE compliance certification
Baileigh HSP-110M-1500 Specifications
| Model Number | HSP-110M-1500 |
|---|---|
| Maximum Capacity | 100 metric tons |
| Working Width | 1500mm (59 inches) |
| Cylinder Stroke | 400mm (15.75 inches) |
| Motor Power | 2.2 kW (3 HP) |
| Power Supply | 400V / 3-Phase |
Baileigh HSP-110M-1500 Manuals & Downloads
Frequently Asked Questions
Can this press run on singlephase power?
No, the HSP-110M-1500 requires 400V 3-phase power. If your facility only has single-phase power, you'll need to install a phase converter or consult with an electrician about power requirements. The robust 2.2kW motor needs three-phase power to deliver consistent 100-ton pressing force.
How does the movable cylinder feature work, and why is it important?
The cylinder slides left or right within the H-frame, allowing you to position pressing force anywhere across the 59-inch working width. This is crucial for off-center work, irregular components, or when you need to apply force to specific points without repositioning your entire workpiece. It's one of the most valuable features for real-world shop applications.
What maintenance does this press require?
Regular maintenance is straightforward: check hydraulic oil levels monthly, inspect hoses and connections for leaks, keep the chrome piston clean, and ensure the pressure gauge is functioning correctly. The system uses 30 liters of hydraulic oil, and you should follow standard hydraulic maintenance practices. The robust European construction means less downtime and more reliable operation.
Can I operate this press manually if the power goes out?
Absolutely! One of the key advantages of the HSP-110M-1500 is its dual operation capability. The integrated hand pump allows full manual operation, giving you complete control even during power outages or when you prefer manual operation for delicate pressing tasks.
What's the difference between the HSP110M1500 and the standard HSP110M?
The "1500" designation refers to the extra-wide 1500mm (59-inch) working width, compared to the standard model's narrower frame. If you frequently work with wide components, large assemblies, or need the flexibility to handle oversized parts, the 1500 model's additional working width is invaluable. It also weighs more (1250kg vs 955kg) due to the wider frame construction.
