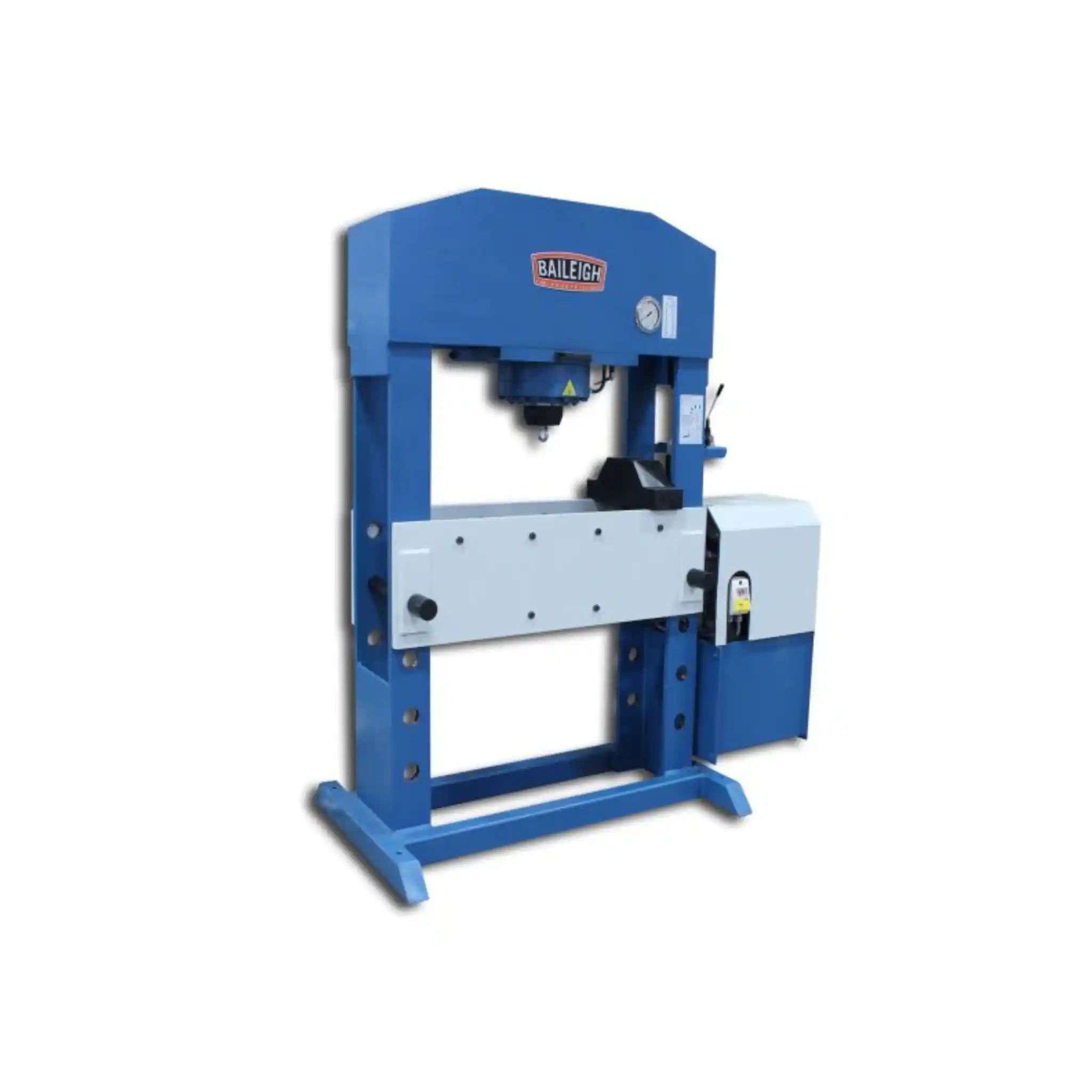

Baileigh HSP-110M Hydraulic Workshop Press
The Baileigh HSP-110M is a professional grade 100-ton hydraulic workshop press built in the Netherlands with industrial quality components, designed to handle your toughest pressing, straightening, and assembly tasks with precision and power you can rely on day after day.
When you need serious pressing power that won't quit, the HSP-110M delivers 100 metric tons of force through a robust hydraulic system that's built to European quality standards. This isn't just another shop press, it's the kind of machine that becomes the backbone of your workshop operations.
What makes this press stand out? It's all about versatility and control. You get both motorized and manual operation modes, so whether you're running high volume production work or need precise control for delicate assemblies, you're covered. The dual-speed hydraulic system gives you rapid descent when you need to move fast and slow, controlled pressing when precision matters. And here's something you'll appreciate: the cylinder moves left and right within the frame, which means you can tackle off center work without awkward positioning or compromising force distribution.
Built on a fully-welded 3/8-inch plate steel framework, this press is engineered to handle its full 100-ton capacity without flexing or losing accuracy. The 2.2 kW motor runs on 400V three-phase power, delivering reliable performance shift after shift. Whether you're in a busy engineering workshop, running a repair facility, or managing a technical training institution, the HSP-110M gives you the industrial-grade capability your work demands.
Applications
- Bearing Installation & Removal: Press bearings in and out of housings with precise control and consistent force distribution
- Metal Straightening & Correction: Straighten bent shafts, frames, and components back to specification without damaging the material
- General Assembly Operations: Join components, set bushings, and complete pressing assemblies with accuracy
- Component Testing & Quality Control: Test workpiece strength and structural integrity under controlled pressure
- Shaft & Pin Installation: Drive pins, shafts, and arbors into position with controlled, even force
- Off-Center Pressing Tasks: Handle asymmetrical components thanks to the moveable cylinder design
Key Features & Benefits
- Dual Operation Modes: Switch between motorized operation for speed and manual hand pump for ultimate precision and control – you choose what works best for each job
- 100 Ton Pressing Capacity: Delivers massive 266 bar (3,857 PSI) hydraulic pressure to handle heavy-duty industrial applications without strain

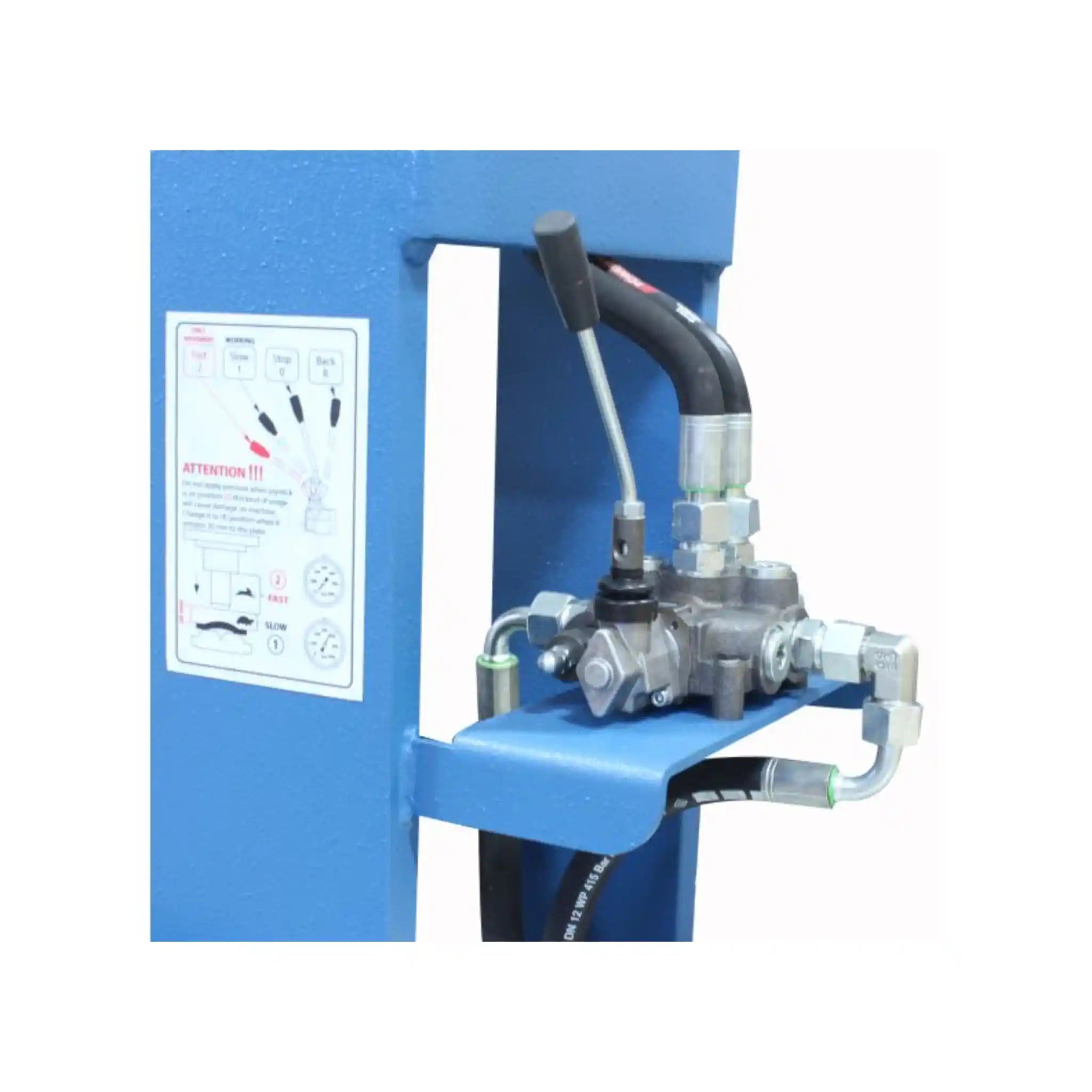

- Two-Speed Hydraulic System: Rapid descent gets you to the workpiece quickly, then switches to controlled pressing speed for precision work – saving you time on every operation

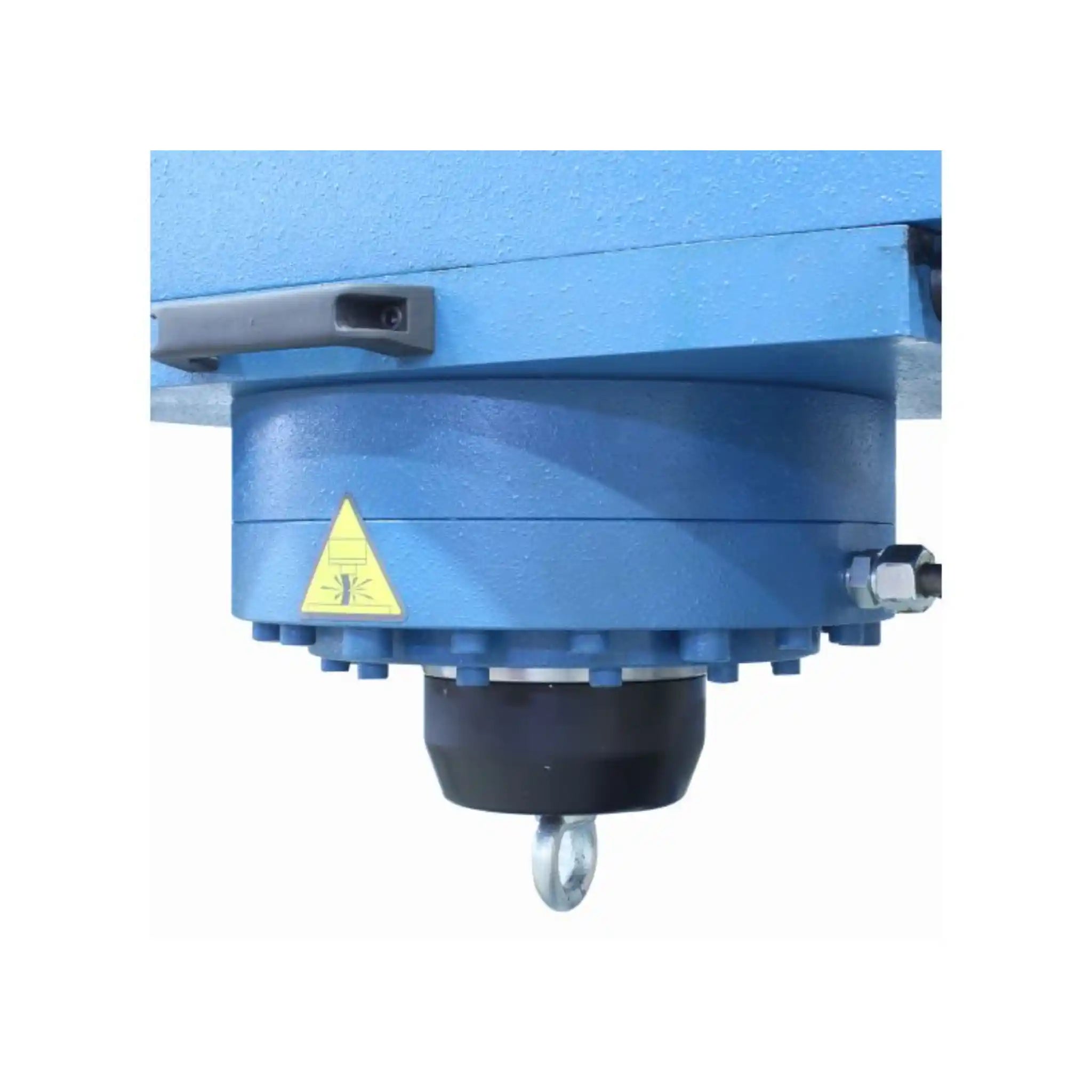

- Moveable Cylinder Design: The cylinder slides left and right within the frame, giving you flexibility to position force exactly where you need it for off-center work
- Automatic Piston Return: No wasted time manually resetting the ram – it automatically returns to starting position after each operation so you can move to the next job
- Rigid Welded Steel Construction: Built with 3/8-inch plate steel framework that won't flex even under full 100-ton load, maintaining accuracy and safety
- Built-in Pressure Regulation: Adjust maximum pressure to suit your specific application, protecting delicate components while giving you full power when needed
- Chrome-Plated Ram: Corrosion-resistant chrome piston provides smooth operation and long service life with minimal maintenance
What's in the Box
- HSP-110M Hydraulic Press (main unit)
- Integrated pressure gauge/manometer

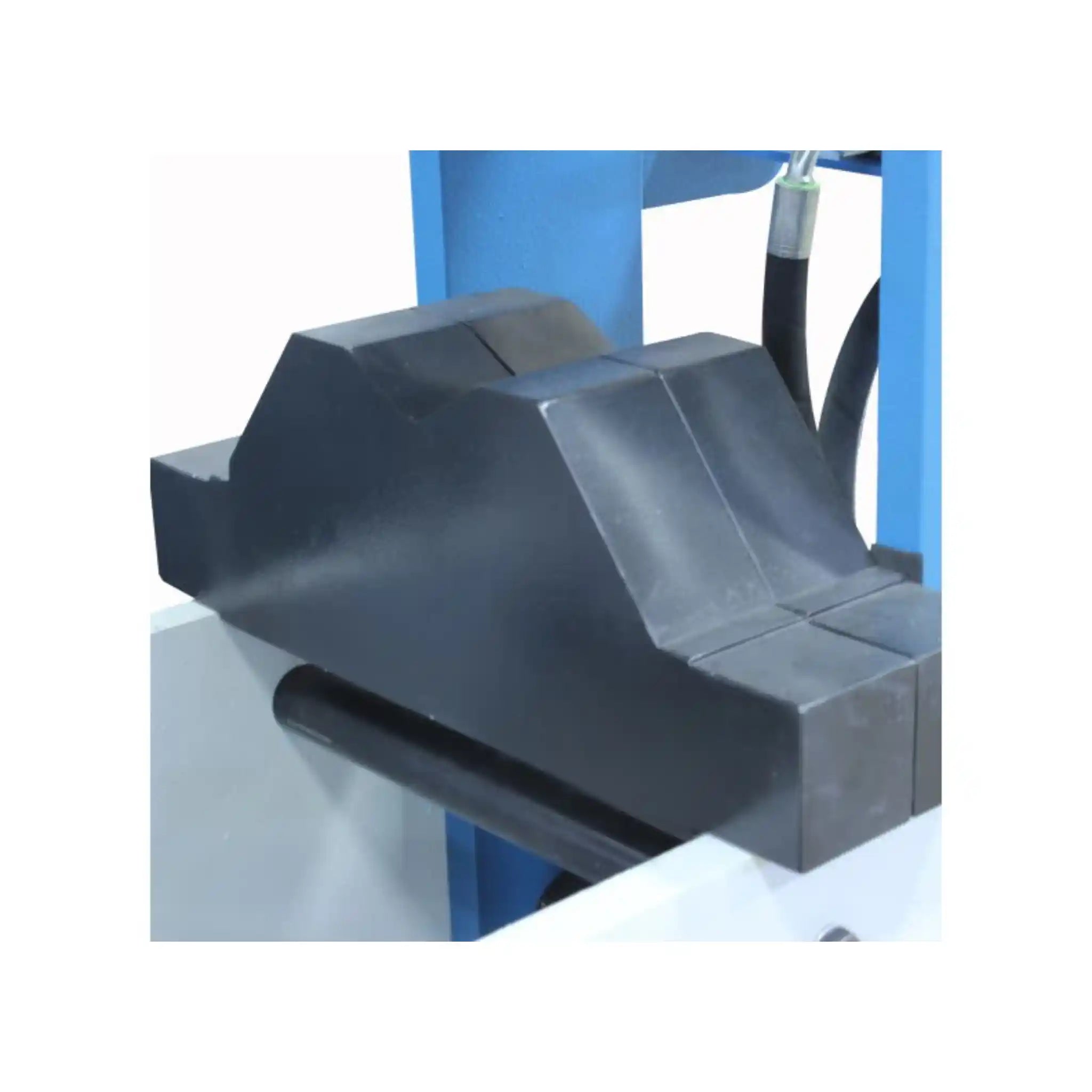

- 2-piece V-block set for secure workpiece support
- Serrated saddle for pressing operations

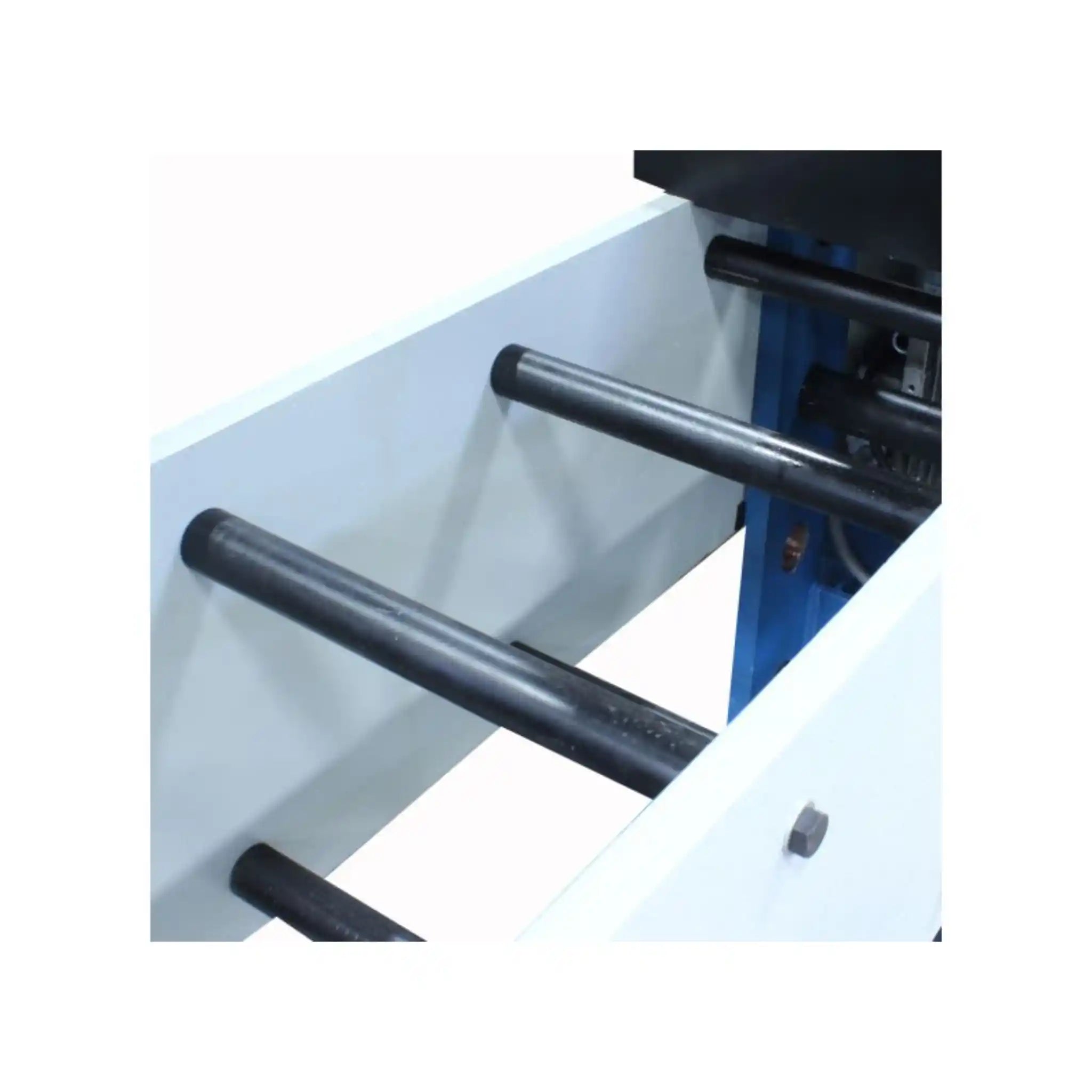

- Work table with hydraulic lift chain system
- User manual and technical documentation
- Automatic piston return system (pre-installed)
- Pressure regulator valve (integrated)
- Hand pump for manual operation
Baileigh HSP-110M Specifications
| Model Number | HSP-110M |
|---|---|
| Maximum Capacity | 100 metric tons (110 imperial tons) |
| Maximum Pressure | 266 bar (3,857 PSI) |
| Motor Power | 2.2 kW (3 HP) |
| Power Requirements | 400V / 3-Phase |
Baileigh HSP-110M Manuals & Downloads
Frequently Asked Questions
Can I run this press on singlephase power?
No, the HSP-110M requires 400V three-phase power. Make sure your facility has the proper electrical infrastructure before ordering. If you need a single-phase option, contact your supplier about alternative models in the Baileigh range.
What type of hydraulic oil should I use?
Use Shell Hydraulic Oil #46 or an equivalent hydraulic oil with similar viscosity specifications. The system requires 30 liters total capacity. Never use automotive motor oil or non-hydraulic fluids.
How do I adjust the working height?
The heavy work table can be adjusted easily using the hydraulic cylinder and lifting chain system. Support pins lock the table at your desired height. The table adjustment is effortless thanks to the hydraulic assist.
What's the difference between motorized and manual operation?
Motorized operation uses the 2.2 kW electric motor for faster, continuous pressing operations ideal for production work. Manual operation uses the hand pump for precise control when you need to carefully monitor force application – perfect for delicate assemblies or testing.
Is regular maintenance required?
Yes, like all hydraulic equipment, the HSP-110M needs periodic maintenance. Check hydraulic oil levels regularly, inspect seals and hoses for wear, keep the chrome piston clean, and purge air from the system if you notice performance issues. The user manual includes a complete maintenance schedule.
Can this handle offcenter pressing work?
Absolutely! One of the standout features is the moveable cylinder that slides left and right within the frame. This means you can position the pressing force exactly where you need it, even on asymmetrical or off-center workpieces, without losing power or accuracy.
