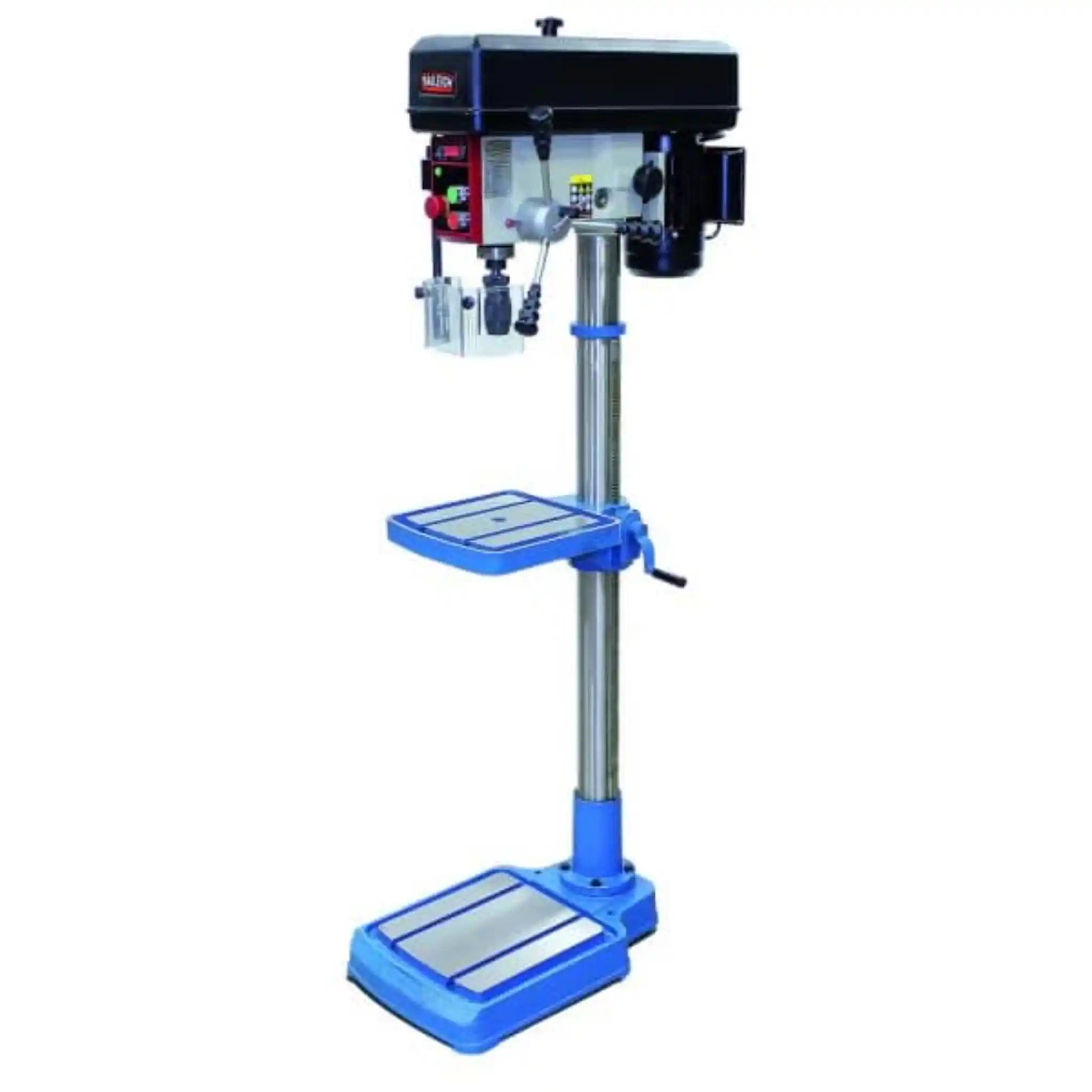

Baileigh DP-1000E Drill Press Overview
The Baileigh DP-1000E is a robust 15-1/2" belt driven drill press designed to deliver professional-grade performance for metalworking shops, fabrication facilities, and serious hobbyists who demand reliability and precision in their drilling operations.
Looking for a drill press that won't let you down when you're tackling tough materials? The DP-1000E is built to handle whatever you throw at it. This economical yet powerful belt driven drill press combines industrial-grade construction with user-friendly operation, making it the perfect choice for metal fabricators, maintenance shops, and professional workshops.
What sets this drill press apart is its combination of power and versatility. With a 1/2 hp motor and five speed settings ranging from 250 to 2900 rpm, you can dial in the perfect speed for any material or drill bit size. This isn't just about convenience—running your tools at the optimal speed means they'll last longer and give you cleaner, more precise holes every time. The MT3 taper spindle accepts a wide range of tooling, so you're never limited in what you can accomplish.
Built on a foundation of heavy cast iron, this drill press is engineered for stability and accuracy. The 3.62" diameter steel column virtually eliminates flex, even when you're drilling at maximum capacity through 1" mild steel. You'll appreciate the generous 12-1/2" x 12-1/2" work table that rotates a full 360 degrees, giving you the flexibility to position your workpiece exactly where you need it. Safety hasn't been overlooked either—the included safety shield protects you during operation, while the solid construction ensures smooth, vibration-free performance that leads to better results.
Product Video
Applications
- General Metal Fabrication: Drill precise holes in steel plates, brackets, and structural components for custom fabrication projects
- Automotive & Machine Shop Work: Create mounting holes, bore precision openings in engine components, and perform maintenance drilling tasks
- Prototype Development: Machine accurate holes in metal prototypes and one-off custom parts with repeatable precision
- Agricultural Equipment Repair: Drill through heavy steel farm equipment frames and components for repairs and modifications
- Manufacturing & Production: Handle medium-volume production drilling tasks in steel, aluminum, and other metals
- Maintenance & Repair Operations: Perform facility maintenance drilling jobs on machinery, equipment housings, and metal structures
Key Features & Benefits
- Five-Speed Belt Drive System (250-2900 RPM): Match the perfect speed to your material and bit size for optimal results. Slower speeds for larger bits and harder materials, higher speeds for precision work—you control it all to maximize tool life and drilling performance.
- 1" Steel Drilling Capacity: Power through mild steel up to 1 inch thick with confidence. This capacity means you can handle serious metalworking projects without needing to outsource or compromise on hole sizes.
- Heavy-Duty 3.62: Experience rock-solid stability with virtually zero flex, even at full capacity. This means accurate, perpendicular holes every time, with no wandering or chatter that ruins your workpiece.
- Robust Cast Iron Construction: The heavy cast iron base and table provide the mass and rigidity needed for precision work. You'll notice the difference immediately—less vibration, better finishes, and drilling accuracy you can rely on.
- 5.3" Spindle Travel: Generous quill travel gives you the depth capacity for deep drilling operations without repositioning your workpiece multiple times.

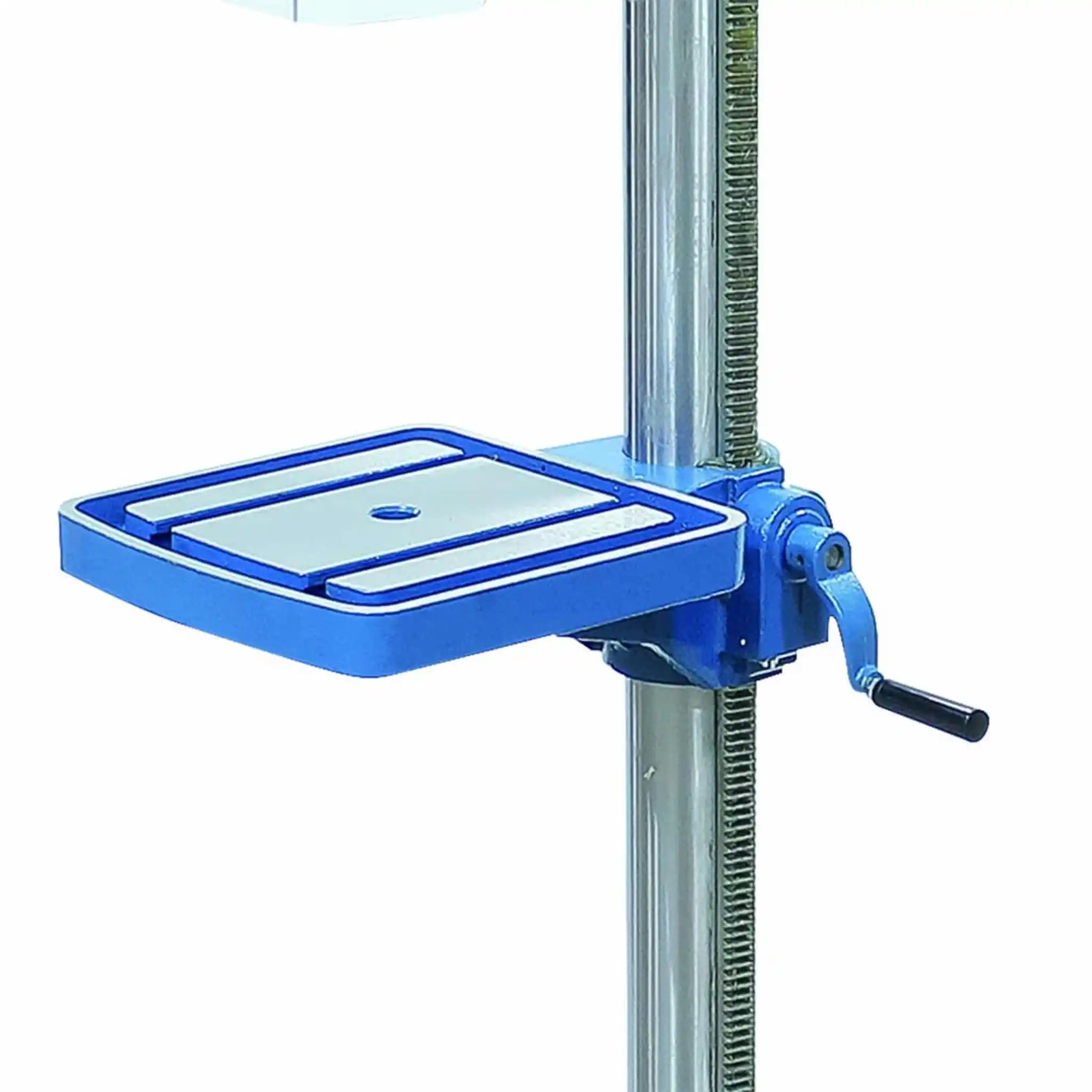

- 360-Degree Rotating Table with T-Slots: Position your work at any angle and secure it firmly using the 1/2
- MT3 Taper Spindle: Industry-standard Morse taper accepts a wide range of drill chucks, arbors, and tooling, so you're never limited by proprietary accessories.
- Integrated Safety Shield: Work with peace of mind knowing you're protected from chips and debris. Safety isn't just a checkbox—it's built into the design so you can focus on the work.
What's in the Box
- Baileigh DP-1000E Drill Press (fully assembled)

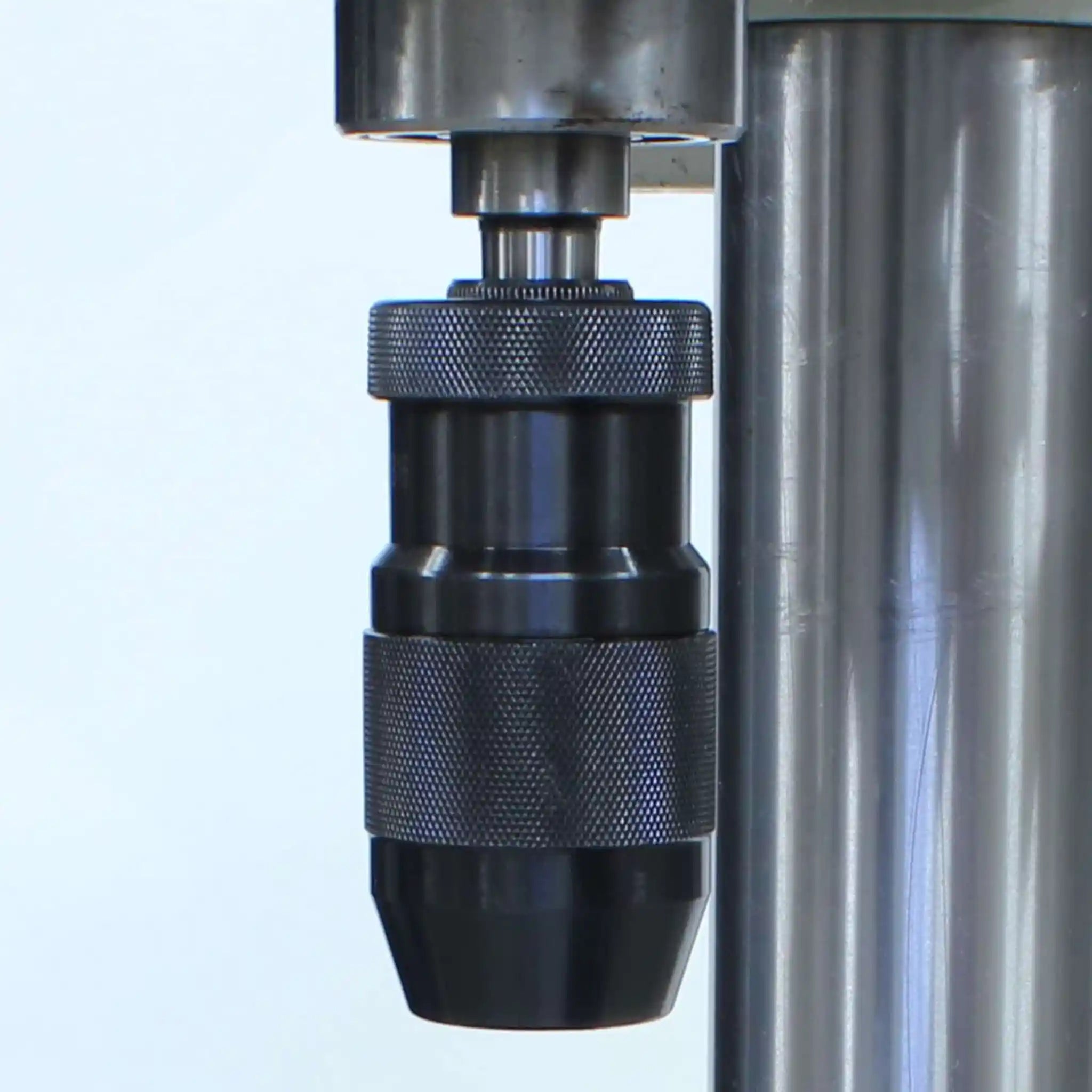

- B-16 Keyless Chuck (1-16mm capacity)
- MT2 to B16 Chuck Arbor
- Safety Shield (pre-installed)
- Owner's Manual and Documentation
- 2-Year Parts Warranty
- Lifetime Technical Support Access
Baileigh DP-1000E Specifications
| Swing Capacity | 15-1/2 |
|---|---|
| Maximum Drilling Capacity (Steel) | 1 |
| Column Diameter | 3.62 |
Baileigh DP-1000E Manuals & Downloads
Frequently Asked Questions
How do I change speeds on this drill press?
Speed changes are made manually by repositioning the belt on different pulley combinations—this is a traditional belt-driven system. Simply open the belt guard, release the belt tension, move the belt to the desired pulley configuration for your target speed, and re-tension. The process takes just a minute or two and gives you precise control over your drilling speed. The five speeds cover the full range you need for different materials and bit sizes.
What's the difference between MT2 and MT3 tapers, and why does it matter?
The DP-1000E uses an MT3 (Morse Taper 3) spindle, which is larger and more robust than MT2. This is important because MT3 can handle heavier loads and larger drill bits without slipping. The included chuck arbor is MT2 to B16, which adapts the MT3 spindle to accept your B-16 chuck. This combination gives you both the strength of MT3 and the versatility of the keyless chuck system.
Can this drill press be used for tapping threads?
While the DP-1000E doesn't have automatic tapping features, you can certainly use it for manual tapping operations by selecting the appropriate low speed (250 or 700 RPM) and carefully controlling the feed. For frequent tapping work, you might consider Baileigh's gear-driven models with dedicated tapping features, but for occasional tapping, this drill press will serve you well.
What kind of maintenance does this drill press require?
Maintenance is straightforward—keep the column clean and lightly oiled, check belt tension periodically, and keep the working surfaces free of debris. The cast iron construction is built to last with minimal upkeep. Baileigh provides lifetime technical support by phone, so if you ever have questions about maintenance or operation, expert help is just a call away.
