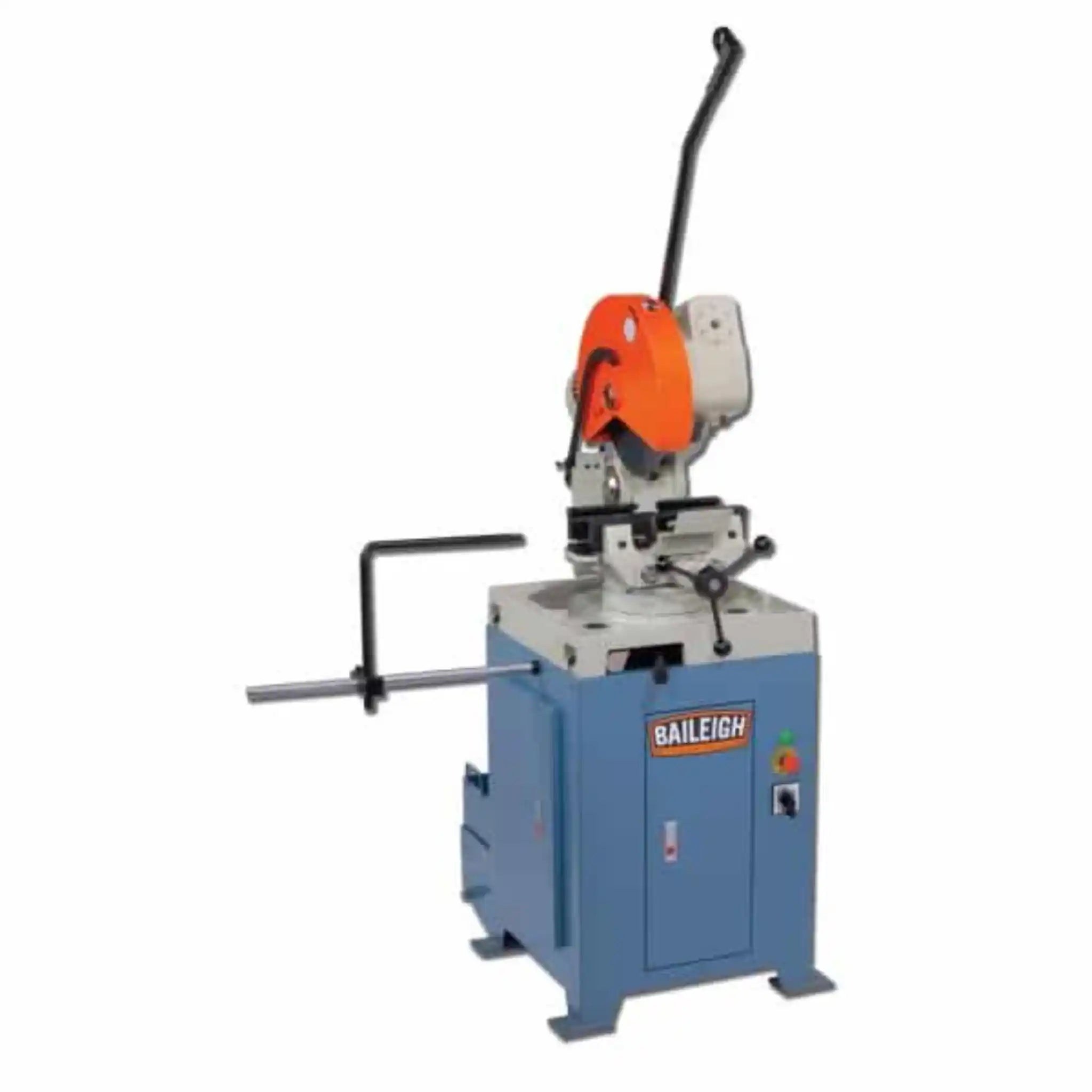

Baileigh CS-350M Cold Saw
The Baileigh CS-350M is a professional grade 350mm (14") manual circular cold saw that delivers precision cuts with minimal burrs, making it the ideal choice for metal fabrication shops that demand accuracy and reliability without breaking the bank.
Are you tired of dealing with rough cuts, excessive blade wear, and machines that can't keep up with your production demands? The CS-350M from Baileigh Industrial is engineered to solve these exact problems. This cold saw represents the sweet spot between affordability and professional grade performance, giving you features typically found on machines costing thousands more.
What makes this saw stand out is its intelligent design focused on real world fabrication needs. The dual-speed system (22 and 44 rpm in EU configuration) lets you switch between different materials without compromising cut quality. Whether you're working with mild steel pipe, solid bar stock, or various tubing profiles, this saw handles it all with the same precision. The self centering dual action vise eliminates the frustration of manual adjustments between different diameter materials, saving you valuable time on every cut.
Built on a solid cast iron base with a robust steel stand, the CS-350M minimizes vibrations that cause inaccurate cuts and premature blade wear. The industrial grade flood coolant system continuously lubricates the blade and washes away chips, extending blade life significantly and reducing your operating costs. With a powerful 4.0 hp motor running on 400V three phase power, this machine delivers consistent performance shift after shift. This is the workhorse that fabrication shops, chassis builders, and metal working operations rely on when quality and productivity matter.
Product Video
Applications
- Marine and Maritime Fabrication: Cutting stainless steel and aluminum railings, structural tubing for boat frames, and marine-grade materials with burr-free precision that reduces finishing time.
- Playground and Recreational Equipment Manufacturing: Producing clean, safe cuts on galvanized and powder-coated tubing where edge quality directly impacts safety and appearance.
- Automotive and Chassis Fabrication: Slicing through various profile tubes and solid bars for roll cages, chassis components, and structural reinforcements with repeatable accuracy.
- Handrail and Architectural Metalwork: Creating precise mitered cuts for handrails, balustrades, and decorative metalwork where fit and finish are critical.
- General Fabrication Shop Work: Handling your daily cutting tasks from structural steel to non-ferrous metals, from thin-wall tubing to solid bar stock.
- Production Cutting Operations: Managing medium-volume production runs where you need reliability and consistency without the complexity of semi-automatic systems.
Key Features & Benefits
- Dual-Speed Blade System (22/44 RPM): You get the flexibility to optimize cutting speed for different materials. Use the slower speed for harder materials to extend blade life, or ramp up to the faster speed when working with softer metals. This versatility means one machine handles your entire range of materials.

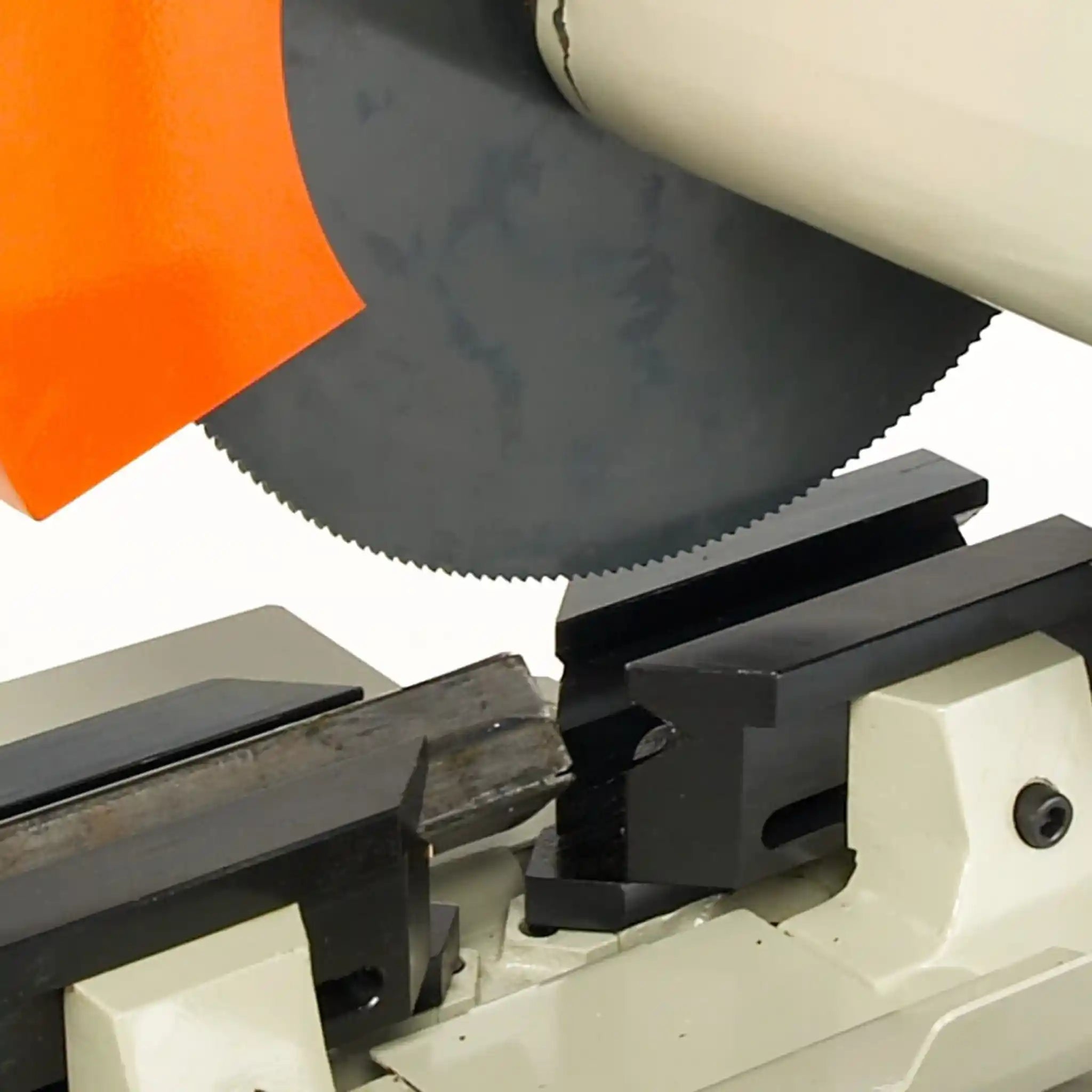

- Self-Centering Dual-Action Vise: Stop wasting time with manual adjustments. This intelligent vise automatically centers your material with the blade, regardless of diameter. You'll achieve perfect cuts every time, whether you're working with 25mm or 165mm stock.
- Industrial Flood Coolant System: Your blades will last significantly longer, and you'll get cleaner cuts with less effort. The coolant continuously lubricates the cutting area and removes chips, reducing heat buildup and blade wear. This means lower operating costs and less downtime for blade changes.
- Ground and Hardened Direct-Drive Gearbox: The all-metal gears are precision ground and heat-treated for durability. You'll maintain tight tolerances throughout the life of the saw, with a backlash adjustment feature that lets you fine-tune performance as the machine ages.

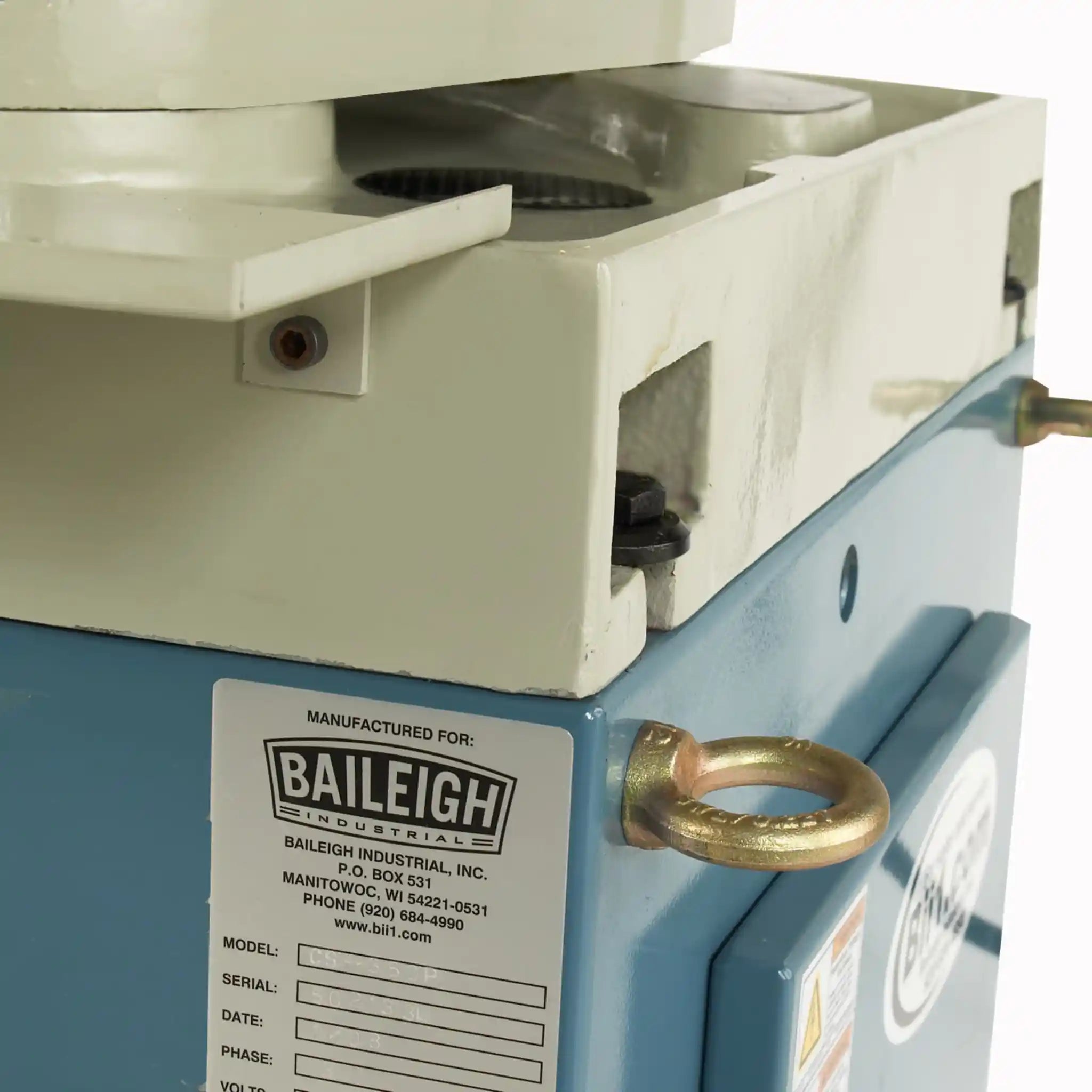

- Heavy Cast Iron Construction: The rigid base absorbs vibrations that would otherwise compromise cut quality. You get accurate, square cuts that require minimal finishing work, saving time and reducing material waste.

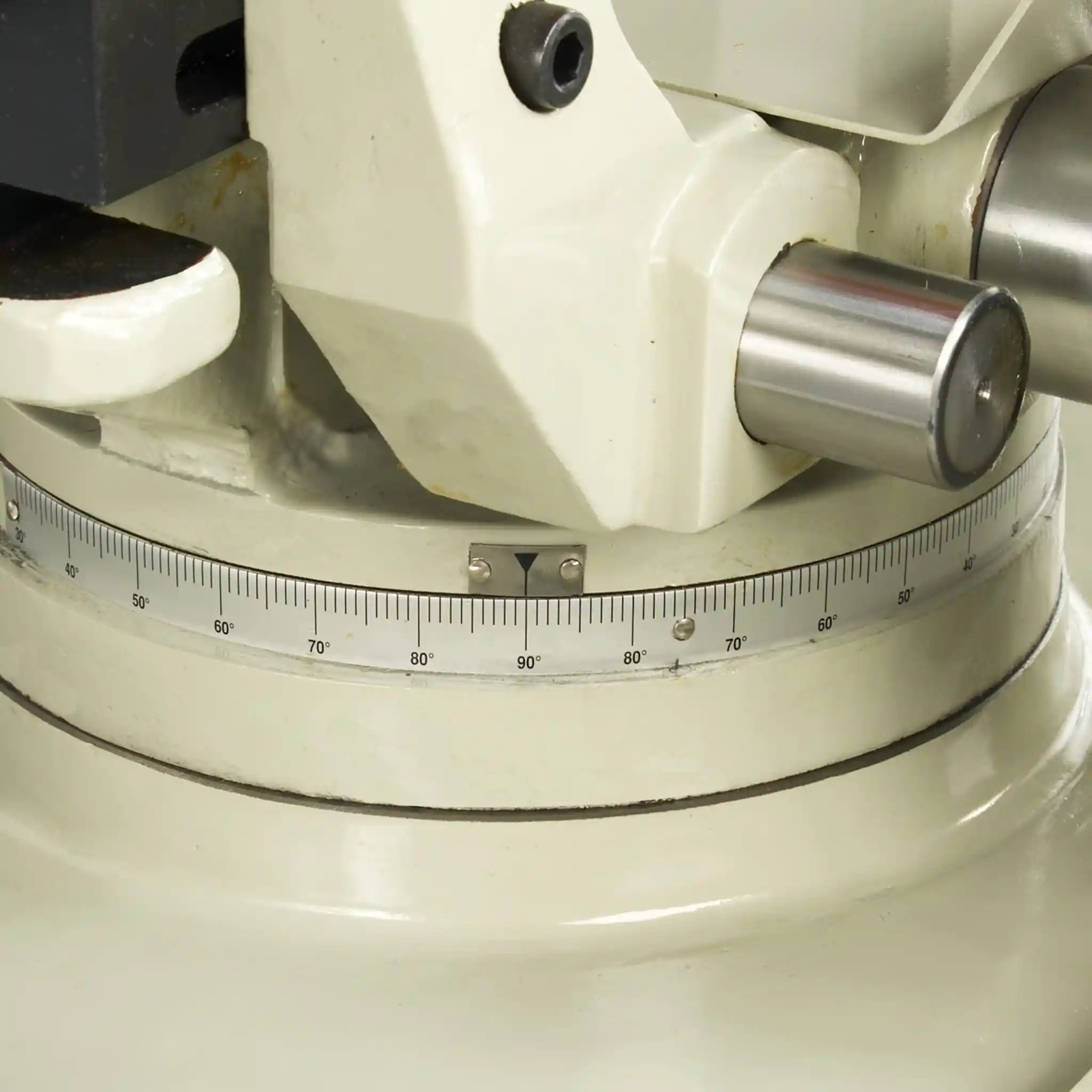

- Versatile Mitering Capability (45° Right / 90° Left): Perfect for slotting applications and angled cuts. You can tackle complex fabrication projects without needing multiple machines or complicated setups.
- Maximum 110mm Round Capacity at 90°: This substantial cutting capacity handles most fabrication shop requirements, from small diameter tubing to larger structural components, all in one compact machine.
- Comfortable Working Height with Steel Stand: The heavy-duty steel stand positions the saw at an ergonomic height, reducing operator fatigue during extended cutting sessions. Your team will appreciate the thought that went into the design.
What's in the Box
- Main Machine Unit – Fully assembled CS-350M cold saw with 350mm blade capacity
- Integrated Coolant System – Complete flood coolant system with reservoir and pump
- Dual-Action Self-Centering Vise – Pre-installed and adjusted, with 165mm maximum opening
- Heavy-Duty Steel Stand – Robust support structure for stable operation
- Movable Safety Guard – Adjustable blade guard for operator protection
- Operation Manual – Comprehensive setup and operating instructions
- 1-Year Parts Warranty – Full coverage on all parts for peace of mind
- Lifetime Technical Support – Direct phone access to experienced Baileigh metalworkers
Baileigh CS-350M Specifications
| Model Number | CS-350M |
|---|---|
| Max. Blade Diameter | 350mm (14") |
| Motor Power | 4.0 / 3.0 hp |
| Power Supply | 400V / 3-Phase |
| Blade Speed | 22/44 rpm (dual speed) |
| Arbor Size | 32mm |
| Operation Type | Manual |
| Head Miter Range | 45° Right / 90° Left |
| Vice Style | Dual Action, Self-Centering |
| Max. Vice Opening | 165mm |
| Coolant System | Industrial-grade flood system |
| Slotting Capable | Yes, Left and Right |
Baileigh CS-350M Manuals & Downloads
Frequently Asked Questions
Can this saw handle stainless steel and aluminum as well as mild steel?
Yes, the CS-350M cuts a wide variety of materials including mild steel, stainless steel, aluminum, and other non-ferrous metals. The dual-speed system lets you select the appropriate RPM for your material. Use the slower 22 rpm for harder materials like stainless steel, and the faster 44 rpm for softer materials like aluminum. Always use the correct blade type for your specific material.
How difficult is the initial setup and what electrical requirements do I need?
The CS-350M arrives largely pre-assembled on its steel stand. You'll need a 400V three-phase electrical supply with appropriate amperage. Setup typically involves positioning the machine, connecting power, filling the coolant reservoir, and performing basic alignment checks detailed in the operation manual. Most shops have the machine running within a few hours of delivery. If you need assistance, Baileigh's lifetime technical support team can walk you through the process.
What kind of maintenance does this saw require?
Routine maintenance is straightforward. You'll need to check and refill the coolant reservoir regularly, clean chips from the vise and base area, and periodically inspect the blade for wear. The backlash adjustment should be checked occasionally to maintain tight tolerances. Baileigh recommends following the maintenance schedule in your operation manual to ensure optimal performance and longevity.
Will this saw work for production environments or is it better suited for job shops?
The CS-350M is designed for medium-duty production work and excels in job shop environments. While it's a manual saw requiring operator presence for each cut, its robust construction, efficient coolant system, and self-centering vise make it suitable for production runs. For higher-volume automated cutting, you might consider Baileigh's semi-automatic models, but for many shops, the CS-350M offers the perfect balance of productivity and value.
What's included in the warranty and what kind of support can I expect?
Your CS-350M comes with a comprehensive 1-year parts warranty covering manufacturing defects. Beyond the warranty period, Baileigh provides lifetime technical support by phone, giving you direct access to experienced metalworkers who understand the equipment. Replacement parts are kept in stock for quick delivery, minimizing any potential downtime.
