Baileigh BSV-16 Bandsaw Overview

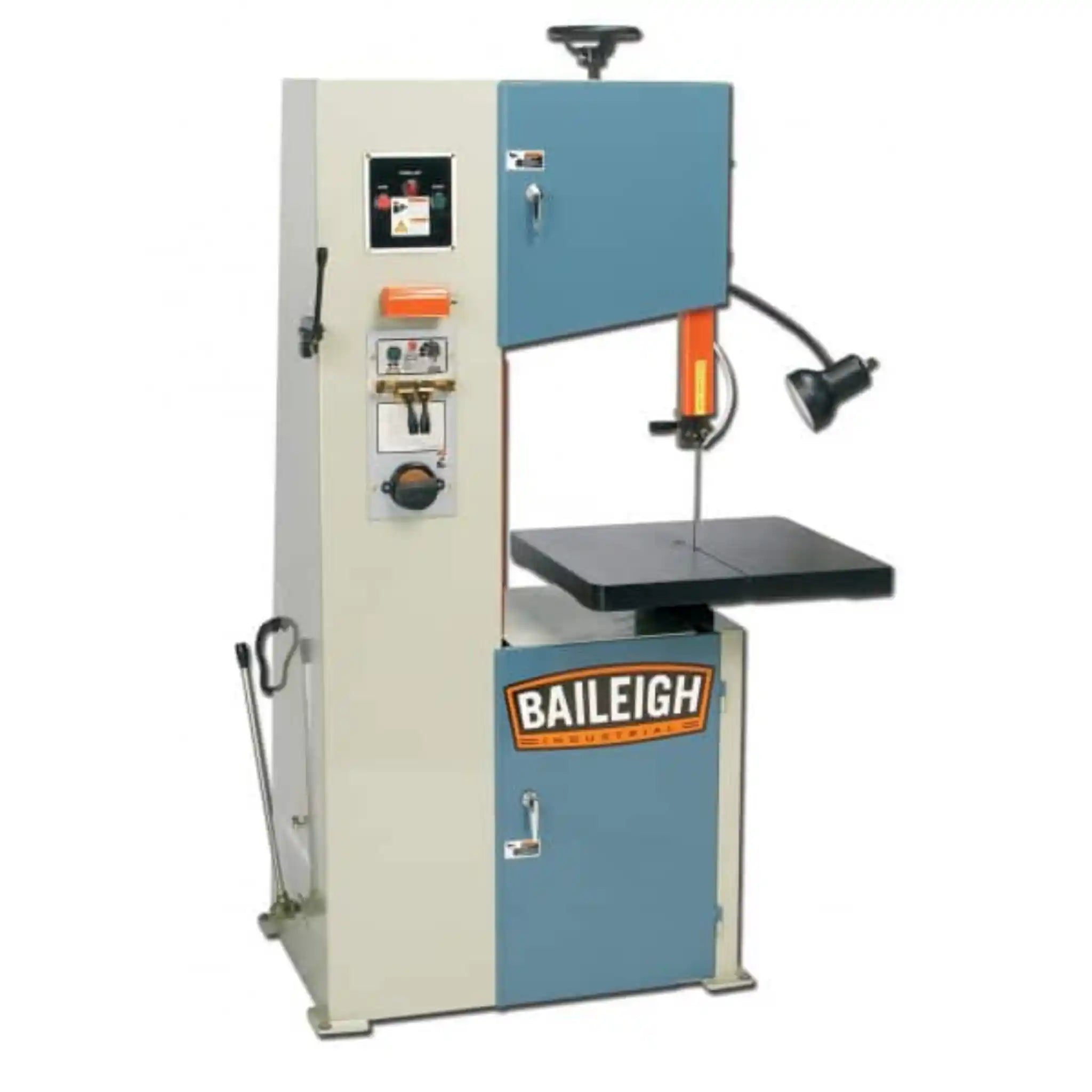

The Baileigh BSV-16 is a robust 16 inch vertical band saw designed to deliver professional grade cutting performance without the premium price tag. Perfect for fabrication shops, workshops, and industrial environments, this versatile machine handles everything from intricate curved cuts to straight cut offs with precision and reliability.
Looking for a vertical band saw that doesn't compromise on quality but won't break your budget? The BSV-16 is your answer. Built with a fully welded steel frame and industrial grade components, this machine is engineered to serve your shop faithfully for years to come.

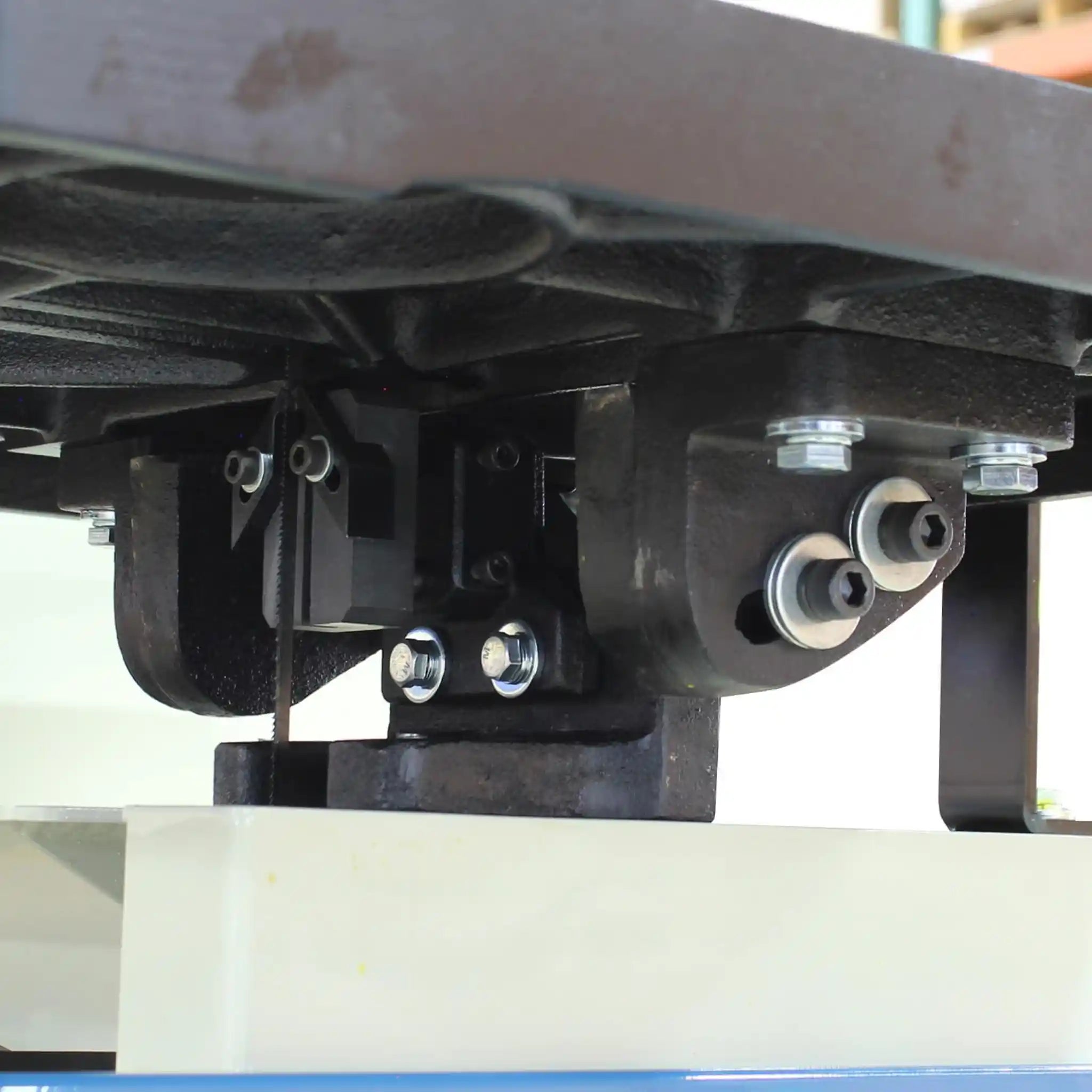

What makes the BSV-16 stand out is its impressive versatility. With a generous 386mm throat depth and 388mm maximum cutting thickness, you'll have plenty of capacity for most projects that come through your shop. The heavy duty cast iron table measures 603mm x 552mm, giving you a stable, oversized work surface that pivots 10° front to back and 15° left to right - making angled cuts a breeze.
Here's where it gets even better: the BSV-16 includes a built in blade welder. This means you can cut through the blade, feed it through the center of your workpiece and weld it back together. Opening up possibilities for interior cuts without drilling entry holes. The integrated welder also lets you repair damaged blades or create custom blade lengths, reducing your operating costs over time. With four variable speeds (63-249 RPM) controlled by a gear driven system, you can optimize your cutting speed for different materials from soft aluminum to tough alloy steel. An included work light illuminates your cutting line for improved accuracy and safety.
Product Video
Applications
- Contour cutting and pattern making: Create intricate shapes and curves in metal plates and profiles for custom fabrication work
- Interior cutouts: Use the built-in blade welder to make internal cuts in workpieces without needing pre-drilled access holes
- Angle and miter cuts: The tilting table makes short work of beveled edges and angled components for welding assemblies
- Small batch production: Cut metal stock to length for manufacturing runs or prototype development
- Repair and maintenance work: Perfect for cutting brackets, plates, and custom parts in maintenance shops
- Educational settings: Ideal for vocational schools and training facilities teaching metalworking skills
Key Features & Benefits

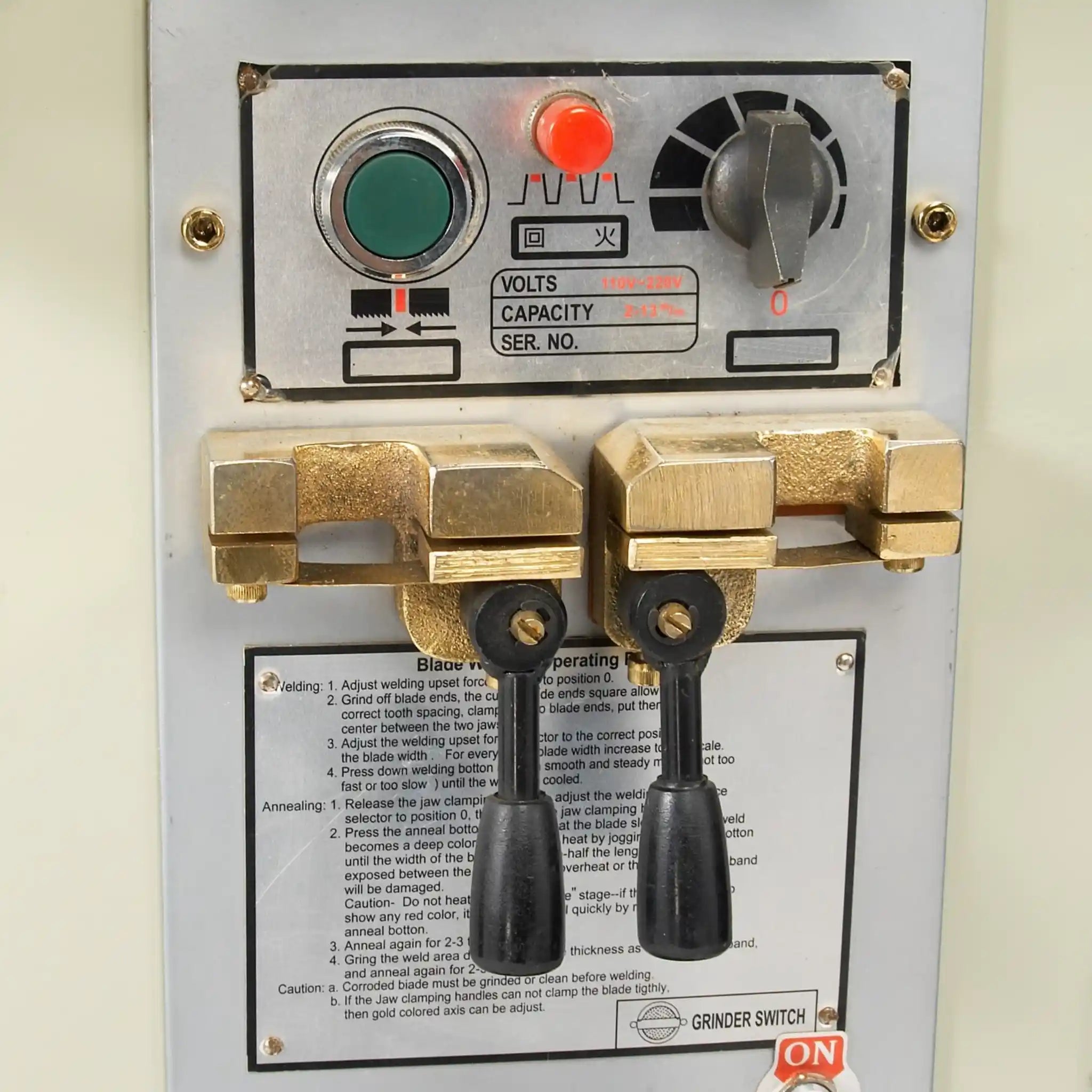

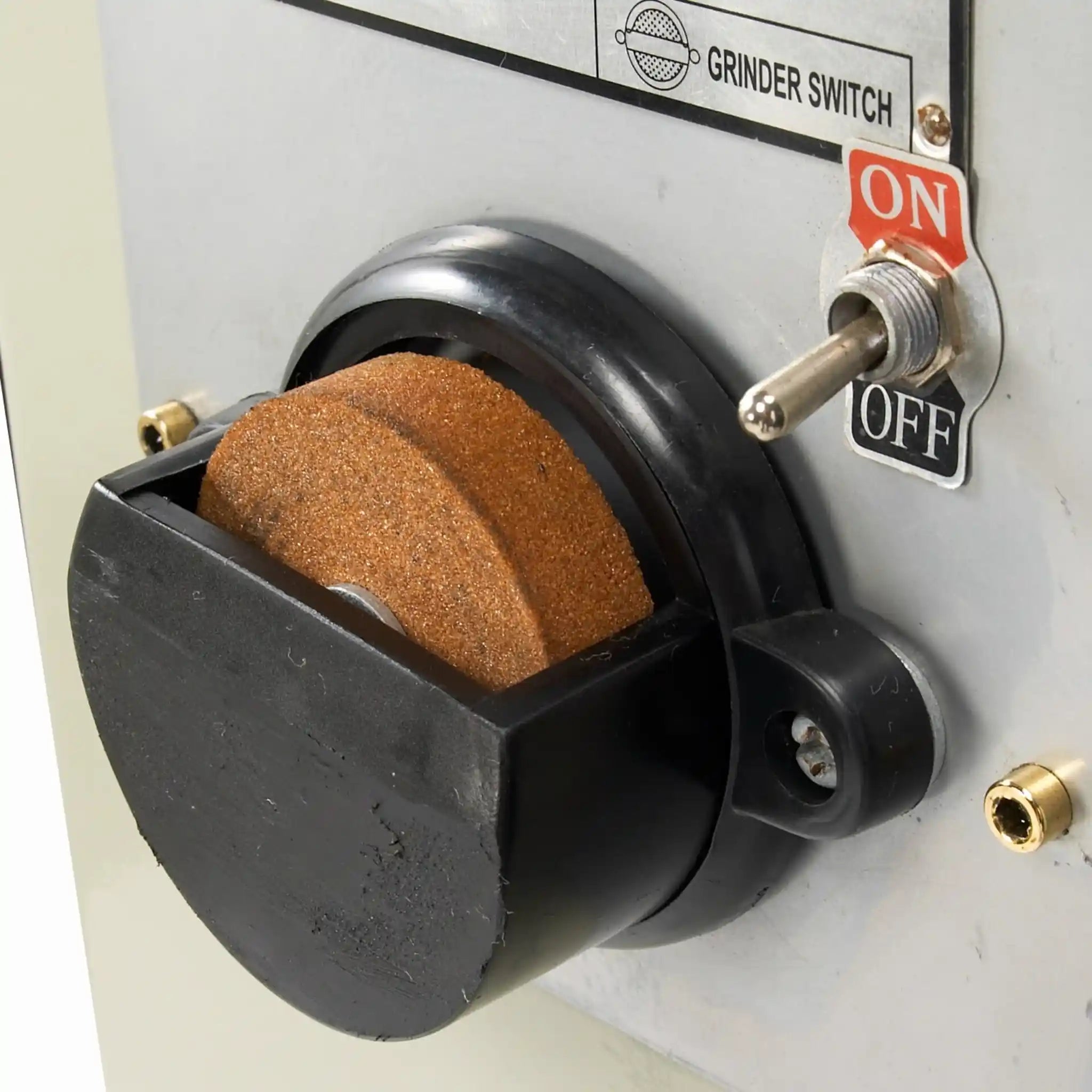

- Built-in blade welder with grinder: Save money by repairing blades and making interior cuts without drilling. This feature alone pays for itself by extending blade life and opening up new cutting possibilities for your projects.
- Four-speed gearbox (63-249 RPM): Choose the perfect cutting speed for your material. Slower speeds work brilliantly for harder metals, while faster speeds make quick work of softer materials like aluminum.
- Generous 386mm throat depth and 388mm cutting capacity: You won't feel limited by size constraints. This capacity handles most fabrication projects, from small brackets to larger structural components.
- Dual-axis tilting table with angle scale: The table pivots 10° front-to-back and 15° left-to-right with convenient reference scales, making angled cuts repeatable and accurate without complicated setups.
- Accepts blade widths from 6mm to 16mm: Switch between narrow blades for tight curves (6mm) and wider blades for straight cuts (up to 16mm), giving you maximum flexibility for different applications.
- Fully welded steel frame construction: Industrial-grade build quality means this machine won't vibrate excessively or lose accuracy over time. It's designed to maintain precision even under heavy daily use.
- Integrated work light: See exactly where you're cutting for improved accuracy and safety, especially important when working with complex patterns or in workshops with variable lighting.
- Single-phase 220V power: Runs on standard workshop power - no need for expensive three-phase electrical installations or converters.
What's in the Box
- Baileigh BSV-16 vertical band saw (fully assembled)
- Built-in blade welder with integrated grinding wheel
- Work light (pre-installed)
- Blade guard and safety equipment
- Operating manual and technical documentation
- Manufacturer's warranty information
Baileigh BSV-16 Specifications
| Table Size | 603mm x 552mm |
|---|---|
| Throat Depth | 386mm |
| Maximum Cutting Thickness | 388mm |
Frequently Asked Questions
Can this saw cut materials other than metal?
Yes! While designed primarily for metalworking, the BSV-16's variable speed capability means you can also cut plastics, wood, and composite materials by selecting the appropriate blade and speed setting.
How difficult is it to change blade speeds?
The BSV-16 uses a mechanical 4-speed gearbox system. Changing speeds typically involves adjusting a belt position - it takes just a few minutes once you're familiar with the process. The manual provides clear instructions.
What maintenance does the blade welder require?
Minimal maintenance is needed. Keep the welding surfaces clean, and occasionally dress the grinding wheel. The welder is designed for long-term reliability with basic care.
What blade sizes should I keep in stock?
For versatility, we recommend keeping several blade widths on hand: 6mm for tight curves, 10mm for general purpose work, and 16mm for straight cuts. Stock blades with different tooth counts (TPI) for various materials.
Is this suitable for a small workshop or only industrial use?
The BSV-16 is perfect for small to medium workshops. Its single-phase power requirement and compact footprint make it practical for smaller spaces, while its industrial-grade construction ensures it can handle professional workloads.
