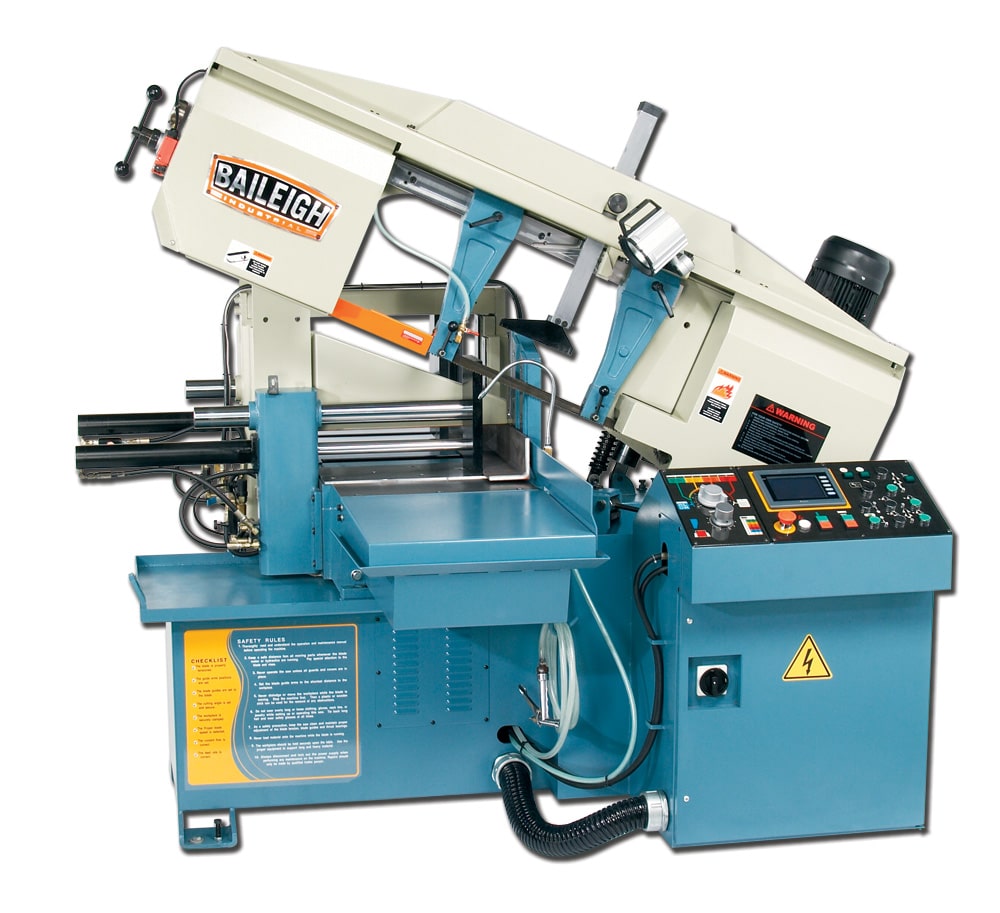

Baileigh BS-20A Automatic Horizontal Bandsaw
Excl. VAT:
Incl. VAT:
Why Shop With Us?
✅ Free UK Delivery
✅ 30-Day Easy Returns
✅ Price Match Guarantee
✅ Manufacturer’s Warranty
The BS-20A Automatic Bandsaw From Baileigh Overview
The Baileigh BS-20A is a heavy-duty automatic horizontal bandsaw designed for high-volume production environments, featuring a powerful hydraulic system that automatically clamps, cuts, and feeds material bundles. This industrial-grade saw delivers exceptional precision with cutting capacities up to 13" round and 13" x 18" rectangular stock at 90°.
Built for demanding production environments, the BS-20A transforms metal cutting operations with its fully automatic operation system. The machine features a robust 5 HP motor that drives an industrial-grade hydraulic system, enabling continuous cutting cycles without manual intervention. The touchscreen programmer interface makes operation intuitive, allowing operators to switch seamlessly between manual and automatic modes depending on production requirements.
The BS-20A stands out with its massive material handling capacity. The integrated infeed and outfeed tables can support up to 5,000 pounds of material, making it ideal for processing heavy bundles and long stock materials. The electro-welded steel framework minimizes vibrations during cutting operations, ensuring consistent accuracy even during extended production runs.
For maximum versatility, the saw offers variable blade speeds from 90 to 256 FPM, allowing operators to optimize cutting performance for different materials. The 2-speed blade descent system further enhances productivity by reducing cycle times while maintaining cut quality.
Product Video
Applications
- Production Sawing Operations: Ideal for repetitive cutting of identical lengths in manufacturing environments
- Metal Fabrication Shops: Perfect for processing steel, aluminum, and other metal stock for fabrication projects
- Structural Steel Processing: Efficiently cuts I-beams, angle iron, and rectangular tubing for construction applications
- Bundle Cutting: Simultaneously processes multiple pieces of bar stock or tubing to increase throughput
- Material Preparation Centers: Prepares raw materials for downstream manufacturing processes
- Heavy Industry Applications: Handles large-diameter solid rounds and thick-walled materials with ease
Key Features & Benefits
- Automatic Operation System: Hydraulically powered clamp, cut, and feed functions eliminate manual handling between cuts
- Large Cutting Capacity: Accommodates materials up to 13" round and 13" x 18" rectangular at 90°
- Variable Speed Control: Adjustable blade speeds from 89-256 FPM optimize performance for different materials
- Touchscreen Programmer: Modern interface simplifies operation and allows easy switching between manual/auto modes
- 5,000 lb Material Capacity: Heavy-duty infeed and outfeed tables handle large material bundles
- Patented Blade Tension System: Visual indicator with green zone ensures optimal blade tension every time
- 2-Speed Blade Descent: Reduces cycle times while maintaining precise control
- Automatic Blade Shut-off: Safety feature stops blade rotation when cutting is complete
What's in the Box
- BS-20A Automatic Horizontal Bandsaw main unit
- 1" x 144" bi-metal blade (pre-installed)
- Touchscreen control panel with programmer
- Halogen work light for improved visibility
- Digital encoders for precise material feeding
- Hydraulic system components
- Operation and maintenance manual
- Tool kit for basic adjustments
BS-20A Specifications
| Capacity Rectangular (90° x 45°) | 330 x 457 mm / 330 x 279 mm |
|---|---|
| Capacity Round (90° x 45°) | 330 mm / 279 mm |
| Capacity Square (90° x 45°) | 330 mm / 279 mm |
Baileigh BS-20A Manuals & Downloads
Frequently Asked Questions
Can the BS-20A operate in both manual and automatic modes?
Yes, the touchscreen programmer allows operators to easily switch between manual mode for single cuts and automatic mode for production runs.
What materials can the BS-20A cut effectively?
The BS-20A handles a wide range of materials including mild steel, stainless steel, aluminum, brass, and other metals. The variable speed control (89-256 FPM) allows optimization for different material hardness.
How does the automatic feeding system work?
Digital encoders precisely control material advancement between cuts, ensuring repeatable accuracy. The system automatically feeds the programmed length after each cut cycle.
What safety features does the BS-20A include?
The machine features automatic blade shut-off after each cut, emergency stop controls, and safety guards around all moving components to protect operators during use.
