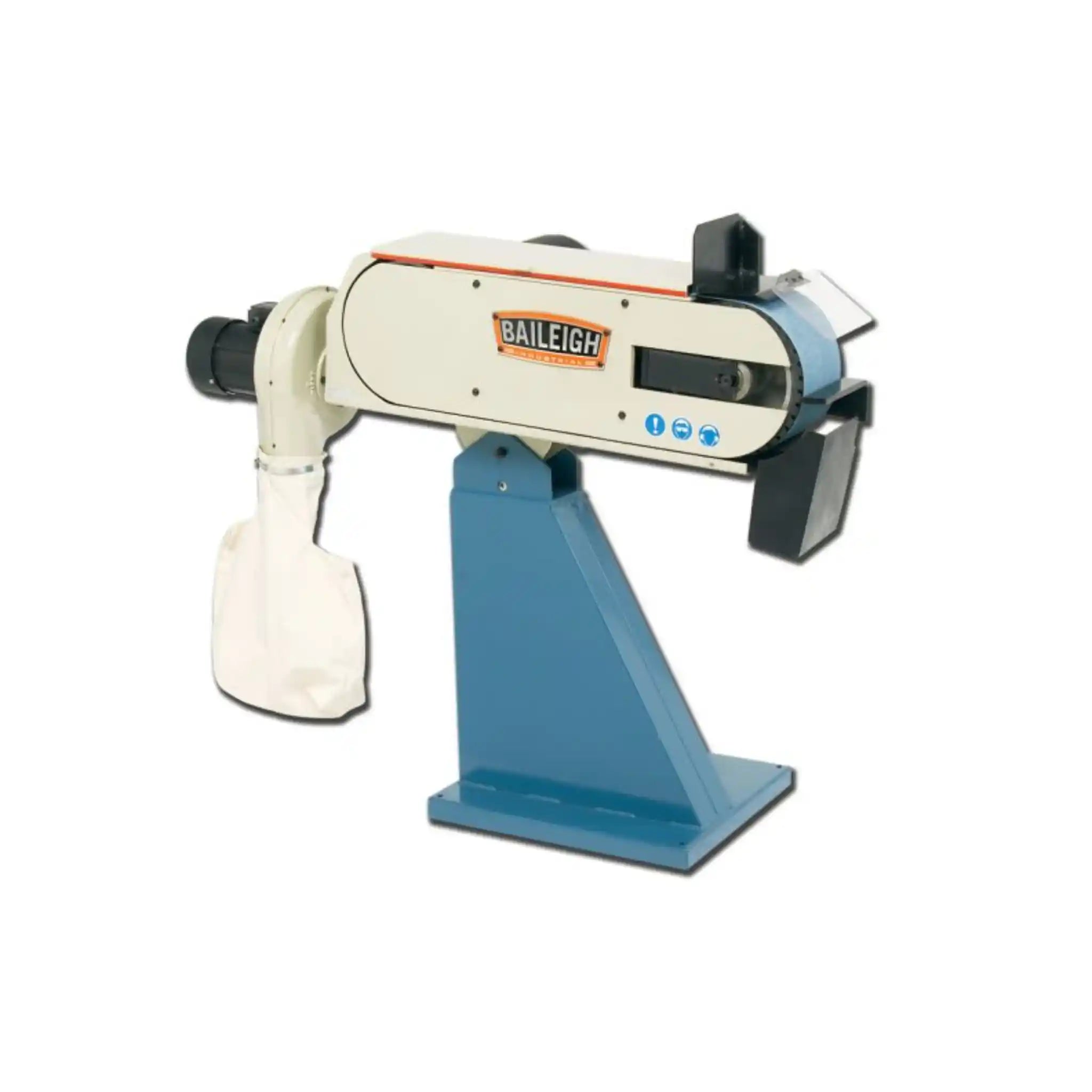

Baileigh BG-679-3PH Heavy Duty Industrial Belt Grinder
The Baileigh BG-679-3PH is a professional grade 6" x 79" belt grinder that combines a powerful 4 HP motor with three-phase 400V power to deliver unmatched performance for heavy duty metalworking applications.
When you need serious grinding power that won't slow down under pressure, the BG-679-3PH is your answer. This machine is built for fabrication shops, manufacturing facilities, and metalworking professionals who demand reliability and performance every single day. The 152mm (6") wide belt gives you significantly more working surface compared to smaller grinders, which means you'll finish jobs faster and more efficiently.
What sets this grinder apart is its industrial-grade construction. The main drive wheel is precision-machined from solid billet aluminum for optimal strength and longevity. The front idler wheel features aluminum wrapped in polyurethane, giving you the smoothest, most consistent grind possible. The entire frame is constructed from heavy steel that's folded and fully welded, creating a rigid platform that minimizes vibration and maximizes accuracy.
The integrated vacuum motor is a game changer for your workspace. Metal dust and grinding debris get extracted right at the source before they can spread throughout your shop. The top cover opens up to provide a flat grinding surface, perfect for those awkward castings and larger workpieces that need attention.
Applications
- Smoothing and finishing welds: Perfect for fabricated steel structures, frames, and assemblies before final assembly or coating
- Deburring and edge preparation: Remove sharp edges and create clean, safe surfaces on machined parts, stamped components, and cut metal pieces
- Cleaning and restoring castings: Remove sand, scale, and surface imperfections from aluminum, iron, and steel castings
- Chamfering edges for welding preparation: Create precise bevels on plate steel, structural components, and pipe sections
- Surface preparation for coating: Remove rust, mill scale, and old paint from metal surfaces before powder coating, painting, or galvanizing
- Shaping and contouring metal components: Ideal for custom fabrication projects, artistic metalwork, and prototype development
Key Features & Benefits
- Powerful 4 HP Motor with 400V Three-Phase Power: This industrial motor delivers consistent torque even under full load, maintaining speed and power when you need it most

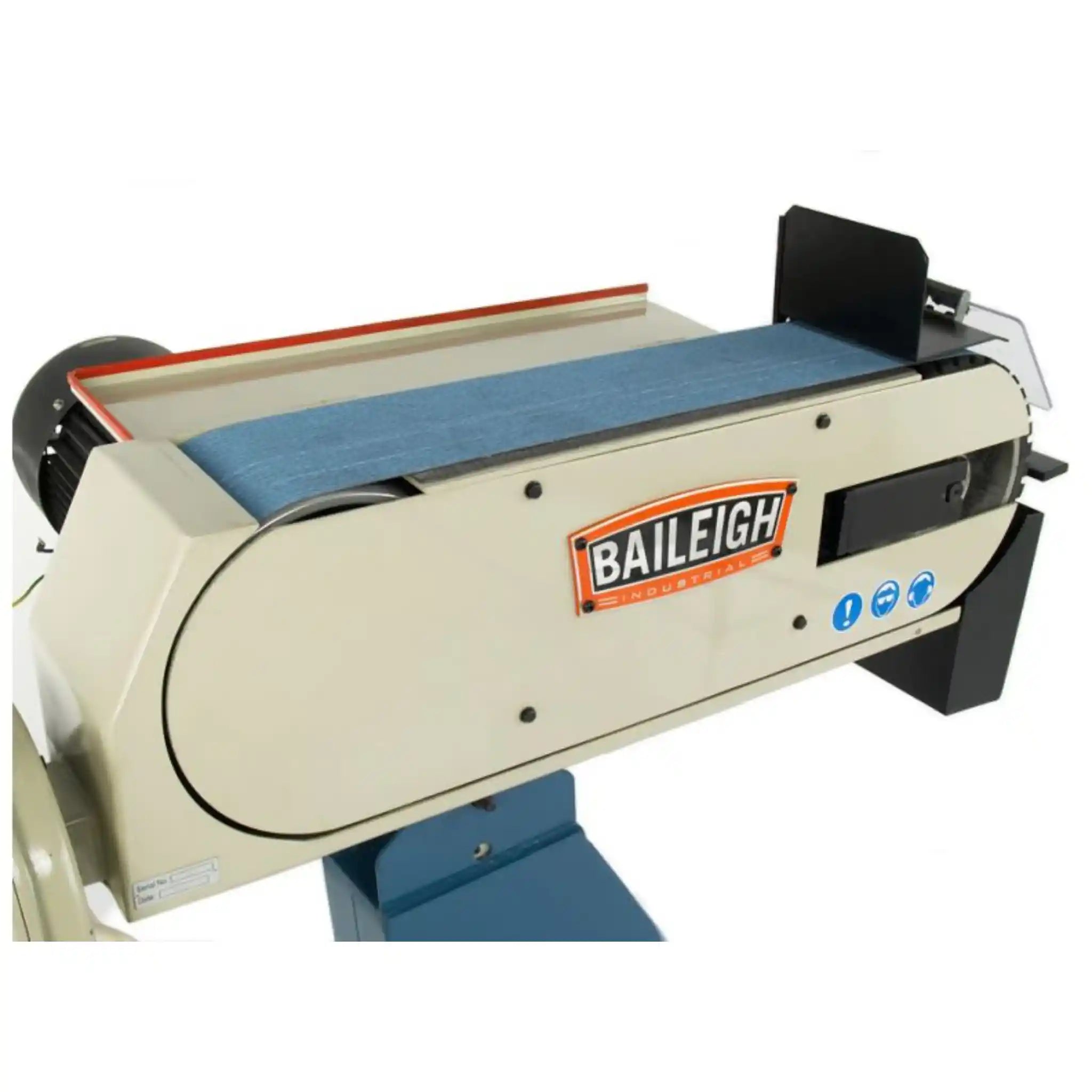

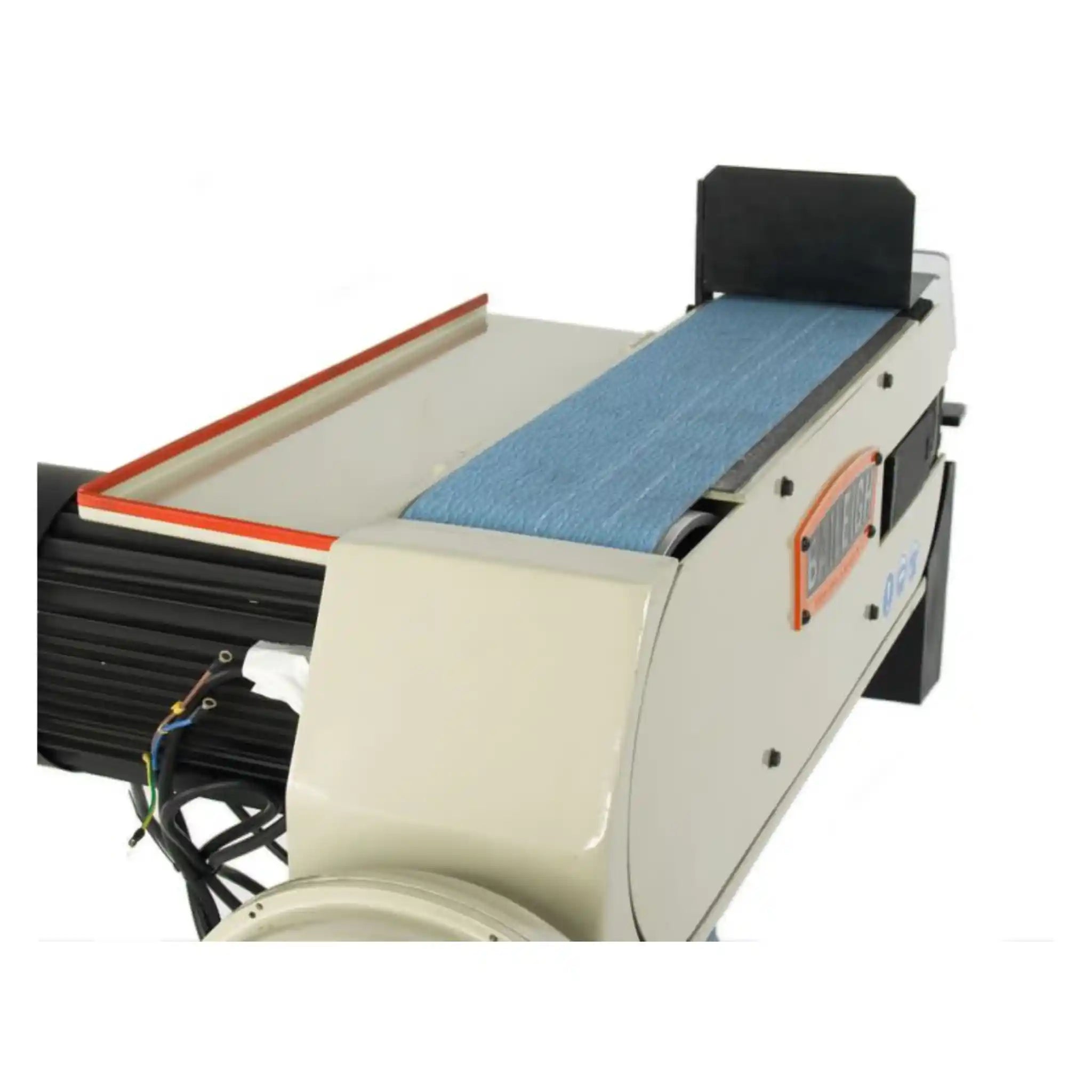

- Extra-Wide 152mm (6") Belt: Cover more surface area with each pass, completing jobs faster while the larger contact area distributes heat better
- Precision-Machined Solid Billet Aluminum Drive Wheel: Perfectly balanced for smooth operation and exceptional durability that lasts for years
- Polyurethane-Wrapped Front Idler Wheel: Provides consistent belt tracking and the smoothest possible grind with excellent surface finishes
- Integrated Dust Collection System: Built-in vacuum motor captures metal dust and grinding particles before they become airborne, keeping your shop cleaner
- Convertible Top Cover for Flat Grinding: Opens to transform your grinder into a flat grinding station, perfect for castings and large plates
- Heavy-Duty Welded Steel Construction: Folded and fully welded steel frame creates a rock-solid foundation that dampens vibration for accurate results
- Simple Belt Tracking and Tensioning System: Quick and straightforward belt changes mean less maintenance time and more productivity
What's in the Box
- BG-679-3PH Belt Grinder Main Unit (fully assembled head)
- Heavy-Duty Steel Base Stand
- Integrated Vacuum Motor and Dust Collection System
- 250mm x 152mm Contact Wheel (installed)
- Work Rest with Eye Shield
- Belt Tracking and Tensioning Hardware
- Owner's Manual and Safety Documentation
- 1-Year Parts Warranty Card
Baileigh BG-679-3PH Specifications
| Model Number | BG-679-3PH |
|---|---|
| Motor Power | 4 HP (2.94 kW) |
| Power Requirements | 400V, 3-Phase, 50Hz |
| Belt Size | 2000mm x 152mm (79" x 6") |
| Contact Wheel Diameter | 250mm (9.8") |
| Contact Wheel Width | 152mm (6") |
| Belt Speed | 2220 meters per minute |
| Dust Collection | Yes (integrated vacuum motor) |
Baileigh BG-679-3PH Manuals & Downloads
Frequently Asked Questions
What type of power do I need to run this machine?
You need a 400V three-phase electrical supply with proper amperage rating. This is standard in most industrial and commercial facilities. The three-phase power provides more consistent performance and better efficiency compared to single-phase machines. You'll need to have an electrician install the appropriate power outlet and circuit if not already available in your shop.
What grit belts should I use for different applications?
For heavy material removal and aggressive grinding, start with 36 to 60 grit belts. For general deburring and surface preparation, 80 to 120 grit works well. For finishing and creating smooth surfaces, use 150 to 240 grit belts. Baileigh offers belts specifically designed for this machine in various grits suitable for both ferrous and non-ferrous metals.
How difficult is it to change belts?
Belt changes are straightforward thanks to the simple tracking and tensioning system. You release the tension, remove the old belt, install the new one, restore tension, and adjust tracking. Most users can change a belt in just a few minutes once familiar with the process. The owner's manual includes clear instructions with photos.
Can this grinder handle aluminum and stainless steel?
Absolutely. The BG-679-3PH works excellently on aluminum, stainless steel, mild steel, and other ferrous and non-ferrous metals. Just make sure you're using the appropriate grit and type of abrasive belt for your specific material. Different metals may require different belt types for optimal results.
How much space do I need for this machine?
The machine itself has a footprint of approximately 1168mm x 660mm (46" x 26"), but you should plan for additional clearance around the machine for comfortable operation and maintenance access. We recommend at least 1.5 meters (5 feet) of clearance on the belt side for working with longer pieces, and sufficient space behind the machine for the dust collection outlet.
Is the dust collection system effective enough, or do I need additional extraction?
The integrated vacuum motor is quite effective for most applications and will capture the majority of grinding dust. However, if you're doing extremely heavy grinding all day or have strict air quality requirements, you may want to supplement it with a shop-wide dust collection system. The machine can be connected to external dust extraction systems if needed.
