Baileigh AP-5 Arbor Press

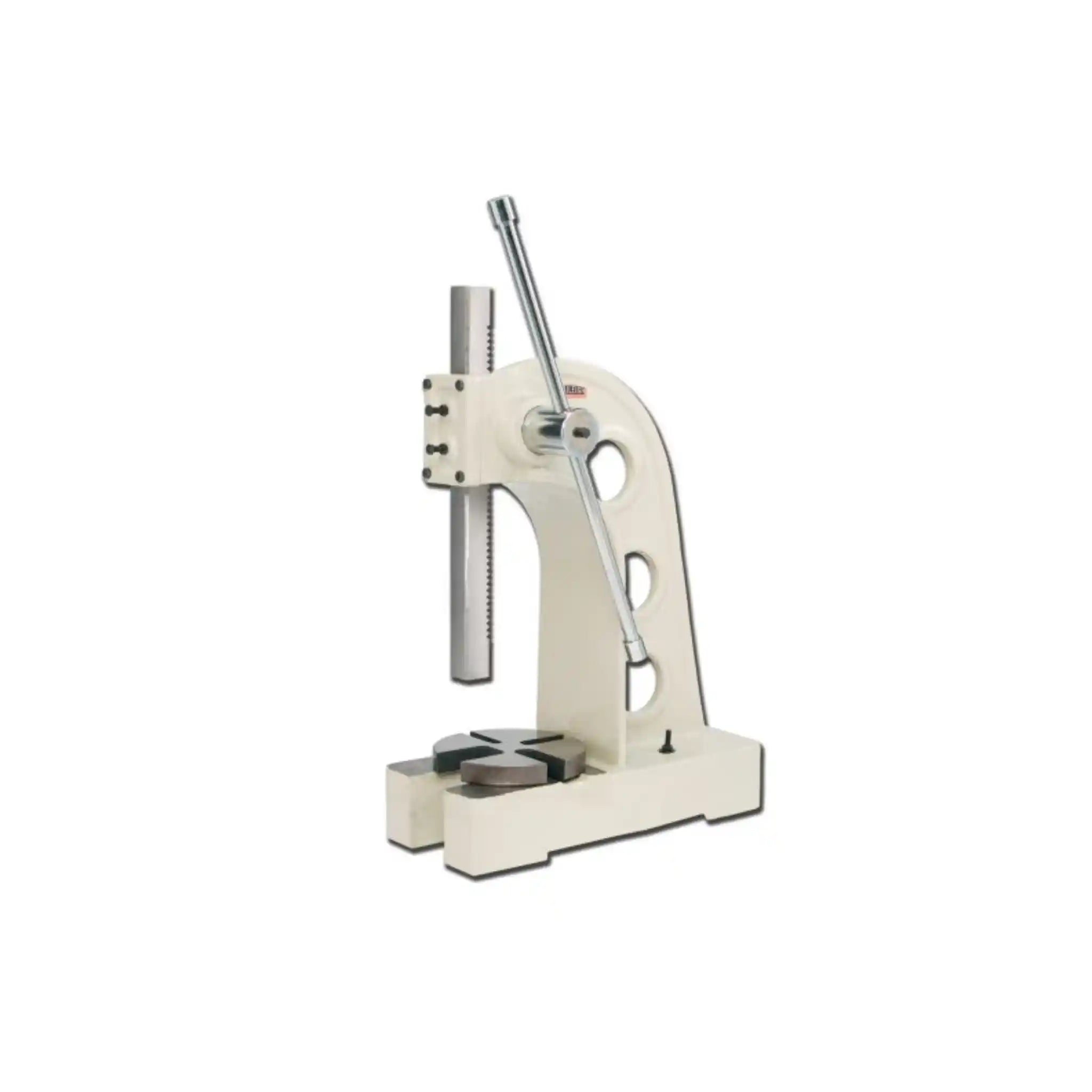

The Baileigh AP-5 is a heavy-duty 5-ton manual arbor press engineered for precision metalworking tasks in fabrication shops, machine shops, and professional workshops. This robust, cast iron powerhouse delivers controlled force for pressing bearings, broaching keyways, and countless other pressing applications without requiring electricity or hydraulics.
Looking for a reliable workhorse that'll handle your toughest pressing jobs without breaking a sweat? The Baileigh AP-5 arbor press is your answer. Built with massive cast iron construction, this isn't some lightweight tool that'll wobble under pressure – it's designed to deliver decades of reliable service in demanding shop environments.
What makes the AP-5 special? It combines old-school mechanical reliability with precision engineering. The 50mm x 50mm case-hardened ram transfers force without flex, meaning your pressing work stays accurate even under maximum load. Whether you're installing bearings in a gearbox, pressing bushings into heavy equipment, or broaching keyways for shaft assemblies, this press gives you the control and power you need.
Here's what you'll love: this press doesn't need electricity, compressors, or hydraulic systems. It's purely mechanical, which means no maintenance headaches, no air leaks, and no power bills. Just grab the 31-inch adjustable handle and let the leverage do the work. The 32:1 mechanical advantage means you're not fighting the press – you're working with it. Perfect for both high-volume production shops and weekend warriors who demand professional-grade tools.
Product Video
Applications
- Bearing Installation & Removal: Press bearings into housings or remove stubborn bearings from shafts with controlled, even force
- Bushing Installation: Seat bushings perfectly in heavy machinery, automotive components, and industrial equipment
- Keyway Broaching: Cut precise keyways in shafts and couplings using standard broaching tooling
- Press-Fit Assembly: Join components that require interference fits, from gear assemblies to shaft collars
- Sheet Metal Forming: Shape and form smaller sheet metal parts using appropriate dies and tooling
- Straightening & Bending: Correct bent shafts or form metal components with precise control
Key Features & Benefits
- 5 Ton (5.6 ton max) Capacity: Powerful enough for serious fabrication work, yet controllable enough for delicate operations – you get the muscle when you need it

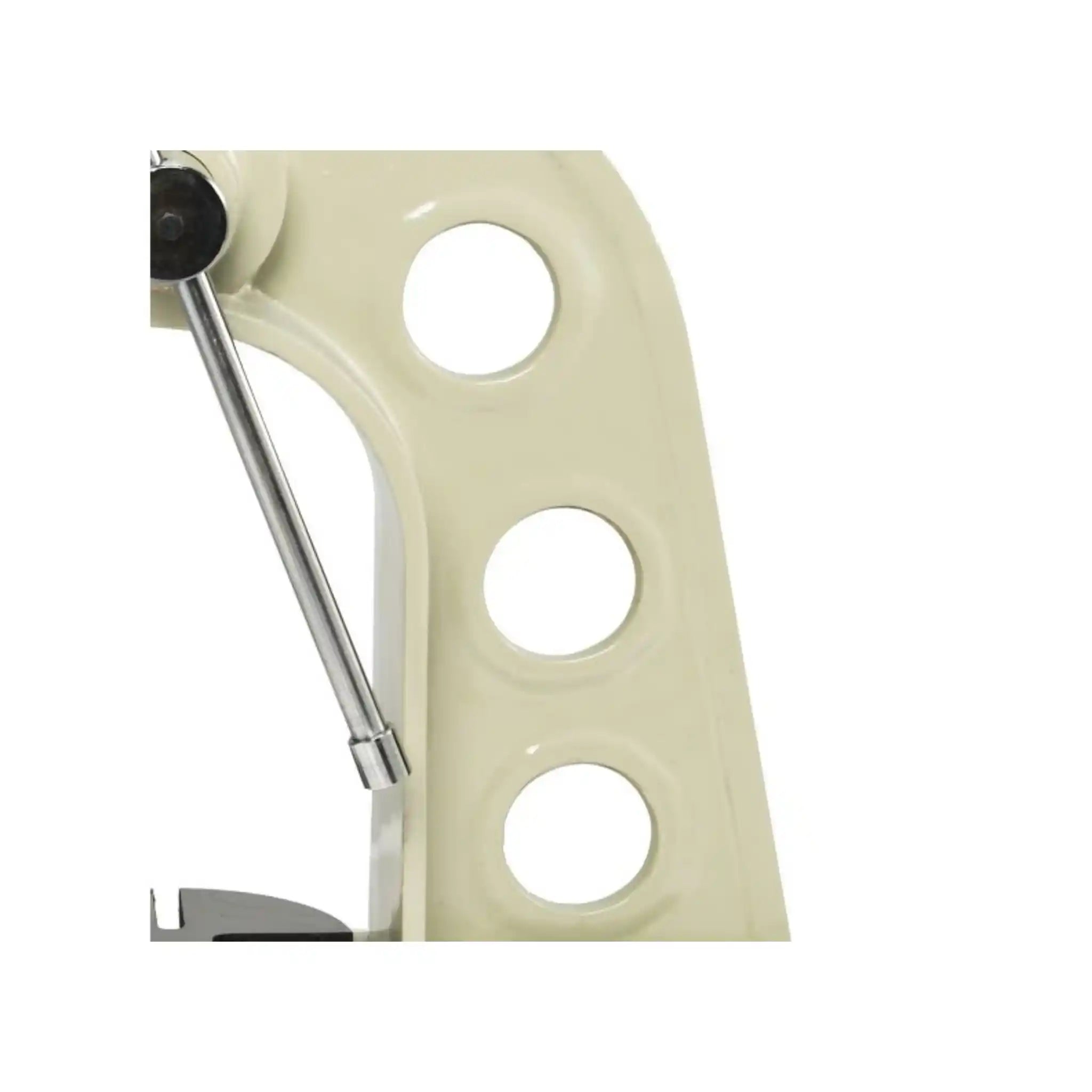

- Machined Cast Iron Construction: This isn't stamped steel – it's solid cast iron that absorbs vibration and provides rock-solid stability. Your press will outlive most equipment in your shop

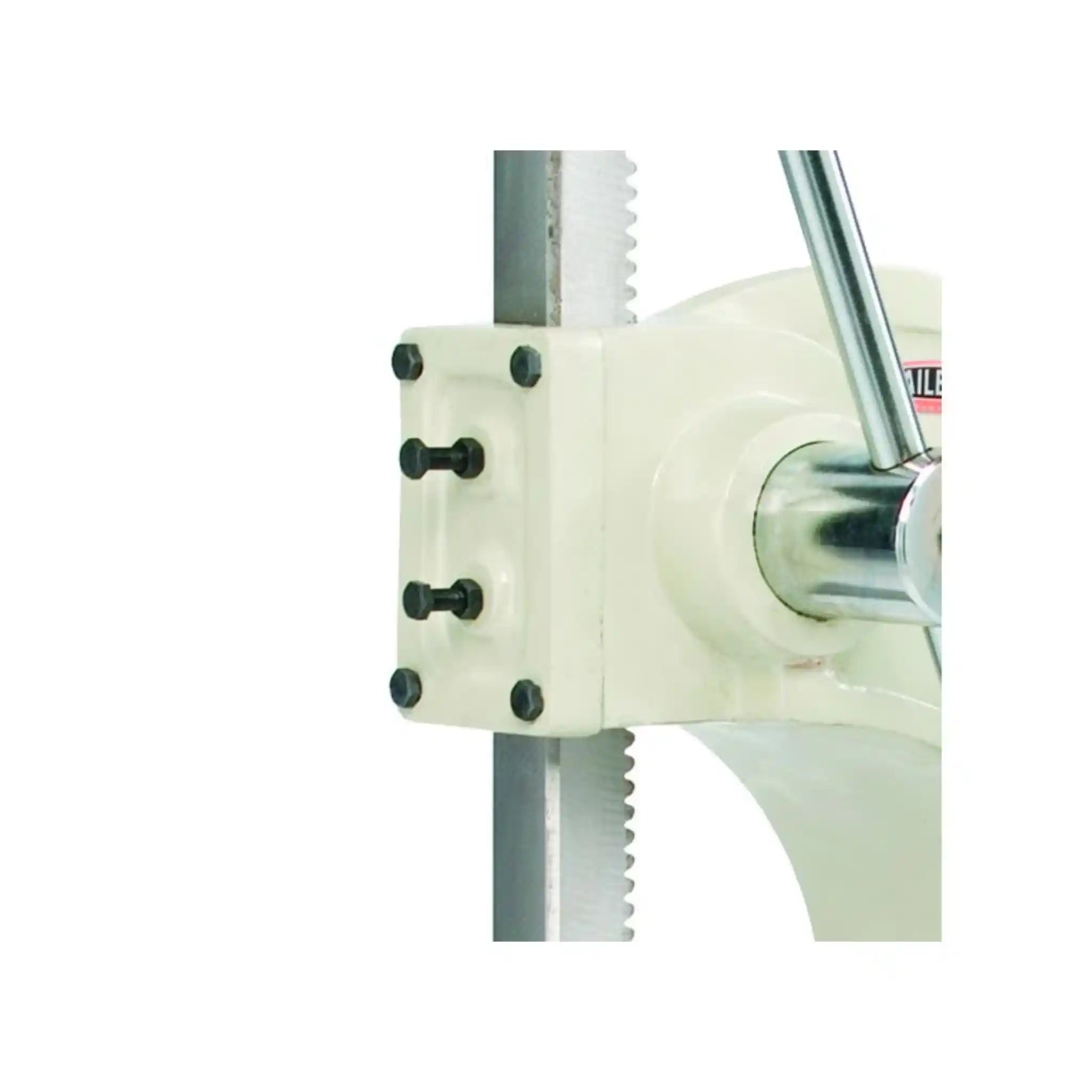

- 50mm x 50mm Case-Hardened Ram: The hefty ram delivers force without flexing or deflecting, meaning your work stays aligned and accurate under pressure
- 226mm (8.89") Throat Depth: Reach deep into assemblies and work with larger components without fighting for clearance
- 400mm Maximum Material Height: Accommodate tall workpieces with plenty of vertical capacity for varied applications
- 31-Inch Adjustable Leverage Handle: Position the handle wherever it's comfortable and let the mechanical advantage do the heavy lifting – no strain, no fatigue

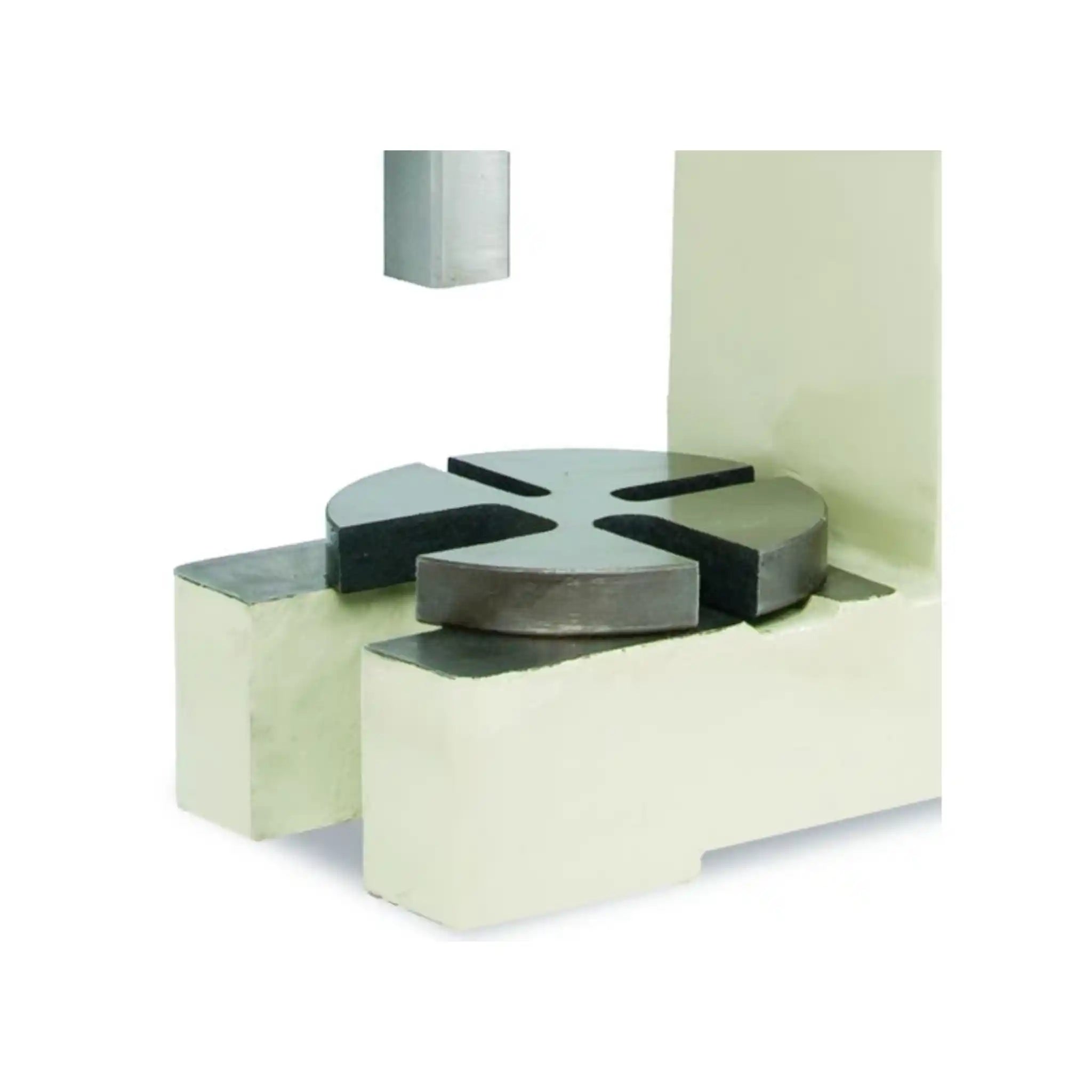

- Removable 4-Position Bottom Plate: Switch between broaching operations and direct pressing in seconds. The multi-position plate secures various broach sizes, while removing it gives you a flat pressing surface
- Bench or Pedestal Mount Options: Install it where it works best for your workflow – bolt it to your bench or mount it on a pedestal for floor-standing operation
What's in the Box
- 1x Baileigh AP-5 Arbor Press (fully assembled)
- 1x Adjustable 31-inch leverage handle
- 1x Heavy-duty 4-position bottom die plate
- 1x Adjustable ram cap
- Installation hardware for bench/pedestal mounting
- Owner's manual with operating instructions and specifications
- 1-year manufacturer's warranty
- Lifetime technical support from Baileigh
Baileigh AP-5 Specifications
| Model Number | AP-5 |
|---|---|
| Capacity | 5 metric tons (5.6 tons maximum) |
| Ram Size | 50mm x 50mm |
| Throat Depth | 226mm (8.89") |
| Maximum Material Height | 400mm (15.75") |
Baileigh AP-5 Manuals & Downloads
Frequently Asked Questions
Does this arbor press require electricity or compressed air?
No! The AP-5 is completely manual. It operates through pure mechanical advantage using the lever handle. This means zero operating costs, no maintenance on pumps or compressors, and you can use it anywhere in your shop without worrying about power sources.
Can I use this for broaching, or do I need special attachments?
The AP-5 comes with a 4-position bottom die plate specifically designed for broaching operations. You'll need to purchase broaches separately (standard commercial broaches work perfectly), but the press is ready for broaching right out of the box. The plate positions keep your broaches secure and aligned during operation.
What's the difference between throat depth and maximum material height?
Great question! Throat depth (226mm) is the horizontal distance from the ram center to the back of the frame – this determines how far you can reach into an assembly. Maximum material height (400mm) is the vertical space between the ram and base when fully extended – this is how tall your workpiece can be. Together, these dimensions define your working envelope.
How much force can I actually apply with the handle?
The 31-inch handle provides approximately 32:1 mechanical advantage. In practical terms, if you apply 50 pounds of force to the handle, you're generating roughly 1,600 pounds (0.8 tons) at the ram. Apply your full force and you can reach the press's 5-ton capacity. The beauty is you have complete control – apply gentle pressure for delicate work or lean into it for maximum force.
Is this suitable for a home workshop or is it industrial only?
The AP-5 works beautifully in both environments! It's built to industrial standards (meaning it'll last forever), but plenty of serious hobbyists and home shop owners choose this model. If you work on automotive projects, machinery repair, or any metalworking that requires pressing operations, this press delivers professional results without the professional price tag of hydraulic alternatives.
